USER MANUAL CHB1102 LOGILINK

natural_image Two black and blue HDV connectors with gold connector, shown against white background (no text or symbols)

High Quality Connection Cable

Art. No.: CHB1101

CHB1102

CHB1103

CHB1105

CHB1110

CHB1115

CHB1120

The optimized HDMI cable is specially designed for the latest HDMI version. The HDMI Ethernet Channel technology consolidates video, audio, and data streams into a single HDMI cable, and enables high-speed networking at up to 100 Mbit/s. Audio Return Channel allows an HDMI-connected TV with a built-in tuner to send audio data "upstream" to a surround audio system. Imaging 3D via HDMI and support all HDTV formats including 480p, 720p, 1080i, 1080p and 4Kx2K (3840×2160p@30Hz). In addition to RGB color and x.v.Color, it supports for three additional color spaces (sYCC60, Adobe RGB, and Adobe YCC601), enabling to deliver better accurate color on an HDTV.

Features:

» 2x HDMI (Type A) 19-pin male
» Gold plated contacts
» Transmission of audio, video and ethernet data
» Standard: High Speed with Ethernet
» 480i, 480p, 720p, 1080i, 1080p, 1440P and 2160P
» Max Data Transfer: Type A+A: 10.2 Gbps

LOGILINK CHB1102 - Features: - 1
Art-No.LengthEAN Code Art-No.LengthEAN Code
CHB11011M4052792005523CHB111010M4052792005561
CHB11022M4052792005530CHB111515M4052792005578
CHB11033M4052792005547CHB112020M4052792005585
CHB1105 5M4052792005554

LOGILINK CHB1102 - Features: - 2

natural_image Two black and blue HD card connectors with gold connector, shown against white background (no text or symbols)

High Quality Connection Cable

Art. No.: CHB1101

CHB1102

CHB1103

CHB1105

CHB1110

CHB1115

CHB1120

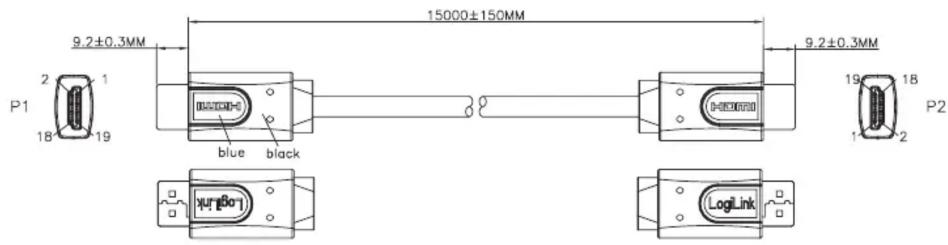

9.2±0.3MM 15000±150MM P1 2 1 18 19 blue black 9.2±0.3MM 19 18 1 2 P2 MURBO1 LogLink

PIN ASSIGNMENT P1 P2 P1 P2 1 WHITE 1 10 WHITE 10 3 RED 3 12 GREEN 12 2 DRAIN 2 11 DRAIN 11 4 WHITE 4 14 WHITE 14 6 BROWN 6 19 BLACK 19 5 DRAIN 5 17 DRAIN 17 6 WHITE 7 13 WHITE 13 7 BUY 7 15 RED 15 8 DRAIN 8 16 PINK 16 SHELL DRAIN SHELL

LOGILINK CHB1102 - High Quality Connection Cable - 3

LOGILINK CHB1102 - High Quality Connection Cable - 4

LOGILINK CHB1102 - High Quality Connection Cable - 5

LOGILINK CHB1102 - High Quality Connection Cable - 6

LOGILINK CHB1102 - High Quality Connection Cable - 7

Package Content:

» 1 x High Speed HDMI Cable

Package Information:

Art-No.Packing DimensionPacking WeightCarton DimensionCarton Q'tyCarton Weight
CHB1101173 x 260 x 60mmkg366 x 320 x 285mm10pcs2.8kg
CHB1102173 x 260 x 60mm0.26kg366 x 320 x 285mm10pcs3.4kg
CHB1103173 x 260 x 60mmkg366 x 320 x 285mm10pcs3.9kg
CHB1105173 x 260 x 60mm0.425kg366 x 320 x 285mm10pcs5.1kg
CHB1110173 x 260 x 60mm0.71kg366 x 320 x 285mm10pcs7.7kg
CHB1115173 x 260 x 125mmkg645 x 366 x 285mm10pcs15.2kg
CHB1120173 x 260 x 125mmkg645 x 366 x 285mm10pcs25.4kg
