OCS-C6 - Flash Vello - Free user manual and instructions

Product Type	Off-Camera TTL Flash Cord
Model	OCS-C6
Brand	Vello
Compatibility	Cameras with standard hot shoe and TTL flash support
Connector (Camera Side)	Standard hot shoe with locking mechanism
Connector (Flash Side)	Standard hot shoe with 1/4";-20 threaded socket for mounting
Cord Type	Coiled, stretchable
Cord Length (Coiled)	Approx. 12 in (30 cm)
Cord Length (Stretched)	Approx. 36 in (91 cm)
Weight	Approx. 3.5 oz (100 g)
Materials	Plastic, rubber, metal contacts
Mounting Options	Camera hot shoe, accessory shoe, tripod, boom, light stand (via 1/4";-20 thread)
Power Supply	Passive (no battery required)
Primary Function	Off-camera TTL flash triggering with full TTL communication
Locking Mechanism	Yes (on camera hot shoe)
Weather Resistance	Not water-resistant; avoid moisture
Operating Temperature	Typical indoor conditions (avoid extreme heat/cold)
Care & Cleaning	Wipe with soft dry cloth; no solvents
Safety Warnings	Turn off devices before connecting; do not modify or daisy-chain
Warranty	1 year limited (against defects in materials/workmanship)
Included Accessories	Flash cord only
Manufacturer	Gradus Group (Vello brand)

Frequently Asked Questions - OCS-C6 Vello

What is the Vello OCS-C6 Off-Camera TTL Flash Cord used for?

It allows you to mount a flash off the camera while maintaining full TTL (Through The Lens) communication, enabling automatic exposure control for natural-looking lighting without harsh shadows.

Is the cord compatible with all cameras?

It is compatible with cameras that have a standard hot shoe and support TTL flash metering. However, Vello makes different models for different camera brands; check your camera's manual for specific compatibility.

How do I mount the cord to my camera?

Attach the camera-side hot shoe to your camera's hot shoe, ensuring it faces forward (toward the lens). If your model has a locking mechanism, use it to secure the connection.

Can I mount the flash on a light stand or tripod?

Yes. The off-camera shoe has a 1/4";-20 threaded socket that can be mounted to a compatible tripod, boom, or light stand. It can also be attached to an accessory shoe.

Do I need to turn off devices before connecting?

Yes. Always switch off both the camera and flash before attaching or removing the cord to prevent electrical damage.

How long is the cord?

The cord is coiled; approximate length when coiled is 12 in (30 cm) and can stretch to about 36 in (91 cm). Avoid overstretching to prevent instability.

Is the cord weather-resistant?

No. It is not water-resistant. Keep it away from rain, snow, and high humidity.

How do I clean the cord?

Use a soft, dry cloth to wipe the cord and connections. Do not use solvents or liquids.

What is the warranty period?

Vello offers a one-year limited warranty from the original purchase date, covering defects in materials and workmanship under normal use.

Can I connect multiple cords together (daisy-chain)?

No. Do not attempt to daisy-chain flash cords, as it may damage the equipment and void the warranty.

USER MANUAL OCS-C6 Vello

OFF-CAMERA TTL FLASH CORD

USER MANUAL

VELLO

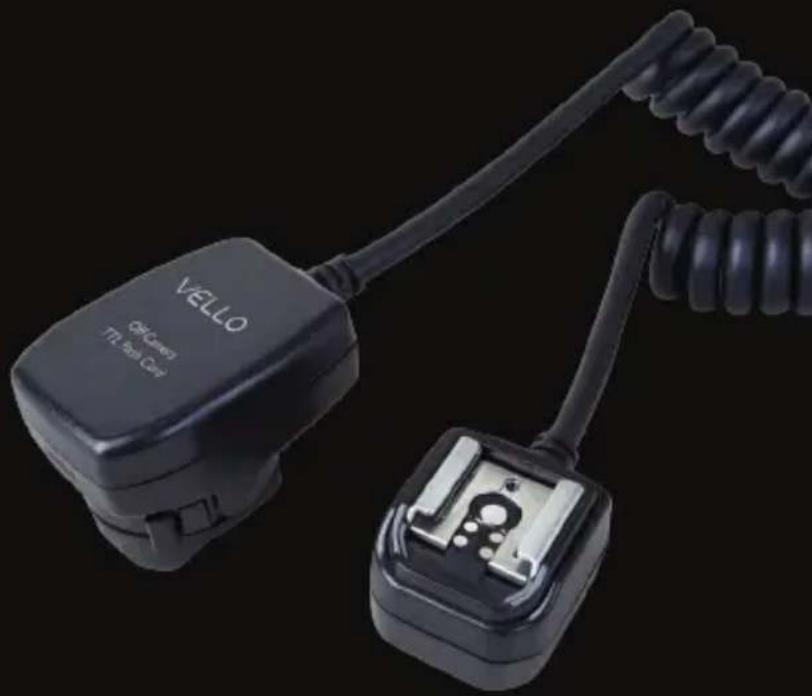

Close-up of a VELLO camera with coiled cable and connector (no visible text or symbols)

INTRODUCTION

Thank you for choosing a Vello Off-Camera TTL Flash Cord. This TTL flash cord allows you to set up a portable flash for off-camera lighting while retaining all of the TTL flash functionality achieved in modern digital cameras.

Off-camera lighting reduces the harsh shadows of direct on-camera flash and gives your photos more natural lighting. TTL (through the lens) functions of modern cameras handle exposure calculations so you can concentrate on composing the image. Because the light from the flash is measured through the lens by the camera, there is no need for exposure calculations or a separate light meter.

Close-up of two black VELLO flashlights with visible internal components (no text or symbols on the devices themselves)

CAUTIONS

Switch off all devices (cameras and flashes) before adding or removing a flash unit.

Use caution in stretching the coiled cord. Do not stretch the cord to lengths where it will cause your setup to become unstable.

Do not attempt to modify or disassemble the cord, shoe, or contacts. Do not attempt to "daisy-chain" flash cords.

This device is not water-resistant. Do not immerse in or expose to water, rain, or snow.

Do not clean the cord with solvents. Use a soft, dry cloth to clean the cord and connections.

Do not use or leave the device in conditions of extreme heat, severe cold, or high humidity.

COMPATIBILITY

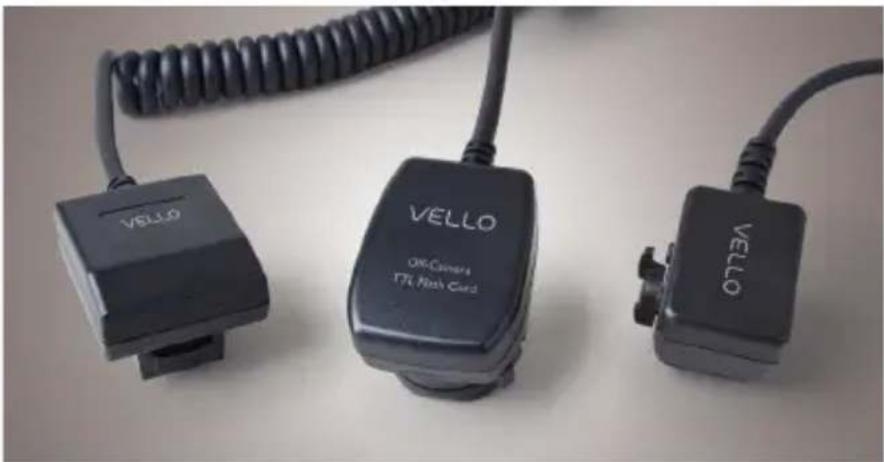

Three black VELLO phone modules connected by a coiled cable, displayed on a plain surface (no text or symbols visible on the devices themselves).

Vello makes several models of Off-Camera TTL Flash Cords that are compatible with different makes of camera. Your cord may look different from the one pictured in this guide.

Read your camera's user manual for further instructions on use of off-camera sync cords and the TTL functions of your camera.

MOUNTING ON THE CAMERA

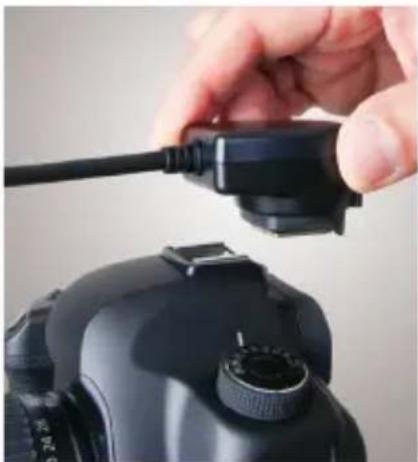

Close-up of a hand holding a black cable attached to a DSLR camera (no visible text or symbols)

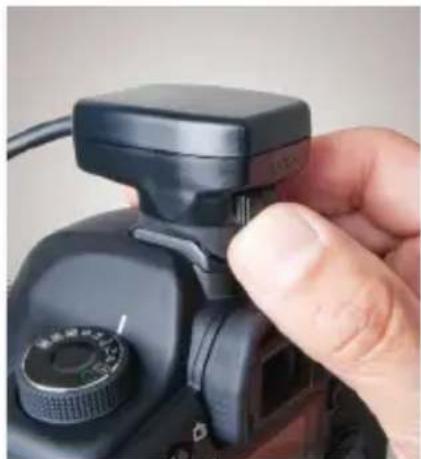

Close-up of a hand adjusting a camera module with a dial and lock (no visible text or symbols)

1. Mount the flash sync cord to your camera's hot shoe. The cord should feed towards the lens.

2. If your model of TTL Flash Cord has a locking mechanism, use it to secure the cord to the hot shoe.

OFF-CAMERA MOUNTING

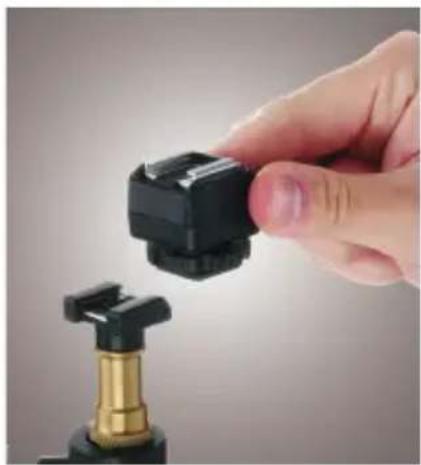

Close-up of a hand adjusting a black mechanical component with a golden base (no text or symbols visible)

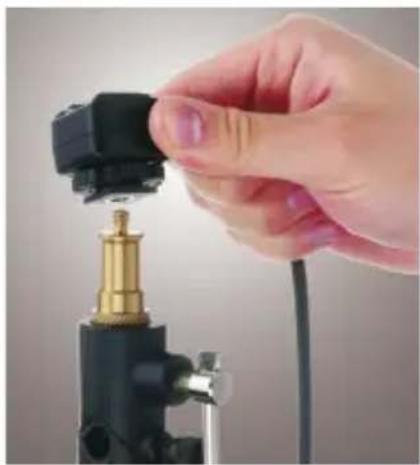

Close-up of a hand adjusting a black mechanical device with a gold connector and cable (no visible text or symbols)

1. The off-camera hot shoe of the sync cord can be mounted to an accessory shoe.

2. Or use the 1/4"-20 threaded socket to mount to a compatible tripod, boom, or light stand.

MOUNTING THE OFF-CAMERA FLASH

1. Make certain that the flash and camera are turned OFF before mounting the flash.
2. Mount the flash to the hot shoe of the off-camera flash sync cord.
3. Turn on the camera and flash. Refer to the user manuals of your camera and flash for instructions on TTL light metering.

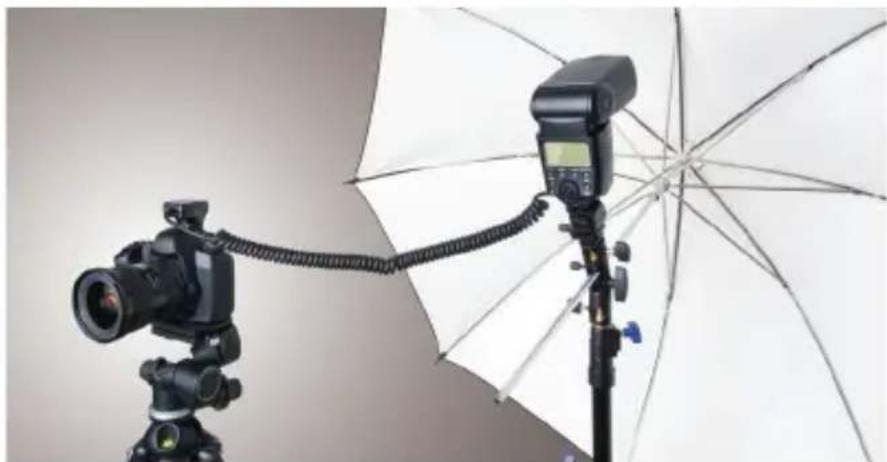

Professional camera setup with a DSLR camera and umbrella, no visible text or symbols

One-Year Limited Warranty

This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider's responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider's discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. Inoperability of the product or part(s) shall be determined by the warranty provider. If the product has been discontinued, the warranty provider reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information or to arrange service, visit www.vellogear.com or call Customer Service at 212-594-2353.

Product warranty provided by the Gradus Group.

www.gradusgroup.com

VELLO is a registered trademark of the Gradus Group.

© 2015 Gradus Group LLC. All Rights Reserved.
