USER MANUAL AMP-104 DAP-Audio

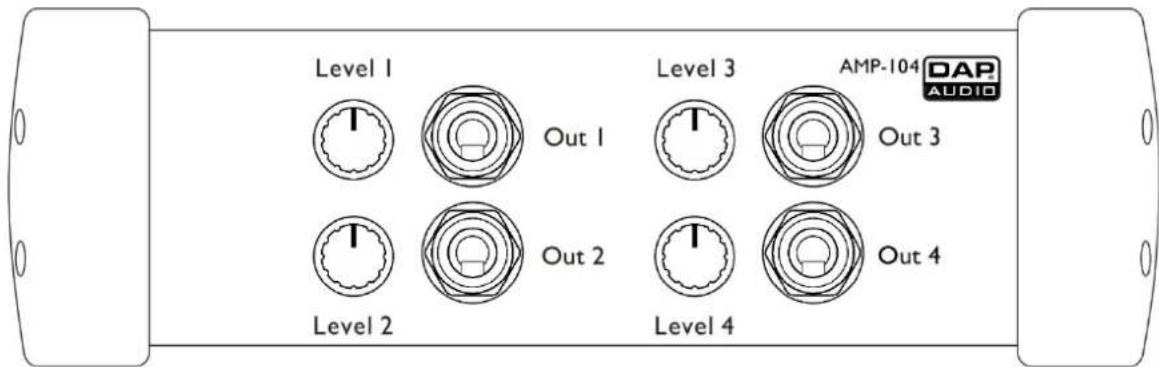

Level 1 Out 1 Level 3 AMP-104 DAP AUDIO Out 3 Level 2 Out 2 Level 4 Out 4

ENGLISH

AMP-104

Ordercode: D1536

4 Channel Headphone Amplifier

Warning

DAP-Audio AMP-104 - Warning - 1

CAUTION! Keep this device away from rain and moisture!

DAP-Audio AMP-104 - CAUTION! Keep this device away from rain and moisture! - 1

Every person involved with the installation, operation and maintenance of this system has to:

  • be qualified
    • follow the instructions of this manual

Only use the supplied DAP audio adapter.

Description

The AMP-104 is for expanding or generating 4 headphones channels. The AMP-104 offers a 6,3 mm stereo jack as well as a RCA stereo input, which makes it convenient for multiple applications. All 4 outputs are controlled with their own volume control. The headphones can be connected at both sides of the AMP-104. This makes it possible to connect 8 headphones, which will be operated in groups of 2 pcs.

  • Jack TRS & RCA input
  • Separate volume control
  • 2 x 4 outputs
    • Road proof housing

Overview

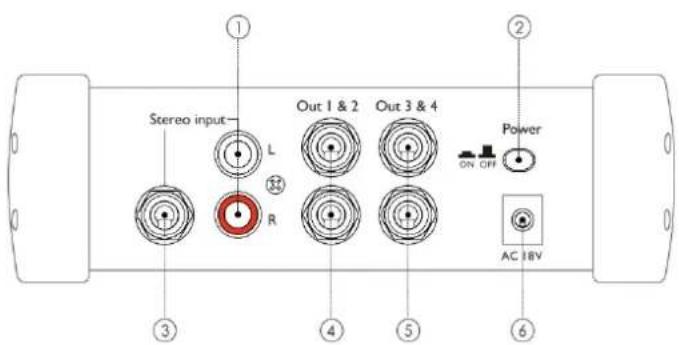

Stereo input L R Out 1 & 2 Out 3 & 4 Power ON OFF AC 18V

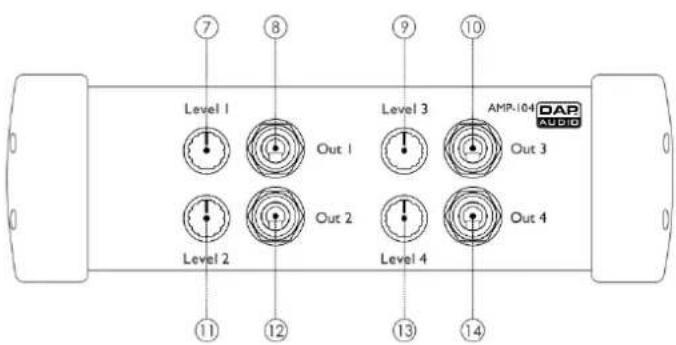

Level 1 Out 1 Level 3 AMP-104 DAP AUDIO Out 3 Level 2 Out 2 Level 4 Out 4 ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ㉑ ㉒ ㉓ ㉔ ㉕ ㉖

① Unbalanced stereo RCA pin jacks inputs.
② Power on/off switch
③ Stereo input 1/4" TRS socket.
④ Stereo output 1 & 2, 1/4" TRS socket.
⑤ Stereo output 3 & 4, 1/4" TRS socket.
⑥ Power adapter connector
⑦ Volume control Out 1

⑧ Stereo output 1, 1/4" TRS socket.
⑨ Volume control Out 3
⑩ Stereo output 3, 1/4" TRS socket.
⑪ Volume control Out 2
⑫ Stereo output 2, 1/4" TRS socket.
⑬ Volume control Out 4
⑭ Stereo output 4, 1/4" TRS socket.

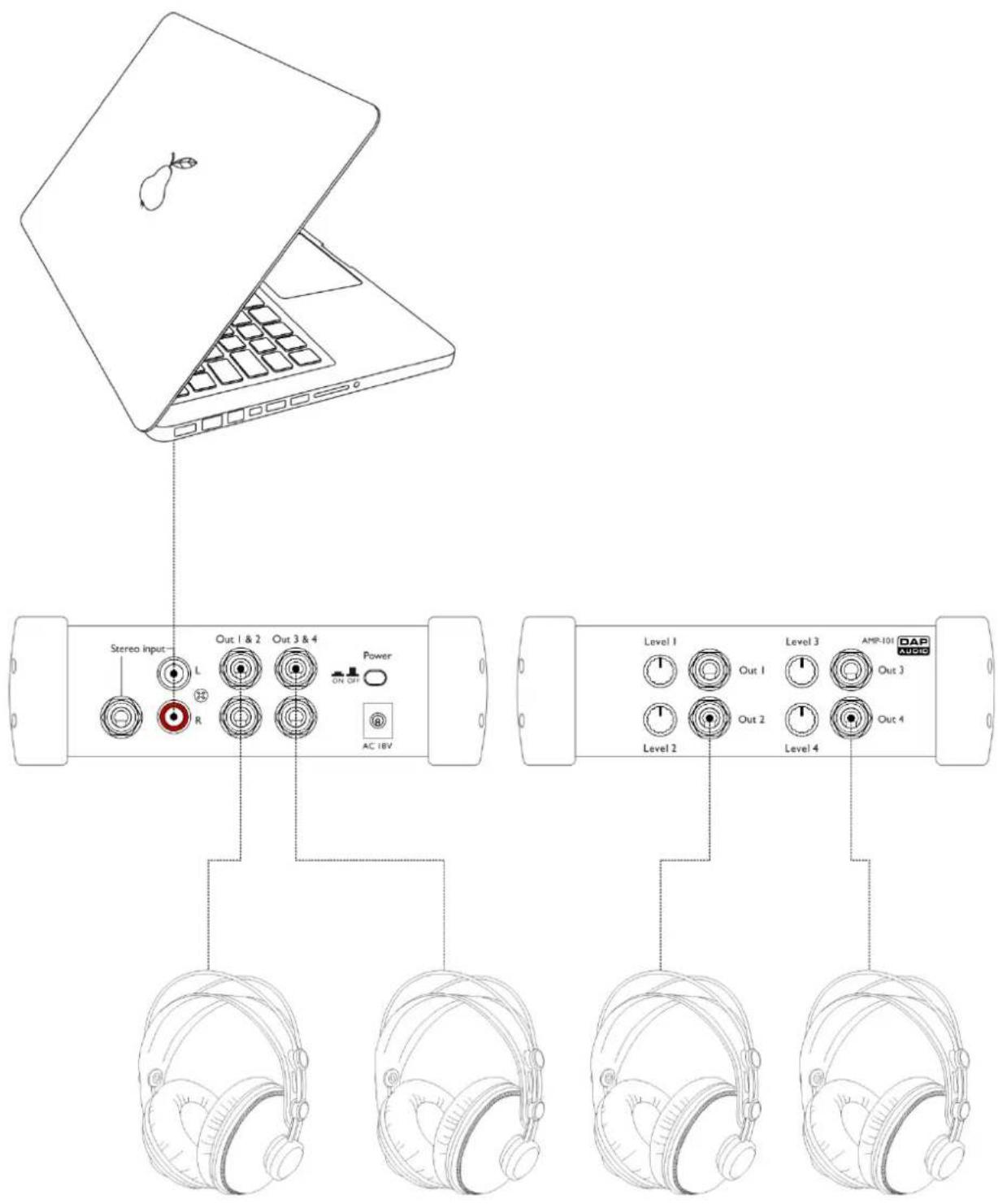

Connection Example

Stereo input L R Out 1 & 2 Out 3 & 4 Power ON OFF AC 1BV Level 1 Out 1 Level 3 AMP-101 OAP AVGO Level 2 Out 2 Level 4 Out 3 Out 4

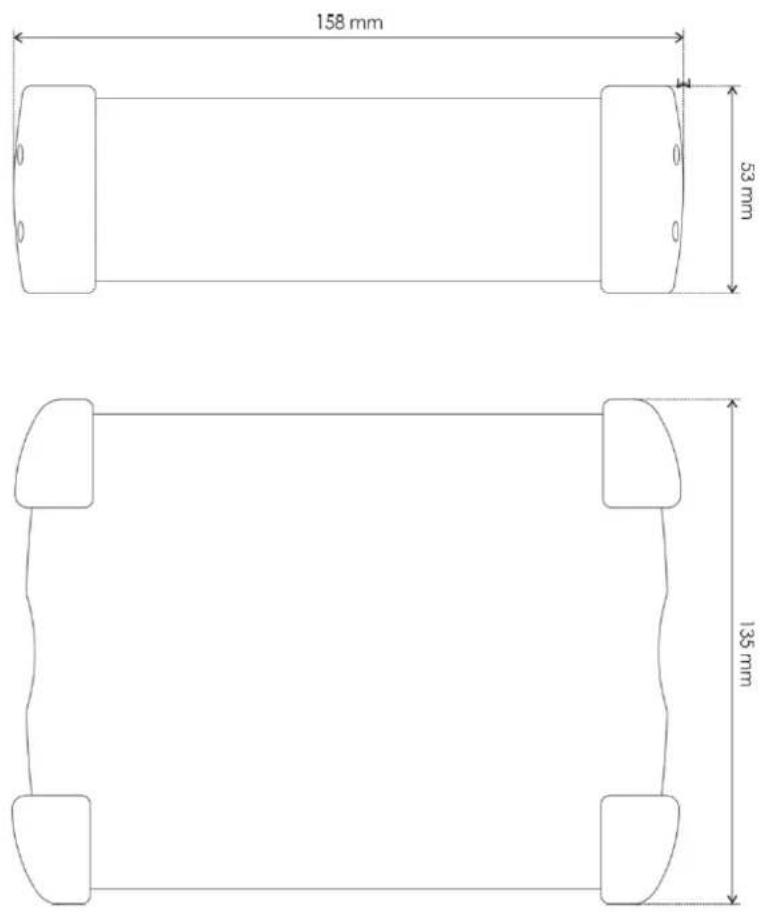

Dimensions

DAP-Audio AMP-104 - Dimensions - 1

Specifications

Frequency Response:20Hz-20KHz
Inputs:6,3 mm Jack, RCA
Outputs:6,3 mm Jack (8x)
Output impedance:2x 50 Ohm
Output power:2x 50mW @ 32Ohm
Power supply:18V AC (adapter included)
Dimensions:53x158x135 mm (HxWxD)
Weight:0,72 Kg
