H1 - Uncategorized Hegel - Free user manual and instructions

Product Type	Integrated Amplifier
Power Output	2 x 120W (8 ohms)
Minimum Load Impedance	2 ohms
Frequency Response	< ±0.1 dB (20 Hz - 20 kHz)
Phase Response	< 2 degrees (20 Hz - 20 kHz)
Signal-to-Noise Ratio	> 100 dB
Crosstalk	< -100 dB
Distortion (THD)	< 0.004% (50W, 8 ohms, 1 kHz)
Intermodulation Distortion	< 0.01% (19 kHz + 20 kHz)
Damping Factor	> 1000
Inputs	6 inputs: Balanced (XLR), Phono (RCA) for DVD, CD, Tape, Tuner, Aux
Input Terminals	Gold plated Phono/RCA (unbalanced) and XLR (balanced)
Output Terminals	Gold plated speaker terminals (left/right), Tape out, Pre-out 1 & 2 (RCA)
Remote Control	Hegel RC2, Philips RC-5 compatible, 36 kHz IR modulation
Power Supply	AC 230V / 115V / 100V (country dependent), with fuse holder
Dimensions (HxWxD)	8 cm x 43 cm x 45 cm
Weight (shipping)	15 kg
Placement	Flat, hard surface; adequate ventilation; do not cover; avoid placing CD player on top
Cleaning	Damp cloth with mild detergent (e.g., Bio-Tex OXI effect)
Safety	Do not open; risk of electric shock; service by certified technicians only
Warranty	2 years against defective materials and workmanship

Frequently Asked Questions - H1 Hegel

How do I connect speakers to the Hegel H1?

Use the gold-plated speaker output terminals on the rear panel, ensuring correct polarity (right and left). Use high-quality speaker cables for best performance.

How do I clean the Hegel H1?

Wipe the front panel, knobs, and top cover with a cloth moistened with warm water or a mild detergent suitable for mirrors and bathroom. Avoid abrasive cleaners. Bio-Tex OXI effect is recommended by the manufacturer.

What inputs are available on the Hegel H1?

The H1 has six inputs: Balanced (XLR), and RCA for DVD, CD, Tape, Tuner, and Aux. All inputs are gold-plated for optimal signal transfer.

How do I replace the remote control batteries?

Use a cross-head screwdriver to remove the four screws on the bottom. Insert two 1.5V LR03 AAA batteries with correct polarity. Be gentle to avoid damaging the threads or battery holder.

Does the Hegel H1 need break-in time?

Yes, the amplifier will sound best after about 1 hour of warm-up. Full break-in may take longer for optimal sound quality.

What happens if the amplifier overheats?

The H1 has automatic thermal protection. If it overheats, it will switch itself off. Ensure proper ventilation and do not block airflow.

How should I pack the H1 for shipping?

Place a plastic bag over the front panel, leaving space around the knobs. Insert the amplifier into white shock absorbers on each side, then carefully lower into the cardboard box. Avoid holding the knobs.

What is the warranty period for the Hegel H1?

Hegel provides a 2-year guarantee against defective materials and workmanship. Opening the product by unauthorized personnel voids the warranty.

What are the power output specifications?

The H1 delivers 120W + 120W into 8 ohms, with a minimum load of 2 ohms. It features very low distortion (<0.004%) and a high damping factor (>1000).

Can I use a CD player on top of the H1?

No, it is not recommended. Both devices generate heat, and stacking may impair performance. Place them on separate shelves or side by side.

USER MANUAL H1 Hegel

Hegel H1 High End Integrated Amplifier

www.hegel.com

[e-mail]

USER GUIDE

Congratulations on your new HEGEL!

Our products are based on a simple philosophy:

The component shall reproduce the original musical sound, purely and naturally.

It uses Scandinavian design reflecting natural music reproduction and styling to fit in with any interior.

The products are easy to operate and are manufactured according to the best quality principles.

All HEGEL products are created with acoustical instruments in a concert situation as point of reference. The music is reproduced exactly like the original and is limited only by the quality of the recording.

Our aim is to give you the best possible music experience!

SOUND ADVICE

The Hegel H1 Integrated Amplifier is easy to connect and operate and requires no prior technical knowledge. However, to get the most out of the amplifier's superior sound and music quality, we have provided a brief description of the connections and use of the amplifier in order to provide a total music experience.

We recommend keeping this user guide for future reference.

GENERAL USE

The amplifier is switched on with the button in the middle of the front panel. A blue light indicates it is switched on. To the left the channel selector with selections: Balanced, DVD, CD, Tape, Tuner and Auxiliary and to the right the volume control. A blue light will show the selected input channel. The default input when switching on the H1 is the balanced input.

When the mute button on the Hegel Remote Control is pressed the speaker outputs are muted. Mute is indicated by a flashing blue power light. To go back to normal operation press the mute button on the remote control one more time.

Avoid connecting input cables or selecting inputs with the source selector switch if the volume setting of the amplifier is not fully turned down.

After the amplifier is switched on, there is a delay of some seconds for the music signal to reach the speaker outputs.

To get the best sound possible we recommend to use the H1 amplifier with a high quality sound source, a very good choice would be the Hegel CD2A CD-player.

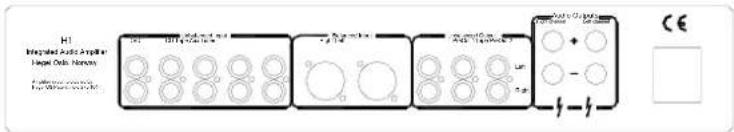

From left to right the connectors are:

Signal input Phono / RCA, right / left DVD

Signal input Phono / RCA, right / left CD

Signal input Phono / RCA, right / left tape

Signal input Phono / RCA, right / left tuner

Signal input Phono / RCA, right / left Aux.

Balanced signal input XLR right / left

Tape output Phono / RCA, right / left

Pre output 1 Phono / RCA, right / left

Pre output 2 Phono / RCA, right / left

Speaker output right

Speaker output left

AC Power connection 230V / 115V / 100V AC dependent on country. Fuse holder.

The preamplifier section of the H1 has two types of audio inputs: unbalanced audio signal with RCA plugs (phono plugs) and true balanced audio signal with XLR plugs (pin 2 is positive phase, pin 3 is negative phase and pin 1 is chassis earth).

HEGEL REMOTE CONTROL RC2

The Hegel H1 can be controlled by the included Hegel system remote control RC2. Like other Hegel products, the number of buttons on the RC2 is kept to a minimum.

The volume setting, input source and mute function of the H1 can be operated by using the remote control. The Hegel system remote control will also control other Hegel products like CD players and preamplifiers, avoiding the need for several different remote control devices.

The remote control uses two standard 1.5-volt LR03 AAA batteries. To insert the batteries please use a normal type cross head screwdriver to gently remove the four screws in the bottom of the remote control. Be careful and use a normal cross head screwdriver to remove the four Philips cross head screws. Do not use a Pozidrive cross head screwdriver, it can damage the head of the screws.

Be sure to insert the batteries with the correct polarity with + sign and - sign as shown inside the battery holder, and be careful when inserting the batteries to not damage the battery holder.

Be careful when inserting the screws after fitting the batteries. Please turn the screws gently by hand first to avoid damaging the threads in the remote control body. The threads are made in a soft metal and can be damaged if screws are inserted by force. Do not tighten the screws to hard, as this also can damage the screws and the soft metal body of the remote control.

Please do not drop the remote control hard down in the floor, as this can damage internal parts of the remote control and the battery holder.

To avoid damage to the remote control by leakage from the batteries during transport and storage, the remote control is supplied without batteries from Hegel.

USE & PLACEMENT

The HEGEL H1 should be placed on a flat, hard surface for proper cooling. The amplifier performs best after being switched on for about 1 hour for heating up. A certain space is required for air circulation above and below the amplifier. The amplifier must never be placed on a carpet or similar surface that obstructs air circulation through the component. Nor must it be covered while in use or placed on a narrow shelf or in another confined space.

We do not recommend placing a CD-player or similar device directly on top of the H1. Both the H1 and the CD-player will get warm, and they will not perform in a optimal way. A much better solution is to have the H1 and the CD-player on separate shelves or placed besides each other.

The amplifier will automatically switch itself off if overheated.

The amplifier will need some break-in time before maximum sound quality can be experienced.

Never lift the H1 by holding around the volume knob or input selector knob. The H1 is heavy, and applying pressure can damage the knobs.

TRANSPORT AND SHIPPING OF AMPLIFIER

If you are packing the amplifier for shipping please follow these instructions to secure the volume and source knobs are not damaged in transport:

1. Put the plastic bag around the amplifier, putting the bag on from the front panel side of the amplifier. Leave about 10cm of open room between bottom end of plastic bag and volume and source knobs, making sure the plastic bag bottom end will not touch the knobs during transport.
2. Insert the amplifier in the two white shock absorbers, one in the left side and one in the right side of the amplifier. It will be most easy to fit the left hand side shock absorber first by putting the left hand side shock absorber down on the floor and putting the amplifier down into the shock absorber. Hold the amplifier firmly in the middle of the front panel and the middle of the back panel and be careful to not hold around the volume and source knobs. Then put the right hand shock absorber on the amplifier.
3. Insert the amplifier into the cardboard box by first lowering the front panel side against one side of the cardboard box. Then lower the back side of the amplifier into the cardboard box.
4. Make sure the plastic bag is still loose around the volume and source knobs to avoid any damage to the knobs during transport.

CLEANING

The top cover, side panels and knobs are made of brushed / blasted and anodized aluminum, while the front panel is made of solid, powder coated aluminum. Fingerprints or stains on the front panel, knobs or top cover can be removed with a cloth moistened with warm water or with a mild detergent suitable for cleaning mirrors and bathroom.

We have found that the detergent Bio-Tex OXI effect supplied in an orange plastic spray can is working particularly well in cleaning the front panel, top cover and side panels.

We wish you good luck in setting up and connecting your new amplifier and hope that it will give you many years of joyful natural sounding music experiences!

TECHNICAL SPECIFICATIONS

H1 Integrated Amplifier

Power output 120W + 120W at 8 Ohms

Minimum load Loudspeaker impedance down to 2 ohms can be used.

Input Sources 6 remote controllable inputs switched by gold plated relays

Input Terminals Gold plated Phono / RCA unbalanced and gold plated XLR balanced

Output Terminals One set of gold plated speaker terminals each channel

Line level Outputs Gold plated Phono / RCA unbalanced tape out, Preout 1 and Preout 2

Frequency response Less than +/- 0.1 dB deviation 20Hz-20kHz

Phase response Less than 2 degrees deviation 20Hz-20kHz

Signal-to-noise ratio More than 100dB

Crosstalk Less than -100dB

Distortion Less than 0.004% @ 50W 8 Ohms 1kHz

Intermodulation Less than 0.01% (19kHz + 20kHz)

Damping factor More than 1000 (main power output stage)

Remote Control Philips RC-5 compatible IR system 36kHz modulation

Dimensions 8cm x 43cm x 45cm (HxWxD), 15kg shipment weight.

NOTE & WARNING

Hegel products should only be opened or serviced by certified technicians. The devices contain electronic components that can cause severe electric shock. Work performed on Hegel products by unqualified personnel can cause serious damage and personal injury.

Opening of the product by non-authorized personnel will void the guarantee.

The products must not be exposed to rain or moisture.

GUARANTEE

All Hegel products come with a 2-year guarantee against defective materials and workmanship.

In case you should need any assistance with your Hegel product please find your nearest dealer or distributor by looking at the Hegel web site http:\www.hegel.com

If you should have any problems locating your dealer or distributor please e-mail to [e-mail]
