USER MANUAL UT377C Uni-T

Technical Specifications

Specifications
Functions	Types	Test range	Resolution	Value error
Wood & Building materials measurement	Softwood	0~32%	0.1%	±4%
	Hardwood	0~32%	0.1%
	Drywall	4~99.9%	0.1%	Unspecified
	Masonry	4~99.9%	0.1%
Temperature measurement	°C/°F	-20~70°C	0.1°C	Unspecified
Sensor size	50 x 50mm
Minimum target size 50 x 50mm
Target thickness range 6~30mm
Screen display EBTN Color Screen
Simulation bar indication √
Audible alarm indication √
Flashlight	√
Auto power off	√
Measurement modes	Softwood, Hardwood, Drywall, Masonry
Auto power off Auto power off in 5 minutes
Work environment	0~40°C ≤80%RH
Storage environment -20~60°C ≤75%RH
Characteristics
Power supply AAA Alkaline Battery x 3
Product size	152 x 70 x 30mm
Product net weight	160g
Standrad accessories	Quick Start Guide x 1, Cloth Bag x 1, AAA Alkaline Battery x 3, Safety Instructions x 1
Standard quantity per carton 20pcs

Interior view of a warehouse with stacked cardboard boxes and a floor, labeled 'Paper Mill' at the bottom (no other text or symbols visible)

UNI-TREND

TECHNOLOGY

meters.uni-trend.com

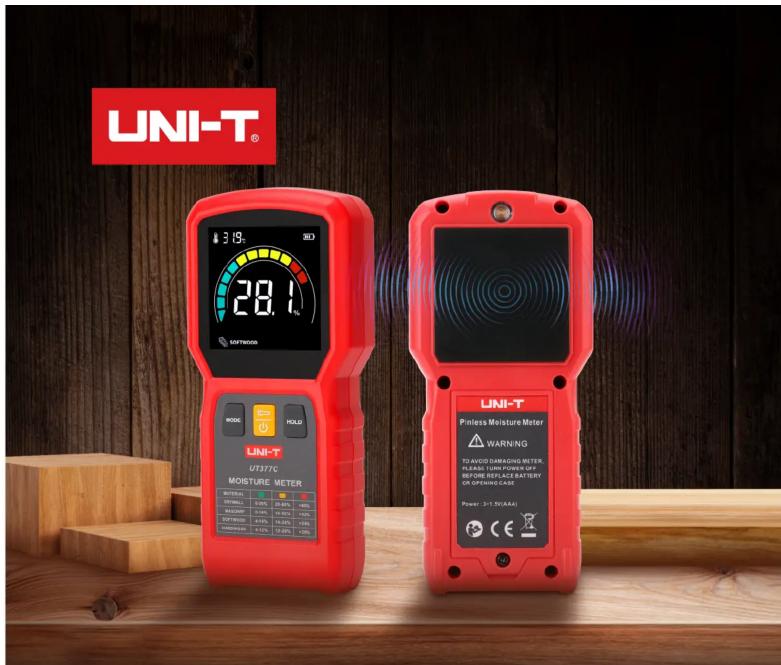

UT377C

Pinless Moisture Meter

UT377C is a Moisture Meter measured in contact or induction way, testing the moisture content without damaging the wood and building materials, with features of high accuracy, reliable performance, and etc. It is widely used in the industries of wood processing, architectural decoration, scientific research, quality control, and etc.

Non-destructive Testing

Anti-grip Interference

Measured Depth: 30mm

Ambient Temperature

LED Lighting

High-Accuracy Sensor

Use capacitive sensor to quickly and accurately measure moisture.

The measurement accuracy of wood can up to ±4%.

Non-destructive Testing

It will be no wood or building materials surface destruction, and the maximum measured depth is 30mm.

Sound-Light Alarm

Moisture Level	DRY & D WET
Modes Green		Yellow	Red
Drywall	0~20%	20~60%	>60%
Masonry	0~16%	16~52%	>52%
Softwood	4~14%	14~24%	>24%
Hardwood	4~12%	12~20%	>20%

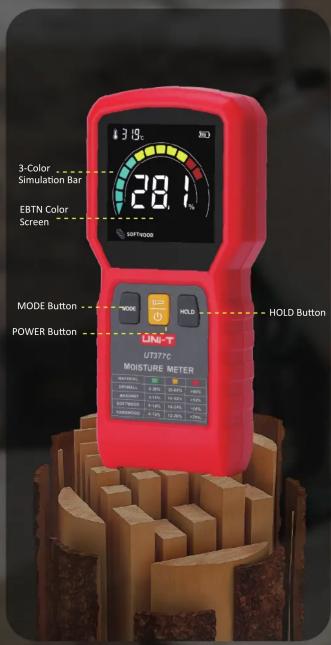

More clear and obvious in the condition of 3-Color simulation bar.

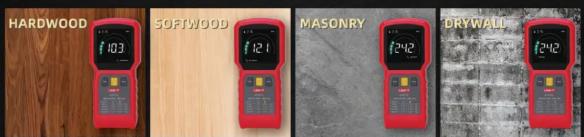

Four measurement modes for free switch.

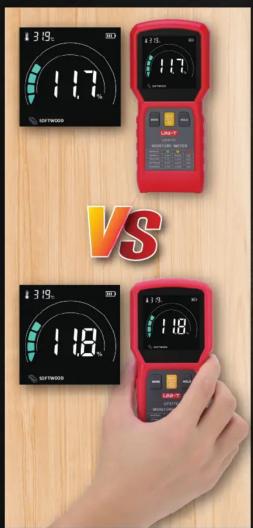

Excellent Anti-grip Interference Performance

Minor error and accurate reading in grip measurement.

LED Lighting Flashlight Function (LED Lighting)

For the night and poor light condition.

Red battery pack with attached batteries and a 2-pin card, no visible text or symbols on the main components.

The battery is easy to buy and replace.
