USER MANUAL UT714 Uni-T

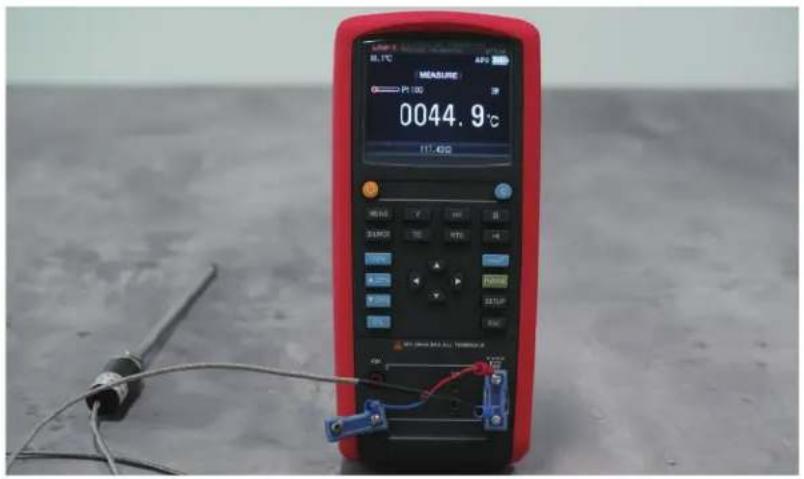

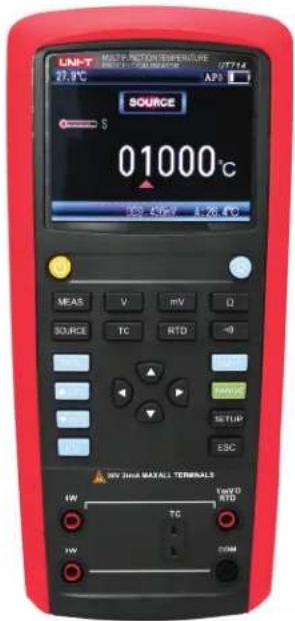

The UT714 is powerful temperature calibrator that sources and measures thermocouples, RTDs, voltage, and resistance. It can be used to test and calibrate different types of temperature instruments. This device is suitable for testing input/output temperature terminals such as sensors and transmitters.
UT714
| Type | Range | Accuracy |
| Certificates CE, UKCA | ||
| Measurement | ||
| DC voltage (V) | 50mV/500mV/30V | ±(0.02%+2) |
| Resistance (Ω) | 500Ω/5000Ω | ±(0.05%+10) |
| Thermocouples | R,S,K,E,J,T,N,B,L,U | |
| RTDs | Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120 | |
| Continuity test | √ | |
| Source | ||
| DC voltage (V) | 100mV/1000mV/10V | ±(0.02%+10) |
| Resistance (Ω) | 400Ω/4000Ω | ±(0.05%+10) |
| Thermocouples | R,S,K,E,J,T,N,B,L,U | |
| RTDs | Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120 | |
| Display count | 20000 | |
| Operating temperature -10°C~55°C | ||
| Features | |
| Step/ramp functions | Source and measure accuracy up to 0.02% |
| Rechargeable battery | Contrast adjustment |
| Auto power off (Time adjustable) | Stores and recalls setups |
| USB communication | |
| Characteristics | |
| Standard accessories | Test leads, USB cable, power adapter, temperature probe, English manual |
| Power | 1.2V x 6 AA rechargeable battery |
| Product size | 195 x 95 x 58mm |
| Product net weight | 650g |
| Standard individual packing | Gift box, carrying bag |
| Standard quantity per carton | 1pc |
| Standard carton measurement | 305 x 85 x 260mm |
| Standard carton gross weight | 1.5kg |
Brand : Uni-T
Model : UT714
Category : Measurement
