ADWFI700 - Dishwasher Artusi - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	Artusi
Model	ADWFI700
Width	60 cm
Height	85 cm
Depth	60 cm
Net Weight	Approx. 50 kg
Energy Rating	A+
Place Settings	14
Number of Programs	6
Programs Included	Eco, Intensive, Normal, Quick, Glass, Rinse
Noise Level	49 dB
Water Consumption per Cycle	10 L
Energy Consumption per Cycle	1.02 kWh
Drying System	Condensation drying
Interior Material	Stainless steel
Safety Features	Child lock, leak protection
Delay Start	1-24 hours
Salt and Rinse Aid Indicator	Yes
Filter Type	Self-cleaning microfilter

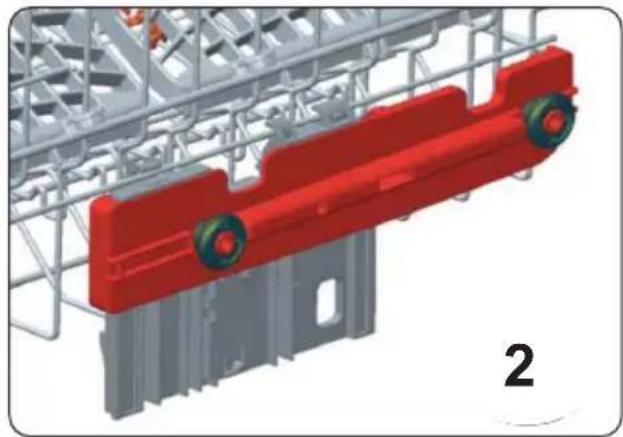

Adjustable Racks	Height-adjustable upper basket

Frequently Asked Questions - ADWFI700 Artusi

How to install the dishwasher?

Ensure the installation location has a power outlet, water supply, and drain nearby. Refer to the installation manual for detailed steps. Use a level to ensure the dishwasher is balanced.Secure the water inlet hose to a 3/4 inch threaded tap.

Why is the dishwasher not starting?

Check that the door is fully closed and latched. Ensure the power cord is plugged in and the circuit breaker is on. Also verify that the water supply is turned on and the filter is not clogged. If using a delayed start, cancel it.

How to add salt to the dishwasher?

Open the salt reservoir cap on the bottom of the dishwasher. Use a funnel to fill with dishwasher salt until full. Wipe away any salt residue and close the cap tightly. Run a rinse cycle to flush out excess. The salt indicator light will turn off.

What does the error code E1 mean?

Error code E1 indicates a water inlet issue. Check that the water tap is open, the inlet hose is not kinked, and the water pressure is adequate. If the problem persists, clean the inlet filter and restart the dishwasher.

How to clean the dishwasher filter?

Turn off the dishwasher and remove the bottom racks. Rotate the cylindrical filter counterclockwise to remove it. Rinse both the fine and coarse filters under running water. Use a soft brush for stubborn debris. Reassemble and ensure the filter is properly seated.

Can I use regular dish soap?

No, only use dishwasher detergent (powder, gel, or tablets). Regular dish soap produces excessive suds that can cause leaks and damage. Also use rinse aid for better drying and to prevent water spots.

Why are dishes not drying properly?

Ensure rinse aid is filled and the dispenser setting is appropriate. Select a cycle with drying option. Avoid overloading and ensure proper drainage. Open the door slightly after cycle ends to let steam escape. If using plastic items, they may retain moisture.

What is the maximum load capacity?

The dishwasher can hold up to 14 place settings. Load plates facing the center, cups on the top rack, and utensils in the basket. Do not obstruct the spray arms. Refer to the loading instructions in the manual for optimal results.

How to reset the dishwasher?

Press and hold the Start/Reset button for 3 seconds (or as indicated in your manual). This cancels the current cycle and drains the water. Alternatively, turn off the power at the circuit breaker for 1 minute and restart.

Where can I find spare parts?

Spare parts such as racks, filters, spray arms, and hoses are available through Authorized Artusi Service Centers. Check the manual for contact details or visit the Artusi website. Use only genuine parts to maintain safety and performance.

USER MANUAL ADWFI700 Artusi

Simple line drawing of a rectangular box with a horizontal bar at the top (no text or symbols)

ADWFI700

Thank you for choosing this product.

This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNINGSerious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIREWarning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT Operating the system correctly

CONTENTS

1 SAFETY INSTRUCTIONS .... 1

1.1 General Safety Warnings ....1
1.2 Installation Warnings ....2
1.3 During Usage....3

2 INSTALLATION 6

2.1 Machine Positioning ....6
2.2 Water Connection....6
2.3 Water Inlet Hose....6
2.4 Drain Hose (Model Depending)....7
2.5 Electrical Connection 7

3 TECHNICAL SPECIFICATIONS 8

3.1 General Sppearance ....8
3.2 Technical Specifications 8

4 BEFORE USING THE APPLIANCE 10

4.1 Preparing Your Dishwasher For First Use 10
4.2 Detergentusage....10
4.3 Filling the detergent....10
4.4 Usingcombineddetergents....10
4.5 Rinse-aid usage....10
4.6 Filling the rinse-aid and setting....10

5 LOADING YOUR DISHWASHER....12

5.1 Recommendations ....12

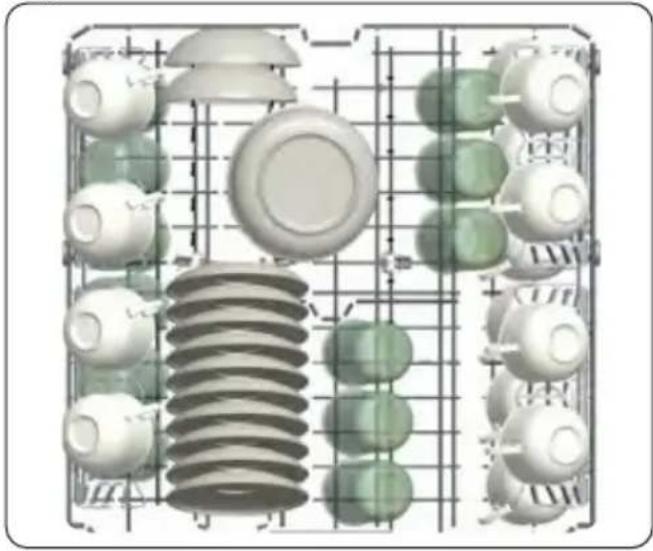

5.2 Alternative Basket Loads....15

6 PROGRAMME TABLE....16

7 THE CONTROL PANEL ...... 17

7.1 Changing a Programme ....18
7.2 Cancelling a Programme....18
7.3 Switching the Machine Off....18

8 CLEANING AND MAINTENANCE....20

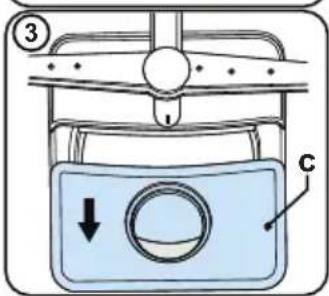

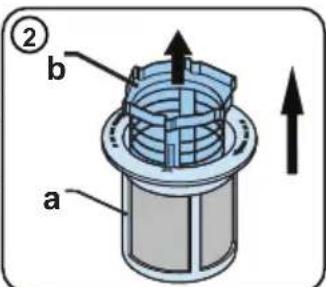

8.1 Filters....20
8.2 Spray Arms....20
8.3 Drain Pump....21

9 TROUBLESHOOTING 22

1 SAFETY INSTRUCTIONS

1.1 General Safety Warnings

- Read these instructions carefully before using your appliance and keep this manual for future reference.

⚠️ Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.

- Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.

This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand hazards involved. Children should not be allowed to play with the appliance.

⚠️ Remove packaging and keep it out of reach of children.

⚠️ Keep children away from detergents and rinse aids.

There may be some residue left in the machine after washing. Keep children away from the machine when it is open.

1.2 Installation Warnings

• Choose a suitable and safe place to install your machine.
• Only original spare parts should be used with the machine.

⚠️! Unplug the machine before installation.

⚠️ Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

⚠️ Check that the indoor electrical fuse system is connected in line with safety regulations.

All electrical connections must match the values on the plate.

⚠️! Ensure the machine does not stand on the electrical supply cable.

⚠️Never use an extension cord or a multiple socket connection.

⚠️ The plug should be accessible after the machine is installed.

- After installation, run your machine unloaded for the first time.

The machine must not be plugged in during positioning.

△! Always use the coated plug supplied with your machine.
△△! If the electrical cable is damaged, it should only be replaced by a qualified electrician.

- Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

1.3 During Usage

- This machine is for domestic use only; do not use it for other purposes. Commercial use will void the guarantee.

⚠️Do not stand, sit or place loads on the open door the dishwasher.
⚠️Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.
⚠️ Do not drink water from the machine.
Due to the danger of explosion, do not place any chemical dissolving agents into the machine's washing section.
- Check the heat-resistance of plastic items before washing them in the machine.
△! Only put items in the machine which are suitable for dishwashing, and take care not to overfill the baskets.

Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened.

⚠️ The machine door should not be left open. It may cause accidents.

⚠️Place knives and other sharp objects in the cutlery basket in a blade-down position.

⚠️! For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program. To prevent damage to your dishwasher, do not attempt to close the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds.

⚠ In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.

△! Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap.

Operation at a low voltage will cause a decline in performance levels.

⚠️For safety, disconnect the plug once a program has finished.

To avoid an electric shock, do not unplug the machine with wet hands.

⚠️! Pull the plug to disconnect the machine from the mains, never pull on the cord.

2 INSTALLATION

2.1 Machine Positioning

When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0^ C.

Read all warnings located on the packaging before removing the packaging and positioning the machine.

Place the machine close to a water tap and drain. Take into consideration that the connections will not be altered once the machine is in position.

Do not hold the machine by its door or panel.

Leave an adequate distance around the machine to allow ease of movement when cleaning.

Ensure the water inlet and outlet hoses are not squeezed or trapped and that the machine does not stand on the electrical cable while positioning.

Adjust the feet so the machine is level and balanced. The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close properly.

Please install the decorative panel dicated on the assembly sheet.

Otherwise, the door may not open properly and steam leakage problem may occur.

2.2 Water Connection

We recommend fitting a filter to your water inlet supply in order to prevent damage to your machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help prevent yellowing and deposit formation after washing.

Note printing on the water inlet hose! If models are marked with 25^ , the water temperature may be max. 25^ C (cold

water).

For all other models:

Cold water preferred; hot water max. temperature 60 °C.

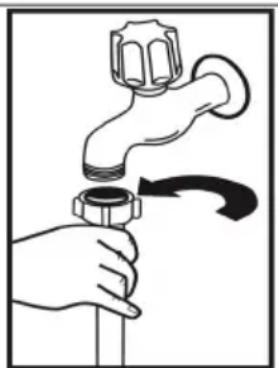

2.3 Water Inlet Hose

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating rotation (no text or symbols)

WARNING: Use the new water inlet supplied with your machine, do not an old machine's hose.

WARNING: Run water through the nose before connecting.

WARNING: Connect the hose tly to the water inlet tap. The pressure died by the tap should be a minimum 03 MPa and a maximum of 1 MPa. If pressure exceeds 1 MPa, a pressure valve must be fitted between the section.

WARNING: After the connections are made, turn the tap on fully and check water leaks. Always turn off the water tap after a wash program has finished.

Simple line drawing of a faucet with a valve and base (no text or symbols)

An Aquastop water spout is available with some models. Do not damage it now it to become kinked or twisted.

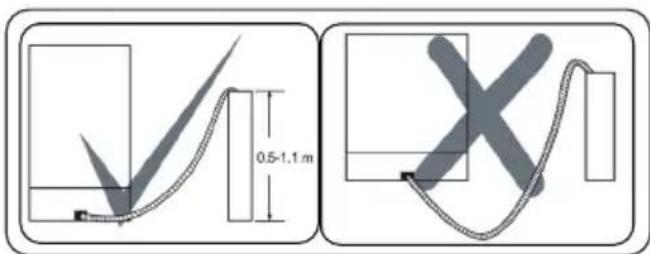

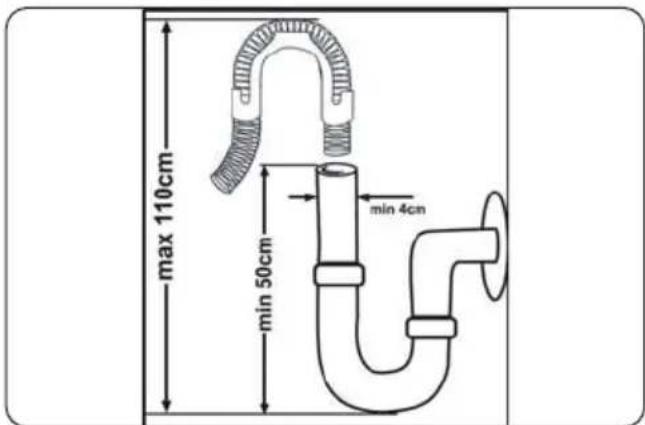

2.4 Drain Hose (Model Depending)

Connect the water drain hose directly to water drain hole or to the sink outlet spigot. This connection should be minimum 50 cm and maximum 110 cm from floor that dishwasher is placed.

IMPORTANT: Items will not wash

properly if a drain hose longer than 4 m is used.

2.5 Electrical Connection

WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection.

Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications" table".

The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current.

In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

The plug on this appliance may incorporate 13A fuse depending on the target country. (For Example UK, Saudi Arabia)

3 TECHNICAL SPECIFICATIONS

Close-up of a mechanical component with a numbered arrow pointing to a circular component (no text or symbols visible)

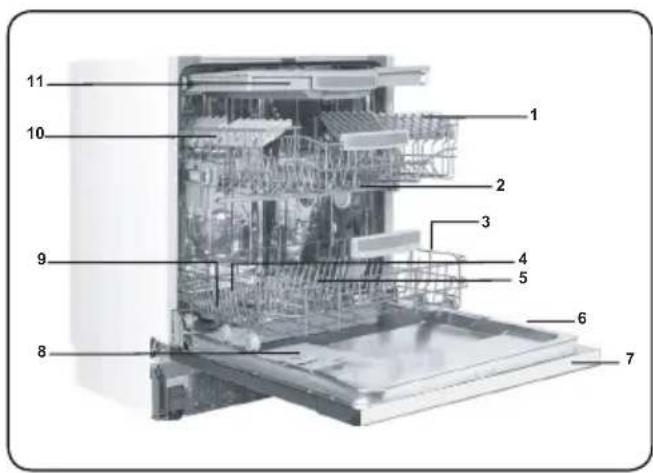

3.1. General appearance

1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters
6. Rating plate
7. Control panel
8. Detergent and rinse-aid dispenser
9. Salt dispenser
10. Upper basket track latch
11. Cutlery basket
12. Turbo Drying Unit: This system enhances the drying performance of your dishes.

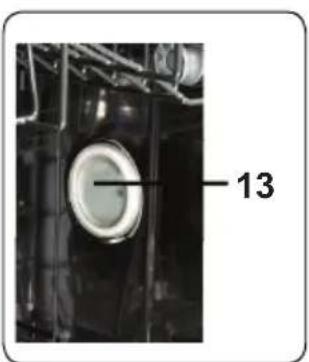

13. Interior ligt : It provides you to place your dishes beter.

3.2 Technical Specifications

Capacity	15 place settings
Dimensions
Height	820-870 (mm)
Width	598 (mm)
Depth	570 (mm)
Net weight 36 kg
Operating voltage / frequency	220-240V50 Hz
Total current 10(A)
Total power 1900(W)
Water supply pressure	Maximum:1 (Mpa)Minimum:0.03 (Mpa)

RECYCLING

• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations: (>PE<, >PP<, etc.)
• The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different materials.

PACKAGING AND THE ENVIRONMENT

- Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

CE Declaration of Conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of Your Old Machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be taken to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling this product, please contact your local city office, your household waste disposal service or the shop where the product was purchased.

4. BEFORE USING THE APPLIANCE

4.1. Preparing your Dishwasher for first use

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
• Remove all packaging material inside the machine.
• Fill the rinse aid compartment.

4.2. Detergent usage

Only use detergents specifically designed for domestic dishwashers. Keep your detergents in cool, dry places out of reach of children.

Add the proper detergent for the selected program to ensure the best performance. The amount of detergent needed depends on the cycle, load size, and soil level of dishes.

Do not fill detergent into the detergent compartment more than required; otherwise you can see whitish streaks or bluish layers on glass and dishes and may cause glass corrosion. Continued use of too much detergent may cause machine damage.

Using little detergent can result in poor cleaning and you can see whitish streaksin hard water. See the detergent manufacturer's instructions for a further information.

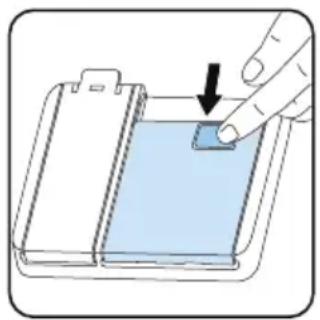

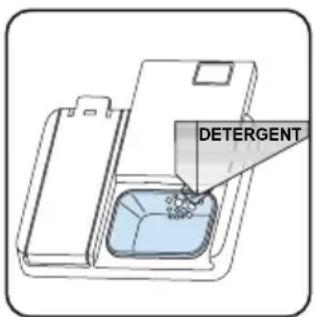

4.3. Filling the detergent

Push the latch to open the dispenser and pour in the detergent.

Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber.

Illustration of a hand pressing down on a blue rectangular object with a black arrow indicating the step (no text or symbols present)

4.4. Using combined detergents

These products should be used according to the manufacturer's instructions.

Never put combined detergents into the interior section or the cutlery basket.

Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination.

We recommend you do not use combined detergents in short programmes.

Please use powder detergents in such programmes.

If you encounter problems when using combined detergents, please contact the detergent manufacturer.

When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to the correct level.

4.5. Rinse-aid usage

The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required for stain-free utensils and clear glasses. The rinse aid is automatically released during the hot rinse phase. If rinse aid dosage setting set too low, whitish stains remains on dishes and dishes do not dry and washed clean. If rinse aid dosage setting set too height, you can see bluish layers on glass and dishes.

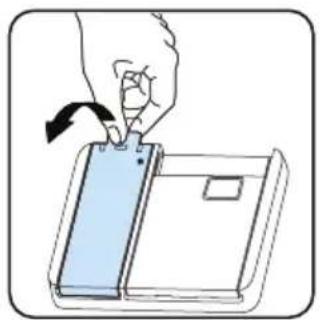

4.6. Filling the rinse-aid and setting

To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to change the rinse aid level, follow the below steps:

• Touch the programme button and hold it down.
• Turn on the machine.
• Hold down the Programme button until "rA" disappears. Rinse aid setting follows water hardness setting.
• The machine will display the last setting.
• Change the level by touching the programme button.

•

- Turn off the machine to save the setting.

The factory rinse aid level setting is "4".

If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

Illustration of a hand pressing down on a device with an arrow indicating motion (no text or symbols)

Line drawing of a mechanical assembly with a cylindrical component inserted into a bracket (no text or symbols)

Level Brightener Dose Indicator
1 Rinse-aid not dispensed		r1 is shown on the display
2 1 dose is dispensed		r2 is shown on the display
3 2 doses are dispensed		r3 is shown on the display.
4 3 doses are dispensed		r4 is shown on the display.
5 4 doses are dispensed		r5 is shown on the display.

5 LOADING YOUR DISHWASHER

For best results, follow these loading guidelines.

Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.

Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended You can place cups, glasses, stemware, small plates, bowls, etc. in upper basket. Do not lean long glasses against one another or they cannot remain steady and may receive damage.

When placing long stem glasses and goblets, lean them against the basket edge or rack and not against other items.

Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards otherwise water can collect on items.

If there is cutlery basket in machine, you are recommended to use the cutlery grid in order to obtain the best result. Place all large (pots, pans, lids, plates, bowls etc.) and very dirty items in the lower rack.

Dishes and cutlery should not be placed above each other.

WARNING: Take care not to obstruct rotation of spray arms.

WARNING: Make sure after loading

the dishes do not prevent opening the detergent dispenser.

5.1 Recommendations

Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load.

Do not overload the drawers or place dishes in the wrong basket.

WARNING: To avoid any possible

injuries, place long-handle and sharp-pointed knives with their sharp points facing down or horizontally on the baskets.

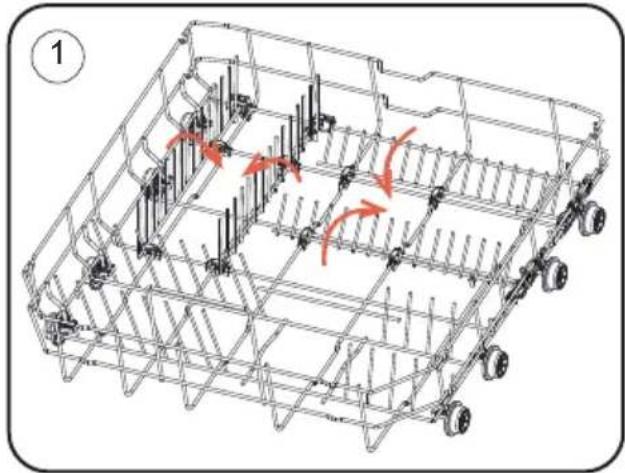

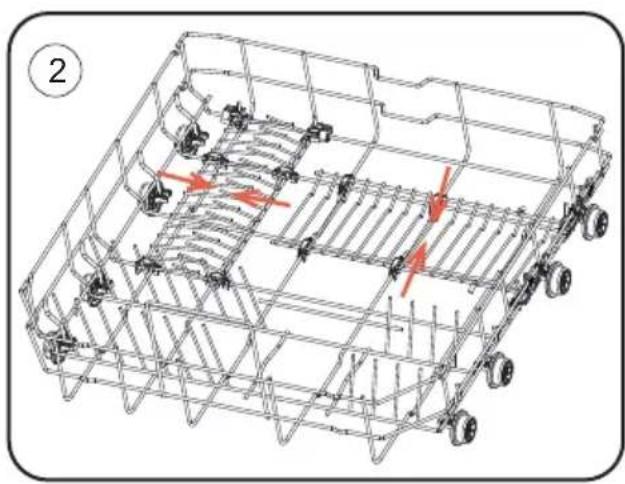

Four Folding Racks (15 pc)

The folding racks allow easier placement of larger items, such as pots and pans. Each section can be folded separately. The racks can be raised up, or folded down, as shown in the images.

Technical line drawing of a mechanical frame structure with no visible text or symbols

Technical line drawing of a multi-wheeled vehicle chassis with visible structural ribs and mounting points (no text or symbols)

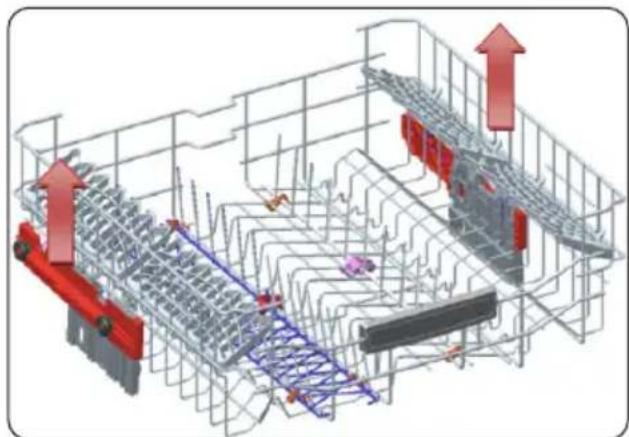

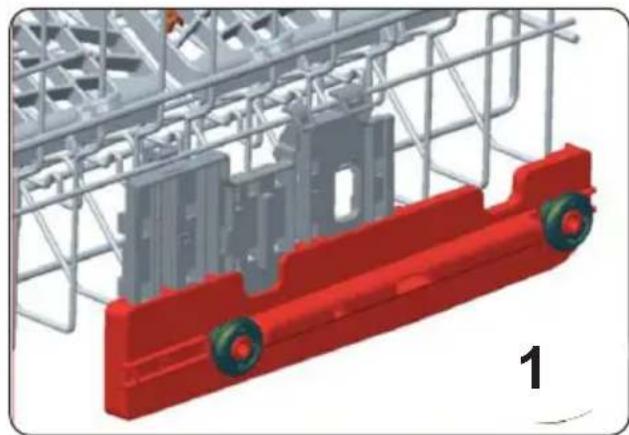

Height Adjustment

The upper basket includes a mechanism which enables the height of the basket to be adjusted up (1) or down (2) without having to remove the basket. Hold the basket on both sides and pull it up or push it down, ensuring both sides of the upper basket are in the same position.

3D architectural or engineering diagram showing structural framework with red arrows indicating upward motion (no text or symbols present)

3D model of a red and gray mechanical component with wheels, enclosed within a wire cage (no text or symbols visible)

3D mechanical assembly diagram showing red and gray components with wheels, no visible text or symbols

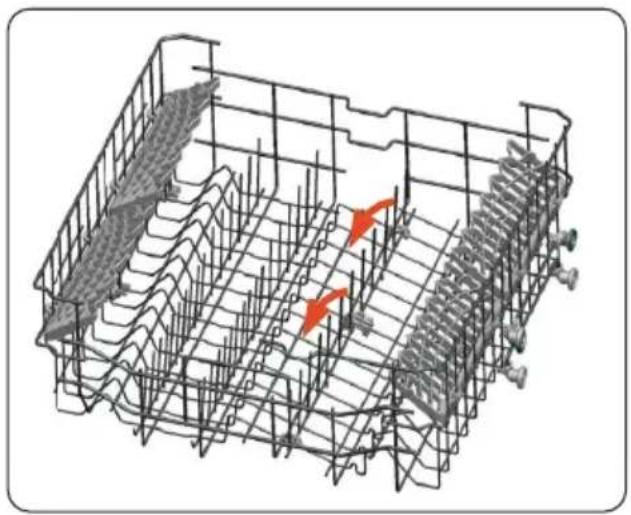

Height Adjustable Rack (peg type)

The foldable racks in the upper basket enable the placement of large items such as pots and pans. Each section can be folded separately. The foldable racks can be either raised up or folded down.

3D wireframe diagram of a structural grid with red arrows indicating direction or movement (no text or symbols)

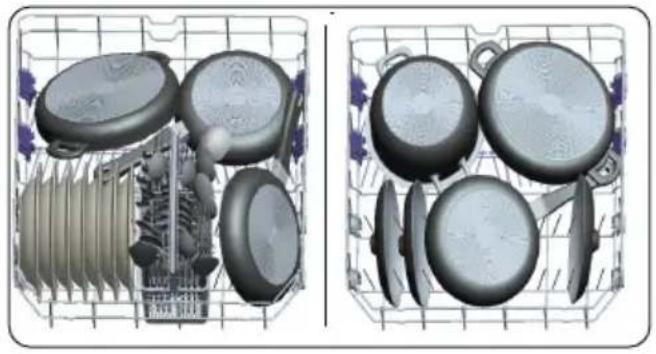

5.2 Alternative Basket Loads

Lower Basket

Two views of a kitchen appliance basket showing various kitchen utensils and pots (no text or symbols visible)

Top Basket

3D diagram of a grid-based mechanical or electrical component assembly with multiple components (no text or symbols visible)

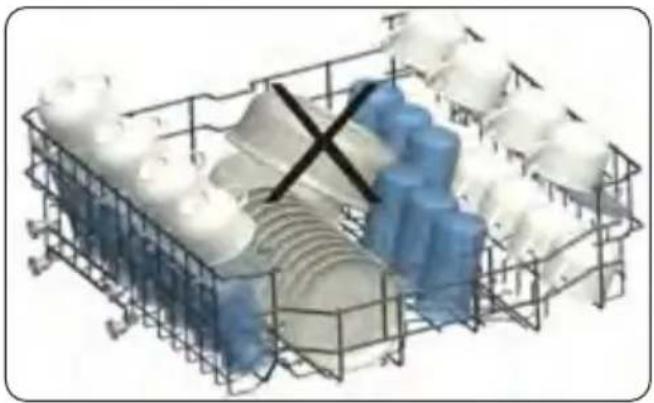

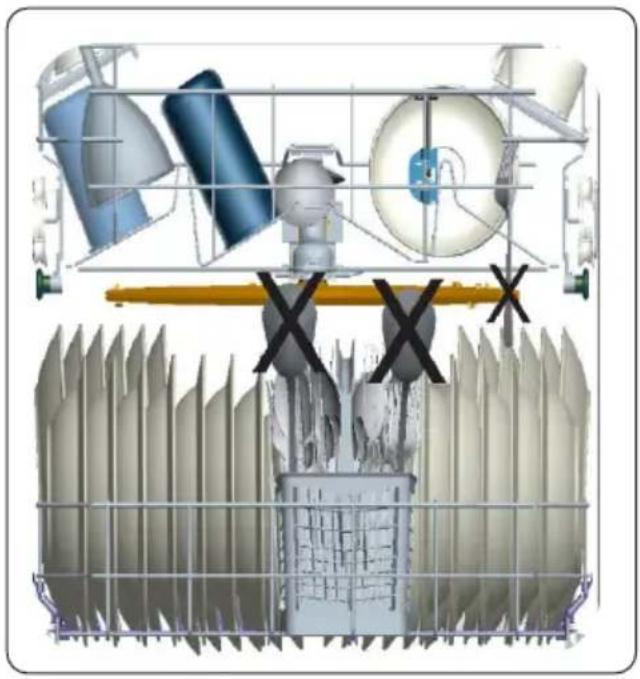

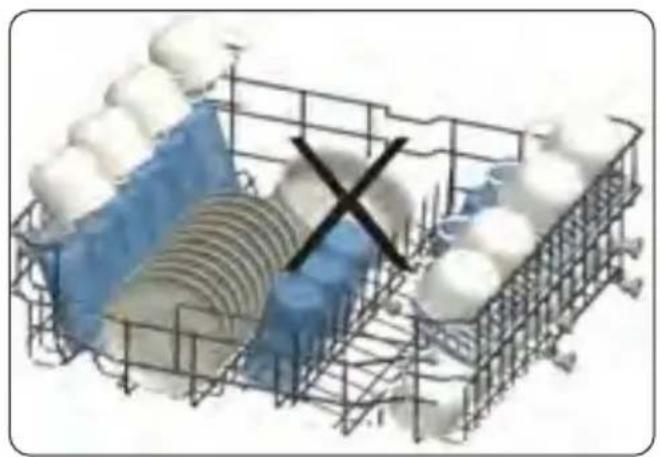

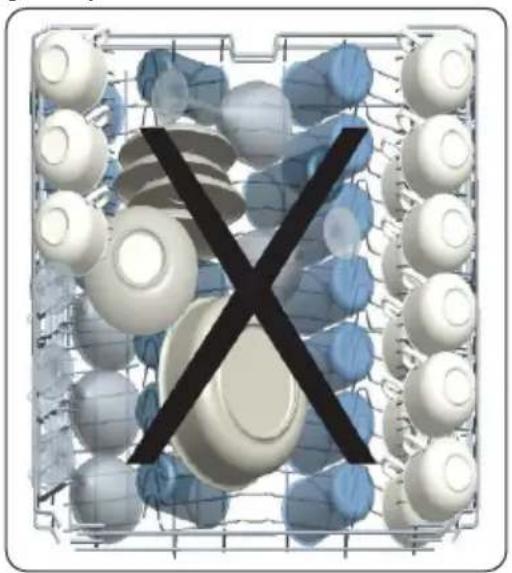

Incorrect Loads

Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result.

3D rendered diagram of white and blue spherical objects arranged in a grid, with a black 'X' symbol overlay (no text or symbols present)

3D technical illustration of industrial equipment components with no visible text or symbols

3D structural model of a multi-story building frame with internal components and a central X-marked symbol (no text or labels)

3D wireframe model of a container with blue and white components, no visible text or symbols

6 PROGRAMME TABLE

Programme Duration (min) Description
P1	Eco	138	Standard program for normally soiled daily using dishes with reduced energy and water consumptions.
P2	Smart 60°C - 70°C	109 - 179	Auto program for heavily soiled dishes.
P3	Smart 50°C - 60°C	107 - 122	Auto program for normally soiled dishes.
P4	Smart 30°C - 50°C	72 - 91	Auto program for normally soiled delicate dishes.
P5	Hygiene 70°C Suitable for heavily soiled dishes requiring hygienic washing.
P6	Super 50' Suitable for normally soiled daily dishes with faster program.
P7	Dual Pro Wash 60°C	113	Suitable for both lightly soiled delicate glassware on upper rack and heavily soiled crockery on lower rack.
P8	Quick 30' Suitable for lightly soiled dishes and quick wash.
P9	Mini 14'	14	Fastest program for lightly soiled and recently used dishes and suitable for 4 place settings.

NOTE: PROGRAMME DURATION MAY CHANGE ACCORDING TO THE AMOUNT

OF DISHES, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

• Only use powder detergent for short programmes.
• Short programmes do not include drying step.
• To assist drying, we recommend slightly opening the door after a cycle is complete.

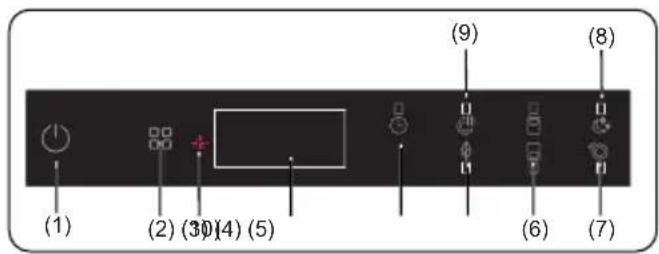

7. THE CONTROL PANEL

1. On/Off Touch Button

Turn the machine on by pressing On/Off button. When machine is on, "--" will be shown on the Display (3).

2. Programme Touch Button

Select a suitable programme for your dishes by touching Programme button. The programme will start automatically when the door is closed.

3. Display

The Display shows the number and total time of the selected programme alternately and the remaining time during operation.

4. Delay Touch Button

Press the Delay Start touch button to delay the start time of a programme for 1 hour up to 19 hours. Pressing once will delay the start time for 1 hour, and continuing to press the button will increase the delay duration. Press the Delay button to change or cancel the delayed start. If you turn off the machine after activating the delay time, the delayed time is cancelled.

NOTE: Press and hold the Delay touch button to change the delayed start

time faster. The rate of change in time is proportional to the how long the button is pressed and held for. When the Delay Start touch button is pressed for a long period of time, the counter will stop at "h:00".

Additional functions can also be selected.

5. Energy Save Touch Button

Press the Energy Save touch button to activate the automatic door opening system at the end of a programme. This reduces energy consumption by operating at low rinsing temperatures and improves the drying performance.

NOTE: Each time the machine is turned off and on, the Eco programme and Energy Save option will be set as default. Options chosen before will be cancelled. If another programme is selected, the Energy Save icon will switch off.

6. Half Load Touch Button

Press the Half Load button to select the area of the dishwasher that contains the dishes to be washed. You can select both baskets, the upper basket only, or the lower basket only. Press the button until the light corresponding to the basket containing the dishes to be washed illuminates.

7. Extra Fast Touch Button

Press the Extra Fast touch button to reduce the programme duration. The washing water temperature and pressure will increase to ensure an improved washing quality in a shorter duration. This option can only be selected at the beginning of a programme.

8. Extra Silent Touch Button

Press the Extra Silent touch button to decrease the water pressure, therefore providing a more sensitive and silent wash. This option can only be selected at the beginning of a programme.

9. Extra Dry Touch Button

Press the Extra Dry touch button to add extra drying steps to a programme in order to obtain drier dishes. This option increases water temperature of the final rinse step and duration of the drying step.

NOTE: If an option is not compatible with the selected program, a buzzer sounds.

NOTE: If an extra feature has been used on the most recent wash programme, this feature will remain active on the next selected programme. To cancel this feature on the newly selected wash programme, press the feature button until the light on the button switches off.

10. Rinse Aid lack warning indicator

When there is insufficient rinse aid, the Rinse Aid Lack Warning Indicator will illuminate to indicate the rinse aid chamber needs filling.

NOTE: If you decide not to start the selected programme, please see the "Changing a Programme" and "Cancelling a Programme" sections.

7.1 Changing a Programme

Follow the steps below to change a programme while in operation.

1. Open the door and press the Programme touch button (2) to select a new programme. If the door is opened during operation, the time remaining of the selected programme will show on the display (3).

2. After closing the door, the newly selected programme will resume the course of the old programme.

NOTE: Open the door slightly at first to stop a wash programme before it is complete in order to avoid water spillage.

7.2. Cancelling a Programme

Follow the steps below to cancel a programme while in operation or in standby mode.

1. Open the door of the machine, the most recently selected programme will be shown on the display.
2. Press and hold the Programme touch button (2) for 3 seconds. At the end of 3 seconds, '1' will show on the Display (3).
3. The water discharge process will start

after the door of the machine is closed and will continue for 30 seconds. When the programme is cancelled, a buzzer will sound 5 times.

NOTE: When the door is opened after selected wash programme is complete, azzer will sound and '0' will be shown on Display (3).

Front view of a black electronic device control panel with buttons and indicator lights (no text or symbols visible)

7.3. Switching the Machine Off

Buzzer sounds 5 times each at 5 minutes intervals (in 0, 5, 10 and 15th minutes) in total 4 different times at the end of the program. You can then turn your machine off by using the On/Off touch button (1).

NOTE: Do not open the door before a programme is complete.

NOTE: Leave the door of your

machine slightly open at the end of a wash programme to speed up drying.

NOTE: If the door of the machine

is opened or the power is cut off while a programme is in operation, the programme will continue when the door is closed or the power returns.

NOTE: If the power is cut or the machine door is opened during the drying process, the programme will terminate.

Your machine will now be ready for a new programme selection.

Buzzer Sound Control

To change the buzzer sound level, follow the below steps:

1. Open the door and press Extra Dry / Energy Save (5,9) and Half Load (6) touch buttons simultaneously for 3 seconds.
2. When sound setting is recognized, buzzer gives a long sound and machine will display last set level, from "S0" to "S3".
3. To decrease sound level press Extra

Dry / Energy Save touch button (5,9). To increase sound level, press Half Load touch button (6).

1. To save the selected sound level, turn off the machine.

"S0" level means all voices are off. Factory setting is "S3".

Save Power Mode

To activate or deactivate save power mode, follow the below steps:

1. Open the door and press Delay (4) and Extra Dry / Energy Save (5,9) touch buttons simultaneously for 3 seconds.
2. After 3 seconds, the machine will display last Setting, "IL1" or "IL0".
3. When Save Power Mode is activated, "IL1" will be displayed. On this mode, interior lights will turn off 4 minutes after the door is opened, and the machine will turn off after 15 minutes of no activity in order to save energy.
4. When Save Power Mode is deactivated "IL0" will be displayed. If Save Power Mode is deactive, interior lights will be on as long as the door is open, and the machine will always be on unless it is turned off by user.
5. To save the selected setting, turn off the machine.

In factory setting, Save Power Mode is active.

Natural Ion Tech (Model Dependent)

This function provides extra hygiene to the machine thanks to Ion Technology. Natural Ion Tech function is activated by pressing Half Load (6) touch button for 3 seconds. Meanwhile display counts from 1 to 3. At the end of 3 seconds, “Ion” will be displayed which indicates lonizer function is activated. The button is released after “Ion” is displayed. If no intervention by user, 24 hours after activation of lonizer function, it is automatically cancelled.

Note: If machine is turned off, Ionizer function is cancelled.

Note: Natural Ion Tech function does not work with any program.

Crystalight (Model Dependent)

This technology which have lon and Light Technology together, provides to extra

hygiene. It prevents bad odor during a washing program that includes a drying step.

Crystalight function is activated or deactivated by pressing Half Load (6) touch button for 6 seconds. Meanwhile display counts from 1 to 6. At the end of 6 seconds, "U1" will be displayed which indicates Crystalight function is activated. When it is deactivated, at the end of 6 seconds, "U0" will be displayed. Crystalight setting follows Natural Ion Tech setting.

Default set is "UO".

Note: If user do not deactivate Crystalight function at the end of program, it will remain active until the machine turns off.

Note: If Crystalight or Ionizer function is active, ionizer led lights up like dimming during door is open.

Infoled 2.1 (Model Dependent)

LED Indicator State	of the Machine
Red, continuous	The machine is running a program.
Red, flashing A program is cancelled.
Red, flashing rapidly	The machine has a fault. Refer to section "Automatic fault warnings and what to do".
Green, continuous A program is finished.

8 CLEANING AND MAINTENANCE

Cleaning your dishwasher is important to maintain the machine's service life Make sure that the water softening setting (If available) is done correctly and correct amount of detergent is used to prevent limescale accumulation. Refill the salt compartment when the salt sensor light comes on. Oil and limescale may build up in your Dishwasher over time. If this occurs:

• Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with dishwashers.
  • To extend the life of your dishwasher, clean the appliance regularly on each month
• Wipe the door seals regularly with a damp cloth to remove any accumulated residue or foreign objects.

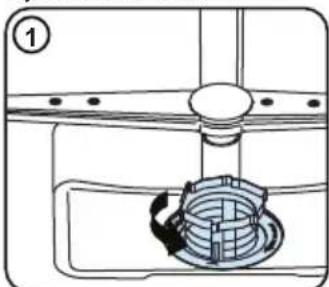

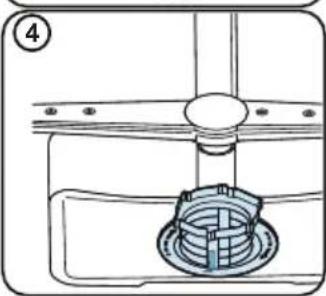

8.1 Filters

Clean the filters and spray arms at least once a week. If any food waste remains or foreign objects on the coarse and fine filters, remove them and clean them thoroughly with water.

a) Micro Filter b) Coarse Filter
c) Metal Filter

Diagram of a mechanical assembly with a central component and a circular housing (no text or symbols)

Technical line drawing of a mechanical assembly with a central component and a circular base (no text or symbols)

To remove and clean the filter combination, turn it counter clockwise and remove it by

lifting it upwards (1). Pull the coarse filter out of the micro filter (2). Then pull and remove the metal filter (3). Rinse the filter with lots of water until it is free of residue. Reassemble the filters. Replace the filter insert, and rotate it clockwise (4).

• Never use your dishwasher without a filter.
• Incorrect fitting of the filter will reduce the washing effectiveness.
• Clean filters are necessary for proper running of the machine.

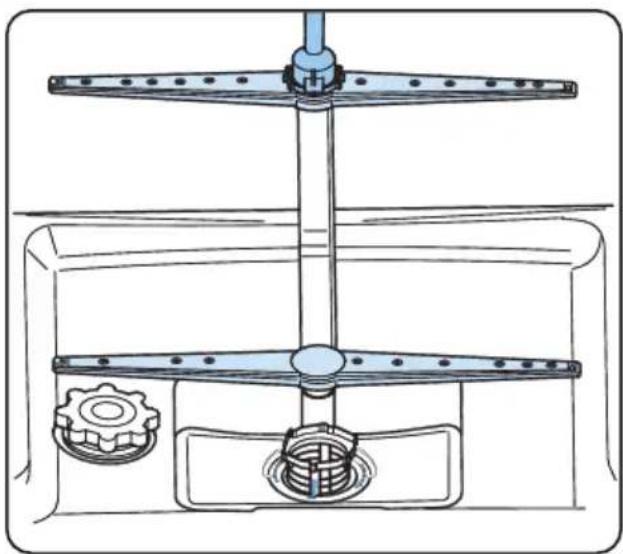

8.2 Spray Arms

Make sure that the spray holes are not clogged and that no food waste or foreign object is stuck to the spray arms. If there is any clogging, remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper spray arm.

Technical line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

8.3 Drain Pump

Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

Warning Risk of cuts!

When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

In this case:

1. First always disconnect the appliance from the power supply.
2. Take out baskets.
3. Remove the filters.
4. Scoop out water, use a sponge if required.
5. Check the area and remove any foreign objects.
6. Install filters.
7. Re-insert baskets.

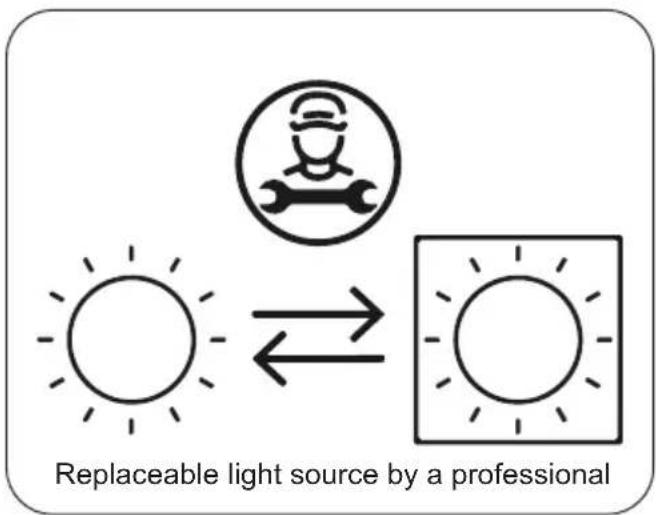

Replacing Light Source

Only an authorised service person or qualified technician can replace the light source.
    note bottom
        Replaceable light source by a professional

This product contains a light source of energy efficiency class .

9 TROUBLESHOOTING

FAULT POSSIBLE CAUSE	TROUBLESHOOTING
The programme does not start.	Your Dishwasher is not plugged in. Plug your Dishwasher in.
	Your Dishwasher is not switched on.	Switch your Dishwasher on by pressing the On/Off button.
	Fuse blown. Check your indoor fuses.
	Water inlet tap is closed. Turn on the water inlet tap.
	Your Dishwasher door is open. Close the Dishwasher door.
	Water inlet hose and machine filters are clogged.	Check the water inlet hose and machine filters and make sure they are not clogged.
Water remains inside the machine.	Water drain hose is clogged or twisted.	Check the drain hose, then either clean or untwist it.
	The filters are clogged. Clean the filters.
	The programme is not finished yet. Wait until the programme is finished.
Machine stops during washing.	Power failure. Check mains power.
	Water inlet failure. Check water tap.
Shaking and hitting noises are heard during a wash operation.	The spray arm is hitting the dishes in the lower basket.	Move or remove items blocking the spray arm.
Partial food wastes remain on the dishes.	Dishes placed incorrectly, sprayed water not reaching affected dishes.	Do not overload baskets.
	Dishes leaning each another.	Place dishes as instructed in the section on loading your dishwasher.
	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Wrong wash programme selected.	Use the information in the programme table to select the most appropriate programme.
	Spray arms clogged with food waste.	Clean the holes in the spray arms with thin objects.
	Filters or water drain pump clogged or filter misplaced.	Check the drain hose and filters are correctly fitted.
Whitish stains remains on dishes.	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Rinse aid dosage and/or water softener setting set too low.	Increase rinse aid and/or water softener level.
	High water hardness level. Increase water softener level and add salt.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
Dishes do not dry.	Drying option is not selected. Select a programme with a drying option.
	Rinse aid dosage set too low. Increase rinse aid dosage setting.
Rust stains form on the dishes.	Stainless-steel quality of the dishes is insufficient.	Use only dishwasher-proof sets.
	High level of salt in wash water.	Adjust the water hardness level using water hardness table.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
	Too much salt spilled in the Dishwasher while filling it with salt.	Use funnel while filling salt to the compartment to avoid spillage.
	A poor mains grounding. Consult a qualified electrician immediately.
Detergent remains in the detergent compartment.	Detergent was added when the detergent compartment was wet.	Make sure detergent compartment is dry before use.

AUTOMATIC FAULT WARNINGS AND WHAT TO DO

TROUBLE CODE	POSSIBLE FAULT WHAT TO DO
FF	Water inlet system failure	Make sure the water inlet tap is open and water is flowing.
		Separate the inlet hose from the tap and clean the filter of the hose.
		Contact for service if the error continues.
F5	Pressure system failure	Contact for service.
F3	Continuous water input	Close the tap and contact for service.
F2	Inability to discharge water	Water discharge hose and filters may be clogged.
		Cancel the program.
		If the error continues, contact for service.
F8 Heater error Contact for service.
F1 Overflow		Unplug the machine and close the tap.
		Contact for service.
FE Faulty electronic card Contact for service.
F7 Overheating Contact for service.
F9 Diverter position error Contact for service.
F6 Faulty heater sensor Contact for service.
HI High voltage failure Contact for service.
LO Low voltage failure		Contact for service.

The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons.

Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used.

Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.

Contact information for your customer service can be found on the back of this document.

Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

XXXXXXXXXX
