Product Type	Heat pump tumble dryer
Brand	Westinghouse
Model	WDH904N7WA
Height x Width x Depth	850 x 596 x 662 mm
Max Depth with Door Open	1107 mm
Max Width with Door Open	958 mm
Adjustable Height	850 mm (+15 mm feet adjustment)
Drum Volume	113 L
Maximum Load	9 kg
Voltage / Frequency	230-240 V / 50 Hz
Total Power	800 W
Type of Use	Household
Permitted Ambient Temperature	+5°C to +35°C
Protection Level	IPX4
Refrigerant Gas	R290 (Propane)
Gas Weight	0.149 kg
Door Reversibility	Yes (reversible door)
Control Panel	Touch buttons with LED display
Programs	Cotton, Mixed, Bedding, Synthetic, Eco Cotton, Refresh, Denim, Gym Wear, Easy Iron, Shirts, Wool, Delicate, Favourite
Options	Dryness Level (Extra Dry, Cupboard Dry, Iron Dry), Reverse Plus, Extra Anticrease, Time Dry, Delay Start
Child Lock	Yes (touch buttons lock)
Buzzer	Can be enabled/disabled
Condenser Cleaning	Recommended regularly
Filter Cleaning	After each use or when indicator lights up
Water Container	Can be drained manually or with optional draining kit
Internal Light	LED, replaceable by service center

Frequently Asked Questions - WDH904N7WA WESTINGHOUSE

What is the maximum load capacity of the Westinghouse WDH904N7WA heat pump dryer?

The maximum load capacity is 9 kg for cotton fabrics. For other fabrics, refer to the program table in the manual.

How do I clean the filter on the WDH904N7WA?

Open the filter cover, remove the filter, and remove lint by hand or with a vacuum cleaner. Do not use water to clean the filter. Clean it after each use or when the filter indicator lights up.

Can I delay the start of a drying cycle?

Yes, you can use the Delay Start option to delay the start from 30 minutes up to 20 hours. Set the program and options first, then press Delay Start repeatedly to set the desired delay time, then press Start/Pause.

What type of refrigerant does the WDH904N7WA use?

It uses R290 (propane), a flammable gas with high environmental compatibility. Keep fire and ignition sources away from the appliance.

How do I activate the child lock?

Press and hold the Extra Anticrease touch button (D) for a few seconds until 'LOC' appears on the display. To deactivate, press and hold again until 'unL' is shown. This function remains enabled even after switching off.

What does the Eco Cotton program do?

The Eco Cotton program dries cotton fabrics to 'cupboard dry' level with maximum energy savings. It is the reference program for energy label testing according to AS/NZS2442.2.

Why is my drying cycle taking longer than expected?

Possible causes: the load may be too wet (spin again in washing machine), the filter or condenser may be clogged, the room temperature is outside the optimal range (18-25°C), or the default dryness setting needs adjustment. Also check if the load weight matches the program.

How do I adjust the dryness level?

Use the Dryness Level option to select Extra Dry, Cupboard Dry, or Iron Dry. You can also adjust the default remaining moisture level via the settings menu (press and hold Reverse Plus and Extra Anticrease buttons simultaneously).

Can I use a draining kit to empty the water container automatically?

Yes, an optional draining kit can be installed. With the kit, the appliance automatically drains the water container. You should then deactivate the water container indicator via settings (press and hold Time Dry and Delay Start buttons).

What do I do if the display shows an error code like E91?

Switch the appliance off and on again. If the error persists, contact the Authorized Service Center. For a nuisance trip like EHO (unstable mains supply), wait for stable supply and press Start. If the problem continues, check the power cord and socket integrity.

USER MANUAL WDH904N7WA WESTINGHOUSE

Enjoy peace of mind. Register your appliance today.

Stay updated on better living services, safety notices and shop for accessories.

1. Open the camera app on your smartphone and point at the QR code to scan.

Product Registration QR code is located on the front of your appliance or inside the door rim.

1. Tap the notification or link to open the registration form.

2. Complete your details and enjoy peace of mind.

Tumble Dryer

WDH904N7WA

WDH904N7SA

Electrolux. Think of you.

Westinghouse. We are part of the Electrolux family.

Share more of our thinking at www.electrolux.com

Contents

1. SAFETY INFORMATION .... 2
2. CONDITIONS OF USE....6
3. SAFETY INSTRUCTIONS....6
4. PRODUCT DESCRIPTION 8
5. CONTROL PANEL 9
6. PROGRAM TABLE....11
7. OPTIONS....12
8. SETTINGS....14
9. BEFORE FIRST USE....16
10. DAILY USE....16
11. HINTS AND TIPS....18
12. CARE AND CLEANING....18
13. TROUBLESHOOTING ....21
14. TECHNICAL DATA....23
15. WARRANTY....24
16. ENVIRONMENTAL CONCERNS ......26

Subject to change without notice.

1. ⚠️ SAFETY INFORMATION

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damage. Always keep the instructions with the appliance for future reference.

- Read the supplied instructions.

- Warning: Risk of fire / Flammable materials.

The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children between 3 and 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.
• Do not let children play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep detergents away from children.
• Keep children and pets away from the appliance when the door is open.
• If the appliance has a child safety device, it should be activated.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

- Do not change the specification of this appliance.

- The appliance can be installed as freestanding or below a kitchen counter with correct space (refer to the Installation Instruction).

• Do not install the appliance behind a lockable door, a sliding door or a door with a hinge on the opposite side, that would prevent the appliance door from being fully open.
• The ventilation opening in the base must not be covered by a carpet, mat, or any floor covering.
• WARNING: The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• Connect the mains plug to the mains socket only at the end of the installation process. Make sure that the mains plug is accessible after installation.
• Ensure good air ventilation in the room where the appliance is installed to avoid the back flow of unwanted gases into the room from appliances burning gas or other fuels, including open fires.
• WARNING: Do not install the appliance in an environment with no air exchange.
  The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.
• WARNING: In the appliance enclosure or in the built-in structure, keep ventilation opening clear of obstruction.
• WARNING: Do not damage the refrigerant circuit.
• If the mains power supply cable is damaged, it must be replaced by the manufacturer, its Authorized Service Centre or similarly qualified persons to avoid an electrical hazard.
• Do not exceed the maximum load of 9 kg (refer to the “Program chart” chapter).

• Do not use the appliance if items have been soiled with industrial chemicals.

• Wipe away lint or packaging debris that has accumulated around the appliance.

• Do not run the appliance without a filter. Clean the lint filter before or after each use.
• Do not dry unwashed items in the tumble dryer.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should only be used as specified by the product manufacturer's instructions.
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat.

If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and create a fire hazard.

- If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent this will reduce, but not eliminate, the hazard.

- Remove all objects from items that could be a source of fire ignition such as lighters or matches.

- WARNING: Never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.

- Before any maintenance operation, deactivate the appliance and disconnect the mains plug from the socket.

2. CONDITIONS OF USE

This appliance is intended to be used in household and similar applications such as:

• farm houses;
• by clients in hotels, motels, bed & breakfast and other residential type environments;

- areas for communal use in blocks of flats or in launderettes.

3. SAFETY INSTRUCTIONS

3.1 Installation

WARNING!

of fire / Flammable materials.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Do not install the appliance in an environment with no air exchange. The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Do not install or use the appliance where the temperature can be lower than 5°C or higher than 35°C.

• The floor area on which the appliance is to be installed must be flat, stable, heat resistant and clean.

• Make sure that there is air circulation between the appliance and the floor.
  • Always keep the appliance vertical when it is being moved.

• The rear surface of the appliance must be put against a wall.
• When the appliance is in its permanent position, check if it is leveled correctly with the aid of a spirit level. If it is not, adjust the feet accordingly.
• WARNING: In the appliance enclosure or in the built-in structure, keep ventilation openings clear of obstruction

3.2 Electrical connection

WARNING!

of fire and electric shock.

• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
  • The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.

• Always use a correctly installed shockproof socket.
- Do not use multi-plug adapters and extension cables.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
- Do not touch the mains cable or the mains plug with wet hands.

3.3 Use

WARNING!

of injury, electric shock, fire, burns or damage to the appliance.

Warning: Risk of fire / Flammable materials. The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

• This appliance is for household (indoors) use only.
• Do not dry damaged (torn, frayed) items that contain padding or fillings.
• If laundry has been washed with a stain remover, carry out an additional rinse cycle before starting a drying cycle.
• Dry only fabrics that are suitable to dry in the appliance. Follow the cleaning instruction on the item label.
• Do not drink or prepare food with the condensed water/distilled water. It can cause health problems to people and pets.
• Do not sit or stand on the open door of the appliance.
• Do not dry dripping wet clothes in the appliance.

3.4 Internal lighting

WARNING!

of injury.

• Visible LED radiation, do not look directly into the beam.
• To replace the internal lighting, contact the Authorized Service Center.

3.5 Care and cleaning

WARNING!

of injury or damage to the appliance.

Warning: Risk of fire / Flammable materials. The appliance contains flammable gas, propane (R290), a gas with a high level of environmental compatibility. Keep fire and ignition sources away from the appliance. Be careful not to cause damage to the refrigerant circuit containing propane.

• Do not use water spray and steam to clean the appliance.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• Be careful when you clean the appliance to prevent damage to the cooling system.

3.6 Compressor

WARNING!

of damage to the appliance.

- The compressor and its system in the tumble dryer is filled with a special agent which is free from fluoro-chloro-hydrocarbons. This system must stay tight. The damage of the system can cause a leakage.

3.7 Service

• To repair the appliance contact the Authorized Service Center.
- Use original spare parts only.

3.8 Disposal

WARNING!

of injury or suffocation.

Warning: Risk of fire / Risk of material damage and damage to the appliance.

- Disconnect the appliance from the mains electrical and water supplies.

• Cut off the mains electrical cable close to the appliance and dispose of it.
• The appliance contains flammable gas (R290). Contact your municipal authority for information on how to discard the appliance correctly.

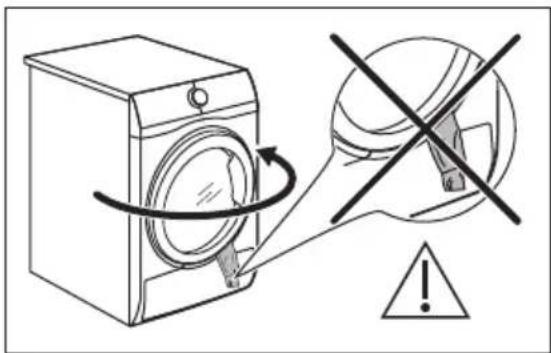

• Remove the door catch to prevent children or pets from becoming trapped in the drum.
• Dispose of the appliance in accordance with local requirements for the disposal of Waste Electrical and Electronic Equipment (WEEE).

4. PRODUCT DESCRIPTION

For ease of loading laundry or ease of installation the door is reversible. (see in the installation instruction).

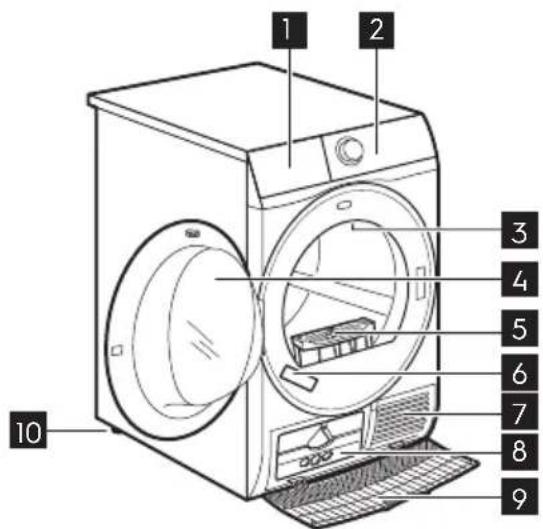

1 Water container
2 Control panel
3 Internal light
4 Appliance door
5 Filter
6 Rating plate
7 Airflow slots
8 Heat Exchanger lid
9 Heat Exchanger cover
10 Adjustable feet

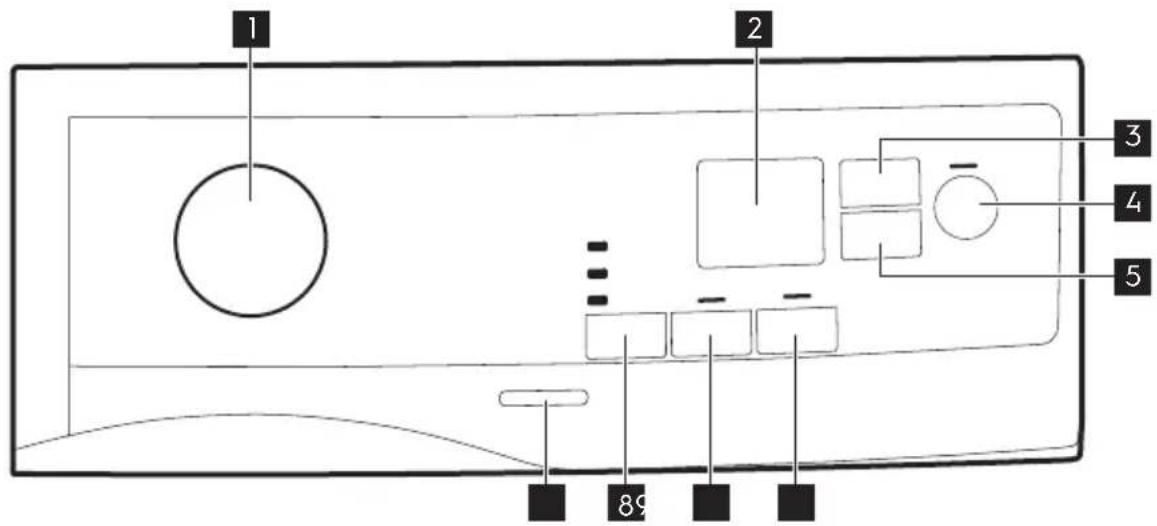

5. CONTROL PANEL

1 Program knob
2 Display
3 Time Dry touch button
4 Start/Pause touch button
5 Delay Start touch button
6 Extra Anticrease touch button
7 Reverse Plus touch button
8 Dryness Level touch button
9 On/Off button

Press the touch buttons with your finger in the area with the symbol or name of the option. Do not wear gloves when you operate the control panel. Make sure that the control panel is always clean and dry.

5.1 Display

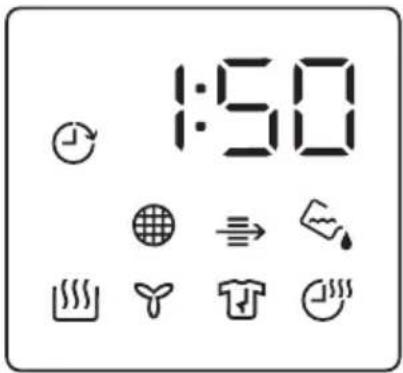

Symbol on the display Symbol description
	time drying option on
	delay start option on
	indicator: check condenser
	indicator: clean filter
	indicator: drain the water container
	indicator: drying phase
	indicator: cooling phase
	indicator: anticrease phase
- - -	wrong selection
2:00	program duration
: 10 - 2:00	time drying duration
: 30 - 20 h	delay start duration

6. PROGRAM TABLE

Program Load	1)	Properties / Fabric type2)
Favourite [T804]	Depends on a memorized program	You can do your configuration of program and options and memorize in the appliance memory (See chapter "Settings - Favourite ☆").
Cotton 9 kg Cotton fabrics.
Mixed 3 kg		Cotton and synthetic fabrics.Low temperature program.Delicate program with warm air. [SB4C]
Bedding 3 kg		Bed linen such as single and double sheets, pillowcases, duvet cover. [BOH7]
Synthetic 3.5 kg Synthetic and mixed fabrics.
Eco Cotton3)	9 kg	Cycle to be used to dry cotton with "cupboard" dryness level, with maximum energy saving. [A006]
Refresh 1 kg Refreshing textiles that were in storage.
Denim 4 kg		Leisure clothing such as jeans, sweat-shirts of different material thicknesses (e.g. at the neck, cuffs and seams).
Gym Wear 2 kg		Sportswear, thin and light fabrics, microfiber, polyester. [28AY]
Easy Iron	1 kg (or 5 shirts)	Easy care fabrics for which a minimum of ironing is necessary. The drying results can be different from one type of fabric to an other. Shake the items before putting them in the appliance. When the program has ended, immediately remove the items and put them on a hanger. [G3GT]
Shirts	1.5 kg (or 7 shirts)	Limits the formation of creases on cotton, synthetic, and mixed-fiber shirts.Garments will not be fully dried upon completion of the cycle.For best results, remove and hang dry or iron immediately. [WXDB]
Wool	1 kg	WOOL CAREThe wool drying cycle of this machine has been approved by The Woolmark Company for the drying of machine washable wool products provided that the products are washed and dried according to the instructions on the garment label and those issued by the manufacturer of this machine. Mxxxx
Delicate 4 kg		Delicate fabrics such as viscose, rayon, acrylic, and their blends. / [IMAGE]

1) The maximum weight refers to dry items.
2) For fabric mark meaning see chapter HINTS AND TIPS: Preparing the laundry.
3) Eco Cotton program is the reference program for Energy Label, tested according to AS/NZS2442.2.

7. OPTIONS

7.1 Dryness Level

This function helps to increase dryness of the laundry. There are 3 options:

Extra Dry
- Cupboard Dry
- Iron Dry

7.2 Reverse Plus

Increase drum reversing frequency to reduce items twisting and entanglement. To increase uniformity of drying result and help reduce creases. Recommended for large or long items (e.g. sheets, trousers, long dresses).

7.3 Extra Anticrease

Extends the anti-crease phase by 60 minutes at the end of the drying cycle. This function reduces creases. The laundry can be removed during the anticrease phase.

7.4 Time Dry

You can set the program duration, from a minimum of 10 minutes to a maximum of 2 hours. The required duration is related to the quantity of laundry in the appliance.

We recommend that you set a short duration for small quantities of laundry or for only one item.

TIME DRYING RECOMMENDATION
10 min	action of cool air only (no heater).
20 - 40 min	additional drying to improve dryness after previous drying cycle.
>40 min	full drying of the small laundry loads up to 4 kg, well spun (>1200 rpm).

7.5 Time Dry on Wool program

Option suitable for Wool program to adjust final dryness level.

7.6 Options table

Programs^1)	Dryness Level			Reverse Plus	Extra Anticrease	Time Dry	Delay Start
Favourite ☆			Depends on a memorized program
Cotton	■	■	■		■		■
Mixed		■			■	■	■
Bedding		■			■		■
Synthetic	■	■	■		■		■
Eco Cotton		■			■		■
Refresh					■		■
Denim	■	■		■		■
Gym Wear		■			■		■
Easy Iron			■		■		■
Shirts			■		■		■
Wool 📄.						■	■
Delicate		■			■		■

1) Together with the program you can set 1 or more options. To activate or deactivate them, press the related touch button.

8. SETTINGS

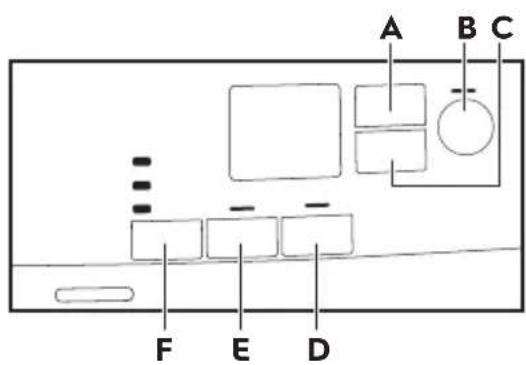

A. Time Dry touch button
B. Start/Pause touch button
C. Delay Start touch button
D. Extra Anticrease touch button
E. Reverse Plus touch button
F. Dryness Level touch button

8.1 Child lock function

This function prevents children playing with the appliance while a program is operating. The touch buttons are locked.

Only the on/off button is unlocked.

Activating the child lock function:

1. Press the on/off button to activate the appliance.
2. Press and hold touch button (D) for a few seconds, the icon "LOC" will flash on the display.

To deactivate function, Press and hold the same touch buttons few seconds, the icon "unL" show in the display. This function remains enabled even after the appliance is switched off.

8.2 Favourite ☆

You can do your configuration of program and options and memorize in the appliance memory.

To memorize your configuration:

1. Press the on/off button to activate the appliance
2. Set the program and available options.
3. Press the (E) button for some seconds.

The sound and the message on the display confirm that the configuration is memorized.

To activate your memorized configuration:

1. Press the on/off button to activate the appliance.
2. Use the program knob to set Favourite☆ position.

Previously memorized configuration of program and options will be restore.

8.3 Water container indicator

By default, the water container indicator is on. It comes on when the program is completed or when it is necessary to empty the water container.

If a draining kit is installed (additional accessory), the appliance automatically drains the water from the water container. In this case we recommend that you deactivate the indicator of the water container.

Deactivating the water container indicator:

1. Press the on/off button to activate the appliance.
2. Wait approximately 8 seconds.
3. Press and hold touch buttons (A) and (C) at the same time.

The display shows one of these 2 configurations:

• The display shows "Off". After 5 s the display returns to normal mode.
• The display shows "On". After 5 s the display returns to normal mode.

8.4 Adjustment of default dryness setting

Every time you enter in the "Adjustment of default dryness setting" mode, previously set degree of remaining moisture will change into next value (e.g previously set -walt change into -).

To change the default degree of remaining moisture:

1. Press the on/off button to activate the appliance.
2. Use the program knob to set any program.
3. Wait approximately 8 seconds.
4. Press and hold buttons (E) and (D) at the same time.

One of these indicators comes on:

• the maximum dryness
• the more dry laundry

• the standard dry laundry

• Press and hold buttons (E) and (D) again until the indicator of the correct level comes on.

If the display returns to the normal mode (the time of the selected program from step 2. will be displayed), while setting the degree of remaining moisture, press and hold buttons (E) and (D) once again to enter to the "Adjustment of remaining laundry moisture" mode (previously set degree of remaining moisture will change into next value).

1. After 5 s the display returns to normal mode.

8.5 Buzzer on/off

This setting permits you to either enable or disable the buzzer at the end of the program. As an example, you might wish to disable this buzzer when you start a wash when going to bed, so that when the drying finished approximately 1 hour later, it will not disturb you through the night.

Error warning beeps such as critical faults are not disabled.

• To disable the buzzer sound, press and hold for approximately 2 seconds touch buttons (E) and (F) at the same time, the icon "b0F will show on display along with buzzer sound.
• To return to default configuration press these 2 touch buttons and hold approximately 2 seconds, the icon "b" will show on display along with buzzer sound.

9. BEFORE FIRST USE

Rear drum packaging is removed automatically when dryer is activated for the first time. Possible to hear some noise.

To unlock the rear drum locks:

1. Switch on the appliance.
2. Set any program.
3. Press the Start/Pause button.

Drum starts to rotate. Rear drum locks are automatically deactivated.

Before you use the appliance to dry items:

• Clean the tumble dryer drum with a moist cloth.
• Start a 1 hour program with moist laundry.

At the beginning of the drying cycle (first 3-5 min) there could be a slightly higher sound level. This is due to the compressor starting up. This is normal for compressor powered appliances such as refrigerators and freezers.

10. DAILY USE

10.1 Start a program without delay start

1. Prepare the laundry and load the appliance.

CAUTION!

e sure that when you close the door, the laundry does not get caught between the appliance door and the rubber seal.

1. Press the on/off button to activate the appliance.
2. Set the correct program and options for the type of load.

The display shows the program duration.

Real drying time will depend on type of the load (quantity and composition), the room temperature and the humidity of your laundry after spin drying phase.

1. Press the Start/Pause touch button. The program starts.

10.2 Starting the program with delay start

1. Set the correct program and options for the type of load.
2. Press the delay start button again and again until the display shows the delay time you want to set.

You can delay the start of a program from a minimum of 30 minutes to a maximum of 20 hours.

1. Press the Start/Pause touch button.

The display shows the countdown of the delay start.

When the countdown is completed, the program starts.

10.3 Change a program

1. Press the on/off button to deactivate appliance
2. Press the on/off button to activate the appliance.
3. Set the program.

10.4 At the end of the program

When the program is completed:

• An intermittent acoustic signal operates.
  • The display shows End
  • The indicator is blink.
  • The indicators 📍 Filter and Tank may come on.
  • The Start/Pause indicator is on.

The appliance continues to operate with the anticrease phase for approximately 30 minutes or more if Extra Anticrease option was set (see chapter Option -Extra Anticrease).

The anticrease phase reduces creasing.

You can remove the laundry before the anticrease phase is completed. We recommend, for better results, that you remove the laundry when the phase is almost completed.

When the anticrease phase is completed:

• The display still shows
• The indicator is off.
• The indicators 📍 Filter and Tank remain on.
- Start/Pause indicator goes off.

1. Press the on/off button to deactivate the appliance.
2. Open the appliance door.
3. Remove the laundry.
4. Close the appliance door.

Possible causes of unsatisfactory drying results:

• Inadequate default dryness level settings. See chapter Adjustment of default dryness level
  • Room temperature is too low or too high. Optimal room temperature is between 18^-25^ .

Always clean the filter and empty the water container when a program is completed.

10.5 Stand-by function

To reduce energy consumption, this function automatically deactivates the appliance:

• After 5 minutes if you do not start the program.
• After 5 minutes from the end of the program.

11. HINTS AND TIPS

11.1 Preparing the laundry

Very often the clothes after washing cycle are kneaded and tangled altogether. Drying kneaded and tangled clothes is inefficient.

To assure proper air flow and even drying it is recommended to shake and load one by one the clothes to the tumble dryer.

To assure proper drying process:

• Close the zips.
• Close the fasteners of duvet covers.
• Do not dry ties or ribbons loose (e.g. apron ribbons). Tie them before you start a program.
• Remove all items from pockets.
• Turn items with the internal layer made of cotton inside out. Cotton layer must be faced outwards.

• Always set the program suitable for the type of laundry.
- Do not put light and dark colors together.
- Use suitable program for cottons, jersey and knitwear to reduce shrinkage.
- Do not exceed the maximum load stated in the programs chapter or shown on the display.
- Dry only the laundry that is suitable for tumble drying. Refer to the fabric label on the items.
- Do not dry large and small items together. Small items can be trapped inside the large items and remain wet.
- Shake the large clothes, fabrics before placing in the tumble dryer. It is to avoid moist places inside the fabric after the drying cycle.

Fabric label Description
	Laundry is suitable for tumble drying.
	Laundry is suitable for tumble drying at higher temperatures.
	Laundry is suitable for tumble drying at low temperatures only.
	Laundry is not suitable for tumble drying.

12. CARE AND CLEANING

12.1 Cleaning the filter

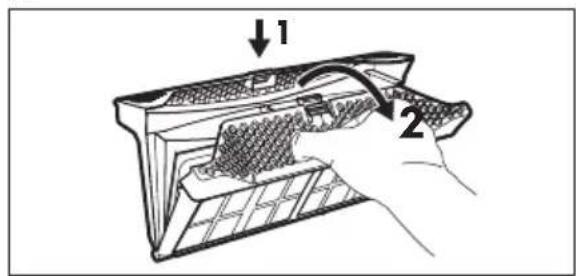

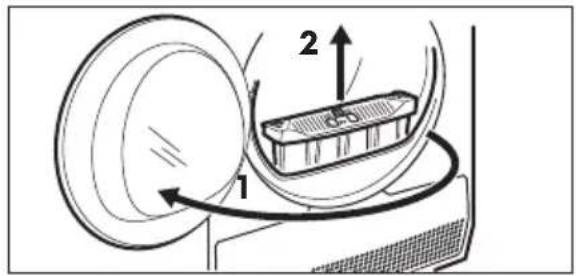

CAUTION!

id the use of water to clean the filter. Instead throw away lint in the dustbin (avoid dispersion of plastic fiber in water ambient).

To achieve the best drying performances clean the filter regularly, clogged filter lead to longer cycles and energy consumption increase. Use your hand to clean the filter, and if necessary, a vacuum cleaner.

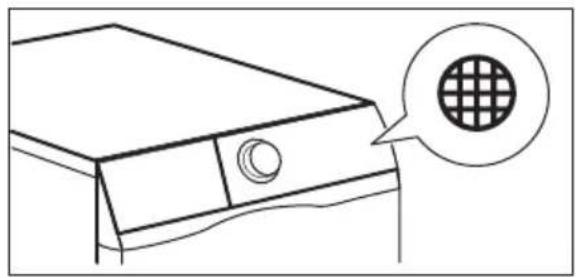

1.

Line drawing of a washing machine with a circular inset showing a grid pattern (no text or symbols)

1.

1.

1.

Line drawing of a hand inserting into a device into an open tray (no text or symbols)

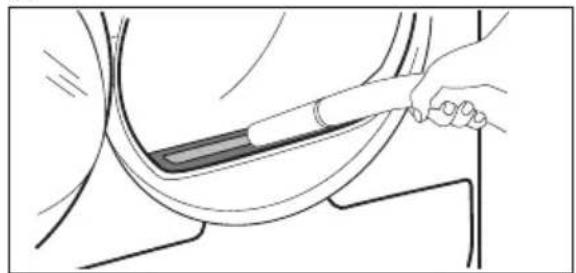

5.1)

Line drawing of a hand holding a tool interacting with a car wheel (no text or symbols)

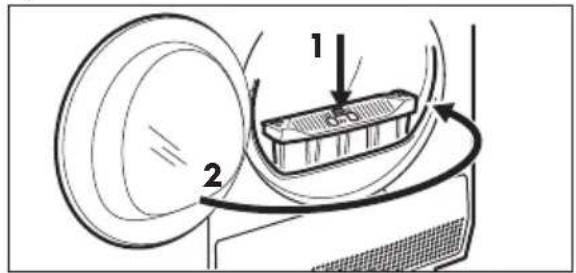

1.

1) If necessary remove fluff from the filter socket and gasket. You can use a vacuum cleaner.

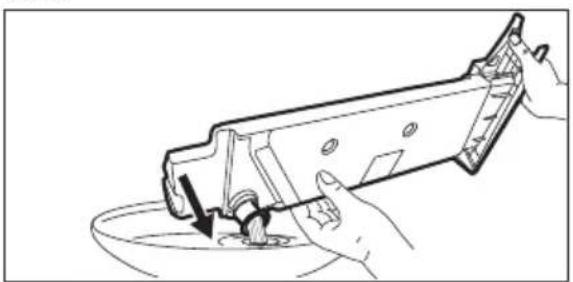

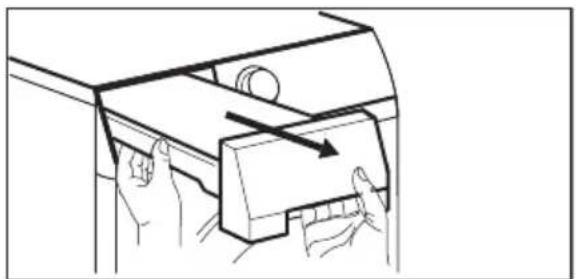

12.2 Emptying the water container

1.2.

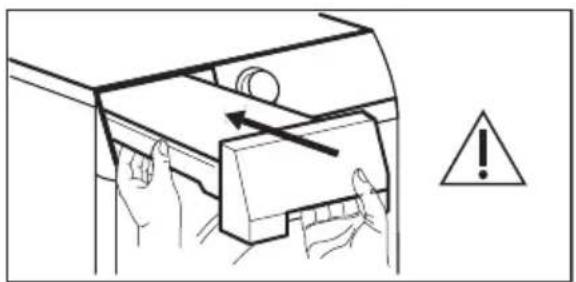

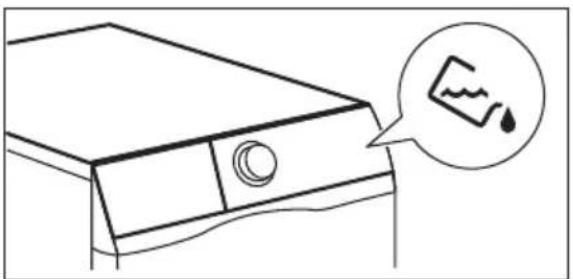

Line drawing of a washing machine with a speech bubble showing a water drop symbol (no text or labels)

Line drawing of a mechanical device with hands operating a component (no text or symbols)

3.4.

Line drawing of hands using a tool to clean or brush a bowl (no text or symbols)

Illustration of hands using a tool to adjust or install a component, with an exclamation mark and warning triangle (no text or symbols)

You can use the water from the water container as an alternative to distilled water (e.g. for steam ironing). Before you use the water, remove dirt residues with a fi Iter.

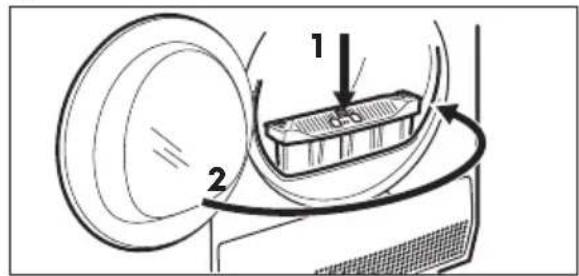

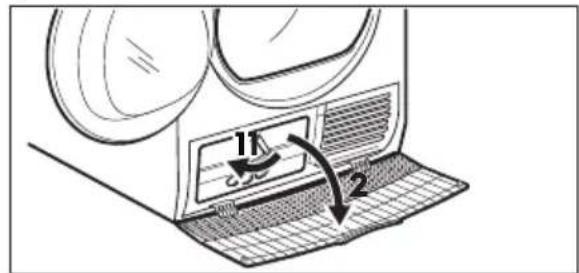

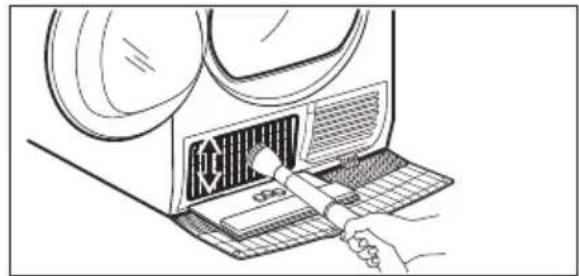

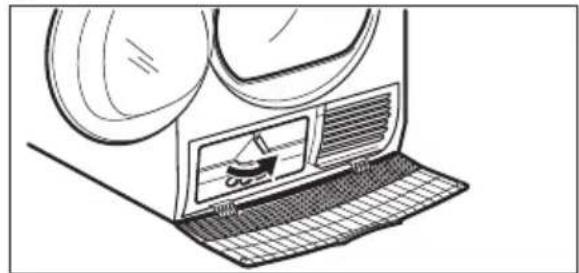

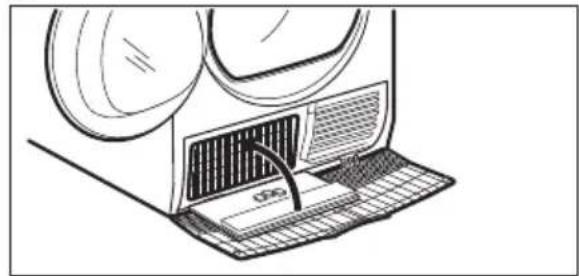

12.3 Cleaning the condenser

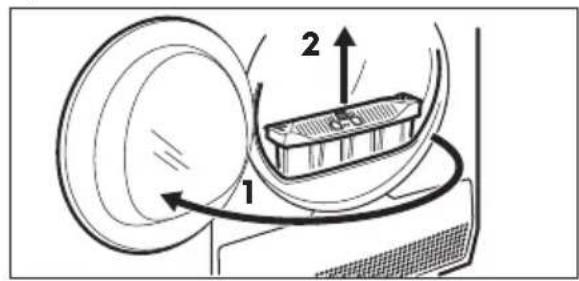

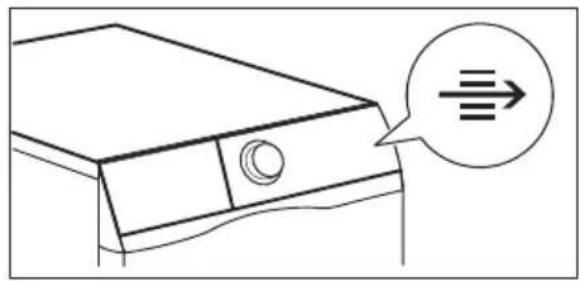

1.

Line drawing of a device with a button and speech bubble containing three arrows (no text or symbols)

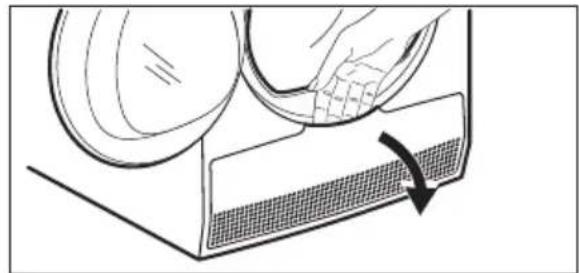

1.

Diagram showing a hand pressing down on a meshed surface with an arrow indicating direction (no text or symbols)

1.

Line drawing of a hand inserting a fan into a device with a grid panel (no text or symbols)

1.

Line drawing of a kitchen appliance with a mounted dish and ventilation cover (no text or symbols)

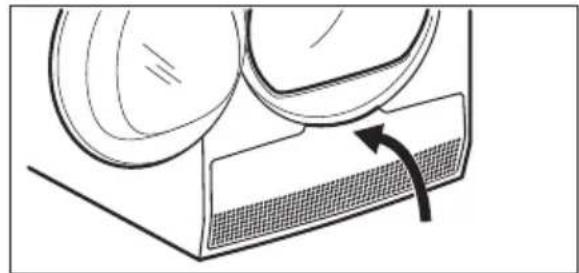

1.

1.

1.

1.

Line drawing of a car air vent with mesh insulation and ventilation duct (no text or symbols)

1.

Diagram of a mechanical component with a meshed base and curved arrows indicating motion (no text or symbols)

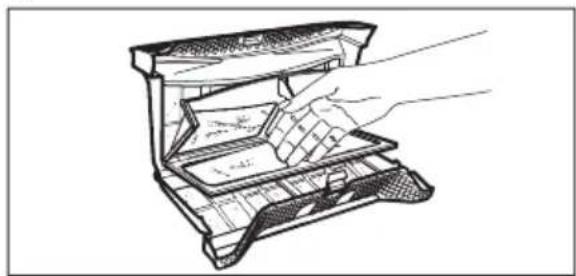

CAUTION!

not touch the metal surface with bare hands. Risk of injury. Wear protective gloves. Clean carefully to avoid damaging the metal surface.

12.4 Cleaning the drum

WARNING!

connect the appliancebefore you clean it.

Use a standard neutral soap detergent to clean the inner surface of the drum and drum lifters. Dry the cleaned surfaces with a soft cloth.

CAUTION!

ot use abrasive materials or steel wool to clean the drum.

12.5 Cleaning the control panel and housing

Use a standard neutral soap detergent to clean the control panel and housing.

Use a moist cloth to clean. Dry the cleaned surfaces with a soft cloth.

CAUTION!

not use furniture cleaning agents or cleaning agents which can cause corrosion.

12.6 Cleaning the airflow slots

Use a vacuum cleaner to remove fluff from the airflow slots.

13. TROUBLESHOOTING

WARNING!

Refer to Safety chapters.

13.1 Error Codes

The appliance does not start or it stops during operation.

First try to find a solution to the problem (refer to the table). If the problem persists, contact the Authorized Service Center.

WARNING!

Deactivate the appliance before carrying out any check.

In case of major problems, the acoustic signals operate, the display shows an error code and the Start/Pause button may flash continuously:

Error code	Possible cause Remedy
E91 Internal fail. No communication between electronic elements of the appliance.	The program was not finished properly or the appliance stopped too early. Switch the appliance off and on again. If the error code appears again, contact the Authorized Service Center.
EHO The mains supply is unstable.	When the appliance is showing EHO, please wait until main supply is stable than press start. If the appliance pause the cycle without any indication then press the cycle start. If the warning will occur check the power cord /socket integrity or main supply.

If the display shows other error codes, deactivate and activate the appliance. If the problem continues, contact the Authorized Service Center.

In case of different problem with the tumble dryer check the table below for possible solutions.

13.2 Troubleshooting

Problem Possible solution
You cannot activate the appliance.	Make sure that the mains plug is connected to the mains socket.
	Check fuse in fuse box (domestic installation).
The drum does not rotate. Release the rear drum locks manually (see chapter Before First Use).
The program does not start. Press Start/Pause.
	Make sure that the appliance door is closed.
The appliance door does not close.	Make sure that the installation of the filter is correct.
	Make sure that the laundry is not caught between the appliance door and the rubber seal.
The appliance stops during operation.	Make sure that the water container is empty. Press Start/Pause to start the program again.
	Load is too small, increase the load or use the Time Drying program.
The cycle time is too long or unsatisfactory drying result.1)	Make sure that the weight of the laundry is suitable for the duration of the program.
	Make sure that the filter is clean.
	The laundry is too wet. Spin the laundry in the washing machine again.
	Ensure that the room temperature is higher than +5°C and lower than +35°C. Optimal room temperature is 18°C to 25°C.
	Set the Time Drying or the Extra Dry program.2)
The display shows - - - .	If you want to set a new program, deactivate and activate the appliance.
	Make sure that the options are suitable for the program.

1) After maximum 5 hours, the program ends automatically.
2) It can happen that some area remains humid when drying big items (e.g. bed sheets).

If the drying results are not satisfactory

• The set program was incorrect.
  • The filter is clogged.
  • The Heat Exchanger is clogged.
• There was too much laundry in the appliance.

• The drum is dirty.

• Incorrect setting of the conductivity sensor (See chapter "Settings -Adjustment of the remaining laundry moisture degree" for better setting).
  • The airflow slots are clogged.

• Room temperature is too low or too high (optimal room temperature 18°C to 25°C).

14. TECHNICAL DATA

Height x Width x Depth 850 x 596 x 662 mm
Max. depth with the appliance door open	1107 mm
Max. width with the appliance door open	958 mm
Adjustable height 850 mm (+ 15 mm - feet adjustment)
Drum volume 113 l
Maximum load 9 kg
Voltage 230-240 V
Frequency 50 Hz
Total power 800 W
Type of use Household
Permitted ambient temperature + 5°C to + 35°C
Level of protection against ingress of solid particles and moisture ensured by the protective cover, except where the low voltage equipment has no protection against moisture	IPX4
Gas designation R290
Gas Weight 0.149 kg

15. WARRANTY

FOR SALES IN AUSTRALIA AND NEW ZEALAND

APPLIANCE: WESTINGHOUSE DRYER

This document sets out the terms and conditions of the product warranties for Westinghouse Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should there be a manufacturing defect in your Appliance. This warranty is in addition to other rights you may have under the Australian Consumer Law.

1. In this warranty:

a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the Competition and Consumer Act 2010;
b) 'Appliance' means any Electrolux product purchased by you and accompanied by this document;
c) 'ASC' means Electrolux authorised service centres;
d) 'Westinghouse' is the brand controlled Electrolux Home Products Pty Ltd of 163 O'Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited (collectively "Electrolux") of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand;
e) 'Warranty Period' means the period specified in clause 3 of this warranty;
f) ‘you’ means the purchaser of the Appliance not having purchased the Appliance for re-sale, and ‘your’ has a corresponding meaning.

1. Application: This warranty only applies to new Appliances, purchased and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) other rights and remedies under a law to which the Appliances or services relate, including any nonexcludable statutory guarantees in Australia and New Zealand.

2. Warranty Period: Subject to these terms and conditions, this warranty continues for in Australia for a period of 24 months and in New Zealand for a period of 24 months, following the date of original purchase of the Appliance.

3. Repair or replace warranty: During the Warranty Period, Electrolux or its ASC will, at no extra charge if your

Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux may, in its absolute discretion, choose whether the remedy offered for a valid warranty claim is repair or replacement. Electrolux or its ASC may use refurbished parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux.

5. Travel and transportation costs:

Subject to clause 7, Electrolux will bear the reasonable cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. Travel and transportation will be arranged by Electrolux as part of any valid warranty claim.

1. Proof of purchase is required before you can make a claim under this warranty.

2. Exclusions: You may not make a claim under this warranty unless the defect claimed is due to faulty or defective parts or workmanship. This warranty does not cover:

a) light globes, batteries, filters or similar perishable parts;
b) parts and Appliances not supplied by Electrolux;
c) cosmetic damage which does not affect the operation of the Appliance;
d) damage to the Appliance caused by:

1. negligence or accident;
2. misuse or abuse, including failure to properly maintain or service;

3. improper, negligent or faulty servicing or repair works done by anyone other than an Electrolux authorised repairer or ASC;

4. normal wear and tear;

5. power surges, electrical storm damage or incorrect power supply;

6. incomplete or improper installation;

7. incorrect, improper or inappropriate operation;

8. insect or vermin infestation;

9. failure to comply with any additional instructions supplied with the Appliance;

In addition, Electrolux is not liable under this warranty if:

a. the Appliance has been, or Electrolux reasonably believes that the Appliance has been, used for purposes other than those for which the Appliance was intended, including where the Appliance has been used for any non-domestic purpose;
b. the Appliance is modified without authority from Electrolux in writing;
c. the Appliance's serial number or warranty seal has been removed or defaced

8. How to claim under this warranty:

To enquire about claiming under this warranty, please follow these steps:

a. carefully check the operating instructions, user manual and the terms of this warranty;
b. have the model and serial number of the Appliance available;
c. have the proof of purchase (e.g. an invoice) available;
d. telephone the numbers shown below.

1. Australia: For Appliances and services provided by Electrolux in Australia: Electrolux goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. 'Acceptable quality' and 'major failure' have the same meaning as referred to in the ACL.

2. New Zealand: For Appliances and services provided by Electrolux in New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.

3. Confidentiality: You accept that if you make a warranty claim, Electrolux and its agents including ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty.

Important Notice
Before calling for service, please ensure that the steps listed in clause 8 above have been followed.
AUSTRALIA	FOR SERVICEor to find the address of your nearest authorised service centre in AustraliaPLEASE CALL 13 13 49For the cost of a local call	FOR SPARE PARTSor to find the address of your nearest spare parts centre in AustraliaPLEASE CALL 13 13 50For the cost of a local call
NEW ZEALAND	FOR SERVICEor to find the address of your nearest authorised service centre in New ZealandPLEASE CALL 0800 10 66 10	FOR SPARE PARTSor to find the address of your nearest spare parts centre in New ZealandPLEASE CALL 0800 10 66 20

16. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.

Notes

www.westinghouse.com.au

www.westinghouse.co.nz

Five circular icons representing shopping, home, gear, car, and bicycle (no text or symbols)
