Product Type	Freestanding Dishwasher
Brand	Artusi
Model	ADW5000X

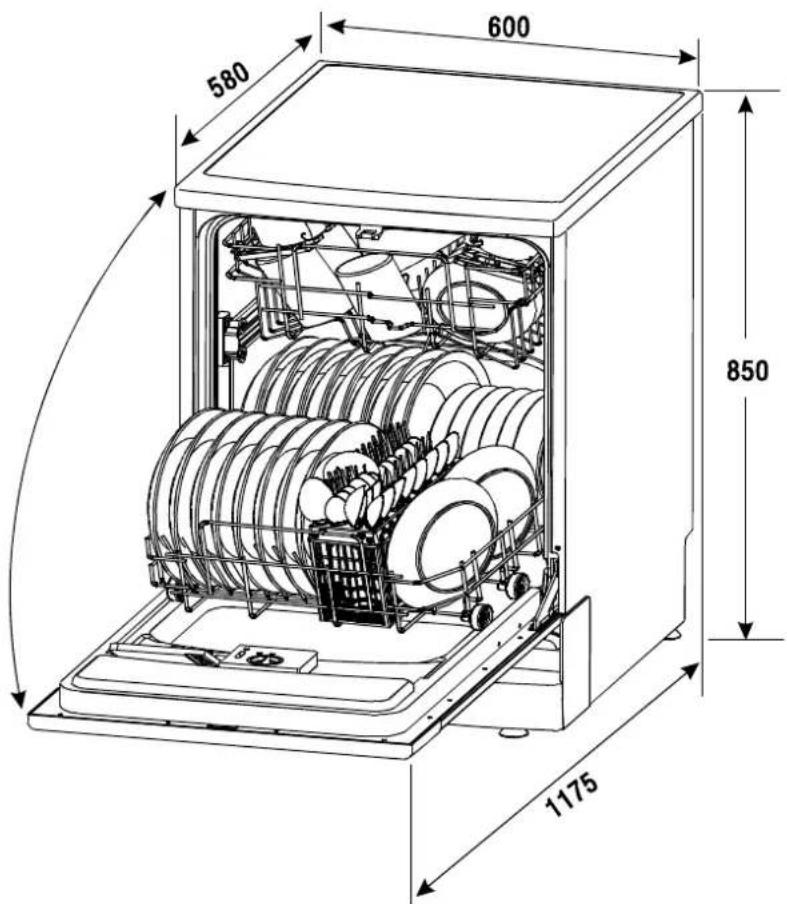

Dimensions (H x W x D)	850 x 600 x 580 mm
Capacity	12 Place Settings
Power Supply	220-240 VAC, 50 Hz
Rated Current	10 A
Water Pressure (Min/Max)	0.04 MPa / 1.0 MPa
Wash Programs	Intensive, Heavy, Normal, Rinse, Rapid, 3in1
Energy Consumption (Normal program)	0.82 kWh
Water Consumption (Normal program)	12 L
Rinse Aid Dispenser Capacity	110 ml
Detergent Dispenser	Main wash (20g) and pre-wash (5g) compartments
Upper Basket	Height adjustable with cup shelf

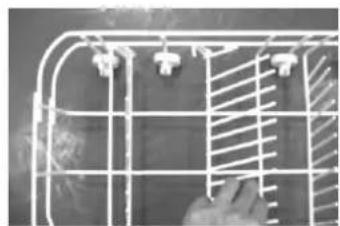

Lower Basket	Folding spikes for large pots

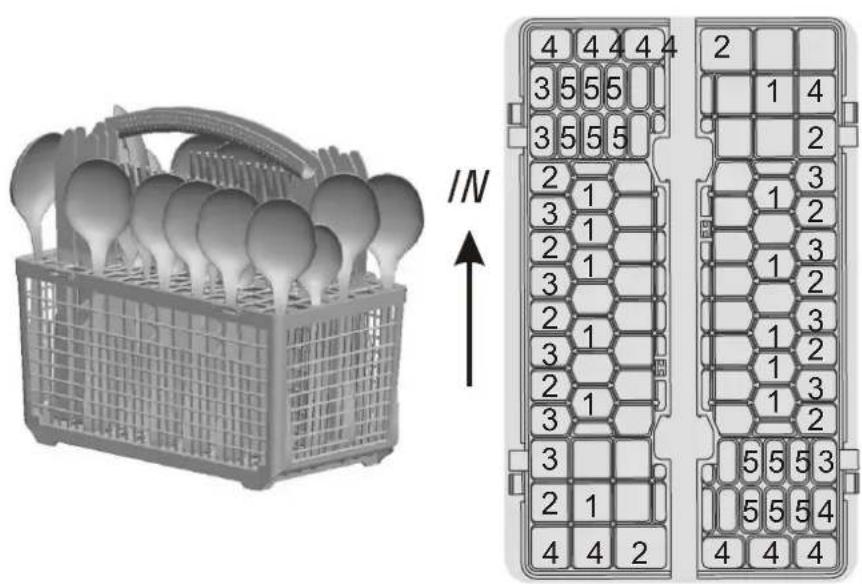

Cutlery Basket	Removable, with separate slots

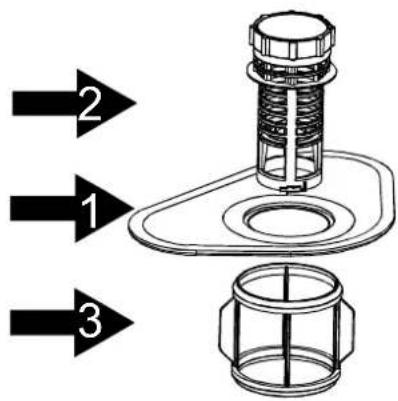

Filtration System	Coarse, main, and fine filters (cleaning recommended weekly)
Spray Arms	Upper and lower, removable for cleaning
Noise Level	Not specified in manual (typical ~49 dB)
Safety Features	Overflow protection, child lock, grounded plug

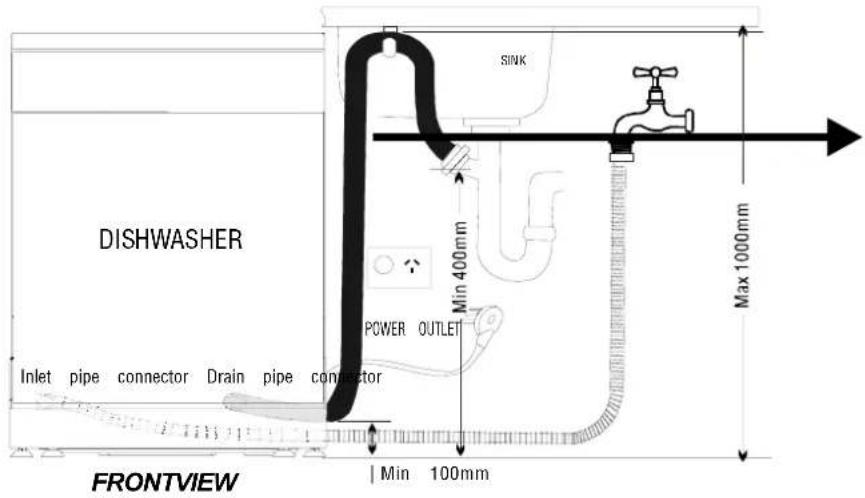

Installation	Cold water connection, drain hose height 40-100 cm
Warranty	24 months for dishwashers (domestic use)

Frequently Asked Questions - ADW5000X Artusi

Why won't my Artusi ADW5000X dishwasher start?

Check if the power cord is plugged in and the door is closed securely. Also ensure the water supply is turned on and the circuit breaker hasn't tripped. If the error code E1 appears, water pressure may be too low.

How do I load the dishwasher for best cleaning?

Scrape off large food residues, but do not pre-rinse. Load dishes facing downward, with larger items in the lower basket and delicate items in the upper basket. Ensure spray arms can rotate freely and sharp knives are placed with points down or horizontally.

What detergent should I use?

Only use detergent specifically designed for automatic dishwashers. Avoid soap, laundry detergent, or hand washing liquid. For heavily soiled loads, add extra detergent to the pre-wash chamber.

How do I clean the filters?

Remove the filter assembly by turning the coarse filter counter-clockwise and lifting. Clean all filters under running water with a brush at least once a week. Never use the dishwasher without filters.

Why are my dishes not drying properly?

Ensure rinse aid is filled and the dosage is set appropriately (recommended setting 4). Open the door slightly after the cycle to let steam escape. Unload the lower basket first to avoid water dripping from the upper basket.

What does the Rinse Aid Warning Light mean?

The light indicates the rinse aid dispenser needs refilling. Open the cap, pour in rinse aid until the level indicator turns black, then close the cap. Wipe up any spills to avoid excessive foaming.

How can I adjust the upper basket height?

Pull out the upper basket and reposition the wheels on different rails. The shelf inside can be folded or removed to accommodate taller items.

My dishwasher is making a knocking noise. What should I do?

Interrupt the cycle and check if a spray arm is hitting an item or if dishes are loose. Rearrange the load to prevent obstruction. If noise persists, check water pipes for installation issues.

How do I install the drain hose?

Connect the drain hose to a pipe at least 4 cm in diameter or route it into the sink. The hose must be between 40 cm and 100 cm above the floor and not kinked. Use the supplied plastic support to secure the hose.

What do error codes on the control panel mean?

If the 3in1 light flickers, water intake is too long (check faucet and water pressure). If the Rinse light flickers, there is an overflow or leak. Turn off water supply and call service if needed.

USER MANUAL ADW5000X Artusi

Technical line drawing of a multi-level cleaning machine with internal components (no text or symbols)

Quick operation guide

Fordetailed operating method read the corresponding content on the instruction manual.

Switchontheappliance

PresstheOn/Offbuttontoswitchontheappliance, Openthedoor.

Scrapeoffanylargeamountofleftoverfood. Softenremnantsofburntfoodinpans, thenloadthebaskets. Refertothedishwasherloadinginstructions.

Selectaprogramme

PresstheProgrammehbuttonuntiltheselectedprogrammelightsup

( See the section entitled "Operation instruction" )

Runningthedishwasher

Close the door, turn on the water tap and press the Start/Reset button. The machine will start working after about 10 seconds.

- Changingtheprogramme

- 1. Arunningcyclecanonlybemodifiedifithasbeenrunningforashorttime. Otherwisethedetergent mayhavealreadybeenreleasedandthewateralreadydrained. If this the case, the detergent dispenser must be refilled.

2.PresstheStart/Resetbuttonformorethan3secondstocanceltherunningprogramme.

3.Selectanewprogramme.

4.Restartthedishwasher.

WARNING!

- Addforgottendishesinthe dishwasher.

• 1. Openthodooralittletostopthedishwasher.

1. After the spray arms stop working, you can open the door completely.

3.Addtheforgottendishes.

1. Close the door, the dishwasher will start running again after 10 seconds.

Open the door carefully. Hot steam may escape when the door is opened!

- If the appliance is switched off during a wash cycle.

- If the appliance is switched off during a wash cycle, when switched on again, pleasere-select the washing cycle and operate the dish washer according to the original Power-on-state.

Switchofftheappliance

When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop. Turnoff the appliance using the ON/OFF button.

T

unloadthebaskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling thedishesandutensilswhiletheyarestilhotandmoresusceptibletobreak. Theywillalsodrybetter.Unloadtheappliance,startingfromthelowerbasket.

Read this Manual

Dear Customer,

This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
• farmhouses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and TroubleshootingTips, etc.

Before Calling for Service

■ ToreviewhesedontroubleshootingTips
will help you to solve some common problems by yourself.
If you cannot solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information....1
2) Operating Instructions....2 Control Panel....2 Dishwasher Features....2
3) Prior using for the first time....3
A、Fill the Rinse Aid Dispenser....3
B、Function of Detergent 4
4) Loading the Dishwasher Basket......6 Attention before or after loading the Dishwasher Baskets......6 Loading the upper Basket......7 Loading the Lower Basket......7 Cutlery Basket......8
5) Starting a washing programme....9
Wash Cycle Table....9
Turning on the Appliance....10
Change the Programme....10
At the End of the Wash Cycle....10
6) Maintenance and cleaning....11 Filtering System....11 Caring for the Dishwasher....12
7) Installation instruction....13
Positioning the Appliance....13
AboutPowerConnection....13
Water Connection....14
Start of dishwasher....15
8) Troubleshooting Tips....16 Before calling for service....16 Errorcodes....17 Technical information....18

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE

⚠ WARNING! When using your dishwasher, follow the precautions listed below:

GROUNDING INSTRUCTIONS

Thisappliancemustbegrounded. Intheeventofa malfunctionorbreakdown, groundingwillreduce theriskofanelectricshockbyprovidingapathof leastresistanceofelectriccurrent. Thisappliance isequippedwithacordhavinganequipment-groundingconductorandagroundingplug.
■ Theplugmustbepluggedintoanappropriateoutlet thatisinstalledandgroundedinaccordancewith alllocalcodesandordinances.

▲WARNING!

■ Improperconnectionoftheequipment-grounding conductorcanresultintheriskofanelectricshock.
■ Checkwithaqualifiedelectricianorservice representativeifyouareindoubtwhetherthe applianceisproperlygrounded.Donotmodifythe plugprovidedwiththeappliance;Ifitdoesnotfit theoutlet.Haveaproperoutletinstalledbya qualifiedelectrician.

WARNING! PROPER USE

■ Donotabuse, siton, or standard the door or dish rack of the dish washer.
■ Donottouchtheheatingelementduringor immediatelyafteruse. (Thisinstructionisonlyapplicabletomachines withavisualheatingelement.)
■ Donotoperateyourdishwasherunlessall enclosurepanelsareproperlyinplace.Open thedoorverycarefullyifthedishwasheris operating,thereisariskofwatersquirtingout.
■ Donotplaceanyheavyobjectsthe onorstandon doorwhenitisopen.Theappliancecouldtip forward.
■ When loading items to be washed: 1) Locate sharp items so that they are not likely to damage the door seal; 2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
When using your dishwasher, you should prevent plastic items from coming into contact with the heating element. (This instruction is only applicable to machines with a visual heating element.)
- Check that the detergent comparison is empty after completion of the wash cycle.
■ Donotwashplasticitemsunlesstheyaremarked dishwashersafeortheequivalent.Forplasticitems notsomarked,checkthemanufacturer's recommendations.
■ Use only detergent and rinse additives designed for an automatic dishwasher.
■ Never uses soap, laundry detergent, or hand washing detergent in your dishwasher. Keep these products out of there a chofchildren.

• Keepchildrenawayfromdetergentandrinseaid,keep childrenawayfromtheopendoorofthedishwasher,therecouldstillbesomedetergentleftinside.
  This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ■ Childrenshouldbesupervisedtoensurethattheydo notplaywiththeappliance.
  ■ Dishwasher detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoid contact with skin and eyes and keep children away from the dishwasher when the door is open.
  ■ The door should not be left open, since this could increase the risk of tripping.
  If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
  ■ Removethedoortothewashingcompartmentwhen removing an old dishwasher from service or discarding it.
  ■ Please dispose of packing materials properly.
  ■ Usethedishwasheronlyforitsintendedfunction.
  During installation, the power supply must not be excessively or dangerously bent or flattened. Donottamperwithcontrols.
  The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not bereused.
  ■ The maximum number of place settings to be washedis12.
  ■ The maximum permissible inlet water pressure is 1Mpa.
  ■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2. Operation Instruction

IMPORTANT Togetthebestperformancefromyourdishwasher,readalloperatinginstructions

before using it for the first time.

Control Panel

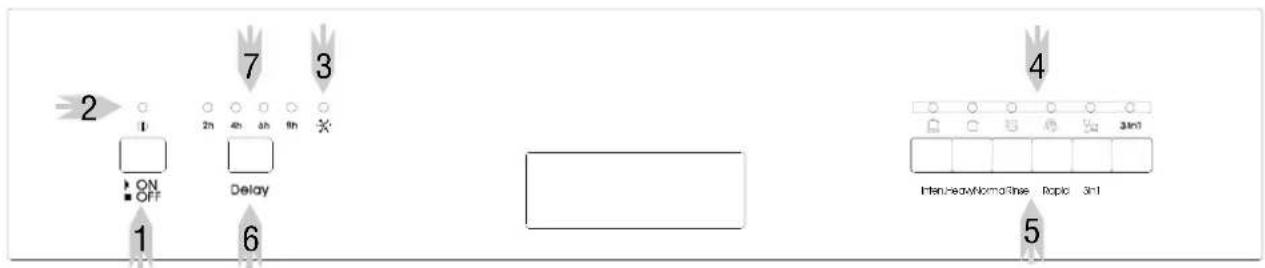

1 ON/OFF Button: To turn on/off the power supply.
2 Power Light: To be on when the ON/OFF Button is Presseddown.
3 Rinse Aid Warning Light: To be on when the rinse aid dispenser needs to be refilled.
4 Program indicator light.

5 Program Button: To select washing program when press the button.
6 Delayed Start Button: Press this button to set the delayed hours for washing. There are 4 choices.
7 Delay indicator: different indicator means different delay time.

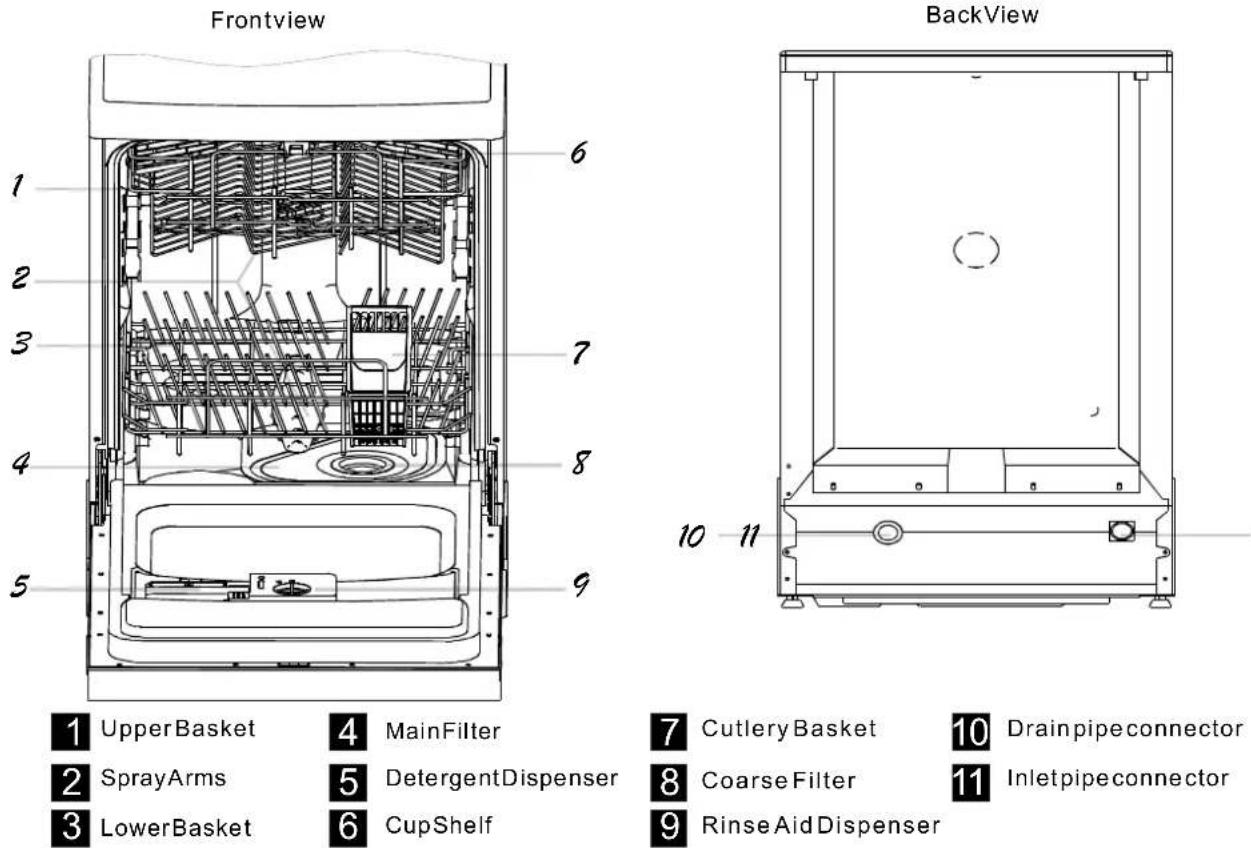

Dishwasher Features

3.Prior using for the first time

Before using your dishwasher for the first time:

A Filltherinseaiddispenser

B Fill indetergent

A. Fill the Rinse Aid Dispenser

RinseAid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1 / 4 full.

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below.

Full
3/4 full
1/2 full
1 / 4 full - Should refill to eliminate spotting
Empty

Close-up of a hand pressing down on a white appliance panel with buttons and ventilation slots (no visible text or symbols)

Close-up of a medical device with a white bulb inserted, showing internal components and a small inset bottle (no visible text or symbols)

Close-up of a hand holding a circular device with three buttons and a label '3' (no readable text or symbols on the device itself)

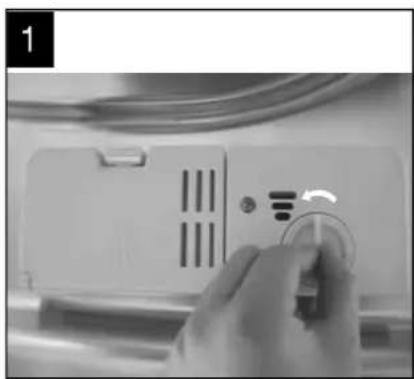

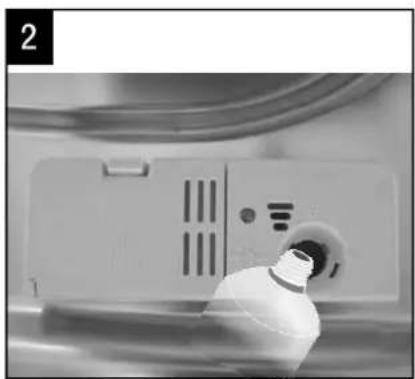

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
2 Pour the rinse aid into the dispenser, being careful not to overfill.

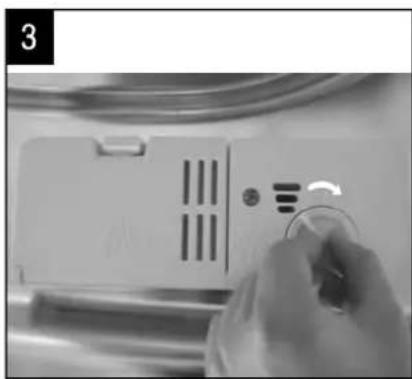

3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid spilt while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

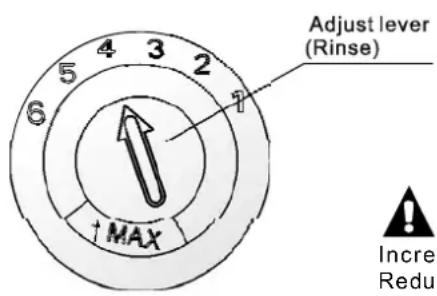

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factoryvalueis"4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knifeblades.

B. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

Detergents

Thereare3sortsofdetergents

1. With phosphate and with chlorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 °dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

■ conventional, alkaline detergents with caustic components
■ low alkaline concentrated detergents with natural enzymes

The use of “normal” washing programs in combination with concentrated detergents reduces pollution and is good for your dishes; these wash programs are specifically matched to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason

“normal” wash programs in which concentrated detergents are used can achieve the same results that can otherwise only be achieved using “intensive” programs.

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

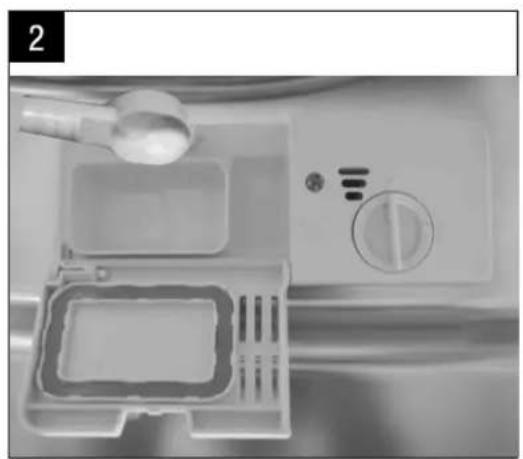

AmountofDetergenttoUse

Close-up of a kitchen appliance with a plastic tray, handle, and control knob (no visible text or symbols)

NOTE:

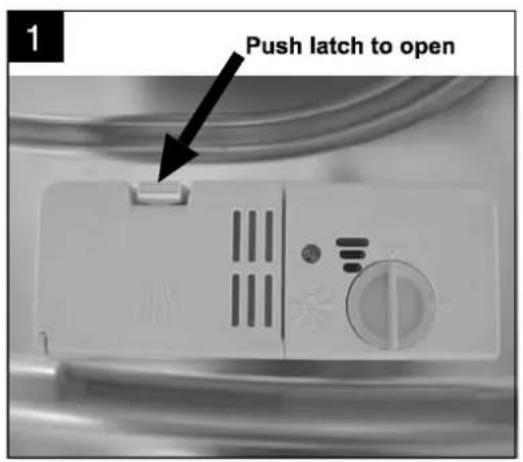

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Onlyusebrandeddetergentaidfordishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

ProperUseofDetergent

Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry.

Don't put powdered detergent into the dispenser until you're ready to wash dishes.

FillinDetergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrated on the right:

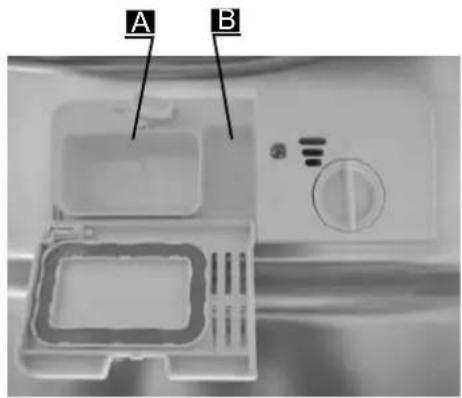

A The place of main wash cycle detergent placed, "MIN" means approximately 20g of detergent.
B The place of pre-wash cycle detergent placed, approximately 5g of detergent

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Closethe lid and press until it locks in place.

If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

NOTE:

■ Youfindinformationabouttheamountofdetergentforthesingleprogrammeonthispage.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the detergent packaging.

4. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
■ For particular items, select a program with as low a temperature as possible.
■ Topreventdamage, takeglassandcutleryoutofthedishwasherassoonaspossible after the program has ended.

For washing in the dishwasher the following cutlery/dishes

Arenotsuitable

■ Cutlerywithwooden,hornchinaor mother-of-pearlhandles

- Plastic items that are not heat resistant - Older cutlery with glued parts that are not temperature resistant

■ Bonded cutlery items or dishes

■ Pewterorcooperitems

■ Crystalglass

■ Steelitemssubjecttorusting

■ Wooden platters

■ Items made from synthetic fibres

Areoflimited suitability

■ Some types of glasses can become dull after a large number of washes

■ Silver and aluminum parts have a tendency to discolour during washing

■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes underrunning water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Verysmallitemsshouldnotbewashedinthedishwasherastheycouldeasilyfalloutofthebasket.

• Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that watercannotcollectinthecontaineroradeepbase.
  ■ Dishes and items of cutlery must not lie inside one another, or cover each other.
  ■ Toavoiddamagetoglasses,theymustnottouch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
  ■ Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

Loading the Upper Basket

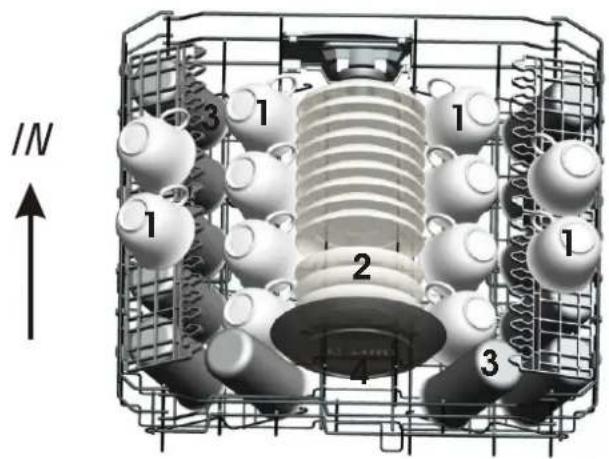

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).

Position the dishes and cookware so that they will not be moved by the spray of water.

1 Cups
2 Saucers
3 Glasses
4 Dessert dishes

Loading the Lower Basket

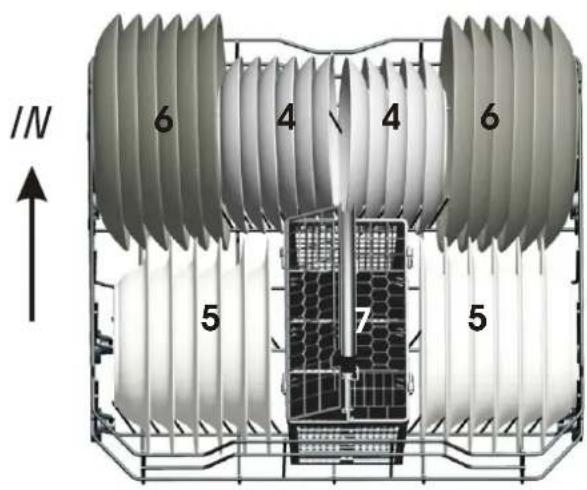

We suggest that you place large items and items that are the most difficult to clean into the lower basket such as: pots, pans, lids, serving dishes and bowls, as shown in the figure below.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Please be reminded that:

■ Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.

4 Dessert dishes
5 Soup plates
6 Dinner plates
7 Silverware basket

Adjusting the Upper Basket

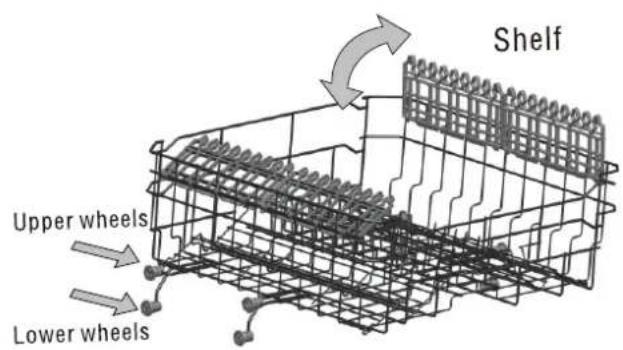

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms.

The shelf can be folded back or be removed when not required for use.

Close-up of a mechanical assembly with a pipe fitting and a white arrow pointing to a component (no visible text or symbols)

Mechanical assembly diagram showing a lever and pivot point with an arrow indicator (no text or symbols present)

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Close-up of a wire cage with metal grating and hatched pattern, no visible text or symbols

Cutlery Basket Cutlery Basket

Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.

1 Forks
2 Soup spoons
3 Dessert spoons
4 Teaspoons
5 Knife

▲ WARNING!

Do not let any item extend through bottom.

For personal safety and a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together.
■ Silverware is placed with the handles-down.
■ But place knives and other potentially dangerous utensils are placed handles-up.

5. Starting a washing program

Wash Cycle Table

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (l)	Rinse Aid
Intensive	For the heaviest soiled loads, such as pots, pans, casserole dishes and dishes that have been sitting with dried food onthemforawhile.	Pre-wash(50)°C Pre-wash Wash(65)°C Rinse Rinse Rinse(55)°C Drying	5/25g.	130	1.5	23
Heavy	For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans. standarddailycycle.	Pre-wash(50)°C Wash(50)°C Rinse Rinse(65)°C Drying	5/25g.	160	1.3	15
Normal (*AS/NZS 2007.1)	Fornormallysoiledloads, suchasplates, glasses, bowlsandnormally soiledpans.	Wash(55)°C Rinse Rinse Rinse(50)°C Drying	5/25g.	110	0.82	12
Rinse	Fordishesthatneedtobe rinsedanddriedonly.	Wash(40°C) Rinse(70)°C Drying		80	1.0	8
Rapid	A shorterwashforlightly soiledloadsthatdonot needdrying.	Wash(40)°C Rinse Rinse(45)°C	20g.	30	0.5	12
3in1	For normally soiled loads, such as pots, plates, glasses and lightly soiled pans. standard daily cycle.	Pre-wash (50°C) Wash(50°C) Rinse Rinse (70°C) Drying	3in1 1Pcs	160	1.3	15

NOTE:

■ (★) Meaning:needtofillrinseintotheRinse-AidDispenser.
*AS/NZS 2007.1: This programme is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1, as follows:

Capacity: 12 setting
■ Position Upper basket: upper wheels on rails
Rinseaidsetting:6

NOTE: We recommend you open the door slightly 50mm to assist in drying of the dishes after every wash.

Turning On the Appliance

Starting a cycle wash

• Draw out the lower and upper basket, load the dishes and push them back.
  It is commended to load the lower basket first, then the upper one (see the section entitled "LoadingtheDishwasher").
  Pour in the detergent (see the section entitled "Salt, Detergent and Rinse Aid").
  Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
• Close the door, and select the desired programme by pressing the corresponding button, then the dishwasher will start to work in 3 second.

Change the Program...

Premise:

1 You can modify the washing program, When the dishwasher just runs for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").

2 Press the button of desired program more than 3 seconds until it's Indicator is on, after 10 seconds the machine will keep working. Entitled "Starting a wash cycle...").

NOTE: If you open the door during washing, the machine will pause. When you close the door, the machine will keep on working after 10 seconds.

The program lights show the state of the dishwasher:

a) Allprogramlightsoff----standby

b) One of the program lights on----pause

c) One of the program lights blinking---- run

a) Allprogramlightsoff----standby b) One of the program lights on----pause c) One of the program lights blinking---- run

NOTE: If all the lights begin to glimmer, that indicates the machine is out of order, please turn off the main power and water supply before calling a service.

Forgot to Add a Dish?

A forgotten dish can be added at any time before the detergent cup opens.

1 Openthedooralittletostopthewashing.

3 Loadtheforgottendishes.

2 Afterthesprayarmsstopworking, you can open the door completely.

4! Closethedoor, thedishwasherwillstartrunningagain after 10 seconds.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakage. They will also dry better.

■ SwitchOfftheDishwasher

The buzzer of the dishwasher moos for 8 seconds, only in this case the programme has ended.

1. SwitchoffthedishwasherbypassingtheON/OFFbutton.

2. Turnoffthewatertap!

■ Openthedoorcarefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cooldown around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloading the dishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when washing, because the hot water may scald you.

6. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filtersystem consists of a coarse filter, a flat (Main filter) And a microfilter (Fine filter).

Main filter 1

Food and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Coarsefilter 2

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. Toremove the items caught by the filter, gently squeeze the tap on the top of this filter and liftout.

Finefilter 3

This filter holds soil and food residues in the sump area and prevents it from being redeposit on the dishes during wash cycle.

Filterassembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. For reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The dishwasher must never be used without the filters.
■ Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

1

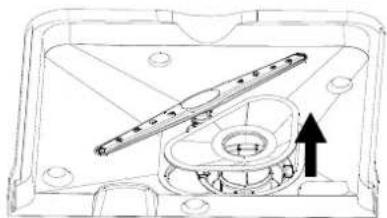

step 1 : Turn the filter in anti-clockwise direction, then lift it up

2

Technical line drawing of a mechanical component with no visible text or symbols

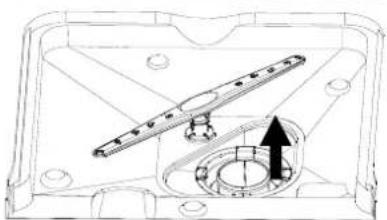

step 2 : lift the Main filter up

3

Technical line drawing of a mechanical assembly with no visible text or symbols

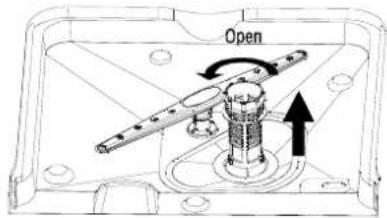

step 3: lift the Fine filter up

NOTE: When following this procedure from step1 to step 3, the filter system will be removed; when following it from Step3 to Step1, the filtersystemwillbeinstalled.

Remarks:

• Inspect the filters for blocking after every time the dishwasher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth.

Aftercleaning, makesuretodryitthoroughly.

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher.

Cleaning The Door

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

Tocleantheedgearoundthedoor,youshoulduseonlyasoftwarm,dampcloth.

To avoid penetration of water into the door lock and electrical components, do not use aspraycleanerofanykind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

ProtectAgainstFreezing

please take frost protection measures on the dishwasher in winter. Every time washing cycles, please operate as follows:

1. Cutoff the electrical power to the dishwasher.
2. Turnoff the watersupply and disconnect the water inlet pipe from the watervalve.
3. Drain the water from the inlet pipe and water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the watervalve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwashercannotwork because of the ice, please contact professional service persons.

Cleaning the SprayArms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings.

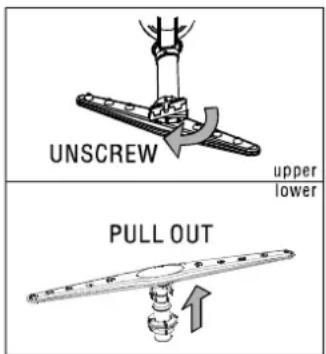

- Toremovethesprayarms, screwoffthenutclockwiseto take out the washer on top of the spray arm and remove the arm.
- Wash the arms in soapy and warm water and use a soft brush to clean the jets.
- Replace them after rinsing them thoroughly.

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the watersupply to the appliance and leave the doors slightly open so that moisture and odours are not trapped inside.

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

Tocleantheexteriorandrubberpartsofthedishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. Toremovespotsorstainsfromthesurfaceofthe interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ When not in Use for a LongTime

It is recommend that your unawash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliances slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

7. Installation instruction

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the Appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet. In any case, the appliance should not be inclined more than 2.

About Power Connection

WARNING!

Forpersonalsafety:

■ DONOTUSEANEXTENSIONCORDORANADAPTERPLUGWITHTHISAPPLIANCE.
■ DONOT, UNDERANYCIRCUMSTANCES, CUTORREMOVETHEEARTHING CONNECTIONFROMTHEPOWERCORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

⚠ Insure proper ground exists before use

Electrical Connection

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing apathofleastresistance for the electric current. This appliance is equipped with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING!

■ Improperconnectionoftheequipmentearthingconductorcanresultintheriskofan electricshock.
■ Checkwithaqualifiedelectricianorservicerepresentativeifyouareindoubtwhetherthe applianceisproperlyearthed.
■ Donotmodifytheplugprovidedwiththeappliance.Iftheplugdoesnotfitproperlytothe outlet,pleasehaveaqualifiedelectriciantoinstallaproperoutlet.

Water Connection

Cold Water Connection

Line drawing of a hand holding a pipe fitting with a handle (no text or symbols)

Connect the cold water supply hose to a threaded 3/4 (inch) connector and make sure that it is fastened tightly in place.

If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance.

WARNING!

Please close the hydrant after using.

Drain hose Connection

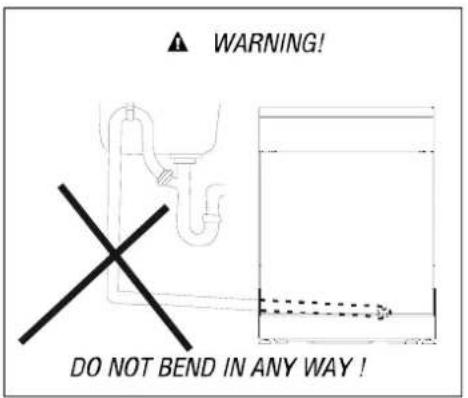

Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping. Use the special plastic support that comes with the appliance. The free end of the hose must be at a height between 40 and 100 cm and must not be immersed in water.

How to Drain Excess Water From Hoses

If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water inlet hose is not kinked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

SyphonConnection

The waste connection must be at a height of between 50 cm (minimum) and 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed by a hose clip.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

■ The dishwasher is level and fixed properly
Theinletvalveisopen
There is a leakage at the connections of the conducts
■ The wires are tightly connected
The power is switched on
■ Theinletanddrain hoses are knotted
All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual. The content of this manual is very helpful to the users.

8. Troubleshooting Tips

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem	Possible Causes	What To Do
Dishwasher doesn't start	Fuseblown,orthe circuitbreakertriggered	Replacefuseorresetcircuitbreaker.Removeanyother appliancessharingthesamecircuitwiththedishwasher
	Powersupplyisnot turnedon	Makesurethedishwasheristurnedonandthedooris closedsecurely.Makesurethepowercordisproperlypluggedintothe wallsocket.
	Errorcode:E1; Waterpressureislow	Checkthatthewatersupplyisconnectedproperlyand thewateristurnedon.
	Doorofdishwasher notproperlyclosed.	Makesuretoclosethedoorproperlyandlatchit.
water not pumped from dishwasher	Kinkindrainhose	Checkdrainhose.
	Filterclogged	Checkcoarsethefilter (see section titled " Cleaning The Filter ")
	Kitchensinkclogged	Checkthekitchensinktomakesureitisdrainingwell.Iftheproblemisthekitchensinknotdraining,youmay needaplumberratherthanaservicemanfordishwashers.
Suds in the tub	Improperdetergent	Useonlythespecialdishwasherdetergenttoavoid suds.Ifthisoccurs,openthedishwasherandletsuds evaporate.Add1gallonofcoldwatertothetub.Close andlatchthedishwasher,thenStartthe"soak"wash cyletodrainoutthewater.Repeatifnecessary.
	Spilledrinse-aidAlwayswipeuprinse-aidspillsimmediately.
Stained tub interior	Detergentwith colourantwasused	Makesurethatthedetergentistheonewithout colourant.
White film on inside surface	Hardwaterminerals	Tocleantheinterior,useadampspongewith dishwasherdetergentandwearrubbergloves.Neveruseanyothercleanerthandishwasher detergentfortheriskoffoamingorsuds.
There are rust stains on cutlery	Theaffecteditemsare notcorrosionresistant.	The items should be corrosion resistant.
Knocking noise in the wash cabinet	As p ay a r m is knockingagainst aniteminabasket	Interrupt the programme, and rearrange the items whichareobstructingthespayarm.r
Rattling noise in the wash cabinet	Itemsofcrockery arelooseinthe washcabinet	Interrupttheprogramme,andrearrangetheitemsofcrockery.
Knocking noise in the water pipes	Thismaybecaused byon-siteinstallation orthecross-sectionof thepiping.	Thishasnoinfluenceonthedishwasherfunction. if in doubt, contact a suitably qualified plumber.

	Problem	Possible Causes	What To Do
Unsatis-factory washing result	The dishes are not clean	Thedisheswerenot loadedcorrectly.	Seenotesin"LoadingtheDishwasherBaskets".
		Theprogrammewas notpowerfulenough.	Selectamoreintensiveprogramme.See"WashCycleTable."
		Notenoughdetergent wasdispensed.	Usemoredetergent,orchangeyourdetergent.
		Itemsareblocking thepathofspayarms.r	Rearrangetheitemssothatthespaycanrotatefreely.r
		Thefiltercombination inthebaseofwash cabinetisnotcleanor isnotcorrectlyfitted. Thismaycause thespayarmjets togetblocked.	Cleanand/orfitthefiltercombinationcorrectly.Cleanthespayarmjets.See"CleaningtheSpray Arms".
	Cloudiness on glassware	Combinationofsoft waterandtoomuch detergent.	Uselessdetergentifyouhavesoftwaterandselect ashortestcycletowashtheglasswareandtoget themclean.
	Black or gray marks on dishes	Aluminumutensils haverubbedagainst dishes.	Useamildabrasivecleanertoeliminatethosemarks.
	Detergent left in dispenser cups	Dishesblock detergentcups.	Re-loadingthedishesproperly.
Unsatis-factory drying result	The dishes are not drying	Improperloading	Loadthedishwasherassuggestedinthedirections.
		Toditiferinse-aid	Increasetheamountofrinse-aid/refilltherinse-aid dispenser.
		Dishesareremoved toosoon	Donotemptyyourdishwasherimmediatelyafter washing.Openthdoorslightlysothatthesteamcan escape.Beginunloadingthedishwasheronlyoncet hedishesarebarelywarmtothetouch.Emptythelow basketfirst.Thispreventswaterformdroppingoff dishesintheupperbasket.
		Wrongprogram hasbeenselected	Inshortprogramthewashingtemperatureislower. Thisalsolowerscleaningperformance.Choose aprogramwithalongwashingtime.
		Useofcutlerywith alow-qualitycoating	Waterdrainageismoredifficultwiththeseitems.Cutleryordishesofthistypearenotsuitablefor washinginthedishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
The 3in1 light flicker fleetly	Longerinlettime.	Faucetsisnotopened,orwaterintakeisrestricted,orwaterpressureis toolow.
The Rinse light flicker fleetly	Overflow.	Someelementofdishwasherleaks.

WARNING!

■ If overflow occurs, turn off the main water supply before calling a service.

If there is water in the base pan because of an overfill or small leak, thewatershouldberemovedbeforererestartingthedishwasher.

Height : 850mm
Width : 600mm
Depth : 580mm
Voltage connected Load : see rating label
Water pressure: 0.04-1.0MPa
Power supply: see rating label
Capacity: 12 Place settings

ARTUSI

THE ART OF COOKING

Worldwide Appliances Pty Limited

A.B.N. 45868077422

Office:

48-50 Moore Street, Leichhardt N.S.W 2040 Post:

Locked Bag 3000, Annandale, N.S.W 2038

P: 1300 694 583

WARRANTY REGISTRATION

Your ongoing satisfaction with your artusi product is important to us. We ask that you complete the enclosed Warranty Registration Card and return it to us so that we have a record of the artusi product purchased by you.

PRIVACY

Worldwide Appliances respects your privacy and is committed to handling your personal information in accordance with the National Privacy Principles and the Privacy Act 1988 (Cth). A copy of the Worldwide Appliances Privacy Policy is available at www.artusi.com.au. Worldwide Appliances will not disclose any personal information set out in the Warranty Registration Card (“Personal Information”) without your consent unless required by:

1. law;

2. any Worldwide Appliances related company;

3. any service provider which provide services to artusi or assist artusi in providing services (including repair and warranty services) to customers. Our purpose in collecting the Personal Information is

to keep a record of the artusi product purchased by you, in order to provide a better warranty service to you in the unlikely event that there is a problem with your artusi product. Worldwide Appliances may contact you at any one or more of the address, email address or telephone numbers set out in the Warranty Registration Card. Please contact artusi on 1300 694 583 should you not wish to be contacted by Worldwide Appliances.

WARRANTY

1. Warranty

Worldwide Appliances warrants that each artusi product will remain, for a period of either 12 months or 24 months of warranty. All Warranties are valid from the original date of purchase, And warranty claims must be accompanied by the proof of purchase.

24 months warranty products:

All Built-in Appliances – Limited to Ovens, Gas, Induction and Electric Cooktops, and All Rangehoods

Freestanding Cookers - Gas and Electric Models (900mm Width)

Dishwashers - Freestanding, Fully Integrated, Semi Integrated and built-in

12 months warranty products:

Freestanding Cookers - Gas and Electric Models in 50cm, 54cm and 60cm Widths

Portable Appliances* – Benchtop Models and Portable Gas Models

1. What is not Covered by the Warranty.

The Warranty does not apply if an artusi product is defective by a factor other than a defect arising in the manufacture of the artusi product, including but not limited to:

(a) damage through misuse (including failure to maintain, service or use with proper care), neglect, accident or ordinary wear and tear (including deterioration of parts and accessories and glass breakage);

(b) use for purpose for which the artusi product was not sold or designed;

(c) use or installation which is not in accordance with any specified instructions for use or installation;

(d) use or operation after a defect has occurred or been discovered;

(e) damage through freight, transportation or handling in transit (other than when Worldwide Appliances is responsible);

(f) damage through exposure to chemicals, dusts, residues, excessive voltage, heat, atmospheric conditions or other forces or environmental factors outside the control or Worldwide Appliances;

(g) repair, modification or tampering by the purchaser or any person other than Worldwide Appliances, an employee of Worldwide Appliances or an authorised artusi service contractor ^* ;

(h) use of parts, components or accessories which have not been supplied or specifically approved by artusi.

(i) damage to surface coatings caused by cleaning or maintenance using products not recommended in the artusi product handbook provided to the purchaser upon purchase of the artusi product;

(j) damage to the base of an electric oven due to items having been placed on the base of the oven cavity or covering the base, such as aluminium foil (this impedes the transfer of heat from the element to the oven cavity and can result in irreparable damage); or

(k) damages, dents or other cosmetic imperfections not affecting the performance of the artusi in respect of an artusi product purchased as a “factory second” or from display The Warranty does not extend to light globes used in artusi products.

1. Domestic Use

Each artusi product is made for domestic use. This Warranty may not extend to artusi products used for commercial purposes.

Continued over...

Warranty Card continued

artusi.com.au

4. Time for Claim under the Warranty

You must make any claim under this Warranty within twenty eight (28) days after the occurrence of an event which gives rise to a claim pursuant to the Warranty, by booking a service call on the telephone number below.

5. Proof of Purchase

Customers must retain proof of purchase in order to be eligible to make a warranty claim in respect of an artusi product.

6. Claiming under the Warranty

Customers will bear the cost of claiming under this Warranty unless Worldwide Appliances determines the expenses are reasonable, in which case the customer must claim those expenses by providing written evidence of each expense to Worldwide Appliances at the address on the Warranty Registration Card.

7. Statutory Rights

(a) These terms and conditions do not affect your statutory rights.

(b) The limitations on the Warranty set out in this document do not exclude or limit the application of the consumer guarantees set out in the Act or any other equivalent or corresponding legislation in the relevant jurisdiction where to do so would: (i) contravene the law of the relevant jurisdiction; or

(ii) cause any part of the Warranty to be void. (c) Worldwide Appliances excludes indirect or consequential loss of any kind (including, without limitation, loss of use of the artusi product) and (other than expressly provided for in these terms and conditions) subject to all terms, conditions and warranties implied by custom, the general law, the Act or other statute. (d) The liability of Worldwide Appliances to you

Warranty Card tear off

for a breach of any express or non-excludable implied term, condition or warranty is limited at the option of Worldwide Appliances to:

(i) replacing or repairing the defective part of the artusi product;
(ii) paying the cost of replacing or repairing the defective part of the artusi product; (iii) replacing the artusi product; or (iv) paying the cost of replacing the artusi product.
(e) Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

8. Defects

Any part of an artusi product deemed to be defective and replaced by Worldwide Appliances is the property of Worldwide Appliances. Worldwide Appliances reserves the right to inspect and test artusi products in order to determine the extent of any defect and the validity of a claim under the Warranty.

*To locate your closest artusi authorised service agent please contact us on 1300 652 100 or visit www.artusi.com.au

ALL SERVICE CALLS MUST BE BOOKED THROUGH AN AUTHORISED DEALER OR WARRANTY DEPARTMENT ON 1300 652 100 OR stokesaps.com.au/artusi-service

01032014

ARTUSI

THE ART OF COOKING

WARRANTY REGISTRATION CARD 01052013

Please complete and send to ARTUSI at:

REPLY PAID 83617

LEICHHARDT NSW 2040

Last Name: First Name:
Address:
State: Postcode: Email:
Home Phone: Mobile:
Purchase Date: / / (Please attach proof of purchase to validate warranty)

MODEL NUMBER	SERIAL NUMBER(if you cannot locate the serial number please call ARTUSI on 1300 694 583)
1
2
3
4

01032014
