Product Type	Built-in Microwave Oven with Grill
Brand	Artusi
Model	AMO31TK
Capacity	31 litres
Power Supply	220-240V ~ 50Hz, 1450W
Microwave Output	900W
Grill Heater Power	1000W
Operating Frequency	2450 MHz
Outside Dimensions (W x D x H)	592 mm x 430 mm x 390 mm
Cavity Dimensions (W x D x H)	355 mm x 365 mm x 246 mm
Net weight	Approx. 16.5 kg (uncrated), 17.5 kg for installation
Functions	Microwave, Grill, Combination, Auto Weight Defrost, Auto-Menu, Timer, Clock, Child Lock

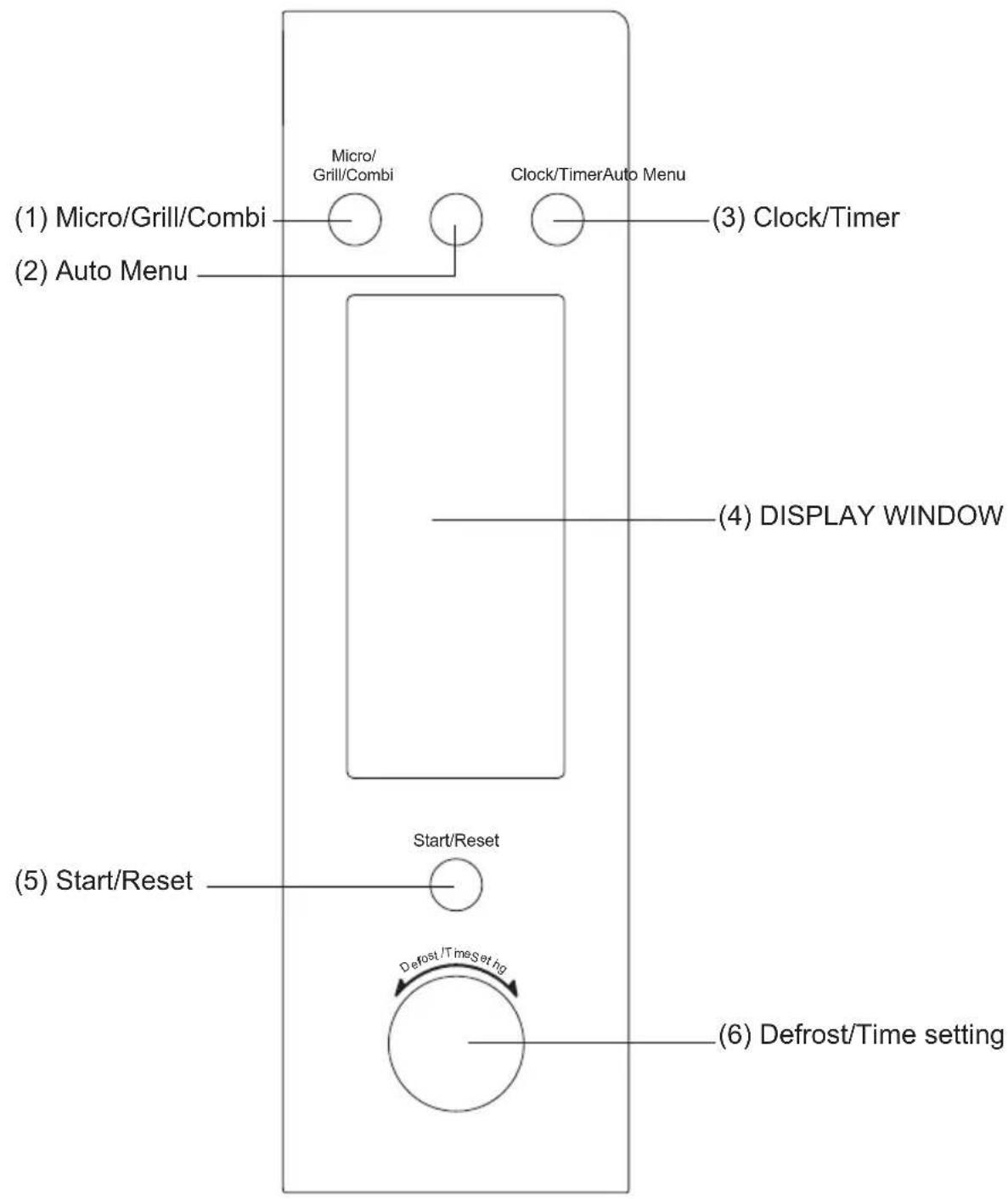

Control Panel	Computer control with buttons and rotary knob
Safety Features	Door safety lock system, interlock switches, child safety lock
Cleaning	Clean interior with damp cloth; exterior with soft cloth; glass tray and roller ring dishwasher safe
Accessories Included	Glass tray, roller ring, grill rack
Installation	Built-in; requires cabinet with minimum height 365-380mm, width 566-580mm, depth ≥550mm
Warranty	24 months for built-in use (see manual for details)

Frequently Asked Questions - AMO31TK Artusi

How do I set the clock on the Artusi AMO31TK microwave?

Press Clock/Timer button once. The display will flash. Use the Defrost/Time Setting knob to adjust hours. Press Clock/Timer again, then adjust minutes with the knob. Press Clock/Timer a third time to confirm. The clock is 24-hour format.

Can I use metal containers or aluminum foil in this microwave?

No, do not use metal pans, dishes with metal handles, or anything with metal trim. Metal can cause arcing and damage the oven. Use only microwave-safe containers.

How do I use the auto weight defrost function?

Rotate the Defrost/Time Setting knob left to select the food weight (0.1 to 2 kg). For example, for 0.5 kg meat, set to 0.5. Press Start/Reset. The oven automatically adjusts power and time.

What should I do if the oven does not start?

Check that the oven is plugged in securely. Ensure the door is fully closed and the safety interlocks are engaged. Verify the timer is set. If the display is blank, check the circuit breaker or fuse. If none of these work, contact an authorized service agent.

How do I activate the child safety lock?

In standby mode, press and hold the Auto Menu and Clock/Timer buttons simultaneously for 2 seconds. The lock activates. To unlock, repeat the same procedure.

What is the grill function and how do I use it?

The grill function uses a top metal heater to brown and crisp food. Press Micro/Grill/Combi until G-1 or G-2 appears. Set time up to 60 minutes. Halfway through, the oven beeps and pauses for you to turn food over. Press Start/Reset to resume.

How do I clean the microwave?

Unplug the oven before cleaning. Wipe the interior with a damp cloth; do not use harsh detergents. The glass tray and roller ring can be washed in warm soapy water or a dishwasher. Clean the exterior with a soft damp cloth. Avoid getting water into vents.

Can I use the microwave empty?

No, operating the oven empty can damage it. Always place food or a microwave-safe container with liquid inside when in use.

What does the combination cooking mode do?

Combination mode uses both microwave and grill for faster cooking with browning. Press Micro/Grill/Combi until C-1 or C-2 is displayed. Set time and press start. C-1 is higher microwave power, C-2 is lower.

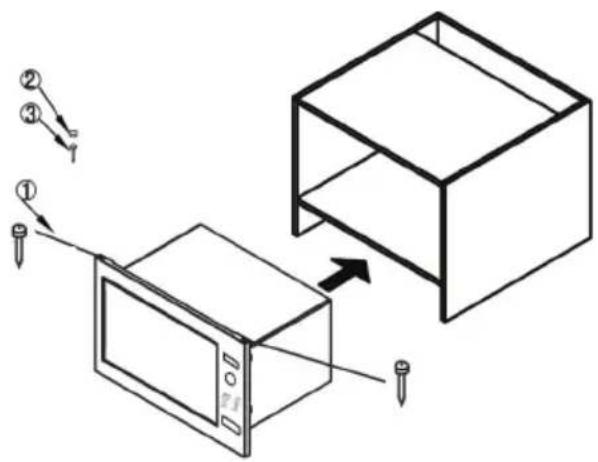

How do I install the microwave as built-in?

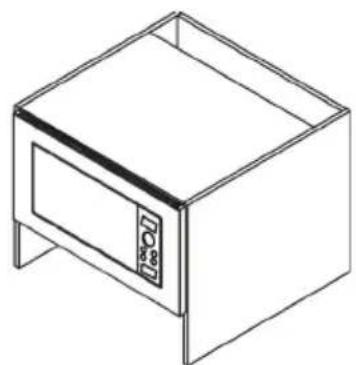

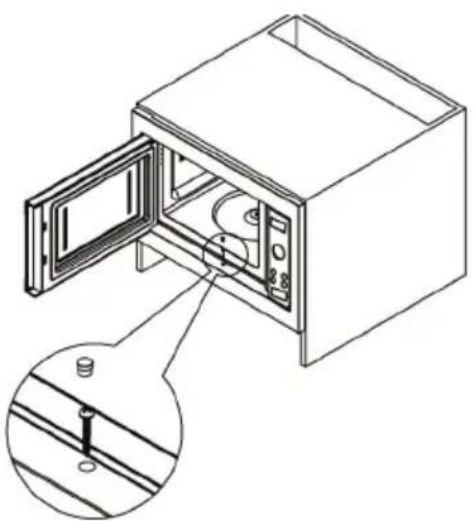

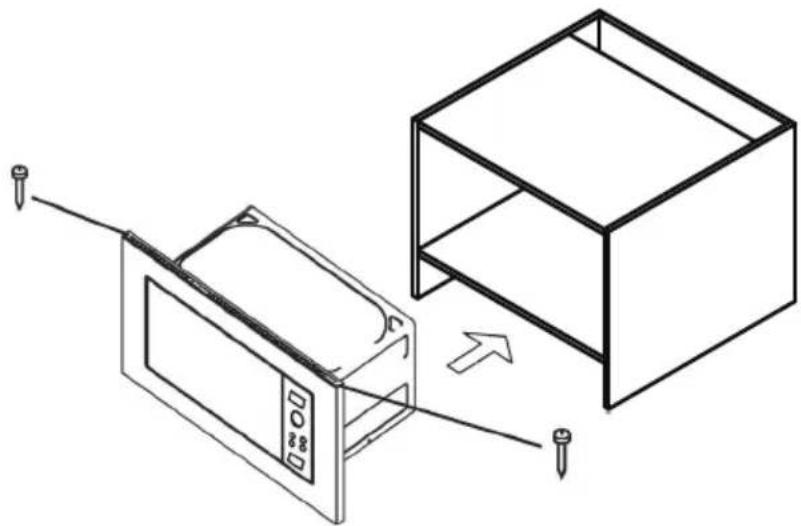

The cabinet must have inner dimensions: width 566-580 mm, height 365-380 mm, depth at least 550 mm. Slide the oven in, keeping it horizontal. Secure with the provided bolts (3x20mm at top, 4x35mm at front). Ensure proper ventilation: 10 cm at back, 15 cm on sides, 30 cm above.

USER MANUAL AMO31TK Artusi

Congratulations, you are now the proud owner of an ARTUSI cooking appliance. Thank you for purchasing ARTUSI and welcome to the ARTUSI Family.

This instruction manual has been specially created to inform you of the full range of features your ARTUSI appliance has to offer and serves as an introduction to getting the very best out of your ARTUSI appliance.

We present detailed information on each of the features your ARTUSI appliance consists of. Once you have read this section you will be able to choose the most appropriate settings for your appliance when cooking different types of food.

We ask you to read the instructions in this booklet very carefully as this will allow you to get the best results from using your appliance. KEEP THE DOCUMENTATION OF THIS PRODUCT FOR FUTURE REFERENCE.

TO REGISTER YOUR PRODUCT WITH ARTUSI, PLEASE FILL OUT THE WARRANTY CARD AT THE END OF THIS BOOKLET AND POST IT TO: REPLY PAID 83617

LEICHHARDT NSW 2040

Dear Artusi Customer, please read this user manual carefully before using the product and, keep it permanently at your disposal.

Note: This user manual is prepared for more than one model. Some of the features specified in this Manual may not be available on your appliance.

All our appliances are only for domestic use, not for commercial use. Products marked with (*) are optional.

"THIS APPLIANCE SHALL BE INSTALLED IN ACCORDANCE WITH THE REGULA TIONS FORCE AND ONLY USED IN A WELL VENTILATED SPACE. READ THE INSTRUCTIONS BEFORE INSTALLING OR USING THIS APPLIANCE"

"Conforms with the WEEE Regulations."

Important safety instructions

When using electrical appliance basic safety precautions should be followed, including the following:

warning: to reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:

1. Read all instructions before using the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.

3.Do not operate the oven when empty.

1. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

2. Warning: when the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

3. Warning: only allow children to use the oven with supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

4. To reduce the risk of fire in the oven cavity:

a. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.
b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
d.Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.

1. Warning: liquid or other food must not be heated in sealed containers since they are liable to explode.

2. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.

3. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.

11.Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.

1. Pierce foods with heavy skins such as pota toes, whole squashes, apples and chestnuts before cooking.

2. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.

3. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be

needed to handle the utensil.

1. Utensils should be checked to ensure that they are suitable for use in microwave oven.

2. Warning: it is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.

3. This product with the class I equipment, the definition of class I which protection against electric shock does not rely on basic insulation only but which includes an additional safety precaution, in that conductive accessible parts are connected to the protective earthing conductor in the fixed wiring of the installation in such a way that conductive accessible parts cannot become live in the event of a failure of the basic insulation. For class b equipment is equipment suitable for use in domestic establishments. For domestic purpose.

4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

5. Children should be supervised to ensure that they do not play with the appliance.

6. Warning: do not install oven over a range cooktop or other heat-producing appliance. If installed could be

damaged and the warranty would be avoid.

1. The accessible surface may be hot during operation.

2. The door or the outer surface may get hot when the appliance is operating.

3. The temperature of accessible surfaces may be high when the appliance is operating.

4. The appliance shall be placed against a wall.

5. Warning: if the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person

6. The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.

7. The microwave oven is for household use only and not for commercial use.

8. Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.

9. Please secure the turn table before you move the appliance to avoid damages.

10. Caution: it is dangerous to repair or maintain the appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well. Send the appliance in these cases to our service central.

11. The microwave oven is intended for defrosting, cooking and steaming of food only.

12. Use gloves if you remove any heated food.
13. Caution! Steam will escape, when opening lids or wrapping foil.
14. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle.
15. Minimum height of free space (5cm) necessary above the top surface of the oven.
16. The microwave oven is intended to be used built-in, the installation instruction in this manual should be followed.
17. Microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

CAUTION: Hot surface.

This appliance can be used by children aged from 8 years and above and persons with educated physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

SPECIFICATIONS

Power consumption:	220-240V~50Hz,1450W
Output:	900W
Grill Heater:	1000W
Operating Frequency:	2,450MHz
Outside Dimensions:	592mm(W) X 430mm(D) X 390mm(H)
Oven Cavity Dimensions:	355mm(W) X 365mm(D) X 246mm(H)
Oven Capacity:	31 litres
Uncrated Weight:	Approx. 16.5kg

BEFORE YOU CALL FOR SERVICE

1. If the oven will not perform at all, the display does not appear or the display disappears:
   a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
   b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly,

test the outlet with another appliance.

1. If the microwave power does not function:

a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT.

Note:

The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor use only.

RADIO INTERFERENCE

Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.

a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.
c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

INSTALLATION

1. Make sure all the packing materials are removed from the inside of the door.

2. Inspect the oven after unpacking for any visual damage such as:
   Misaligned Door
   Damaged Door
   Dents or Holes in Door Window and Screen
   Dents in Cavity
   If any of the above are visible, DO NOT use the oven.

3. This Microwave Oven weighs 17.5 kg and must be placed on a horizontal surface strong enough to support this weight.

4. The oven must be placed away from high temperature and steam.
5. DO NOT place anything on top of the oven.
6. DO NOT remove the turn -table drive shaft.
7. As with any appliance, close supervision is necessary when used by children.

WARNING-THIS APPLIANCE MUST BE EARTHED.

1. The plug socket should be within easy reach of the power cord

2. This oven requires 1.5 KVA for its input. Consultation with service engineer is suggested when installing the oven.

CAUTION: This oven is protected internally by ac 250V, 10 Amp Fuse.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

Green-and-yellow : Earth

Blue : Neutral

Brown : Live

As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol coloured green of green-and-yellow.

The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.

The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT SAFETY INSTRUCTIONS

-WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)
-WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
-WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
-WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.
-WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;
- The oven must have sufficient air flow. Keep 10 cm space at back; 15 cm at both sides and 30cm from top of the oven. Don't remove oven's feet, do not block air events of the oven.
- Only use utensils that are suitable for use in microwave ovens.
- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
- When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
- The oven should be cleaned regularly and any food deposits removed;
- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS FOR GENERAL USE

Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:

1. Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
2. Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
3. Do not operate the oven when empty. This could damage the oven.

4. Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
   5.Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.

5. Do not insert any object into the openings on the outer case.

6. Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.

7. Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.

8. IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN

Do not use metal pans or dishes with metal handles.

Do not use anything with metal trim.

Do not use paper covered wire twist-ties on plastic bags.

Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.

Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.

Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven.

Do not use conventional meat or candy thermometers. There are the thermometers available specifically for microwave cooking. These may be used.

1. Microwave utensils should be used only in accordance with manufacturer's instructions.

2. Do not attempt to deep-fry foods in this oven.

3. Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when

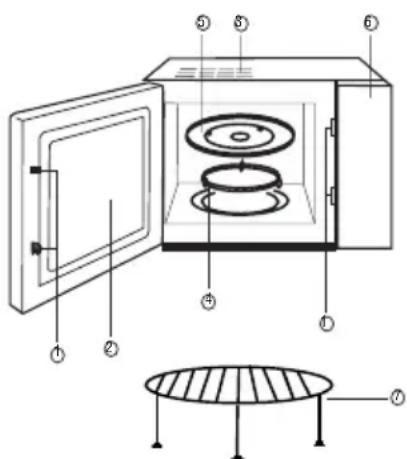

FEATURE DIAGRAM

removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.

1. Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.

2. Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.

3. When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.

4. Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.

5. To reduce the risk of fire in the oven cavity:

(a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.

(b) Remove wire twist-ties from bags before placing bag in oven.

(c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.

(1) Door Safety Lock System

(2) Oven Window

(3) Oven Air Vent

(4) Roller Ring

(5) Glass Tray

(6) Control Panel

(7) Grill rack

COMPUTER CONTROL PANEL

Operation Instruction

1.Single Button Heating

Only with a single press of a button, you can start simple cooking, it is very convenient and quick to heat a glass of water etc.

Example: To heat a glass of milk

a) Put a glass of milk onto the glass turntable, and close the door.
b) Press the button "Start/Reset", the microwave oven will work on P100 power for 1 minute.
c) You will hear 5 beeps when cooking is completed.

2. Microwave Heating

This function has two options.

1) Quick microwave heating (P100 power)
Example: to heat food on P100 power for 5 minutes
a) Set time to "5:00"
b) Press"Start/Reset"

2) Manual-operation microwave heating

Example: To heat food on P70 power for 10 minutes

a) Press "Micro/Grill/Combi" button, select "P70" power;
b) Set time to "10:00"
c) Press "Start/Reset"

The longest microwave heating time is 60 minutes.

Microwave power have 5 settings, and it's P100、P70、P50、P30 and P10 from high to low power.

3. Auto weight defrost

Select the food weight, it will automatically help you to adjust the power level and time.

Example:defrost 0.5kg frozen meat.

a) Rotate the knob left "Defrost/Time Setting" to set the weight 0.5kg
b) Press "Start/Reset".
THe weight of meat must be less than 2 kg.

4. Auto-Menu

You only need to select the food type and weight, it will help you to automatically adjust the power and time.

Example: Auto cooking 0.4 kg fish

a) Press "Auto Menu" button until "A-5" displayed.
b) Rotate the knob "Defrost/Time Setting" to set the weight 0.4kg.
c) Press "Start/Reset"

kg

Touching Times\Weight Menu	Rice Vegetable Meat(A-1) (A-2)	(A-3) (A-4)	(A-5) (A-6)		Noodle	Fish	Chicken
1 0.1		0.1		0.2	1	0.1	0.2
2	0.2	0.2		0.3	2	0.2	0.4
3	0.3	0.3		0.4		0.3	0.6
4	0.4	0.4		0.5		0.4	0.8
5	0.5	0.5		0.6		0.5	1.0
6		0.6		0.8		0.6	1.2
7				1.0		0.7	1.4
8						0.8	1.6
9						0.9	1.8
10						1.0	2.0

Remark: Noodle in marked by lot, Each lot is around 0.1-0.15 kg.

5. Grill

This function has two patterns, you may press "Micro/Grill/Combi" to select such functions:

The longest cooking time is 60 minutes.

Grill power have 2 settings, and it's G-1 and G-2 from high to low power.

Example: Cooking food with grill for 20 minutes

A) Press "Micro/Grill/Combi" until the LED displayed "G-1".

B) Set cooking time "20:00"

C) Press "Start/Reset"

When grilling, the food isn't heated by microwave, heat is radiated from the metal heater at the top of the oven.

When grill is working, the cooking time has 2 stages, after the 1st half of the cooking, the program will automatically pause and sound 2 beeps, indicating you to open the oven and turn food over, close the door after turn the food over, press "Start/Reset" button, the cooking will continue for the 2nd half. If you do not want to turn the food over, the oven will re-start after 1 min pause.

6. Combination Cooking

This appliance offers you a choice of two methods of combination cooking.

Combi power have 2 settings, taking the reference of microwave power. It" s C-1 and C-2 from high to low power.

Example : Cooking food using C-2 for 15 minutes.

a) Press "Micro/Grill/Combi" until the LED displayed "C-2"

b) Set cooking time for "15:00"

c) Press "Start/Reset"

7. Clock

The oven has a 24-hour digital clock,

To input the time, for example to 4:30pm:

a) Press "Clock/Timer", the display will flash, adjust the hour with buttons "Defrost/Time Setting"
b) Press "Clock/Timer" again, adjust the minute with buttons "Defrost/Time Setting".
c) Press "Clock/Timer" again and the clock will be set.
e) If you want to change the time, repeat above procedure.

8.Timer

This allows you to set the microwave oven start and finish cooking at pre-set time.

The clock must be set before you use this feature.

Example:The current time is 16:30 and you want to start cooking at 18:15 on 70% power for 10minutes:

a) Rotate the knob "defrost/Time Setting", set the time to "18:15" (same procedure as setting clock)
b) Press "Micro/Grill/Combi" to select 70% power.
c) Set cooking time for 10 minutes.
d) Press "Start/Reset"

If you do not set the power and cooking time and directly press the start button once you have programmed the time, the appliance will only work as a clock.

At 18:15 there will be 10 bleeps and the appliance will be switched off.

9. Child-safety-lock

Under standby situation, to activate the child safety lock, press "Auto menu" and "Clock/Timer" at the same time for 2 seconds. Press "Auto menu" and "Clock/Timer" at the same time for 2 seconds again, it will unlock the machine.

10. Start/Reset

a) In the course of operation, pressing "Start/Reset" button will stop operation.
b) If any program was set before pressing start, pressing this button will cancel all the set program.

1. Turn the oven off and remove the power plug from the wall socket before cleaning.
2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.

3. The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.

4. Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.

5. If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.

6. It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.

7. The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapour collect during repeated use but in no way affect the bottom surface or roller ring wheels.

When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position.

1. Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.

2. When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

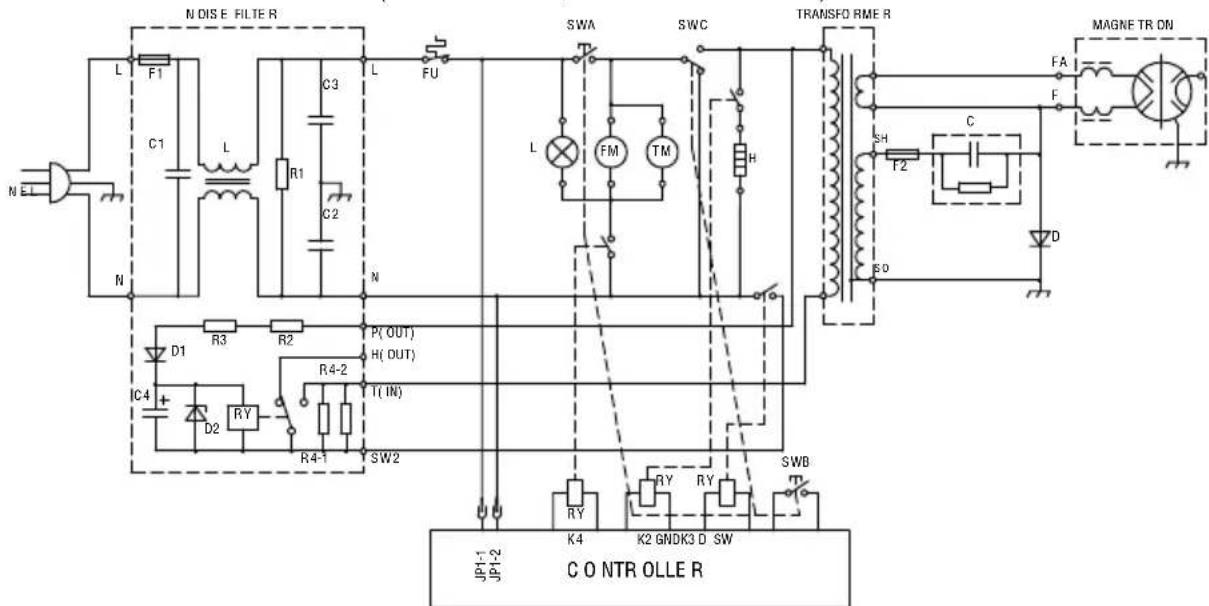

S CHEMATIC DIA GRAM ( DO OR OPE NE D,C O OK O F F C ONDITION)

SWA: PRIMARY INTERLOCK SWITCH
SWB: SE C O NDAR Y INTERLOCK SWIT CH
SWC: THE MONITOR INTERLOCK SWITCH
*CIRCUIT SUBJECT TO CHANGE WITHOUT NOTICE
L: LAMP
FM: F AN MOTOR
TM: TURNTABLE MOT OR
H: H EATER

BUILT-IN MICROWAVE OVEN INSTALLATION MANUAL

COMPONENTS

1、bolt 3×20mm 2PCS
2. screwcover 1PCS
3、bolt 4×35mm 1PCS

TRIM KIT SPECIFICATIONS

Cavity dimensions

Width 566-580mm

Height 365-380mm

Depth 550mm

FRAME dimensions

Width 592mm

Height 390mm

Depth 20mm

Cabinet measurement Requirements(illustrated above):

1. Cabinet's inner dimension in transverse direction is 566-580mm.
   This is the minimum distance from the left batten to right batten. Do not alter.
2. Cabinet's inner dimension in longitudinal direction is 365-380mm.
   This is the minimum distance from the left batten to right batten. Do not alter.
3. Cabinet's depth should be no less than 550mm.
4. Outside dimension of cabinet should be no less than 596mm, as the frame length is 592mm.
5. Cabinet's board no less than 15mm or 20mm thick.

FRAME INSTALLATION STEPS

Line drawing of a microwave oven and its open storage unit, showing components and assembly (no text or symbols)

1. Put the microwave oven into the cabinet and keep the microwave oven in a horizontal direction and keep the edge distance of two side as same. Then fix the bolt(component 1) on the top of microwave oven and beat it into the cabinet.

Line drawing of a microwave oven with an open door and internal panel, showing a close-up inset of the lid (no text or symbols)

Line drawing of a simple kitchen appliance with a door and lid (no text or symbols)

1. Open the microwave oven, fix the bolt (Component 3) and beat it into the cabinet, then install screw cover

ARTUSI THE ART OF LIVING

Worldwide Appliances Pty Limited

A.B.N. 45868077422

Office:

48-50 Moore Street, Leichhardt N.S.W 2040 Post:

Locked Bag 3000, Annandale, N.S.W 2038

P: 1300 694 583

WARRANTY REGISTRATION

Your ongoing satisfaction with your artusi product is important to us. We ask that you complete the enclosed Warranty Registration Card and return it to us so that we have a record of the artusi product purchased by you.

PRIVACY

Worldwide Appliances respects your privacy and is committed to handling your personal information in accordance with the National Privacy Principles and the Privacy Act 1988 (Cth). A copy of the Worldwide Appliances Privacy Policy is available at www.artusi.com.au. Worldwide Appliances will not disclose any personal information set out in the Warranty Registration Card (“Personal Information”) without your consent unless required by:

1. law;
2. any Worldwide Appliances related company;
3. any service provider which provide services to artusi or assist artusi in providing services (including repair and warranty services) to customers. Our purpose in collecting the Personal Information is

to keep a record of the artusi product purchased by you, in order to provide a better warranty service to you in the unlikely event that there is a problem with your artusi product. Worldwide Appliances may contact you at any one or more of the address, email address or telephone numbers set out in the Warranty Registration Card. Please contact artusi on 1300 694 583 should you not wish to be contacted by Worldwide Appliances.

WARRANTY

1. Warranty

Worldwide Appliances warrants that each artusi product will remain, for a period of either 12 months or 24 months of warranty. All Warranties are valid from the original date of purchase, And warranty claims must be accompanied by the proof of purchase.

24 months warranty products:

All Built-in Appliances – Limited to Ovens, Gas, Induction and Electric Cooktops, and All Rangehoods

Freestanding Cookers - Gas and Electric Models (900mm Width)

Dishwashers - Freestanding, Fully Integrated, Semi Integrated and built-in

12 months warranty products: Freestanding Cookers - Gas and Electric Models in 50cm, 54cm and 60cm Widths Portable Appliances* – Benchtop Models and Portable Gas Models

2. What is not Covered by the Warranty.

The Warranty does not apply if an artusi product is defective by a factor other than a defect arising in the manufacture of the artusi product, including but not limited to:

(a) damage through misuse (including failure to maintain, service or use with proper care), neglect, accident or ordinary wear and tear (including deterioration of parts and accessories and glass breakage);

(b) use for purpose for which the artusi product was not sold or designed;

(c) use or installation which is not in accordance with any specified instructions for use or installation;

(d) use or operation after a defect has occurred or been discovered;

(e) damage through freight, transportation or handling in transit (other than when Worldwide Appliances is responsible);

(f) damage through exposure to chemicals, dusts, residues, excessive voltage, heat, atmospheric conditions or other forces or environmental factors outside the control or Worldwide Appliances;

(g) repair, modification or tampering by the purchaser or any person other than Worldwide Appliances, an employee of Worldwide Appliances or an authorised artusi service contractor ^* ;

(h) use of parts, components or accessories which have not been supplied or specifically approved by artusi.

(i) damage to surface coatings caused by cleaning or maintenance using products not recommended in the artusi product handbook provided to the purchaser upon purchase of the artusi product;

(j) damage to the base of an electric oven due to items having been placed on the base of the oven cavity or covering the base, such as aluminium foil (this impedes the transfer of heat from the element to the oven cavity and can result in irreparable damage); or

(k) damages, dents or other cosmetic imperfections not affecting the performance of the artusi in respect of an artusi product purchased as a “factory second” or from display

The Warranty does not extend to light globes used in artusi products.

3. Domestic Use

Each artusi product is made for domestic use. This Warranty may not extend to artusi products used for commercial purposes.

4. Time for Claim under the Warranty

You must make any claim under this Warranty within twenty eight (28) days after the occurrence of an event which gives rise to a claim pursuant to the Warranty, by booking a service call on the telephone number below.

5. Proof of Purchase

Customers must retain proof of purchase in order to be eligible to make a warranty claim in respect of an artusi product.

6. Claiming under the Warranty

Customers will bear the cost of claiming under this Warranty unless Worldwide Appliances determines the expenses are reasonable, in which case the customer must claim those expenses by providing written evidence of each expense to Worldwide Appliances at the address on the Warranty Registration Card.

7. Statutory Rights

(a) These terms and conditions do not affect your statutory rights.

(b) The limitations on the Warranty set out in this document do not exclude or limit the application of the consumer guarantees set out in the Act or any other equivalent or corresponding legislation in the relevant jurisdiction where to do so would:

(i) contravene the law of the relevant jurisdiction; or

(ii) cause any part of the Warranty to be void.

(c) Worldwide Appliances excludes indirect or consequential loss of any kind (including, without limitation, loss of use of the artusi product) and (other than expressly provided for in these terms and conditions) subject to all terms,

conditions and warranties implied by custom, the general law, the Act or other statute.

(d) The liability of Worldwide Appliances to you

Warranty Card tear off

for a breach of any express or non-excludable implied term, condition or warranty is limited at the option of Worldwide Appliances to:

(i) replacing or repairing the defective part of the artusi product;
(ii) paying the cost of replacing or repairing the defective part of the artusi product;
(iii) replacing the artusi product; or
(iv) paying the cost of replacing the artusi product.
(e) Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

8. Defects

Any part of an artusi product deemed to be defective and replaced by Worldwide Appliances is the property of Worldwide Appliances.

Worldwide Appliances reserves the right to inspect and test artusi products in order to determine the extent of any defect and the validity of a claim under the Warranty.

*To locate your closest artusi authorised service agent please contact us on 1300 652 100 or visit www.artusi.com.au

ALL SERVICE CALLS MUST BE BOOKED

THROUGH AN AUTHORISED DEALER OR

WARRANTY DEPARTMENT ON 1300 652 100

OR stokesaps.com.au/artusi-service

0 1 0 3 2

ARTUSI

THE ART OF LIVING

WARRANTY REGISTRATION CARD 01052013

Please complete and send to ARTUSI at:

REPLY PAID 83617

LEICHHARDT NSW 2040

Last Name: First Name:
Address:
State: Postcode: Email:
Home Phone: Mobile:
Purchase Date: / / (Please attach proof of purchase to validate warranty)

MODEL NUMBER	SERIAL NUMBER(if you cannot locate the serial number please call ARTUSI on 1300 694 583)
1
2
3
4

ARTUSI

THE ART OF COOKING

DISCLAIMER

Worldwide Appliances PTY LTD, trading as ARTUSI, is continually seeking ways to improve the design specifications, aesthetics and production techniques of its products. As a result alterations to our products and designs take place continually. Whilst every effort is made to produce information and literature that is up to date, this brochure should not be regarded as an infallible guide to the current specifications, nor does it constitute an offer for the sale of any particular product. Product dimensions indicated in our literature is indicative only. Actual product only should be used to define dimension cutouts. Distributors, and retailers are not agents of ARTUSI and are not authorised to bind ARTUSI by any express or implied undertaking or representation.

ARTUSI OFFICES ARE OPEN DAILY FROM 9AM-5PM AND SATURDAYS 10AM-4PM

NSW & ACT (HEAD OFFICE)

48 50 MOORE STREET

LEICHHARDT

FO285694699

VIC.TAS & SA

1211 TOORAK ROAD

CAMBERWELL

F0398092155

QLD

1/42 CAVENDISH ROAD

COORPAROO

F0733970850

WA&NT

UNIT 10/55 HOWE STREET

OSBORNE PARK

F 08 9201 9188

NZ

PO BOX 11.160

SOCKBURN CHRISTCHURCH

F033445906
