Product Type	Moving Head Projector
Light Source	OSRAM SIRIUS HRI 310W PRO Discharge Lamp (6,000 hr life)
Beam Angle	2 degrees
Color Mixing	CMY color flags
Color Wheel	14 dichroic colors + white (including CTO 3200K, CTB 9000K, UV)
Gobo Wheel	17 static gobos + open, with shake effect
Prisms	2 rotating prisms: 16-facet circular and 6-facet linear, overlay capable
Pan Range	540 degrees (16-bit fine)
Tilt Range	270 degrees (16-bit fine)
Dimmer	0-100% smooth dimming
Strobe	Various speeds, including random strobe
Focus	Motorized, 16-bit fine focus
Frost Filter	Built-in for wash effects
DMX Channel Modes	20 or 24 channels
Control Protocols	DMX512, RDM, on-board wireless DMX, manual control
Display	Color LCD with 4-button function menu
Power Supply	100-240V, 50/60Hz (auto-sensing electronic ballast)
Max Power Consumption	410W (@120V) / 390W (@230V)
Dimensions (L x W x H)	9.8 x 14.3 x 17.9 in (248 x 364 x 454.8 mm)
Weight	38.5 lb (17.5 kg)
Connections	5-pin DMX In/Out, locking power In/Out (daisy chain)
Safety	Class 1; minimum distance to objects 39.4 ft (12 m); to flammable 0.7 ft (0.2 m); max surface temp 194°F (90°C)
Maintenance	Clean lens with soft cloth; lamp and fuse replacement only by qualified personnel
Included Accessories	2 Omega brackets, 1.83m locking power cable

Frequently Asked Questions - Vizi Beam CMY Adj

What is the beam angle of the Vizi Beam CMY?

The beam angle is a tight 2 degrees, ideal for sharp projection effects.

How do I set the DMX address?

Access the system menu via the display, select DMX Settings > DMX Address, and use UP/DOWN buttons to set the desired address from 001 to 512.

What lamp does the Vizi Beam CMY use?

It uses an OSRAM SIRIUS HRI 310W PRO discharge lamp with a 6,000-hour rated life. Always replace with the exact same type.

Can I control the fixture wirelessly?

Yes, the fixture has on-board wireless DMX (Aria) and Bluetooth capability, which can be enabled via the Aria Settings and Bluetooth options in the menu.

How do I reset the fixture?

Go to the System Menu > Personality > Reset Motors and select Reset All Motors or specific motor groups. Confirm with YES.

What are the maintenance requirements?

Regularly clean the lens with a soft cloth (no alcohol or ammonia). Check all screws and rigging hardware. Replace lamp after 6,000 hours or if faulty. Fuse replacement requires disconnecting power. For any internal issues, contact ADJ service.

What is the maximum power consumption?

The fixture consumes a maximum of 410W at 120V and 390W at 230V, with auto-sensing electronic ballast.

How many DMX channels does it use?

It offers two DMX modes: 20-channel and 24-channel, selectable in the DMX CH Mode menu.

What prisms are included?

Two rotating prisms: a 16-facet circular prism and a 6-facet linear prism, which can be used individually or overlaid for multi-faceted effects.

What is the minimum distance from flammable materials?

Keep at least 0.7 feet (0.2 meters) away from flammable materials. The minimum distance to lighted objects is 39.4 feet (12 meters).

USER MANUAL Vizi Beam CMY Adj

Technical line drawing of a mechanical optical instrument with no visible text or symbols

VIZI BEAM CMY

User Manual

©2024 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted. Product names used in this document may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of their respective companies.

ADJ Products, LLC and all affiliated companies hereby disclaim any and all liabilities for property, equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic loss associated with the use or reliance of any information contained within this document, and/or as a result of the improper, unsafe, insufficient and negligent assembly, installation, rigging, and operation of this product.

ADJ PRODUCTS LLC World Headquarters

6122 S. Eastern Ave. | Los Angeles, CA 90040 USA

Tel: [phone] | Fax: [phone] | www.adj.com |[e-mail]

ADJ Supply Europe B.V.

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

Junostraat 2 | 6468 EW Kerkrade | Netherlands

[phone] | Fax: [phone] | [e-mail] | [e-mail]

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the environment. Please turn off all electrical products when they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power when not in use. Thank you!

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this document may be available online.

Please check www.adj.com for the latest revision/update of this manual before beginning installation and/or programming.

Date	Document Version	Software Version >	DMX Channel Mode Notes
01/11/24 1	1.01 20ch /	24ch Initial Release

CONTENTS

General Information 4

Limited Warranty (USA Only) 5

Safety Guidelines 6

Discharge Lamp Warning 8

Overview 9

Color Flags and Color Wheels 10

Gobo Wheel 11

Pan-Tilt Lock 12

Lamp Replacement 13

Installation Guidelines 14

System Menu 18

DMX Setup 24

DMX Traits 28

Error Codes 30

Remote Device Management (RDM) 31

Maintenance Guidelines 32

Specifications 33

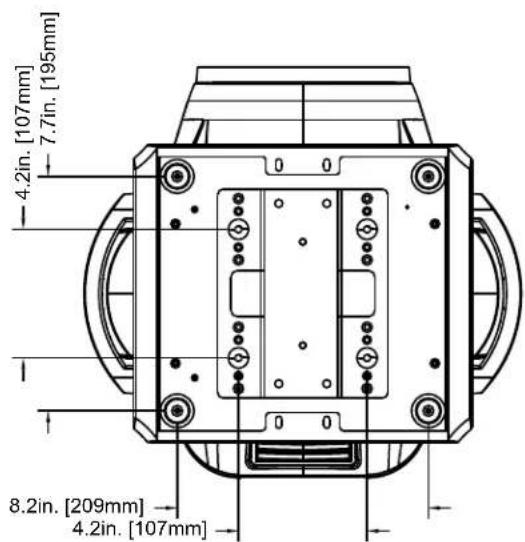

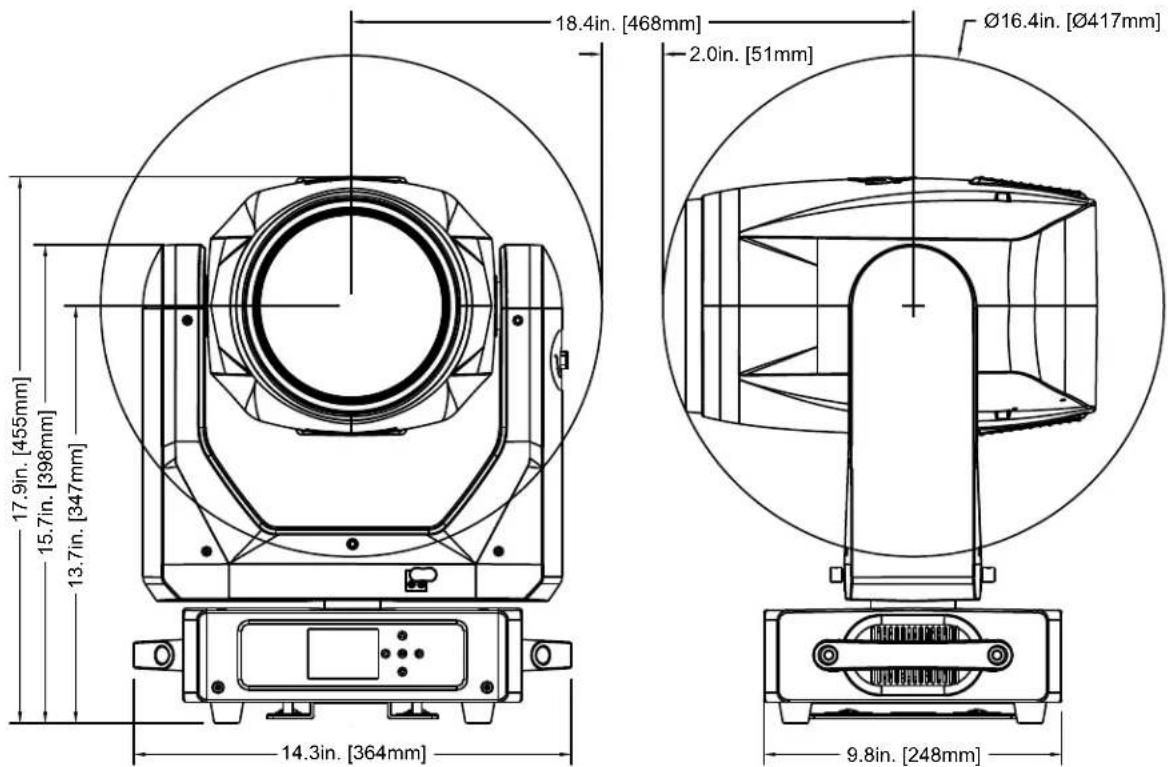

Dimensional Drawings 34

Optional Accessories 35

GENERAL INFORMATION

INTRODUCTION

Please read and understand the instructions in this manual carefully and thoroughly before attempting to operate this device. These instructions contain important safety and use information.

This product is intended for use by professionally trained personnel only, and is not suitable for private use.

Unpacking

Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton is damaged, carefully inspect the device for damage, and be sure all accessories necessary to install and operate the device have arrived intact. In the event damage has been found or parts are missing, please contact our customer support team for further instructions. Please do not return this device to your dealer without first contacting customer support. Please do not discard the shipping carton in the trash. Please recycle whenever possible.

BOX CONTENTS

Omega Brackets

1.83M locking power cable

CUSTOMER SUPPORT

Contact ADJ Service for any product related service and support needs.

Also visit forums.adj.com with questions, comments or suggestions.

ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST

323-582-2650 | Fax: [phone] | [e-mail]

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

[phone] | Fax: [phone] | [e-mail] | [e-mail]

REPLACEMENT PARTS please visit parts.adj.com

IMPORTANT NOTICE!

THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT.

DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURER'S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER'S WARRANTY AND ARE NOT SUBJECT TO WARRANTY CLAIMS AND/OR REPAIRS.

LIMITED WARRANTY (USA ONLY)

A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products to be free of manufacturing defects in material and workmanship for a prescribed period from the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the product is purchased within the United States of America, including possessions and territories. It is the owner's responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, you must obtain a Return Authorization number (RA#) before sending back the product-please contact ADJ Products, LLC Service Department at 800-322-6337. Send the product only to the ADJ Products, LLC factory. All shipping charges must be pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return shipping charges only to a designated point within the United States. If the entire instrument is sent, it must be shipped in its original package. No accessories should be shipped with the product. If any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for loss of or damage to any such accessories, or for the safe return thereof.
C. This warranty is void of the serial number has been altered or removed; if the product is modified in any manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product, if the product has been repaired or service by anyone other than ADJ Products, LLC factory unless prior written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because not properly maintained as set forth in the instruction manual.
D. This is not a service contact, and this warranty does not include maintenance, cleaning or periodic check up. During the period specified above, ADJ Products, LLC will replace defective parts at its expense with new or refurbished parts, and will absorb all expenses for warrant service and repair labor by reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable law, all implied warranties made by ADJ Products, LLC in connection with this product, including warranties of merchantability or fitness, are limited in duration to the warranty period set forth above. And no warranties, whether expressed or implied, including warranties of merchantability or fitness, shall apply to this product after said period has expired. The consumer's and/or Dealer's sole remedy shall be such repair or replacement as is expressly provided above; and under no circumstances shall ADJ Products, LLC be liable for any loss or damage, direct or consequential, arising out of the use of, or inability to use, this product.
G. This warranty is the only written warranty applicable to ADJ Products, LLC Products and supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore published.

LIMITED WARRANTY PERIODS

• Non L.E.D. Lighting Products = 1-year (365 days) Limited Warranty (Such as: Special Effect Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands etc. excluding LED and lamps)
• Laser Products = 1 Year (365 Days) Limited Warranty (excludes laser diodes which have 6 month limited warranty)
• L.E.D. Products = 2-year (730 days) Limited Warranty (excluding batteries which have a 180 day limited warranty) Note: 2 Year Warranty only applies to purchases within the United States.
  • StarTec Series = 1 Year Limited Warranty (excluding batteries which have a 180 day limited warranty)
• ADJ DMX Controllers = 2 Year (730 Days) Limited Warranty

SAFETY GUIDELINES

This device is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. ADJ PRODUCTS, LLC. is not responsible for injury and/or damages resulting from the misuse of this device due to the disregard of the information printed in this manual. Only the original included parts and/or accessories for this device should be used. Any modifications to the device, included and/or accessories will void the original manufactures warranty and increase the risk of damage and/or personal injury.

PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED

THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY REPAIRS YOURSELF; DOING SO WILL VOID YOUR MANUFACTURER'S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE MANUFACTURE'S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.

DO NOT PLUG FIXTURE INTO A DIMMER PACK! NEVER OPEN THIS FIXTURE WHILE IN USE! UNPLUG POWER BEFORE SERVICING FIXTURE! NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT! KEEP FLAMMABLE MATERIALS AWAY FROM FIXTURE!

NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE! RETINA INJURY RISK - MAY INDUCE BLINDNESS! SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!

INDOOR / DRY LOCATIONS USE ONLY! DO NOT EXPOSE FIXTURE TO RAIN AND MOISTURE!

MINIMUM DISTANCE TO OBJECTS/SURFACES MUST BE 39.4 FEET (12 METERS) MAXIMUM TEMP OF EXTERNAL SURFACE 194°F (90°C) MINIMUM DISTANCE OF INFLAMMABLE MATERIALS FROM THE SURFACE 0.7 FEET (0.2 METER)

WARNING

---12.0

Minimum distance to lighted objects 12.0 meters. Maximum temperature of the external surface is 90°C Minimum distance of inflammable materials from the surface 0.2m.

SAFETY GUIDELINES

HIGH INTENSITY ULTRAVIOLET LIGHT

AVOID DIRECT EYE & SKIN EXPOSURE. WEAR PROPER EYE & SKIN PROTECTION. SEE MANUAL FOR SAFETY INSTRUCTIONS.

RISK GROUP 3 - RISK OF EXPOSURE TO ULTRAVIOLET UV RADIATION! THE FIXTURE EMITS A HIGH-INTENSITY WAVELENGTH OF ULTRAVIOLET UV LIGHT FROM THE UV COLOR FILTER. WEAR PROPER EYE AND SKIN PROTECTION. AVOID PROLONGED PERIODS OF EXPOSURE TO THE UV COLOR FILTER. AVOID WEARING WHITE CLOTHING AND/OR USING UV PAINTS ON THE SKIN. AVOID DIRECT EYE AND/OR SKIN EXPOSURE AT DISTANCES LESS THAN 11 FEET (3.3M). DO NOT OPERATE THE FIXTURE WITH DAMAGED/MISSING EXTERNAL COVERS. DO NOT LOOK DIRECTLY INTO THE UV LIGHT AND/OR VIEW UV LIGHT DIRECTLY WITH OPTICAL INSTRUMENTS THAT MAY CONCENTRATE THE LIGHT/RADIATION OUTPUT.

INDIVIDUALS SUFFERING FROM A RANGE OF EYE CONDITIONS, SUNLIGHT EXPOSURE DISORDERS, OR INDIVIDUALS USING PHOTOSENSITIVE MEDICATION MAY EXPERIENCE DISCOMFORT IF EXPOSED TO THE ULTRAVIOLET UV LIGHT EMITTED FROM THE UV LED.

DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15-minutes for the fixture to cool down before servicing.

DO NOT shake the fixture; avoid brute force when installing and/or operating the fixture.

DO NOT operate the fixture if the power cord is frayed, crimped, damaged, and/or if any of the power cord connectors are damaged and do not insert into the fixture securely with ease.

NEVER force a power cord connector into the fixture. If the power cord or any of its connectors are damaged, replace it immediately with a new one of a similar power rating.

DO NOT block any air ventilation slots. All fan and air inlets must remain clean and never blocked. Allow approximately 7.9" (20cm) between the fixture and other devices or a wall for proper cooling.

When installing the fixture in a suspended environment, always use mounting hardware that is no less than M10 x 25 mm, and always install the fixture with an appropriately rated safety cable.

Always disconnect the fixture from the main power source before performing any type of service and/or cleaning procedure.

Only handle the power cord by the plug end; never pull out the plug by tugging the wire portion of the cord.

During the initial operation of this fixture, light smoke or a smell may emit from the interior of the fixture. This is a normal process and is caused by excess paint in the interior of the casing burning off from the heat associated with the lamp and will decrease gradually over time.

Consistent operational breaks will ensure the fixture functions properly for many years.

ONLY Use the original packaging and materials to transport the fixture for service.

DISCHARGE LAMP WARNING

This fixture is equipped with a DISCHARGE LAMP, which is highly susceptible to damage if mishandled. NEVER touch the lamp with your bare hands, as the oil from your hands will shorten the lamp's life. NEVER move the fixture until the lamp has had ample time to cool. DISCHARGE LAMPS are NOT covered under warranty conditions. Avoid switching the fixture ON and OFF repeatedly in short intervals, as this will reduce lamp life and intensity. To achieve the intensity associated with discharge lamps, these lamps use gas sealed in a high-pressure environment to emit a brilliant output.

Due to the high pressure involved in the construction of the lamp, it MAY EXPLODE DURING PROLONGED EXTENSIVE USE. This risk increases with age; added care is encouraged when dealing with older lamps. Thus, the lamp must always be replaced at the end of its recommended duty cycle. Extreme caution should be used when operating this or any fixture fitted with a gas discharge lamp.

UV RADIATION NOTICE

THIS FIXTURE EMITS INTENSE UV RADIATION, WHICH IS HARMFUL TO THE EYES AND SKIN. THE INTENSE LUMINESCENCE OF THE LAMP CAN CAUSE SEVERE DAMAGE TO THE RETINA. NEVER OPERATE THIS FIXTURE WITH ANY OF THE PROTECTIVE COVERS REMOVED. THESE COVERS HAVE BEEN SPECIALLY DESIGNED TO SHIELD AGAINST UV RADIATION.

LAMP REPLACEMENT

USE ONLY GENUINE ORIGINAL PHILIPS™ LAMPS. OTHER BRAND LAMPS WILL CAUSE DAMAGE AND VOID THE FIXTURE WARRANTY!

DISCONNECT THE MAIN POWER SUPPLY BEFORE REPLACING THE LAMP! THE FIXTURE MUST COOL FOR 15 MINUTES BEFORE REPLACING THE LAMP! NEVER TOUCH THE LAMP WITH BARE HANDS; ALWAYS WEAR GLOVES! OIL FROM HANDS WILL SHORTEN THE LIFE OF THE LAMP!

MAKE SURE ALL COVERS/FIXTURES ARE REPLACED/SECURED BEFORE OPERATING THE FIXTURE TO PREVENT ANY RISK AND/OR DAMAGE TO THE EYE RETINA FROM UV RADIATION EXPOSURE!

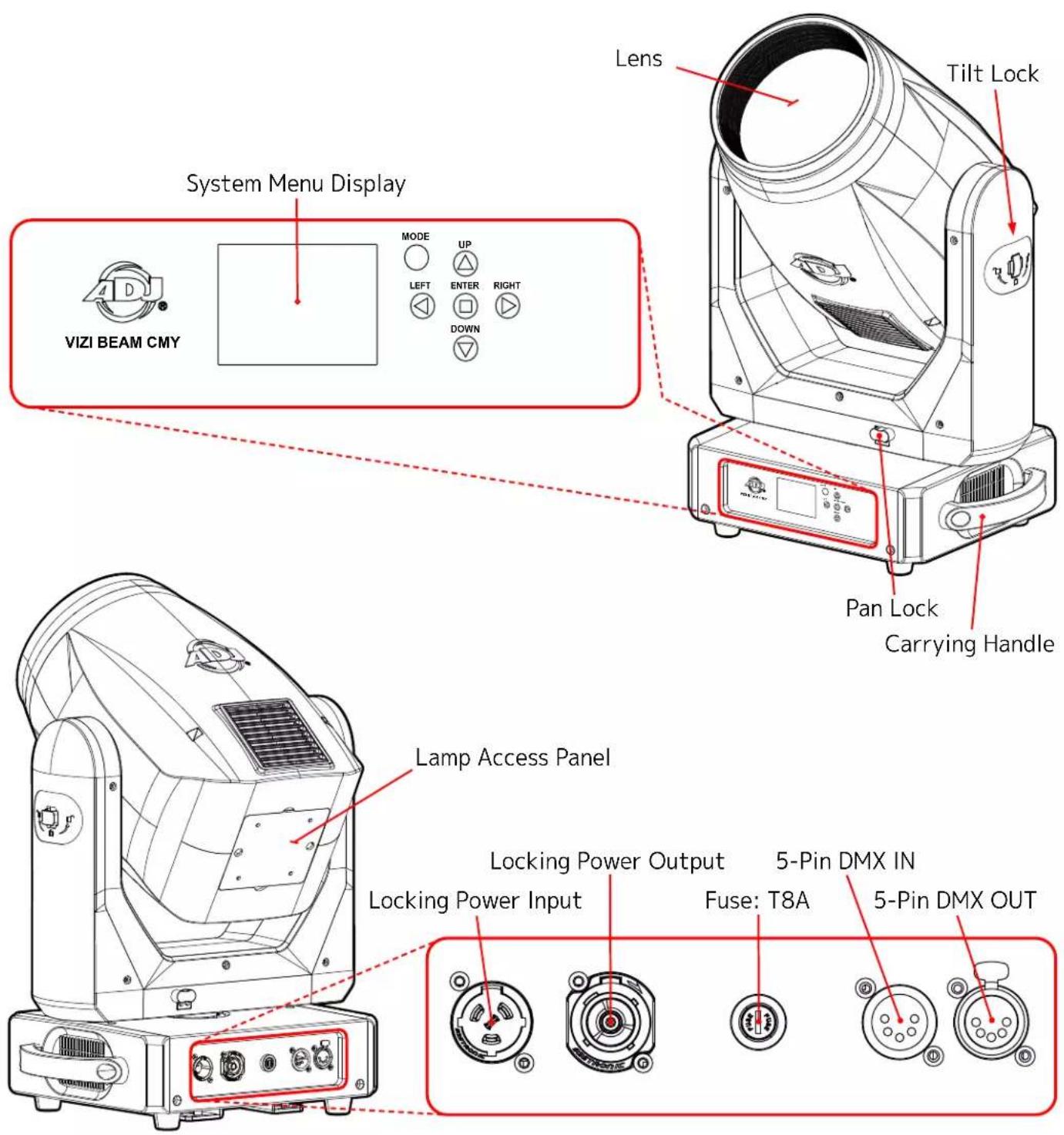

OVERVIEW

COLOR FLAGS AND COLOR WHEELS

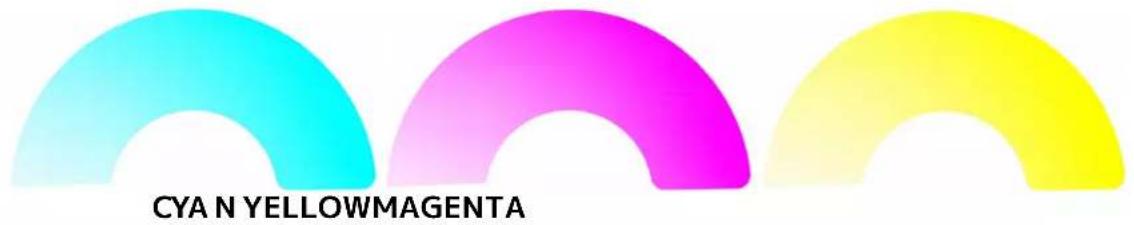

CMY COLOR FLAGS

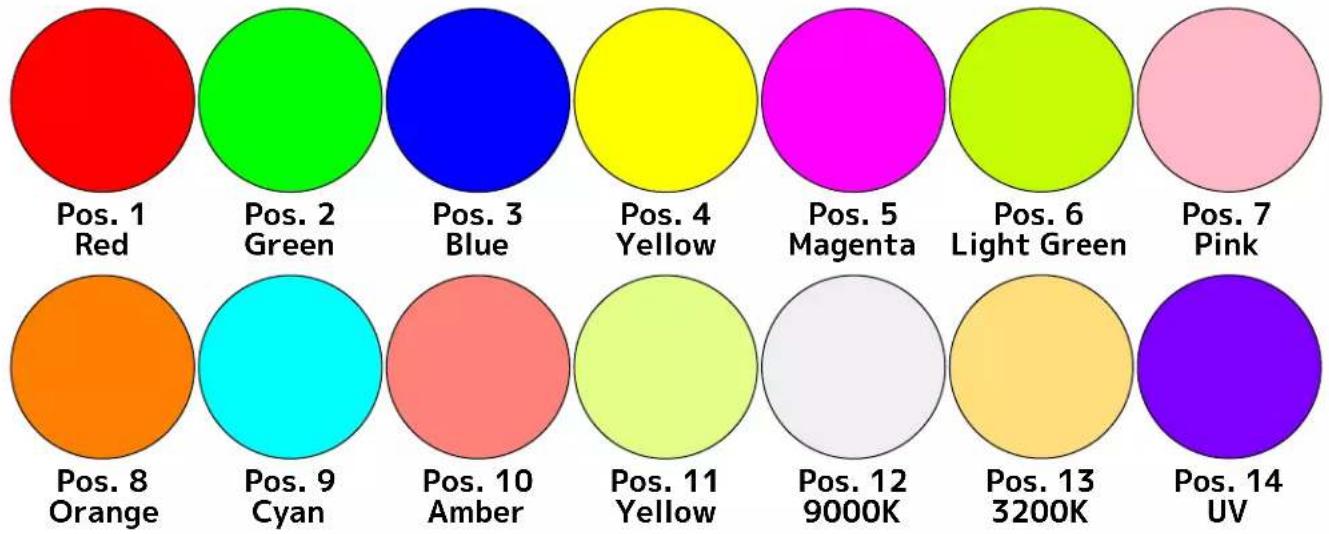

COLOR WHEEL

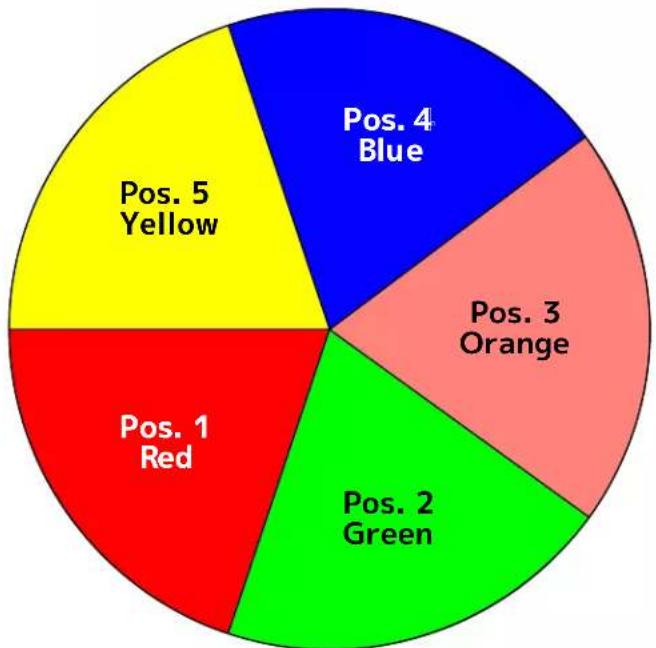

COLOR WHEEL: MULTI COLOR EFFECTS

GOBO WHEEL

Circular diagram with various white geometric symbols on a dark background, no text or labels present.

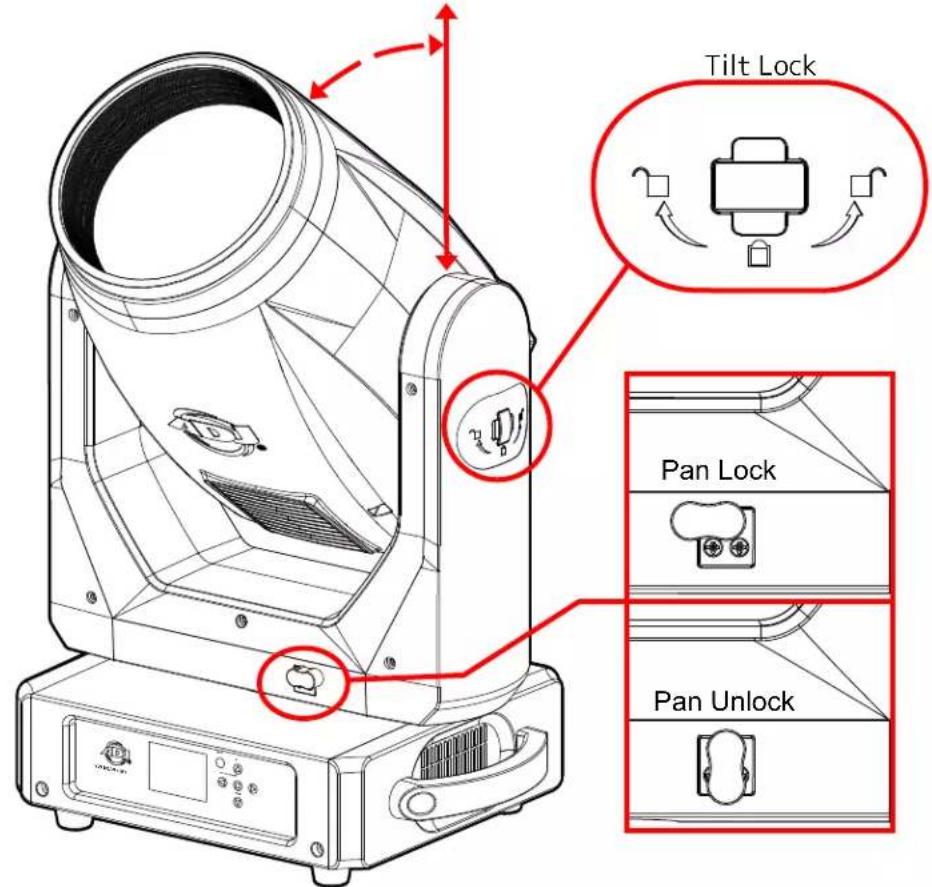

PAN-TILT LOCKS

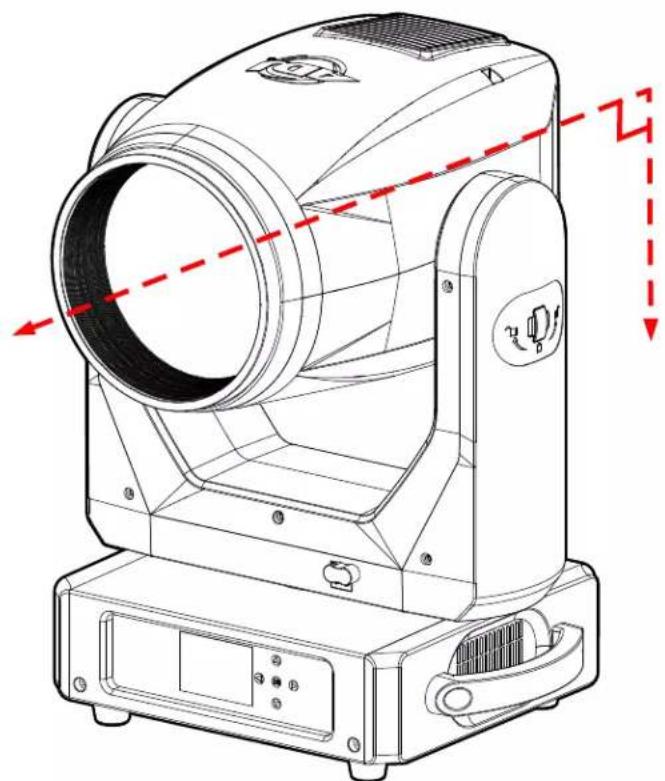

Before removing lamp, place fixture on a stable flat surface in an INDOOR DUST FREE location. Ensure moving head is locked into a right angle position with both PAN and TILT locks engaged.

Technical line drawing of a mechanical optical instrument with red dashed alignment lines and arrows indicating motion (no text or symbols)

LAMP REPLACEMENT

Caution: Always replace with the exact same type of lamp and fuse, unless otherwise specified by an authorized ADJ service technician. Replacing with anything other than the specified part can damage your unit and will void your manufacturer's warranty.

Warning: If you continue to blow lamps or fuses, STOP using the unit. Contact customer support for further instructions; you may have to return the unit for servicing. Continuing to use the unit may cause serious damage.

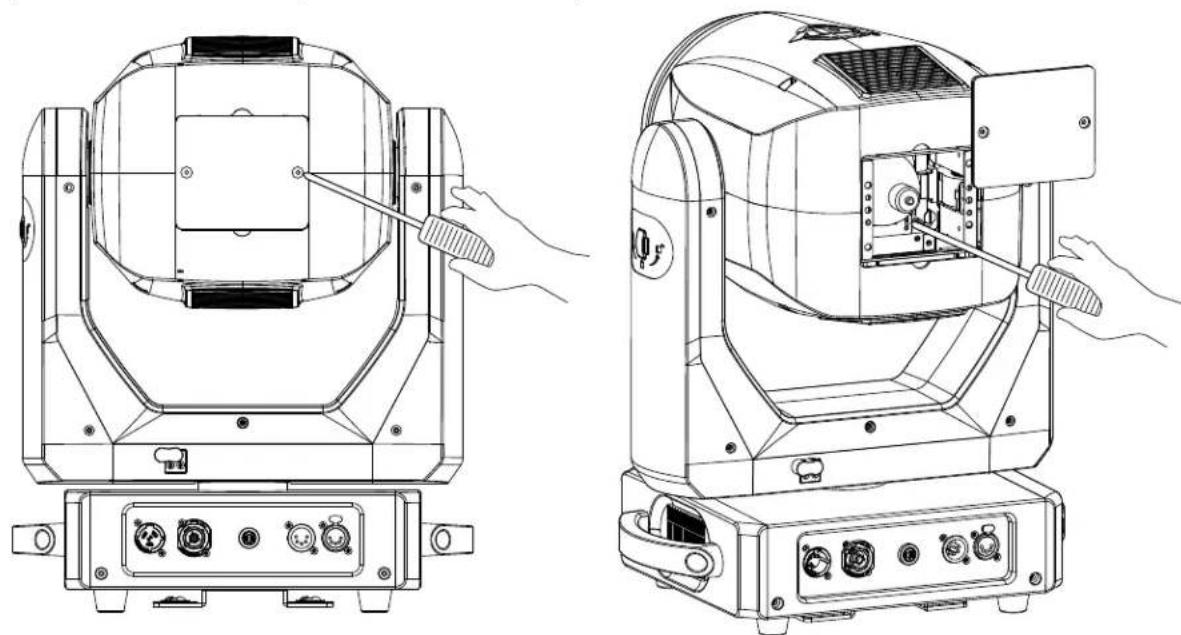

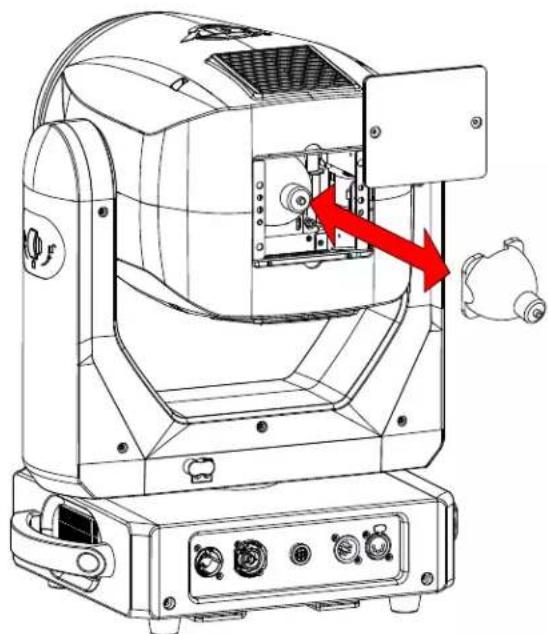

Lamp Replacement: Caution! Never attempt to change the lamp while the fixture is plugged in. Always disconnect the main power and allow the unit ample time to cool before attempting to replace the lamp. Please see page 8 for important information regarding the discharge lamp.

Remove the lamp panel screws located on the rear of the moving head and remove the panel. Loosen the lamp screws and carefully disconnect the lamp.

Lift lamp out of its recess and replace it with an OSRAM SIRIUS HRI® 310W PRO lamp. Reassemble in reverse order.

Technical line drawing of a mechanical device with a red arrow indicating a component or operation (no text or symbols present)

INSTALLATION GUIDELINES

FLAMMABLE MATERIAL WARNING

Keep the fixture a minimum of 0.7 feet (0.2m) away from flammable materials and/or pyrotechnics.

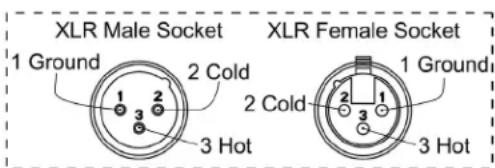

ELECTRICAL CONNECTIONS

A qualified electrician should handle all electrical connections and/or installations.

USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAXIMUM POWER POUTPUT OF THIS FIXTURE. CHECK THE SILKSCREEN FOR MAXIMUM AMPS.

MINIMUM DISTANCE TO OBJECTS/SURFACES MUST BE 39.4 FEET (12 METERS).

MINIMUM DISTANCE OF INFLAMMABLE MATERIALS FROM THE SURFACE 0.7 feet (0.2 meters).

MAXIMUM TEMPERATURE OF EXTERNAL SURFACE 185°F (85°C).

DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!

The fixture MUST be installed following all local, national, and country commercial electrical and construction codes and regulations.

Before rigging/mounting a single fixture or multiple fixtures on any metal truss/structure or placing the fixture(s) on any surface, consult with a professional equipment installer to determine if the metal truss/structure or surface is properly certified to safely hold the combined weight of the fixture(s), clamps, cables, and accessories.

The fixture's ambient operating temperature range is 0^ to 104^ ( 0^ to 40^ ). Do not use the fixture under or above this temperature.

Fixture(s) should be installed in areas outside walking paths, seating areas, or away from areas where unauthorized personnel might reach the fixture by hand.

NEVER stand directly below the fixture(s) when rigging, removing, or servicing.

Overhead fixture installation must always be secured with a secondary safety attachment, such as an appropriately rated safety cable.

Allow approximately 15 minutes for the fixture to cool down before servicing.

RIGGING

Overhead rigging requires extensive experience, including, among other things, calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.

ALWAYS ATTACH AN APPROPRIATELY RATED SAFETY CABLE (NOT INCLUDED) THAT MEETS ALL LOCAL, NATIONAL, AND COUNTRY CODES AND REGULATIONS WHENEVER INSTALLING THE FIXTURE IN A SUSPENDED ENVIRONMENT!

INSTALLATION GUIDELINES

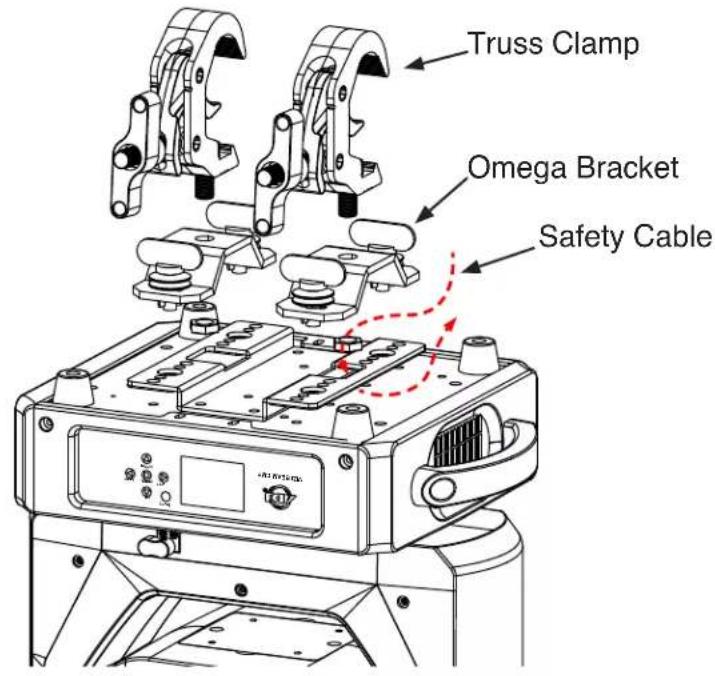

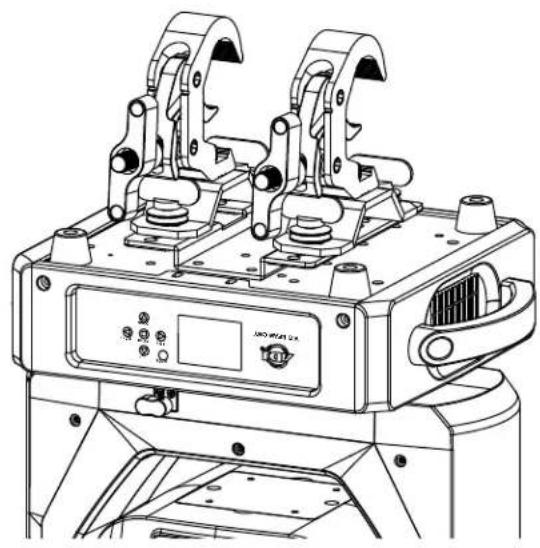

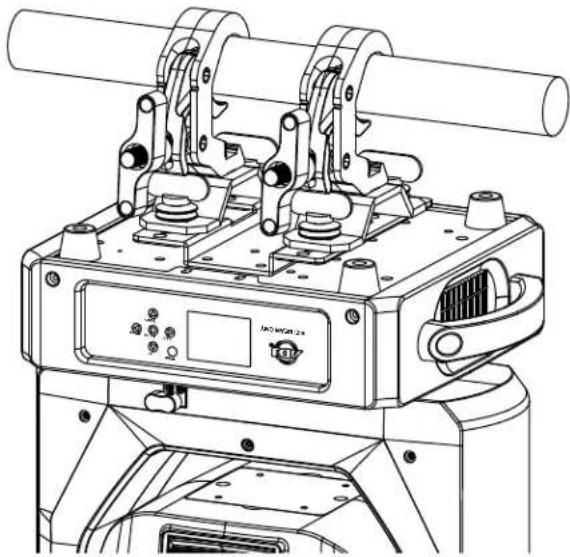

OMEGA BRACKETS INSTALLATION

Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the Omega Brackets to the fixture by turning each quick-lock fastener 14 turn clockwise; making sure the fastener is completely locked. Omega Brackets can be installed into the fixture base as illustrated below.

Technical line drawing of a mechanical device with dual clamps and a control panel (no text or symbols)

SAFETY CABLE
ALWAYS ATTACH A SAFETY WHENEVER INSTALLING THIS FIXTURE IN ASUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT FALL IF THE CLAMP FAILS. CLAMP INSTALLATION

Technical line drawing of a mechanical device with dual rollers and control panel (no text or symbols)

When mounting fixture to truss, be sure to secure an appropriately rated professional grade rigging clamp to the included Omega Brackets using an M10 screw fitted through the center hole of the Omega Brackets. The fixture provides built-in rigging points for a SAFETY CABLE (not included). Be sure to only use one of the designated rigging points for the safety cable and never secure a safety cable to a carrying handle.

INSTALLATION GUIDELINES

RIGGING

Overhead rigging requires extensive experience, including among others, calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.

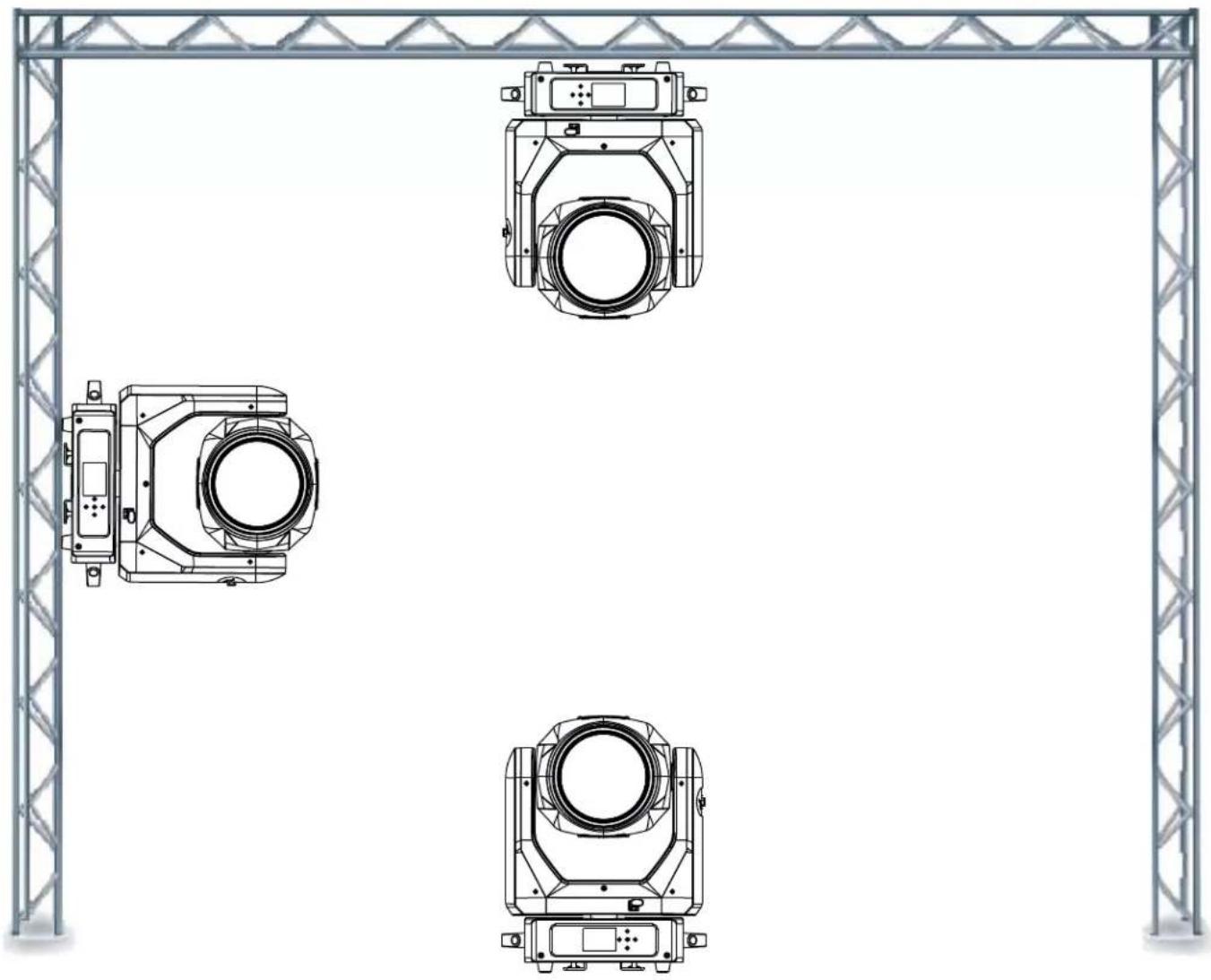

This fixture is designed to be mounted vertically (hanging or upright), or horizontally (perpendicular to vertical axis) only.

Technical line drawing of three mechanical camera modules mounted on a metal frame structure (no text or symbols)

FALLING FIXTURES CAN CAUSE SEVERE INJURY OR SERIOUS EQUIPMENT DAMAGE! FOR THIS REASON, FIXTURES SHOULD BE INSTALLED AND INSPECTED ONLY BY QUALIFIED PERSONNEL. DO NOT INSTALL THE UNIT IF YOU LACK THE QUALIFICATIONS TO DO SO, OR IF YOU HAVE DOUBTS ABOUT THE SAFETY AND SECURITY OF THE INSTALLATION SETUP OR LOCATION!

ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE IN A SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT FALL IF THE CLAMP FAILS.

INSTALLATION GUIDELINES

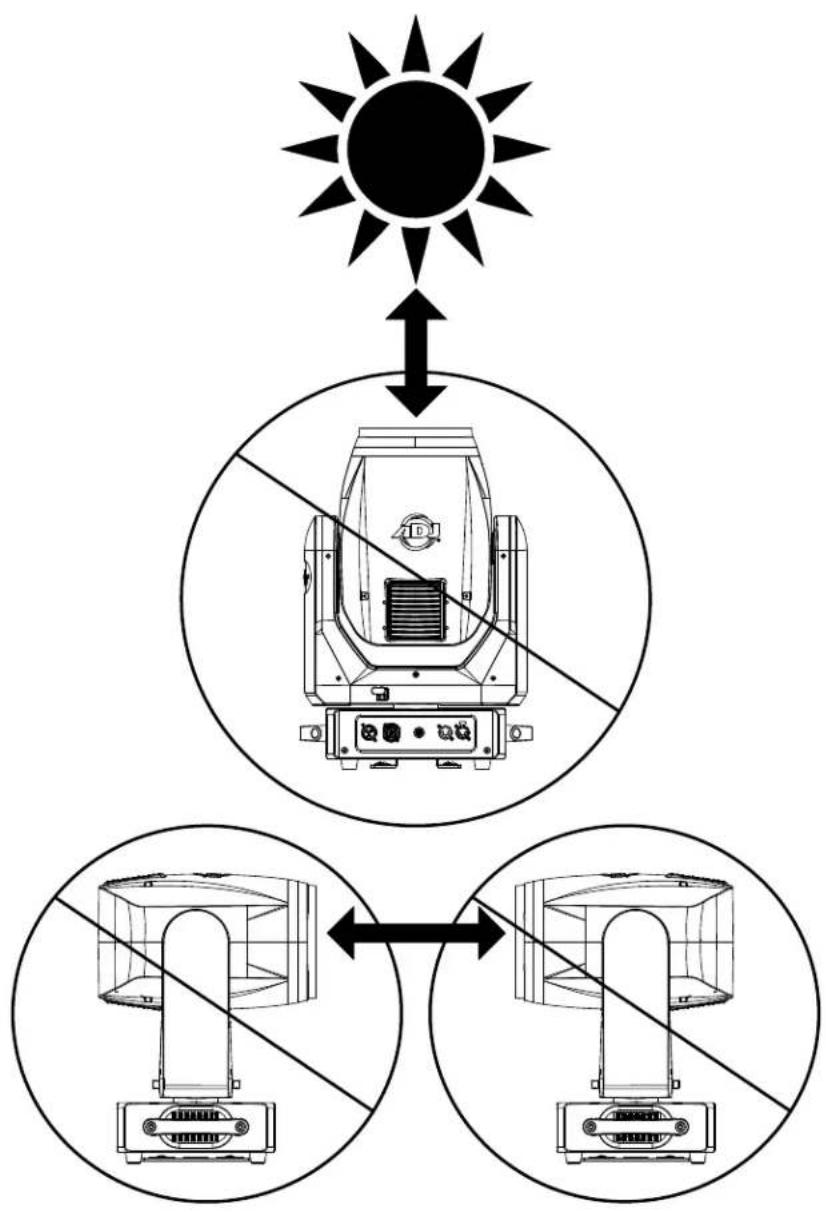

POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS

External sources of light beams from direct sunlight, lighting and moving head fixtures, and lasers, which are focused directly towards the exterior housing and/or penetrate the front lens opening of Elation lighting fixtures, can cause severe internal damage including burning of optics, dichroic color filters, glass and metal gobos, prisms, animation wheels, frost filters, iris, shutters, motors, belts, wiring, discharge lamps, and LEDs.

This issue is not specific only to Elation lighting fixtures, but rather it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can reduce the risk of potential damage. Contact Elation Service for more details.

DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM DIRECT SUNLIGHT, OTHER LIGHTING OR MOVING HEAD FIXTURES, AND LASERS DURING UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.

SYSTEM MENU

The Vizi Beam CMY features a display screen with a 6-button control pad, which can be used to easily adjust any device settings.

• The MODE button cycles through main menu options, or returns to the previous menu without making changes.
• The ENTER button is used to select the highlighted option, or to confirm a selection.
• The UP, DOWN, LEFT, and RIGHT buttons are used to navigate and adjust menu options and settings displayed on the screen.

VIZI BEAM CMY

Empty white rectangle with black border (no text or symbols)

MODE

LEFT

UUPP

ENTER

RIGHT

DOWN

SYSTEM MENU

MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) DESCRIPTION
DMX Settings	DMX Address 001 - 5	2		Shall be used to set the units starting DMX address channel. Depending on set DMX mode, unit shall not allow to be addressed any higher that will not allow for all channels to be accessed from the console.
	DMX CH Mode 20ch,	24ch		Shall be used to set the units desired DMX mode.
	NO DMX Status	Hold Last		Shall be used to set the units behavior when DMX signal is not present. Hold shall be the default setting and unit shall hold all last channel values received from the console when signal is lost.
		Blackout		Blackout option shall take all channels to zero (0) when signal is lost.
		Manual		Manual Settings option shall take all channels to the last set Manual channel settings when signal is lost.
Personality	Prim/Sec Mode Primary / Secondary
	Select Signal DMX or Aria
	Aria Settings	Aria Enable ON / OFF
		Set Aria Channel 00~1	4, 2.4 Ghz.
		Mesh ON / OFF		DMX Mesh network.
		RDM ON / OFF		When set to ON, RDM enabled.
		Bluetooth ON / OFF		When set to ON, Bluetooth enabled.
	Status Settings	Pan Invert ON / OFF
		Tilt Invert ON / OFF
		P./T. Feedback	ON / OFF
		P./T. Speed	Speed 1, Speed 2
		Hibernation	OFF, 01M~99M, 15M	When DMX signal is not present, unit goes into standby mode after the set time. When set to OFF, unit never go into hibernation mode. The unit should have 01M to 99M options... so 01M, 02M, 03M... 99M (M=Minutes). 15M default.
	Reset Motors	Reset All Motors	YES / NO
		Pan/Tilt Reset	YES / NO
		Color Reset	YES / NO
		Gobo Reset	YES / NO
		Frost Reset YES / NO
		Prism Reset	YES / NO
	Display	Intensity	1-10
		Display Invert	Auto / YES / NO
		Screen Saver Delay	OFF - 10 minutes
		Display Lock On/Off	ON / OFF
	Service (Passcode=50)	Calibration	Pan 128-127	Effects adjustments. Do not adjust effect settings when performing a factory reset at the same time.
			Tilt 128-127
			Color -128~127
			...
			Shutter 0-255
		Update Software	YES / NO
		Factory Restore	YES / NO	Reset to factory default

SYSTEM MENU

MAIN MENU OPTIONS / VALUES (Default Settings in BOLD) DESCRIPTION
Manual Control	Pan 000-255				Set Manual Control values remain set when no DMX signal is present, including through a power cycle.
	Tilt 000-255
	Cyan 000-255
	Magenta 000-255
	Yellow 000-255
	Color 000-255
	Multicolor Effect 000-255
	Gobo 000-255
	Prism 000-255
	Prism Rotation 000-255
		...
	Focus 000-255
	Frost 000-255
Lamp Control	Lamp ON/OFF ON / OFF				Manual control settings shall always hold when no DMX signal is present. This includes after a power cycle.
	Lamp ON with Power	ON / OFF
	Lamp ON via DMX	ON / OFF
	Lamp OFF via DMX	ON / OFF
Information	Fixture Life Time	Power On Time xxxxx	Hours		Total hrs. fixture powered ON. Cannot be reset.
		P-On Time-R	xxxxx Hours		Hours fixture powered ON. Can be reset
		P-On Time Reset	Passcode		Reset Power On Time (Passcode=050)
	Total Lamp Time	Lamp On Time	xxxxx Hours		Resets to 0 when lamp replaced and reset (Passcode=050)
		Lamp On Time-R	xxxxx Times
		Lamp On Time Reset	Passcode
	Fixture Temperatures	Head	Current	xxx F°/xxx C°	Current fixture temperature in
			Max Resettable	xxx F°/xxx C°	Maximum temperature reached since last reset. Can be reset
			Max Not Resettable	xxx F°/xxx C°	Maximum temperature fixture reached. Cannot be reset
		Base	Current	xxx F°/xxx C°	Current fixture temperature in
			Max Resettable	xxx F°/xxx C°	Maximum temperature reached since last reset. Can be reset
			Max Not Resettable	xxx F°/xxx C°	Maximum temperature fixture reached. Cannot be reset
		Reset Head Temp	Passcode		Shall allow for Head Temperature data to be reset. Should be Passcode protected. Passcode should be 050.
		Reset Base Temp	Passcode		Shall allow for Head Temperature data to be reset. Should be Passcode protected. Passcode should be 050.
	Fan Info (RPM)	Base Fan	xxxx		Displays fan RPM
		Lamp Fan	xxxx
		Head Fan 1	xxxx
		Head Fan 2	xxxx
		Head Fan 3	xxxx
	DMX Values	Pan, Pan Fine, Tilt, Tilt Fine, Cyan, magenta, Yellow, Color, Color Macros - CMY and Color Wheel, Colorful, Gobo, Prism1, Prism1 Rot, Prism2, Prism2 Rot, Shutter, Dimmer, Dimmer Fine, Focus, Focus Fine, Frost, CMY Speed, P/T Speed, Spe. Func			Displays current DMX Channel value of respective fixture trait.
	Error Logs	Sensor Errors	List Errors one by one		Display Fixture Errors
		Reset Error Log	Passcode		Error log reset, passcode required (Passcode=050)
	Software Version	x.xx			Displays current software

SYSTEM MENU

DMX Settings

Select DMX Settings, and press ENTER button to confirm. Use UP/DOWN buttons to select DMX Address, DMX CH Mode, or No DMX Status.

DMX Address — DMX512 address setting

Select DMX Address, and press ENTER button to confirm. Use UP/DOWN buttons to adjust address from 001 to 512, and press ENTER button to store.

DMX CH Mode — channel mode

Select DMX CH Mode, and press ENTER button to confirm. Use UP/DOWN buttons to select 20ch or 24ch, and press ENTER button to store.

No DMX Status — fixture state while DMX single stops

Select No DMX Status, and press ENTER button to confirm. Use UP/DOWN buttons to select Hold Last (If DMX signal stops, fixture continues to obey the last command it received Via DMX), Blackout (fixture blacks-out if DMX signal stops), or Manual (If DMX signal stops, fixture returns all channels to the last setting entered manually), and press ENTER button to store.

In the Blackout / Hold Last state, and with no DMX signal, the unit will remain in the final state for 15M before reverting to static mode. At this time, the lamp and motors will turn-off. When the DMX signal is reconnected, the unit will automatically activate and reset.

Personality

Select Personality, and press ENTER button to confirm, use UP/DOWN buttons to select Status Settings, Reset Motors, Display, or Service.

Status Settings

Select Status Settings, and press ENTER button to confirm. Use UP/DOWN buttons to select Pan Invert, Tilt Invert, P/T. Feedback, Pan Degree, P/T. Speed or Hibernation, and press ENTER button to store.

Pan Invert

Select Pan Invert, and press ENTER button to confirm. Use UP/DOWN buttons to select OFF (pan invert) or ON (normal), and press ENTER button to store.

Tilt Invert

Select Tilt Invert, and press ENTER button to confirm. Use UP/DOWN buttons to select OFF (tilt invert) or ON (normal), and press ENTER button to store.

P./T. Feedback

Select P./T. Feedback, and press ENTER button to confirm. Use UP/DOWN buttons to select OFF or ON, and press ENTER button to store.

Pan Degree

Select Pan Degree, and press ENTER button to confirm, Pan Degree will show on the display, and press MENU button to exit.

P./T. Speed

Select P./T. Speed, and press ENTER button to confirm. Use UP/DOWN buttons to select Speed 1, Speed 2, or Speed 3, and press ENTER button to store.

Hibernation

Select Hibernation, and press ENTER button to confirm. Use UP/DOWN buttons to select OFF (unit never go into hibernation mode) or 01M\~99M (Hibernation mode), and press ENTER button to store.

Reset Motors

Select Reset Motors, and press ENTER button to confirm. Use UP/DOWN buttons to select Reset All Motors, Pan/Tilt Reset, Color Reset, Gobo Reset, Prism/R-P Reset, Shutter Reset, or Frost Reset, and press ENTER button to store.

Reset All Motors

Select Reset All Motors, and press ENTER button to confirm. Use UP/DOWN buttons to select No or Yes, and press ENTER button to store.

SYSTEM MENU

Pan/Tilt Reset

Select Pan/Tilt Reset, and press ENTER button to confirm. Use UP/DOWN buttons to select No or Yes, and press ENTER button to store.

Personality (continued)

Color Reset

Select Color Reset, and press ENTER button to confirm. Use UP/DOWN buttons to select No or Yes, and press ENTER button to store.

Gobo Reset

Select Gobo Reset, and press ENTER button to confirm. Use UP/DOWN buttons to select No or Yes, and press ENTER button to store.

Prism/P-R Reset

Select Prism/P-R Reset, and press ENTER button to confirm. Use UP/DOWN buttons to select No or Yes, and press ENTER button to store.

Shutter Reset

Select Shutter Reset, and press ENTER button to confirm. Use UP/DOWN buttons to select No or Yes, and press ENTER button to store.

Focus Reset

Select Focus Reset, and press ENTER button to confirm. Use UP/DOWN buttons to select No or Yes, and press ENTER button to store.

Frost Reset

Select Frost Reset, and press ENTER button to confirm. Use UP/DOWN buttons to select No or Yes, and press ENTER button to store.

Display

Select Display, and press ENTER button to confirm. Use UP/DOWN buttons to select Intensity, Display Invert, Screen Saver Delay, or Display Lock ON/OFF, and press ENTER button to store.

Intensity

Select Intensity, and press ENTER button to confirm. Current mode will blink on the display, Use UP/ DOWN buttons to adjust backlight intensity from 001 (dark) to 010 (bright), and press ENTER button to store.

Display Invert

Select Display Invert, and press ENTER button to confirm. Use UP/DOWN buttons to select OFF or ON, and press ENTER button to store.

Screen Saver Delay

Select Screen Saver Delay, and press ENTER button to confirm. Current mode will blink on the display. Use UP/DOWN buttons to adjust backlight intensity from OFF or 01M to 10M, and press ENTER button to store.

Display Lock ON/OFF

Select Display Lock ON/OFF, and press ENTER button to confirm. Current mode will blink on the display. Use UP/DOWN buttons to select OFF or ON, and press ENTER button to store.

Service

Select Service, and press ENTER button to confirm. Current mode will show on the display, Use UP/DOWN button to select 050, and press ENTER button to confirm. Use UP/DOWN buttons to select Calibration, High Temp Fan Mode, USB Port Power, Update Software, or Factory Restore.

High Temp Fan Mode is for use in extreme conditions or weather, and allows the unit to run the fan continuously to keep lamp temperature within a safe range.

When selecting Calibration, use UP/DOWN buttons to select Pan, Tilt, Shutter, Color, Gobo, Prism1, RPrism, Prism2, Frost, or Focus, then use UP and DOWN button to adjust value.

When selecting USB Port Power, use UP/DOWN buttons to select OFF or ON.

When selecting Update Software, Use UP/DOWN buttons to select NO or YES.

When selecting Factory Restore, use UP/DOWN buttons to select NO or YES.

SYSTEM MENU

Manual Control

Select Manual Control, and press ENTER button to confirm. Current channel will show on the display. Use UP/DOWN button to select Pan, Tilt, Color, Gobo, Prism1, Prism2, RPrism, Shutter, Dimmer, Dimmer Fine, Focus, or Frost, press ENTER button to confirm, then Use UP/DOWN button to adjust value 000 to 255, press ENTER button to store, and the fixture will run as the channel value indicates. Press MENU button back to the last menu, or exit menu mode idling one minute. (All channels value will become 0 after exiting Manual Test menu)

Information

Select Information, and press ENTER button to confirm. Use UP/DOWN buttons to select Fixture Life Time, Total Lamp Time, Fixture Temps, Fan Info.(RPM), DMX Values, Error Logs, or Software Version.

Fixture Life Time

Select Fixture Life Time, and press ENTER button to confirm. Use UP/DOWN buttons to select Power On Time, P-On Time-R, or P-On Time Reset, and press ENTER button to store.

Total Lamp Time

Select Total Lamp Time, and press ENTER button to confirm. Use UP/DOWN buttons to select Lamp On Time, Lamp On Time-R, or Lamp On Time Reset, and press ENTER button to store.

Fixture Temps

Select Fixture Temps, and press ENTER button to confirm. Use UP/DOWN buttons to select Head, or Reset Head Temp, and press ENTER button to store.

Fan Info.(RPM)

Select Fan Info.(RPM), and press ENTER button to confirm. Use UP/DOWN buttons to select B_Fan1, B_Fan2, H_Fan1, H_Fan2, or H_Fan3, and press ENTER button to store.

DMX Values

Select DMX Values, and press ENTER button to confirm. Use UP/DOWN buttons to select Pan, Pan Fine, Tilt, Tilt Fine, Color, Gobo, Prism1, Prism2, RPrism, Shutter, Dimmer, Dimmer Fine, Focus, Focus Fine, Frost, P/T Speed, or Spe. Func, and press ENTER button to store.

Error Logs

Select Error Logs, and press ENTER button to confirm. Use UP/DOWN buttons to select Fixture Errors, or Reset Error Log, and press ENTER button to store.

Software Version

Select Software Version, and press ENTER button to confirm. Software Version will show on the display. Press MENU button to exit.

Lamp Control

Select Lamp Control, and press ENTER button to confirm. Use UP/DOWN buttons to select Lamp ON/OFF, Lamp On with Power, Lamp On via DMX, or Lamp Off via DMX, and press ENTER button to store.

DMX SETUP

Power Supply: The ADJ Vizi Beam CMY incorporates an electronic ballast, which automatically senses the voltage when it is plugged into the power source. With the electronic ballast, this unit can be plugged in anywhere.

DMX-512: DMX stands for Digital Multiplex. This is a universal protocol used by most lighting and controller manufacturers as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA "IN" and DATA "OUT" XLR terminals found on all DMX fixtures (most controllers only have a DATA "OUT" terminal).

DMX Linking: DMX serves as a language that allows all makes and models from different manufacturers to be linked and operated from a single controller if all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission when using several DMX fixtures, use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example, a fixture assigned a DMX address of 1 may be placed anywhere in a DMX line—at the beginning, at the end, or anywhere in the middle. Therefore, the first fixture controlled by the controller could be the last fixture in the chain. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX and Primary/Secondary Operation): The Vizi Beam CMY can be controlled via DMX-512 protocol. It can be either a 10, 12, or 16-channel DMX unit.

The DMX address is electronically set using the controls on the front panel of the unit. One's unit and DMX controller require an approved DMX-512 110 Ohm Data cable for data input and data output (Figure 1). Accu-Cable DMX cables are recommended. If one is making their own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may be purchased at almost all professional sound and lighting stores). Cables should be made with a male and female XLR connector on either end of the cable. Also, remember that DMX cable must be daisy-chained and cannot be split.

Close-up of two black electronic connectors with metallic pins, shown from side and top views (no text or symbols visible)

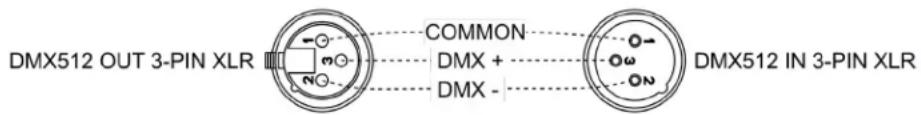

Notice: Be sure to follow figures two and three when making one's own cables. Do not use the ground lug on the XLR connector. Do not connect the cable's shield conductor to the ground lug or allow the shield conductor to contact the XLR's outer casing. Grounding the shield could cause a short circuit and erratic behavior.

XLR Pin Configuration

Pin 1 = Ground

Pin 2 = Data Compliment (negative)

Pin 3 = Data True (positive)

DMX SETUP

Power Supply: The ADJ Vizi Beam CMY incorporates an electronic ballast, which automatically

Special Note: Line Termination: When using longer runs of cable, one may need to use a terminator on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4-watt resistor, which connects between pins 2 and 3 of a male XLR connector (DATA + and DATA -). Insert this unit into the female XLR connector of the last unit in one's daisy chain to terminate the line. Using a cable terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

A DMX512 terminator reduces signal errors, avoiding most signal reflection interference. Connect PIN 2 (DMX-) and PIN 3 (DMX+) of the last fixture in series with a 120 Ohm, 1/4 W Resistor to terminate the DMX512.

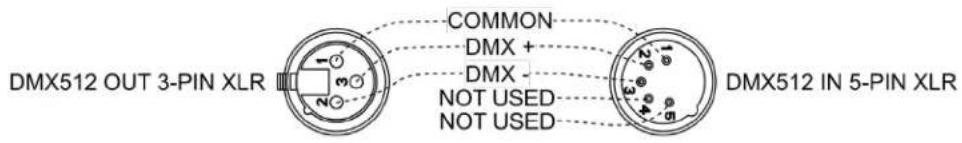

5-Pin XLR DMX Connectors: Some manufacturers use 5-pin DMX-512 data cables for DATA transmission instead of 3-pin. 5-pin DMX fixtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables into a 3-pin line, use a cable adaptor, readily available at most electric stores. The chart below details a proper cable conversion.

3-Pin XLR to 5-Pin XLR Conversion
Ground/Shield	Pin 1	Pin 1
Data Compliment (- signal)	Pin 2	Pin 2
Data True (+ signal)	Pin 3	Pin 3
Not Used		Do Not Use
Not Used		Do Not Use

DMX TRAITS

CHANNEL		DMX VALUE FUNCTION
20CH 24CH
1 1 000-255 Pan
	2 000-255 Pan Fine
2 3 000-255 Tilt
	4 000-255 Tilt Fine
3 5 000-255 Cyan 0 -100%
4 6 000-255 Magenta 0 -100%
5 7 000-255 Yellow 0 -100%
6	8		Color
		000-003 White
		004-007 Color1
		008-011 Color2
		012-015 Color3
		016-019 Color4
		020-023 Color5
		024-027 Color6
		028-031 Color7
		032-035 Color8
		036-039 Color9
		040-043 Color10
		044-047 Color11
		048-051 Color12
		052-055 Color13
		056-059 Color14
		060-061 White
		062-063 White to Color1
		064-065 Color1
		066-067 Color1 to Color2
		068-069 Color2
		070-071 Color2 to Color3
		072-073 Color3
		074-075 Color3 to Color4
		076-077 Color4
		078-079 Color4 to Color5
		080-081 Color5
		082-083 Color5 to Color6
		084-085 Color6
		086-087 Color6 to Color7
		088-089 Color7
		090-091 Color7 to Color8
		092-093 Color8
		094-095 Color8 to Color9
		096-097 Color9
		098-099 Color9 to Color10
		100-101 Color10
		102-103 Color10 to Color11
		104-106 Color11
		107-109 Color11 to Color12
		110-112 Color12
		113-115 Color12 to Color13
		116-118 Color13
		119-121 Color 13 to Color14
		122-124 Color14
		125-127 Color14 to White
		128-189 Clockwise Rotation Fast to Slow
		190-193 Stop
		194-255 Counter-Clockwise Rotation Slow to Fast

DMX TRAITS

CHANNEL		DMX VALUE FUNCTION
20CH 24CH
7	9		Color Macros - CMY and Color Wheel
		000-031 OFF
		032-039 Macro1
		040-047 Macro2
		048-055 Macro3
		056-063 Macro4
		064-071 Macro5
		072-079 Macro6
		080-087 Macro7
		088-095 Macro8
		096-103 Macro9
		104-111 Macro10
		112-119 Macro11
		120-127 Macro12
		128-135 Macro13
		136-143 Macro14
		144-151 Macro15
		152-159 Macro16
		160-167 Macro17
		168-175 Macro18
		176-183 Macro19
		184-191 Macro20
		192-199 Macro21
		200-207 Macro22
		208-215 Macro23
		216-223 Macro24
		224-231 Macro25
		232-239 Macro26
		240-247 Macro27
		248-255 Random CMY
8	10		Multicolor Effect
		000-007 Close
		008-255 Open

DMX TRAITS

CHANNEL		DMX VALUE FUNCTION
20CH 24CH
9 11			Static Gobo
		000-007 Open
		008-010 Gobo1
		011-013 Gobo2
		014-016 Gobo3
		017-019 Gobo4
		020-022 Gobo5
		023-025 Gobo6
		026-028 Gobo7
		029-031 Gobo8
		032-034 Gobo9
		035-037 Gobo10
		038-040 Gobo11
		041-043 Gobo12
		044-046 Gobo13
		047-049 Gobo14
		050-052 Gobo15
		053-055 Gobo16
		056-059 Open Shaking Slow to Fast
		060-063 Gobo1 Shaking Slow to Fast
		064-067 Gobo2 Shaking Slow to Fast
		068-071 Gobo3 Shaking Slow to Fast
		072-075 Gobo4 Shaking Slow to Fast
		076-079 Gobo5 Shaking Slow to Fast
		080-083 Gobo6 Shaking Slow to Fast
		084-087 Gobo7 Shaking Slow to Fast
		088-091 Gobo8 Shaking Slow to Fast
		092-095 Gobo9 Shaking Slow to Fast
		096-099 Gobo10 Shaking Slow to Fast
		100-103 Gobo11 Shaking Slow to Fast
		104-107 Gobo12 Shaking Slow to Fast
		108-111 Gobo13 Shaking Slow to Fast
		112-115 Gobo14 Shaking Slow to Fast
		116-119 Gobo15 Shaking Slow to Fast
		120-127 Gobo16 Shaking Slow to Fast
		128-189 Clockwise Rotation Fast to Slow
		190-193 Stop
		194-255 Counter-Clockwise Rotation Slow to Fast
10 12			Prism1
		000-007 Close
		008-255 Open
11 13			Prism1 Rotation
		000-127 0% ~ 100%
		128-189 Clockwise Rotation Fast to Slow
		190-193 Stop
		194-255 Counter-Clockwise Rotation Slow to Fast

DMX TRAITS

CHANNEL		DMX VALUE FUNCTION
20CH 24CH
12 14			Prism2
		000-007 Close
		008-255 Open
13 15			Prism2 Rotation
		000-127 0% ~ 100%
		128-189 Clockwise Rotation Fast to Slow
		190-193 Stop
		194-255 Counter-Clockwise Rotation Slow to Fast
14 16			Shutter
		000-031 Close
		032-063 Open
		064-095 Strobe from Slow to Fast
		096-127 Open
		128-159 Pulse Effect in sequence
		160-191 Open
		192-223 Random Strobe Slow to Fast
		224-255 Open
15 17 000-255 Dimmer 0 - 100%
	18 000-255 Dimmer Fine 0 - 100%
16 19 000-255 Focus 0 - 100%
	20 000-255 Focus Fine 0 - 100%
17 21 000-255 Frost 0 - 100%
18 22 000-255 CMY Speed Fast to Slow
19 23 000-255 Pan/Tilt Speed Fast to Slow
20 24			Special
		000-069 Null
		070-079 Enable blackout while Pan/Tilt moving
		080-089 Disable blackout while Pan/Tilt moving
		090-099 Enable blackout while color changing
		100-109 Disable blackout while color changing
		110-119 Enable blackout while gobo changing
		120-129 Disable blackout while gobo changing
		130-139 Lamp On
		140-149 Reset XY
		150-159 Reset Effect
		160-169 Reset Color (Color Wheel and CMY)
		170-199 No Function
		200-209 Reset All
		210-229 No Function
		230-239 Lamp Off
		240-255 No Function

ERROR CODES

When power is applied, the unit will automatically enter a “reset/test” mode. This mode brings all the internal motors to home position. If there is an internal problem with one or more of the motors, an error code will flash in the display in the form of “XXer”, where “XX” represents a function number. For example, when the display shows “03Er,” it means there is an error with the channel 3 motor. If there are multiple errors during the start-up process, they will all flash in the display. For example: if the fixture has errors on channel 1 and channel 3 at the same time, an error message, “01Er”, and “03Er”, flashes 5 times.

Error Codes subject to change without notice
ERROR GROUP ERROR	CODE DESCRIPTION
Encoder Error	Pan Encoder Error Encoder Error: Pan
	Tilt Encoder Error Encode Error: Tilt
Sensor Error	Pan Sensor Error Sensor Error: Pan
	Tilt Sensor Error Sensor Error: Tilt
	Cyan Sensor Error Sensor Error: Cyan
	Magenta Sensor Error Sensor Error: Magenta
	Yellow Sensor Error Sensor Error: Yellow
	Color Sensor Error Sensor Error: Color
	Gobo Sensor Error Sensor Error: Gobo
	Prism1 Sensor Error Sensor Error: Prism1
	Prism2 Sensor Error Sensor Error: Prism2
	Prism2 Rot Sensor Error Sensor Error: Prism2 Rot
	Focus Sensor Error Sensor Error: Focus
Communication Error	CPU-B Error Lost Connection: PAN/TILT
	CPU-C Error	Lost Connection: Effects
	CPU-D Error	Lost Connection: COLOR
	CPU-E Error Lost Connection: PAN
Fan Error	B-Fan1 Error	Fan Error: B-Fan1
	B-Fan2 Error	Fan Error: B-Fan2
	H-Fan1 Error	Fan Error: H-Fan1
	H-Fan2 Error	Fan Error: H-Fan2
	H-Fan3 Error	Fan Error: H-Fan3
	H-Fan4 Error	Fan Error: H-Fan4
Lamp Error	Lamp Communication Error	Lamp Error: Communication
	Lamp Temperature Error Lamp	Error: Temperature shut down
	Lamp Short Circuit Error	Lamp Error: Short circuit in output detected
	Lamp Life Error	Lamp Error: End of lamp life detected
	Lamp Ignite Error Lamp Error: Lamp did not ignite
	Lamp Extinguish Normal Lamp	Error: Lamp extinguished during normal operation
	Lamp Extinguish Run-up	Lamp Error: Lamp extinguished during run-up phase
	Lamp UART Buffer Error Lamp	Error: UART buffer overflow
	Lamp Current Error	Lamp Error: Lamp current calculation error
	Lamp Config Error	Lamp Error: Corrupted software configuration
	Lamp Under Voltage Error	Lamp Error: Lamp voltage too low

REMOTE DEVICE MANAGEMENT (RDM)

NOTE: for RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems.

Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, allowing the DMX systems of the fixtures to be modified and monitored remotely. This protocol is ideal for instances in which a unit is installed in a location that is not easily accessible.

With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled controller to send out a signal to devices on the wire, as well as allowing the fixture to respond (known as a GET command). The controller can then use its SET command to modify settings that would typically have to be changed or viewed directly via the unit's display screen, including the DMX Address, DMX Channel Mode, and Temperature Sensors.

FIXTURE RDM INFORMATION:

RDM Code	Device ID	Device Model ID	Personality ID
0x1900	Generated by MCU ID	0x0102	20CH(1)24CH(2)"

Please be aware that not all RDM devices support all RDM features, and therefore it is important to check beforehand to ensure that the equipment that you are considering includes all of the features that you require.

The following parameters are accessible in RDM on this device:

Parameter ID Code
DISC_UNIQUE_BRANCH 0x0001
DISC_MUTE 0x0002
DISC_UN_MUTE 0x0003
SUPPORTED_PARAMETERS 0x0050
PARAMETER_DESCRIPTION 0x0051
DEVICE_INFO 0x0060
SOFTWARE_VERSION_LABEL 0x00C0
DMX_START_ADDRESS 0x00F0
IDENTIFY_DEVICE 0x1000
DEVICE_MODEL_DESCRIPTION 0x0080
MANUFACT_LABEL 0x0081
DEVICE_LABEL 0x0082
DMX_PERSONALITY	0x00E0
DMX_PERSONALITY_DESCRIPTION	0x00E1
DEVICE_HOURS	0x0400
LAMP_HOURS	0x0401
LAMP_STRIKES	0x0402
PAN_INVERT	0x0600
TILT_INVERT	0x0601
PAN_TILT_SWAP	0x0602

MAINTENANCE GUIDELINES

DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!

FUZE REPLACEMENT

Locate and remove the unit's power cord. Once the cord has been removed, locat the fuse holder inside the power socket. Insert a flat-head screw driver into the power socket, and gently pry out the fuse holder. Remove the bad fuse, and replace with a new one. The fuse holder has a built-in socket for a spare fuse be sure not to confuse the spare fuse with active fuse.

CLEANING

Frequent cleaning is recommended to ensure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp, smoky, or particularly dirty environments can cause greater accumulation of dirt on the fixture's optics. Clean the external lens surface periodically with a soft cloth to avoid dirt/debris accumulation.

NEVER use alcohol, solvents, or ammonia-based cleaners.

MAINTENANCE

Regular inspections are recommended to ensure proper function and extended life.

There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized ADJ service technician. Should you need any spare parts, please order genuine parts from your local ADJ dealer.

Please refer to the following points during routine inspections:

• A detailed electrical check by an approved electrical engineer every three months, to make sure the circuit contacts are in good condition in order to prevent overheating.
• Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out during normal operation, resulting in damage or injury as larger parts could fall.
• Check for any deformations on the housing, color lenses, rigging hardware, and rigging points (ceiling, suspension, trussing). Deformations in the housing could allow for dust or liquids to enter into the fixture. Damaged rigging points or unsecured rigging could cause fixture to fall and seriously injure a person(s).
• Electric power supply cables must not show any damage, material fatigue, or sediments.
• NEVER remove the ground prong from the power cable.

SPECIFICATIONS

Light Source:

Control:

OSRAM Sirius HRI 310W PRO Discharge LampProtocols: DMX512 & RDM

(6,000 hr.)

Color temperature: 7850K (+/- 500K)

CRI: 86 (+/- 5)

Control Mode: DMX512 & Manual (On-board Controls)

2 DMX Channel Modes: 14/16 Channels

Color LCD display with 4-button function menu

0-100% smooth dimming

Various strobe speeds

With Wired Digital Communication Network

Features:

CMY Color Mixing

On-Board Wireless DMX

Motorized Focus + 16-bit fine focus

2-degree beam angle

Frost Filter to create wash effect

High quality glass lens

2 Rotating prisms:

0-100% smooth dimming

Pan/Tilt locks

Various strobe speeds

OTA, wireless, firmware updates

Fan cooled

Pan/Tilt:

Pan: 540 degrees (plus 16-bit fine pan)

Tilt: 270 degrees (plus 16-bit fine tilt)

3 Phase, High Speed, Pan/Tilt motors

Connections:

DMX Connections: 5-pin DMX In/Out (Data link max: 32 fixtures)

Power Connections: Outdoor locking In/Out connections to daisy chain power

Color Wheel:

14 dichroic colors + white (Includes CTO (3200K),

CTB (9000k) & UV)

Indexable color wheel for split colors

Separate Multi-Color Effect

GOBO Wheel:

17 static GOBOs + open (4 GOBOs are beam reducers)

GOBO Shake Effect

Prism Wheels:

2 Rotating prisms

16 facet circular and 6 facet linear prisms

Prisms Overlay

Electrical:

Multi-voltage operation: 100-240V, 50/60Hz

Max power consumption: 410W (@120V), 390W (@230V)

Dimensions & Weight:

Dimension: 9.8" (L) x 14.3" (W) x 17.9" (H) / 248 x

364 x 454.8mm

Weight: 38.5 lbs. / 17.5 kg.

Approvals / Ratings

CE, cETLus (Pending)

Included:

2x Omega Brackets (107 Type)

2M, outdoor locking 14AWG power cord

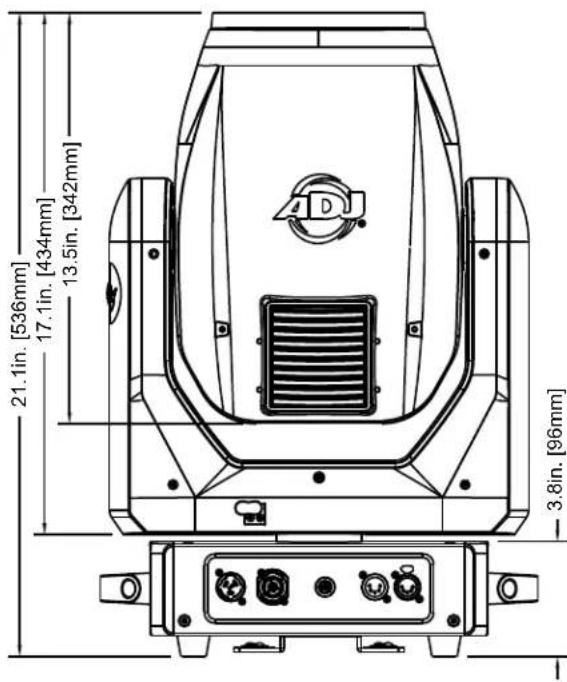

DIMENSION DRAWINGS

Drawings not to scale

OPTIONAL ACCESSORIES

ORDER CODE		ITEM
US EU
VIZ315 1237000338	ADJ Vizi Beam CMY
TRIGGER CLAMP	N/A Heavy Duty Wrap Around Hook Style Clamp
SIP126 N/A 5 ft. (1.5m)	IP66 Twist Lock Power Link Cable
AC5PDMX5PRO N/A	5 ft. (1.5m) 5pin RRO DMX Cable
		Additional Cable Lengths Available

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS

This product has been tested and found to comply with the limits as per Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device uses and can radiate radio frequency energy and, if not installed and used in accordance with the included instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following methods:

• Reorient or relocate the device.
• Increase the separation between the device and the receiver.
• Connect the device to an electrical outlet on a circuit different from which the radio receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the environment. Please turn off all electrical products when they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power when not in use. Thank you!
