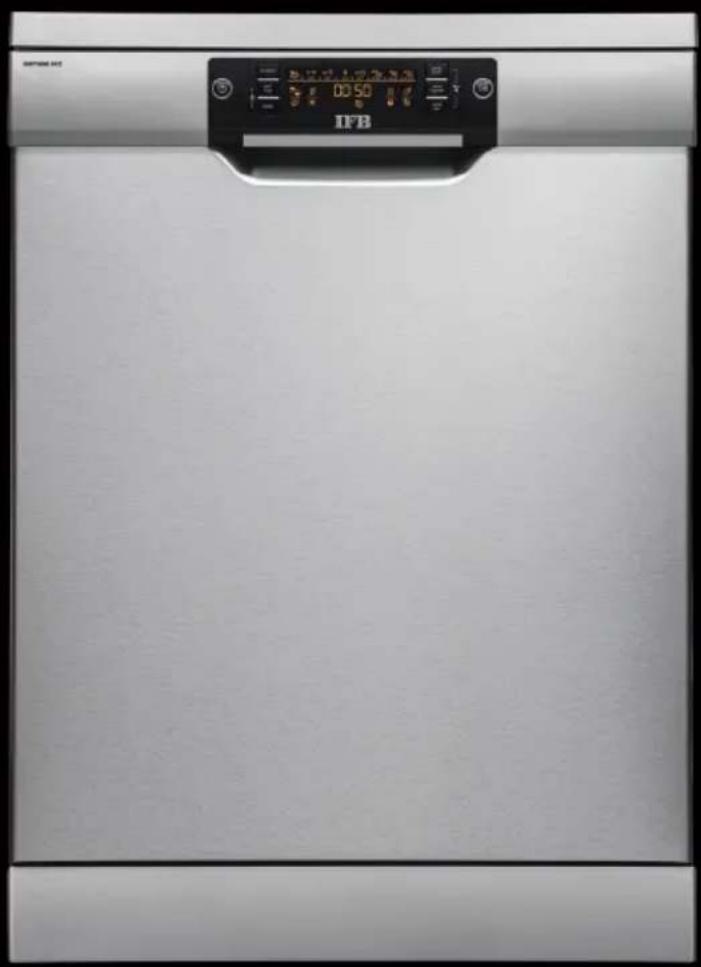

Neptune SX2 - Dishwasher IFB - Free user manual and instructions

Product Type	Dishwasher
Brand	IFB
Model	Neptune SX2
Capacity	16 place settings
Dimensions (Height x Width x Depth)	850 mm x 598 mm x 598 mm
Net Weight	55.6 kg
Operating Voltage / Frequency	220-240 V, 50 Hz
Total Current	10 A
Total Power	1900 W
Water Supply Pressure (Min - Max)	0.03 - 1 MPa
Programmes	Prewash, Jet Wash 14', Quick 30', Eco, Surr 50', Smart 30°C-50°C, Smart 50°C-60°C, Smart 60°C-70°C
Turbo Drying System	Yes
Interior Light	Yes

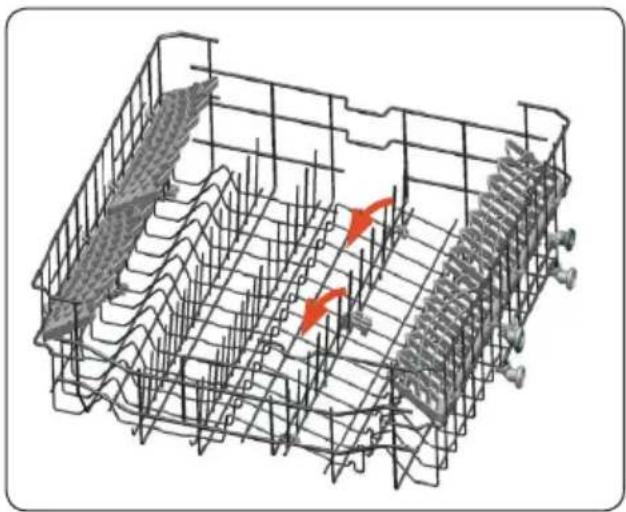

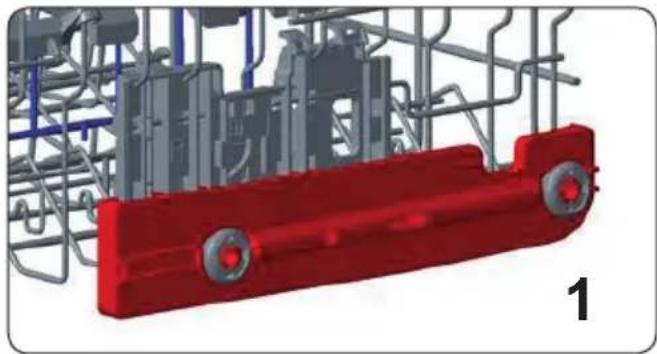

Upper Basket Height Adjustment	Yes (3 positions)

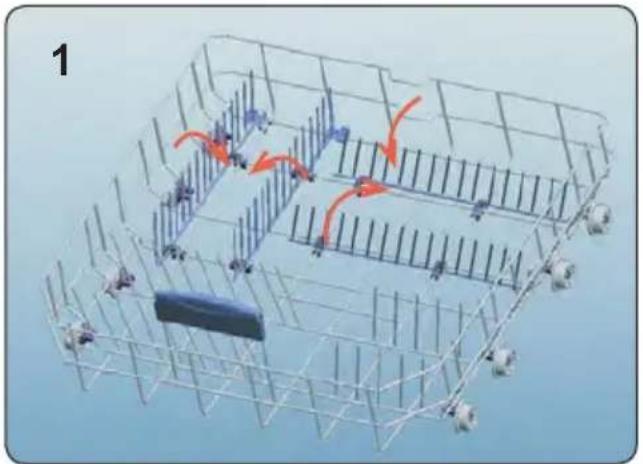

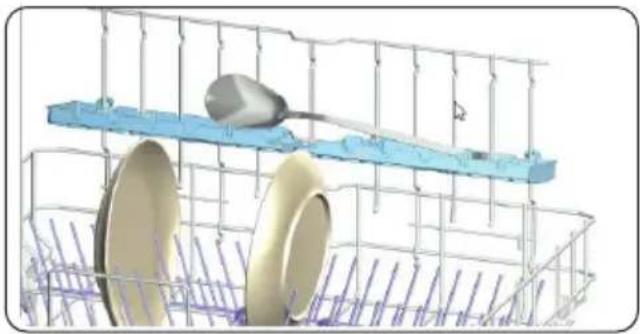

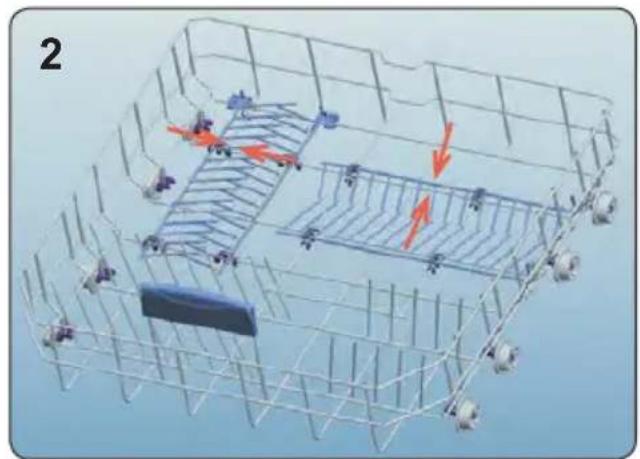

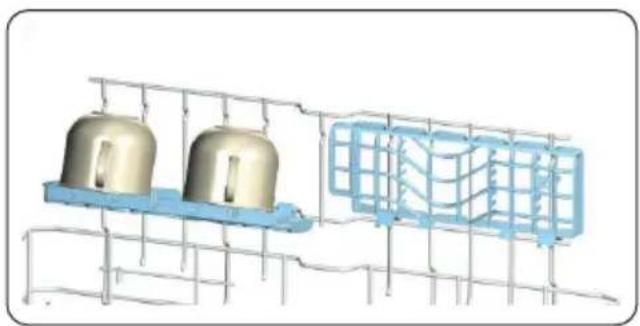

Foldable Racks	Yes (4 folding racks in upper basket; multi-functional rack system in lower basket)
Cutlery Basket	Yes (upper cutlery basket)
Salt and Rinse Aid Dispensers	Yes
Child Lock	Yes
Delay Start	Yes
Half Load Function	Yes (upper basket only, lower basket only, or both)
Extra Drying / Extra Hygiene	Yes
Energy Save (Auto-Open Door)	Yes (default enabled)
Maintenance Interval (Filter Cleaning)	At least once a week
Spare Parts Availability	Genuine spare parts for at least 10 years
Warranty	2 years (subject to limitations)

Frequently Asked Questions - Neptune SX2 IFB

How do I install the IFB Neptune SX2 dishwasher?

Installation must be done by an authorized service agent. Ensure the machine is level, water inlet and drain hoses are properly connected, and electrical supply matches 220-240V/50Hz. Refer to the manual for detailed steps.

What type of detergent should I use?

Use only detergents specifically designed for domestic dishwashers. For best results, follow the dosage in the programme table. You can also use combined (tablet) detergents, but for short programmes, powder detergent is recommended.

How do I fill the salt and rinse aid?

For salt: unscrew the cap, fill with 1 kg of dishwasher salt and water on first use, then close. Refill every 20-30 cycles. For rinse aid: open the cap, fill to MAX level, adjust dosage setting as needed (default is 4).

Why are there white stains on my dishes?

White stains are usually caused by hard water. Check the water hardness setting (use a test strip) and increase the water softener level. Also ensure rinse aid dosage is adequate and salt compartment is properly closed.

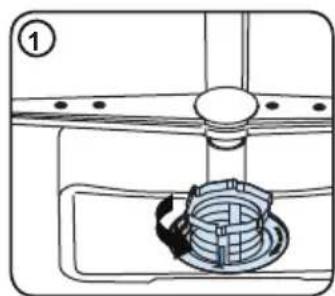

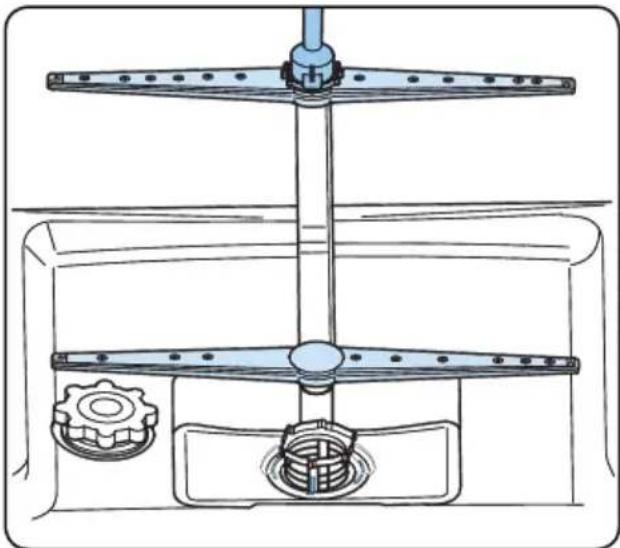

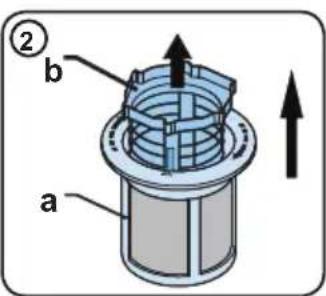

How do I clean the filters and spray arms?

Clean filters at least once a week. Turn the filter counter-clockwise to remove, disassemble, rinse under water, and reassemble. For spray arms, check that holes are not clogged; remove upper arm by undoing the nut, clean, and reattach.

What does error code F1 or FF mean?

F1 indicates overflow: unplug the machine and close the water tap, then contact service. FF indicates water inlet failure: check that tap is open and inlet hose filter is clean. If error persists, call authorized service.

Can I use the dishwasher with half a load?

Yes. Press the Half Load button to select which basket(s) to wash: upper only, lower only, or both. This saves water and energy.

How do I activate the child lock?

Simultaneously press the Half Load and Tablet Detergent buttons for 3 seconds. The child lock symbol will illuminate. Repeat to deactivate.

Is the dishwasher door supposed to open automatically?

Yes, if the Energy Save function is enabled (default). At the end of a programme, the door opens slightly to improve drying. Do not attempt to close it for one minute after opening.

What should I do if the dishes are not drying properly?

Ensure you select a programme with drying (short programmes may not include drying). Increase rinse aid dosage. Also, open the door slightly after the cycle to assist drying. Check the Extra Drying option is activated if needed.

USER MANUAL Neptune SX2 IFB

www.ifbappliances.com

Read Instructions before switching on the Dishwasher.

Observe the safety guidelines for installation.

Close-up of white ceramic mugs arranged in a tiered pattern, no visible text or symbols.

Thank you for choosing this product.

This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE	Warning; Risk of fire / flammable materials.
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS .... 1

1.1. General Safety Warnings ...... 1

1.2. Installation Warnings .... 2

1.3. During Use....3

2.INSTALLATION....6

2.1. Machine Positioning ....6

2.2. Water Connection....6

2.3. Water Inlet Hose....6

2.4. Drain Hose (Model Depending)....7

2.5. Electrical Connection ....7

2.6. Fitting the Machine Undercounter ....7

3.TECHNICAL SPECIFICATIONS....8

3.1. General Appearance....8

3.2. Technical Specifications ....8

4.BEFORE USING THE APPLIANCE 9

4.1. Preparing your Dishwasher for first use 9

4.2. Salt usage....9

4.3. Fill the salt 9

4.4. Test Strip 10

4.5. Water Hardness Table 10

4.6. Water Softener System 10

4.7. Setting 10

4.8. Detergent Usege 10

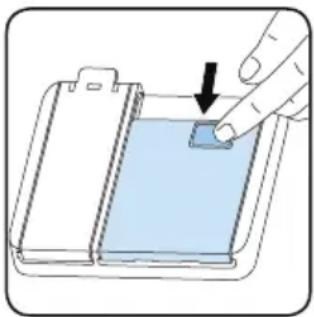

4.9. Filling the Detergent 11

4.10. Using Combined Detergents 11

4.11. Rinse-aid Usege 11

4.12. Filling the Rinse-aid and Setting.... 11

5.LOADING YOUR DISHWASHER....13

5.1. Recommendations.... 13

5.2. Alternative Basket Loads....17

6.PROGRAMME TABLE....18

7. THE CONTROL PANEL....20

7.1. Changing a Programme 21

7.2. Cancelling a Programme....21

7.3. Switching the Machine Off....21

8.CLEANING AND MAINTENANCE 23
8.1. Filters....23
8.2. Spray Arms 23
8.3. Drain Pump 24
9. TROUBLESHOOTING 25

1. SAFETY INSTRUCTIONS

1. General Safety Warnings

• Read these instructions carefully before using your appliance and keep this manual for future reference.
  Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.
• Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.
  This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand hazards involved. Children should not be allowed to play with the appliance.
  ⚠️ Remove packaging and keep it out of reach of children.
  ⚠️ Keep children away from detergents and rinse aids.
  There may be some residue left in the machine after washing. Keep children away from the machine when it is open.

2. Installation Warnings

• Choose a suitable and safe place to install your machine.
• Only original spare parts should be used with the machine.

⚠️! Unplug the machine before installation.

⚠️ Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

⚠️Check that the indoor electrical fuse system is connected in line with safety regulations.

All electrical connections must match the values on the plate.

⚠️! Ensure the machine does not stand on the electrical supply cable.

⚠️ Never use an extension cord or a multiple socket connection.

⚠️ The plug should be accessible after the machine is installed.

• After installation, run your machine unloaded for the first time.

The machine must not be plugged in during positioning.

△! Always use the coated plug supplied with your machine.

△△! If the electrical cable is damaged, it should only be replaced by a qualified electrician.

- Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the

pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

3. During Usage

• This machine is for domestic use only; do not use
• it for other purposes. Commercial use will void the guarantee.

Do not stand, sit or place loads on the open door of the dishwasher.
⚠️ Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.
⚠️Do not drink water from the machine.
Due to the danger of explosion, do not place any chemical dissolving agents into the machine's washing section.
- Check the heat-resistance of plastic items before washing them in the machine.
⚠️ Only put items in the machine which are suitable for dishwashing, and take care not to overfill the baskets.
⚠️Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened.
⚠️The machine door should not be left open. It may cause accidents.
⚠️Place knives and other sharp objects in the cutlery basket in a blade-down position.
⚠️! For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program. To prevent damage to your dishwasher, do not attempt to close

the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds.

⚠ In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.

△! Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap.

Operation at a low voltage will cause a decline in performance levels.

⚠️For safety, disconnect the plug once a program has finished.

To avoid an electric shock, do not unplug the machine with wet hands.

⚠️! Pull the plug to disconnect the machine from the mains, never pull on the cord.

About E-waste

E-waste or Electronic Waste or Waste Electrical and Electronic Equipment (WEEE) are the terms used to describe old, end-of-life or discarded appliances which are operated using electricity.

Do's and don'ts for customers

Do's

• Always dispose of products that have reached end-of-life by calling an Authorized local E-waste Recycler.
• Always drop off your used/discarded or end-of-life electronic products, batteries or any accessories at your nearest Authorized E-Waste Recycler or E-waste collection center.
• Wherever possible or as instructed, separate the packaging material according to responsible waste disposal and recycling options.
• Check with your nearest dealer or electronic showroom if any scheme is available with return of old and end-of-life electronic item.

Don't

• Do not dismantle your electronic products on your own.
• Do not throw electronics in bins having "Do Not Dispose" sign.
• Do not give E-waste to informal and unorganized sectors like Local Scrap Dealer and Rag Pickers.
• Do not dispose off your product in garbage bins along with municipal waste that ultimately reaches landfills.

Risks of improper handling of E-waste

E-waste usually includes components which if disposed off improperly hold adverse environmental consequences such as air, water, and soil pollution and also pose risks to human health. By ensuring this product is disposed off correctly, you will help prevent potential negative consequences for the environment and human health.

Components and materials used in the manufacture of this product are RoHS compliant.

CE Declaration of Conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Packaging and Recycling

Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production. Plastics are marked with the international abbreviations (>PE<, >PP<, etc.). The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling.

For detailed information and disposal request

Please visit our website https://www.ifbappliances.com/e-waste or Contact IFB Care at 080 458 45678 and provide your details to our representative to raise a request for product to be picked up for recycling and safe disposal.

2. INSTALLATION

2.1. Machine positioning

When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0^ C.

Read all warnings located on the packaging before removing the packaging and positioning the machine.

Place the machine close to a water tap and drain. Take into consideration that the connections will not be altered once the machine is in position.

Do not hold the machine by its door or panel.

Leave an adequate distance around the machine to allow ease of movement when cleaning.

Ensure the water inlet and outlet hoses are not squeezed or trapped and that the machine does not stand the electrical cable while positioning.

Adjust the feet so the machine is level and balanced. The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close properly.

2.2. Water connection

We recommend fitting a filter to your water inlet supply in order to prevent damage to your machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help prevent yellowing and deposit formation after washing.

Note printing on the water inlet hose! If models are marked with 25^ , the water temperature may be max. 25^ C (cold water).

For all other models:

Cold water preferred; hot water max.

temperature 60 °C.

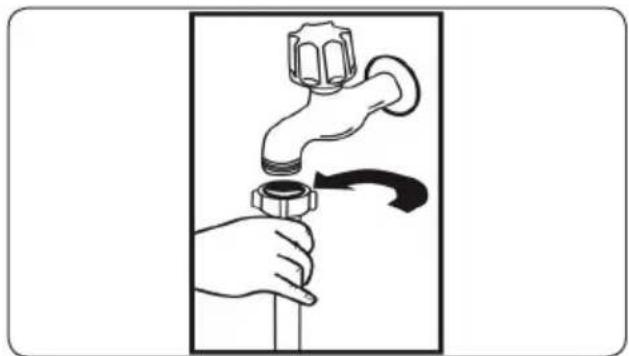

2.3. Water inlet hose

Illustration of a hand holding a faucet with a valve, showing fluid flow direction (no text or symbols)

WARNING: Use the new water inlet supplied with your machine, do not n old machine's hose.

WARNING: Run water through the hose before connecting.

WARNING: Connect the hose

directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

WARNING: After the connections are made, turn the tap on fully and check for water leaks. Always turn off the inlet tap after a wash program has need.

Diagram showing a pipe valve with a valve and a base component, no text or symbols present

An Aquastop water spout is available with some models. Do not damage it or allow it to become kinked or ed.

2.4 Drain Hose (Model Depending)

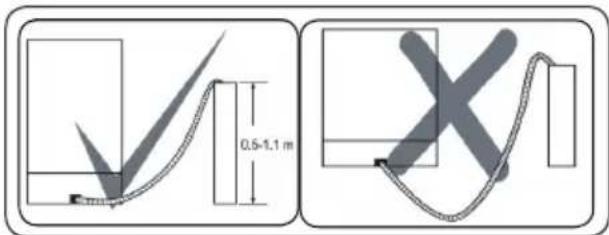

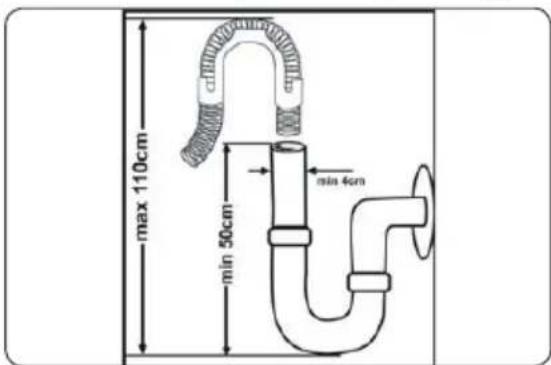

Connect the water drain hose directly to water drain hole or to the sink outlet spigot. This connection should be minimum 50 cm and maximum 110 cm from floor that dishwasher is placed.

IMPORTANT: Items will not wash properly if a drain hose longer than 4 m is used.

2.4. Electrical connection

WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection.

Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications" table".

The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current.

In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

The plug on this appliance may incorporate 13A fuse depending on the target country. (For Example UK, Saudi Arabia)

2.5. Fitting the machine undercounter

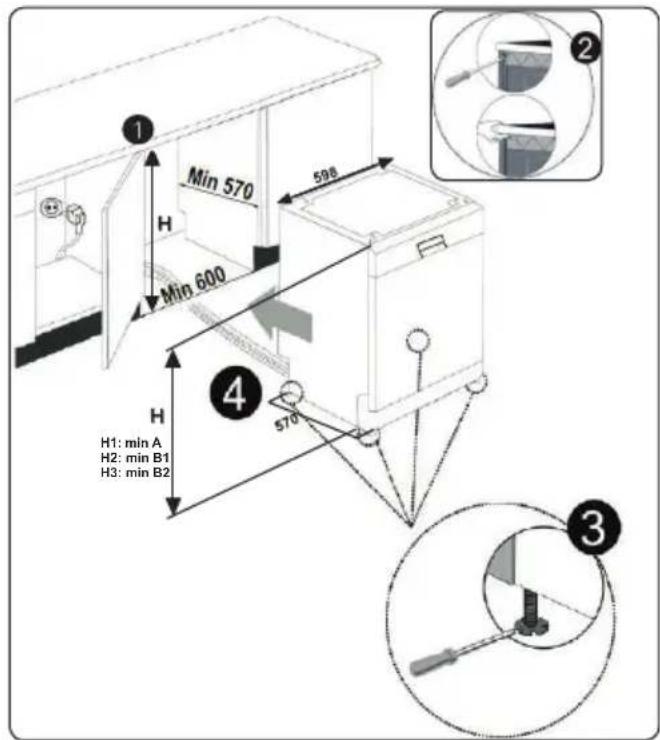

If you wish to fit your machine undercounter, there must be sufficient space to do so and the wiring-plumbing must be suitable to do so (1). If the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration (2).

WARNING: The countertop, of which the machine will be placed under, must be stable in order to prevent imbalance.

The top panel of the dishwasher must be removed to fit the machine under the countertop.

To remove the top panel, remove the screws that hold it on, located at the rear of the machine. Then, push the panel 1 cm from the front towards the rear and lift it. Adjust the machine feet according to the slope of the floor (3).

Fit your machine by pushing it under the counter taking care not to crush or bend the hoses (4).

WARNING: After removing the top panel of your dishwasher, the machine should be placed in a space of the dimensions shown in the figure below.

	A	B
	All Products	B_1	B_2
Product's Height (±2 mm) 820 mm	830 mm 835 mm

A: If there is no felt on the top of the product; you should take into account this product's height.

B1: If there is felt on the top of the product with 2nd basket; you should take into account this product's height.

B2: If there is felt on the top of the product with 3rd basket; you should take into account this product's height.

3. TECHNICAL SPECIFICATIONS

Close-up of a mechanical component with a numbered arrow pointing to a circular component (no text or symbols visible)

Close-up of a mechanical component with a circular component and numbered label '14' (no readable text or symbols beyond the number)

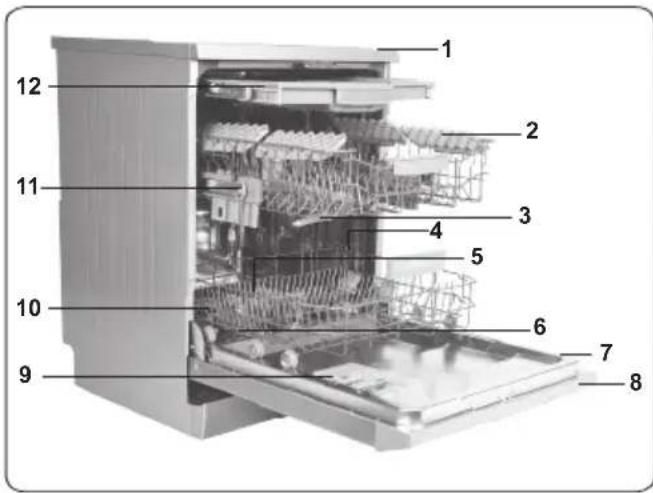

3.1. General appearance

1. Worktop
2. Upper basket with racks
3. Upper spray arm
4. Lower basket
5. Lower spray arm
6. Filters
7. Rating plate
8. Control panel
9. Detergent and rinse-aid dispenser
10. Salt dispenser
11. Upper basket track latch
12. Upper Cutlery Basket
13. Turbo Drying Unit: This system provides better drying performance for your dishes.
14. Interior ligt: It provides you to place your dishes beter.

3.2. Technical specifications

Capacity	16 place settings
Dimensions (mm)
Height	850(mm)
Width	598(mm)
Depth	598(mm)
Net weight	55,6 kg
Operating voltage / frequency	220-240V 50 Hz,
Total current (A)	10(A)
Total power (W)	1900(W)
Water supply pressure	Maximum: 1 (Mpa) Minimum: 0.03 (Mpa)

4. BEFORE USING THE APPLIANCE

4.1. Preparing your dishwasher for first use

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
• Remove all packaging material inside the machine.
• Set the water softener level.
• Fill the rinse aid compartment.

4.2 Salt usage (IF AVAILABLE)

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, White lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine's washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used.

Machine can only be used by special dishwasher salt to soften the water. Do not use any small grained or powdered type of salts which can easily soluble. Using any other type of salt can damage your machine.

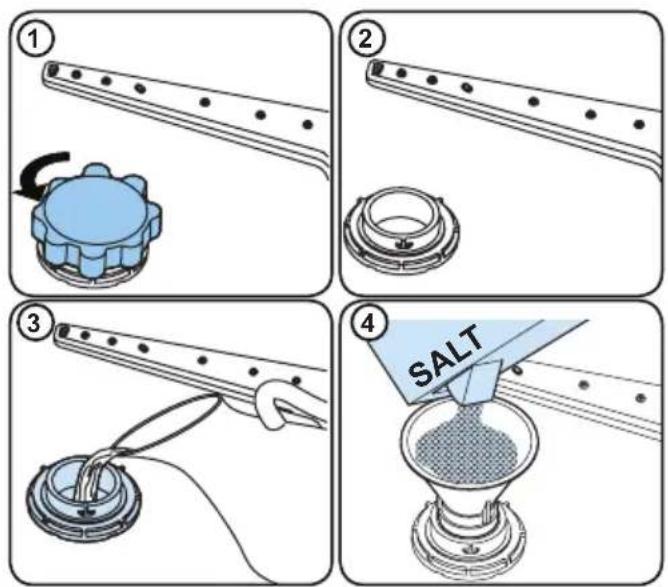

4.3 Fill the salt (IF AVAILABLE)

To add softener salt, open the salt compartment cap by turning it counter clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. If available, using a funnel (4) will make filling easier. Replace the cap and close it. After every 20-30 Cycles add salt into your machine until it fills up (approx. 1 kg).

Only add water to the salt compartment on first use.

Use softener salt specifically produced for use in dishwashers.

When you start your dishwasher, the salt compartment is filled with water, therefore put the softener salt in prior to starting your machine.

If the softener salt has overflowed and you do not start the machine immediately, run a short washing program to protect your machine against corrosion.

4.4. Test Strip

Run water through the tap (1min.)	Keep the strip in the water (1sec)	Shake the strip.	Wait (1min.)	Set the hardness level of your machine.

NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

4.5. Water Hardness Table

Level	German dH	British dE	French dF	PPM Indicator
1 0-5	0-6 0-9 0-90 L	1 is shown	on the display.
2 6-11	7-14 10-20	100-200 L2 is shown on	the display.
3 12-17	15-21	21-30 210-300 L3 is shown on the display.
4 18-22	22-28	31-40 310-400 L4 is shown on the display.
5 23-31	29-39	41-55 410-550 L5 is shown on the display.
6 32-50	40-63	56-90	560-900	L6 is shown on the display.

4.6. Water Softener System

The dishwasher is equipped with a water softener which reduces the hardness in the mains water supply. To find out the hardness level of your tap water, contact your water company or use a test strip (if available).

4.7. Setting

In order to change the salt level, follow the below steps:

• Push the programme button and hold it down.
• Turn on the machine.
• Hold down the programme button until "SL" disappears from the display.
  • The machine will display the last setting.
• Set the level by pushing the "Program" and "Delay" buttons.
• Switch off the machine to save the setting.

4.8. Detergent usage

Only use detergents specifically designed for domestic dishwashers. Keep your detergents in cool, dry places out of reach of children.

Add the proper detergent for the selected program to ensure the best performance. The amount of detergent needed depends on the cycle, load size, and soil level of dishes.

Do not fill detergent into the detergent compartment more than required; otherwise you can see whitish streaks or bluish layers on glass and dishes and may cause glass corrosion. Continued use of too much detergent may cause machine damage.

Using little detergent can result in poor cleaning and you can see whitish streaksin hard water.

See the detergent manufacturer's instructions for a further information.

4.9. Filling the detergent

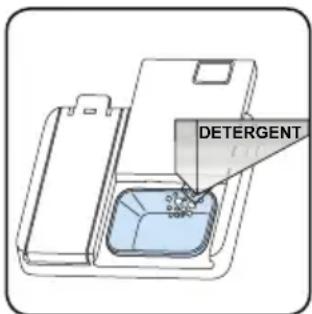

Push the latch to open the dispenser and pour in the detergent.

Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber.

Illustration of a hand inserting a small object into a blue container (no text or symbols)

4.10. Using combined detergents

These products should be used according to the manufacturer's instructions.

Never put combined detergents into the interior section or the cutlery basket.

Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination.

We recommend you do not use combined detergents in short programmes.

Please use powder detergents in such programmes.

If you encounter problems when using combined detergents, please contact the detergent manufacturer.

When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to the correct level.

4.11. Rinse-aid usage

The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required for stain-free utensils and clear glasses. The

rinse aid is automatically released during the hot rinse phase. If rinse aid dosage setting set too low, whitish stains remains on dishes and dishes do not dry and washed clean.

If rinse aid dosage setting set too height,

you can see bluish layers on glass and dishes.

4.12. Filling the rinse-aid and setting

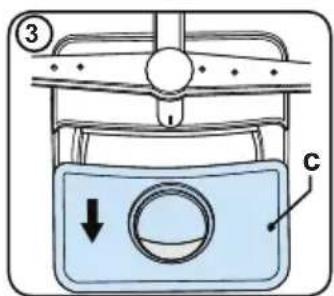

To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to change the rinse aid level, follow the below steps before turning on the machine:

• Push the programme button and hold it down.
• Turn on the machine.
• Hold down the programme button until "rA" disappears from the display. Rinse aid setting follows water hardness setting.
• The machine will display the current setting.
• Set the level by pushing the programme (+) and delay (-) buttons.
• Switch off the machine to save the setting.

The factory setting is "4".

If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

Illustration of a hand using a tool to press or install a device into a rectangular panel (no text or symbols visible)

Line drawing of a hand inserting a key into a device (no text or symbols)

Level	Brightener Dose Indicator
1	Rinse-aid not dispensed	r1 is shown on the display.
2	1 dose is dispensed	r2 is shown on the display.
3	2 doses are dispensed	r3 is shown on the display.
4	3 doses are dispensed	r4 is shown on the display.
5	4 doses are dispensed	r5 is shown on the display.

5. LOADING YOUR DISHWASHER

For best results, follow these loading guidelines.

Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.

Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended. You can place cups, glasses, stemware, small plates, bowls, etc. in upper basket. Do not lean long glasses against one another or they cannot remain steady and may receive damage.

When placing long stem glasses and goblets, lean them against the basket edge or rack and not against other items.

Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards otherwise water can collect on items.

If there is cutlery basket in machine, you are recommended to use the cutlery grid in order to obtain the best result. Place all large (pots, pans, lids, plates, bowls etc.) and very dirty items in the lower rack.

Dishes and cutlery should not be placed above each other.

WARNING: Take care not to obstruct rotation of spray arms.

WARNING: Make sure after loading shes do not prevent opening the gent dispenser.

5.1. Recommendations

Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load.

Do not overload the drawers or place dishes in the wrong basket.

WARNING: To avoid any possible injuries, place long-handle and sharp-pointed knives with their sharp points facing down or horizontally on the baskets.

Upper Basket Height Adjustment When Full

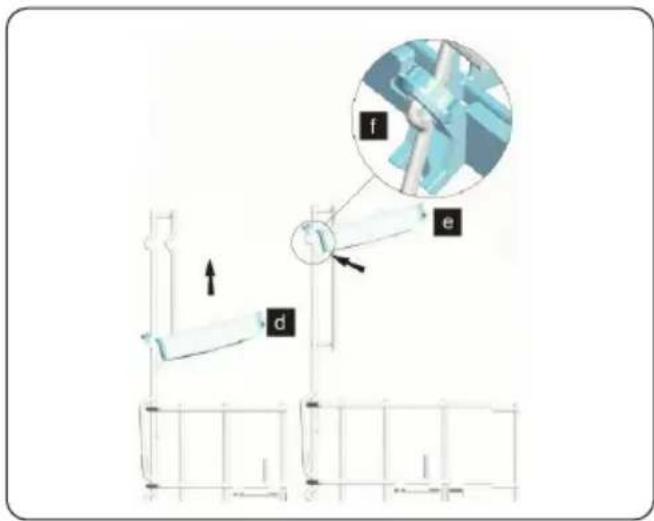

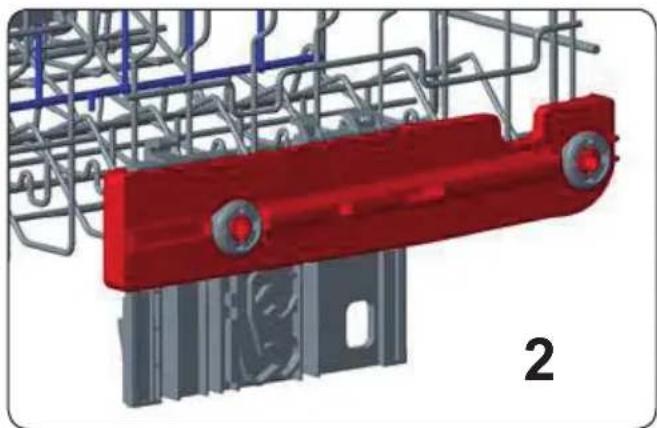

The upper basket includes a mechanism that allows the height of the basket to be adjusted to the upper (1), lower (2) or middle (3) position without having to remove the basket. Grasp the basket on both sides and pull it up or down, ensuring that both sides of the upper basket are in the same position.

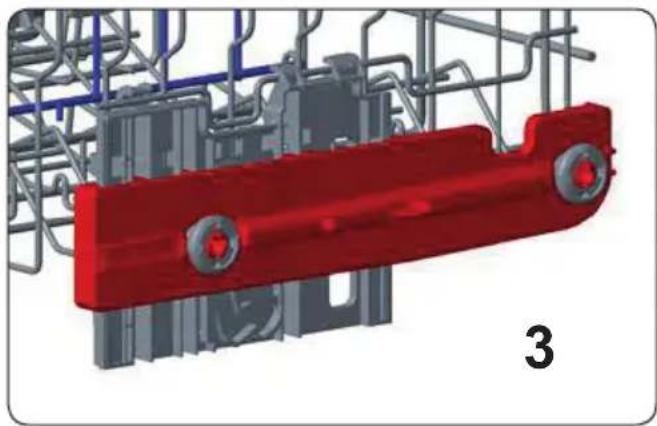

3D mechanical assembly diagram showing a red component with two wheels and internal components (no text or symbols)

3D mechanical assembly diagram showing red and gray components with no visible text or symbols

3D mechanical assembly diagram showing a red component with two wheels and gray components, enclosed within a steel framework (no text or symbols)

Height Adjustable Rack (peg type)

The height adjustable racks enable glasses and cups to be placed on or under the racks. The racks can be adjusted to 2 different heights. Cutlery and utensils can also be placed on the racks horizontally.

Height Adjustable Rack (peg type)

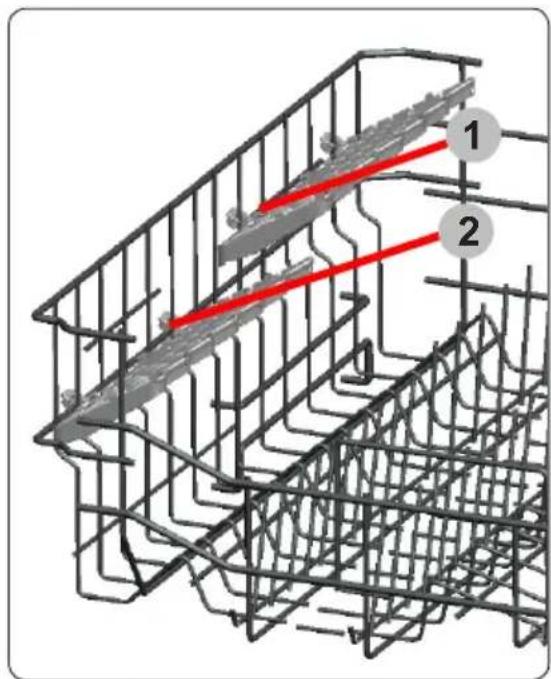

The foldable racks in the upper basket enable the placement of large items such as pots and pans. Each section can be folded separately. The foldable racks can be either raised up or folded down.

3D wireframe diagram of a structural grid with red arrows indicating direction (no text or symbols)

Four Folding Racks

The folding racks are designed so that large items, such as pots and pans, can be easily placed in the dishwasher. Each section can be folded separately. The racks can be folded down or raised up, as shown in the images below.

3D wireframe diagram of a warehouse or storage facility with internal structures and directional arrows (no text or symbols)

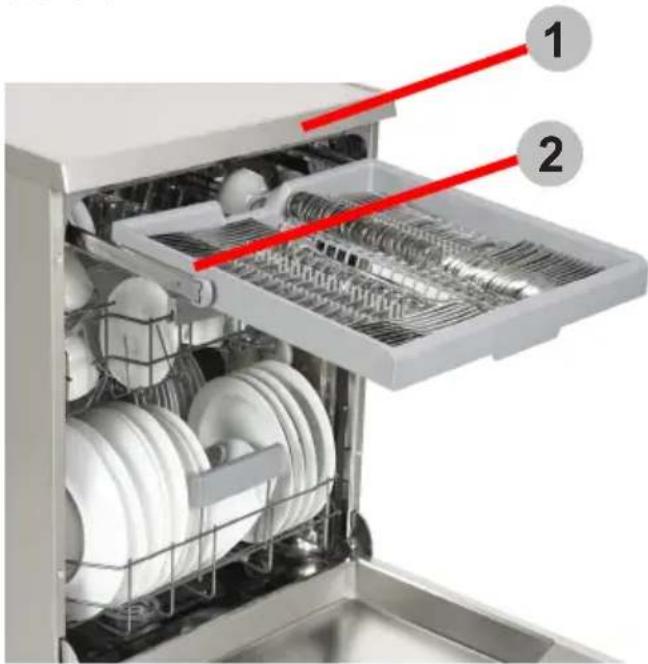

Upper Cutlery Basket

The upper cutlery basket is designed for the placement of large and small cutlery and utensils.

WARNING: Knives and other sharp objects must be placed horizontally in the cutlery basket.

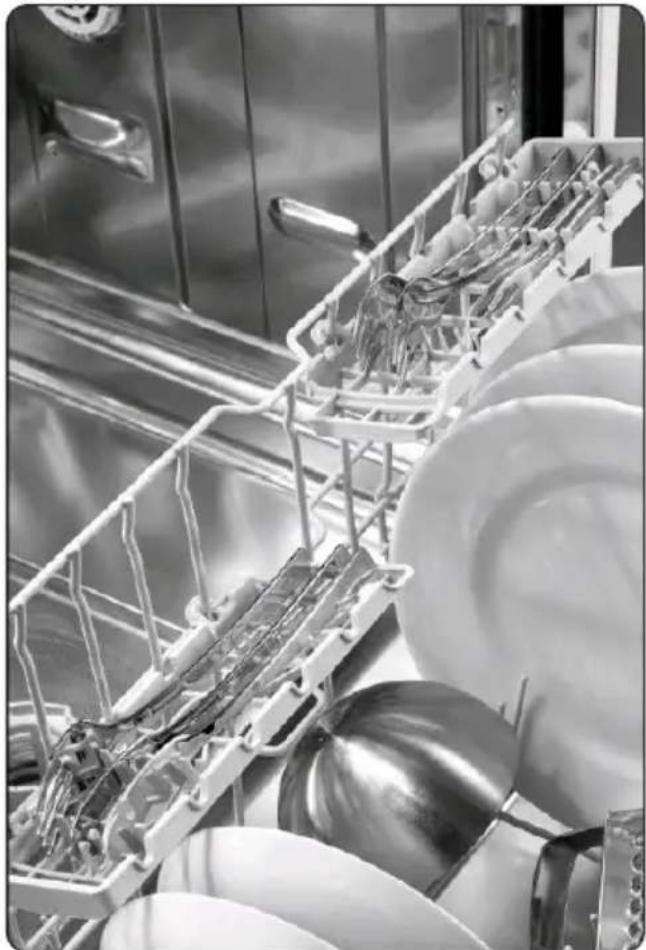

Multi-functional Rack System

The multi-functional rack system is located in the lower basket. It can be used for the placement of mugs or large utensils for washing.

3D rendering of a metal cage with two circular objects and a spoon above, no visible text or symbols

3D diagram of two industrial components mounted on a metal frame structure, one with a cylindrical housing and the other with a grid-like structure (no text or symbols)

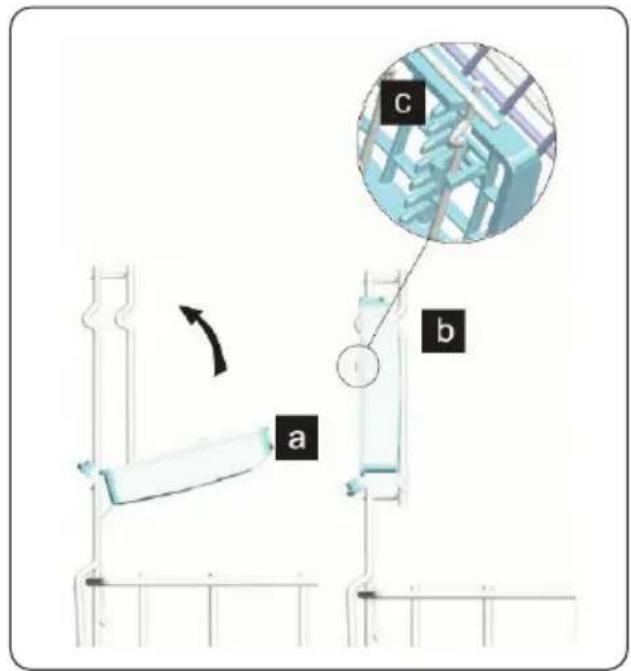

To close the racks, fold them from position (a) to position (b). Make sure the clips on the rack fit on the wire (c). The reverse method can be used to open the racks. The racks in the multi-functional rack system have two positions; the lower position (d) and the upper position (e). Take care to fix the racks correctly (f) onto the wire. Do not place items in contact with the spray arm.

Black-and-white photo of a stainless steel kitchen appliance with multiple kitchen units and large plates (no visible text or symbols)

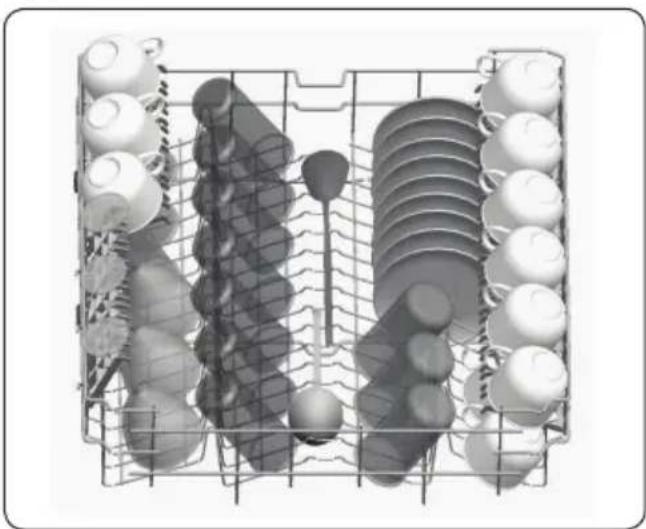

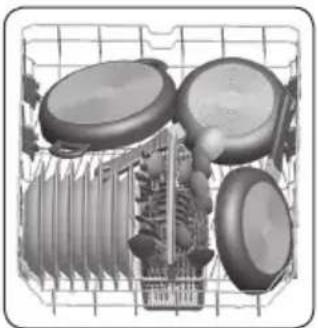

5.2. Alternative basket loads Lower basket

Diagram of a kitchen appliance grid with cutlery and a cylindrical container (no text or labels)

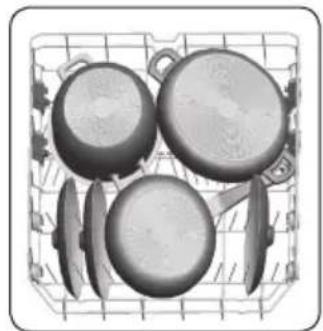

Illustration of four cooking pots arranged in a wire basket (no text or symbols)

Upper basket

3D rendering of a multi-tiered industrial machine with multiple cylindrical components and a central fan (no text or symbols visible)

Incorrect Loads

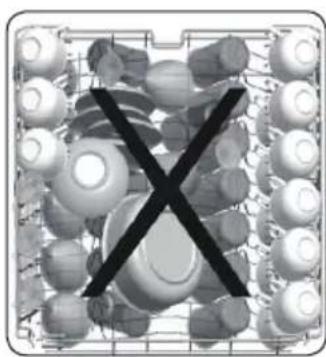

Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result.

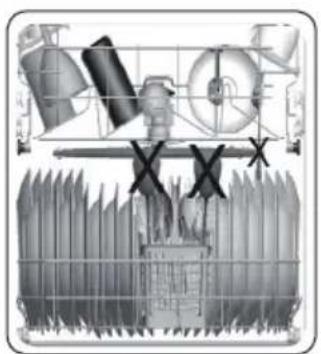

Black X symbol crossed out of a grid of circular objects, no text or symbols present

Cross-sectional diagram of a mechanical assembly with no visible text or symbols

Abstract 3D rendered geometric shapes with a black 'X' mark overlay, no text or symbols present

Abstract 3D wireframe structure with a large 'X' symbol overlay (no text or symbols present)

Unsuitable items for dishwashing

• Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials.
- Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals.
• Temperature-sensitive plastics, copper or tincoated containers.
• Aluminium and silver objects.
- Some delicate glasses, ornamental printed porcelains; some crystal items, adhered cutlery, lead crystal glasses, cutting boards, synthetic fibred items.
- Absorbent items such as sponges or kitchen rugs.

IMPORTANT: In future, purchase washer-proof kitchenware.

Important Note for Test Laboratories

For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address: [e-mail]

	P1 P2 P3 P4 P5 P6 P7 P8
	[3GZY]	[4D8C]	[47K]	[3GG]	[4ATK4]	[MWG6]	[C8CA]	[5M9A]
	JETwash 14'	Quick 30' Eco Surr per 50' Smart 30°C - 50°C Smart 50°C - 60°C Smart 60°C - 70°C
	Prewash	Main Wash Main Wash Prewash
	Hot Rinse	Rinse	Main Wash	Rinse	Main Wash	Main Wash	Hot Prewash	[5M9A]
	Type of Soil:	Sutlabie program for nightly solid and recently used disheses and suitable water plan to wash later	Fastest program for nightly solid and recently used disheses and suitable water setting.	Suitable for nightly solid and newly using daily using dials and quick wash.	Auto program for normally solid and delicate dishes.	Auto program for normally solid or normally solid dishes.	Authorprogram for heavily solid and desideshes. Kad air/Tea/Milk/ pressurecokerks Mix load	Atray/ Wells/ Mink/ cycle)
	Level of Soil:	Light	Light	Medium	Medium	Medium	Heavy
	Amount of Detergent: A: 25 cm3 B: 15 cm3	-	B	A	A	A	A	A
	Program Duration (h:min)	00:15	00:14	00:30	03:42	00:50	01:32 - 01:09	02:01 - 01:29
	Electricity consumption (kWh/cycle)	0.020	0.340	0.670	0.860	1.000	0.700 - 0.900	1.100 - 1.300
	Water consumption (cycle)	4.2	6.6	10.9	9.0	9.5	17.7 - 10.6	18.5 - 10.9

• Prewash, Jet Wash, Quick Wash and Super Wash 50 do not include the drying step.
• Dishwasher may extend the program time at the end of Prewash, Jet Wash, Quick Wash and Super Wash for 15 Minutes to regenerate the inbuilt water softener and it is normal behaviour.
• The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions.
• Values given for programmes other than the eco programme are indicative only
• Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.
• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
• Only use powder detergent for short programs.
• Short programs do not include drying.
• To assist drying, we recommend slightly opening the door after a cycle is complete.
• You can access the product database where the model information is stored by reading the QR code on the energy label.

NOTE: According to regulations 1016/2010 and 1059/2010, Eco program energy consumption values may differ. This table is in line with regulations 2019/2022 and 2017/2022.

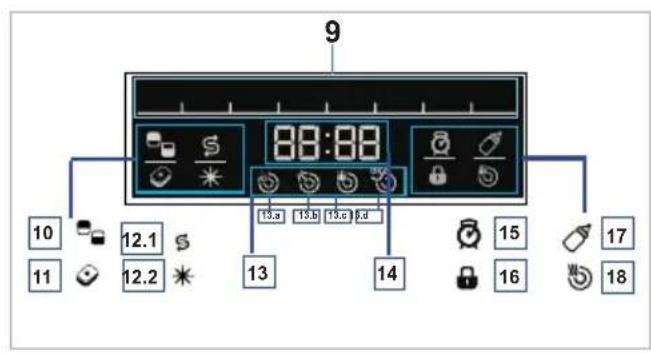

7. THE CONTROL PANEL

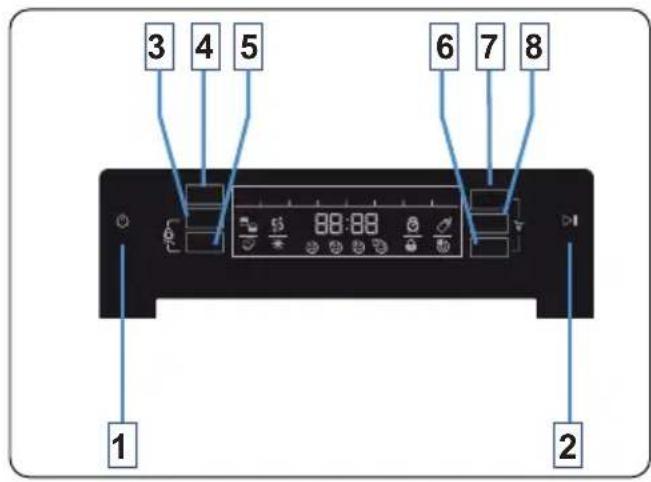

1. On/Off button
2. Start/Standby button
3. Half Load button
4. Programme button
5. Tablet Detergent button
6. Extra Drying button
7. Delay button
8. Extra Hygiene button
9. Programme Display
10. Half Load symbol
11. Tablet Detergent symbol
12. 1. Salt Lack Warning symbol
       12.2. Rinse Aid Lack Warning symbol
13. Program Status Display
    a- Washing Phase symbol
    b- Rinse Phase symbol
    c- Drying Phase symbol
    d- End symbol
14. Remaining Time/Delay Time/Programme Time Display
15. Delay symbol

16. Child Lock symbol

17. Extra Hygiene symbol

18. Extra Drying symbol

Starting the Machine and Selecting a Programme

Press the Power On/Off button (1), the display (9) will show the most recently selected programme.

Select the programme most suitable for your dishes using the Programme button (4).

Additional functions (3, 5, 6, 7, 8).

NOTE: Press the Half Load button

(3) to select the area of the dishwasher containing dishes to be washed. You can select both baskets, the upper basket only, or the lower basket only. Press the button until the symbol corresponding to the basket containing the dishes to be washed illuminates. Dishes placed in other areas will not be washed.

NOTE: Press the Tablet Detergent

button (5) when using a combined detergent that contains rinse aid or other extras. The Tablet Detergent Symbol (11) will remain on as long as it is selected.

NOTE: Press the Extra Drying

button (6) to add extra drying steps to a programme in order to obtain drier dishes.

The Extra Drying symbol (18) will illuminate.

NOTE: Press the Delay button (7)

before a programme starts to adjust the delayed programme start time. The Delay symbol (15) will illuminate.

NOTE: Press the Extra Hygiene

button (8) to add extra hygiene function to a programme in order to increase the wash temperature, for a maximum hygiene washing operation. The Extra Hygiene symbol (17) will illuminate.

NOTE: Simultaneously press the

Extra Dry(6) and Delay(7) buttons for 3 seconds to activate/deactivate the Energy Save function. When it is activated, Ad:01 is shown on the display. When it is

deactivated, Ad:00 is shown on the display. This option enables the door of the machine to open at the end of the programme to increase drying efficiency. This function also saves energy by operating at a lower temperature. Default set is "Ad:01".

Press the Start/Standby button (2) to start the selected programme.

The display (14) will show the symbols corresponding to the status of the programme in operation. While the Drying symbol is displayed, the machine will remain silent for 45 to 50 minutes.

Press the Start/Standby button (2) to start the selected programme.

The display (14) will show the symbols corresponding to the status of the programme in operation. While the Drying symbol is displayed, the machine will remain silent for 45 to 50 minutes. The Remaining Time Display shows the programme durations and the time remaining of the programme in operation.

NOTE: A programme may take a different amount of time to complete an initially stated on the display. This is dependent on the ambient temperature, the temperature of the mains water, and the amount of dishes in the dishwasher.

NOTE: Simultaneously press the Half d (3) and Tablet Detergent (5) buttons 3 seconds to activate/deactivate the d Lock. When it is first activated, child symbol (16) will illuminate and "CL" will w on the Remaining Time display for 2 pounds. When it is deactivated, "CL" will n twice.

NOTE: When there is insufficient ening salt, the salt lack warning bol(12.1) turns on and you should fill up salt chamber.

NOTE: When there is insufficient rinse

aid, the Rinse Aid Lack Warning symbol (12.2) will illuminate to indicate the rinse aid chamber needs filling.

7.1. Changing a Programme

Follow the steps below to change a programme while in operation.

-Press the Start/Standby button (2).
-Select a new programme using the Programme button (4).
-Press the Start/Standby button to start the selected programme.
-The new programme will resume the course of the old programme.

7.2. Cancelling a Programme

Follow the steps below to cancel a programme while in operation.

- Press and hold the Start/Standby button (2) for 3 seconds.

- The display will count down from 3 to 1. When it finishes, the time remaining for cancellation will show on the display.

The water discharge process will start when the remaining time finishes and the End symbol will illuminate.

7.3. Switching Off the Machine

When the End symbol illuminates, switch off your machine using the On/Off button. Disconnect the plug and turn off the water tap.

NOTE: Do not open the door before the

End symbol illuminates.

NOTE: Leave the door of your

machine slightly open at the end of a wash programme to speed up drying.

NOTE: If the door of your machine

is opened or the power is cut during operation, the programme will continue when the door is closed or the power returns.

8. CLEANING AND MAINTENANCE

Cleaning your dishwasher is important to maintain the machine's service life. Make sure that the water softening setting (If available) is done correctly and correct amount of detergent is used to prevent limescale accumulation. Refill the salt compartment when the salt sensor light comes on.

Oil and limescale may build up in your Dishwasher over time. If this occurs:

- Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with dishwashers.

• To extend the life of your dishwasher, clean the appliance regularly on each month

- Wipe the door seals regularly with a damp cloth to remove any accumulated residue or foreign objects.

8.1. Filters

Clean the filters and spray arms at least once a week. If any food waste remains or foreign objects on the coarse and fine filters, remove them and clean them thoroughly with water.

a) Micro Filter

b) Coarse Filter

c) Metal Filter

Diagram of a mechanical assembly with a central component and a circular housing (no text or symbols)

Technical diagram of a mechanical assembly with a central component and a circular base (no text or symbols)

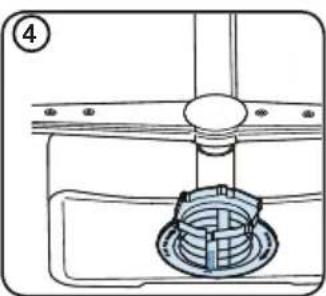

To remove and clean the filter combination, turn it counter clockwise and remove it by lifting it upwards (1). Pull the coarse filter out of the micro filter (2). Then pull and remove the metal filter (3). Rinse the filter with lots of water until it is free of residue. Reassemble the filters. Replace the filter insert, and rotate it clockwise (4).

- Never use your dishwasher without a filter.

- Incorrect fitting of the filter will reduce the washing effectiveness.

- Clean filters are necessary for proper running of the machine.

8.2. Spray arms

Make sure that the spray holes are not clogged and that no food waste or foreign object is stuck to the spray arms. If there is any clogging, remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper spray arm.

Technical line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

8.3 Drain Pump

Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

Warning Risk of cuts!

When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

In this case:

1. First always disconnect the appliance from the power supply.
2. Take out baskets.
3. Remove the filters.
4. Scoop out water, use a sponge if required.
5. Check the area and remove any foreign objects.
6. Install filters.
7. Re-insert baskets.

9 TROUBLESHOOTING

FAULT POSSIBLE CAUSE TROUBLESHOOTING
The programme does not start.	Your Dishwasher is not plugged in. Plug your Dishwasher in.
	Your Dishwasher is not switched on.	Switch your Dishwasher on by pressing the On/Off button.
	Fuse blown. Check your indoor fuses.
	Water inlet tap is closed. Turn on the water inlet tap.
	Your Dishwasher door is open. Close the Dishwasher door.
	Water inlet hose and machine filters are clogged.	Check the water inlet hose and machine filters and make sure they are not clogged.
Water remains inside the machine.	Water drain hose is clogged or twisted.	Check the drain hose, then either clean or untwist it.
	The filters are clogged. Clean the filters.
	The programme is not finished yet. Wait until the programme is finished.
Machine stops during washing.	Power failure. Check mains power.
	Water inlet failure. Check water tap.
Shaking and hitting noises are heard during a wash operation.	The spray arm is hitting the dishes in the lower basket.	Move or remove items blocking the spray arm.
Partial food wastes remain on the dishes.	Dishes placed incorrectly, sprayed water not reaching affected dishes.	Do not overload baskets.
	Dishes leaning each another.	Place dishes as instructed in the section on loading your dishwasher.
	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Wrong wash programme selected.	Use the information in the programme table to select the most appropriate programme.
	Spray arms clogged with food waste.	Clean the holes in the spray arms with thin objects.
	Filters or water drain pump clogged or filter misplaced.	Check the drain hose and filters are correctly fitted.
Whitish stains remains on dishes.	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Rinse aid dosage and/or water softener setting set too low.	Increase rinse aid and/or water softener level.
	High water hardness level. Increase water softerner level and add salt.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
Dishes do not dry.	Drying option is not selected. Select a programme with a drying option.
	Rinse aid dosage set too low. Increase rinse aid dosage setting.
Rust stains form on the dishes.	Stainless-steel quality of the dishes is insufficient.	Use only dishwasher-proof sets.
	High level of salt in wash water.	Adjust the water hardness level using water hardness table.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
	Too much salt spilled in the Dishwasher while filling it with salt.	Use funnel while filling salt to the compartment to avoid spillage.
	A poor mains grounding. Consult a qualified electrician immediately.
Detergent remains in the detergent compartment.	Detergent was added when the detergent compartment was wet.	Make sure detergent compartment is dry before use.

AUTOMATIC FAULT WARNINGS AND WHAT TO DO

TROUBLE CODE	POSSIBLE FAULT WHAT	TO DO
FF	Water inlet system failure	Make sure the water inlet tap is open and water is flowing
		Separate the inlet hose from the tap and clean the filter of the hose.
		Contact for service if the error continues.
F5	Pressure system failure	Contact for service.
F3	Continuous water input	Close the tap and contact for service.
F2	Inability to discharge water	Water discharge hose and filters may be clogged.
		Cancel the program.
		If the error continues, contact for service.
F8	Heater error	Contact for service.
F1 Overflow		Unplug the machine and close the tap.
		Contact for service.
FE Faulty electronic card Contact for service.
F7 Overheating Contact for service.
F9 Divisor position error Contact for service.
F6 Faulty heater sensor Contact for service.

The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used. Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk. Contact information for your customer service can be found on the back of this document. Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

CUSTOMER COPY

Mr./Mrs./Ms.

Address.

Telephone No.:

Model Name:

Serial No.:

Date of Purchase:

Cash Memo No.:

Dealer Name and:

Address Stamp:

Service Station Copy

Mr./Mrs./Ms

First Name Middle Name Last Name

Address:

Pin Code:

Telephone No.: (R) (____ O)

E-mail Address:

Model Name:

Serial No.:

Date of Purchase:

Cash Memo No.:

Products Owned by the customer:(Please tick in the appropriate box.)

□

Washing Machine

Refrigerator

□ Color TV

□ 100% Clothes Dryer

□Dishwasher

□

Music System

Oven Toaster Grill

2 Wheeler

Car

Air Conditioner

[NO TEXT]

WARRANTY

IFB IndustriesLtd. ("TheCompany") warrantstotheoriginal domesticpurchaserofthis dishwasher ("Appliance") that it isfreefromdefectsinworkmanshipandmaterials.During monthsfromthedateofpurchaseofthenewall dishwasher thepartsofthewhdishwasheobedefectivein workmanshipand/ormaterialsshallbereplacedorrepairedfree of charge on intimation to the company/ company's authorized servicecentrenearesttotheplacewheretheappliance is installed. This warranty is subject to limitations of warranty.

24

LIMITATIONSOFWARRANTY

1. This warranty is not valid in case of the following events:

a) If the warrantycard is not fully and properly filled in and signed at the time of purchase/installation by the company's authorized dealer/service engineer.

b) If the completed warranty card is not presented to the authorized personnel at the time of service/repair.

c) If the appliance is not used in accordance with manufacturer's instructions given in the "OperatingManual".

d) If the has disk waste, serviced, repaired, opened or tampered by any unauthorized personnel.

e) If defect sarise/caused by accidents, alteration, misuse, neglect, abuse, substitution of original components with spurious/nongenuine components, attacked by household pest/rodents, fire, flood, earthquake, lightning and/or any other act sof God/natural, calamities.

f) If defects arising with optional accessories like trolleys, rat mesh, machine cover, on-line filter, inlet/exhaust extension hoses, tap adapter, extended power supply cable, adjustment feet cover, etc. thereof.

g) If damages occur by improper electrical circuits outside the dish was by any electrical supply thereof.

h) If themachineserialnumberontheapplianceisdefaced, missingoraltered.

i) If seawateror anysubstandarddetergenthasbeenusedintheappliance.

j) If the appliance is taken out of India.

1. This warranty does not cover any type of painting, plating including rusting etc., or defect thereof.

2. The company is not liable for any incidental or consequential damages.

3. Parts replaced or repaired under this warranty are warranted throughout the remaining of the original warranty period.

4. The company is not liable for any delay in servicing due to reasons beyond the control of the company or any of its authorized service centre.

5. This warranty is not applicable, if the dishwasher is used for commercial purpose or places like institutions, hostels, hospitals, community halls and other similar applications.

6. For anyservice under this warranty beyond city/town/municipallimits from the company/authorized service centre, a fixed charge of Rs. 250/- will be collected from the customers in addition to the actual to and fro charges by the shortest route. Alternatively, the customer can bring the appliance to the nearest service centre for carrying out the necessary repairs, at customer's own cost.

7. During the warranty period, whenever the appliance is shifted from the original city of purchase to another city/town where service is provided by the company's authorized service agent, a warranty transfer charge of Rs.300/-will be collected from the customer by the company's authorized service agent. The above charges also include there installation charges of the appliance. However, incase of transfertoacity where the company provides direct service, an nominal charge of Rs.250/-only will be collected from the custom towards reinstallation. The Company, however, shall not undertake responsibility of shifting / transferring the appliance from the location where the appliance is originally installed.
8. This warranty is issued subject to the jurisdiction of Calcuttacourts and/or other judicial/ quasijudicialforumshavingjurisdiction over theregistered office of the company.
9. This is the ONLY WARRANTY covering the appliance given by the company.

OVER 7 MILLION SATISFIED CUSTOMERS

Microwave Oven

Built in Oven

Dishwasher

Stacked kitchen appliances including a double boiler, gas stove, and fan (no visible text or labels)

Chimney I Built in Hob

Top Load

Front Load

100% Clothes Dryer

Air Conditioner

wysiwyg.co.in | June 2021

Shop 24x7 @ www.ifbappliances.com | Email [e-mail] | 080458 45678 Our lines remain open 24/7

www.facebook.com/IFBappliances

twitter.com/IFBAppliances

www.instagram.com/ifbappliances/

www.youtube.com/channel/UCJTIHxPTfez4mrbVBIQLb9Q

52455767 R35
