Product Type	Chainsaw
Brand	Baumr-AG
Model	SC7
Power Source	Corded Electric
Rated Power	2400 W
Rated Input	220-240 V
Guide Bar Length	16 inches (40.6 cm)
Chain Type	Oregon low kickback chain
No Load Speed	8000 rpm
Chain Speed	14.5 m/s
Brake Type	Torsion spring chain brake (inertia-activated)
Oil System	Automatic bar and chain oiler
Max Cutting Length	40 cm (16 inches)
Power Cord Length	35 cm

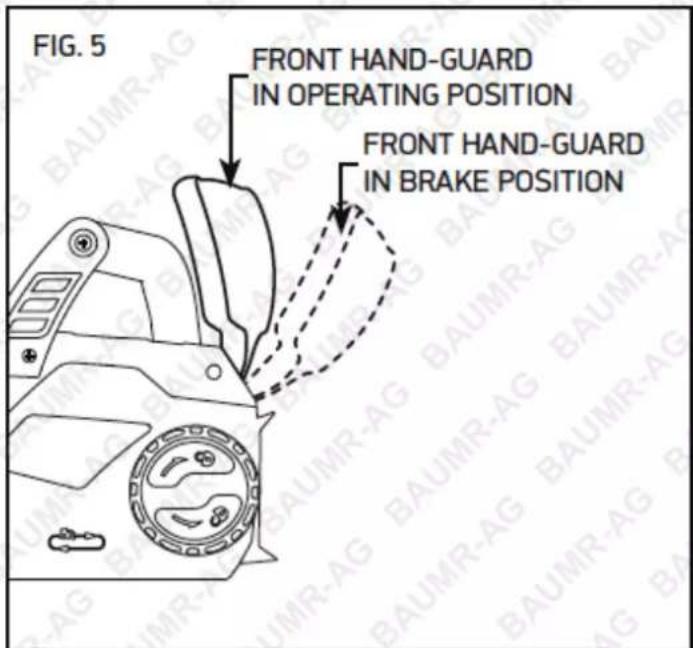

Chain Brake	Yes, with front handguard activation
Spiked Bumper	Yes, for leverage during cutting
Chain Catcher	Yes, integrated into side cover

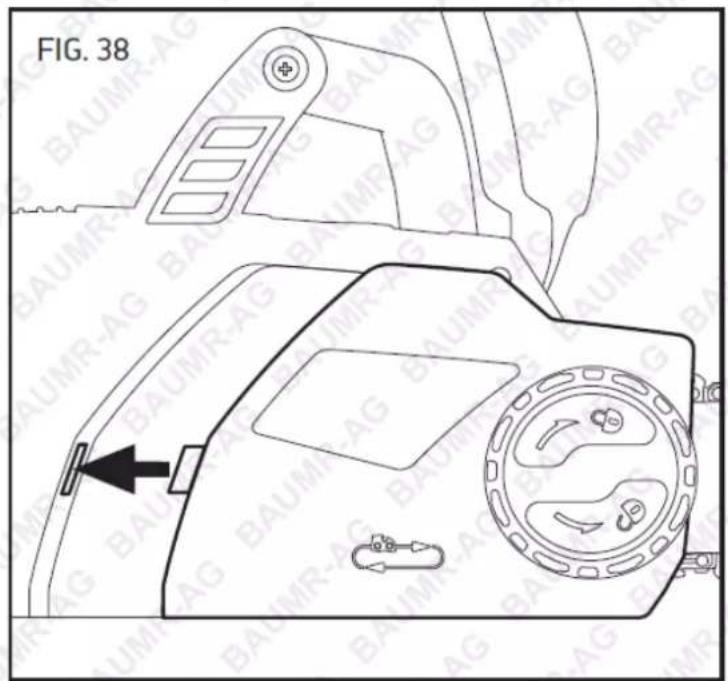

Side Cover	Tool-less release knob for quick access
Chain Tensioning	Tool-less ring adjustment

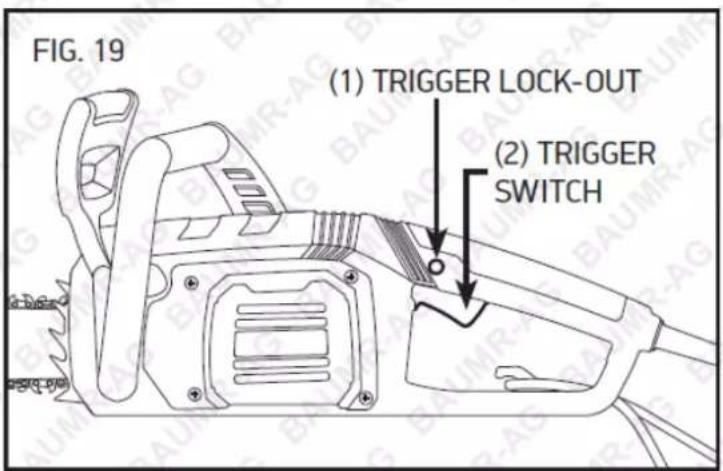

Trigger Lock-out	Yes, prevents accidental start

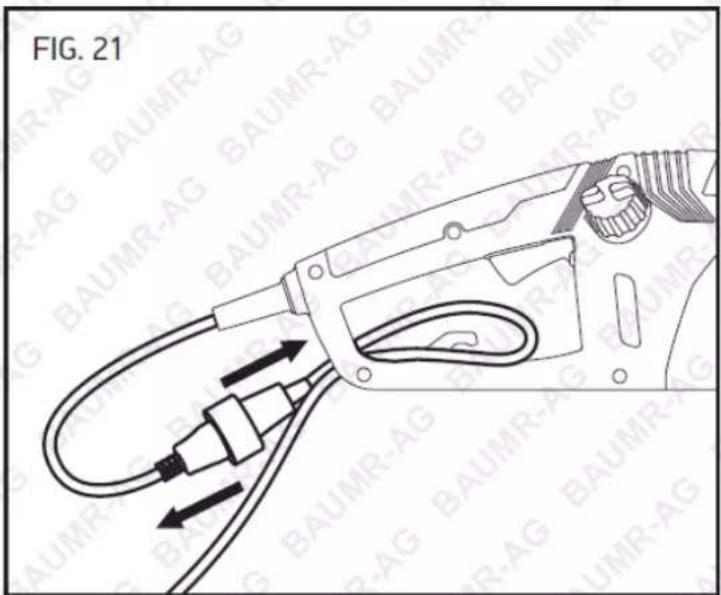

Strain Relief Bracket	Yes, for extension cord safety
Recommended Extension Cord	14 AWG (0-15 m) or 12 AWG (16-30 m), outdoor rated
Safety Features	Chain brake, kickback protection, insulated handles, low kickback bar and chain

Frequently Asked Questions - SC7 Baumr-AG

How do I start the Baumr-AG SC7 chainsaw?

Ensure the chain brake is disengaged (front handguard pulled back). Press and hold the trigger lock-out with your thumb, then squeeze the trigger switch. The saw will start. Release the trigger to stop.

What type of oil should I use for the bar and chain?

Use manufacturer-supplied bar and chain oil or a high-quality adhesive oil designed for chainsaws. Never use motor oil or other lubricants not specifically designed for bar and chain, as they may clog the oil system.

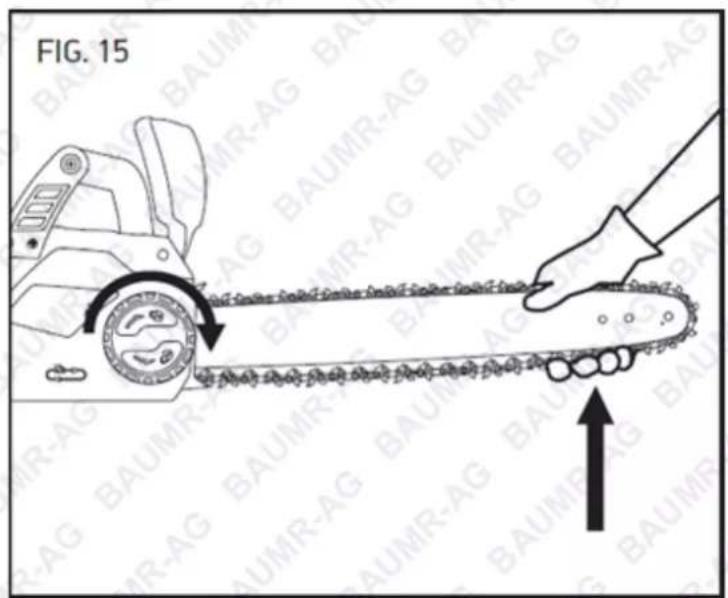

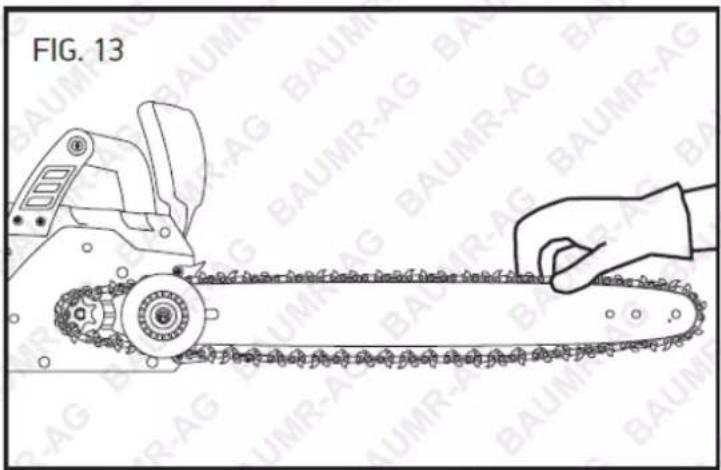

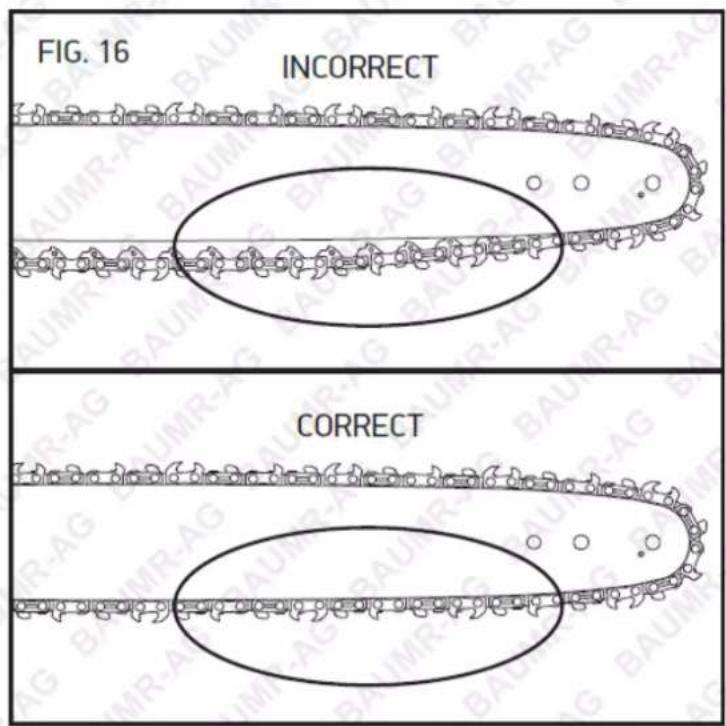

How do I tension the saw chain?

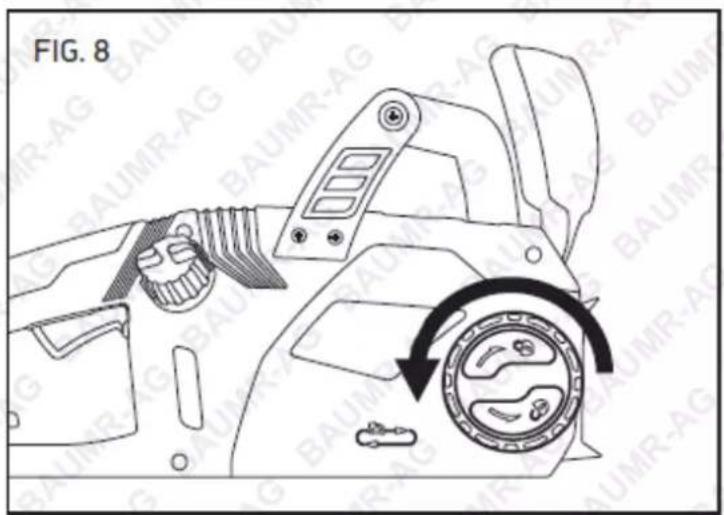

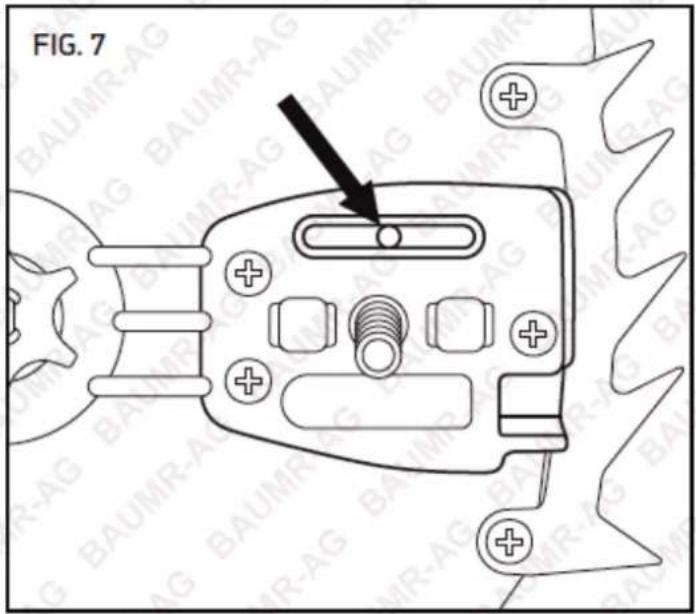

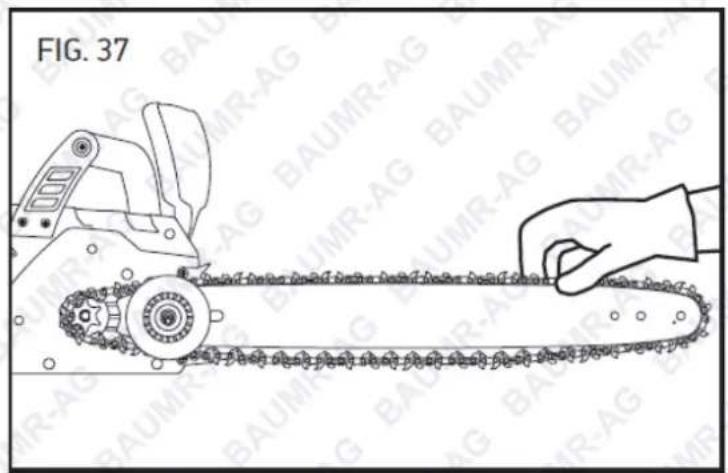

Unplug the chainsaw. Loosen the side cover release knob slightly. Hold up the bar nose and turn the chain tensioning ring clockwise until the chain snaps back when pulled 3 mm from the bar. Tighten the side cover knob. Only tension when the chain is cool.

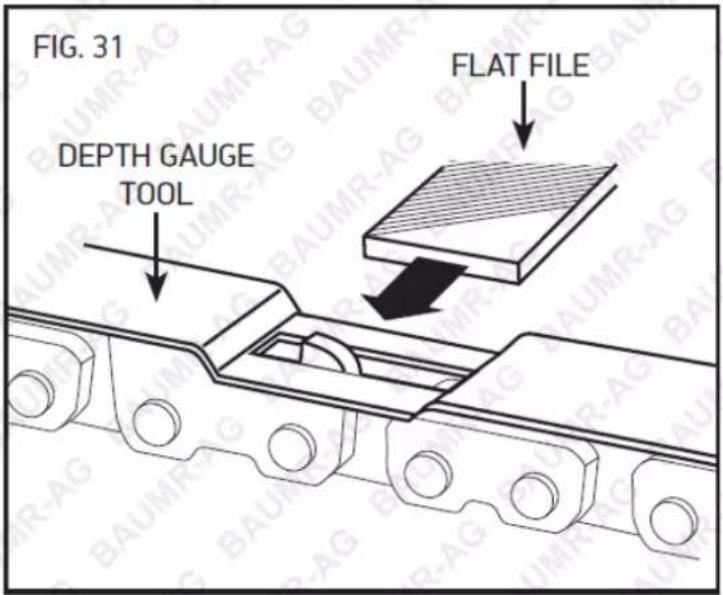

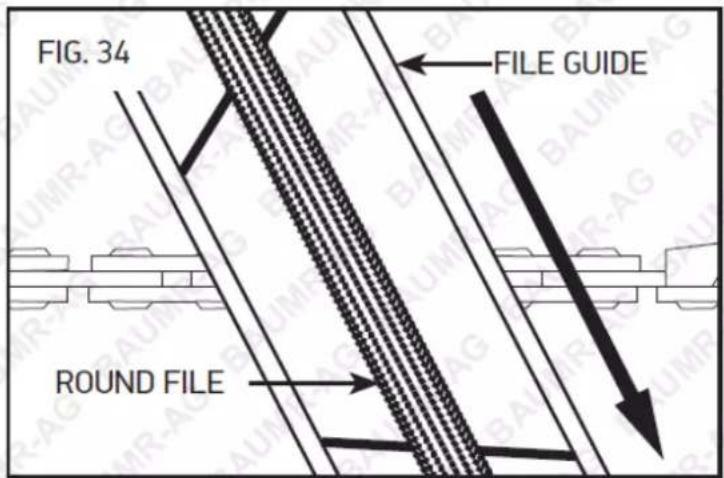

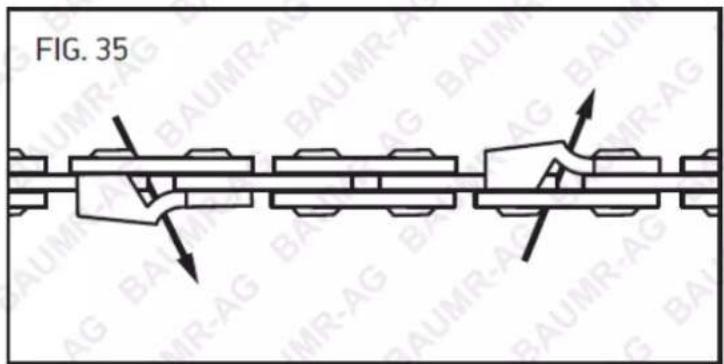

How do I sharpen the chain?

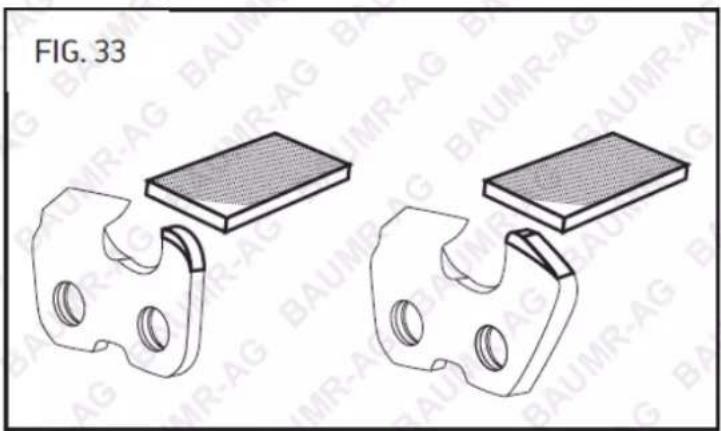

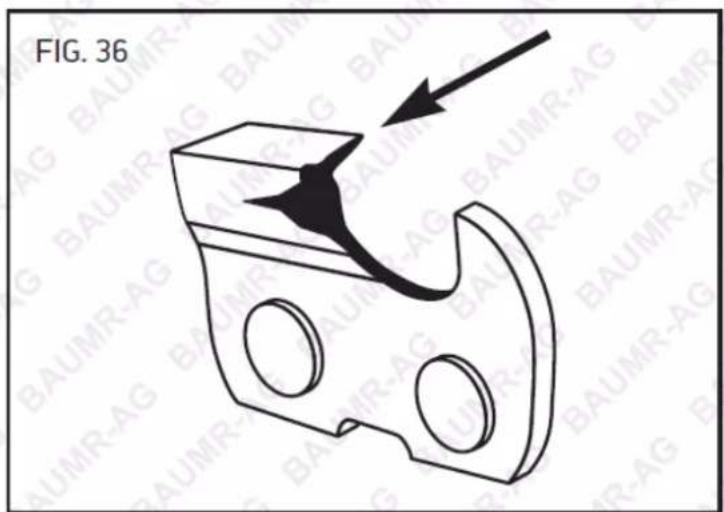

Use a 4.5 mm round file and a file guide. File cutters from inside to outside, maintaining the correct angle. Use a depth gauge tool to ensure depth gauges are set to 0.65 mm (0.025 in). Always wear gloves and eye protection.

What should I do if the chain brake does not stop the saw?

Stop using the saw immediately. Check for debris blocking the front handguard. If clean, the chain brake may be malfunctioning. Contact an authorised service center before further use.

Can I use an extension cord? What gauge?

Yes, use an outdoor-rated extension cord. For 0-15 m use 14 AWG (1.5 mm²), for 16-30 m use 12 AWG (3.0 mm²). Always use the strain relief bracket to prevent accidental unplugging.

How do I prevent kickback?

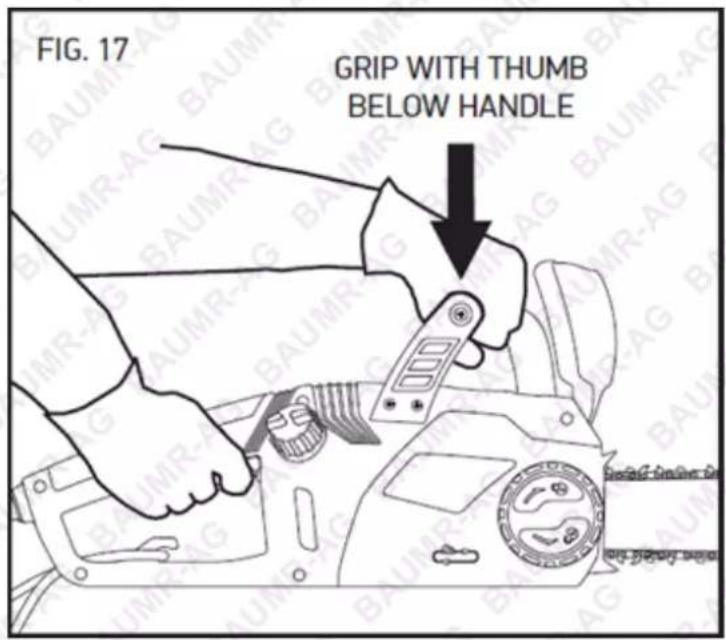

Maintain a firm grip with both hands, keep thumbs wrapped around handles. Never cut above shoulder height. Avoid letting the bar tip contact objects. Use a low kickback chain and bar. Keep chain sharp and properly tensioned.

How often should I replace the drive sprocket?

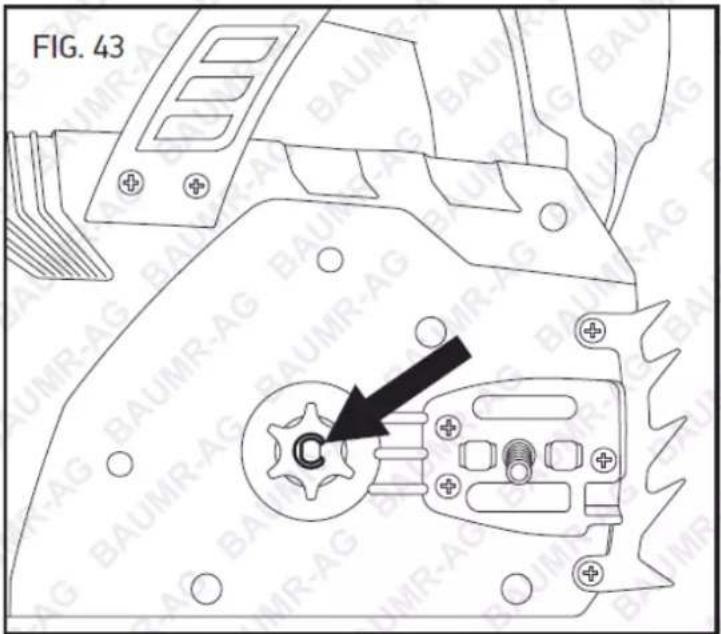

Replace the drive sprocket after every two chain replacements, or if it shows signs of wear like grooves, broken teeth, or burrs.

What materials can I cut with this chainsaw?

This chainsaw is designed for cutting wood only. Do not cut plastic, masonry, metal, or other materials. Avoid contact with dirt, stones, nails, or wire which can dull the chain quickly.

How do I store the chainsaw?

Unplug the chainsaw, clean it thoroughly, install the guide bar cover, and store in a dry place out of reach of children. Place an absorbent pad under the bar to catch oil seepage. Keep away from flammable materials.

USER MANUAL SC7 Baumr-AG

Red and black Buumr-AG Double Guard 91 chain saw (no text or symbols on the device body)

SC7 Chainsaw

User Manual

[Revision 2.0 November 2023]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description, and packaging.

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Always use a Residual Current Device (RCD) (GFCI) / Earth Leakage Circuit Breaker / Safety Switch when operating this item (electrical items only).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Child Choking Hazard!

• WARNING: CHOKING HAZARD - CHILDREN UNDER 8 YRS. CAN CHOKE OR SUFFOCATE ON SMALL PARTS. ADULT SUPERVISION REQUIRED.
• Carefully inspect anything a baby or child could gain access to, including this product & packaging.
• Dangers include anything of a size that could become stuck or lodged in a baby or child's airway.

• Dangers include things like raw, hard fruit and vegetable pieces, large pieces of meat, bones or sausage skins, popcorn, nuts,

hard lollies and corn chips, small magnets and batteries, coins, beads, marbles and small uninflated balloons, broken toys and smaller toys, buttons, keys, and coins. But there are also many more.

• Pay particular attention to accessories, nuts, bolts, screws, washers, caps, covers, loose parts, parts that could be removed or break off, pieces of packaging, staples, tape etc.
• In the case of any doubt, secure the item of concern in an appropriate manner, or completely remove the possibility of access by a baby or child.

Hazardous Components

• BE AWARE THAT THE EQUIPMENT MAY INCLUDE HAZARDOUS COMPONENTS, SUCH AS BLADES, HOT SURFACES AND MOVING PARTS.
• MOVING BLADES CAN CAUSE SERIOUS INJURY AND EVEN DEATH IF USED IMPROPERLY OR WITHOUT SUFFICIENT PPE.
• DO NOT USE THIS EQUIPMENT ON UNEVEN SURFACES AND ALWAYS MAINTAIN GOOD BALANCE WHEN USING THIS EQUIPMENT. FAILURE TO DO SO MAY CAUSE SERIOUS INJURY.
• MAINTAIN A SECURE GRIP OF THE TRIGGER ASSEMBLY AT ALL TIMES.

General Power Tool Safety

- WARNING: READ AND UNDERSTAND ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR SERIOUS INJURY. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.

- This instruction manual contains translations of a manual drafted in English and are provided to assist those who do not speak English as their first language. Being a technical writing, some terms may not have a like or equivalent meaning as translated. Therefore, you should not rely on this translation, and should cross-reference the English version, where relying on the translated instructions could result in harm to your person or property.

- Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery operated (cordless) power tool.

Work Area Safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate the power tool in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating the power tool. Distractions can cause you to lose control.

Electrical Safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

• Do not abuse the cord. Never use the cord for carrying, pulling, or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

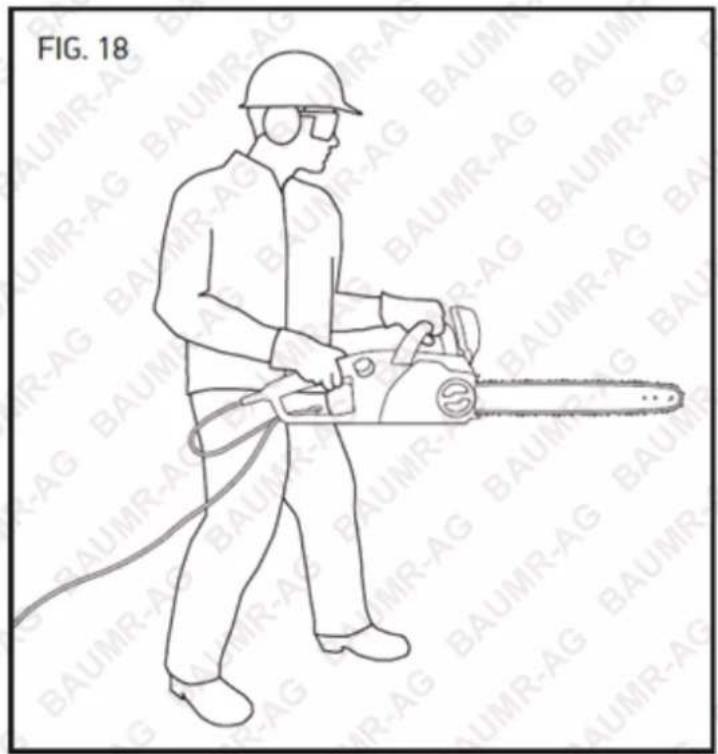

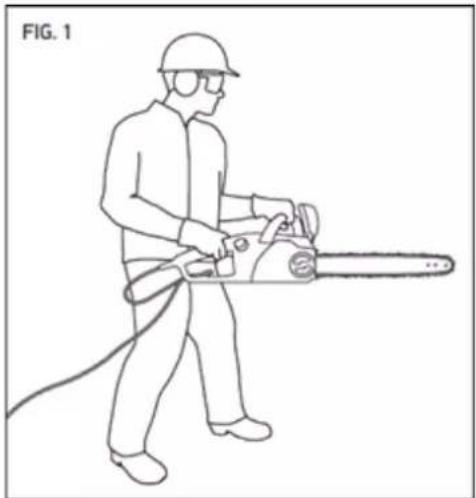

• Do not overreach. Keep proper footing and balance at all times (Fig. 1). This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewellery, or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.

- Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Line drawing of a person using a chainsaw (no text or symbols)

Power Tool Use and Care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories, and tool bits, etc. in accordance with these instructions taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean, and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Chainsaw Safety Warnings

• Keep all parts of the body away from the saw chain when the chainsaw is operating. Before you start the chainsaw, make sure the saw chain is not contacting anything. A moment of inattention while operating chainsaws may cause entanglement of your clothing or body with the saw chain.

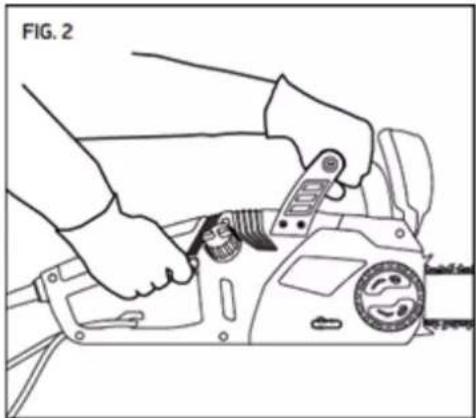

• Always hold the chainsaw with your right hand on the rear handle and your left hand on the front handle (Fig. 2). Holding the chainsaw with a reversed hand configuration increases the risk of personal injury and should never be done.
• Hold the power tool by insulated gripping surfaces only, because saw chain may contact hidden wiring or its own cord. Saw chains contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs, and feet is recommended. Adequate protective clothing will reduce personal injury by flying debris or accidental contact with the saw chain.
• Do not operate a chainsaw in a tree. Operation of a chainsaw while up in a tree may result in personal injury.

Line drawing of hands using a power tool on an electric shaver (no text or symbols)

• Always keep proper footing and operate the chainsaw only when standing on a fixed, secure and level surface. Slippery or unstable surfaces may cause a loss of balance or control of the chainsaw.
• When cutting a limb that is under tension, be alert for spring back. When the tension in the wood fibres is released, the spring-loaded limb may strike the operator and/or throw the chainsaw out of control.
• Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.

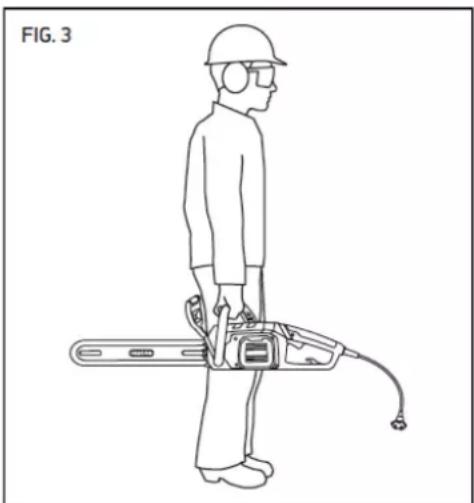

• Carry the chainsaw by the front handle with the chainsaw switched off and away from your body. When transporting or storing the chainsaw, always fit the guide bar cover (Fig. 3). Proper handling of the chainsaw will reduce the likelihood of accidental contact with the moving saw chain.
• Follow instructions for lubricating, chain tensioning, and changing accessories. Improperly tensioned or lubricated chain may either break or increase the chance of kickback.
• Keep handles dry, clean, and free of oil and grease. Greasy, oily handles are slippery causing loss of control.
• Cut wood only. Do not use the chainsaw for purposes not intended. For example: do not use chainsaw for cutting plastic, masonry, or non-wood building materials. Use of the chainsaw for operations different than intended could result in a hazardous situation.

Line drawing of a person wearing safety gear and holding a chain-link device (no text or symbols)

- It is recommended that the first-time user should have practical instruction in the use of the chainsaw and the recommended protective equipment from an experienced operator. The initial practice should be cutting logs on a sawhorse or cradle.

- Other than the wear parts identified in this manual, the chainsaw has no user serviceable parts.

- The work piece, bar, and chain can be hot after cutting. Wear gloves to avoid burns.

- Prolonged use of power tools has been reported to cause vascular, muscular, and/or neurological disorders (such as vibration white finger or Raynaud's syndrome), particularly when operating the tool in cold weather. If you experience numbness or loss of feeling in your extremities, stop using the tool until symptoms fade. To reduce the incidence of vibration induced trauma, follow these instructions:

- Wear gloves and keep hands and body warm.

- Maintain a firm grip on the chainsaw, but do not use prolonged, excessive pressure. Let the chainsaw do the work.

• Assure that the cutting system is maintained properly.

• Take frequent breaks.

- The vibration in normal use can differ from the stated values in this manual, depending on the material being cut, maintenance of the cutting system and other factors.

- Keep the cord behind you and know the position of the cord at all times. Keeping the cord behind you and knowing the position of the cord will help minimize tripping hazards and prevent severing of the cord with the chainsaw.

- If the cord is cut or damaged, immediately stop using the chainsaw and disconnect the cord from the mains. A damaged or cut cord increases the risk of electrical shock.

- When used in a wet environment use a GFCI with a tripping current of less than 30mA . Use of a GFCI reduces the risk of electric shock.

Causes and Operator Prevention of Kickback

• Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.
• Tip contact, in some cases, may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.

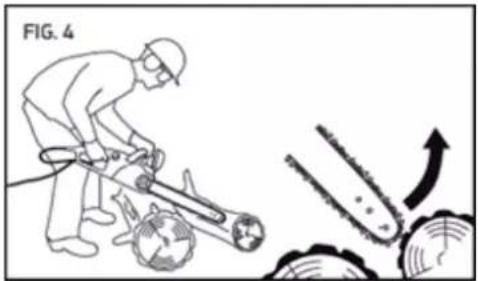

• Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.
• Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively on the safety devices built into your saw. As a chainsaw user, you should take several steps to keep your cutting jobs free from accident and injury.
• Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

- Maintain a firm grip with thumbs and fingers encircling the chainsaw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator if proper precautions are taken. Do not let go of the chainsaw.

- Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chainsaw in unexpected situations.

- Follow the sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

Kickback Safety Devices on this Saw

- DANGER: NEVER MODIFY OR ATTEMPT TO DISABLE THE CHAIN BRAKE.

- DANGER: ONLY USE REPLACEMENT BARS AND CHAINS SPECIFIED BY THE MANUFACTURER. INCORRECT REPLACEMENT BARS AND CHAINS MAY CAUSE CHAIN BREAKAGE AND INCREASED RISK OF KICKBACK INJURY.

- DANGER: NEVER MODIFY OR ATTEMPT TO DISABLE THE CHAIN BRAKE. - DANGER: ONLY USE REPLACEMENT BARS AND CHAINS SPECIFIED BY THE MANUFACTURER. INCORRECT REPLACEMENT BARS AND CHAINS MAY CAUSE CHAIN BREAKAGE AND INCREASED RISK OF KICKBACK INJURY.

- CHAIN BRAKE

- This chainsaw comes equipped with a chain brake, which stops both the motor and the motion of the chain when kickback occurs (Fig. 4). The chain brake can be activated by the forward motion of the front handguard as the saw rotates backward during kickback; it can also be activated by the inertial forces generated from a kickback event.

- CHAIN

- This chainsaw comes equipped with a saw chain that met the reduced kickback performance requirements of the American National Standards Institute (ANSI) and Canadian Standards Association (CSA), ANSI B175.1, ISO 9518, and CSA Z62.3 respectively, when tested according to the provisions of the standards. For replacement chain, contact the manufacturer.

• BAR

- This saw comes equipped with a reduced kickback guide bar that has a small radius nose. Smaller radius noses have less potential for kickback than a bar of the same size with a larger nose radius. When replacing the bar, only order the bar listed in this manual to maintain low kickback performance.

Storage, Transporting, and Disposal

• STORING THE CHAINSAW

• Unplug the chainsaw.
• Inspect the cord for cuts or damage.
• Clean chainsaw thoroughly.

• Install the guide bar cover.

- Store in a dry place.

- Keep out of reach of children or pets.

- It is normal for a small amount of oil to seep from the guide bar when the chainsaw is not in use. To protect against seepage, install the guide bar cover and place an absorbent pad under the bar.

• TRANSPORTING THE CHAINSAW

• Tools can shift during transport. Ensure the tool is secure and cannot fall or move into contact with people or property.
• Unplug the chainsaw.
  • Install the guide bar.
• If desired, drain the bar and chain oil to reduce seepage.

• CHAINSAW DISPOSAL

- This product is designed and manufactured with high quality materials and components which can be recycled and reused. Upon product end-of-life, the electrical appliance should be disposed of separately from household waste. Please dispose of this equipment in an environmentally correct manner at a local community waste collection/recycling centre.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	Exhaust FumesCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing, and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines.Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator.Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.	Choking HazardChildren under 8 yrs. Can choke or suffocate on small parts. Adult supervision required.

Table of Contents

Safety 2

Safety Symbols....7

Parts Identification ....10

Preparing for Use....11

Checking the Front Handguard Position....11

Filling the Bar and Chain Oil Reservoir 11

Priming The Oiler....12

Assembling the Guide Bar and Saw Chain ....13

Tensioning the Saw Chain....16

Operation....18

Introduction....18

General Operation....18

Stopping the Chainsaw....19

Testing The Chain Brake....20

Power Cord Use and Care ....20

Cutting 21

Pruning 22

Felling A Tree 24

Limbing A Tree 26

Bucking A Log....26

Maintenance and Cleaning 29

Inspection 29

Cleaning....29

Tensioning the Saw Chain....30

Sharpening the Saw Chain....30

Replacing a Worn Saw Chain....33

Maintaining the Guide Bar....34

Replacing a Worn Guide Bar....36

Replacing a Worn Chain Tensioning Gear 37

Replacing the Drive Sprocket....37

Troubleshooting 39

Specifications 41

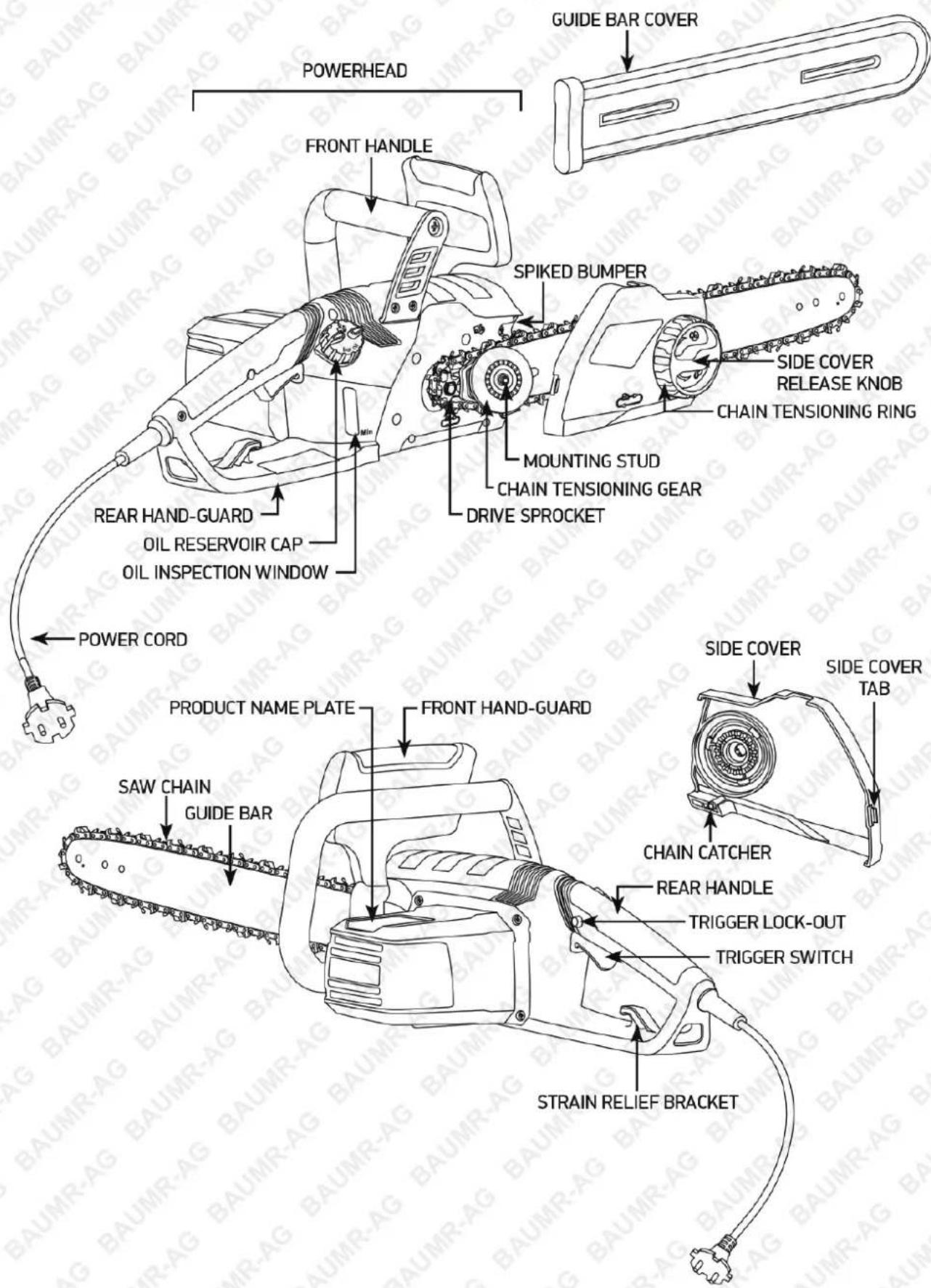

Parts Identification

Preparing for Use

DANGER: To avoid serious personal injury, do not operate the chainsaw without the guide bar, saw chain, and side cover properly assembled.

WARNING: Do not attempt to operate the chainsaw if any part is damaged or missing.

WARNING: An electric power tool that is plugged in can start accidentally. Unplug the chainsaw before preparing for use or performing maintenance.

Checking the Front Handguard Position

After unpacking the chainsaw, check the position of the front handguard. The chainsaw will not run with the chain brake engaged. Pull the front handguard back towards the front handle before operation (Fig. 5).

Filling the Bar and Chain Oil Reservoir

IMPORTANT: Bar and chain oil prevents premature wear. Never operate the chainsaw if oil is not visible in the inspection window. Check oil level frequently and fill as needed.

Bar and chain oil is required to properly lubricate the guide bar and saw chain. The chainsaw is equipped with an automatic oiler that deposits oil on the bar and chain when running, keeping them properly lubricated. Use manufacturer-supplier bar and chain oil for best results. It is specially designed to provide low friction and faster cuts. NEVER use oil or other lubricants that have not been specifically designed for use on the bar and chain. This can lead to a clogged oil system which may cause premature wear of the bar and chain.

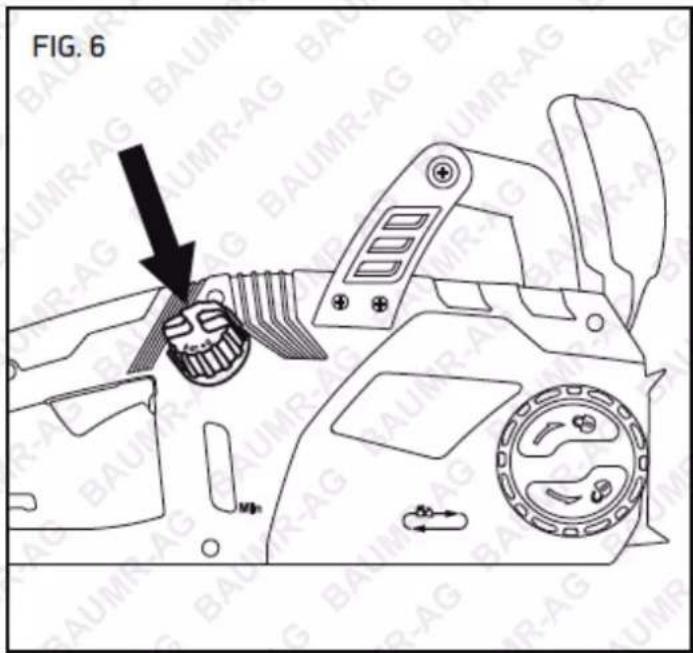

Place the chainsaw on a firm, flat surface so that the oil cap is on top (Fig. 6).

1. Clean any debris from the cap area.
2. Remove the cap.
3. Carefully pour the bar and chain oil into the reservoir.
4. Replace the cap and make sure oil is visible in the reservoir.

Priming The Oiler

WARNING: To reduce the risk of injury, never run the chainsaw without the side cover.

CAUTION: Keep hands, clothing, and hair away from the drive sprocket when priming the oiler.

If this is the first time filling the bar and chain oil reservoir, or if the chainsaw has been stored for a long period of time without use, prime the oiler. Wear gloves.

1. Unplug the chainsaw.
2. Loosen the side cover release knob slightly, but do not remove the side cover.
3. Loosen the chain tensioning ring (turn it anticlockwise) as far as it will go.
4. Loosen the side cover release knob and remove the side cover.
5. Remove the guide bar and saw chain.
6. Plug in the chainsaw.
7. Install the side cover, then lightly tighten the side cover release knob.
8. Run the chainsaw for about two minutes.

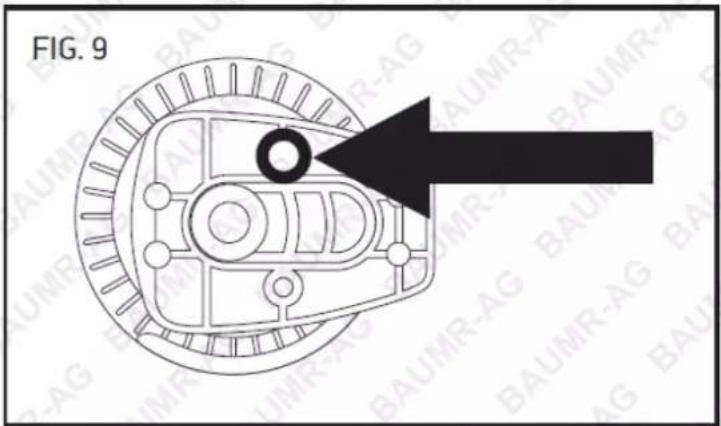

9. Unplug the chainsaw, remove the side cover and check for oil on the bar pad (Fig. 7).

1. If no oil is present on the bar pad, replace the side cover and run for another 30 seconds.
2. When oil begins to seep from the hole, unplug the chainsaw and replace the bar and chain as described in Maintaining the Guide Bar. If oil is not visible in the reservoir, additional bar and chain oil is necessary.

Assembling the Guide Bar and Saw Chain

WARNING: An electric power tool that is plugged in can start accidentally. Unplug the chainsaw before preparing for use or performing maintenance.

1. Wear gloves.
2. Unplug the chainsaw.
3. Loosen the side cover release knob by turning it counter clockwise, then remove the side cover (Fig. 8).

1. There is a rubber O-ring that is important to the function of the saw. The rubber O-ring must be in place around the pin on the tensioner before the tensioner is screwed onto the bar (Fig. 9).

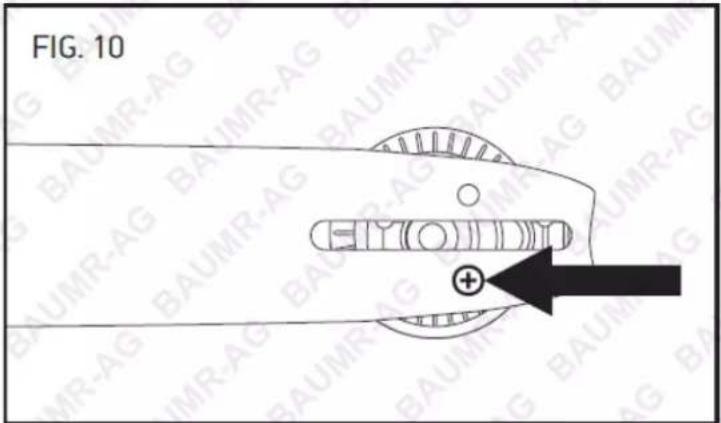

1. Insert the screw from the back side of the chain tensioning gear and attach the chain tensioning gear onto the guide bar (Fig. 10).

1. Place the chain tensioning gear on the side of the guide bar facing you such that the rectangular piece does not protrude past the edges of the guide bar and insert the screw.
2. Place the guide bar on the bar pad by sliding the bar slot over the alignment flange (Fig. 11), with the mounting stud inserted through the hole in the chain tensioning gear.

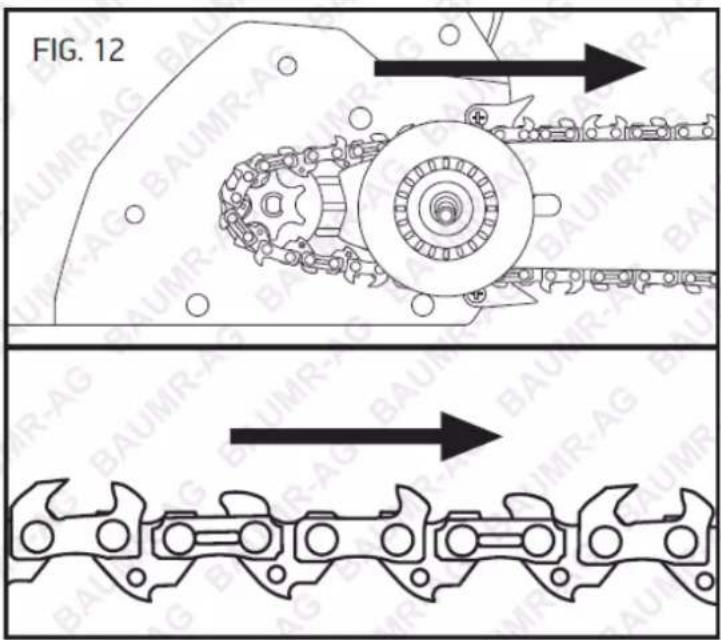

1. Loop the new saw chain onto the drive sprocket so that the cutting edges of the teeth along the top of the bar face away from the powerhead (Fig. 12).

1. Feed the chain into the groove of the bar and slide the bar away from the motor to remove slack from the chain (Fig. 13).

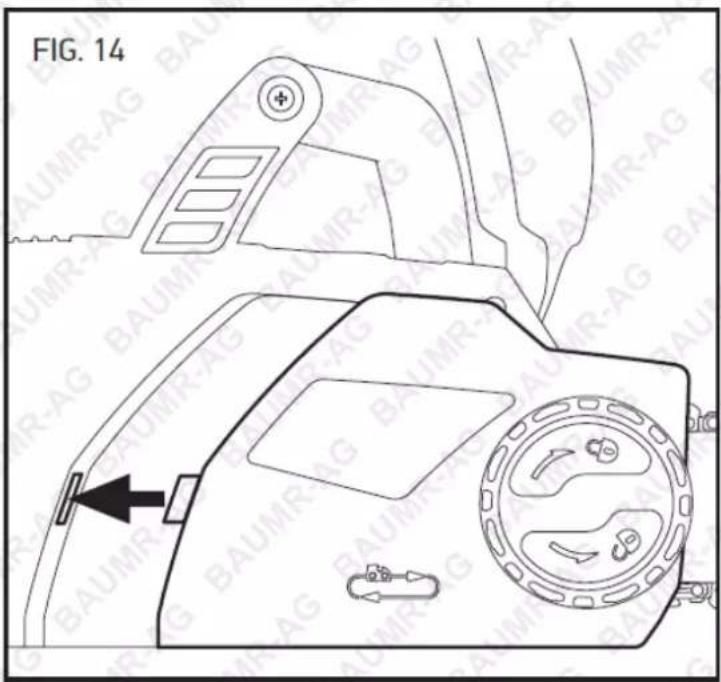

1. Install the side cover, making sure the chain catcher and side cover tab are seated in their proper locations (Fig. 14), then lightly tighten the side cover release knob.

1. Tension the chain as described in "Tensioning the Saw Chain" in the "Preparing for Use" section of the manual.

IMPORTANT: The saw chain must be properly tensioned before using. See “Tensioning the Saw Chain” in the “Preparing for Use” section of the manual.

Tensioning the Saw Chain

WARNING: An electric power tool that is plugged in can start accidentally. Unplug the chainsaw before preparing for use or performing maintenance.

WARNING: If the chain is still loose when the saw is at maximum tension, replace the chain.

IMPORTANT: Only tension the saw chain when the chain is cool. A hot chain may contract and damage the guide bar or chain as it cools.

Wear gloves.

1. Unplug the chainsaw before tensioning.

2. Loosen the side cover release knob slightly, but do not remove the side cover.

3. Hold up the nose of the guide bar (Fig. 15) and turn the chain tensioning ring clockwise.

1. Tighten the chain tensioning ring until the lowest cutters underneath the bar solidly contact the bar (Fig. 16).

1. Tighten the side cover release knob.
2. Lightly pull on the chain. The tension is correct when the chain snaps back after being pulled 3 mm away from the guide bar.
3. After a short period of use, allow the chain to cool, unplug the chainsaw and check the tension again. Watch tension carefully for the first half-hour of use and periodically throughout the life of the chain readjusting as required when the chain and bar are cool to the touch. Never tension chain when it is hot.

Chain will stretch as a result of normal use, however, insufficient oil, aggressive use, or failure to perform recommended maintenance can lead to premature stretching.

Operation

Introduction

This chainsaw is designed for occasional light-duty use. It is not designed to fell large trees or cut large diameter logs. This chainsaw is not designed for tree service. Do not cut trees or wooden timbers that have a diameter greater than the effective cutting length of the chainsaw, 40 cm (16 inches).

General Operation

DANGER: To avoid serious personal injury, do not overreach and do not stand on a ladder, step stool, or any raised position that is not fully secured. Never cut above shoulder height.

WARNING: To reduce the risk of injury, always wear proper boots, gloves, head, ear, and eye protection.

Grip

Always grip the tool with both hands. Grasp the front handle with the left hand and the rear handle with the right (Fig. 17). Wrap the fingers over the top of the handle with the thumb below the handle.

Footing

Stand with both feet on solid ground with weight evenly spread between them (Fig. 18).

Line drawing of a person using a chainsaw on a power line, no text or symbols present

Stopping the Chainsaw

WARNING: To reduce the risk of injury, never defeat the interlock by taping, wiring or tying down the trigger lock-out.

Make sure the chain brake is not engaged.

Grasp the front and rear handles firmly. Press and hold the trigger lock-out with the thumb (1). To start the saw, squeeze the trigger switch (2) (Fig. 19). There is no need to continue to press the trigger lock-out. It will remain disengaged until the trigger is released.

Testing The Chain Brake

Make sure the chain brake is working before using the chainsaw. To check brake operation:

1. Place the saw on a firm, flat surface.

2. Start the saw briefly.

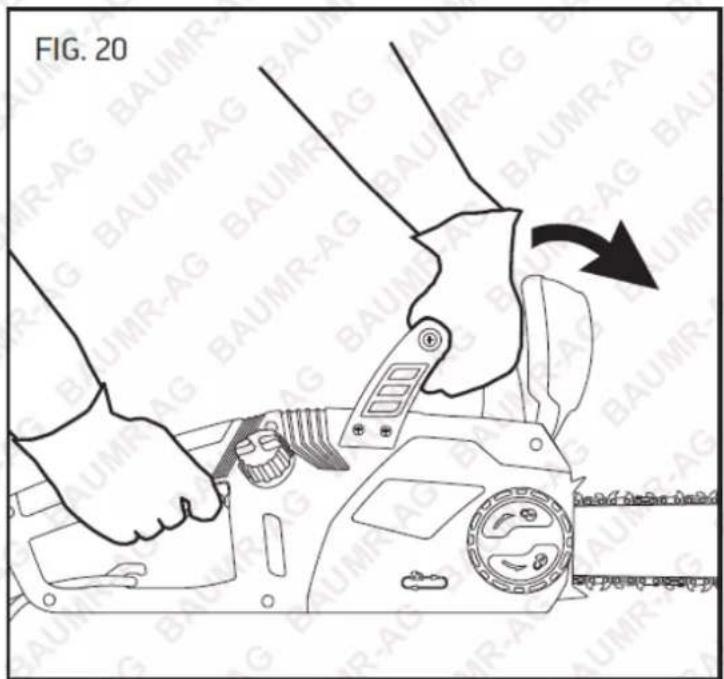

3. Keep the left hand on the front handle and roll the left wrist to move the front handguard forward to manually activate the chain brake (Fig. 20).

1. Release the trigger switch.

A properly functioning chain brake stops the motor and saw chain immediately. If the motor and saw chain do not stop immediately, have the chain brake checked at an approved service location.

1. Return the front handguard to operating position.

Power Cord Use and Care

Selecting An Extension Cord

Select an extension cord that is:

• Specifically labelled for outdoor use

- Of a wire size (AWG) heavy enough to carry the current the full length of the cable according to the table below

Select the gauge of extension cord based on the desired length and the electrical specifications found on the product label. These are the recommended gauges based on the length of cord.

CORD LENGTH (M)	MIN. WIRE SIZE
0–15	14 AWG ( 1.5mm^2 )
16–30	12 AWG ( 3.0mm^2 )

Make sure the insulation is free of cracks and that the plugs on both ends are undamaged.

Using The Strain Relief Bracket

It is important to use the strain relief bracket for two reasons:

• It saves wear on both the power cord and the extension cord and their plugs.
• It prevents the chainsaw from becoming unplugged from the extension cord accidentally.

To use the strain relief bracket, bend the extension cord into a U-shape and put it through the hole in the rear handle. Slide the loop of cord over the hook and tug lightly until snug (Fig. 21).

Cutting

WARNING: To reduce the risk of injury, wear proper boots, gloves, head, ear, and eye protection.

WARNING: To reduce the risk of electric shock, make sure the cord insulation is intact and that the cord is in a dry location where there is no danger of it being cut or tripped over.

WARNING: To reduce the risk of injury, always be sure of footing and hold the chainsaw firmly with both hands while the motor is running.

WARNING: To reduce the risk of injury, plan ahead and plan multiple escape paths before beginning work.

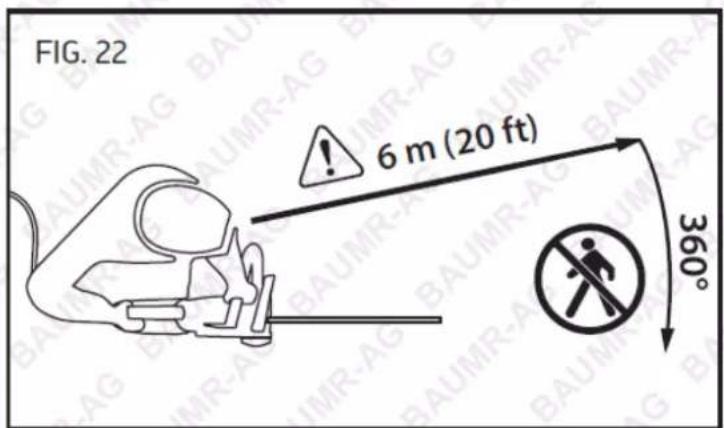

CAUTION: Establish a bystander safety zone of 6 m (20 ft) prior to operation of this equipment. Bystander safety zone is a minimum 6 m (20 ft) circle around the operator that must remain free from bystanders, children, and pets (Fig. 22). Felling operations require a larger safety zone according to the size of the tree, see “Felling a Tree” section.

IMPORTANT: Practice cutting logs on a sawhorse or cradle until you become comfortable operating the saw.

To get the best performance and to operate the saw safely, follow these instructions:

• Observe all applicable national and municipal rules and regulations for cutting.
  • Take frequent breaks to reduce the risk of injury.
  • Before beginning to cut, make sure the saw chain is properly tensioned and the chain is sharp.

Saw chains are made to cut wood only. Do not use the chainsaw to cut any other materials, and do not allow the chain to come into contact with dirt, stones, nails, staples, or wire. These materials are extremely abrasive and will wear away protective plating from the chain in a very short time.

Sharpen or replace the saw chain if any of these conditions occur:

• The pressure required to make cuts increases noticeably.
• Wood chips coming off of the chain are very fine or dust-like.

Do not work with a dull chain as it will increase the effort required to cut, cause jagged cuts, increase wear on the chainsaw and increase the risk of kickback. Never force a dull chain to cut.

• Assume the proper cutting grip and stance in front of the wood with the saw turned off. Press the trigger lock-out and squeeze the trigger switch. Let the chain reach full speed before beginning the cut.
• Begin cutting by lightly pressing the guide bar against the wood. Use only light pressure and let the saw do the work.
• Maintain a steady speed throughout the cut releasing pressure just before the end of the cut.
• Know the location of the cord at all times to avoid trip hazards and avoid cutting the cord.
• Know the location of the tip of the bar at all times and avoid contact with other objects.
• If the saw stops suddenly when cutting, remove the saw from the cut, then resume cutting using lighter pressure on the work piece.

Pruning

CAUTION: Falling limbs may bounce or "spring back" after they hit the ground, so it is essential to keep the ground clear to provide multiple retreat paths. Clear the work area and wear head protection.

Pruning is removing dead or overgrown branches to maintain plant health.

1. Plan retreat paths before beginning to cut, and make sure there are no obstructions. Always know how to get out of the way of falling branches.
2. Make sure bystanders or helpers are a safe distance from falling branches. Bystanders or helpers should not stand directly in front of or behind the operator. See Fig. 22.
3. Maintain solid footing and hold the chainsaw firmly with both hands. Do not overreach. Never climb a tree or ladder to reach high limbs.
4. Secure any branches that might be hazardous.
5. Use proper auxiliary equipment.
6. Prune lower limbs before pruning higher ones.
7. Allow the saw chain to achieve full speed before cutting.

8. Apply light pressure to the branch.

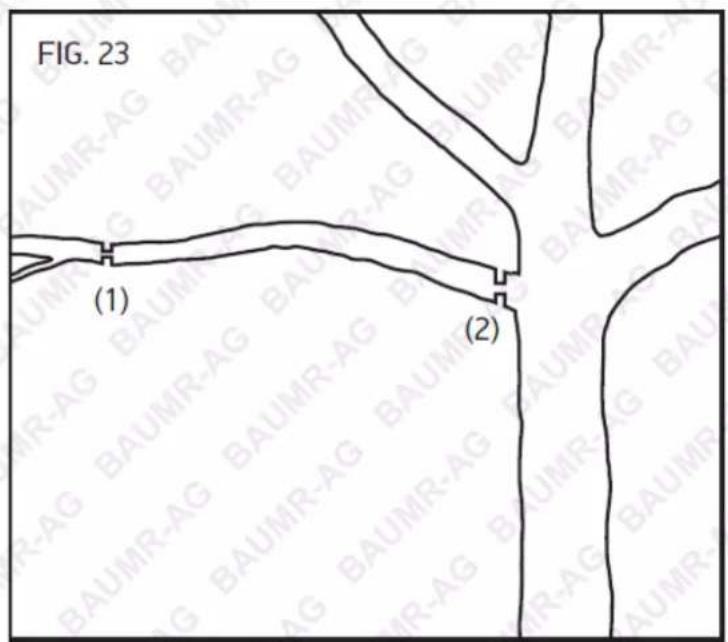

9. For long limbs (Fig. 23), cut the end of the limb first (1) to relieve pressure from the limb, then prune closer to the trunk (2).

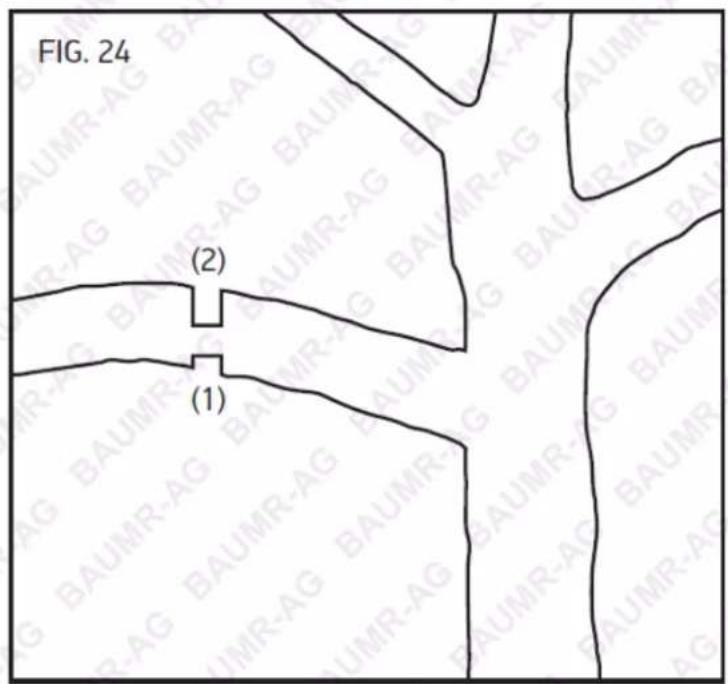

1. Thick limbs (greater than 10 cm (4 inch) in diameter) can splinter or pinch the chain when making a single cut from the top. To avoid pinching or splintering, first make one shallow relief cut on the bottom surface of the limb (1), then cut the limb all of the way through from the top of the limb (2) to match the bottom cut (Fig. 24).

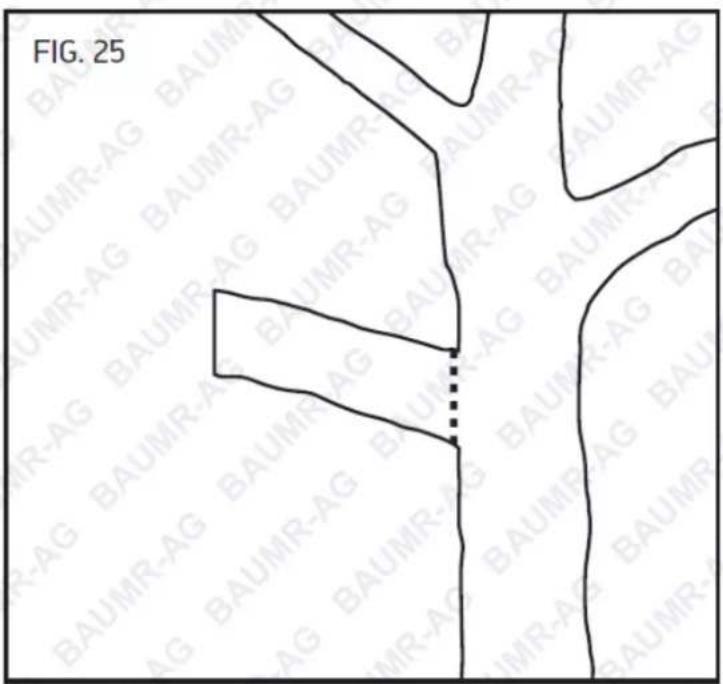

After most of the limb has been removed, make one smooth cut near the trunk (Fig. 25).

Felling A Tree

CAUTION: A tree is likely to roll or slide downhill after it is felled. Plan and clear a retreat path before cuts are started. The retreat path should extend back and diagonally to the rear of the expected line of fall (Fig. 26).

Felling is cutting down a tree.

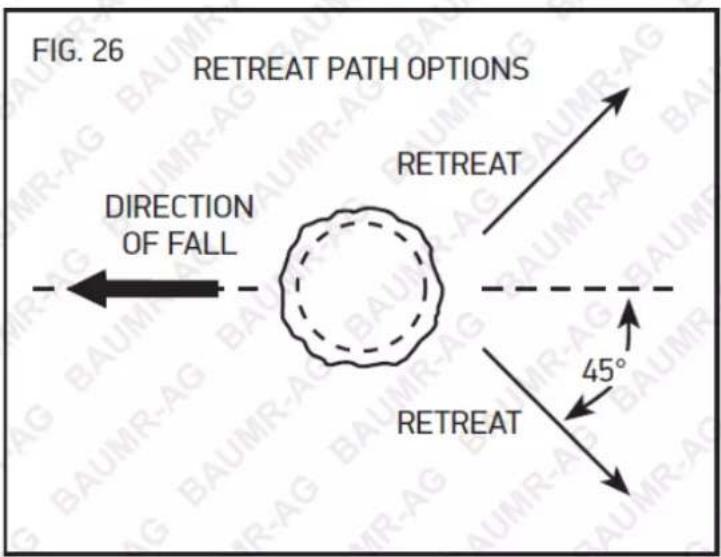

• Before felling is started, consider the natural lean of the tree, the location of larger branches and the wind direction to judge which way the tree will fall.

• Remove dirt, stones, loose bark, nails, staples, and wire from the tree where felling cuts are to be made.

• When bucking and felling operations are being performed by two or more persons at the same time, separate the felling operation from the bucking operation by a distance of at least twice the height of the tree being felled.

• Trees should not be felled in a manner that would endanger any person, strike any utility line or cause any property damage. If the tree contacts any utility line, immediately leave the area, and notify the utility company.
• Use the metal spikes on the front of the saw to support the saw on the wood. Set metal spiked bumper into the wood and use as a leverage point to increase stability when cutting large diameter wood.

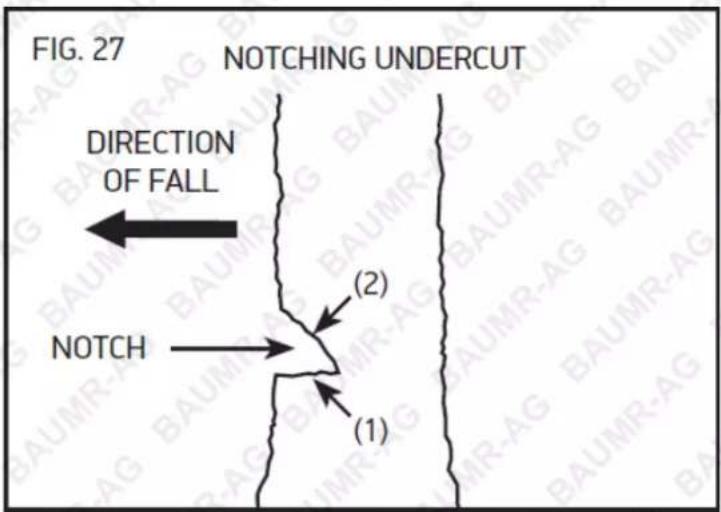

Notching Undercut

- First, make the notch 1/3 the diameter of the tree perpendicular to the direction of fall. Make the lower horizontal notching undercut first (1). This will help to avoid pinching of either the saw chain or the guide bar when the second cut (2) is being made (Fig. 27).

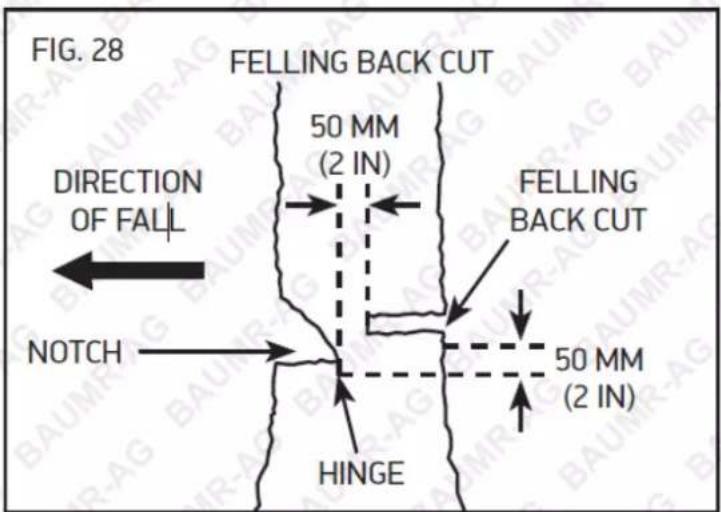

Felling Back Cut

- Second, make the felling back cut at least 50 mm (2 in) higher than the horizontal notching undercut (Fig. 28). Keep the felling back cut parallel to the horizontal notching undercut.

• Make the felling back cut so enough wood is left to act as a hinge. The hinge wood keeps the tree from twisting and falling in the wrong direction. Do not cut through the hinge.
  • As the felling cut gets close to the hinge, the tree should begin to fall.

• If there is any chance that the tree may not fall in the desired direction or it may rock back and bind the saw chain, stop cutting before the felling back cut is complete and use wedges of wood, plastic, or aluminium to open the cut and drop the tree along the desired line of fall.

• When the tree begins to fall, remove the chainsaw from the cut, stop the motor, put the chainsaw down, then use the retreat path planned.
• Be alert for overhead limbs falling and watch footing.

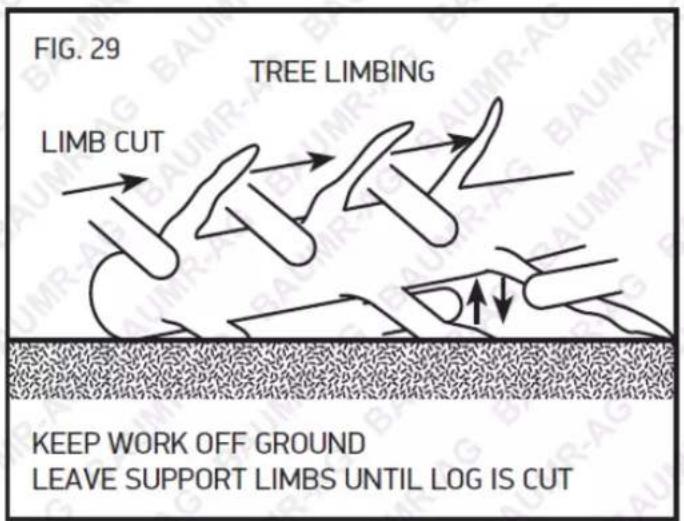

Limbing A Tree

CAUTION: Limbs under tension can “spring back” and contact the operator or throw the chainsaw out of control resulting in personal injury. Always be alert for wood under tension which may strike the operator or chainsaw when cut.

Limbing is removing the branches from a fallen tree.

• When limbing, leave larger lower limbs to support the log off the ground.
• Remove the small limbs in one cut.
• Branches under tension should be cut from the bottom up to avoid binding the chainsaw (Fig. 29).

Bucking A Log

CAUTION: Bucking logs under tension increases the chance of kickback. Use one of the methods below to support the log when bucking.

Bucking is cutting a log into lengths. It is important to make sure footing is firm and weight is evenly distributed on both feet. When possible, the log should be raised and supported by the use of limbs, logs, or chocks.

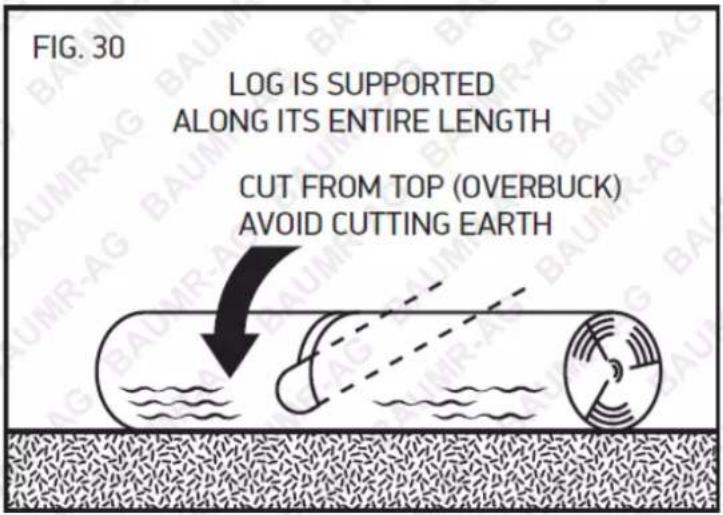

- When the log is supported along its entire length, cut from the top (overbuck) (Fig. 30).

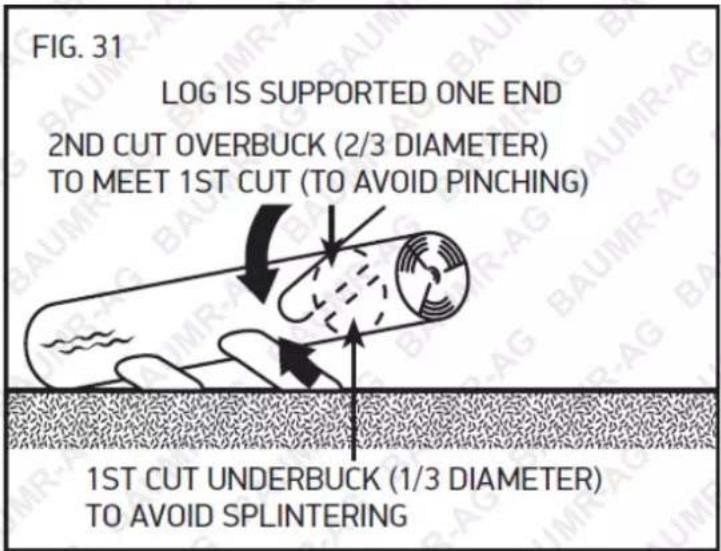

- When the log is supported on one end, cut 1/3 the diameter from the underside (underbuck), then make the finished cut by overbucking to meet the first cut (Fig. 31).

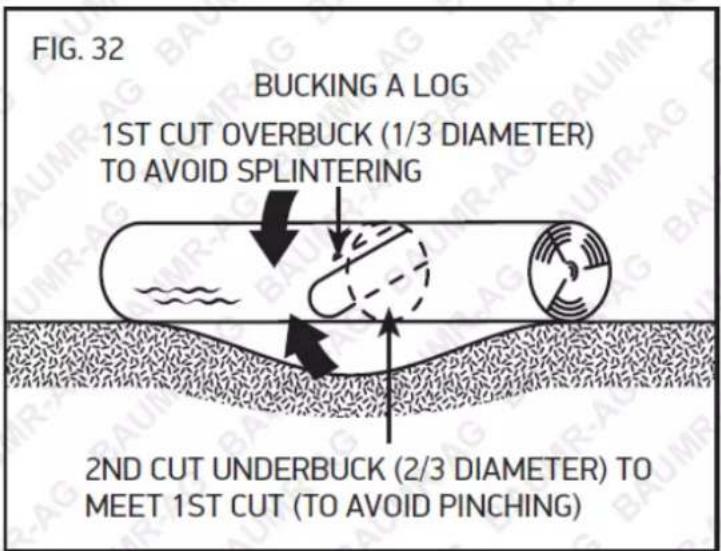

- When the log is supported on both ends, cut 1/3 of that diameter from the top overbuck, then make the finished cut by underbucking the lower 2/3 to meet the first cut (Fig. 32).

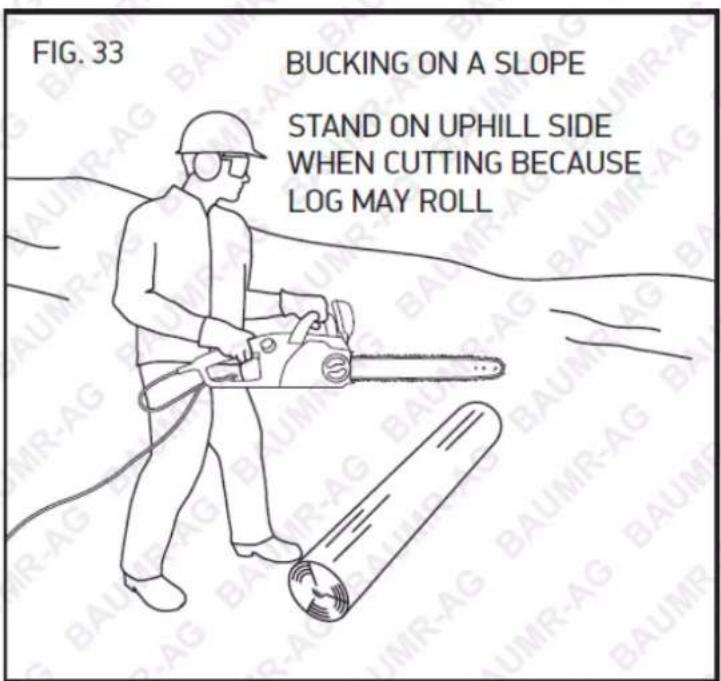

- When bucking on a slope, always stand on the uphill side of the log (Fig. 33).

• To maintain complete control when cutting through, release the cutting pressure near the end of the cut without relaxing the grip on the chainsaw handles.
• Don't let the chain contact the ground.
  • After completing the cut, wait for the saw chain to stop before you move the chainsaw.
  • Always stop the motor before moving from tree to tree.

Maintenance and Cleaning

WARNING: Failure to identify and replace damaged or worn parts can cause serious personal injury. Inspect the chainsaw regularly. Regular inspection is the first step to proper maintenance. Follow the guidelines below to maximise safety and satisfaction. Have any damaged or excessively worn parts replaced immediately.

WARNING: An electric power tool that is plugged in can start accidentally. Unplug the chainsaw before preparing for use or performing maintenance.

CAUTION: When cleaning the chainsaw, do not immerse in water or other liquids.

Inspection

Before each use and if the chainsaw has been dropped, inspect these parts:

• Cord: Ensure the plug is in good condition and not bent or corroded, and that the insulation is intact. If the cord is damaged, do not use. Contact an authorised service dealer.
• Handles: Front and rear handles should not have cracks or other damage. They should be clean and dry.
• Front Handguard: The front handguard should be free of damage and able to move easily back and forth. When moved, the front handguard should activate the chain brake.
  • Guide Bar: The bar should be straight and free of chips, cracks, or excessive wear.
• Saw Chain: The chain should be properly tensioned and sharp and all components free of cracks, chips, broken teeth, or excessive wear. See "Tensioning the Saw Chain" and "Sharpening the Saw Chain".
• Side Cover: The side cover should be free of cracks or other damage. It should fit tightly to the saw body with no warping. Make sure the chain catcher is free of cracks.
• Chain Brake: Test the chain brake to make sure it is functioning properly. See "Testing the Chain Brake".
• Oil Level: Make sure the oil reservoir is full before use.
  • Motor Housing: Check for cracks in the cover and debris in the air intake vents.

Periodically inspect these parts:

• Drive Sprocket: Look for deep grooves, broken teeth, or burrs.
- Chain Tensioning Gear: Inspect the gear for cracks, chips, loose screw, warping or other damage.
- Bar-Mounting Area Underneath Side Cover: Make sure the bar mounting stud is not bent, stripped or cross-threaded and that the bar pad and alignment flange are free of debris and intact.

Cleaning

CAUTION: When cleaning the chainsaw powerhead, do not immerse in water or other liquids.

Wear gloves.

• Unplug the chainsaw.
- Remove wood chips and other debris from the motor housing and the vents.
• Always clean out wood chips, saw dust and dirt from the bar groove when replacing the chain.

• Make sure the cord and plug are dry before connecting to an outlet.

Tensioning the Saw Chain

IMPORTANT: Only tension the saw chain when the chain is cool. A hot chain may contract and damage the guide bar or chain as it cools.

If the chain does not touch the underside of the bar when the chainsaw is off and cool, it should be tensioned. Tension the chain as described in "Tensioning the Saw Chain".

Sharpening the Saw Chain

It is recommended that an authorised Service Dealer sharpen the chain, but it can also be sharpened by the operator.

WARNING: If the chain is incorrectly sharpened or the depth gauge is set too low, there is an increased risk of injury. Always sharpen the chain according to the specifications described in this manual.

IMPORTANT: Sharpening according to these instructions will address minor damage to the saw chain from contact with dirt or similar occurrences. To repair more serious saw chain damage (such as after contact with concrete), take the chain to an authorised service dealer, or replace the chain.

Chain sharpening requires these tools:

• File guide
  • 4.5 mm round saw chain sharpening file (use only special saw chain sharpening files)
  • 0.025-inch (0.65 mm) depth gauge tool
• Flat file

After collecting the tools, wear gloves and eye protection, and unplug the chainsaw. Then, file the chain to set the depth gauge:

1. Loosen the side cover knob and remove side cover.
2. Loosen the chain tensioning ring as far as it will go.
3. Remove the chain.
4. Place the chain in a vise to hold it steady.
5. Place the depth gauge tool on top of the chain so that one depth gauge protrudes through the slot in the tool.
6. If the depth gauge extends above the top of the slot, file the depth gauge down level with the top of the tool using a flat file (Fig. 31). Never file the depth gauge down enough to exceed the depth gauge setting specified in this manual.

IMPORTANT: Sharpen in one direction only, from inside to outside. Never sharpen with a back-and-forth motion.

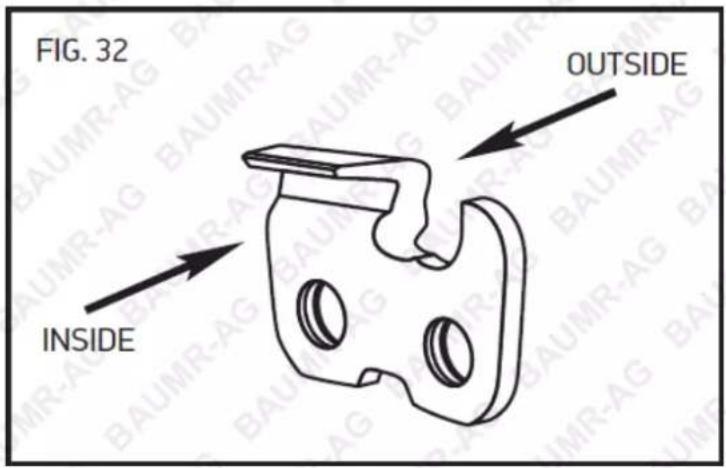

1. File from the inside surface of the depth gauge to the outside (Fig. 32).

1. Remove the depth gauge tool.
2. After lowering, always file off the front corner of each depth gauge parallel to its original rounded or ramped shape (Fig. 33).

Technical illustration of two mechanical components with cross-sectional views, labeled FIG. 33 (no text or symbols on the diagrams themselves)

1. Repeat for each depth gauge on the chain. After setting the depth gauge, sharpen the cutters:
2. Place the chain file into the file guide.
3. Align the file guide so that the correct top plate filing angle marked on the file guide is parallel to the chain (Fig. 34).

1. Sharpen cutters on one side of the chain first. Make 3-4 strokes with the file from the inside of each cutter to the outside. Use the same number of strokes on each cutter. Then, turn the chainsaw around and repeat for cutters on the other side of the chain (Fig. 35).

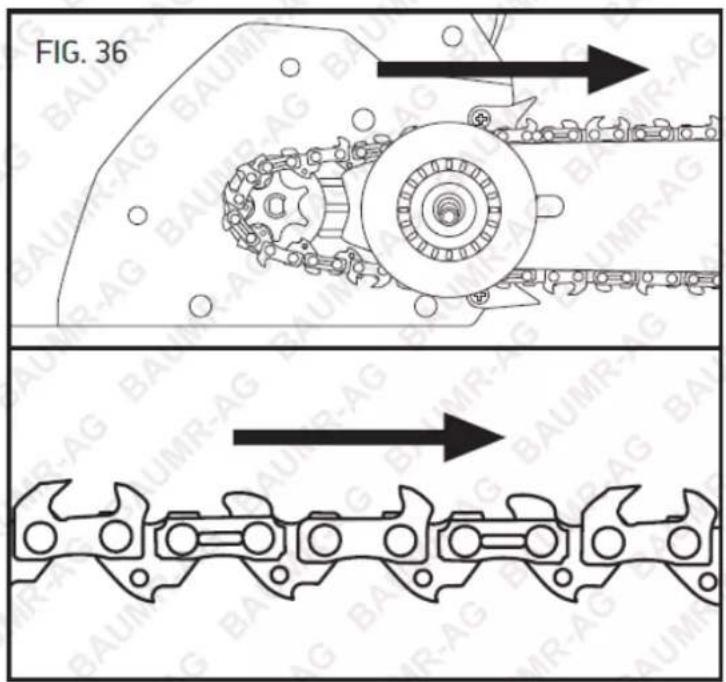

1. File back any damage on the chrome top or side plates (Fig. 36).

1. Keep all cutter lengths equal.

2. After sharpening all cutters, use the file guide to check the depth gauges again. Reset the depth gauge if necessary.

3. Replace the chain and the side cover.

Replacing a Worn Saw Chain

When the saw chain becomes cracked or has broken teeth, is stretched to the point that it cannot be kept at proper tension or simply cannot be sharpened, it must be replaced.

Wear gloves.

1. Unplug the chainsaw.
2. Loosen the side cover release knob slightly, but do not remove the side cover.
3. Loosen the chain tensioning ring (turn it anticlockwise) as far as it will go.
4. Loosen the side cover release knob and remove the side cover.
5. Remove the saw chain.
6. Loop the new saw chain onto the drive sprocket so that the cutting edges of the teeth along the top of the bar face away from the powerhead (Fig. 36).

1. Feed the chain into the groove of the bar and slide the bar away from the motor to remove slack from the chain (Fig. 37).

1. Install the side cover, making sure the chain catcher and side cover tab are seated in their proper locations (Fig. 38), then lightly tighten the side cover release knob.

1. Tension the chain as described in "Tensioning the Saw Chain" section of the manual.

IMPORTANT: The saw chain must be properly tensioned before using. See "Tensioning the Saw Chain" section of the manual.

Maintaining the Guide Bar

CAUTION: The guide bar can be hot after cutting. Wear gloves to avoid burns. To even bar wear and maximise bar life, flip the bar occasionally.

Wear gloves.

1. Unplug the chainsaw.

SC7 Chainsaw

1. Loosen the side cover release knob slightly, but do not remove the side cover.
2. Loosen the chain tensioning ring (turn it anticlockwise) as far as it will go.
3. Loosen the side cover release knob and remove the side cover.
4. Remove the bar and chain and inspect for damage and wear.

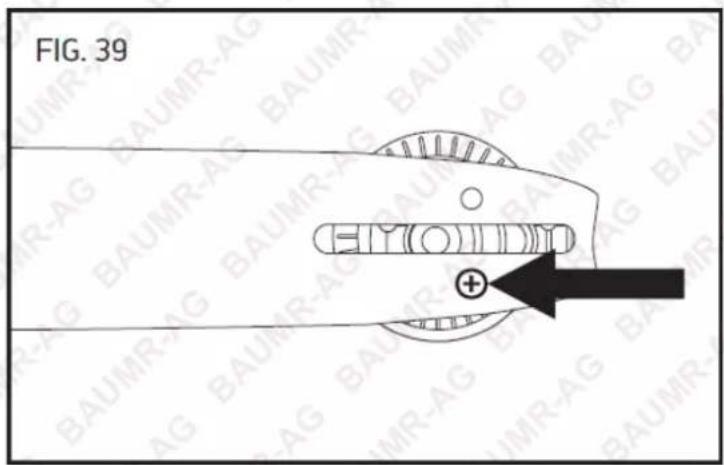

5. Remove the screw from the back side of the chain tensioning gear and remove the chain tensioning gear from the guide bar (Fig. 39).

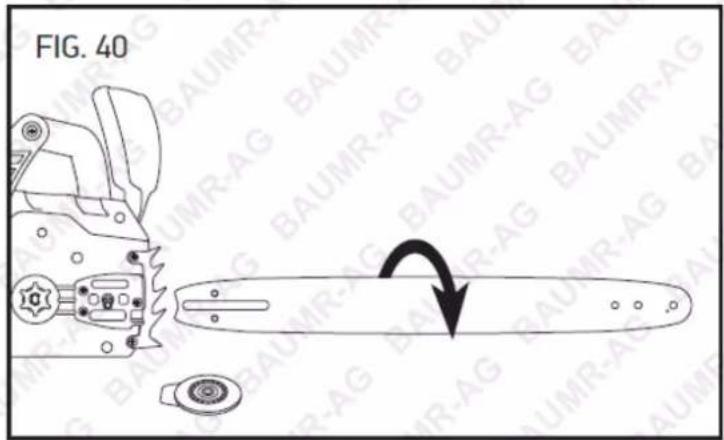

1. Flip the bar (Fig. 40).

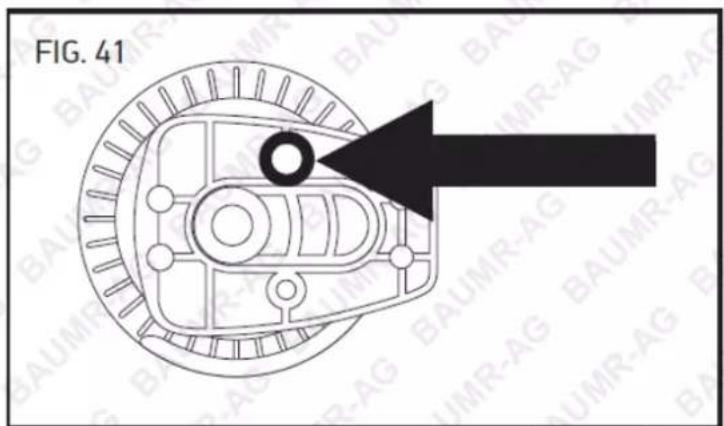

1. There is a rubber washer that is important to the function of the saw. The rubber washer must be in place around the pin on the tensioner before the tensioner is screwed onto the bar (Fig. 41).

1. Place the chain tensioning gear on the side of the guide bar facing you such that the rectangular piece does not protrude past the edges of the guide bar and replace the screw.

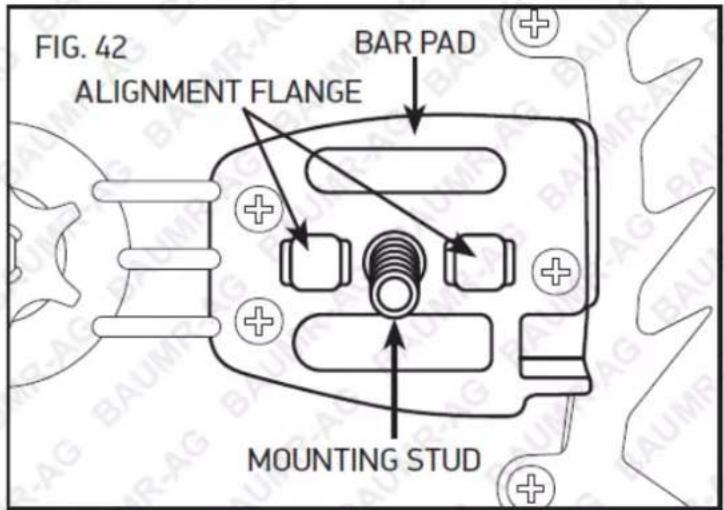

2. Place the guide bar on the bar pad by sliding the bar slot over the alignment flange (Fig. 42).

1. Replace the saw chain as described in "Replacing a Worn Saw Chain".
2. Tension the chain as described in "Tensioning the Saw Chain" section of the manual.

Replacing a Worn Guide Bar

WARNING: The edges of a worn guide bar, particularly the edges of the groove where the chain touches the bar, can be extremely sharp. Use appropriate hand protection.

When the guide bar becomes cracked or has excessive wear around the edges, particularly in the groove where the saw chain touches the bar, it must be replaced. Also, if the nose sprocket is worn, has teeth missing or does not turn smoothly, the bar must be replaced.

Wear gloves.

1. Unplug the chainsaw.
2. Loosen the side cover release knob slightly, but do not remove the side cover.
3. Loosen the chain tensioning ring (turn it anticlockwise) as far as it will go.
4. Loosen the side cover release knob and remove the side cover.
5. Remove the bar and chain.
6. Remove and the screw from the back side of the chain tensioning gear and remove the chain tensioning gear from the guide bar as described in "Maintaining the Guide Bar".
7. Place the chain tensioning gear on the new guide bar and replace the screw.
8. Replace the guide bar as described in "Maintaining the Guide Bar".
9. Replace the chain as described in "Replacing a Worn Saw Chain".
10. Tension the chain as described in "Tensioning the Saw Chain".

Replacing a Worn Chain Tensioning Gear

Replace the chain tensioning gear if it will not hold the bar and chain at proper tension or if it is otherwise damaged.

Wear gloves.

1. Unplug the chainsaw.
2. Loosen the side cover release knob slightly, but do not remove the side cover.
3. Loosen the chain tensioning ring (turn it anticlockwise) as far as it will go.
4. Loosen the side cover release knob and remove the side cover.
5. Remove the bar and chain.
6. Remove the screw from the back side of the chain tensioning gear and remove the chain tensioning gear from the guide bar as described in "Maintaining the Guide Bar".
7. Place the new chain tensioning gear on the side of the guide bar facing you and replace the screw.
8. Place the guide bar on the bar pad by sliding the bar slot over the alignment flange as described in "Maintaining the Guide Bar".
9. Replace the saw chain as described in "Replacing a Worn Saw Chain".
10. Tension the chain as described in "Tensioning the Saw Chain" section of the manual.

Replacing the Drive Sprocket

Replace the drive sprocket after every two saw chain replacements or when the sprocket is damaged.

Wear gloves.

1. Unplug the chainsaw.
2. Loosen the side cover release knob slightly, but do not remove the side cover.
3. Loosen the chain tensioning ring (turn it anticlockwise) as far as it will go.
4. Loosen the side cover release knob and remove the side cover.
5. Remove the bar and chain.

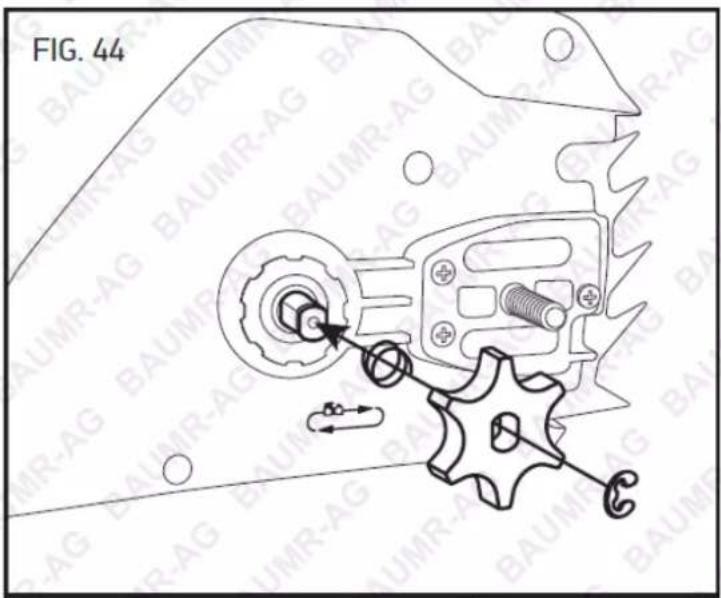

6. Use a small flat screwdriver to pry open and remove the e-clip, then remove the drive sprocket and spring (Fig. 43).

1. Insert the new spring and drive sprocket and install the new e-clip (Fig. 44).

1. Replace the bar and chain as described in "Replacing a Worn Saw Chain".

- Tension the chain as described in "Tensioning the Saw Chain" section of the manual.

Troubleshooting

SYMPTOM	POSSIBLE CAUSE	RECOMMENDED ACTIONS
Motor stops while cutting	Chain pinched in cut	Undercut limb to relieve pressure on limb. See "Cutting".
	Cord is damaged or severed	If extension cord is damaged, do not use and replace it. If chainsaw cord is damaged, do not use and contact an approved service location.
	Chain brake is engaged	Set the front handguard to the operating position as described in "Checking the Front Handguard Position".
Motor does not run or runs intermittently	Saw is not plugged in Plug in the saw.
	Cord is damaged or severed	If extension cord is damaged, do not use and replace it. If chainsaw cord is damaged, do not use and contact an approved service location.
	GFCI outlet is tripped	Unplug extension cord, reset GFCI and plug the extension cord back in.
	Bad electrical outlet	Plug extension cord into a different outlet.
	Chain brake engaged	Set the front handguard to the operating position as described in "Checking the Front Handguard Position".
	Trigger lock-out not pressed	Press the trigger lock-out before squeezing the trigger switch. See "General Operation".
	Debris in side cover	Unplug the chainsaw, then remove side cover and clean out debris.
Motor does not stop when chain brake is engaged	Debris preventing full movement of front handguard	Clean debris from external chain brake mechanism.
	Possible chain brake malfunction	WARNING: OPERATING A CHAINSAW WITHOUT A FUNCTIONING CHAIN BRAKE COULD LEAD TO SERIOUS PERSONAL INJURY. Contact an approved service location before using.
Motor runs, but saw chain does not rotate	Chain not engaging drive sprocket	Reinstall the chain, making sure the drive links on the chain are fully seated on the drive sprocket. See "Replacing a Worn Saw Chain".
	Guide bar nose sprocket is not turning	Replace the guide bar. See "Replacing a Worn Guide Bar".
Chainsaw does not cut properly	Insufficient chain tension	Tension the chain. See “Tensioning the Saw Chain” section of the manual.
	Dull chain	See “Sharpening the Saw Chain”.
	Chain installed backwards	Install the chain with the teeth facing the correct direction. See “Replacing a Worn Saw Chain”.
	Worn chain	Replace the chain. See “Replacing a Worn Saw Chain”.
	Dry or excessively stretched chain	Check the oil level. Refill oil reservoir if necessary. See “Filling the Bar and Chain Oil Reservoir”.
	Chain not in bar groove	Reseat chain onto groove. See “Replacing a Worn Saw Chain”.
Chain loosening or coming off of guide bar	Side cover not installed correctly	Properly install side cover ensuring the tab at rear of side cover is tucked into saw body.
Bar and chain excessively hot and/or smoking	Chain is under-lubricated	Check the oil level. Refill oil reservoir if necessary. See “Filling the Bar and Chain Oil Reservoir”.

Specifications

Power Source Corded Electric

Rated Power 2400W

Rated Input 220-240V

Bar 16 Inch Oregon

Chain Oregon

No Load Speed 8000rpm

Chain Speed 14.5m/s

Brake Type Torsion spring brake

Power Cord Length 35cm

Note: Minimal Assembly required

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

edisons

.com.au

©2023 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams, or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning, or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
