Product Type	Handheld Percussion Massage Device
Brand	SereneLife
Model	SLLGMSGR76
Motor Type	Brushless
Speed Levels	6 adjustable speeds
Amplitude	12 mm
Battery	Built-in 1300 mAh lithium-ion
Charging Method	USB-C cable
Battery Life	2 to 4 hours per charge
Charging Time	2 to 3 hours
Weight	1.2 lbs (544 g)
Dimensions	6 x 5 x 2 inches (15 x 12.7 x 5 cm)
Noise Level	Less than 45 dB
Included Attachments	4 massage heads: ball, flat, bullet, fork
Auto-Off Timer	10 minutes
Warranty	1 year limited
Intended Use	Home use for muscle recovery and relaxation
Maintenance	Clean with damp cloth; store in dry, cool place
Safety Precautions	Not for use on injured areas, near eyes, or by pregnant women; consult physician if medical conditions exist

Frequently Asked Questions - SLLGMSGR76 SereneLife

How do I charge the SereneLife SLLGMSGR76 massage device?

Use the included USB-C cable to connect the device to a USB power source (such as a laptop, wall adapter, or power bank). The LED indicator will turn red while charging and blue when fully charged. Charging time is approximately 2-3 hours.

How long does the battery last on a full charge?

The built-in 1300 mAh battery provides 2 to 4 hours of continuous use, depending on the speed setting. Lower speeds extend battery life.

What are the different speed levels and how do I adjust them?

The device has 6 adjustable speed levels. Press the power button to turn it on at the lowest speed. Press again to cycle through speeds 1 to 6. Hold the button to turn off.

What attachments are included and what are they used for?

Four massage heads are included: ball head for large muscle groups, flat head for overall muscle relaxation, bullet head for deep pressure on trigger points, and fork head for neck and spine areas.

Can I use this device on my neck or spine?

Yes, but with caution. Use the fork head attachment for the neck and spine area, avoiding direct contact with the vertebrae. Do not use on the throat, eyes, or any bony areas.

How do I clean and maintain the massage device?

Unplug the device and wipe the exterior with a damp cloth. Do not immerse in water. Clean the attachments with mild soap and water, then dry thoroughly before reattaching. Store in a dry, cool place.

Is the SereneLife SLLGMSGR76 suitable for pregnant women?

No, it is not recommended for use during pregnancy unless approved by a physician. Avoid using on the abdomen or lower back.

Why does the device turn off automatically?

The device has a 10-minute auto-off timer for safety and to prevent overheating. If you need longer use, simply press the power button again to restart.

What should I do if the device stops working or does not charge?

First, check the USB cable and power source. If the LED does not light when charging, try a different cable or adapter. If it still fails, contact SereneLife customer support within the warranty period (1 year).

How loud is the massage device during operation?

The noise level is less than 45 dB, making it relatively quiet and comfortable for use in shared spaces. It is quieter than many comparable massage guns.

USER MANUAL SLLGMSGR76 SereneLife

Medical illustration of a leg with bandages and a pressure monitor, no text or symbols present

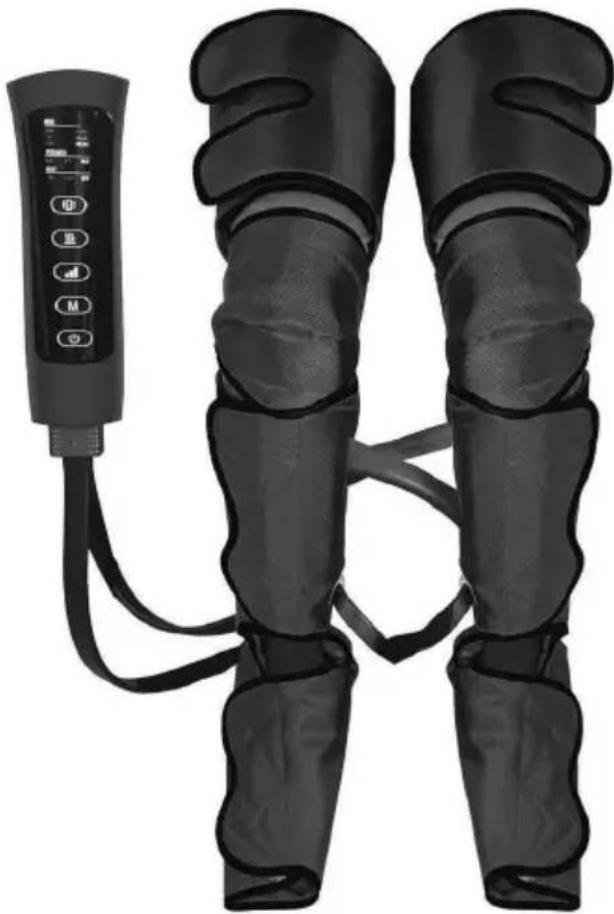

SLLGMSGR76

Air Compression Foot, Calf & Leg Massager

Pneumatic foot massage machine thigh/calf/foot inflation, knee heating, calf vibration function

USER GUIDE

IMPORTANT

To reduce the risk of malfunction, electric shock, injury, fire, death, and equipment damage, please read all instructions and warnings in this manual carefully before using this product. Keep this manual in a safe place for future reference.

CONTENTS

SAFETY NOTICE 3

CAUTION 4

SAFETY PRECAUTION 5

PRODUCT STRUCTURE 6

PRODUCT SPECIFICATION 7

USAGE METHOD 8

CLEANING & CARE 11

FAQS 12

TROUBLESHOOTING 14

FEATURES AND TECHNICAL SPECS 15

SAFETY NOTICE

INTRODUCTION

Air compression leg massager, is intended for the temporary relief of minor muscle aches and pains and for the temporary increase in circulation to the treated foot/calf and thigh in people who are in good health. The air compression leg massager simulates kneading and stroking of tissues by using air-inflatable boots.

This User Guide is intended to provide you with guidelines to ensure that operation of this product is safe and does not pose risk to the user. Any use that does not conform to the guidelines described in this User Guide may void the limited warranty.

Please read all directions carefully before using the product and keep the instruction and the massager in a safe place. We are not responsible for product damage caused by improper operation or use. Please see warranty for details.

⚠️ Precautions to Ensure Safe, Reliable Operation

1. Do not drop the unit, and the unit is normally used by patient himself/herself.
2. Do not insert foreign objects into any openings.
3. Do not attempt to disassemble the unit.
4. Do not crush the pressured massager.
5. Do not store the unit in direct sunlight, high humidity or dust.
6. To avoid any possibility of accidental strangulation, keep this unit away from children and do not drape tubing around your neck.
7. Ensure that children do not play the unit unsupervised; some parts may be swallowed.
8. Do not use the device near strong electrical or electromagnetic fields generated by cell phones or other devices, they may cause interference or become interference source to the device.
9. Any modification to the unit shall not be allowed.
10. The product (air compression leg massager) is for adult use only.

CAUTION

Air Compression leg massager is not intended for use if any of the following medical conditions exist. Consult with a physician whenever there is doubt whether it is clinically safe to use.

• Presumptive evidence of congestive heart failure where increase in blood returned to the heart could be detrimental
• Pre-existing deep vein thrombosis (DVT) or blood clots
• Existing hemorrhagic disease or coagulation problems
• Thrombophlebitis
• Pulmonary embolism

This product should not be utilized in individuals with edema, ischemic vascular disease, or severe peripheral neuropathy.

WARNING SIGNS AND SYMBOLS USED

Keep Dry

Keep out of Sunlight

Type BF Equipment

User Manual

Discard the used product to the recycling collection point according to local regulations.

Date of manufacture

Batch code, indicating the manufacturer's batch code or lot for identification.

SN XXXXX

Serial number, indicating the manufacturer's serial number for identification.

REF

Reference number, indicating the manufacturer's catalogue number for identification.

Caution: Indicating the need for the user to consult the instructions for use for important cautionary information such as warnings and precautions.

SAFETY PRECAUTION

• Do not use voltage beyond the requirement of this product.
• Do not attempt to repair or dismantle the product by yourself or any other third party.
• Do not use the product in a place where it may become wet or damp. If the unit becomes wet, do not use.
• Stop using the product immediately if you feel uncomfortable or if any abnormalities occur.
• Do not use this product in a high-temperature environment.
• Do not place the unit in a place where it may be in contact with flammable items, explosive items, or chemicals.
• Do not use sharp objects to handle the product in order to avoid damage.
• Do not use this product if any of the below apply to you:
• Skin is infected, swollen, burnt or otherwise damaged.

Please do not use the device, when cases occurred as follows:

• You have a pacemaker or any other medical implant.
• You are suffering from heart disease.
• You are suffering from diabetes.
• Your bones are fragile or injured.
• You are suffering from cancer.
• You are receiving treatment or your blood pressure is not normal.
• You are suffering from osteoporosis.
• You are currently pregnant or having menstruation.
  • Children or adolescents who are developing physically.

The air pressure hose connected to each boot cannot be pulled out. Please do not try to remove these from the boot.

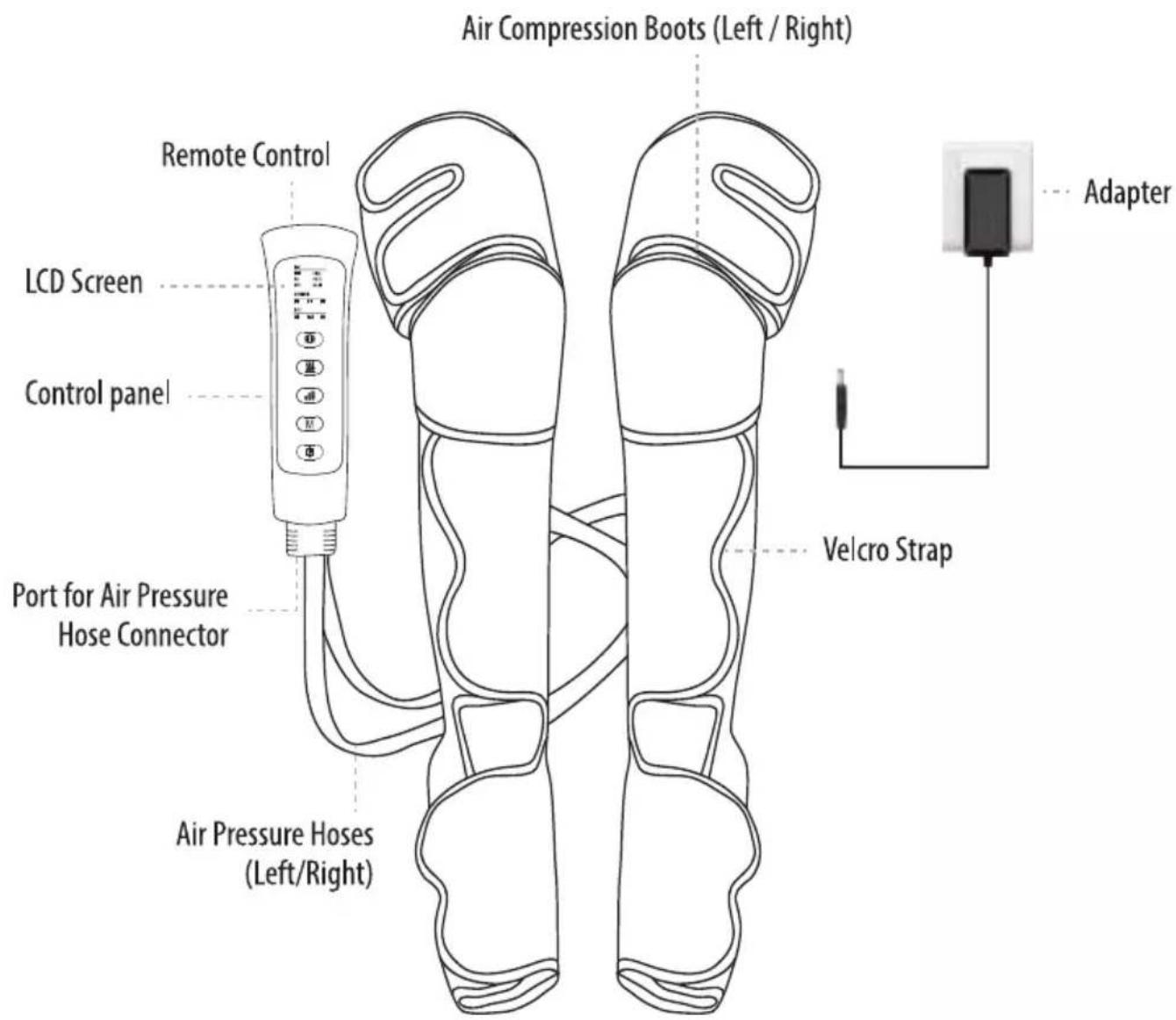

PRODUCT STRUCTURE

Operating Principle

Air Compression leg massager consists of an air pump, two solenoid valves, and air compression boots working together as one unit. The air pump is connected to air compression boots via air hoses; each boot has 3 compression chambers.

By inflating and deflating the air chambers through the control of working and/or idle of air pump and solenoid valves at a regular pace and different timing, it is to simulate the kneading, stroking foot/calf and thigh. Software controls the timing and the working and/or idle of air pump and solenoid valves, cycling airflow into and out of the boots to compress body.

PRODUCT SPECIFICATION

Product Name	Air Compression Foot & Calf & Leg Massager
Product Model	SLLGMSGR76
Power Specifications	DC12V, 2A
Power	24 W
AC Adapter	100-240VAC, 50/60Hz 0.7A
Pressurization	Automatic Pressurization
Therapy time (Automatic shut-off)	20 mins
Recommended Using	Recommend to use 2 times a day(i.e. 40 mins in one day)
Massage Intensity	Foot: Weak: 23 ± 2kpaMedium: 27 ± 2kpa Strong: 31± 2kpa
	Calf: Weak: 23 ± 2kpaMedium: 27 ± 2kpa Strong: 31 ± 2kpa
	Thigh: Weak: 23 ± 2kpaMedium: 27 ± 2kpa Strong: 31 ± 2kpa
Size of Inflatable air compression boots(Size: ±2cm)	1. Size: 71.5cm ×25cm2. The feet, calves and thighs which are suitable for the users of:Foot width: about 12 cm to about 16 cm.Calf diameter: about 16.5 cm to about 24 cm.Thigh diameter: about 19 cm to about 33 cm.
Product Weight About 1.25KG
Size of the control unit (±0.5cm)	(Length 20cm × Height 5.0cm × Width 5.5cm)
Operating Environment	Temperature: 5°C/41°F ~ 40°C/104°F
	Humidity: 15% ~90%RH
	Atmospheric pressure: 70kPa-106kPa
Storage Environment	Temperature: -25°C/-13°F ~ 70°C/158°F
	Humidity: ≤ 93% RH
	Atmospheric pressure: 70kPa-106kPa
Classification	Type BF Air compression boots are the applied part
Ingress Protection rating	IP 22, Indoor Use Only

USAGE METHOD

Check Before Use

• Check if the fabric is in good condition.
• Check if the unit is working properly (i.e. LCD icons should be lit) after power ON, and then select what massage mode and intensity you prefer. Please particularly check this if it is not used for a long time.
• There may be signs of use from the boot on the skin. If you are worried about marks from use, please wear stockings or pants before utilizing the massager. Please note that the device may leave marks of use on the feet, calves, knees and thighs, which may not immediately fade.

Note: Do not use it on clothes and trousers with zippers or metal objects. It may damage the product.

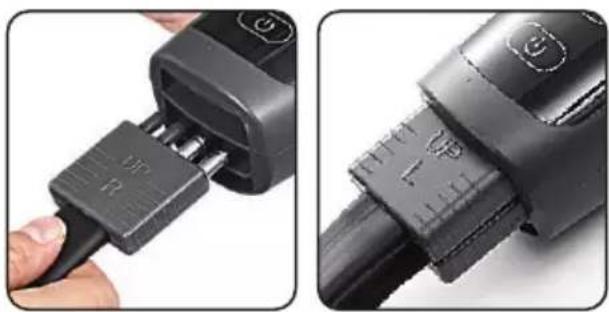

How to connect the controller with air hose.

As shown above, insert the words "R" and "L" on the hose into the corresponding "R" and "L" holes in the controller respectively.

Note: Make sure that the words on the hose are facing out so that the "L" is facing up, and the "R" is facing down.

Close-up of two black cable connectors with visible internal components, one being inserted and the other holding a connector (no text or symbols)

Air pressure cannot be produced if the device is not in this configuration.

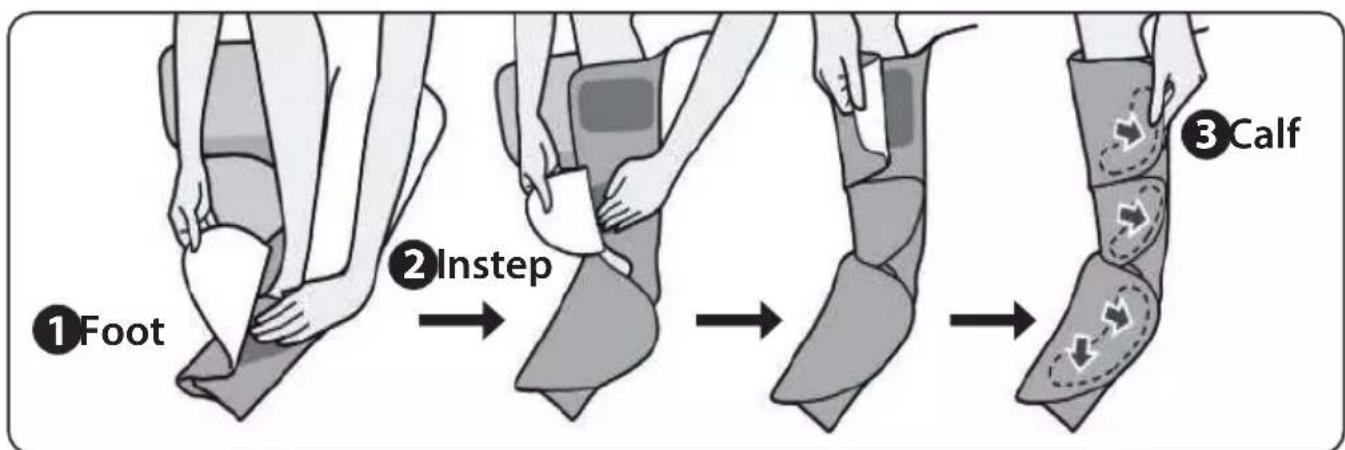

Wearing Order

1. Put the foot into the massager, start from the foot, fix the foot first, and then stick the velcro to the calf-thigh-knee in sequence, as shown below. There are two velcros on the calf.


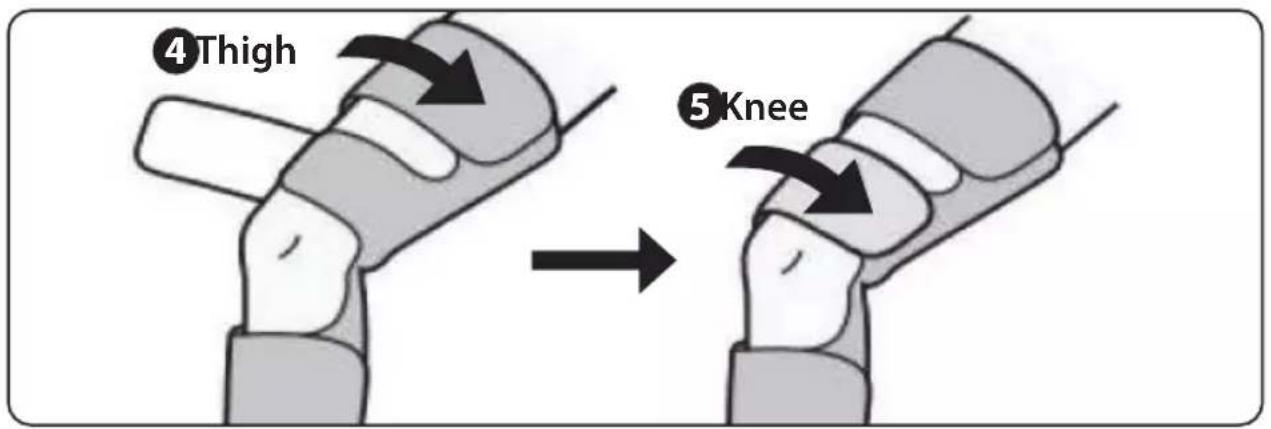

1. There are 2 velcros on the thigh, which can be adjusted according to the individual's leg circumference.
2. It is easier to attach the knee velcro strap following adjusting the velcro straps on the foot, calf, and thigh.

Note:

• It is easier to install if you sit on a chair.
• When installing, please be careful not to let velcro stick to the clothes or stockings, especially the sweater, so as not to damage your clothes.
  • After ensuring you have donned the boots and the velcro straps are secured to the boots, turn on the device and enjoy the massage.

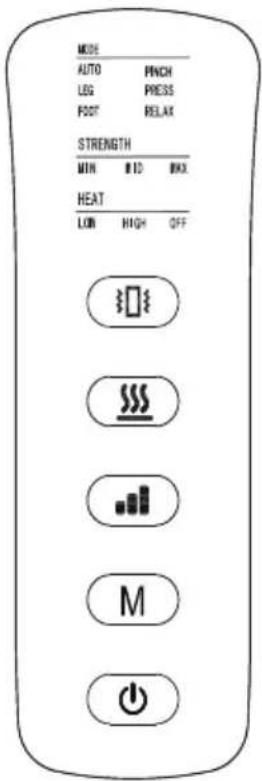

OPERATION

Press and hold this button for 2 seconds to turn ON the device, product auto working with:

Auto mode/mid intensities/high heat/vibration working. Press second time with 2 seconds to off device.

Press mode button to switch mode.

The sequence is as follows:

【AUTO】: Calf and feet pressure massage

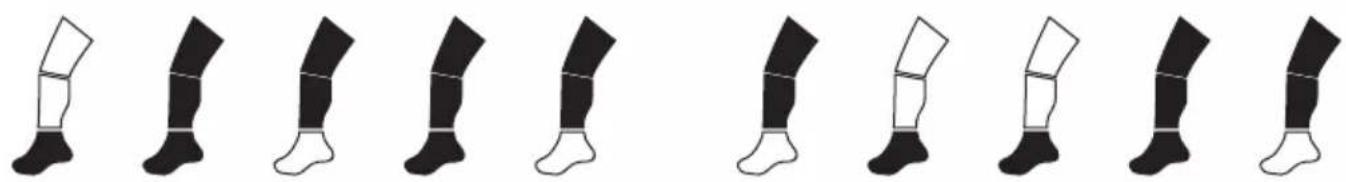

Five black-and-white illustrations of human legs in different leg positions, arranged horizontally (no text or symbols)

【LEG】: Only calf pressure massage

【FOOT】: Only calf pressure massage

【PINCH】: Calf and feet pressure massage

【PRESS】: Calf and feet pressure massage

Sequence of eight black-and-white images showing progressive changes in leg and foot positions (no text or symbols)

【RELAX】: Calf and feet pressure massage

Five black-and-white illustrations of human legs with different leg patterns, arranged horizontally (no text or symbols)

Adjust Strength Min/Mid/Max

Adjust Heat LOW/HIGH/OFF

Adjust the vibration mode. White light is mode 1, Green light is mode 2, and Blue light mode 3 vibration.

Remark:

Memory Function: The device will remember the current working mode status (air pressure, heating, vibration mode and gear) after starting the machine. It will be default maintained when you restart the machine next time.

Note:

When using the device, please ensure you are sitting or lying down to avoid risk of falling, and to enjoy the massage.

CLEANING & CARE

• Never use thinner, benzine or alcohol (which may cause malfunction, parts broken or discoloration, etc) to clean.
• Avoid dropping, slamming, or throwing the massager.
• Do not expose unit directly under sunshine.

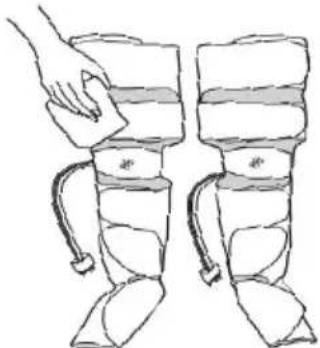

Wet the cloth and wring it out

If you are worried about dust, please use a neutral detergent suitable to be used in the kitchen, dilute to 5 % with warm or clean water, and then damp a soft cloth to clean it.

Illustration of two identical footshoes with handles, one being cleaned and the other wrapped around them (no text or symbols)

Clean

• Make sure to turn OFF the power and unplug the hose.
• Gently wipe the inside and outside of the leg massager.

Note:

• If rubbish or hair is caught in the velcro, remove it with a toothpick etc.
• Do not insert foreign objects into the outlet of the hose plug.
• A pair of boots is recommended exclusively for one person only.

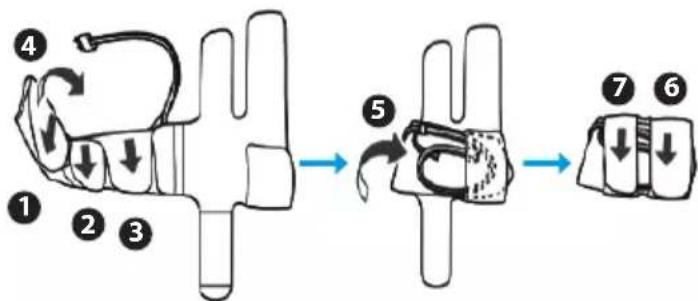

Storage

Stick the velcro on the feet, ankles and calves to the corresponding position at 1, 2, 3, and fold the foot part inward 4. Fold the ankle and calf 5, round the connecting hose and then fix it with a belt fastener 6, 7.

Safekeeping

Store the product in a dry place, away from moisture and direct sunlight.

1. Keep out of the reach of children.
2. Do not store other objects on the surface of the controller or massager to avoid damaging the device's surface and to avoid discoloration of the product.

FAQS

A. Under what circumstances should I not use it?

• During pregnancy or immediately after birth delivery.
  • Patients with severe blood circulation disorders cannot be used under the above circumstance.
• In addition, if you have a fever or any abnormality in your body, be sure to consult a doctor before use.

B. How many times can I use a day?

- The massager will automatically shut down after 20 minutes of continuous use. We do not recommend that you use the massager for more than 40 minutes in a day. Prolonged use will over-stimulate muscles and nerves and may have adverse effects.

C. Can it be used for other parts than feet, calves, knees and thighs?

- It is only for feet, calves, knees and thighs. Use in other parts may cause accident or injury.

D. What size feet, calves and thighs of users are suitable for?

• Foot width: about 12 cm to about 16 cm.
• Calf diameter: about 16.5 cm to about 24 cm.

E. The strength is too strong or too weak.

- The elasticity can be adjusted by the velcro wrap. When the velcro is loosely wound, the overall use strength and pressure will be relatively weakened. Otherwise, the overall intensity and pressure will be relatively strengthened.

F. The air in the massager hose can not exhaust.

- If a lot of air remains in the airbag, it may take some time to exhaust. Unplug the hose and wait for a while for the air to escape naturally.

G. The following sounds will be heard. Is it abnormal?

1. Velcro sound is crisp

This is the sound of the Velcro slightly opening on the massager (that is the sound of the Velcro being pulled when the air enters the airbag).

Buzzing sound

This is the sound produced by the mode effect.

These are normal which is caused by the product design of the massager.

Note:

- Expected service life: Approximately two years at 2 uses per day.

- Do not service or perform maintenance on the device while it is in use.

Maintenance should only be performed by service personnel.

Service and maintenance of your device may require repair, parts, and technical support. As noted in the beginning of the user manual, users should contact the manufacturer or the representative of the manufacturer for using or maintaining the product.

Black and white photo of two legless kneebs with attached medical device (no text or symbols visible)

TROUBLESHOOTING

Before requesting repairs, please confirm the following contents, and if errors persist after inspection, please contact your dealer.

Problems/Issues Check
The product won’t turn on.	Check if the AC adapter is connected
The product suddenly stops operating	1. Whether it is out of power2. Whether the hose plug is loose3. Whether the connecting hose is broken
Air does not enter	Whether the connecting hose is broken
Stress intensity is too weak	1. Are the accessories loose?You can tightly wind the Velcro properly.2. Do you wear thick stockings or pants?
Stress intensity is too strong	Is the attachment too tight?You can relax the Velcro appropriately.
Air can not be exhausted	Remove the accessory and pull out the hose plug to re-install.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

This marking shown on the product indicates that it should not be disposed with other household waste at the end of its life.

To prevent potential harm to the environment or to human health, please separate this product from other types of wastes and recycle it responsibly.

When disposing this type of product, contact the retailer where product was purchased or contact your local government office for details regarding how this item can be disposed in an environmentally safe recycling center.

Business users should contact their supplier and check the terms and conditions of the purchasing agreement. This product should not be mixed with other commercial wastes for disposal. This product is free of hazardous materials.

Features

• 11 Airbag Provides Massage Methods
• Helps Release Stress, Relief Fatigue and Pain
• 3 Intensity Levels and 4 Modes for Relaxation Experience
- Adjustable Leg Wrap Size up to 21 Inches
• Made of High Grade Sewn Fabric
- Heat Warmer Option for More Relaxing Use
• Automatic Shut Off Functions after 20 mins of Use
- Provide Compression and Heat
- Relieves Muscles and Blood Circulation
- 360^ Seamless Wrap Straps
- Easy to Clean and Maintain
- Portable Design with Own Storage Bag
• Re-chargeable with Smart Controller

What's in the Box:

• Air Compression Foot & Calf & Leg Massager
- Power Adapter
- PE Bag

Technical Specs:

• Construction Material: Soccer Leather with Mesh
  • Power Supply: AC 110V - 220V
  • Output: DC 12V 2A
• Heat and Vibration Time: 20 mins
  • Total Unit Dimensions (L x W x H): 4.7" x 10.2" x 29.1" -inches

serenelife™

Questions? Comments?

We are here to help!

Phone: [phone]

Email: [e-mail]
