KHM655 - Blender Kambrook - Free user manual and instructions

Type	Blender
Brand	Kambrook
Model	KHM655
Category	Blender
Power Rating	700 W
Jug Capacity	1.5 L
Material	Plastic jug, stainless steel blades
Number of Speeds	2 speeds plus pulse
Dishwasher Safe Parts	Jug and lid
Non-Slip Feet	Yes
Cord Length	1.2 m
Weight	2.5 kg
Dimensions (H x W x D)	38 cm x 18 cm x 18 cm
Voltage	220-240 V
Frequency	50/60 Hz
Safety Lock	Lid interlock switch
Overheat Protection	Yes
Warranty	2 years
Maintenance	Clean jug immediately after use; wipe motor base with damp cloth
Spare Parts Availability	Contact Kambrook service center
Manual Languages	English, French

Frequently Asked Questions - KHM655 Kambrook

How do I clean the blender jug?

The jug and lid are dishwasher safe. For quick cleaning, fill halfway with warm water and a drop of detergent, run on pulse, then rinse thoroughly.

Can I blend hot liquids?

No, allow hot liquids to cool to 60°C before blending to avoid pressure buildup and damage to the jug.

What is the maximum capacity?

The maximum liquid capacity is 1.5 L. Do not exceed the MAX line marked on the jug.

Why does the blender stop during operation?

The blender has overheat protection. If it stops, unplug and let it cool for 15-20 minutes before restarting.

Can I crush ice with this blender?

Yes, use pulse function in short bursts. Do not overfill the jug with ice.

Is the blade removable?

The blade assembly is fixed to the jug base. Do not attempt to remove it.

What is the power cord length?

The cord is 1.2 m long. For safety, do not use an extension cord.

How do I avoid leaks?

Ensure the lid is securely locked and the sealing ring is properly seated before blending.

What should I do if the motor smells burning?

Overloading may cause a burning smell. Turn off, unplug, and let it cool. Reduce the quantity next time.

Where can I find spare parts?

Contact Kambrook customer service or visit the official website for authorized service centers.

USER MANUAL KHM655 Kambrook

Black and silver electric hand mixer with a metal handle, no visible text or symbols

Suits all KHM655 models INSTRUCT

Important

Please retain your instruction book for future use.

In the event that you need some assistance with your Kambrook appliance, please contact our Customer Service Department on 1300 139 798 (Australia) or 0800 2738 45 (New Zealand). Alternatively, visit us on our website at www.kambrook.com.au or www.kambrook.co.nz

Your Kambrook Hand Mixer

Kambrook Recommends Safety First p4

Components p7

Using Your Hand Mixer p8

Mixing Guide p11

Care, Cleaning & Storage p12

Troubleshooting p13

Kambrook Recommends Safety First

IMPORTANT: READ ALL INSTRUCTIONS BEFORE USE AND SAVE FOR FUTURE REFERENCE

At Kambrook, we are very safety conscious. We design and manufacture consumer products with the safety of you, our valued customer, foremost in mind. In addition, we ask that you exercise a degree of care when using any electrical appliance and adhere to the following precautions.

Important Safeguards For Your Kambrook Hand Mixer

• Carefully read all instructions before operating the Kambrook hand mixer for the first time and save for future reference.
• Remove and safely discard any packaging materials and promotional labels before using the hand mixer for the first time.
• To eliminate a choking hazard for young children, remove and safely discard the protective cover fitted to the power plug of this hand mixer.
  • Always ensure that the accessories are correctly and securely fitted onto the hand mixer before operation. Follow the instructions provided in this book.
• Do not place the hand mixer on or near a hot gas or electric burner, or where it could touch any other source of heat. Always disconnect

the hand mixer from the supply if it is left unattended and before assembling, disassembling or cleaning.

• Unwind the power cord fully before use.
• If the safety overheat protection is activated due to excessive load and the hand mixer stops working when in use, unplug and allow the motor to cool down. Reduce the recipe quantity and/or operation time.
• Before attaching or removing any accessories (beaters, dough hooks or whisk), ensure the hand mixer is switched off at the power outlet and the power cord is unplugged.

• Do not operate this hand mixer continuously for more than 15 minutes. Allow the motor to rest between each use.

• Avoid contact with moving accessories. Keep hands, hair, clothing, as well as spatulas and other utensils away from the accessories during operation to reduce risk of injury to persons, and/or damage to the hand mixer.

• If food becomes lodged in or around the accessories, switch the hand mixer off at the power outlet and use a spatula to dislodge the food.
• Do not use the hand mixer with wet hands.
• Only use the beaters, dough hooks and whisk supplied with the hand mixer. The use of accessories not sold or recommended by Kambrook may cause fire, electric shock or injury.
• Do not use the hand mixer with hot or boiling ingredients. Allow ingredients to cool before mixing.
• Remove beaters, dough hook, or whisk from the hand mixer body before washing them.
• All maintenance (other than cleaning) is to be done by an authorised Kambrook Service Centre.
• Keep the hand mixer clean. Follow the Care, Cleaning and Storage instructions provided in this book.

Important Safeguards For All Electrical Appliances

• Fully unwind the power cord before use.
• Connect only to 230V or 240V power outlet.
• Do not let the power cord hang over the edge of a bench or table, touch hot surfaces or become knotted.
• To protect against electric shock, do not immerse the power cord, power plug or appliance in water or any other liquid, unless it is recommended in the cleaning instructions.
• The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance, by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• It is recommended to inspect the appliance regularly. Do not use the appliance if the power supply cord, plug, connector or appliance becomes damaged in anyway. Return the entire appliance to the nearest authorised Kambrook Service Centre for examination and/or repair.

• Any maintenance other than cleaning should be performed at an authorised Kambrook Service Centre.

• This appliance is for household use only. Do not use this appliance for other than its intended use. Do not use in moving vehicles or on boats. Do not use outdoors. Misuse may cause injury.

• The installation of a residual current device (safety switch) is recommended to provide additional safety protection when using electrical appliances. It is advisable that a safety switch with a rated residual operating current not exceeding 30mA be installed in the electrical circuit supplying the appliance. See your electrician for professional advice.
• During electrical storms, the appliance should be disconnected from the power source oat the wall socket to prevent any electrical surges that may arise during the storm and which may inadvertently cause damage to the appliance and its electronic componentry.

• Always turn the appliance to the OFF position, switch off at the power outlet and unplug at the power outlet when the appliance is not in use.
- Before cleaning, always turn the appliance to the OFF position, switch off at the power outlet, unplug at the power outlet and remove the power cord, if detachable, from the appliance and allow all parts to cool.
- Do not place this appliance on or near a heat source, such as hot plate, oven or heaters.
- Position the appliance at a minimum distance of 20cm away from walls, curtains and other heat or steam sensitive materials and provide adequate space above and on all sides for air circulation.

Components

1. Beaters For overall mixing and incorporating of ingredients.
2. Digital control display
3. 7 speed selector scroll wheel Press and hold down the scroll wheel to activate turbo boost on any speed.
4. Quick-release trigger To release beaters, dough hooks and whisk without force.
5. Balanced, ergonomically designed handle.
6. Motor body

7. Snap-on storage case

8. Dough hooks To combine mix and knead heavier batters and doughs.

9. Whisk To maximise aeration for lighter ingredients like cream and eggs. Operates in either accessory socket on the base of the hand mixer.

Not Shown

- Swivel cord To allow for both left-hand and right-hand use.

Using Your Hand Mixer

BEFORE FIRST USE

Before first use, remove and safely discard any promotional labels. Ensure that you have all parts and accessories listed in the components list before discarding the packaging.

NOTE

Ensure the hand mixer is unplugged and the speed selector scroll wheel is set to ☐ (OFF) before assembling, cleaning or changing accessories.

1. To release the hand mixer from the snap-on storage case, pull outward on the corner of the storage case where indicated at the opening, while simultaneously pulling upwards and in the opposite direction on the handle of the hand mixer. (Fig. 1) Remove the accessories from the storage case.

1. Wash the beaters, whisk, dough hooks and storage case in warm, soapy water. Rinse and dry thoroughly. Wipe the motor base with a slightly damp cloth and dry.

2. Insert the accessories required for the mixing task (beaters, dough hooks or whisk) into the accessory sockets on the base of the hand mixer.

3. Accessories should be fitted into the hand mixer as below:

a. If using the beaters, they are interchangeable and will operate in either accessory socket.

b. If using the single whisk, it will operate when fitted to either socket.

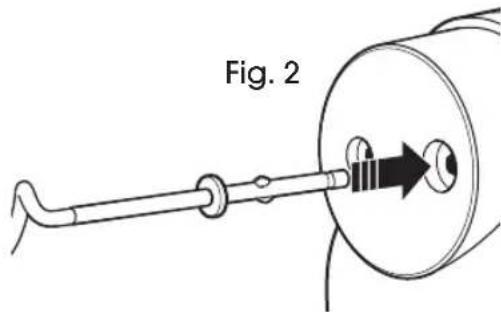

c. If using the dough hooks, insert the dough hook with the collar into the larger socket and the non-collared dough hook into the smaller socket. (Fig. 2)

WARNING

Dough hooks must be inserted into the correct sockets as they are not interchangeable and incorrect insertion will result in damage.

NOTE

Always ensure the beaters, whisk or dough hooks are properly inserted before operating.

NOTE

Accessories should be removed using the quick-release trigger, however, they will detach if pulled from the hand mixer.

Using Your Hand Mixer

Operating Your Hand Mixer

- For convenience, this hand mixer has a left or right-hand cord swivel to help keep the cord out of the way no matter which hand you use, or where the outlet is located. (Fig. 3)

Diagram showing a flower-like object being inserted into a curved structure, labeled Fig. 3 (no text or symbols on the diagram itself)

1. Plug the power plug into a 230V or 240V power point and turn on at the outlet.
2. Insert assembled beaters, whisk or dough hooks into an appropriately sized mixing bowl with the ingredients to be mixed.

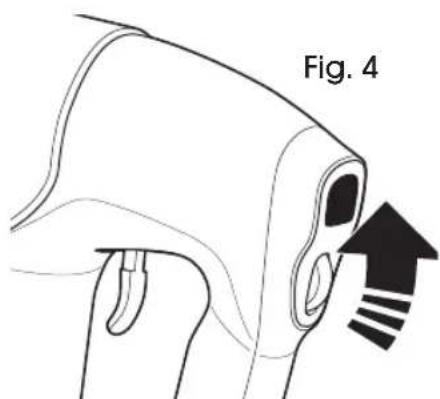

3. Scroll through the speed selector scroll wheel to the desired speed, starting at 1 and increasing up to 7, as desired. (Fig. 4) The selected speed will be shown on the digital control display.

NOTE

This hand mixer is designed with a DC motor for quiet and efficient operation using high torque at lower speeds than a traditional AC model.

NOTE

To minimise splatter when first turned on, the hand mixer has a slow start feature.

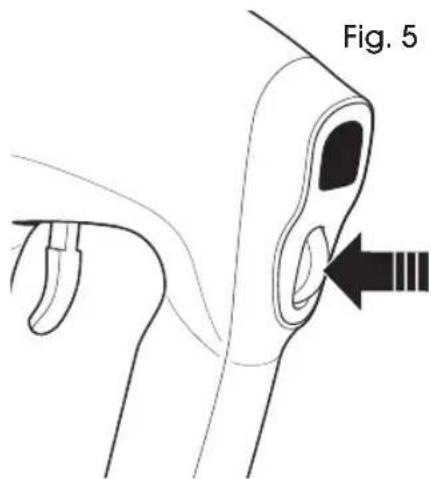

1. For a quick instant boost of power at any speed, use the turbo boost function. Press and hold down the speed selector scroll wheel to activate. (Fig. 5) The hand mixer will operate on speed 7 while this function is active. Release the speed selector scroll wheel to return to the original speed selected.

Medical illustration of a surgical instrument with labeled part 'Fig. 5' and arrow pointing to a specific area (no text or symbols beyond label)

Using Your Hand Mixer

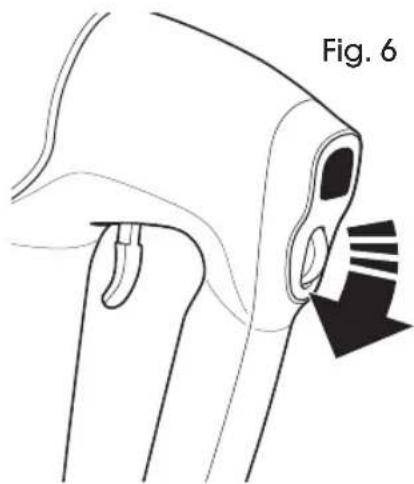

1. When mixing is completed, move the speed selector scroll wheel to Ⓞ (OFF). (Fig. 6) Turn off and unplug from the power outlet.

Diagram of a medical device with a black arrow indicating a specific anatomical feature, labeled 'Fig. 6' (no text or symbols on the diagram itself)

NOTE

Always unplug the hand mixer before attempting to remove the hand mixer accessories.

1. Hold the accessories by the shaft and squeeze upwards on the quick-release trigger located under the handle on the hand mixer to quickly and easily eject. (Fig. 7)

Medical illustration of a surgical instrument with an arrow indicating a specific anatomical feature (no text or symbols present)

Mixing Guide

SPEED FUNCTION ATTACHMENT FOOD
○	OFF
1 Stirring	Beaters Combining Ingredients
2 Folding	Beaters Cake Mix (fresh and packaged)
3 Kneacing	Dough Hooks Bread & Pasta Dough
4 Mixing	Beaters Potato Mash
5 Creaming	Whisk	Frosting
6	Beating	Whisk	Whipped Cream
7	Whipping	Whisk	Egg Whites

Care, Cleaning & Storage

Before cleaning, ensure the speed is in the 'O' (OFF) position on the speed selector scroll wheel, then switch the hand mixer off at the power outlet. Remove the power plug from the power outlet, then allow the hand mixer and all attachments to cool completely before disassembling and cleaning.

1. Remove any accessories used (beaters, whisk, and dough hooks) and wash in warm, soapy water. Rinse and dry thoroughly.
2. Wipe the motor body with a damp cloth and dry thoroughly.

NOTE

Do not place any part of the hand mixer inside the dishwasher.

WARNING

Do not use chemicals, steel wool, metal scouring pad or abrasive cleaners to clean the hand mixer compartment or accessories as these can damage the hand mixer.

WARNING

Never immerse the hand mixer, power cord or plug in water or any other liquid.

Storage

The hand mixer comes with a handy snap-on storage case so you will never have to go searching for your accessories again.

1. Sit the storage case on a flat surface and place the beaters, whisk and dough hooks inside. Position the beaters so they are in opposite directions from each other. Do the same for the dough hooks, then add the whisk, ensuring all attachments lay flat in the storage case. Tuck the power cord into the storage case.

2. With the hand mixer slightly tilted at the front, align the slots on the sides on the hand mixer motor body with the tabs on the sides of the storage case. Push firmly downwards until the motor body snaps securely onto the storage case. The hand mixer is secure when lifted and the storage case stays attached.

NOTE

The storage case is designed to snap tightly onto the hand mixer motor body to ensure that it does not come apart when moved.

NOTE

Do not wash or soak the motor body in water or any other liquid. Do not allow water or any other liquid to enter the motor body and gear system as damage may result.

Troubleshooting

Problem Possible Issue Solution
The motor does not seem as fast on high speed as I am used to.	The DC motor is designed to operate quietly and efficiently, using less power to perform the same mixing tasks as an AC model.	This is normal.
The motor works very slowly.	Too many ingredients in the bowl. Remove some ingredients and restart.
	The speed selector scroll wheel is set too low.	Set the speed selector scroll wheel to a higher speed.
The motor does not start.	The power plug is not plugged into the wall outlet, the outlet is not turned on, or the circuit breaker has been tripped.	Plug into outlet and check function of outlet.
	The hand mixer is not turned on. Move	speed selector scroll wheel to the desired speed.
	The motor may have overheated Let the motor to cool down and reduce the recipe quantity and/or operation time.
	The motor is damaged. Call our customer service department.
The accessories stop rotating.	This hand mixer has a safety feature when it detects a heavy load (no rotation).	To reset, turn control knob to (OFF) and let it rest until the motor cools
	Too many ingredients in the bowl. Remove some ingredients and restart.
