Product Type	Digital Retail Scale
Brand	Tor Rey
Model	PC-80L
Category	Balance
Cabinet Material	Stainless Steel
Plate Material	Stainless Steel
Plate Holder Material	Aluminum
Keyboard Type	Membrane, Multifunction
Display Type	LCD with Backlight
Backlight	Automatic (when AC connected) or Manual
Power Supply	AC/DC Adapter: 9V DC, 500 mA
Built-in Battery	Rechargeable 6V
Battery Life (Fully Charged)	Up to 30 hours of continuous operation
Recharge Time	10 hours (scale turned off)
Functions	Weighing, Price per lb/kg, Tare, Fixed Price, Price Add-up, Memory (100 locations), Price Multiplying (1/2 and 1/4), Zero Reference, Power-Off Timer
Memory Storage	100 memories (00-99), direct access keys M1-M15
Operating Temperature	14 to 104 °F (-10 to 40 °C)
Storage Temperature	-4 to 122 °F (-20 to 50 °C)
Dimensions (W x D x H)	13 15/16 x 11 7/16 x 5 5/8 in (35.40 x 29.05 x 14.28 cm)
Cleaning Instructions	Use damp rag; do not use water flow, solvents, or detergents
Safety Warnings	Do not open, avoid impact, protect from insects, use exclusive 120V AC outlet
Certifications	Approved by (not specified in manual)
Accessories	AC/DC power supply, user manual

Frequently Asked Questions - PC-80L Tor Rey

How do I weigh a product?

Turn on the scale. After the countdown, zeroes appear. Place the product on the plate. The weight appears in the upper-left indicator.

How do I enter a price per pound?

Press the numeric keys on the keyboard to enter the price. It will appear in the PRICE indicator and the total will calculate automatically.

How do I use the TARE function?

Place an empty container on the scale and press the TARE key. The display shows zero. Then add the product; only the product weight is considered.

How do I save a price to memory?

Enter the price, press STO, then enter the memory address (00-99) or press a direct access key (M1-M15).

How do I recall a memory?

Press RCL then the memory address (00-99) or press the corresponding direct access key (M1-M15). The stored price appears in the PRICE indicator.

How do I recharge the battery?

Connect the AC/DC adapter to the scale and a 120V outlet. Leave the scale turned off for 10 hours for a full charge.

What does 'HELP' mean on the display?

It may indicate the scale was turned on with heavy weight on the plate, or it was handled roughly. Remove any weight, turn off, then turn on again. If persists, contact authorized distributor.

How do I clean the scale?

Use a damp rag to clean the plate, cover, and keyboard. Do not use water flow, solvents, or detergents. Dry with a clean cloth.

How do I turn on the backlight?

Automatically when AC adapter is connected, or manually by pressing the backlight key (key with light icon).

What is the 'Fixed Price' function?

It locks the price per pound so it does not clear when the product is removed. To activate, after entering price, press the Fixed Price key. A small arrow appears. Press the key again to deactivate.

USER MANUAL PC-80L Tor Rey

I

M

P

O

R

T

A

N

T

W

A

R

N

I

INTRODUCTION

4

INSTRUCTIONS

FOR

INSTALLATION

NAME

AND

LOCATION

OF

IMPORTANT

PARTS

KEYBOARD

6

GENERAL

VIEW

FINDER

(LCD

DISPLAY)

OPERATIONS DESCRIPTION

7

HOW

TO

WEIGHT

A

PRODUCT

H

O

W

T

O

E

N

T

E

R

P

R

H

O

W

T

O

C

L

E

A

R

W

R

USE

OF

THE

"

FIXED

PRICE"

U

S

E

O

F

T

H

E

"

T

A

R

HOW

TO

USE

THE

"REFERENCE

TO

ZERO"

P

R

I

C

E

A

D

D

-

U

P

PRICE

MULTIPLING

FUNCTION

HOW

TO

SAVE

MEMORIES

H

O

W

T

O

L

O

A

D

A

M

HOW

TO

TURN

ON

THE

BACKLIGHT

POWER

OFF

TIMER

FUNCTION

U

S

E

O

F

T

H

E

B

A

T

T

B

A

T

T

E

R

Y

R

E

C

H

A

R

G

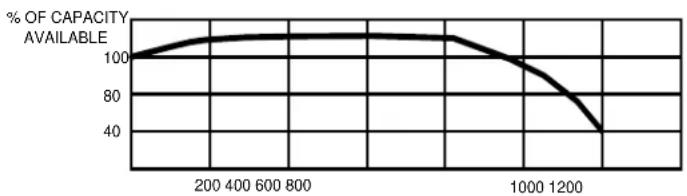

LIFE

TIME

OF

THE

RECHARGEABLE

BATTERY

L

O

W

B

A

T

T

E

R

Y

I

N

D

HOW

TO

ACCESS

THE

COUNTERS

OTHER IMPORTANT MESSAGES THAT APPEAR MAINTENANCE AND CLEANING

ON

THE

SCALE

T

R

O

U

B

L

E

S

H

O

O

T

I

N

G

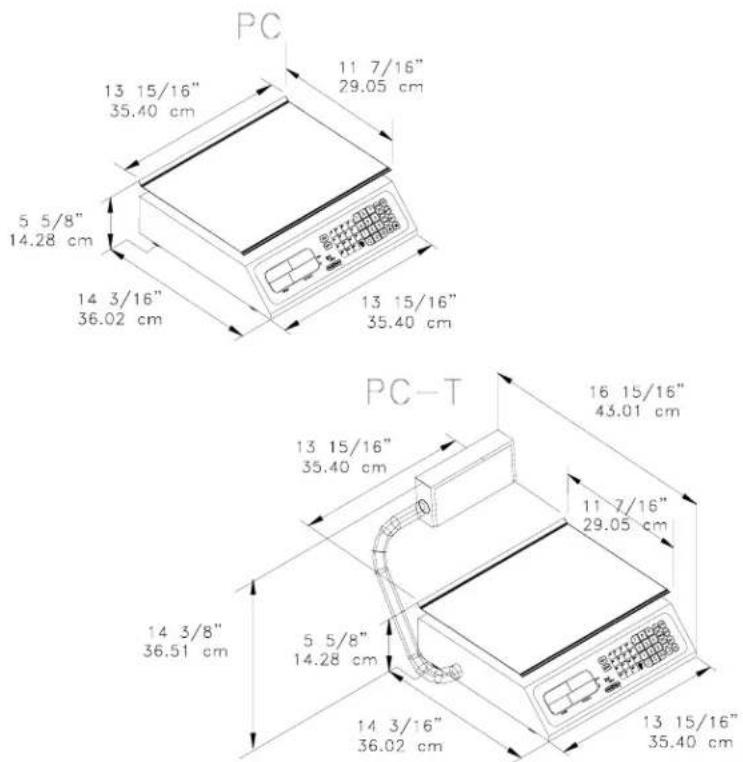

TECHNICAL SPECIFICATIONS AND SCALE DIMENTIONS

WARNING

!!DO NOT OPEN ii RISK OF SHORT CIRCUIT

CAUTION: TO REDUCE THE RISK OF SHORT CIRCUIT IN YOUR SCALE, DO NOT REMOVE THE COVER OR SUBSTITUTE ANY OF THE PARTS FOR OTHERS THAT ARE NOT ORIGINAL. ONLY AUTHORIZED DISTRIBUTOR

IMPORTANT WARNINGS

Cartoon illustration of a computer with a scroll and document, no text or symbols present

Cartoon illustration of a soldering iron with three tools in the background (no text or symbols)

Cartoon illustration of a hand pressing down on a computer screen with a sad face (no text or symbols)

1.- IN CASE YOU HAVE A PROBLEM 2.- DO NOT OPEN THE SCALE ON 3.- "NEVER" PRESS THE KEYBOARD WITH THE SCALE, FIRST READ THE YOUR OWN. YOUR WARRANTY WILL WITH OBJECTS SUCH AS PENCILS, THE WARRANTY CONDITIONS. BE CANCELED.

Cartoon illustration of two anthropomorphic devices, one with a computer and the other with a smiling face, interacting with a device (no text or symbols present)

Cartoon illustration of a megaphone spraying water with a long rod, emitting steam (no text or symbols)

4.- USE A 120 V AC OUTLET EXCLUSIVE FOR THE SCALE AVOIDING OVERLOAD OR VOLTAGE VARIATIONS.

5.- "NEVER" WASH THE SCALE USING A FLOW OF WATER. THIS CAN DAMAGE THE ELECTRONIC COMPONENTS. FOR MORE INFORMATION READ "MAINTENANCE

Cartoon illustration of a computer with speech bubbles and floating objects (no text or symbols)

Simple line drawing of a bottle and container with a cube on the ground, no text or symbols present.

6.- PROTECT THE SCALE FROM INSECTS 7.- DO NOT DROP OR HIT THE SCALE 8.- DO NOT USE SOLVENTS OR (MAINLY FROM ROACHES) THEY CAN SERIOUSLY WITH THE PRODUCT TO BE WEIGHTED DETERGENTS FOR CLEANING DAMAGE THE ELECTRONIC COMPONENTS. USE BECAUSE AS TIME GOES BY IT WILL ONLY USE A DAMP RAG. SOLID PRODUCTS AGAINST ROACHES. DAMAGE THE WEIGHT SENSOR.

Illustration of a hand reaching toward a device with a fan above, next to a box and a graduated cylinder (no text or symbols)

Cartoon illustration of a steaming machine with steam clouds and a broom (no text or symbols)

9.- DO NOT PLACE FANS OR HEATERS DIRECTED TOWARDS THE SCALE.

10.- DO NOT PLACE THE SCALE WHERE THERE IS A LOT OF MOISTURE AND/OR DUST.

11.- ONLY AUTHORIZED AND QUALIFIED PERSONNEL SHOULD CHECK AND REPAIR YOUR SCALE.

INTRODUCTION

DEAR CUSTOMER:

We appreciate that you have chosen this product and we assure you that you will get the maximum satisfaction of the new acquisition for your bussines the scale has been designed to give you a great deal saving time and money, avoiding losses by human mistakes of interpretation and calculation, offering you more fluency and security in your commercial tasks.

To make your equipment a long lasting investment, we suggest to read carefully this manual and make sure to keep it at hand for later consultations. In this manual we indicate the necessary steps to benefit and prolong your appliances availability.

INSTRUCTIONS FOR INSTALLATION

1.- Unpack the scale and check the conditions of the product. If it is damaged report it immediately to your authorized distributor.
2.- Place the scale where there is not any movement or vibration, make sure it is leveled adequately checking that the four leveling bases are supporting the scale over the surface were it has been placed and if the level bubble (under the plate) is centered, to adjust, tighten or loosen the leveling bases until the bubble is in the center of the circle.
3.- Connect the AC/DC power supply (if you use it) to a 120 V A.C. outlet.
4.- Turn the scale on after the countdown sequence your scale will display zeroes and will be ready to use.

Cartoon illustration of a robot-like character with arms and legs, no text or symbols present

Cartoon illustration of a character holding a device next to a screen, with no visible text or symbols.

IMPORTANT NOTE: If your scale displays "HELP" after you followed the previous steps and after the initial countdown, it means that it was handled roughly and/or got hit during the shipment, which cause irreversible damage in its operation. Call your authorized distributor. It is possible that the scale displays "HELP" when you turn it on with weight on the plate, when this happens, remove the weight and turn the scale off and then turn it on

NOTE: ALL THE EXAMPLES IN THIS MANUAL WERE PERFORMED IN A PC-40L SCALE MODEL

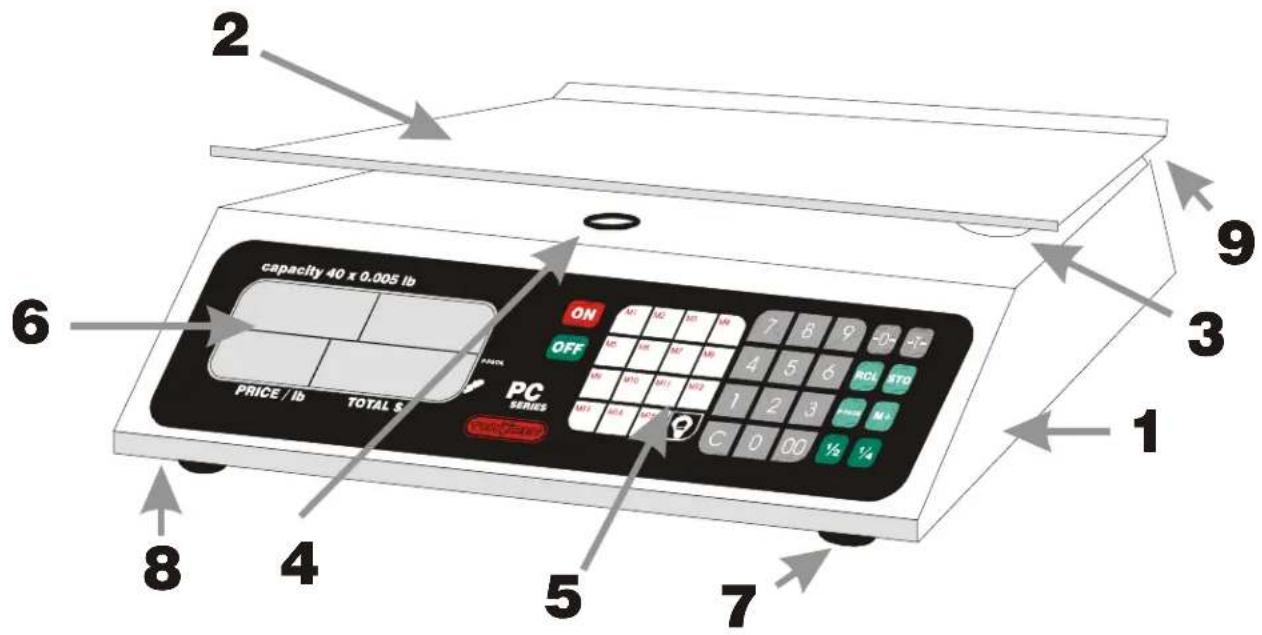

NAME AND LOCATION OF IMPORTANT PARTS

1. CABINET:	Manufactured in stainless steel and resistant to corrosion and strokes.
2. PLATE:	Also manufactured in stainless steel with the border bent and rounded.
3. PLATE HOLDER:	Manufactured in aluminum that provides resistance to corrosion.
4. LEVEL BUBBLE:	Inserted in the cabinet. It is used to level the scale.
5. MEMBRANE KEYBOARD:	It has multifunctions, with big and readable keys.
6. GENERAL VIEW FINDER:	It shows the necessary information it has individual indicators upper left indicator, alphanumeric ("MODE") indicator, "PRICE" indicator, "TOTAL" indicator.
7. LEVELING BASES:	They level the scale tightening or loosening them.
8. JACK:	Connects the AC/DC power supply to the scale.
9.- CUSTOMER VIEW FINDER:	Customer display.

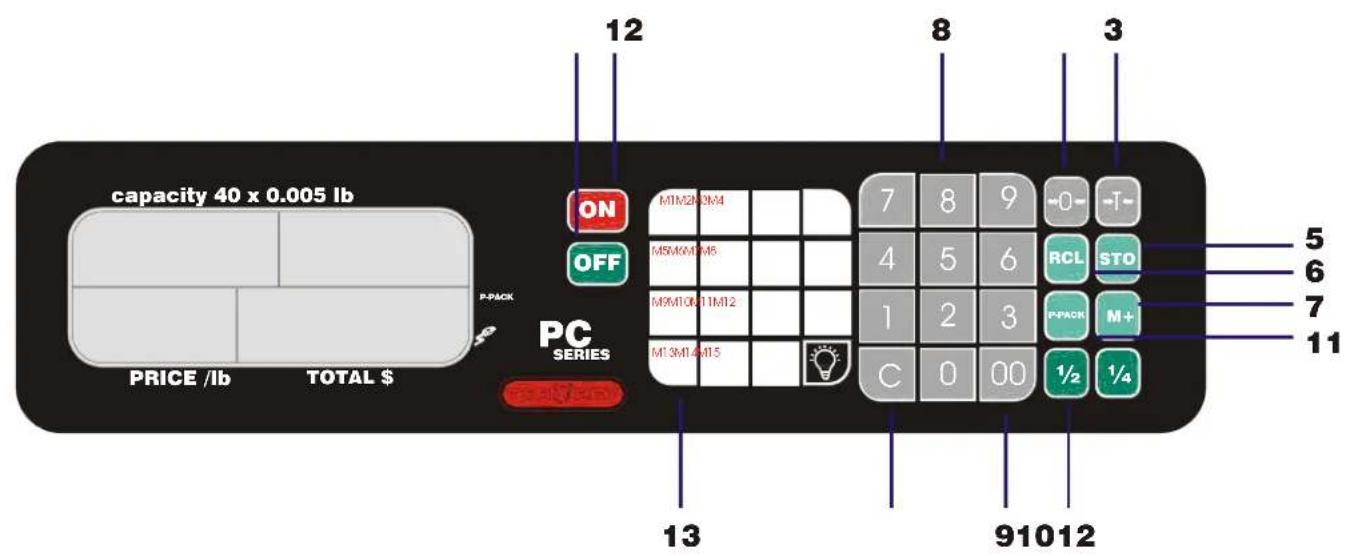

KEYBOARD

4) This key is used to eliminate any containers weight that you do not wish to consider during a transaction (for example: boxes, bags, bottles, etc).

10) Key used to clear wrong data that has been entered with the keyboard. It is also used to eliminate the "FIXED PRICE" function.

Key used to turn on the scale.

When this key is pressed the appliance turns off.

This key is used to start with zero on the weight.

This key is used to eliminate any containers weight that you do not wish to consider during a transaction (for boxes, bags, bottles, etc).

is used to store prices in a memory location of the scale.

it is used to load a PLU price from memory.

Key used to add prices up.

... Numerical section: it is useful to enter data into the scale such as price per pound or kilogram.

Enter two zeroes.

Key used to clear wrong data that has been entered with the keyboard. It is also used to eliminate the "FIXED function.

It enables the function "FIXED PRICE".

, Keys used to multiply the unit price under 1/2 o 1/4 lb or kg mode.

, ..., PLU's direct access keys.

Key used to turn on/off the backlight.

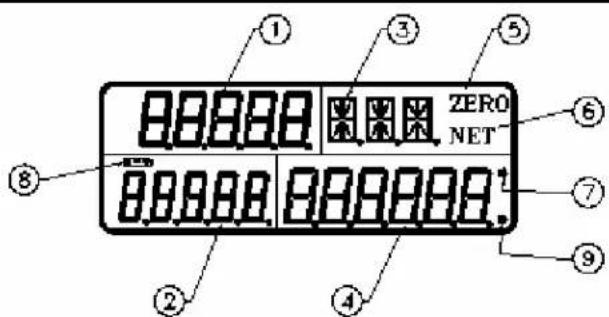

GENERAL VIEW FINDER ( LCD DISPLAY )

①.- UPPER-LEFT indicator: shows the products weight in POUNDS or KILOGRAMS when this happens, the symbol Ib or kg appears in the alphanumeric ("MODE") indicator ③.
②.- PRICE indicator: shows the price per POUND or KILOGRAM of the product. This price can have up to 5 digits.
③.- ALPHANUMERIC ("MODE") indicator: this can show the following readings:

lb. / kg. When a product is being weighed on the scale.

NEG. When there is a negative weight.

TOT. When you want to see the "total sale".

④.- Total amount to pay indicator (" TOTAL"): shows the partial or total sale during a commercial transaction.
⑤.- ZERO indicator: this reference to ZERO indicates that the scale is ready to start weighing products. The indicators disappear when a weight is placed on the scale.
⑥.- NET indicator: indicates that the TARE function has been activated. This indicator disappears when you press the key.
⑦.- FIXED PRICE indicator: when it is activated, it indicates that the price per POUND or KILOGRAM that is shown in the indicator will not be cleared automatically when the product is removed from the scale (it is fixed).
⑧.- LOW BATTERY indicator: when the battery energy is too low, this indicator turns on to tell you that it is necessary to recharge it.
⑨.- AC/DC POWER SUPPLY indicator: it means that the scale was connected to the AC/DC power supply.

OPERATIONS DESCRIPTION.

HOW TO WEIGHT A PRODUCT

At the end of this countdown sequence, zeroes will appear in the view finder, indicating that the scale is ready to use.

If not, see section reference to zero. Then place the product to be weighed on the plate and you will see the weight in the corresponding indicator.

HOW TO ENTER PRICES

The product price per pound or kilogram is entered pressing the numbers of the keyboard to indicate the desired value. This value will appear in the "PRICE" indicator and the total amount to pay will be calculated automatically being shown in the

"TOTAL" indicator. For example, if the product price per pound in the previous examples is \$8.20, just press

and the following display will appear:

HOW TO CLEAR WRONG PRICES

When a mistaken price is entered, you can clear it in two ways:

a) Manually: Simply press the clear key and enter the correct price.
b) Automatically: The price is automatically cleared removing the product from the plate, except if it's not enabled the fixed price function.

FIXED PRICE FUNCTION

When it is necessary to constantly be weighing the same kind of product, one does not change its price, you can use the "FIXED PRICE" function. It is used to keep the price "FIXED" in the "PRICE" indicator avoiding it to be automatically cleared when the weight is removed from the scale.

To fix a price, follow these steps:

1.- Place the product on the plate.
2.- Enter the product price per pound or kilogram.

3.- Press.

After these steps, a small arrow will light up in the upper right corner of the "TOTAL" indicator, pointing to the label "P-PACK" (fixed price). As an example, suppose that the product is ham, the weight is 4 pounds, and the price is \$2.70 per pound after entering the fixed price, the view finder will look like this:

To clear the fixed price function, just press the key.

USE OF THE "TARE"

When you wish to weight a product in a container but you do not want to consider the containers weight during the operation, you can use the TARE function. To use this function follow this steps:

Suppose you are going to weight 15 pounds of sugar in a plastic container that weights 3.5 pounds and that the price per lb is \$1.80.

1.- Place the empty container on the scale.

2.- Press the key. After some seconds the view finder will display:

3.- Remove the container and put the sugar inside it. When you remove the container, a negative number (weight of the container) appears in the UPPER-LEFT indicator.

4.- Place the container on the scale and put in the container sugar until you have 15 lb. Then enter the price per pound press

It is important to mention that this function is subtractive from the scale maximum capacity. For example if you have a container that weights 7 lb, The scale will only be able to weight up to 33 lb of product to complete the maximum capacity.

HOW TO USE THE REFERENCE TO ZERO

This function has two uses:

a) Permanent tare: when you wish to weigh some products over a same container several times, you should use this

function, and to eliminate it, just remove the container from the plate and press -0- key again. As in the tare function this function is also subtractive from the scale capacity, for example: if you reference to 10 lb, the scale will only be able to weight up to 30 lb.

b) Due to voltage variance or some other factor, it is possible that without having any weight over the plate, the view finder

shows some weight, or that the zero flag it's not on, then press the key 🔍 and the scale will be referenced to zero turning the zero flag on.

PRICE ADD-UP

When you want to add some prices up follow these steps:

1.- Put the commodity over the plate with the unit price (for example a price of \$2.20 and a

weight of 1.50 lb) and press M+

3.- Put another good with the unit price and then press M+ .

5.- To delete the sum total press key when the sum total is displayed.

2.- Remove the commodity.

4.- When you press with the total indicator in zeroes you will see the sum total accumulator without adding any price up.

PRICE MULTIPLING FUNCTION

When you want to use the price per 1/4 or 1/2 lb or kg put the weight over the plate and enter price per 1/4 or 1/2. Then press 12 or 14 key automatically appears the price per lb or kilogram. If the price does not exceed 999.99 It will be displayed on the unit price. If you want to use any of these keys again remove the commodity and follow the same procedure.

HOW TO SAVE MEMORIES

Your scale has 100 memories to store the prices of 100 products that are sold more frequently. The memories are numbered from 00 to 99.

To save a price in a memory location:

1) Type the price you wish to save.

2) Press key.

3) Type the memory address (00-99) in wich you wish to save the price, or you also can press any of the direct access keys , ..., .

NOTE: We suggest to use an adhesive label to mark the direct access keys.

HOW TO LOAD A MEMORY:

1) Press the key RCL and then the memory address (00-99) you wish to load or just press any of the direct access keys.

Example:

If you wish to save \$26.60 in the memory address 6, follow these steps:

1) Type 2 6 6 0 2) Press STO 3) Type 0 6 or just press the direct access key M6

With this sequence the price is saved in the memory address 06. If you wish to load the memory of this example just type RCL 0 6 or just Mo, and in the "PRICE" indicator will be displayed the price stored in memory, in this case will be \$26.60.

To change the price stored in a memory just type the new price and store it in the memory address you want to change following the procedure described above. These keys are very useful to avoid type the same price constantly. To use these memories we suggest to have at hand the product list that are saved in each memory address.

To delete all the memories that are stored, turn the scale on and during the countdown type RCL M+ 1/2 and all the memories will be deleted to zero.

HOW TO TURN ON THE BACKLIGHT

This scale model has a backlight that helps you to see better the display information. It can be turned on in two ways:

1) Automatically: when an AC adaptor is connected to the scale.

2) Manually: It can be performed by pressing the key.

And can be turned off in two ways:

1) Automatically: when the scale is powered only by battery and the battery is low the backlight is turned off.

2) Manually: It can be performed by pressing the key.

Note: Using the backlight and only powering the scale with the battery, the charge of the battery will last less hours

This function is permanently enabled when the scale is on, and only when you do not have the AC/DC power supply connected to the scale. When the scale is not use for a period of time greater than 15 minutes, it will automatically turn off and therefore all the information of the transaction you were doing will be lost. To turn on the scale again, just press the ON key, and repeat your customers operations. The power off timer function permits you to save electricity and avoids constant battery recharges.

USE OF THE BATTERY

As mentioned before, the scale can operate with a 6 volt built in battery or with an AC/DC power supply. The battery is rechargeable using the AC/DC power supply.

BATTERY RECHARGE

To make this operation, just connect the AC/DC power supply to the scale for 10 HOURS making sure that the scale was turned off. The energy stored in the battery during a recharge can last up to 30 hours of continuous operation. When you recharge the battery for some hours, but the battery can not get enough charge to turn on the scale, then you must have to charge the battery, in this case contact to your authorized distributor.

LIFE TIME OF THE RECHARGEABLE BATTERY

SERVICE LIFE IN RELATION TO CHARGE/DISCHARGE

CHARGE AND DISCHARGE CYCLES

The charging capacity of the rechargeable battery in this scale decreases according to the number of charge/discharge cycles, this causes that the service life is reduced to 1000 cycles. For these reason the warranty period for the battery is limited to six months after the purchase date of the scale.

LOW BATTERY INDICATOR

If the battery does not have enough energy to keep the scale operating a long time, a low battery indicator appears in the "PRICE" indicator (☐). This is the first warning signal indicating that it is necessary to recharge the battery. Even with this signal, it is possible for the scale to keep on operating for a short period of time (30 minutes), but after a second warning signal appears "LOW bAt" in the alphanumeric and "TOTAL" indicators, the scale stops itself and does not respond to the instructions until the battery be recharged or be connected to the AC main.

HOW TO ACCESS THE COUNTERS

The scale is equipped with two important counters: The Calibration counter and the counter of times that configuration has been changed. This counters must be only accessed by official office of weights and measures inspectors.

The calibration counter displays the number of times the scale has been “recalibrated” by a technician.

The counter of times that the internal configuration has been changed displays the number of times that a technician has reconfigured the “internal function” in the scale.

In both cases, the customer can only check the amount that is displayed, but can not make any changes.

To check the counter follow these instructions:

A) Calibration counter

1.- Turn on the scale

1. Press

finder will display

during the initial countdown, at the end of the countdown the view

B) Counter of times that the internal configuration has been changed

1.- Turn on the scale

1. Press

finder will display

during the initial countdown, at the end of the countdown the view

If any of the two cases, to get to the normal operation mode, just turn off the scale and turn it on again. Your scale leaves the factory like the examples.

OTHER IMPORTANT MESSAGES THAT APPEAR ON THE SCALE

This message indicates that a weight that exceeds the maximum capacity has been placed on the scale. To correct it simply, remove the over weight.

This message appears in two different situations:

a) When the scale is turned on with an excessive weight on the plate (near to the half capacity of the scale). To correct this situation remove the weight on the scale, turn off the scale, and then turn it on again.
b) When the scale was handled roughly and/or got hitted during the shipment, wich caused irreversible damages in its operation. In this case call your authorized distributor.

This message indicates a negative weight, this could happen if you lift or remove the scales plate to correct this put the plate back in its place and press the -0- key or turn the scale off and then turn it on again.

This message appears when:

If we turn on the scale with a product on the plate, to eliminate this message simply remove the product that is on the scale, turn off the scale and then turn it on again.

This message indicates that the total was exceeded when the multiplication price per weight exceed 999999 then appear lines in the "TOTAL" indicator.

This message indicates that the battery needs to be recharged. Although this flag appears the scale can continue working during a time of 30 min. approximately.

If this message appears in intervals on the display, indicates that the scale needs to be recharged. Even with this advise the scale can continue working during a time of 30 min. If it appears and after some seconds the scale turns off, it indicates that the scale is completely discharged. In this point the scale doesn't work and all of the operations performed at that time will be lost. To correct this problem connect the AC/DC adaptor for a period of time of 10 hrs. and keeping the scale off. In case of using the scale during this period, there's no problem to use it, only the recharge time will be higher.

This arrow indicates that the scale is working under the "FIXED PRICE" mode.

This arrow indicates that the scale AC adaptor is connected to the 120 VCA

MAINTENANCE AND CLEANING

-- Do not use a flow of water to clean your scale. Use a damp rag and clean each of these components daily: plate, cover, keyboard.
--To remove oil and greasy substances, use a dry and clean rag, rubbing the dirty area several times.
--Periodically check the jack (where the AC/DC power supply is inserted) to make sure it is in good condition. That is, there are no signs of strokes or detachments.
--Periodically check the AC/DC power supply to make sure the ends are in good condition and that the cable is not twisted or tangled.
--Regularly check the scale to assure it is correctly leveled with its four bases well supported.
--When you clean the scale make sure that there are not any papers, or any other kind of material under the plate or under the plate-holder that could obstruct the adequate operation of your scale.
--Periodically place some type of insecticide on the scales base to avoid insects (specialy roaches) that can dirty the interior and alter its adequate operation.
--Do not use detergents nor corrosive liquids while cleaning.
--Do not expose your scale to temperatures below -10 °C (14 °F) or above 40 °C (104 °F).

TROUBLESHOOTING

Before you call for service to your authorized distributor because of a malfunction in your scale, we suggest you first check this manual again to avoid a misunderstanding of the operation and use of the functions. If everything is correct, then try to correct the problem according to the following list since a simple checkup or a small adjustment could eliminate it. If you do not find the problem, contact your authorized distributor.

Problem	Possible	cause
It does not operate.	There is not electric current.AC/DC Power supply cable has a false contact.Low battery.	With a multimeter check if there is electric current in the outlets.Check that the AC/DC power supply terminals, if it is possible, check with another AC/DC power supply.Connect the AC/DC power supply if the scale operates, then recharge the battery.
The scale shows different weights when the same product is weighed several times.	Material under the plate holder is obstructing the correct movement.	Check that there are not materials under the plate holder. If there are, remove them and check the operation again.
If the message “PLS. UnLOAD” appears in the view finder.	The scale was turned on with a weight on the plate or without the plate.	Remove the weight or put back the plate in its place. Turn off the scale and then turn it on again.
The word "HELP" appears in the "PRICE" indicator.	The scale was turned on with a big weight on the plate.	Remove the weight and turn off the scale and then turn it on again.

TECHNICAL SPECIFICATIONS

Model PC-40L & PC-40LT	PC-20/20T PC-35/35T
Max. Capacity 40 lb 20 kg	35 kg
Min. Division 0.005 lb 0.005	kg 0.010 kg
Max. Tare	9.95 lb	9.999 kg 35.00 kg
Max. Price	$999.99
Range of operation temp.	14 to 104 °F (-10 to 40 °C)
Range of storage temp	-4 to 122 °F (-20 to 50 °C)

AC/DC POWER SUPPLY :

OUTPUT

9 Vd.c. 500 mA.

APPROVED BY

SCALE DIMENTIONS
