Product Type	Flat Panel Wall Mount
Brand	Allsee
Model	AS0346VF
VESA Compatibility	200x200, 300x300, 400x200, 400x400, 600x400, 800x400 mm
Weight Capacity	Up to 100 kg (220 lbs)
Material	Steel
Color	Black
Installation Surface	Solid brick or concrete wall
Included Components	Wall plates (x2), connecting pieces (x2), adapter brackets (x2), antiskid blocks (x2), hardware kits (M5, M6, M8), Allen key
Adjustment	Horizontal slide (left/right); tilt access via kickstands; vertical and horizontal leveling
Security	Padlock compatible (padlock not included)
Maintenance	Check bracket security every 3 months
Indoor Use Only	Yes
Assembly Required	Yes

Frequently Asked Questions - AS0346VF Allsee

What is the maximum weight this mount can support?

The AS0346VF has a rated weight capacity of up to 100 kg (220 lbs). Always ensure the total weight of your display and attached hardware does not exceed this limit.

What VESA patterns are compatible with this mount?

This mount supports VESA patterns: 200x200, 300x300, 400x200, 400x400, 600x400, and 800x400 mm. Check your display's VESA pattern before purchasing.

Can this mount be installed on drywall or wood studs?

No, this mount is designed for solid brick or concrete walls only. For other surfaces, consult a professional installer.

What tools are needed for installation?

The included Allen key is sufficient for assembly. For wall mounting, you will need a drill, appropriate drill bits, and a level. Hardware for concrete walls is provided.

How do I adjust the tilt of my display?

The mount features kickstands that provide tilt access for cable management and maintenance. Gently push the display to achieve the desired tilt angle.

Can I slide the display left or right after mounting?

Yes, the mount allows horizontal sliding for fast alignment. Push the display left or right to adjust its position on the wall plate.

Is this mount compatible with curved screens?

This mount is designed for flat back screens. For curved or recessed back screens, adapter brackets can be used; however, ensure the VESA pattern matches.

How do I secure the display to prevent theft?

The mount has a padlock hole. Use a padlock (not included) to lock the display onto the wall plate, preventing unauthorized removal.

How often should I inspect the mount?

It is recommended to check the bracket security and stability at least every three months to ensure safe operation.

What should I do if I am missing parts?

Refer to the component checklist in the manual. If any parts are missing or faulty, contact your local distributor for replacement.

USER MANUAL AS0346VF Allsee

Technical line drawing of a metal shelving unit with vertical supports and mounting holes (no text or symbols)

CAUTION: DO NOT EXCEED RATED LISTED WEIGHT, SERIOUS INJURY OR PROPERTY DAMAGE MAY OCCUR!

AS0346VF

AS0348VF

200x200 /300x300 400x200/400x400 600x400

200x200 /300x300 400x200/400x400 600x400/800x400

NOTE: Read the entire instruction manual before you start installation and assembly.

WARNING

• Do not begin the installation until you have read and understood all the instructions and warnings contained in this installation sheet. If you have any questions regarding any of the instructions or warnings, please contact your local distributor.
• This mounting bracket was designed to be installed and utilised ONLY as specified in this manual. Improper installation of this product may cause damage or serious injury.
• This product should only be installed by someone with good mechanical ability who has basic building experience and fully understands this manual.
• Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
• Always use an assistant or mechanical lifting equipment to safely lift and position the equipment.
• Tighten screws firmly, but do not over tighten. Over tightening can cause damage to the items, This greatly reduces their holding power.
• This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.

Component Checklist

IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, telephone your local distributor for a replacement.

wall plate (x2) A

connecting piece (x2) B

adapter bracket (x2) C

antiskid block (x2) D

M5xB (xB) E

Allen key(x1) F

Package M

(M-A) (×4)

M6x14 (x4)M5x14 M-B

M6x30 (x4) M-C

M8x30 (x4) M-D

(M-E) (x4)

washer (x4) big spacer M-F

M-G

(x8)M8x50
(x8)small spacer M-H

Package W

ST6.3x55 (x6) W-A

concrete anchor (x6) W-B

D6 washer (x6) W-C

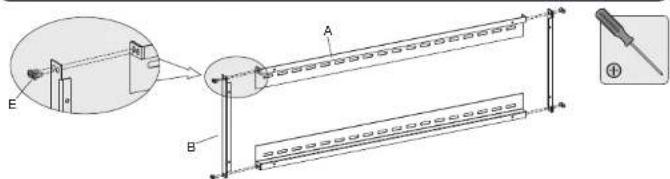

1. Assembling the Wall Plates with the Connecting Pieces

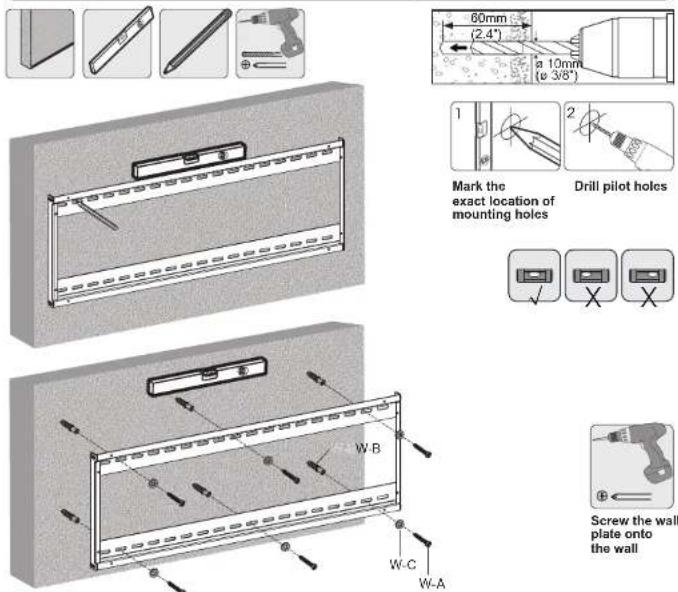

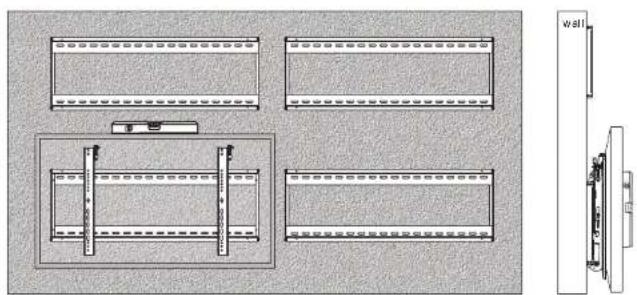

1. For Solid Brick and Concrete Wall Mounting

WARNING

Installers must verify that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.

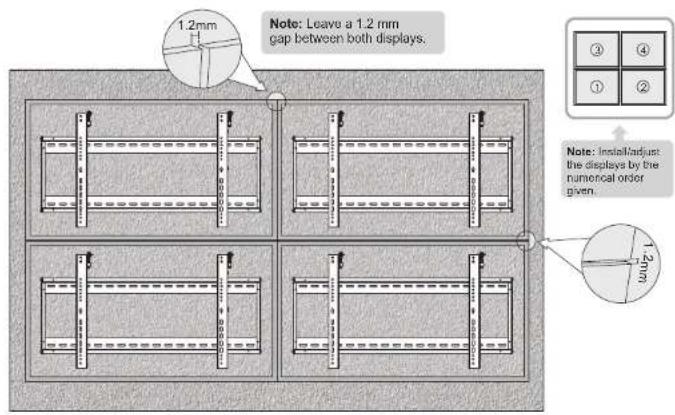

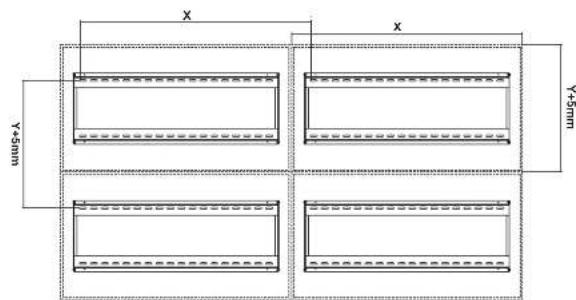

3. For Video Wall Installation (Mounting space as shown below)

X=length of display Y=height of display

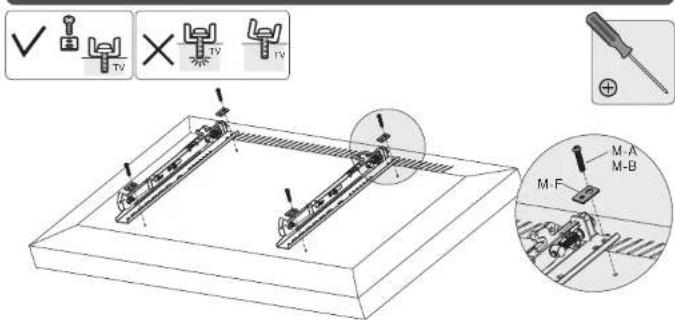

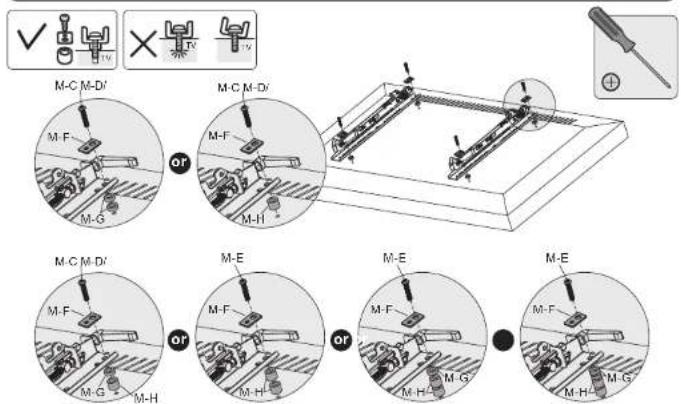

1. Installing the Adapter Brackets


4a For Flat Back Screens

4b. For Bump-out or Recessed Back Screens

Note: Choose the appropriate screws, washers and spacers (if necessary) according to the type of screen.

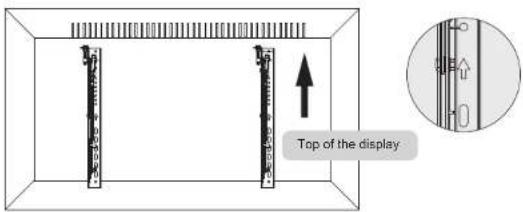

- Position the adapter brackets as close as possible to the center of the display.
- Screw the adapter brackets onto the display
Tighten all screws but do not over tighten.

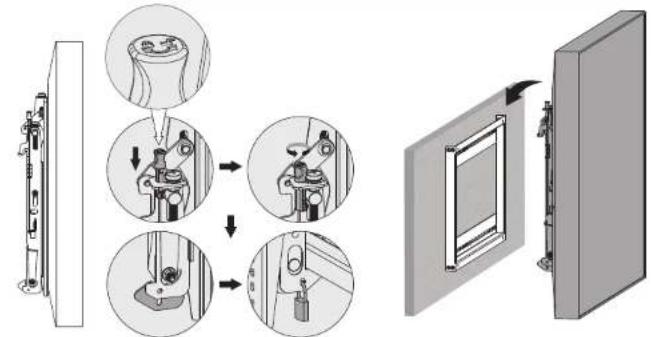

1. Wall PlateHooking the Display onto the


Note: Before hooking the display, make sure the knobs are rotated to the unlock position.
- Lift the display carefully and hook the display onto the wall plate. Rotate the knobs to the lock position for secure the display.
- Use the padlock to prevent the display from being stolen.(Padlock is not included)

1. Adjustment


Diagram of a rectangular device with two vertical supports and bidirectional arrows indicating movement or force (no text or symbols)

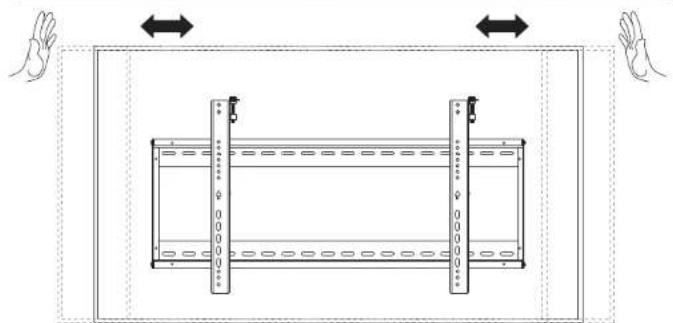

Push the display to left or right to enable fast alignment.

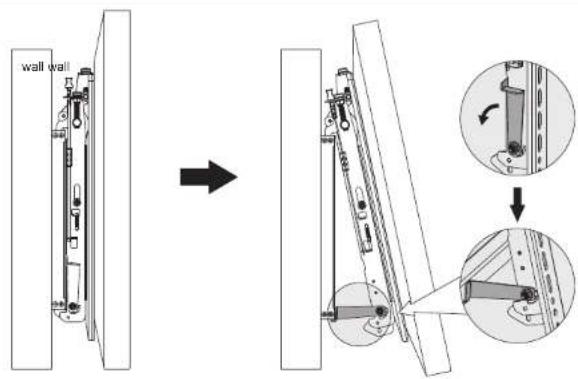

Kickstands provide tilt access for easy cables management and maintenance.

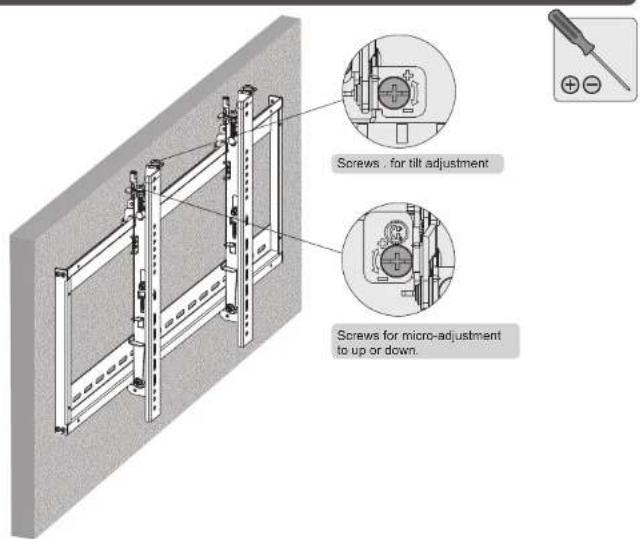

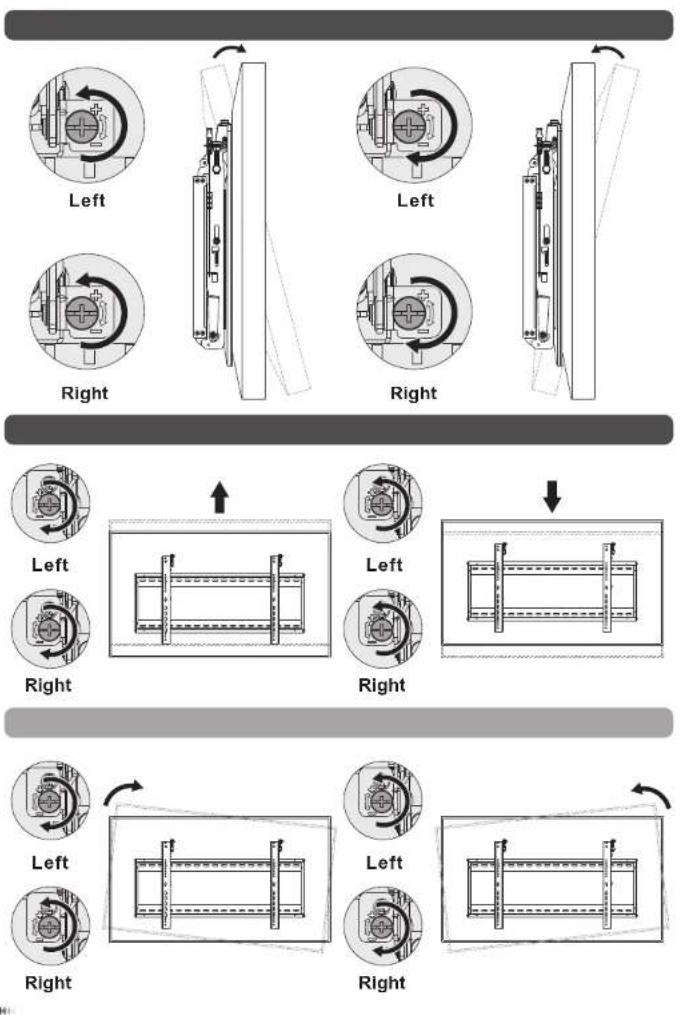

1. Level the Displays


Technical diagram showing four rectangular panels with internal structures and a separate wall-mounted component (no text or symbols)

Adjust the display to keep level in vertical and horizontal directions.

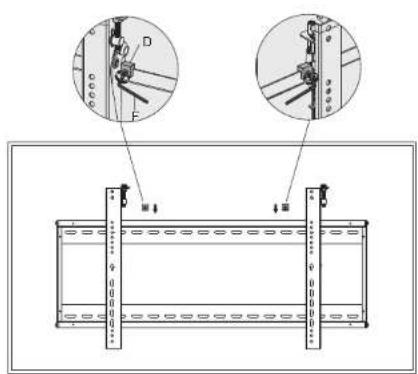

1. Fixing the Brackets Position with the Antiskid Blocks

Install the both antiskid blocks as close to the adapter brackets as possible.
Tighten screws on the antiskid blocks using an Allen key to prevent display from moving.

Maintenance

• Check that the bracket is secure and safe to use at regular intervals (at least every three months).
• Please contact your distributor if you have any questions.
