Product Type	Folding Treadmill (Under-Desk)
Brand	LifeSpan
Model	WalkingPad M2 (LFT 05)
Expanded Dimensions	1445 x 518 x 125 mm (56.9 x 20.4 x 4.9 in)
Folding Dimensions	825 x 518 x 136 mm (32.5 x 20.4 x 5.4 in)
Walking Area	1200 x 400 mm (47 x 15.7 in)
Net Weight	25 kg (55 lbs)
Maximum Load	100 kg (220 lbs)
Speed Range	0.5 - 6 km/h (0.5 - 3.7 mph)
Power Input	735W, 220-240V~
Modes	Manual Mode, Automatic Mode, Standby Mode
Display	LED panel showing Speed, Time, Distance, Calories, Steps
Remote Control	Wireless remote with Start/Stop, Speed +/- , Mode switch; includes lanyard
App Connectivity	Bluetooth; KS Fit App (iOS & Android)
Folding Mechanism	Manual fold; flat storage
Safety Features	Emergency stop via remote; child lock in app; error warning light; auto calibration safety; anti-pinch design
Belt Calibration	Manual adjustment via remote or app; hex wrench included
Lubrication	Every 3 months with silicone oil (5-10 ml)
Cleaning	Wipe with mild cleaner on cotton cloth; do not spray directly on belt
Battery (Remote)	CR2032 lithium coin cell
Warranty	Covered under Australian Consumer Law; see warranty form online
Suitable Age	14-60 years
Intended Use	Residential indoor use only

Frequently Asked Questions - WalkingPad M2 LifeSpan

How do I unlock the full speed limit on the WalkingPad M2?

Two steps are required: 1) Walk 2 km on the device, then reboot. 2) Complete the Novice Guide in the KS Fit App to unlock all functions. Otherwise, the speed is limited to 3 km/h.

What is the difference between Manual Mode and Automatic Mode?

In Manual Mode, you control the speed using the remote control or app. In Automatic Mode, an intelligent algorithm adjusts the speed based on your walking pace (sensors detect position on the belt). Automatic mode is considered advanced and recommended for experienced users.

How do I pair the remote control if it stops working?

Restart the WalkingPad, then press and hold the mode switch button on the remote immediately. A 'Beep' sound indicates successful pairing. Keep the remote close to the LED display panel during pairing.

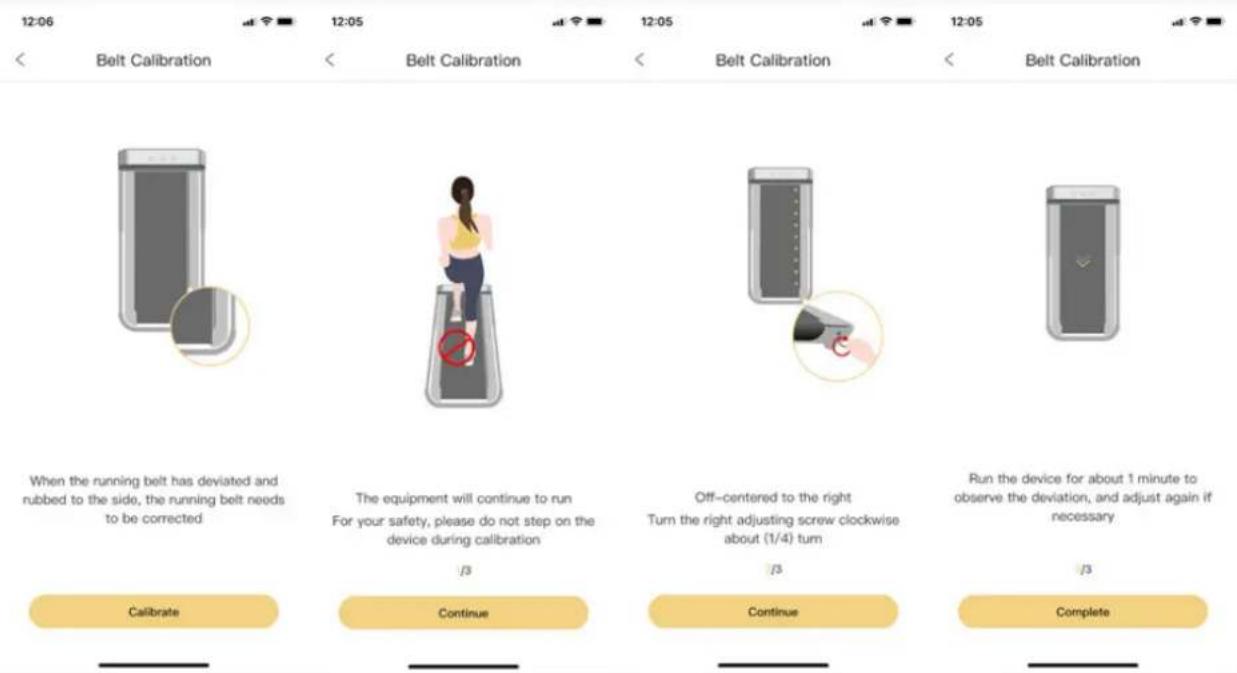

How do I calibrate the walking belt if it drifts?

With the treadmill powered on, press and hold both Mode and Speed Increase buttons on the remote for 3 seconds until 'CALI' appears and the belt runs at 3 km/h. If the belt moves left, turn the left adjusting screw clockwise 1/4 turn. If right, turn the right screw clockwise 1/4 turn. For slipping, turn both screws clockwise 1/2 turn. Run for 1-2 minutes, then re-adjust if needed. Press the function key to stop.

What does the error code E01 mean?

Error code E01 indicates that the upper control receives lower control data abnormally. Refer to the manual for a full list of error codes (E01-E21). Common causes include communication issues or sensor failures. If persistent, contact support.

Can I use the WalkingPad M2 on a carpet?

It is recommended to place the WalkingPad on flat, hard ground. Thick, soft carpets are not recommended as they may affect stability and cause uneven wear.

How do I enable the child lock?

Open the KS Fit App, go to Device Settings, and toggle the Child Lock option on. When enabled, the treadmill will not start unless the lock is deactivated via the app.

How often should I lubricate the walking belt?

Lubricate every three months. Use 5-10 ml of silicone oil. Apply to the inner surface of the belt while the treadmill is off and unplugged, then run at 3 km/h for 10-20 seconds. Do not over-lubricate as it may cause slipping.

What should I do if the remote control battery is dead?

Replace the CR2032 coin cell battery. Remove the screw on the back cover of the remote, open the compartment, replace the battery, and reattach the cover. Dispose of old batteries properly.

Is it safe to walk backwards or sideways on the WalkingPad?

No. The manual explicitly prohibits walking backwards or sideways. Only walk forward facing the display. Walking in other directions increases the risk of falling.

USER MANUAL WalkingPad M2 LifeSpan

LFT 05 WalkingPad™ M2 Treadmill

USER MANUAL

Line drawing of a rectangular electronic device with a curved handle and flat panel (no text or symbols)

Product may vary slightly from the item pictured due to model upgrades.

Read all instructions carefully before using this product. Retain this owner's manual for future reference.

NOTE:

This manual should not be used to guide your purchasing decision. Your product, and the contents inside its carton, may vary from what is listed in this manual. This manual may also be subject to updates or changes. Updated manuals are available through our website at www.lifespanfitness.com.au

TABLE OF CONTENTS

I. Important Safety Instructions 03
II. Welcome 05
III. Product and Accessories 06
IV. Function Diagram 07
V. Set-Up Guide 10
VI. Learn to Use the Treadmill 12
VII. Safety Instructions .... 15
VIII. Maintenance and Adjustments 21
IX. Replacement and Disposal 23
X. KS Fit App Instructions 24
XI. Exercise Guide 28
XII. Warranty 30

I. IMPORTANT SAFETY INSTRUCTIONS

The appliance is intended for residential use.

DANGER

To reduce the risk of electric shock: Always unplug this appliance from the electrical outlet immediately after using and before cleaning.

WARNING

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. An appliance should never be left unattended when plugged in. Unplug from outlet when not in use, and before putting on or taking off parts.
2. Close supervision is necessary when this appliance is used by, or near children, invalids, or disabled persons.
3. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
4. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return the appliance to a service center for examination and repair.
5. Do not carry this appliance by the supply cord or use the cord as a handle.
6. Keep the cord away from heated surfaces.
7. Never drop or insert any object into any opening.
8. Do not use outdoors.
9. Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
10. To disconnect, turn all controls to the off position, then remove the plug from the outlet.

WARNING

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be completed by children without supervision.
2. Correct disposal of this product. This marking indicates that this product shall not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your device, please use the return collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety.

Children should be supervised to ensure they do not play with the appliance.

WARNING: Keep young children away from this machine at all times. Contact with the moving surface may result in severe friction burns.

Battery Safety

Blue circular icon with white pictograms of a person and child, no text or symbols present

! WARNING

THIS PRODUCT CONTAINS A BUTTON BATTERY THAT IS HAZARDOUS AND IS TO BE KEPT AWAY FROM CHILDREN

The battery can cause severe or fatal injuries in 2 hours or less if it is swallowed or placed inside any part of the body. Seek medical attention immediately if this occurs.

If suspected of swallowing the battery or otherwise placed inside any part of the body, please contact Australian Poison Centre immediately on 13 11 26.

Hotline is open 24/7.

Call triple zero (000) immediately if you or someone you know stops breathing, slips into a coma, or has a seizure or a severe allergic reaction to suspected poisoning.

II. WELCOME TO USE

Thank you for choosing Lifespan Fitness WalkingPad Walking device, hereinafter referred to as a WalkingPad, which possess various advantages including exquisite, foldable, innovative integral design. From now on, enjoy the quality life of walking at home.

Line drawing of a smartphone with a rounded top and rectangular body (no text or symbols)

Performance & Indicators Detailed Parameter

Expansion Dimensions	1445 x 518 x 125mm56.9" x 20.4" x 4.9"
Folding Dimensions	825 x 518 x 136mm32.5" x 20.4" 5.4"
Walking Area	1200 x 400mm47" x 15.7"
Net Weight 25kg / 55lbs
Maximum Load 100kg / 220lbs
Applicable Age 14-60 years old
Applicable Height Unlimited
Minimum Speed 0.5km/hr 0.5 mi/hr
Maximum Speed 6km/hr 3.7 mi/hr
Power Input 735W
Rated Voltage	220 - 240v ~
Sport Mode	Standby mode/ Manual mode/Automatic mode

III. PRODUCT AND ACCESSORIES

Please check if the items inside the packaging are complete and intact. In case of any item missing or broken, please contact the seller.

Line drawing of a smartphone front panel with no text or symbols

Main Product

ACCESSORIES

Power Line Remote Control

Remote Control Lanyard

Hex L Shaped Wrench

Silicon Oil User Manual

IV. FUNCTION DIAGRAM

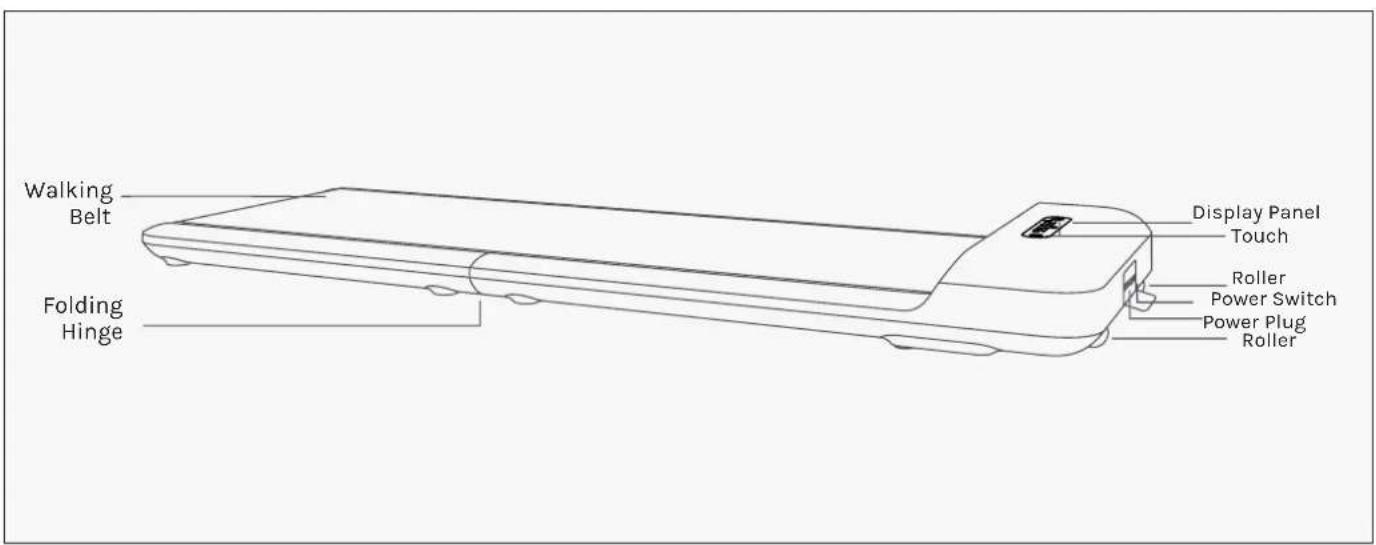

1. Product Main Body

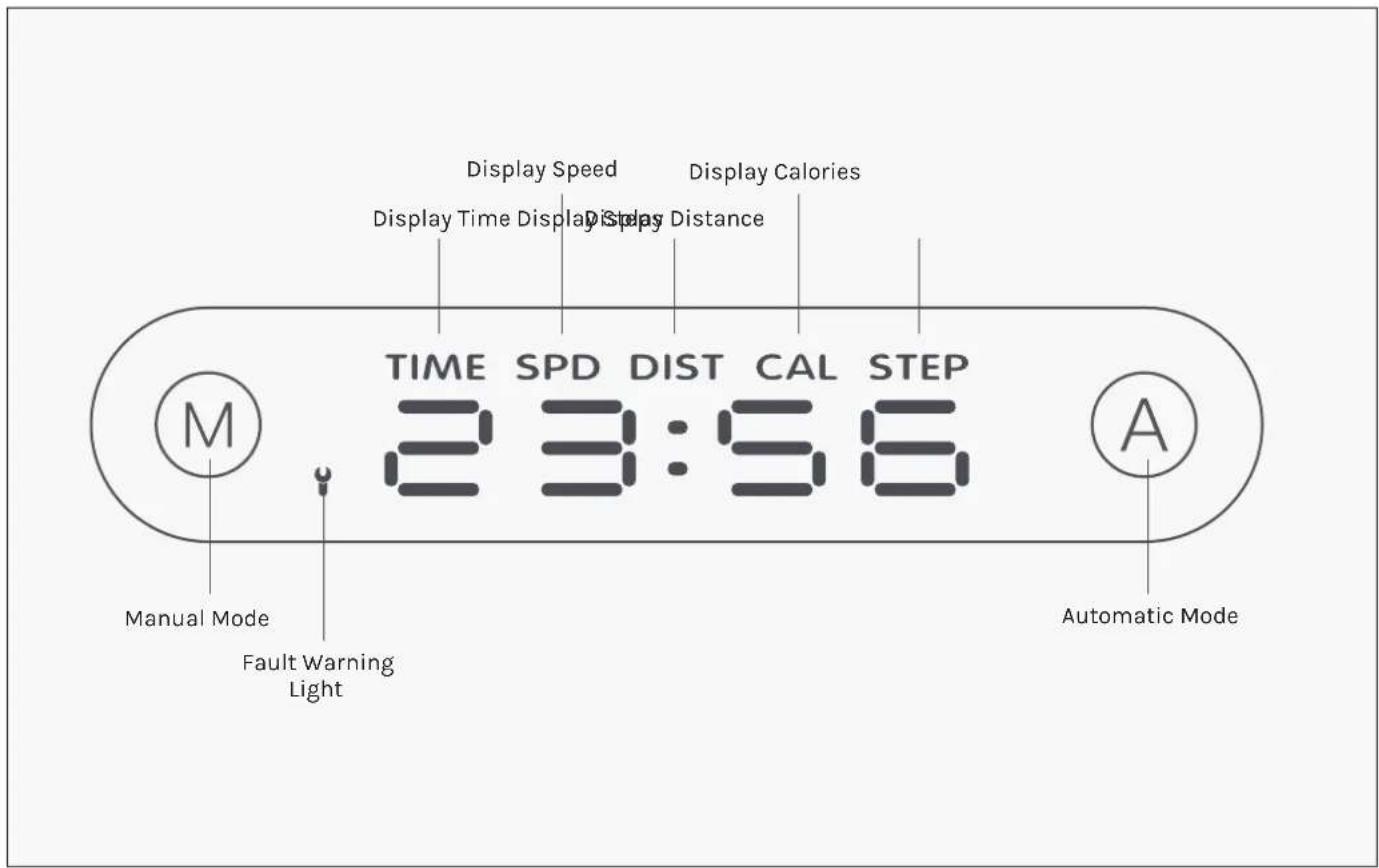

1. Introduction of the Function of the Indicator Panel


3. WalkingPad Remote Control

V. SET-UP GUIDE

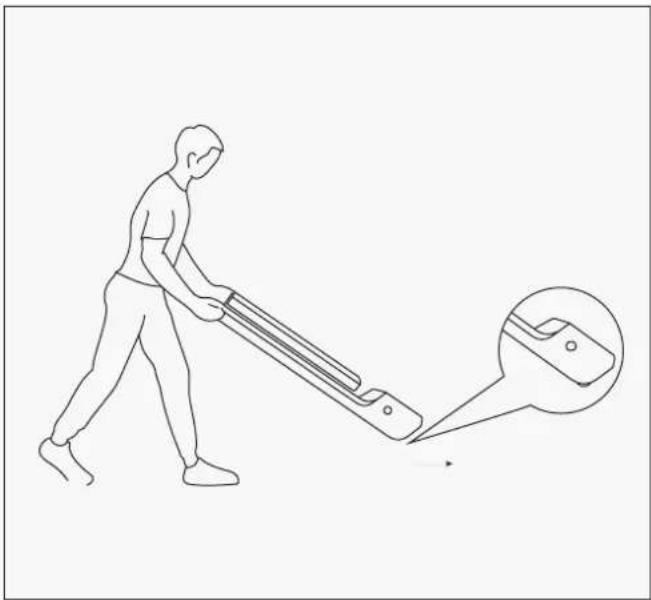

Line drawing of a person using a tool to lift a component, with an inset magnified view showing the tool tip (no text or symbols)

1 Choose flat ground to place the WalkingPad. It is not recommended to place it on thick and soft cushion. Please Note: Don't connect the power before the WalkingPad is fully unfolded.

Line drawing of a hand pressing down on a curved mechanical component (no text or symbols)

2 Unfold the WalkingPad slowly and press it down to completely flat.

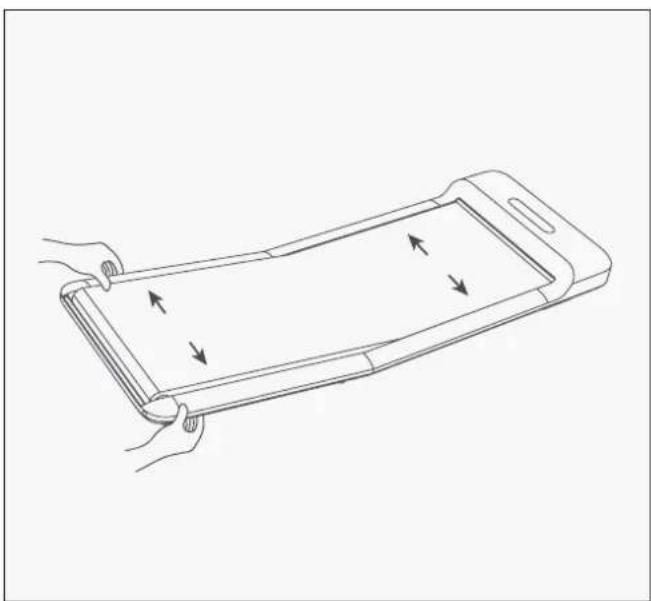

Line drawing of a smartphone with hands holding the screen and arrows indicating fold changes (no text or symbols)

3 Check and adjust the walking belt to make sure it's centered.

Line drawing of a device with an attached power outlet and a close-up of its internal components (no text or symbols)

4 Connect the power cord and press the button to switch on.

Illustration of a hand interacting with a lock icon surrounded by dots (no text or symbols)

5 Unlock all functions by by completing the two steps, otherwise the speed limit remains at 3km/hr:

A. Walk 2km on device first, reboot to unlock all functions.
B. Complete Novice Guide by WalkingPad App to unlock all functions.

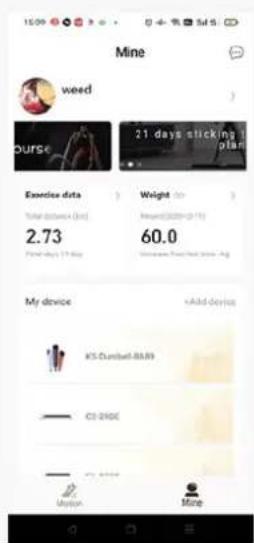

6 Download "KS Fit" APP from the Apple Store or Google Play Store and complete installation.

Line drawing of a hand holding a smartphone displaying a simple app interface (no text or symbols visible)

7 Open the App, follow the prompts to set up the device.

8 Enter Novice guide to unlock all functions.

Line drawing of a person standing on a device (no text or symbols)

Start to use the WalkingPad.9 10

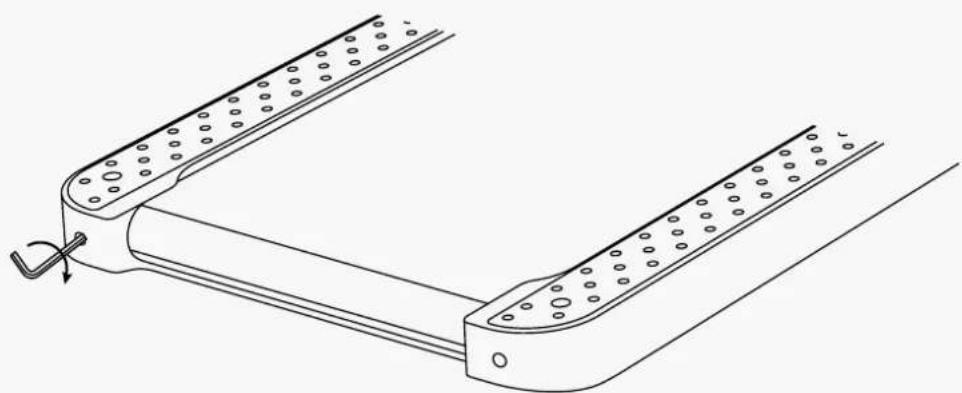

Line drawing of a mechanical component with curved and straight lines, no text or symbols present

If the belt deviates from the orbit in use, please adjust properly.
SEE: 06 Maintenance and service

VI. LEARN TO USE THE TREADMILL

1. MODE DESCRIPTION

Manual Mode

Light of the manual mode is on; Control the speed through the remote control or APP.

Automatic Mode

Light of the automatic mode is on; Speed is automatically controlled by intelligent algorithm. It follows the speed of walking.

2. Instructions of the Standby Mode Control

The motor and sensor stop responding in this mode to prevent non-users from accidentally triggering the WalkingPad.

Simple line drawing of a remote control with plus, minus, and refresh button (no text or symbols)

Mode Switch

Short Press: Return to the previous mode.

3. MANUAL MODE CONTROL DESCRIPTION (PRIMARY MODE)

Manual Mode

In this mode, users can use the remote control to control the treadmill. Beginners are advised to use the manual mode first, and then use the automatic mode once skills have increased.

Speed Increase Button

Short press: Speed increase by 0.5km/h (0.5mi/h)

Function Button

Short press: Starts or stops the treadmill

Speed Decrease Button

Short press: Speed decrease by 0.5km/h (0.5mi/h)

Mode Button

Short press: Switches mode

Long press: Switch to standby mode

(not in use)

4. INSTRUCTIONS OF MANUAL MODE CONTROL (PRIMARY MODE)

Manual Mode

In this mode, the speed of the WalkingPad can be controlled by the remote control. It is recommended that beginners use the manual mode first and then use the automatic mode after being skilled in using the WalkingPad. The manual mode is controlled by remote control by default, that is, the START / STOP button of the remote control is used to start or stop the WalkingPad, which can be modified in the client "Personalized".

Acceleration

Short press: increase speed by 0.5 km/h.

START / STOP

Short press: start or stop the WalkingPad.

DECELERATION

Short press: reduce speed by 0.5 km/h.

MODE SWITCH

Short press: switch to automatic mode. Long press: switch to standby mode.

5. DESCRIPTION OF AUTOMATIC MODE CONTROL (ADVANCED MODE)

Automatic Mode

This is a challenging and higher-class mode, User can walk on the WalkingPad completely out of remote controller. We only recommend those who have good sports skills or walking-device experience to take the challenge.

Simple line drawing of a remote control device with plus, minus, and refresh button (no text or symbols)

Mode Switch

Short press: switch to manual mode. Long press: switch to standby mode.

6. REMOTE CONTROLL NOTICE

If the remote control has no response or you change a new one, the remote controller and walking device need to re-establish communication.

Remote control pairing method:

Restart the WalkingPad, press and hold down the mode switch button on the remote control immediately, hearing the sound of "Beep" indicates the success of pairing.

NOTE: During the operation, the remote control should be close to the LED display panel of WalkingPad.

7. ERROR WARNING LIGHT

Error Warning Light on the display panel is off when WalkingPad works works well. When error occurs, error warning light turns on and shows its error code.

E01	Upper control receives lower control data abnormally
E02	Hall fault
E03	Software overcurrent protection
E04	Locked rotor protection
E05	The data received by the lower control is abnormal
E06	Hardware overcurrent protection
E07	Motor undervoltage protection
E08	Motor overvoltage protection
E09	Motor phase loss protection
E10	Motor overload protection
E20	Abnormal Communication
E21	Sensor Failure

VII. SAFETY INSTRUCTION

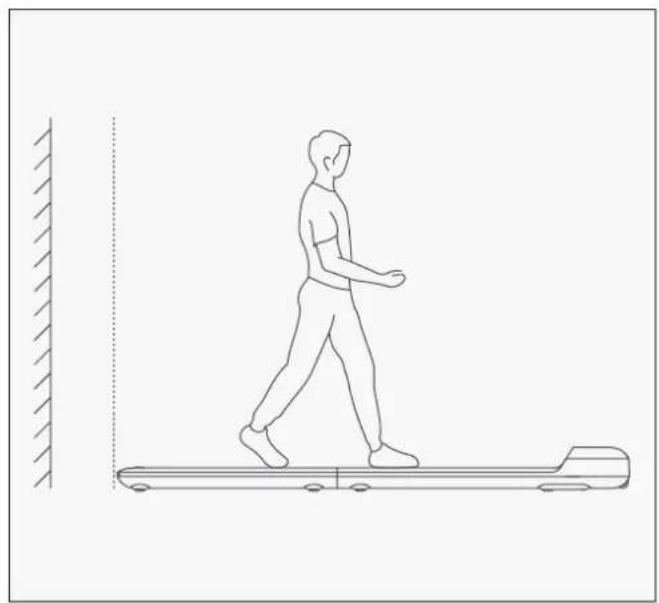

Line drawing of a person walking on a treadmill, viewed from the side (no text or symbols)

Please keep a rear distance of 1000mm or more.

Line drawing of a person walking on a treadmill with motion lines indicating movement (no text or symbols)

Please choose sports shoes.

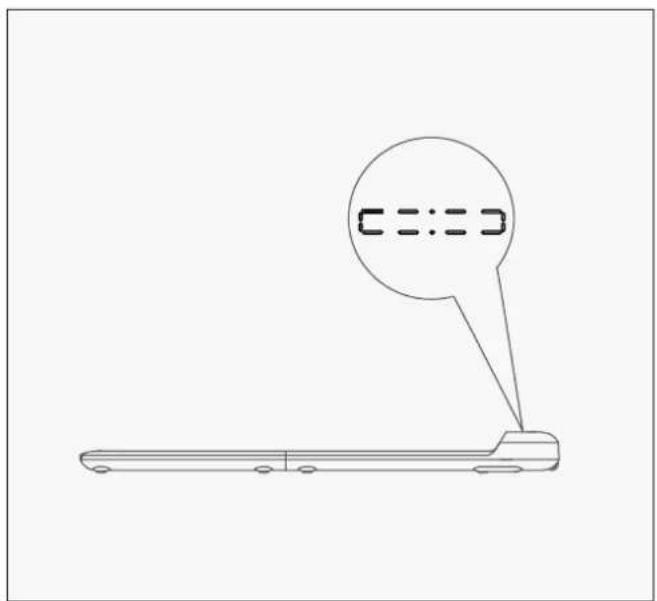

Line drawing of a treadmill with a speech bubble containing a dashed-line symbol (no text or labels)

Please do not stand up on the walking machine when it is under auto calibration situation.

Line drawing of a person standing on a device with vertical supports, no text or symbols present

Please keep a distance of 500mm or more for both sides.

Line drawing of a person falling off a seesaw with a warning symbol (no text or labels)

☒ Using on uneven ground is prohibited.

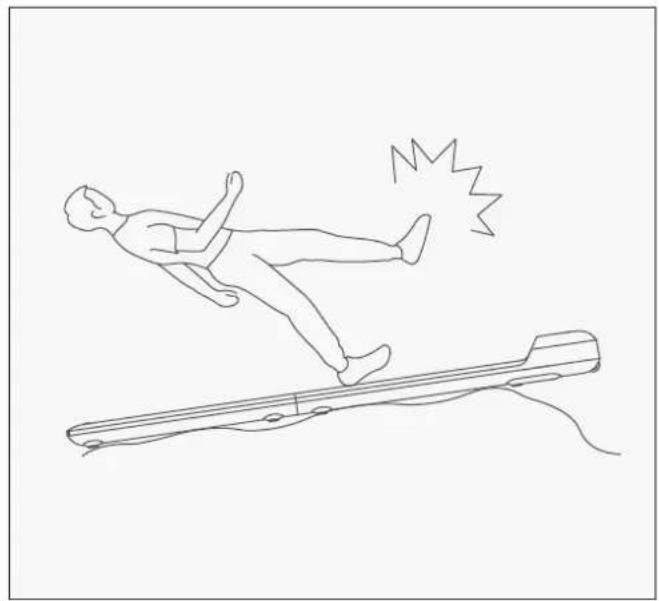

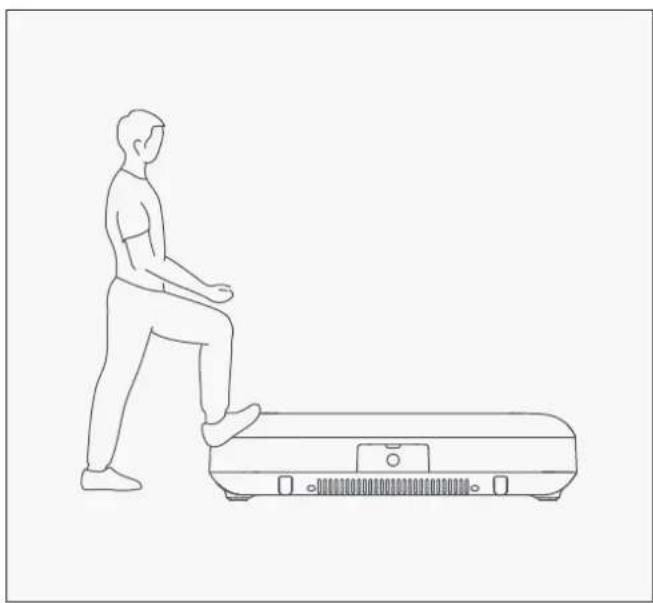

It is strictly forbidden to walk up and down the walking pad while walking. When an emergency occurs, please press the remote control START/STOP and step away from the walking pad from one side.

Line drawing of a device with an inset showing a hand interacting with a component (no text or symbols)

Anti-pinch.

Line drawing of a treadmill with a circular button and a battery icon, no text or symbols present

Turn the power OFF before folding up the WalkingPad.

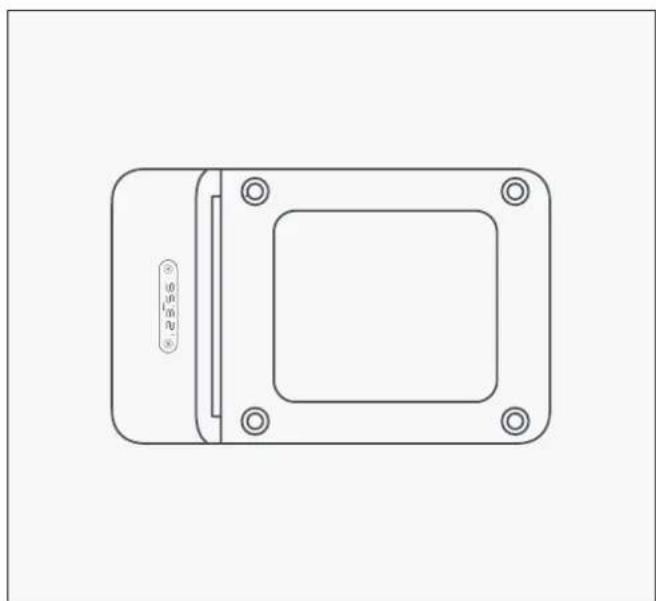

Line drawing of a rectangular electronic device with mounting holes and a central square frame (no text or symbols)

Prohibition of vertical placement.

Line drawing of a mechanical component with two gears and a base, no text or symbols present

Anti-involved, please do not trample.

Line drawing of a portable electronic device with a cable and plug, no text or symbols present

Please pull out the plug when you are not using it.

Technical line drawing of a rectangular electronic device with mounting holes and a central square component (no text or symbols)

Prohibition of lateral placement.

Please keep your sight horizontal to avoid dizziness.

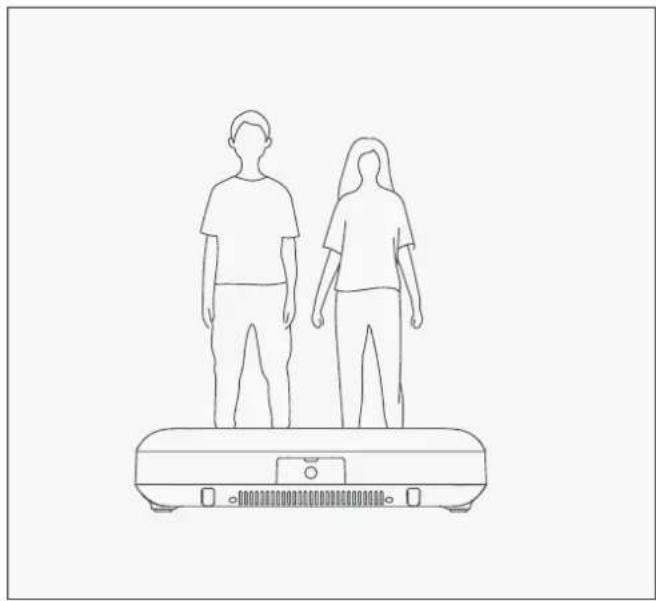

Line drawing of two human figures standing on a device base (no text or symbols)

More than one person on the WalkingPad is prohibited.

Line drawing of a person standing on a device with a dog nearby (no text or symbols)

Using machine with pet is prohibited.

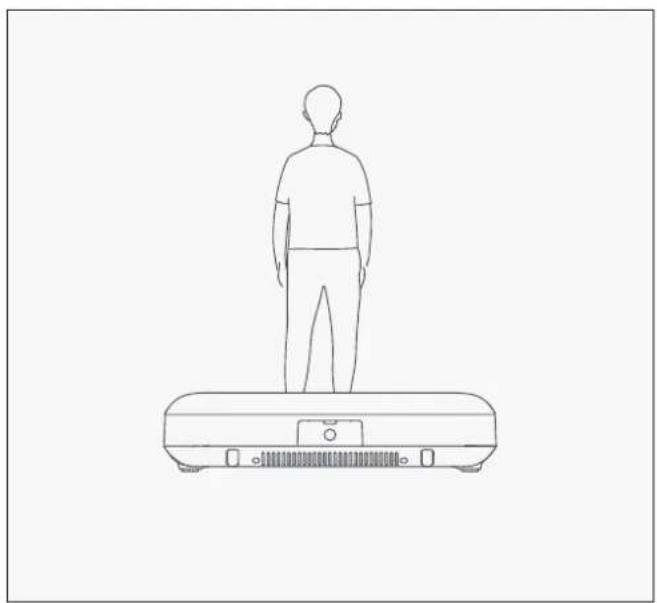

Line drawing of a person standing on a small electronic device (no text or symbols)

Trampling the machine head is prohibited.

Line drawing of a person standing on a device and another person standing beside it (no text or symbols)

Children should be supervised to ensure that they do not play with the WalkingPad.

Line drawing of a person walking on a device (no text or symbols)

Walking sideways on the machine is prohibited.

Line drawing of a person standing on a device base, viewed from the top (no text or symbols)

Walking backwards on the machine is prohibited.

Line drawing of a pregnant woman standing beside a portable electronic device (no text or symbols)

Please use this product reasonably according to your physical condition (the elderly and pregnant women should use it cautiously). If you feel unwell, stop exercising immediately. If necessary, please seek medical attention.

VIII. MAINTENANCE AND ADJUSTMENTS

Line drawing of a hand cleaning a textured surface with a cloth (no text or symbols)

1. Clean the treadmill

• Disconnect all sources of power before cleaning the treadmill.
• Add a small quantity of mild cleaner to a 100% cotton cloth. Do not spray the cleaner directly on the walking belt or use acidic and corrosive cleaner.
• Do not wipe under the walking belt.
• After a period of exercise, dust and stains may appear on the rear floor. This is normal and can be simply wiped.

Technical line drawing of a mechanical component with two flanged ends and a central rod, showing internal structure (no text or symbols)

2. Walking Belt Slipping and Correction

• Simultaneously press and hold both Mode Button and Speed Increase Button on the remote control for over 3 seconds until device start.
• Front panel will show "CALI" and keep running with speed 3km/h (2mi/h).
• Walking belt goes to the left: Turn the left adjusting hole screw clockwise by 1/4 turn.
• Walking belt goes to the right: Turn the right adjusting hole screw clockwise by 1/4 turn.
• Walking belt is slipping: Turn the left and right adjusting screws clockwise for 1/2 turn at the

same time.

• After each adjustment, the treadmill needs to run for 1-2 minutes to verify the adjustments. Please adjust again if necessary.
• Press the function key to stop treadmill.

CAUTION: DO NOT OVERTIGHTEN THE BELT. PLEASE MAINTAIN ORIGINAL FACTORY BELT TENSION. EXCESSIVE BELT TENSION WILL CAUSE DAMAGE TO MOTOR.

Line drawing of a hand using a tool to interact with a device component (no text or symbols present)

3. Walking Belt Lubrication

• Power off the treadmill and unplug the power cord.
- Lift the edge of the walking belt and smear the inner surface with silicone oil.
- Start the treadmill to run at a speed of 3km / h (2mi/h) for 10-20 seconds.
- 5-10ml of silicone oil is required for each lubrication. Excessive silicone oil may cause slipping and affect normal use.
• Lubricate the walking belt every three months.

IX. REPLACEMENT AND DISPOSAL

The battery contained in this appliance must be removed for disposal.

When replacing the battery, use only battery with the same specifications. There should be a battery model number printed on the battery. Battery can be purchased from your local electronics store or some supermarkets.

The battery compartment may be in the back of the appliance or appliance remote. Open the compartment by removing the screw in the cover using a suitable screwdriver, and the press the lower end of the locking catch on the connectors. In that way, both sides of the connection can be separated by pulling them apart.

When inserting a new battery, push together the two connectors and ensure that the catch looks over the stop.

Pure electrical circuit lines without any symbols

Never dispose of old battery in domestic garbage, but only through the proper public collection points. This also applies to the battery of defective appliances.

Devices marked with this symbol must be disposed of separately from your household waste, as they contain valuable materials that can be recycled. Proper disposal protects the environment and human health. Your local authority or retailer can provide information on the matter.

X. KS FIT APP INSTRUCTIONS

NOTE: App views may differ for Android or iOS users.

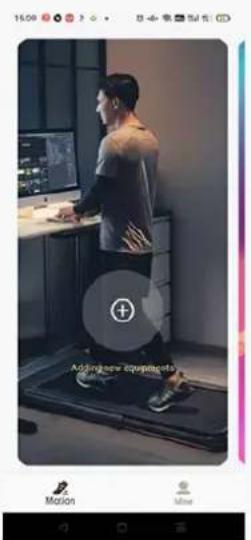

Screen View

Screen View Motion
Main screen to choose your device to connect to.

Person using a treadmill in a studio setting, with motion capture overlay (no readable text or symbols)

Mine
Shows your previous workout data and user settings.

Adding Device

Press the + sign Choose the model that matches your treadmill.

Treadmills without handlebars will be in the Walkingpad section.

Novice Guide

Use the Novice Guide to instruct you on how to use the app and the machine.

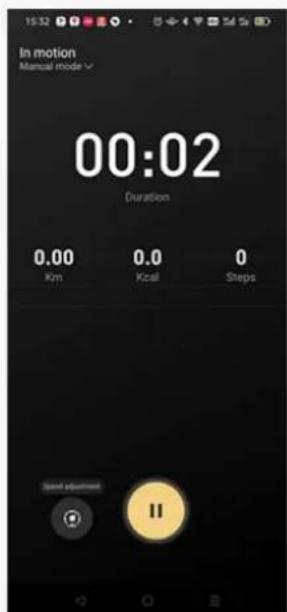

Manual Mode

Click start for Manual mode Click

to stop start workout.

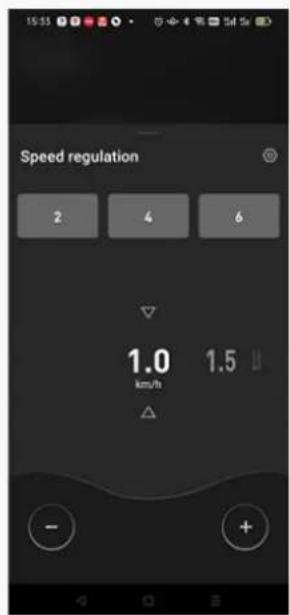

Click Speed adjustment to change speed. You can select the digit, swipe to the speed press the - or + buttons.

Quick Speed Buttons

You can edit the quick speed buttons by clicking on the setting sign.

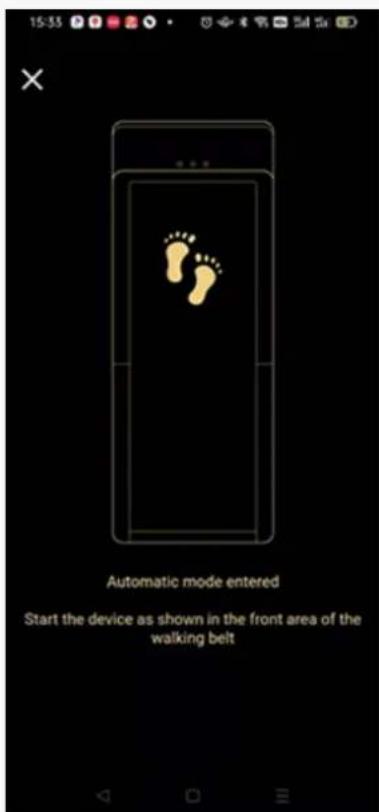

Automatic Mode

Press the Ⓐ to start Automatic mode. The belt will sense your walking pace and increase or decrease.

Device Settings

Click on the device image (on Motion View) to access more settings for the treadmill.

You can change the default speeds for running and walking, start up speed and sensitivity setting for Automatic Mode. There is also a Child Lock to prevent unauthorised use.

Person wearing athletic shoes and legs, standing with a white object above the foot (no visible text or symbols)

Belt Calibration

If belt is shifted it will need to be recentred. Click on Belt Calibration and follow steps to adjust it to centre.

! PLEASE NOTE:

Before beginning any exercise program, consult your physician. This is important especially if you are over the age of 45 or individuals with pre-existing health problems.

The pulse sensors are not medical devices. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only as an exercise aid in determining heart rate trends in general.

Exercising is great way to control your weight, improving your fitness and reduce the effect of aging and stress. The key to success is to make exercise a regular and enjoyable part of your everyday life.

The condition of your heart and lungs and how efficient they are in delivering oxygen via your blood to your muscles is an important factor to your fitness. Your muscles use this oxygen to provide enough energy for daily activity. This is called aerobic activity. When you are fit, your heart will not have to work so hard. It will pump a lot fewer times per minute, reducing the wear and tear of your heart.

So as you can see, the fitter you are, the healthier and greater you will feel.

Four sequential illustrations of a person performing a stretching or martial arts pose, showing forward and backward movements (no text or symbols)

WARM UP

Start each workout with 5 to 10 minutes of stretching and some light exercises. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise. Ease into your exercise.

After warming up, increase the intensity to your desired exercise program. Be sure to maintain your intensity for maximum performance. Breathe regularly and deeply as you exercise.

COOL DOWN

Finish each workout with a light jog or walk for at least 1 minute. Then complete 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-exercise problems.

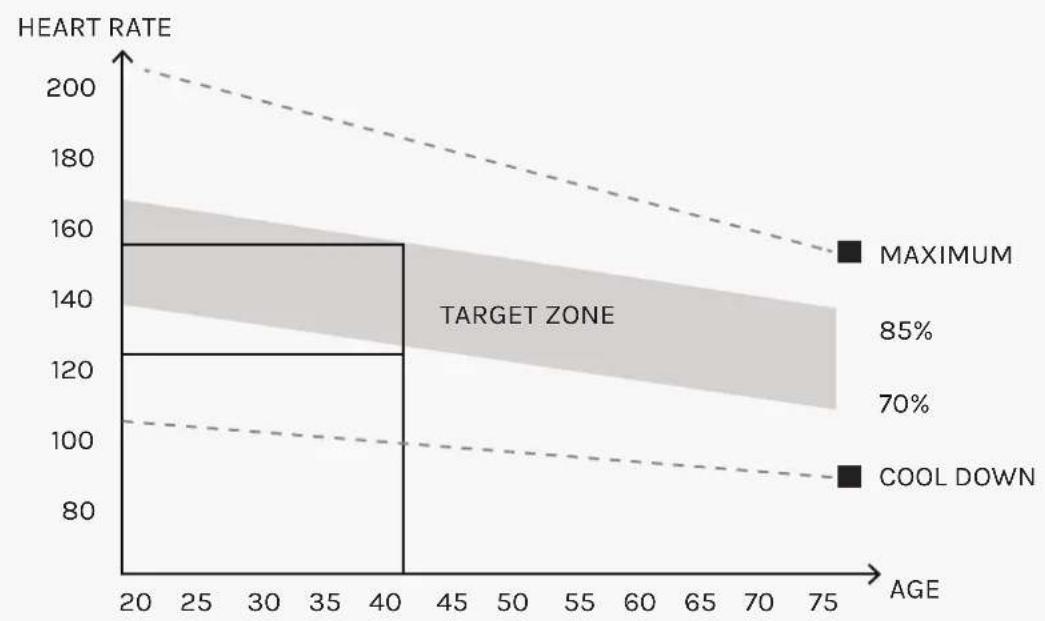

WORKOUT GUIDELINES

This is how your pulse should behave during general fitness exercise. Remember to warm up and cool down for a few minutes.

The most important factor here is the amount of effort you put in. The harder and longer you work, the more calories you will burn.

XII. WARRANTY

AUSTRALIAN CONSUMER LAW

Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage.

You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Full details of your consumer rights may be found at www.consumerlaw.gov.au.

Please visit our website to view our full warranty terms and conditions:

http://www.lifespanfitness.com.au/warranty-repairs

WARRANTY AND SUPPORT

Any claim against this warranty must be made through your original place of purchase. Proof of purchase is required before a warranty claim may be processed.

If you have purchased this product from the Official Lifespan Fitness website, please visit https://lifespanfitness.com.au/warranty-form

For support outside of warranty, if you wish to purchase replacement parts or request a repair or service, please visit https://lifespanfitness.com.au/warranty-form and fill in our Repair/Service Request Form or Parts Purchase Form.

Scan this QR code with your device to go to lifespanfitness.com.au/warranty-form
