Product Type	HD-TVI/AHD/CVI/CVBS Video Camera
Brand	Speco Technologies
Model	V5T2M
Image Sensor	1/2.7" CMOS
Resolution	5MP (2560 x 1936)
Lens	2.8~12mm motorized, D14 mount
Video Output	AHD/TVI/CVI/CVBS (default HD-TVI)
IR Distance	98.4 - 164.0 ft
Minimum Illumination	Color: 0.01 lux @ F1.2 (AGC ON); B/W: 0 lux with IR
Power Supply	DC12V (±10%)
Power Consumption	<1W (IR off), <6W (IR on)
Operating Temperature	-22°F to 122°F
Operating Humidity	10% - 90% RH
Ingress Protection	IP67
Dimensions (inch)	Φ4.21 x 5.16
Mounting	Ceiling/Wall mount; Pan 360°, Tilt 0°~80°, Rotation 0°~360°
Functions	OSD (UTC), Day/Night ICR, DWDR, DNR, AGC, Auto White Balance, BLC, LSC, Mirror, Sharpness, Smart IR
Cleaning	Use a soft, dry cloth. Do not use harsh chemicals or solvents.
Safety	Do not install near heat sources, power lines, or radar equipment. Ensure wall/ceiling can withstand 3x camera weight.
Compliance	FCC Part 15

Frequently Asked Questions - V5T2M Speco Technologies

What video output formats does the V5T2M support?

The V5T2M supports AHD, TVI, CVI, and CVBS video formats. It comes defaulted to HD-TVI output.

How do I switch between video output modes?

Remove the cover of the video switch cable, then press and hold the button for 5 seconds to cycle through the available modes (AHD, TVI, CVI, CVBS).

What is the maximum IR distance?

The IR distance ranges from 98.4 to 164.0 feet depending on ambient conditions.

What power supply is required?

The camera requires a DC12V power supply with ±10% tolerance. Power consumption is under 1W with IR off and under 6W with IR on.

Is the camera suitable for outdoor use?

Yes, it has an IP67 rating, making it dust-tight and protected against temporary immersion in water.

What type of lens does the V5T2M have?

It features a motorized 2.8~12mm varifocal lens with a D14 mount, allowing remote zoom and focus adjustment.

What resolution does the camera capture?

The camera captures 5MP resolution (2560 x 1936 pixels) at up to 20 fps.

How do I mount the camera?

Use the provided drill template to mark screw and cable holes. Secure the mounting base to the wall or ceiling with the included screws, then attach the camera unit and adjust the dome for optimal viewing angle.

How do I clean the camera?

Use a soft, dry cloth to wipe the camera body and lens. Do not use abrasive cleaners or solvents.

What should I do if the camera does not work properly?

Contact your dealer or Speco Technologies. Improper operation or repair may void the warranty. Ensure the camera is not exposed to heavy stress, vibration, or moisture.

USER MANUAL V5T2M Speco Technologies

Exterior view of a white Ipace Technologies security camera module (no visible text or symbols on the camera body)

Thank you for purchasing our product. Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Warnings

■ If the product does not work properly, please contact the dealer or where the product was purchased. Speco Technologies is not responsible for any problems caused by improper operation or repair.
- Do not expose the unit to heavy stress, violent vibration or long-term exposure to water and humidity during transportation, storage, and/or installation.
■ Do not install near sources of heat.
■ Only install the product in environments inside the specification operating temperature and humidity range.
■ Do not install the camera near power lines, radar equipment or other electromagnetic radiation.
■ Do not block any ventilation openings if any.
■ Use all the weatherproofing hardware requirement to minimize weather intrusion.

Introduction

This camera series is the latest technology and advanced circuit design, which features high definition and sensitivity, low noise and distortion and supports HD video transmission with the common coaxial cable, ensuring the requirement of the HD monitoring in the traditional surveillance system.

- High Resolution

Adopt high performance sensor, providing high definition and clear image.

• High Transmission Performance

Real-time transmission with high speed and long distance.

• DNR

Reduce noise from brightness and color signal.

• OSD

Access the camera settings which can be clearly displayed through the main menu.

- White Balance

Adjust the color temperature according to the environment automatically.

- ICR Auto Switch

The filter will filter infrared light during the daytime and change to normal at night to ensure a high sensitivity and clear image.

• AGC

Adjust the gain of amplifier, enabling the camera to output the standard video signal in different lighting condition.

- Wide Dynamic Range (WDR)

When there are both very bright and very dark areas simultaneously in the field of view, this function will balance the brightness level and provide clear images.

- Backlight Compensation (BLC)

When the back of the captured object is too much bright, you can set BLC for the captured object to make it clearer.

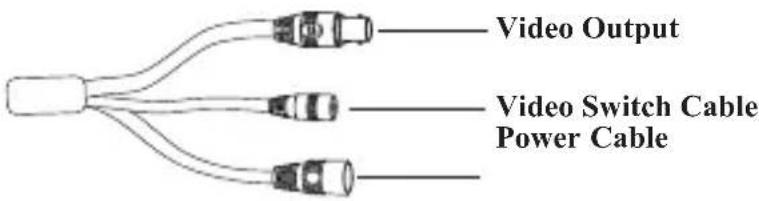

Cables

Video Switch: Four video output modes can be optional--AHD, TVI, CVI and CVBS (a) remove the cover of the video switch cable; (b) hold and press the button in the video switch cable for 5 seconds to switch the current video output.

Installation

Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. Please install and use the camera in the dry environment.

You'd better install back the lens cover or lower dome less than 4 hours after removing it.

The mounting types of cameras are only for reference.

▶Mounting for V5B2/V5B2M

1. Drill the screw holes and the cable hole on the wall according to the drill template.

1. Route and connect the cables.

2. Secure the mounting base with camera to the wall with screws as shown below.

1. Bracket adjustment. Before adjustment, preview the image of the camera on a monitor and then loosen the fixed ring to adjust the view angle of the camera. Tighten the fixed ring after the adjustment.

▶Mounting for Dome Camera

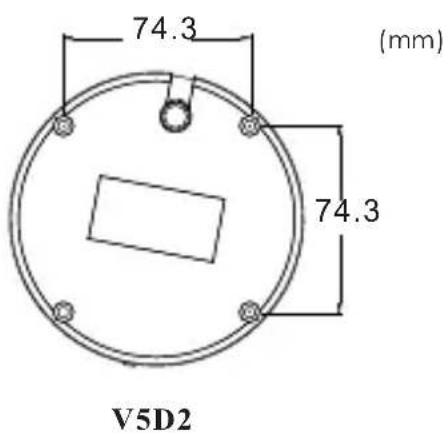

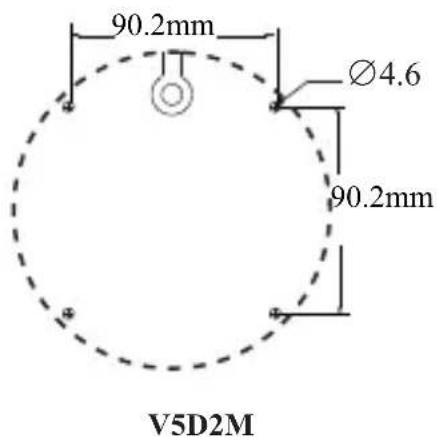

1. Attach the drill template to the place where you want to fix the camera and then drill the screw holes and the cable hole on the wall according to the drill template.

1. Align the gap of the trim ring with the microphone by turning the trim ring with fingers. Then remove the trim ring from the gap of the camera.
2. Loosen the screws to open the lower dome. Then route and connect the cables.
3. Secure the camera to the wall with screws provided as shown below.

1. Three-axis adjustment. Before adjustment, preview the image of the camera on a monitor and then adjust the camera according to the figure below to get an optimum angle.

V5D2

Rotation 0°\~345°
V5D2M

1. Install the lower dome back to the camera and fix it with screws. Then put the trim ring onto the lower dome and then rotate it clockwise until it is locked. Finally, remove the protection film softly.

Technical line drawing of a mechanical component before and after assembly (no text or symbols)

- Mounting for V5T2/V5T2M

1. Drill the screw holes and the cable hole on the wall according to the drill template.

V5T2

V5T2M

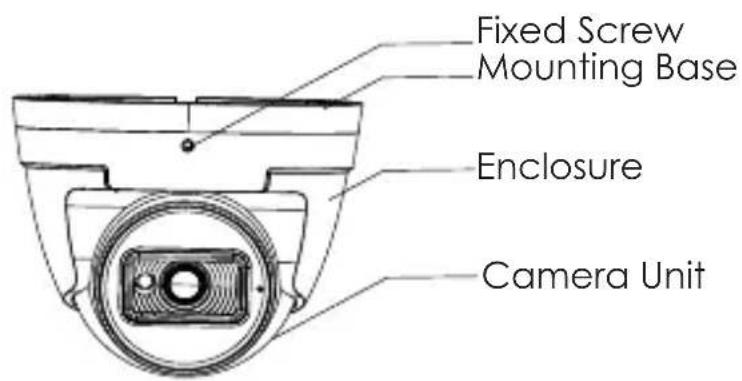

1. Loosen the fixed screw to disassemble the camera.
2. Route and connect the cables. Then secure the mounting base to the ceiling or wall with the screws provided.

1. Install the camera unit and enclosure to the mounting base and then adjust the dome to obtain an optimum view angle. Finally, secure the camera with the fixed screw.

Specifications

Specifications\Models	V5B2	V5B2M	V5D2
Camera
Image Sensor	1/2.7" CMOS
Resolution	5MP
Image size	2560×1936
Video Output	AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI)
Image System	PAL/NTSC
Electronic Shutter	Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC)
IR Distance (feet)	65.6~98.4	98.4~164.0	65.6~98.4
Frame Rate	20fps
Min. Illumination	Color:0.01lux@F1.2, AGC ON; B/W: 0lux with IR
Lens	2.8mm	2.8~12mm (motorized)	2.8mm
Lens Mount	M12	D14	M12
S/N Ratio	≥52dB(AGC OFF)
Ingress Protection	IP67	IP67	IP67&IK10
Functions
Function Control	OSD (UTC control)
Day &Night	ICR
DWDR	Yes
Digital NR	Yes
AGC	Yes
Auto White Balance	Yes
Defog	No
BLC	Yes
LSC	Yes
Mirror	Yes
Sharpness	Yes
Smart IR	Yes
Image Setting	Yes
Defect Correction	Auto
Others
Power Supply	DC12V (± 10%)
Power Consumption	IR OFF: < 1W; IR ON : < 4W	IR OFF: < 1W; IR ON : < 6W	IR OFF: < 1W; IR ON : < 4W
Working Environment	-22 °F ~ 122 °F, 10 % ~ 90 %(relative humidity)
Dimensions (inch)	6.74 3.27 3.26× ×	8.6 3.39 3.386× ×	Φ4.72 3.45×
Specifications\Models	V5D2M	V5T2	V5T2M
Camera
Image Sensor	1/2.7" CMOS
Resolution	5MP
Image size	2560×1936
Video Output	AHD/TVI/CVI/CVBS (*camera comes defaulted to HD-TVI)
Image System	PAL/NTSC
Electronic Shutter	Auto; 1/50s~1/100000s(PAL);1/60s~1/100000s (NTSC)
IR Distance (fcet)	98.4~164.0	65.6~98.4	98.4~164.0
Frame Rate	20fps
Min. Illumination	Color:0.01lux@F1.2, AGC ON; B/W: 0lux with IR
Lens	2.8~12mm (motorized)	2.8mm	2.8~12mm (motorized)
Lens Mount	D14	M12	D14
S/N Ratio	≥ 52dB(AGC OFF)
Ingress Protection	IP67&IK10	IP67	IP67
Functions
Function Control	OSD (UTC control)
Day &Night	ICR
DWDR	Yes
Digital NR	Yes
AGC	Yes
Auto White Balance	Yes
Defog	No
BLC	Yes
LSC	Yes
Mirror	Yes
Sharpness	Yes
Smart IR	Yes
Image Setting	Yes
Defect Correction	Auto
Others
Power Supply	DC12V (± 10%)
Power Consumption	IR OFF: < 1W; IR ON : < 6W	IR OFF: < 1W; IR ON : < 4W	IR OFF: < 1W; IR ON : < 6W
Working Environment	-22 °F ~ 122 °F, 10 % ~ 90 %(relative humidity)
Dimensions (inch)	Φ5.61 3.95×	Φ4.67 3.69×	Φ4.21 5.16×

Model: V5B2/V5B2M/V5D2/V5D2M/V5T2/V5T2M

Federal Communications Commission (FCC) Statements

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

FCC Responsible Party:

Speco Technologies

200 New Highway

Amityville, NY 11701

www.specotech.com
