Product Type	Single-Zone Wine Cooler
Brand	NewAir
Model	NWB080SS00
Bottle Capacity	8 Bottles (standard 750ml)
Dimensions (W x H x D)	17.0 x 17.5 x 18.0 inches
Weight	27.5 lbs
Power Supply	115V / 60Hz
Power Consumption	85 Watts
Temperature Range	40°F - 65°F (4°C - 18°C)
Temperature Control	Digital thermostat with LED display
Cooling System	Compressor-based
Interior Lighting	LED interior light
Door Type	Stainless steel frame, tempered glass door
Door Lock	Yes, with key
Number of Shelves	3 slide-out chrome shelves
Noise Level	Less than 42 dB
Refrigerant Type	R600a (environmentally friendly)
Reversible Door	Yes
Maintenance	Clean interior with mild soap and water; vacuum condenser coils periodically
Safety Features	Sliding shelves retain bottles; tempered glass door resists impact
Installation Type	Free-standing (allow 4-5 inches rear clearance)
Warranty	1 year limited warranty
Certifications	UL, ETL, Energy Star (may vary)

Frequently Asked Questions - NWB080SS00 NewAir

How do I set the temperature on my NewAir NWB080SS00 wine cooler?

Press the SET button on the control panel. The digital display will blink. Use the up and down arrows to adjust the temperature between 40°F and 65°F. Press SET again to confirm.

What is the ideal temperature for storing red and white wines in a single-zone cooler?

For a single-zone wine cooler like the NWB080SS00, a good compromise is 55°F (13°C), which works reasonably well for both red and white wines. However, for optimal flavor, reds are best at 60-65°F and whites at 45-50°F.

How many bottles can the NWB080SS00 hold?

The NewAir NWB080SS00 can hold up to 8 standard 750ml wine bottles. Larger or oddly shaped bottles may reduce capacity.

Can I install the wine cooler under a counter?

No, the NWB080SS00 is designed for free-standing use only. It requires at least 4-5 inches of clearance at the rear for proper ventilation. Do not install it in a built-in or enclosed space.

How do I clean the wine cooler?

Unplug the unit. Remove all bottles and shelves. Clean the interior with a mixture of mild soap and warm water. Rinse with a damp cloth and dry thoroughly. Clean the condenser coils every 3 months with a vacuum or soft brush to maintain efficiency.

The wine cooler is making unusual noise. Is this normal?

Some noise is normal, such as a soft hum from the compressor or a gurgling sound from the refrigerant. If you hear loud clanking or rattling, check that the unit is level and that bottles or shelves are not vibrating. Persistent loud noise may indicate a service issue.

Can I use an extension cord with my NewAir wine cooler?

It is not recommended. Extension cords can cause voltage drop and affect performance. Plug the wine cooler directly into a grounded 115V outlet dedicated to the unit. If an extension cord is unavoidable, use a heavy-duty cord rated for at least 10 amps.

How do I reverse the door swing on the NWB080SS00?

The door is reversible. Remove the top hinge screws, lift the door off the bottom hinge, then swap the bottom hinge to the opposite side. Reattach the door and install the top hinge on the new side. Refer to the manual for detailed instructions.

Why is the display showing 'E1' or 'E2' error code?

An E1 code indicates a faulty temperature sensor. E2 indicates a defrost sensor issue. Try unplugging the unit for 5 minutes and plugging it back in. If the error persists, contact NewAir customer service for warranty service.

Does the NewAir NWB080SS00 require a special power source?

No, it uses a standard 115V household outlet (15 amp). Ensure the outlet is grounded and not shared with other high-power appliances to avoid tripping the breaker.

USER MANUAL NWB080SS00 NewAir

24” French Door Dual Zone Wine and Beverage Fridge

Technical line drawing of a dual-chamber air conditioning unit with labeled components (no text or symbols beyond basic labels)

OWNER'S MANUAL

Read and save these instructions.

READ AND SAVE THESE INSTRUCTIONS.

TABLE OF CONTENTS

Register Your Product Online....3

Safety Information & Warnings 4

Assembly Instructions....5

Operating Instructions....7

Cleaning & Maintenance....9

Troubleshooting....10

Limited Manufacturer's Warranty 11

SPECIFICATIONS

MODEL NO.	NWB080SS00
VOLTAGE:	110-120V
CURRENT:	0.9 Amps
REFRIGERANT:	R600a
FREQUENCY:	60Hz
PRODUCT DIMENSIONS:	24.10"D (w/handles) x 23.50"W x 34.30"H
POWER CONSUMPTION:	100 Watts
STORAGE CAPACITY:	20 Bottles & 60 Cans (4.1 cubic feet)
TEMPERATURE RANGE:	36-72° F (beverage, left side)40-72° F (wine, right side)

REGISTER YOUR PRODUCT ONLINE

Register Your NewAir Product Online Today!

Take advantage of all the benefits product registration has to offer:

Service and Support

Diagnose troubleshooting and service issues faster and more accurately

Recall Notifications

Stay up to date for safety, system updates and recall notifications

Special Promotions

Opt-in for NewAir promotions and offers

Registering your product information online is safe & secure and takes less than 2 minutes to complete:

newair.com/register

Alternatively, we recommend you attach a copy of your sales receipt below and record the following information, located on the manufacturer's nameplate on the rear of the unit. You will need this information if it becomes necessary to contact the manufacturer for service inquiries.

Date of Purchase:

Serial Number:

Model Number:

SAFETY INFORMATION & WARNINGS

Before Using Your Wine And Beverage Fridge for the First Time:

Carefully read all instructions before using this fridge for the first time. Also make sure the fridge stays in an upright position during transportation. After removing the appliance from its packaging, make sure it is in good condition, and let the fridge stand for 24 hours before connecting to power, to allow refrigerant to settle. If there are any issues with the unit, please contact us immediately at [e-mail].

• Place the unit on a level floor that will be strong enough to support it when it is at full capacity. To level the fridge, adjust the leveling feet located at the bottom of the unit.
• Do not use this fridge in applications for which it is not intended. Damage that occurs from improper use or from unauthorized repairs will void the warranty.
• For proper air circulation, please maintain a 2-inch minimum clearance in between the back of the fridge and the wall.
• Do not operate this fridge in excessively moist or humid environments.
• Keep the fridge away from direct sunlight.
• Keep the fridge away from hazardous materials or combustible/flammable substances.

★ CAUTION:

• This wine and beverage fridge is designed for built-in or freestanding applications.
• DANGER: RISK OF CHILD ENTRAPMENT: An empty fridge can be dangerous to children. Remove any latches, lids, locks, and/or doors from unused or discarded appliances to prevent child entrapment and suffocation. Never allow children to operate, play with, or crawl inside this appliance.

ASSEMBLY INSTRUCTIONS

INITIAL SETUP

Remove exterior and interior packing materials and let the fridge stand for 24 hours before connecting to power, to allow refrigerant to settle. Once it is plugged in, let it run for at least 30 minutes before stocking. Do not change the temperature or adjust any settings during this time.

INSTALLATION OF YOUR APPLIANCE

• Use two or more people to move and install the fridge. Failure to do so can result in back or other injury.
• Place your fridge on a floor that is strong enough to support it when it is fully loaded.
• Choose a well-ventilated area with temperatures above 60^ F and below 90^ F.
• This fridge is designed for built-in, recessed or freestanding installation.
• For built-in installation, leave a 1/4" (6.35mm) space on each side and at the top of the fridge to ensure proper air circulation to cool the compressor and condenser.
• For freestanding installation, leave the proper clearance around the fridge. Below are the recommended clearances: Side: 3/4" (19mm); Top: 4" (100mm); Back: 2" (50mm)
• Even for built-in installation, you must keep space on each side and at the top. If you plan to use the unit for a built-in application please leave at least 0.25 in of space on all sides.
• The fridge must be installed with all electrical, water and drain connections in accordance with state and local codes.
• Make certain that the pipes are not pinched, kinked or damaged during installation. Check for leaks after connection.

NOTE: Designed for indoor, home use only. The fridge should not be located next to sources of high heat or in direct sunlight. Do not store or install the fridge outdoors, in a garage, basement or in moist areas. Don't install in a location where the temperature will fall below 60^ . For best performance and to ensure proper ventilation, do not install the fridge behind a cabinet door or block the ventilation grille at the bottom of the front of the unit.

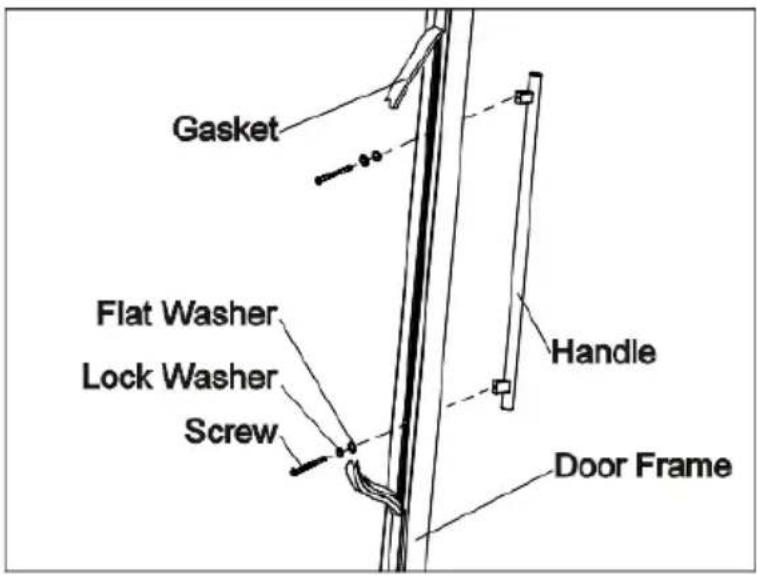

HANDLE INSTALLATION

• Pull away the door gasket in the area where the handle is to be installed. The gasket is easily removed by hand, no tools are necessary. It does not need to be cut or removed completely.
• Insert the two (2) Phillips head screws with the lock washers and flat washers through the gasket side of the door frame until the screws pass through the door frame.
• Align the handle with the screws installed in the above step. Tighten the screws using a Phillips head screwdriver until the handles secure tightly against the door frame. (Do NOT over tighten) Replace the gasket.

OPERATING INSTRUCTIONS

LEFT ZONE

RIGHT ZONE

Press the power button to turn the fridge on and off, even while the unit is plugged in. The fridge will be on by default but pressing and holding the power button for 5 seconds will shut it off. This feature is handy if you want to shut the unit off but are unable to reach the plug. Press and hold for 5 seconds to turn the fridge back on.

Press the light buttons to switch between "auto" lighting and "always on" lighting. Auto lighting is the default setting, which keeps the lights off when the door is closed. Lights will only turn on when a door is opened. Press the button once to keep the lights on even when the doors are closed.

Press the up and down arrows to adjust the temperature for each zone in one degree increments. The left zone temperature can be set between 36^ and 72^ F, and the right zone temperature can be set between 40^ and 72^ F. To view the current set temperature, press the up or down arrow once.

Press the C/F button to change between Celsius and Fahrenheit for the temperature display.

NOTE: If the unit is unplugged, turned off, or power is lost, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the unit will not start. When you use the unit for the first time or restart the unit after having been shut off for a long time, there could be a few degrees of variance between the temperature you select and the ambient temperature indicated on the LED readout. This is normal. Once the unit is running for a few hours, temperatures will stabilize.

DOOR LOCK

Your unit comes with a lock and key. The keys are located inside the plastic bag that contains the owner's manual. Insert the key into the lock and turn it counter clockwise to unlock the door. To lock the door, do the reverse, and make sure the metal pin is engaged completely. Remove the key and store in a secure location—you don't want to get locked out of your own fridge!

SHELVES

To avoid damaging the door gasket, make sure to have the door completely opened when pulling the shelves out of the unit.

• For easy access to your drinks, we recommend pulling the shelf out until it stops. Locks on the shelves keep them from falling out due to the weight of the drinks.
• If you want to remove a shelf entirely, make sure to remove all items first. Then, move the shelf to the position where the notch in the shelf is positioned under the lock (a small round peg on each side that prevents the shelves from falling out). Lift the shelf so that the notch passes over the lock, then remove the shelf. Do the reverse to reinsert the shelf.

OTHER TIPS

• This unit comes equipped with a “door open” alarm, which will start beeping if one of the doors is left open for more than 3 minutes. If you hear this alarm, double check to make sure the doors are closed properly.
• To ensure maximum performance and efficiency, be sure to place your fridge in an area where there is proper air circulation.
• For proper internal air circulation, do not overfill your fridge.
• Do not place the unit in direct sunlight.
• Do not place heated beverages in your fridge.
• Do not store perishable food in your fridge. The unit's interior temperature may not be low enough to prevent spoilage.
• Do not place heavy objects on top of the fridge.

CLEANING & MAINTENANCE

• Shut off the power supply before cleaning the fridge.
• Remove all cans and storage shelves.
• Clean the interior with a warm water and neutral detergent solution. Do the same with the outside of the unit.
• Thoroughly dry all surfaces before plugging the unit in again.
• DO NOT use abrasive cleaners to clean the fridge. Use warm, soapy water to clean the door gasket.

TROUBLESHOOTING

Problem	Possible Causes	Solution
The fridge does not cool.	The unit may be plugged in using a different voltage than required.	Check if using the wrong voltage.
	The circuit breaker may be tripped or there is a blown fuse.	Reset the circuit breaker or check for a broken fuse.
The fridge does not get cold enough.	The unit may be placed too close to a heat source.	Keep the unit away from direct sunlight or other heat sources.
	There is insufficient ventilation.	Place the unit in an area with proper ventilation and clearances.
	The door is not completely closed or the door seal is not working properly.	Close the door tightly. Do not open the door frequently or keep the door open for extended periods.
The fridge seems to make too much noise.	The unit is not leveled or positioned properly.	Adjust the feet and ensure the product is level on the floor.
	There is insufficient ventilation.	Allow sufficient clearance around the unit.
	The unit is too close to a wall or other surface.	Allow sufficient clearance around the unit.
Frost is building up in the unit.	There is excess humidity or the interior temperature is too low.	Turn the unit off, unplug it and remove the frost manually by letting it thaw, or using a plastic/rubber pick. Reconnect once the ice has thawed.

LIMITED MANUFACTURER'S WARRANTY

This appliance is covered by a limited manufacturer's warranty. For one year from the original date of purchase, the manufacturer will repair or replace any parts of this appliance that prove to be defective in materials and workmanship, provided the appliance has been used under normal operating conditions as intended by the manufacturer.

Warranty Terms:

During the first year, any components of this appliance found to be defective due to materials or workmanship will be repaired or replaced, at the manufacturer's discretion, at no charge to the original purchaser. The purchaser will be responsible for any removal or transportation costs.

Warranty Exclusions:

The warranty will not apply if damage is caused by any of the following:

• Power failure
• Damage in transit or when moving the appliance
• Improper power supply such as low voltage, defective household wiring or inadequate fuses
• Accident, alteration, misuse or abuse of the appliance such as using non-approved accessories, inadequate air circulation in the room or abnormal operating conditions (extreme temperatures)
• Use in commercial or industrial applications

• Fire, water damage, theft, war, riot, hostility or acts of God such as hurricanes, floods, etc.

• Use of force or damage caused by external influences

• Partially or completely dismantled appliances
• Excess wear and tear by the user

Obtaining Service:

When making a warranty claim, please have the original bill of purchase with purchase date available. Once confirmed that your appliance is eligible for warranty service, all repairs will be performed by a NewAir™ authorized repair facility. The purchaser will be responsible for any removal or transportation costs. Replacement parts and/or units will be new, re-manufactured or refurbished and is subject to the manufacturer's discretion. For technical support and warranty service, please email [e-mail]
