ZPAC7001B - Air conditioner ZANUSSI - Free user manual and instructions

Product Type	Portable Air Conditioner
Model Number	ZPAC7001 / ZPAC7001B
Cooling Capacity	7000 BTU
Power Input	785W
Voltage / Frequency	220-240V ~ 50Hz
Suitable Room Size	8-14 m²
Refrigerant Type	R290 (Propane)
Refrigerant Charge	0.14 kg
Net Weight	22.6 kg
Dimensions (W x H x D)	32 x 67 x 32 cm
Moisture Removal Rate	0.6 L/hr
Operating Temperature Range	18°C - 35°C (cooling)
Operating Humidity Range	30% - 80% RH
Modes	Cool, Dry, Fan, Night
Fan Speeds	2 (Low / High)
Timer	1-24 hours (programmable start/stop)
Remote Control	Included (with batteries)
Castors	Yes (4 wheels)
Drain Methods	Manual, Continuous, Middle drainage
Filter Type	Washable air filter
Warranty	12 months
Customer Service	0330 1230 597
Spare Parts Available	Remote control, exhaust hose
Safety Notes	Flammable refrigerant (R290); use in room >13 m²

Frequently Asked Questions - ZPAC7001B ZANUSSI

How do I clean the air filter?

Remove the filter from the intake grill and use a vacuum cleaner to remove dust. If very dirty, wash with warm water (max 40°C) and let it dry completely before reinstalling. Clean every week of operation.

What does 'Ft' or 'FULL TANK' mean?

It indicates the internal water tank is full and needs to be drained. Follow the manual draining or continuous draining instructions in the user manual. The unit will stop until drained.

How do I set the timer to turn on/off?

For start-up: Turn off the appliance, press the Timer button, select 1-24 hours, wait 5 seconds. For shut-down: While running, press Timer, select hours, wait 5 seconds. Timer cancels by pressing Timer or On/Off.

Can I use an extension cord?

No. Do not use adaptors or extension leads. Plug the appliance directly into an earthed socket.

What is the minimum room size for safe operation?

The appliance contains flammable refrigerant R290. It must be installed, used, and stored in a room with an area greater than 13 m².

How do I switch between °C and °F?

On the control panel, hold the Increase and Decrease buttons simultaneously for about 5 seconds until the display changes. On the remote control, press the °C/°F button.

What should I do if the unit does not cool?

Check that windows/doors are closed, the exhaust hose is properly attached and not blocked, the filter is clean, and the room size is within capacity. Also ensure no heat sources are present.

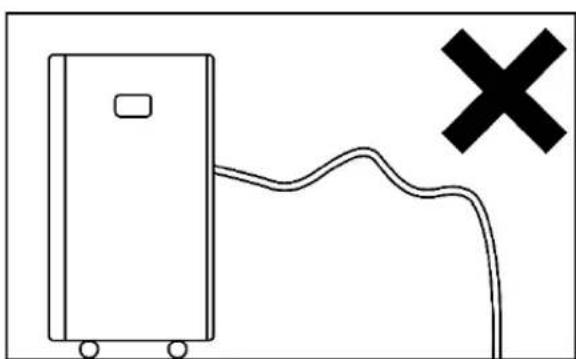

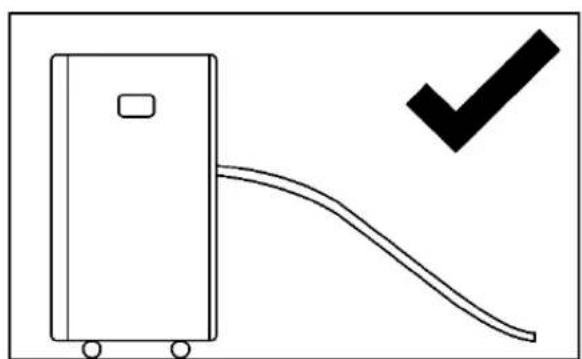

How do I drain water continuously in dehumidify mode?

Unplug the unit, remove the lower drain cap, attach the supplied drain hose to the outlet, and route it to a floor drain or bucket. Ensure the hose is not higher than the outlet.

What are the spare parts available?

Spare parts include the remote control and exhaust hose. Contact customer service at 0330 1230 597 or visit www.zanussiheatingandcooling.uk to check availability.

How long is the warranty?

The product is guaranteed for 12 months from the date of original purchase. Defects due to faulty materials or workmanship should be returned to the place of purchase with proof of purchase.

USER MANUAL ZPAC7001B ZANUSSI

Line drawing of a portable air conditioner unit with wheels and ventilation slots (no text or symbols)

Model Number:

ZPAC7001 / ZPAC7001B

Product only suitable for well insulated spaces or occasional use

For Customer Services & Spare Parts please call 0330 1230 597

Or visit us at www.zanussiheatingandcooling.uk

PLEASE RETAIN

FOR FUTURE REFERENCE

CONTENTS

	Page(s)
Safety Instructions and Electrical Safety	3 - 5
Electrical Safety	6
Feature Diagram	7
Control Panel Diagram	8
Installing your Air Conditioner	9 - 11
Using your Air Conditioner	12 - 21
Draining your Air Conditioner	22 – 24
Cleaning your Air Conditioner	25
Start/End of Season Operations	26
Troubleshooting	27
Guarantee and Customer Services	28
Spare Parts	29
Specification	30
Notes	31

Safety Instructions

Important note: Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

• This model uses natural refrigerant gas as part of its cooling system. This gas is known as R290 (Propane) and is environmentally friendly but can be combustible. Care should therefore be taken when handling or transporting the product to ensure that none of the refrigeration circuit components are damaged.
• Do not obstruct ventilation openings on the appliance and never insert your finger or any other object into the air outlet.

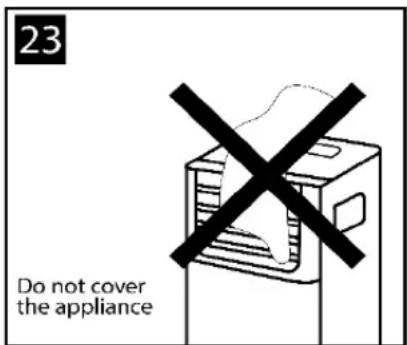

• Do not cover the appliance or place any object on the control panel.
  • The appliance must not be placed or rested on its power cord.
• Do not use adaptors or extension leads when connecting the appliance to the electrical power supply.
• Do not use the appliance if the plug is damaged.
• Do not pull, twist or damage the power cable.
• Do not plug-in or un-plug the appliance with wet hands to prevent electrical shock.
  • Always store the unit in an upright position in order to maintain the compressor working in a proper condition.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance.

Safety Instructions

• This appliance is designed to be used by adults, do not allow children to play with the appliance.
  • The appliance is intended for residential use only.
• When defrosting and cleaning the appliance, do not use any tools other than those recommended by the manufacturing company.
• The appliance must be installed, used and stored in an area that is greater than 13 m2.
• The appliance must be placed in an area without any continuous sources of ignition (for example: open flames, gas or electrical appliances in operation).
• R290/R32 is a refrigerant gas that complies with the European directives on the environment. Do not puncture or damage any part of the refrigerant circuit.
• If the appliance is installed, operated or stored in a non-ventilated area, the room must be designed to prevent the accumulation of refrigerant leaks.
• Individuals who operate or work on the refrigerant circuit must have the appropriate certification issued by an accredited organisation that ensures competence in handling refrigerants according to a specific evaluation recognized by associations in the industry.
• Maintenance and repairs that require the assistance of other qualified personnel must be performed under the supervision of an individual specified in the use of flammable refrigerants.
• Be aware that the refrigerants may not contain an odour.
  • Compliance with national gas regulations shall be observed.
• The appliance shall be stored so as to prevent mechanical damage from occurring.

Safety Instructions

- WARNING: System contains refrigerant under very high pressure. The system must be serviced and repaired as recommended by the equipment manufacturer and by qualified persons only.

- Do not use in the following locations: - Next to a source of fire. An area where oil is likely to splash. An area exposed to direct sunlight. An area where water is likely to splash. Near a bath, shower or a swimming pool. In a greenhouse. An area where flammable gasses or liquids are present.

Electrical Safety

THIS APPLIANCE MUST BE PLUGGED INTO AN EARTHED SOCKET

- Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 220 – 240V AC; 50Hz. Connection to any other power source may damage the unit.

- This product may be fitted with a non rewireable plug. If it is necessary to change the fuse in the plug, the fuse cover must be refitted. If the fuse cover becomes lost or damaged, the plug must not be used until a suitable replacement is obtained.

- If the plug has to be changed because it is not suitable for your socket, or becomes damaged in any way, it should be cut off and an appropriate plug fitted. This should be carried out by a qualified electrician. The plug removed must be disposed of safely, as insertion into a 13 Amp socket is likely to cause an electrical hazard.
            BROWN/BLACK["KROWN/BLACK"]
            PDBL(Ω) = 3.0, COM=3.0, RGB=0.0, Blue=0.0, Black=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.0, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=0.5, Blue=2 |
    end

    subgraph 接线图
        WIRE_Reed_Switch["Water Reed Switch 水位开关"]
    end

    subgraph 控制板
            IPPI["IPI"]
            IPT["IPT"]
            RT["RT(L)"]
            环境温度传感器["盘管温度传感器"]
    end

    subgraph 接线图
            WIFI["WiFi PCB VIFI板"]
            OPTION_PART["OPTION PART 可进部分"]
    end

    subgraph 接线图
            DISPLAY["DISPLAY PCB 显示板"]
            RECEIVE["RECEIVE PCB 接收板"]
            OPTION_PART["OPTION PART 可选部分"]
    end

FEATURE DIAGRAM

Front

1. Control panel
2. Handle (both sides)
3. Castors
4. Deflector

Rear

1. Intake grill
2. Air outlet grill
3. Intake grill
4. Power cable
5. Plug fixer
6. Condensation drain (Dehumidification)
7. Condensation drain (Heating)

CONTROL PANEL DIAGRAM

Front

1. Timer button
2. Fan button
3. Increase button
4. Display screen
5. Decrease button
6. Mode button
7. ON/OFF button

Rear

A. Cool mode
B. Dehumidify mode
C. Fan mode
D. Timer mode

INSTALLING YOUR AIR

CONDITIONER

Exhausting Hot Air

In the COOL mode the appliance must be placed close to a window or opening so that the warm exhaust air can be ducted from outside.

First position the unit on a flat floor and make sure there is a minimum of a 45cm (18inch) clearance around the unit and ensure this is within the vicinity of a plug socket.

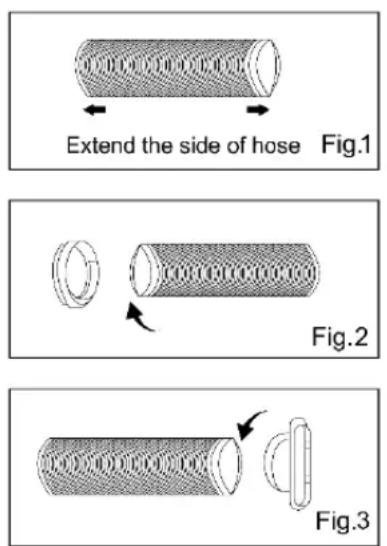

1. Extend either side of the hose (Fig. 1) and screw on the hose inlet (Fig. 2).
2. Extend the other side of the hose and screw it into the hose outlet (Fig. 3)
3. Install the hose inlet into the unit (Fig. 4)
4. Affix the hose outlet into the window seal kit (Fig. 5+6)

Your window seal kit has been designed to fit most standard vertical and horizontal windows; however, it may be necessary for you to modify some aspects of the installation procedures for certain types of windows.

INSTALLING YOUR AIR

CONDITIONER

Location

• The unit should be placed on firm ground to help minimise noise and vibration. For safe and secure positioning, place the unit on a smooth, level floor which is strong enough to support the unit.
• This unit has castors to aid placement but it should only be rolled on smooth, flat surfaces. Use caution when rolling on carpeted and wooden surfaces. Do not attempt to roll the unit over other objects.
• The unit must be placed within reach of a properly rated grounded socket.
• Never place any obstacles around the air inlet or outlet of the unit.
• Allow at least 45cm of space around, above and away from the wall to ensure the appliance works efficiently.
• The hose can be extended but it is best to keep it to the minimum length required. Also ensure that the hose does not have any sharp bends or sags.

Diagram of a mechanical or electrical component with intersecting lines and shaded areas, no visible text or symbols.

INSTALLING YOUR WINDOW KIT

Your Zanussi Air Conditioner has been supplied with a Window Sealing Kit. The kit is suitable for use on UPVC windows that open internally or externally either 3 sides, or 4 sides. It is not suitable for middle opening windows such as skylights, or wooden frames.

The maximum aperture dimensions of the kit is 400cm. To measure the dimensions of a 4 point window, measure the frame on all 4 sides. For a 3 point window, measure the frame on the open sides only.

To install this window seal, whilst the window is closed, apply the Velcro tape on both the inside frame of the window, and the frame of the window as shown by the dotted lines. Ensure that the tape is not clamped or in a position it will become clamped.

Apply the long side of the seal kit to the outside frame, and the short side to the inside window.

Open the window, and ensure there is a sufficient seal.

Open the zip, and thread your air conditioner hose through the opening, then tighten the zip.

Diagram of a ceiling duct with a coiled insulation or insulation material inside, showing no text or symbols.

USING YOUR AIR CONDITIONER

Operating from the control panel

The control panel is on top of the appliance and it enables you to manage functions without using the remote control. However, to use the appliance to its full potential you are advised to use the remote control.

To turn the appliance on plug it into a mains socket and the appliance will enter standby mode.

Press the ON/OFF button to turn the appliance on, the last function that was active when the appliance was turned off will appear.

"Never turn the appliance off by unplugging it from the mains. Always press the ON/OFF button, then wait for a few minutes before unplugging. This allows the appliance to perform a cycle of checks to verify the operation"

COOL Mode

Ideal for hot humid weather when you need to cool and dehumidify the room.

To set this mode correctly:

• Press the MODE button several times until the COOL mode indicator light appears.
• Select the desired temperature by pressing the INCREASE and DECREASE buttons until the value you want is displayed. The temperature ranges from 18-32°C (64-90°F) in this mode.
• Select the required fan speed by pressing the FAN button.
• There are 2 fan speeds to choose from: "F2" (High) & "F1" (Low)

F2 HIGH: To achieve the desired temperature as fast as possible.

F1 LOW: Lowers the noise of the appliance.

The most suitable temperature for a room during the summer varies from 24-27°C. You are recommended not to set a temperature much lower than the outdoor temperature, this will cause unnecessary power consumption.

USING YOUR AIR CONDITIONER

FAN Mode

When using the appliance in this mode, the air hose does not need to be attached.

To set this mode correctly:

• Press the MODE button several times until the FAN mode indicator light appears.
• Select the required fan speed by pressing the FAN button.
• There are 2 fan speeds to choose from: High & Low

= HIGH SPEED

= LOW SPEED

As figured here:

DRY Mode

Ideal to reduce room humidity (good for use in spring, autumn, damp rooms and rainy periods)

When in DRY mode the appliance should be prepared in the same way as for COOL mode, with the air exhaust hose attached to enable the moisture to be discharged outside.

To set this mode correctly:

• Press the MODE button several times until the DRY mode indicator light appears, will also appear on the display screen. (as seen below)
• In this mode, the fan speed is automatically selected by the appliance and can not be set manually.

USING YOUR AIR CONDITIONER

Switching the unit of temperature

Hold both the INCREASE and DECREASE buttons at the same time until the appliance beeps (approx. 5 seconds). Once the appliance has beeped you will be able to change the unit of temperature.

For example:

Before change and when in cool mode the screen will display like this.

After the change the screen will then display like this.

Setting the timer

The timer can be used to schedule the start up or shutting down of the appliance.

Programming start up:

• Turn on the appliance and select the mode, temperature and fan speed you desire, then turn off the appliance.
• Press the TIMER button and the screen will display 1-24 hours.

USING YOUR AIR CONDITIONER

• Continue to press the TIMER button until the desired time is displayed. Wait for approximately 5 seconds and then the timer will then be active. Only the TIMER mode indicator light should be on.
• Press either the TIMER or the ON/OFF button and the timer will be cancelled. The TIMER mode indicator light will then go off.

Programming shut down:

• When the appliance is running press the TIMER button, the screen will display 1-24 hours.
• Continue to press the TIMER button until the desired time is displayed. Wait for approximately 5 seconds and then the timer will be active. The TIMER mode indicator light should appear.
• Press either the TIMER button and the timer will be cancelled. The TIMER mode indicator light should then go off.

USING YOUR AIR CONDITIONER

Operating from the remote control

1	On/Off button
	Mode button
	Night Mode button
^	Increase button
∨	Decrease button
	Oscillating button
	Fan button
L	Timer button
°C/°F	Unit Switch button

• Point the remote control at the receiver on the appliance.
• The remote control must be no more that 7 meters away from the appliance (without obstacles between the remote control and the receiver).
• The remote control must be handled with extreme care to ensure continuous usage. Do not drop or expose the remote to direct sunlight or sources of heat. If the remote stops working, please remove and replace the batteries.

USING YOUR AIR CONDITIONER

Inserting or Replacing the Batteries

To insert or replace the batteries follow the steps below:

1. Remove the cover on the rear of the remote control.
2. Insert two “AAA” 1.5V batteries into the correct positions (see instructions inside the battery compartment).

Line drawing of two hands interacting with a handheld device, one pointing at the screen (no text or symbols present)

NOTE:

- If the remote control is replaced or disposed of, the batteries must be removed and discarded in accordance with current legislation as they are harmful to the environment.

- Do not mix old and new batteries.

- Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.

- Do not dispose of batteries in fire, they may explode or leak.

- If the remote control is not going to be used for a long period of time remove the batteries.

Manual

Access the guide for the Zanussi ZPAC7001B here, completely free. This manual falls under the air-conditioning category and has been rated by 1 users with an average score of 8.3. The manual is presently available in the following languages: English. If you have any specific questions about the Zanussi ZPAC7001B or need further assistance with your product, feel free to ask.

Ask your question here

Illustration of two people in conversation, one pointing and the other gesturing with a question mark above (no text or symbols present)

Need help?

Do you have a particular question about the Zanussi ZPAC7001B not answered by the manual?

Type your question here ...

Ask a question

√ Receive updates on solutions
√ Get answers to your question

Question and answer

Number of questions: 0

USING YOUR AIR CONDITIONER

Night Mode function

This function is useful for the night as it gradually reduces the operation of the appliance.

To set this function correctly:

• Select the COOL or HEAT mode.
• Press the NIGHT MODE button.

The appliance will then operate in the previously selected mode.

When in this function the display screen will reduce in brightness and the room will be maintained at the optimum temperature without excessive fluctuations in temperature or humidity with silent operation. The fan speed will always be low so you are not disturbed by excessive noise while you sleep.

When in COOL mode, the selected temperature will increase by 1^ C ( 1^ F) per hour over a 2-hour period. This new temperature will then be maintained for the next 6 hours. After 6 hours the appliance will turn itself off.

When the appliance is in the FAN or DEHUMIDIFYING mode, the NIGHT MODE function cannot be set.

This function can be cancelled at any time during operation by pressing either the NIGHT MODE, MODE or FAN SPEED button.

Switching the unit of temperature

When the appliance is in COOL mode, press the UNIT SWITCH button and this will allow you to change the unit of temperature from °C to °F and vice versa, as seen below.

USING YOUR AIR CONDITIONER

Tips for correct use

To get the best out of your appliance, follow these recommendations:

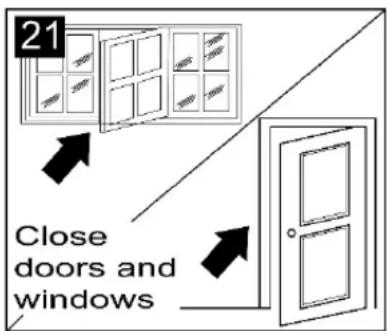

• If possible, close the windows and doors in the room you want to be air conditioned (Fig 21). When installing the appliance semi-permanently you should leave a door slightly open (as little as 1cm) to guarantee correct ventilation.
• Protect the room from direct exposure to the sun by partially closing curtains and/or blinds to make the appliance much more economical to run (Fig 22).
  • Never rest objects of any kind on the appliance.
• Do not obstruct the air intake and outlet (Fig 23). Ensure the grills are left free.
  • Make sure there are no heat sources within the room.
• Never use the appliance in very damp rooms (e.g. Laundry Rooms).
  • Never use the appliance outdoors.
• Make sure the appliance is standing on a level surface. If necessary, place the castor locks under the front wheels.

USING YOUR AIR CONDITIONER

Self-Diagnosis

This appliance has a self-diagnosis system to help identify a number of malfunctions.

The following error messages will be displayed is the appliance has identified a malfunction.

DISPLAY WHAT SHOULD YOU DO?
PROBE FAILURE	If this is displayed please contact our Customer Service team by calling 0345 209 7461.
FULL TANK	Empty the internal safety tank, following the instructions in the “End of Season Operations” section of this Instruction Manual

DRAINING YOUR AIR CONDITIONER

Water drainage method

When there is excess water condensation inside the unit, the appliance will stop running and 'Ft' will display (FULL TANK as mentioned in the self diagnosis). This indicates that water needs to be drained out using one of the following procedures.

Manual Draining (Fig. 24)

Water may need to be drained in high humidity areas.

1. Unplug the unit from the power source.
2. Place a drain pan under the lower drain plug (see Fig. 24).
3. Remove the lower drain plug
4. Water will drain out and collect in the drain pan (drain pans not supplied).
5. After all the water has been drained out, replace the lower drain plug firmly.
6. Plug the unit back into the power source and turn it back on.

Continuous Draining (Fig. 25)

While using the unit in the dehumidifier mode, it is recommended to use this method of draining.

1. Unplug the unit from the power source.

DRAINING YOUR AIR CONDITIONER

1. Remove the drain plug. When removing the plug some residual water may spill out, so ensure you have a pan to collect the water.

2. Connect the supplied drain hose to the drain outlet.

3. The water can be continuously drained through the hose into a floor drain or bucket.

4. Plug the unit back into the power source and turn it back on.

NOTE – Please ensure that the height of and the section of the drain hose should not be higher than the drain outlet, or the water tank may not be drained (Fig. 26 and 27).

DRAINING YOUR AIR CONDITIONER

Middle drainage

When the unit is running in DEHUMIDIFY mode, you can chose to drain the appliance through the middle drainage hole. This is done as follows:

1. Unplug the unit from the power source
2. Remove the drain plug (Fig A). While doing this some residual water may spill out, so ensure you have a pan to collect the water.
3. Connect the supplied drain hose to the middle drainage outlet. (Fig B)
4. The water can be continuously drained through the hose into a floor drain or bucket.
5. Plug the unit back into the power source and turn it back on.

Simple line drawing of a circular mechanical component with a finger inserted (no text or symbols)

NOTE – Please ensure that the height of and the section of the drain hose should not be higher than the drain outlet, or the water tank may not be drained.

Simple line drawing of a door with wheels and a curved ramp, accompanied by a black checkmark (no text or symbols)

Simple line drawing of a device with a switch and a cross symbol (no text or labels)

CLEANING YOUR AIR CONDITIONER

Before any cleaning or maintenance, turn the appliance off by pressing the ON/OFF button on either the control panel or remote control, wait for a few minutes and then unplug the appliance from the mains socket.

Cleaning the cabinet

You should clean the appliance with a slightly damp cloth and then pat dry with a dry cloth.

• Never wash the appliance with water it could be dangerous.
• Never use petrol, alcohol or solvents to clean the appliance.
• Never spray with insecticide or similar liquids.

Cleaning the air filters

To keep your appliance working efficiently, you should clean the filter every week of operation.

You can remove the evaporator filter as seen below.

Technical line drawing of a refrigerated industrial machine with cooling unit and fan (no text or symbols)

Use a vacuum cleaner to remove dust accumulation from the filter. If it is very dirty, immerse the filter in warm water and rinse it several times, the water should never be hotter than 40^ C ( 104^ F). After washing, leave the filter out to dry and then re-attach the intake grill to the appliance.

START/END OF SEASON OPERATIONS

Start of season checks

Make sure the power cable and plug are undamaged and the earth system is efficient.

Follow the installation instructions within this manual precisely.

End of season operations

To empty the internal circuit completely of water, remove the cap and run all the water off into a pan.

When all the water has been drained, firmly put the cap back in place. Clean the filter and dry thoroughly before putting it back into the appliance.

Limit conditions

Temperature of room: 18-35°C (64-95°F) (Cooling)

Humidity of room: 30%RH \~ 80%RH

TROUBLESHOOTING

PROBLEM CAUSE SOLUTION
The appliance does not come on	-There is no current-It is not plugged into the mains-The internal safety device has tripped	-Wait-Plug it into the mains-Wait 30 minutes and if the problem persists please contact our Customer Service team on 0345 209 7461.
The appliance works for a short time only	-There are bends in the air exhaust hose-Something is preventing the air from being discharged	-Position the air exhaust correctly, keeping it as short and free of curves as possible.-Check and remove and obstacles obstructing the air discharge.
The appliance works but does not cool the room	-Windows, doors and/or curtains are open-There are heat sources in the room (oven, hairdryer etc.)-The air exhaust hose is detached from the appliance-The technical specification of the appliance is not adequate for the room in which it is located	-Close doors, windows and curtains, bearing in mind the “tips for correct use” given above-Remove the heat sources-Fit the air exhaust in the housing at the back of the appliance
During operation, there is an unpleasant smell in the room	-The air filter in clogged	-Clean the filter as described earlier within this instruction booklet
The appliance does not operate for about three minutes after restarting it	-The internal compressor safety device prevents the appliance from being restarted until three minutes have elapsed since it was last turned off	-Wait, this delay is part of the normal operation of the appliance
The following message appears on the display: PF/FT	-The appliance has a self-diagnosis system to identify a number of malfunctions	-See the SELF-DIAGNOSIS section of this booklet

GUARANTEE AND CUSTOMER SERVICES

At Zanussi, we take all our customer feedback seriously.

Feel free to contact our Customer Service Team, on 0345 2097461 who will be more than happy to assist you.

This product is guaranteed for 12 months from the date of the original purchase. If any defect arises due to faulty materials or workmanship, the faulty product must be returned to the place of purchase.

Refund or replacement is at the discretion of the retailer.

The following conditions apply:

• The product must be returned to the retailer with the original proof of purchase.
• The product must be installed and used in accordance with the instructions contained in this instruction guide and any other instructions for use which are supplied.
• It must be used for domestic purposes only and for its intended use.
• This warranty does not cover wear and tear, damage, misuse or consumable parts.

This does not affect your statutory rights.

For Customer Services & Spare Parts please call 0330 1230 597 Or visit us at www.zanussiheatingandcooling.uk

SPARE PARTS

To check the availability of the following spare parts, simply contact our friendly Customer Services team using the details provided at the bottom of this page.

Remote Control

Exhaust Hose

For Customer Services & Spare Parts please call 0330 1230 597

Or visit us at www.zanussiheatingandcooling.uk

SPECIFICATION

Model	ZPAC7001 / Z{AC7001B
Voltage	220 – 240V 50Hz
Power Input	785W
Maximum Cooling Capacity	7000 BTU
Suitable Room Size	8-14 (m2)
Refrigerant	R290/0.14kg
Overall Size (W x H x D)	32 x 67 x 32 (cm)
Weight	22.6 KG
Moisture Removal	0.6 L/hr
Operating Temperature	18°C - 35°C
Operating Humidity	30%RH ~ 80%RH

NOTES

ZANUSSI

ZANUSSI is a registered trademark used under license from AB Electrolux (publ). Made under license by Product Care Trading Limited, Wigan, WN2 4AY/ PCT (NI) Ltd, Belfast, BT5 5AD

For Customer Services & Spare Parts please call: 0330 1230 597

Or visit us at www.zanussiheatingandcooling.uk

The ‘wheelie bin’ symbol is known as the 'Crossed-out wheelie bin Symbol'.

When this symbol is marked on a product/batteries, it means that the product/batteries should not be disposed of with your general household waste. Only discard electrical/electronic/battery items in separate collection schemes, which cater for the recovery and recycling of materials contained within. Your co-operation is vital to ensure the success of these schemes and for the protection of the environment. For your nearest disposal facility, visit www.recycle-more.co.uk or ask in store for details.

SEDEX – Connecting businesses and their global suppliers to share ethical data and enabling improvement in ethical performance. Visit www.sedex.org.uk for further information.

We reserve the right, due to possible changes to design, to alter the instruction manual without prior notice.

Revision 3.1
