LSZAL982BF - Electrical switch JUNG - Free user manual and instructions

Brand	JUNG
Model	LSZAL982BF
Product Type	Flush-mounting frame for LS ZERO series
Compatible Insert Count	1-gang, 2-gang, 3-gang
Minimum Panel Thickness	13 mm
Cut-out Dimensions (1-gang)	82 mm x 78 mm (width x height)
Cut-out Dimensions (2-gang)	153 mm x 78 mm (width x height)
Cut-out Dimensions (3-gang)	224 mm x 78 mm (width x height)
Material	High-quality plastic (estimated)
Color	White (typical for LS ZERO series)
Installation Type	Flush-mounting in furniture or wall
Safety Requirement	Installation by qualified electrician only
Frame Overlap	Cover design frame flush with wall box
Supporting Frame Contact	Must be smooth and flat
Sealing	Cut-out must be sealed to prevent furniture swelling
Cleaning	Wipe with a dry, soft cloth (estimated)
Certifications	CE (estimated)
Weight	Approx. 50 g per gang (estimated)

Frequently Asked Questions - LSZAL982BF JUNG

What is the minimum panel thickness required for flush-mounting the LSZAL982BF frame?

The minimum panel thickness is 13 mm. The supporting frame contact surface must be smooth and flat.

Can I install this frame myself?

No, the insert may only be connected by a qualified electrician to the electrical network. The frame installation itself can be done by a skilled DIYer if the electrical connections are already made.

What are the exact cut-out dimensions for a 1-gang installation?

For a 1-gang frame, the cut-out dimensions are 82 mm width x 78 mm height with a tolerance of +0.15 mm. The wall box edge must be recessed.

Is the LSZAL982BF compatible with standard JUNG inserts?

Yes, it is designed for the LS ZERO series inserts. It accommodates 1, 2, or 3 inserts depending on the gang configuration.

How do I seal the cut-out to prevent furniture swelling?

After cutting the opening, seal the edges with a suitable sealing compound (e.g., silicone or acrylic sealant) to avoid moisture ingress causing swelling of the furniture.

What is the overall frame size for a 2-gang installation?

The overall frame size is not explicitly given, but the cut-out for a 2-gang is 153 mm x 78 mm. The frame will be slightly larger, typically adding 10-20 mm per side.

Can I use this frame for surface-mount installation?

No, this frame is specifically designed for flush-mounting in a wall or furniture. Surface-mount would require different accessories.

How do I clean the LSZAL982BF frame?

Clean with a soft, dry cloth. Avoid abrasive cleaners or solvents that may damage the surface.

What is the material of the frame?

The frame is made of high-quality plastic (likely thermoplastic), typical for JUNG LS ZERO series. It is robust and durable.

Are replacement parts available if I damage the frame?

Yes, JUNG offers spare parts such as cover frames and inserts. Contact an authorized dealer or JUNG customer service for replacements.

USER MANUAL LSZAL982BF JUNG

Mounting recommendation

LS ZERO

0 mm 3 mm

Mounting recommendation

0 mm

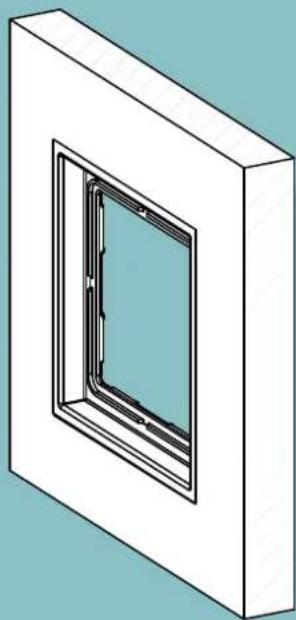

Isometric view of a rectangular frame with a square recessed, showing internal structure (no text or symbols)

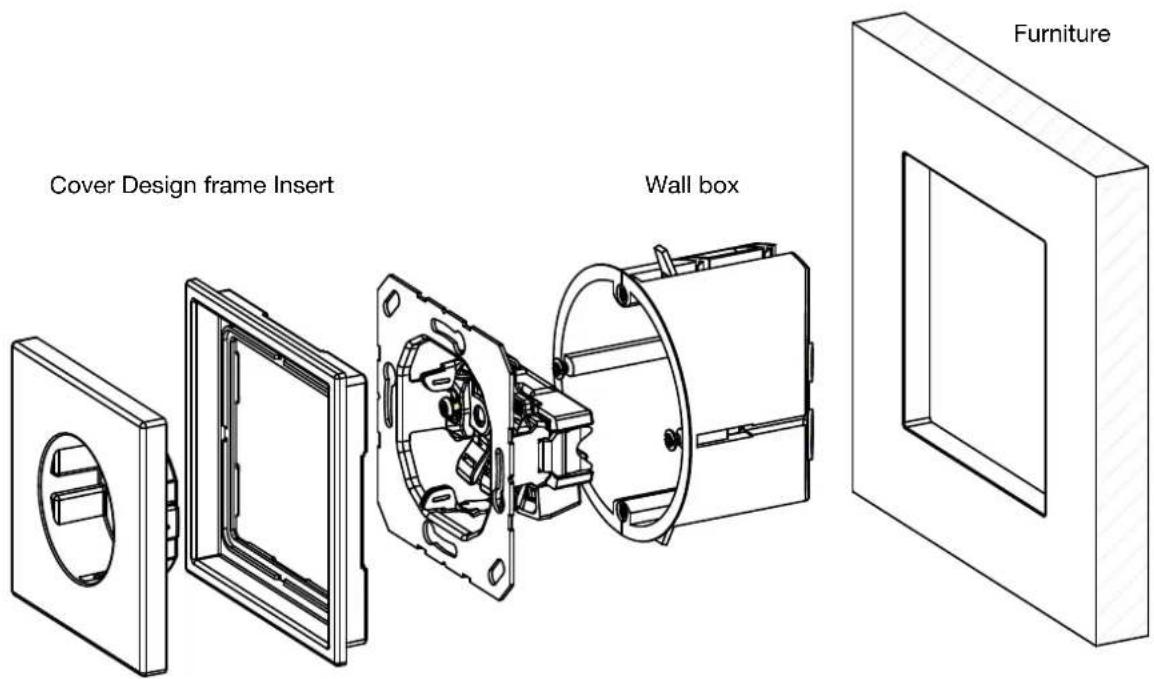

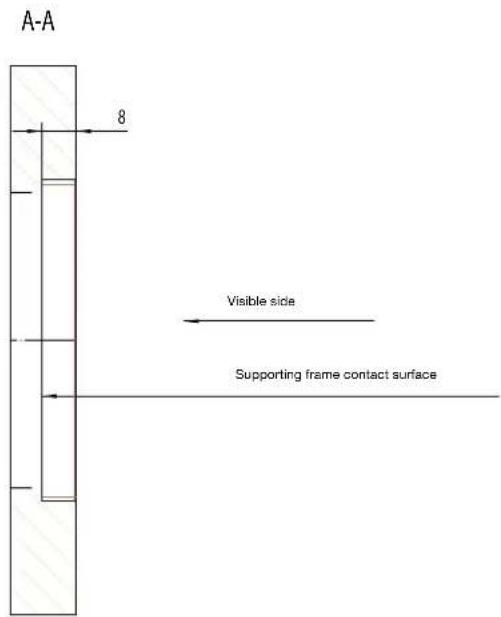

The flush mounting installation requires a minimum panel thickness of 13 mm. The supporting frame contact surface must be generated smooth and flat. Subsequently the cut out has to be sealed with a suitable sealing in order to avoid a swelling of the furniture.

Mounting recommendation

0 mm

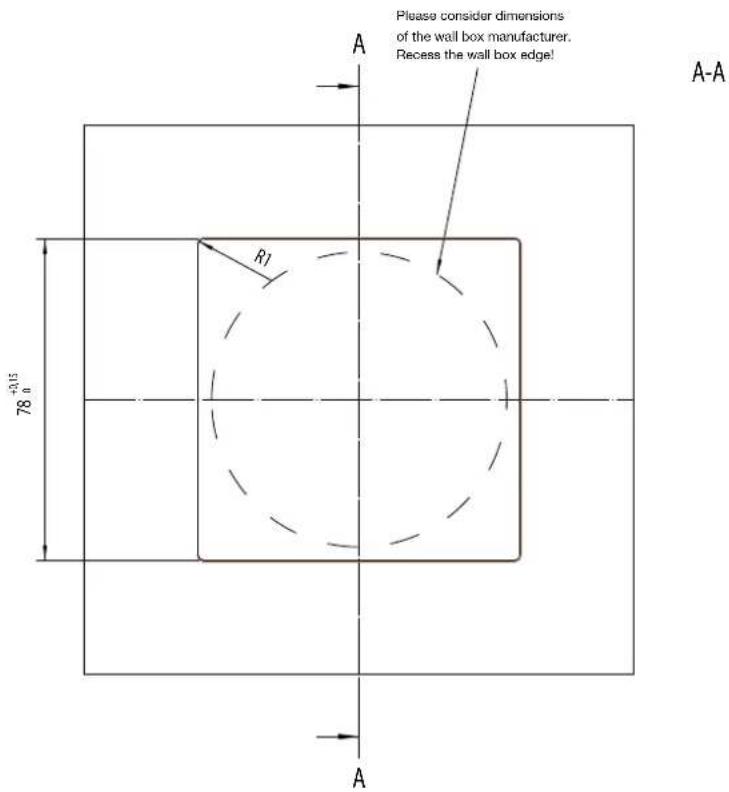

1-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

0 mm

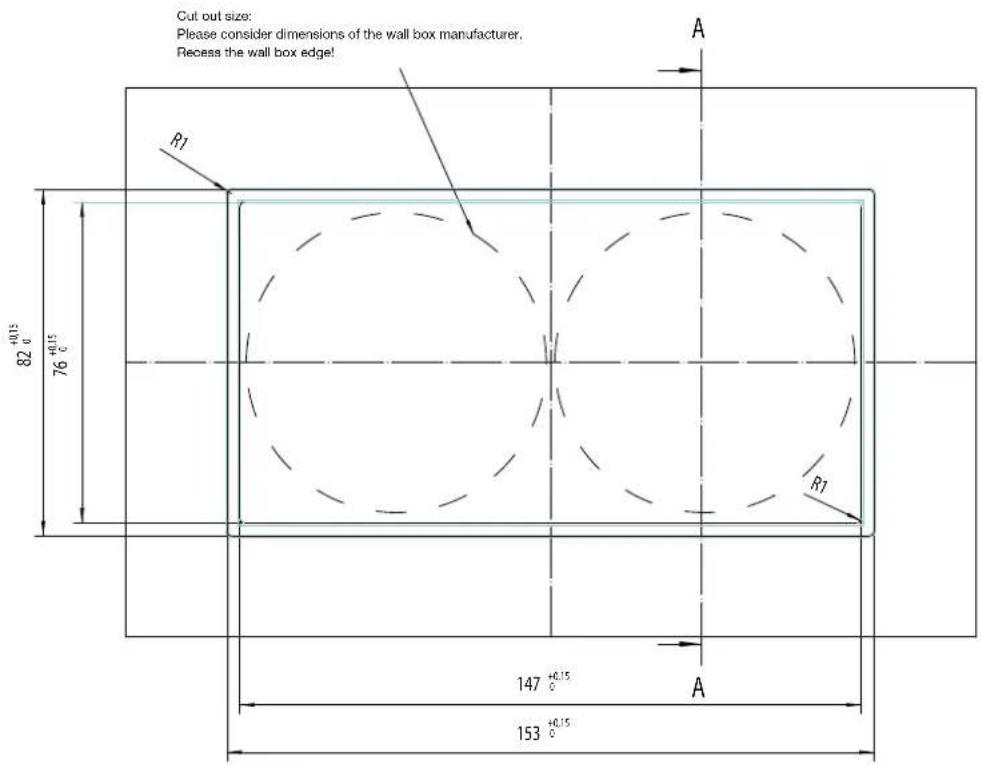

2-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

0 mm

3-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

3 mm

Isometric view of a rectangular frame with a square cutout, mounted on a white base (no text or symbols)

The flush mounting installation requires a minimum panel thickness of 13 mm. The supporting frame contact surface must be generated smooth and flat. Subsequently the cut out has to be sealed with a suitable sealing in order to avoid a swelling of the furniture.

Mounting recommendation

3 mm

1-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

3 mm

2-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.

Mounting recommendation

3 mm

3-gang frame installation:

Safety instructions for installation: The insert may only be connected by a qualified electrician to the electrical network.
