USER MANUAL KLS-25E Blodgett

KPS-E, KLS-E AND KLT-E SERIES

PRODUCT LINE

Exterior view of a stainless steel mixing machine (no visible text or symbols)

STATIONARY PEDESTAL MODELS

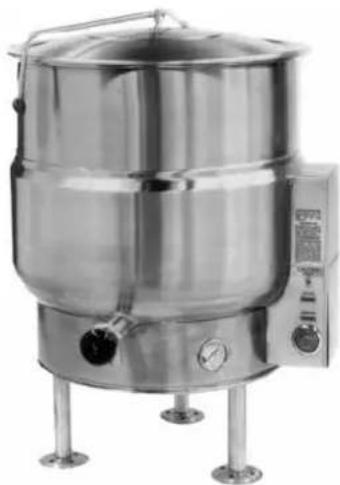

KPS-20E
KPS-25E
KPS-30E
KPS-40E
KPS-60E
KPS-80E
KPS-100E

Exterior view of a stainless steel industrial mixer or reactor vessel with control panel and pressure gauge (no visible text or symbols)

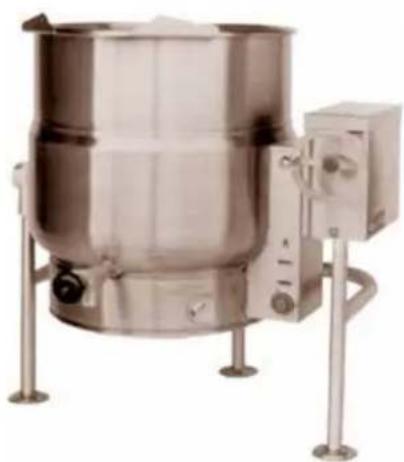

STATIONARY TRI-LEG MODELS

KLS-20E
KLS-30E
KLS-40E
KLS-60E
KLS-80E
KLS-100E

Exterior view of a stainless steel mixing vessel with control panel and stand (no text or symbols visible)

TILTING TRI-LEG MODELS

KLT-20E
KLT-30E
KLT-40E
KLT-60E
KLT-80E
KLT-100E

BLODGETT

Your Service Agency's Address:

Model

Serial number

Kettle installed by

Installation checked by

IMPORTANT

WARNING: Improper installation, adjustment, alternation, service or maintenance can cause property damage, injury or death. Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any other appliance.

The information contained in this manual is important for the proper installation, use, and maintenance of this kettle. Adherence to these procedures and instructions will result in satisfactory baking results and long, trouble free service. Please read this manual carefully and retain it for future reference.

ERRORS: Descriptive, typographic or pictorial errors are subject to correction. Specifications are subject to change without notice.

TABLE OF CONTENTS

INSTALLATION

Introduction....2

Service Connections 3

Installation Instructions 6

Operating & Cleaning Instructions 7

DESCRIPTION

Floor model kettles are self-contained, self-generating steam jacketed vessels for cooking large volumes of liquid and semi-liquid food products. All models include a hemispheric shape based on double-wall construction forming a steam jacket reservoir around the lower two-thirds of the kettle. The reservoir is charged with distilled water, rust inhibitor and antifreeze solution and is vacuum-sealed. Kettles are equipped with electric heating elements and controls including a low water cut-off device for protection of heating elements.

Two model series differ in that KLT-__E units are leg-mounted tilting kettles while KPS-__E units are pedestal mounted stationery kettles. Optional leg mounting of the pedestal models is designated by the model number series KLS-__E. The missing figures of the model numbers are the two digits representing the kettle capacity, ie, KLT-20E for a 20 gallon tilting kettle.

BASIC FUNCTIONING

Self-contained kettles operate by generating steam in the kettle reservoir; the sequence of functioning, which occurs during operation, is as follows:

1. Operator places the power switch in the ON position and sets the thermostat knob at the required setting from "1" to "10" - 140° to 290°F (60° to 144°C) - jacket temperature.

2. Control circuit is normally completed to the thermostat control if two standard conditions exist:

a. Water level in kettle jacket is adequate to prevent circuit interruption by the low water cut-off device. An activated cut-off is evidenced by the Low Water light turning on and heating element cut off.
b. Kettle is in vertical position with circuit completed through the tilt interlock switch (KLT-E series only).

1. Thermostatic control contacts close to energize heater contactor coils and turn temperature Indicator light on.

2. Power is applied to heaters through closed contactor power contacts.

3. As temperature of water rises in kettle reservoir, the steam pressure increase is indicated by the vacuum pressure gauge.

NOTE: Gauge normally reads 22-30 IN. Hg (74-100 k/Pa) (below 0 PSI, prior to heaters turning on. Air is eliminated from the system when jacket is filled (with the kettle reservoir at a pressure above 0 PSI) by opening the bleed vent one full turn for 10 seconds and closing.

1. When temperature of steam in the reservoir reaches the temperature coinciding with the thermostat setting, the thermostat switch opens to break the circuit to the contractor coils and shuts off the elements. Any number of on and off cycles of the control thermostat, contactors and elements will occur as required to maintain thermostat setting,

SERVICE

Required service, both preventive and corrective. is explained in the maintenance section. Should repairs be required, a network of authorized agencies is available to assist with prompt service. A current Directory of Authorized Service Agencies may be found by visiting our website, www.blodgett.com.

The model and serial numbers must be referenced when corresponding with Blodgett. The data plate containing the serial number pertaining to the equipment is located on rear of kettle.

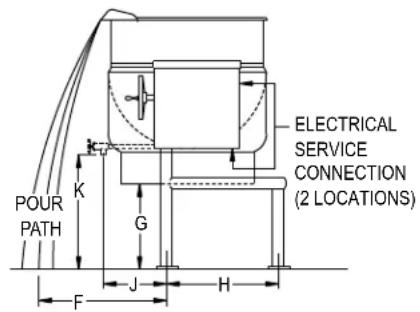

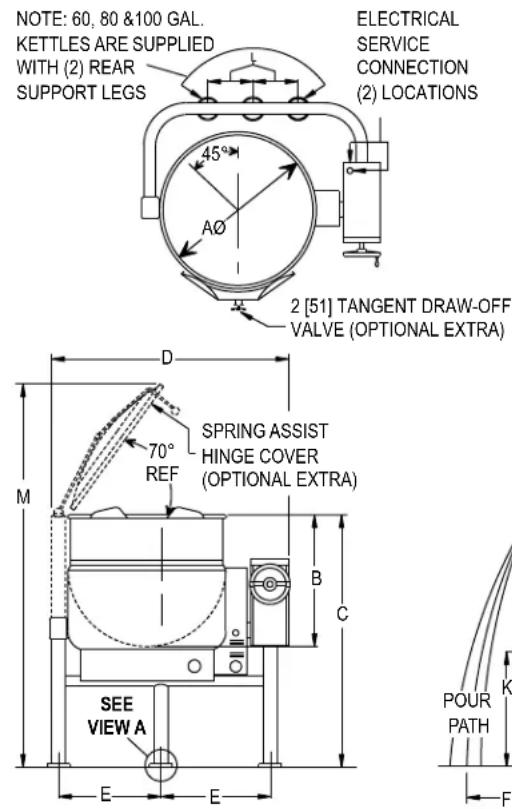

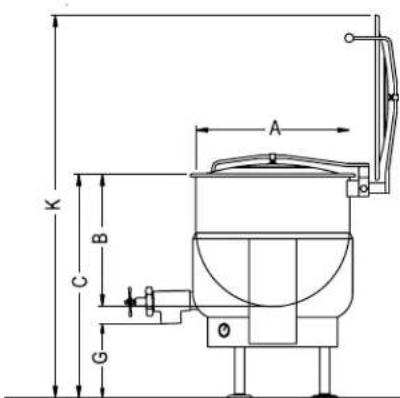

TILTING TRI-LEG KETTLES

DIMENSIONS

MODEL A B

C D E F

G H J(2")

J(3")

K(2")

K(3")

L M

KLT-20E 21

[533]

18[457]

38[965]

36[914]

15[381]

18[457]

14[356]

19.25[489]

14.75[375]

15.5[394]

18[457]

17.5[445]

-63.5[1613]

KLT-30E 24

[610]

20[508]

38[965]

39[990]

16.5[419]

19[483]

12.38[314]

19.25[489]

16.75[425]

17.25[438]

16[406]

15.5[394]

-66.5[1689]

KLT-40E 26

[660]

22.5[572]

38[965]

41[1041]

17.5[445]

23[584]

10[254]

20.25[489]

17.5[445]

18.5[470]

13.5[343]

13[430]

-68.5[1740]

KLT-60E 29.5

[749]

26[660]

42[1067]

44.5[1124]

19.13[486]

24[610]

11[280]

22.5[514]

19.5[495]

20.75[527]

14[356]

13.5[343]

10.5[267]

76[1930]

KLT-80E 33

[838]

28[711]

45[1143]

48[1219]

20.88[530]

27[686]

12.63[321]

23.75[565]

20.25[514]

21.25[540]

15[381]

14.5[368]

12[305]

82.5[2096]

KLT-100E 35.5

[902]

29.75[756]

48.75[1238]

49.5[1257]

22.25[565]

32[813]

14.5[368]

25.25[641]

20.25[514]

21.25[540]

18.75[476]

18.25[464]

14[356]

88.5[2248]

ELECTRICAL CHARACTERISTICS

MODEL PH KW			AMPS
			208	40 480	220	380	240
KLT-20E	1 12	57	50	25 - -
	3	12	34	29	15	32	28
KLT-30E	1 15	73	63	32 - -
	3	15	42	37	18	39	36
KLT-40E	3	24	67	58	29	63	58
KLT-60E	3	24	67	58	29	63	58
KLT-80E	3	24	67	58	29	63	58
KLT-100E	3	24	67	58	29	63	58
	3	33 (option)	91.6	79.4	39.7	50.1	45.9

DIMENSIONS ARE IN INCHES [MM]

VIEW A - FLANGE FOOT DETAIL

Figure 1

STATIONARY TRI-LEG KETTLES

MODEL

A

B

C

D

E

F (2")

F (3")

G (2")

G (3")

H

J

K

L

KLS-20E

21[533]

18[457]

38[965]

23.75[629]

18.5[470]

14.75[375]

15.5[395]

18[457]

17.5[445]

14[356]

21[533]

60.5[1537]

16.75[425]

KLS-25E

21[533]

20.5[521]

36.75[933]

23.75[629]

14.37[365]

14.75[375]

15.5[394]

14.16[360]

13.66[347]

9.55[243]

17.2[437]

61.22[1555]

12.41[315]

KLS-30E

24[610]

20[508]

38[965]

27.75[705]

20[508]

16[406]

16.5[419]

15.75[400]

15.25[387]

12.5[318]

19[483]

63.5[1613]

18.3[465]

KLS-40E

26[660]

22.5[572]

38[965]

29.75[756]

21[533]

17[432]

18[457]

13.5[343]

13[330]

9[229]

17[432]

65[1651]

19.9[506]

KLS-60E

29.5[749]

26[660]

42[1067]

33.75[857]

19[483]

18[457]

19.25[489]

14[356]

13.5[343]

11[280]

17.25[438]

75[1905]

23.125[587]

KLS-80E

33[838]

28[711]

45[1143]

36.75[933]

20.5[521]

19.5[495]

20.5[521]

15[381]

14.5[368]

12.75[324]

18[458]

81[2058]

26.25[667]

KLS-100E

35.5[902]

30[762]

48[1219]

40[1016]

22[559]

21.5[546]

22.5[572]

15[381]

14.5[368]

13[330]

20.5[521]

87[2210]

29.438[748]

ELECTRICAL CHARACTERISTICS

AMPS PER LINE
KW	PHASE 208	V 220V 240	V 380V 41	5V 440V 440V
12	1 57.7	54.4 50.0	N/A N/A N/A	N/A
	3 33.3	31.5 28.9	8.2 16.7 N/A	14.4
12.6	3 N/A N/A N/A	N/A N/A N/A	16.5* N/A
15	1 72.1	68.2 62.5	N/A N/A N/A	N/A
	3 41.6	39.4 36.1	22.8 20.9 N/A	18.0
18	1 86.5	81.8 75.0	N/A N/A N/A	N/A
	3 50.0	47.2 43.3	27.3 25 N/A	21.7
24 3	66.6 63.0	57.7 36.5	33.4 N/A 28.9
33 3	91.6 86.6	79.4 50.1	45.9 39.7

* KLS-25E model only

SERVICE CONNECTIONS

EC	Electrical Connection to be as specified on data plate.

DIMENSIONS ARE IN INCHES [MM]

FLANGED FOOT DETAIL 4 EQUALLY SPACED Ø7/16" [11mm] HOLES ON 3 [76] B.C.

25 GALLON FOOT DETAIL
3 EQUALLY SPACED O7/16" [11MM] HOLES ON 3-1/8" [80MM] B.C.D.

Figure 2

STATIONARY PEDESTAL BASE KETTLES

ELECTRICAL CHARACTERISTICS

AVAILABLE KW AMPS PER LINE
Model Standard Optional kW pH 208V			220V 240V	380V 415V	480V 600V
KPS-20E 12 n/a			1231.5 28.9	1 57.5	54.5 50.0	-	-	-	-
KPS-30E 15 n/a		3 33.3		18.2 16.7 1	4.4 11.6
KPS-40E 18	24		15	1 72.1	68.2 62.5	-	-	-	-
KPS-60E	18	24, 33		3	41.6	39.4	36.1	22.8	20.9	18.0	14.5
KPS-80E 18	24, 33		18	1 86.5	81.8 75.0	-	-	-	-
KPS-100E	24	33		3	50.0	47.2	43.3	27.3	25.0	21.7	21.7
			24	3 66.6	63.0 57.7	36.5 33.4	28.9 23.1
			33	3 91.6	86.6 79.4	50.1 45.9	39.7 31.8

DIMENSIONS

MODELS

A

B

C

D

E

F (2")

F(3")

G(2")

G(3")

H

J

K

KPS-20E

21[533]

18[457]

38[965]

23.75[629]

18.5[470]

14.75[375]

15.5[394]

18[457]

17.5[445]

14[356]

21[533]

60[1537]

KPS-30E

24[610]

20[508]

38[965]

27.75[705]

20[508]

16[406]

16.5[419]

15.75[400]

15.25[387]

12.5[318]

19[483]

63.5[1613]

KPS-40E

26[660]

22.5[572]

38[965]

29.75[756]

21[533]

17[432]

18[457]

13.5[343]

13[330]

9[229]

17[432]

65[1651]

KPS-60E

29.5[749]

26[660]

42[1067]

33.75[857]

19[483]

18[457]

19.25[489]

14[356]

13.5[343]

11[280]

17.25[438]

75[1905]

KPS-80E

33[838]

28[711]

45[1143]

36.75[933]

20.5[521]

19.5[495]

20.5[521]

15[381]

14.5[368]

12.75[324]

18[458]

81[2058]

KPS-100E

35.5[902]

30[762]

48[1219]

40[1016]

22[559]

21.5[546]

22.5[572]

15[381]

14.5[368]

13[330]

20.5[521]

87[2210]

MINIMUM CLEARANCE

3" (76mm) on sides and back

SERVICE CONNECTIONS

EC Electrical Connection to be as specified on data plate.

NOTE

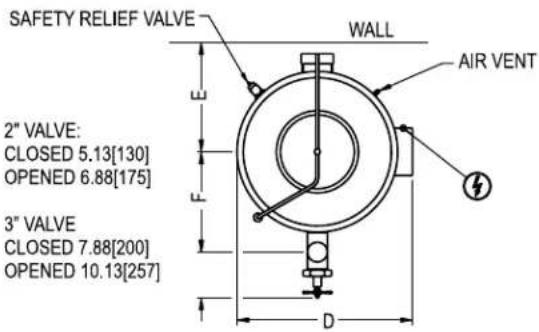

2" VALVE 3" VALVE

CLOSED 5.13 [130] CLOSED 7.88 [200]

OPENED 6.88 [175] OPENED 10.13 [257]

SAFETY

RELIEF

DIMENSIONS ARE IN INCHES [MM]

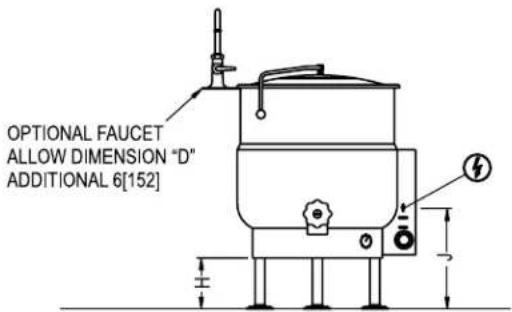

OPTIONAL FAUCET

ALLOW DIMENSION "D"

ADDITIONAL 6 [152]

PEDESTAL DETAIL

∅7/16 [11MM] EQUALLY SPACED

Figure 3

1. Select a location to provide drainage directly below the tangent draw-off. Allow sufficient rear clearance from wall for kettle cover to lift upright freely and completely without obstructions.
2. Mark hole locations through flanged adjustable feet on KLT-E models. Remove kettle.
3. Drill holes on marked hole locations, and insert expansion shields to accommodate 5/16" size lag bolts.
4. Reposition kettle. On KLS-__E models level by making necessary adjustments on flanged feet.
5. Bolt down kettle and seal with Silastic or other equivalent sealing compound. Sealant must be applied not only to bolt heads but also around flanges or pedestal base making contact with floor surface to fulfill NSF requirements. Wipe off excess sealant immediately.
6. A control box with power supply equivalent to electrical
7. Rating of kettle should be located conveniently nearby.
8. A waterproof electrical connection for power supply to rear of control housing must be provided.
9. Ground kettle to terminal provided inside control housing.
10. Turn power ON and check for proper operation.

OPERATION

1. Check kettle pressure gauge that reading indicates 20-25 vacuum for a cold kettle. If vacuum is insufficient, air venting instructions must be followed. If equipped with draw off valve ensure valve is closed.
2. Place kettle power switch in ON position.
3. Preheat kettle by turning thermostat knob to '8' and wait until temperature pilot light goes off.

NOTE: Food products with milk or egg base should be placed into cold kettle and then the cooking operation begun. Avoid sudden contact of these food products to hot kettle bowl surface since caking/adhering will occur.

1. Place food product into kettle bowl. Close kettle cover.
2. Adjust thermostat knob to temperature cooking mode. Setting of 6-7 will provide simmer and 8-10 low to rolling boil.
3. Turn both kettle power switch and thermostat knob OFF when cooking has been completed.
4. Remove food product by ladling out of kettle bowl or by opening draw-off valve and pouring into a suitable container.

WARNING

DRAW OFF VALVE HAS A VUCANIZED RUBBER COATED STEAM FOR BETTER SEALING. DO NOT OVERTIGHTEN. THIS MAY CAUSE THE RUBBER TO PULL AWAY FROM STEAM AND PERMANENTLY DAMAGE IT.

CLEANING

Your kettle should be cleaned immediately after each use to prevent food residue from drying and adhering too kettle bowl and valve surfaces.

1. Turn power supply OFF to kettle
2. Rinse inside of kettle thoroughly. Drain kettle by tilting or if equipped wit-h drain valve, open valve and remove all food particles. Close drain valve.
3. Using nylon brush. clean kettle with a mild detergent and warm water rinse. Never use steel wool or scouring powder as they will scratch stainless steel. Food adhering excessively to bowl surface may be loosened by allowing water to soak in a bowl at a low temperature setting.
4. Open the draw-off to allow soap and water solution to drain.
5. By hand, turn large hex nut on draw-off valve counter clockwise until completely disengaged from thread. Grasp valve knob and pullout valve steam and disc slowly.
6. Avoid contact of valve disc with hard surfaces since damage to disc may occur and result in valve leakage. Wash the valve stem, disc and handles. Insert nylon brush with detergent into interior of valve body and tangent draw-off tube and brush vigorously.
7. Replace valve stem assembly and engage hex nut fully by hand. Flush kettle with clean warm water and leave valve open when kettle is not in use.
8. Wipe down exterior of kettle with clean damp cloth.

WARNING

It is NOT RECOMMENDED to use cleaning agents that are corrosive.

Use of cleaning agents that contain chloride, acids or salts are corrosive and may cause pitting and corrosion when used over a period of time; this will reduce the life of the appliance.

Should pitting or corrosion occur this is not covered by warranty.

Follow the recommended cleaning instructions Use detergent, warm water and rinse thoroughly.

NEVER SPRAY WATER INTO ELECTRIC CONTROLS.
