Product Type	DDR4 SODIMM Memory Kit
Brand	Crucial
Model	CT2K32G4SFD832A
Total Capacity	64 GB (2 x 32 GB)
Memory Speed	3200 MHz (PC4-25600)
Form Factor	SODIMM (Small Outline Dual Inline Memory Module)
Voltage	1.2 V
Pin Count	260-pin
CAS Latency	CL22
ECC	Non-ECC
Unbuffered	Yes
Compatibility	Laptop computers
Installation	Plug and Play
Static Protection	ESD safe handling required
Warranty	Limited Lifetime
Package Quantity	2 modules
Dimensions (each module)	67.6 mm x 30 mm x 3.8 mm (approx.)
Weight (each module)	10 g (approx.)

Frequently Asked Questions - CT2K32G4SFD832A Crucial

How do I install Crucial memory modules?

Shut down your system, unplug power, and remove battery if applicable. Discharge residual electricity by holding the power button for 3-5 seconds. Remove the computer cover, touch unpainted metal to ground yourself, then locate the memory slots. Align the notch on the module with the slot and press firmly until the clips snap into place. Replace cover and reconnect power.

What should I do if my system does not boot after installation?

If your system does not boot, check all internal connections. Ensure the memory modules are fully seated by removing and reinstalling them. If you hear beeps, it may indicate the system does not recognize the memory. Contact Crucial Technical Support if the problem persists.

Why do I hear beeps after installing new RAM?

Beeps often indicate a memory error. The system may not be recognizing the new memory. Remove and reinstall the modules, ensuring they are securely seated. If beeps continue, check compatibility or contact support.

What does a memory mismatch message mean?

A memory mismatch message is not an error; it prompts you to enter the Setup menu and select 'Save and Exit' to update system settings. This is normal for some systems after installing new memory.

How should I handle static electricity during installation?

Work in a static-safe environment. Remove plastic bags or papers from your workspace. Before handling memory, touch an unpainted metal surface on the computer frame to discharge static. Avoid touching the gold pins.

Can I install memory without tools?

Yes, no tools are needed for installing or removing memory modules. Use your hands only. A non-magnetic screwdriver may be needed to remove the computer cover.

How do I remove the laptop battery before installation?

CShut down the laptop and unplug the power cable. Then, remove the battery according to your laptop's owner's manual. Hold the power button for 3-5 seconds to discharge residual electricity.

Where can I get support if installation fails?

You can contact Crucial Technical Support through their website at www.crucial.com/support/memory. Regional support sites are also available for North and South America, Europe, China, and Japan.

What if I accidentally touch the gold pins?

Avoid touching the gold pins as oils from your skin can cause connectivity issues. If touched, gently wipe the pins with a lint-free cloth. However, the modules should still work if handled carefully.

Is it normal to apply 20-30 pounds of pressure to install memory?

Yes, it can take 20 to 30 pounds of firm, even pressure to seat a memory module properly. Ensure the module is aligned and press until the side clips snap into place. Do not force if misaligned.

USER MANUAL CT2K32G4SFD832A Crucial

Install Guide

Memory Module Installation

Equipment needed

• Memory module(s)
  • Non-magnetic-tip screwdriver (for removing the cover on your computer)
• Your system's owner's manual

Installation process

1. Make sure that you are working in a static-safe environment. Remove any plastic bags or papers from your work space.

2. Shut down your system and make sure the power is completely off before unplugging the power cable from your computer. For laptops, then remove the battery.

3. Hold the power button for 3-5 seconds to discharge residual electricity.

4. Remove your computer's cover. Refer to your owner's manual for how to do this.

5. To protect your new memory modules and your system's components from static damage during the installation process, touch any of the unpainted metal surfaces on your computer's frame before handling and installing memory.

6. Using your system's owner's manual, locate your computer's memory expansion slots. Do not use any tools in the removal or installation of memory modules.

7. Insert your new memory module(s) in accordance with the illustrations in this guide. Align the notch(es) on the module with the notch(es) in the slot, and then press the module down until the clips on the slot snap into place. (It can take 20 to 30 pounds of pressure to install a module.) Fill the memory slots on your computer starting with the highest density (i.e. put the highest density module in bank 0).

8. Once the module(s) have been installed, replace the cover on your computer and reconnect the power cord or battery. Installation is now complete.

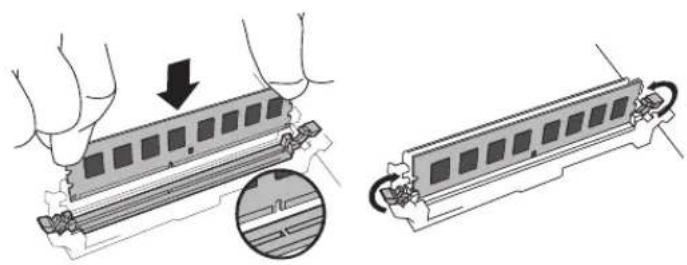

DIMM installation

Using firm, even pressure, push DIMM into slot until clips snap into place. Do not assist clips.

SODIMM installation

Firmly push the SODIMM in at a 45-degree angle, and then push down until clips snap into place. When it is fully seated in the slot, one-sixteenth of an inch or less of the gold pins will be visible.

Helpful hints & troubleshooting tips

If your system does not boot, check the following:

1. If you receive an error message or hear a series of beeps, your system may not be recognizing the new memory. Remove and reinstall the modules to ensure they are securely seated in the slots.
2. If your system won't boot, check all of the connections inside your computer. It is easy to bump a cable and pull it out of its connector, disabling devices such as your hard drive or CD-ROM. If your system still won't reboot, contact Crucial Technical Support.
3. When restarting your system, you may get a message prompting you to update the configuration settings. Refer to your owner's manual for information. If you are still unsure, please call Crucial Technical Support for assistance.
4. If you get a memory mismatch message, follow the prompts to enter the Setup menu, and then select Save and Exit. (This is not an error—some systems must do this to update the system settings.)

If you have any issues with installation, contact Crucial support with any questions or concerns.

Helpful Memory Support Resources

North and South America

http://www.crucial.com/usa/en/support-memory

Europe

United Kingdom:

http://uk.crucial.com/gbr/en/support-memory

European Union:

http://eu.crucial.com/eur/en/support-memory

France:

http://www.crucial.com/usa/en/support-memory

China:

http://www.crucial.cn/安装指南

Japan:

http://www.crucial.jp/jpn/ja/support-memory

www.crucial.com/support/memory
