Product Type	Digital Camera
Brand	Pyle
Model	GDV485BL
Image Sensor	16 Megapixel CMOS
Optical Zoom	4x Digital Zoom
Display	2.4-inch LCD Screen
Video Resolution	1080p Full HD
Storage Media	SD/SDHC Card (up to 32GB)
Power Source	Rechargeable Lithium-Ion Battery
Battery Life	Approximately 180 minutes
Dimensions (W x H x D)	4.5 x 3 x 2 inches
Weight	0.5 lbs (with battery)
Connectivity	USB 2.0, HDMI Output
Shooting Modes	Auto, Program, Scene Modes
Flash	Built-in Flash
Self-Timer	2s, 10s Delay
Maintenance	Clean lens with soft, dry cloth. Avoid solvents.
Safety Warnings	Do not expose to water or extreme temperatures.
Spare Parts	Battery, Charger, USB Cable, Strap
Repairability	User-replaceable battery and memory card. Contact support for other issues.

Frequently Asked Questions - GDV485BL Pyle

How do I charge the camera battery?

Connect the included USB cable to the camera and a USB power adapter (5V/1A) or a computer. The charging indicator lights up during charging.

What type of memory card does the GDV485BL support?

It supports SD and SDHC cards up to 32GB. For best performance, use a Class 10 card.

How do I transfer photos to my computer?

Connect the camera to your computer via USB cable. The camera will appear as a removable drive. Copy files directly.

Why is the camera not turning on?

Ensure the battery is charged and inserted correctly. Press and hold the power button for 2 seconds. If still not working, try resetting by removing the battery for 30 seconds.

How can I reset the camera to factory settings?

Go to the Setup menu and select 'Reset All' or 'Factory Default'. Confirm the action. All settings will be restored.

What is the maximum video recording time?

The maximum clip length is 29 minutes per file due to file system limitations. You can start a new clip manually.

Does the camera have image stabilization?

Yes, it features electronic image stabilization to reduce blur from camera shake.

Can I use the camera while charging?

Yes, you can use the camera connected to a power source via USB, but charging may be slower.

How do I clean the camera lens?

Use a soft, lint-free microfiber cloth. Gently wipe the lens in a circular motion. Do not use liquids or compressed air.

The camera is not recognized by my computer. What should I do?

Try a different USB port or cable. Ensure the camera is powered on and in playback mode. Install the necessary drivers from Pyle's website if prompted.

USER MANUAL GDV485BL Pyle

Close-up of a black mechanical pulley or wheel component with concentric rings and central bore (no text or symbols visible)

Wi-Fi

FOREWORD

The product is a high-end high definition and athletic camping product. This product has many functions, such as digital video photography, slow photography, voice, video display and a removable battery. Besides, the functions of outdoor sports, home security and deep waterproof can meet any need of photographing.

Multipurpose

Outdoor sports

Marine sports

Diving

Home burglar

ATTENTION

1. This is a high-precision product, please do not let it fall or strike it.
2. Please do not allow the camera to be near objects with strong-magnetic fields, such as strong magnets and power-driven machines. In addition, please also avoid objects that can send out strong radio waves. Strong magnetic fields may cause product breakdown, loss of data, and/or destroy the image and sound.
3. Please do not place the camera in direct sunlight.
4. Please choose a reliable Micro SD card with a trusteed brand, because generic card compatibility can not be guaranteed.
5. During the process of charging the battery, if the product gives off heat and smoke, or gives off a peculiar smell, immediately unplug the power to avoid a fire.
6. When charging the battery, please place the product in places children can not reach as the power cable is a potential risk for suffocation and electric shock.
7. Please try to keep the product in shaded, dry and insulated places.

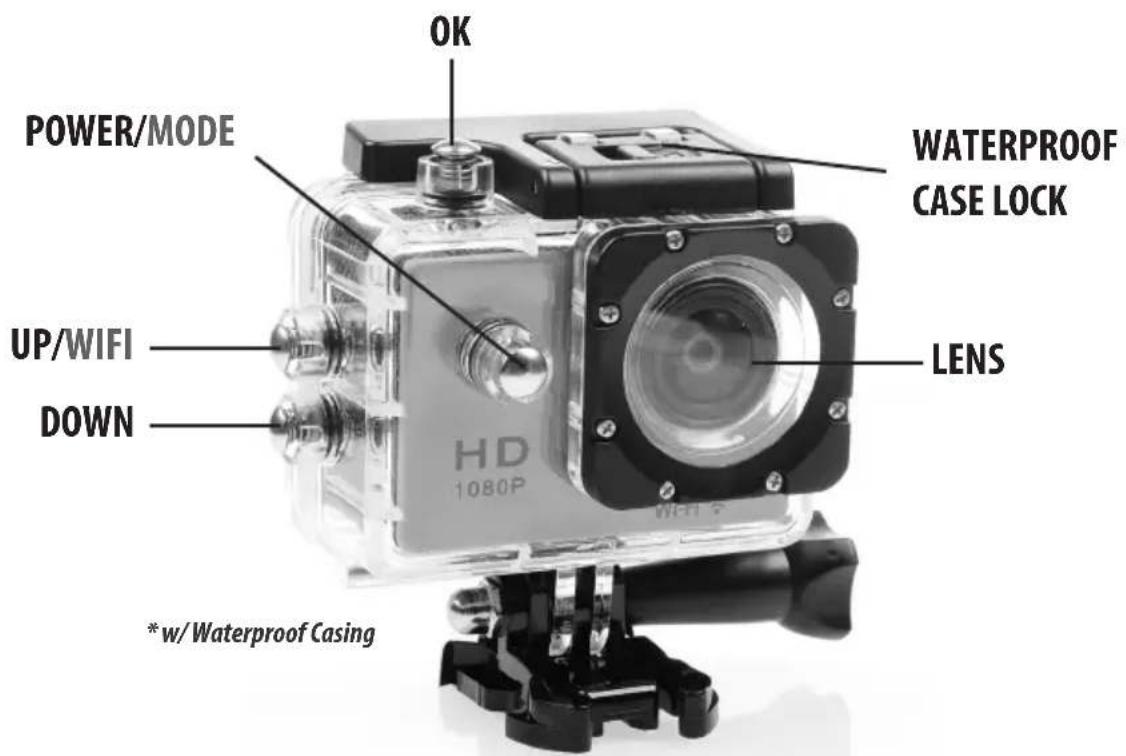

waterproof case

bicycle bracket

pedestal 1

pedestal 2

Back clip

fixed base

switch support 1

switch support 2

switch support 3

commutator

helmet pedestal

bandage

shell

ribbon

3M mat

wire cable

data cable

adapter

user manual

cleaning cloth

Exterior view of a silver hard disk camera with black frame and mounting base (no visible text or symbols)

waterproof case

helmet pedestal
pedestal 1
long pole

camera

Close-up of a camera module with mounting base and control buttons (no visible text or symbols)

Top-down view of a white and black helmet with a camera module (no visible text or symbols)

helmet pedestal pedestal 1/long pole short pole/support 3 short pole/support 2 waterproof case

Exterior view of a white outdoor camera module with a circular lens and attached camera (no visible text or symbols)

Person riding a bicycle with visible frame and wheel (no text or symbols)

waterproof case

bicycle bracket /long pole
long pole/support 3

camera

back clip

Person wearing a button-up shirt and pants, hands resting on hips (no visible text or symbols)

clip

INSERT A MICRO SD CARD

NOTE: Please choose a Micro SD card with a trusted brand and use it after properly formatting on a computer. Generic off-brand cards can not be guaranteed to work properly.

INSTALL AND TAKE OUT THE BATTERY

a. stir downward the battery cover and turn on it.
b. according to the plus-minus pole and the arrow on the battery, take the battery into the product and install it correctly.
c. the quantity of electricity of the battery: please reference the diagram.
d. stir downward the battery cover then take out the battery

CHARGE THE BATTERY

a. use the USB cable to connect to a computer or adapter to charge the battery.
b. you're able to charge the battery and record video at the same time.
c. battery charging will is work when the product is off.

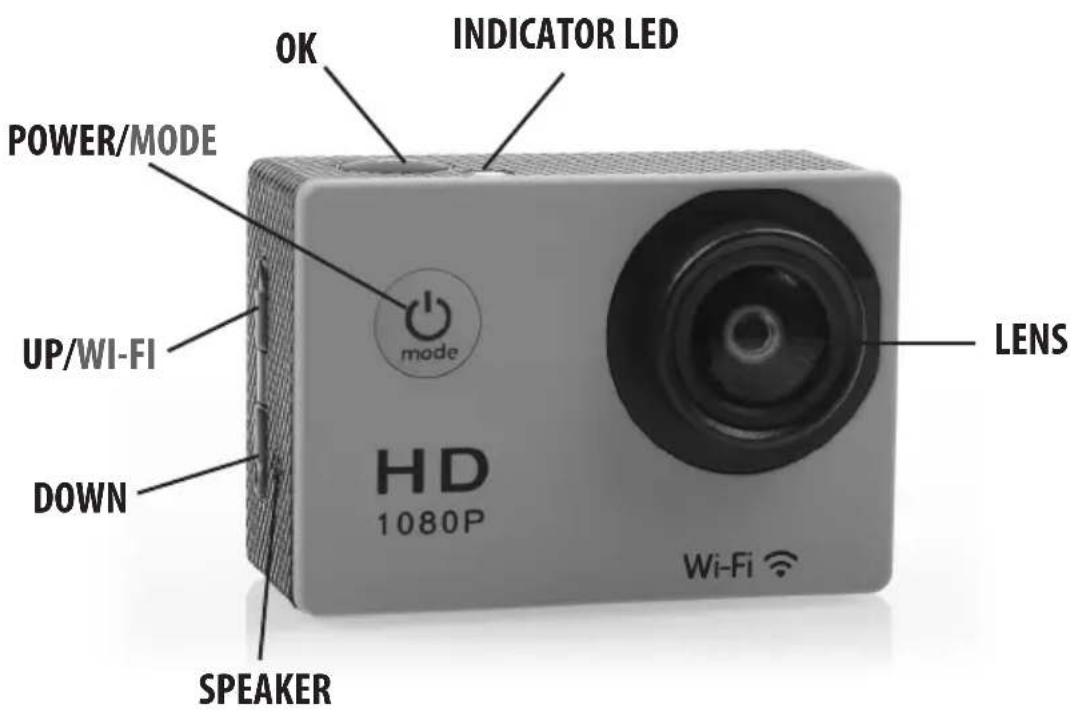

POWER ON AND POWER OFF THE CAMERA

Press the POWER/MODE button for about 3-5 seconds to power on/off

TURN ON/OFF THE WIFI

a. WIFI ON: shortly press the up button then open successfully. The LED light will turn to flashing red light.
b. WIFI OFF: after opening the WIFI, shortly press the up button. The light will turn off.

CHANGE THE MODE

Power on, then shortly press the POWER/MODE. You can change the modes between record video/photography/slow photography/playback file and settings.

LED BEHAVIOR

WORKING LED: the red light is on.

WIFI LED: the red light flashes when WIFI is opening; the red light is bright when WIFI is connected; the red light turns off when WIFI is OFF.

CHARGING LED: the red light is bright when the battery is charging; the red light turns off when the battery is fully charged.

PHOTOGRAPHY & VIDEO SETTINGS

VIDEO: Select video mode. Press the OK button to start recording. When recording, the recording icon will flash. Press the OK button again to stop recording.

Video Options: Normal, loop recording (2 minutes, 3 minutes, 5 minutes), time-lapse video (0.5 seconds, 1 second, 2 seconds, 5 seconds, 10 seconds, 30 seconds, 60 seconds).

PICTURES: Select picture mode, the upper left corner of the screen will have a picture sign. Press the OK button to take the picture.

Picture Options: Normal, delayed timing (3 seconds, 5 seconds, 10 seconds, 20 seconds), automatic (3 seconds, 10 seconds, 15 seconds, 20 seconds, 30 seconds), trajectory (3P/S, 5P/S, 10P/S, 20P/S)

SLOW PHOTOGRAPHY: Select slow photography mode. Press the OK button to start recording. When recording, the recording icon will flash continuously. Press the OK button to stop recording.

Slow Photography Options: 1080P/60FPS, 720P/120FPS.

REMOVE STORAGE AND PLAYBACK: After completing the recording, you can either use a USB data cable to transfer recorded media, or take out the Micro SD card and use a card reader to read the Micro SD card.

Delete File: In the file playback screen, press the OK button for 3-5 seconds, and it will delete the selected file.

INSTALLATION AND USE OF WIFI

Before using the WIFI function, please install the "XDV" APP on a smart phone.

NOTE: Android smart phone need to download it from Google Play, Apple users will need to download it from the Apple Store.

Connection procedure:

a. After powering on, press the up button, "WIFI message" appears on the screen, then the WIFI light will flash;

b. Look for the WIFI SSID "DV560-0ccd" and connect to it (default password is 1234567890);

c. Open the "XDV" APP. You're able to preview the shooting screen on the APP, remote video, camera, file playback/download /delete /share.

d. For APP installation: the smartphone requires Android 4.1 and above or IOS7 or above. You're also able to scan the QR code below to install the app. Follow the prompts to complete the installation.

SOFTWARE UPGRADE

By APP : firstly make sure the phone networking, open APP, after connecting the camera, if the new version is available.

it will be automatically prompted to upgrade.

Tip: When the poor operation of the product caused by the phenomenon of death, removable battery should be re-installed.

Then the machine returns to be normal.

LCD screen 2.0" LTPS
Lens 170 ° A+ High Definition wide-angle lens
Language Options English, Simplified Chinese, Traditional Chinese,Korean, Russian, French, German, Italian, Spanish,Portuguese, Japanese
Supported Resolutions 3200*1800	30fps/2688*1520 30fps / 1920*108060fps /1920*1080 30fps /1280*720 120fps/1280*720 60fps /1280*720 30fps
Video Format MP4
Video Compression Format H.264
Resolution of Photos 16MP /12MP	/8MP /5MP/ 2MP
SD Card Type Micro SD
Photo Modes Default, Timed, Automatic, Sports Trail
Video Modes Default, Loop, Time-Lapse
Slow Photography 1080P/60fps, 720P/120fps
Light frequency Automatically, 50Hz, 60Hz
USB Version USB 2.0
Adapter	5V/1A
Battery capacity	900mAh
Max Recording Time	~90 Minutes @ 1080P
Battery Charge Time	~2 Hours
OS	Windows XP/7/8 SP3/Vista and Mac 10.5 or above
Dimensions 2.32 X 1.61 X 1.14 inches
Weight	44g (without battery), 58g (with battery)

Note: Specifications could be subjects to change due to upgrading.
