Product Type	Internal CD Rewriter/DVD-ROM Drive
Interface	Enhanced-IDE (ATAPI)
Write Speed (CD-R)	52X max (8X-52X CLV/CAV)
Write Speed (CD-RW)	32X max (4X-32X)
Read Speed (CD-ROM)	52X max
Read Speed (DVD-ROM)	16X max (Single Layer), 12X max (Dual Layer)
Read Speed (DVD-RAM)	5X max (2X-5X CAV)
Buffer Capacity	2 MB (including 512 KB programmed area)
Supported Disc Types	CD-ROM, CD-R, CD-RW, DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD±R DL, DVD-RAM
Disc Diameter	12 cm / 8 cm (8 cm only in horizontal orientation)
Mounting Direction	Horizontal / Vertical
Data Transfer Rate (Burst)	Up to 33.34 MB/s (Ultra DMA Mode 2)
Average Access Time (CD)	100 ms (Typical)
Average Access Time (DVD)	120 ms (Typical)
Power Requirements	DC 5V, 12V
Operating Temperature	5 °C to 45 °C
Operating Humidity	10% to 80% R.H.
Dimensions (Approx.)	5.75 x 1.63 x 7.68 in (146 x 41.3 x 195 mm)
Weight (Approx.)	0.9 kg (2.0 lbs)
Software Included	CD Recording Software with PowerDVD
Safety Compliance	FCC Class B, CE, UL

Frequently Asked Questions - GCC-H21N LG

How do I install the LG GCC-H21N drive?

First, turn off the system power and disconnect the power cord. Remove the computer cover and a vacant 5.25" drive bay panel. Slide the drive into the bay. Set the jumper on the rear of the drive: use Slave if connected to the primary IDE port with a hard drive, or Master on the secondary IDE port if alone. Connect the audio cable (optional), IDE data cable, and DC power cable. Replace the cover, connect power, and restart the computer.

What jumper settings should I use?

If using the primary IDE port and sharing with a hard drive, set the drive to Slave. If using the secondary IDE port with no other device, set to Master. If two drives are on the same channel, set one to Master and the other to Slave. If interface problems occur, try swapping the jumpers or moving one drive to another IDE channel.

What disc types does the GCC-H21N support?

It supports reading and writing of CD-ROM, CD-R, CD-RW, DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD±R DL (dual layer), and DVD-RAM. It also reads Photo CD, Video CD, CD-Text, and mixed mode discs.

How do I update the firmware?

Visit www.lgservice.com and install the program "LG ODD Online F/W update". This program will automatically check for the latest firmware version and guide you through the update process.

Why is my drive not recognized by the computer?

Check the jumper settings (Master/Slave) and ensure they match your configuration. Verify that the IDE data cable is properly connected to both the drive and the motherboard. Also ensure the power cable is connected. Try swapping the jumper on the drive or moving it to a different IDE channel. If problems persist, try a different cable.

Can I use 8 cm discs in the drive?

Yes, 8 cm discs can be used, but only when the drive is placed horizontally. Do not use them with the drive in a vertical position.

What software should I install before using the drive?

Install the included CD Recording Software (which includes PowerDVD for playback). It is recommended to uninstall any previous CD burning software to avoid compatibility issues. After installing the new software, you may reinstall previous software if needed.

How do I manually eject a disc?

The drive has a power tray loading mechanism. For manual ejection, insert a small pin or paper clip into the emergency eject hole (located on the front panel) to release the tray.

What are the power requirements for the drive?

The drive requires DC 5V and DC 12V from the computer's power supply. It connects via a standard 4-pin power connector.

Is the GCC-H21N compatible with Windows 10?

The manual lists compatibility with Windows 98/2000/ME/XP/NT4.0. While it may work with later versions like Windows 10 using built-in drivers, official support is not guaranteed. For best results, check for updated drivers on LG's support website.

USER MANUAL GCC-H21N LG

Installing the Drive

Before installing the drive, turn off the system power.

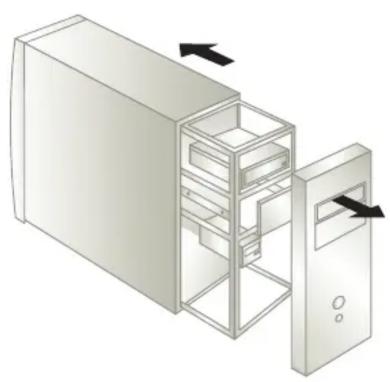

Disconnect the power cord, and remove the cover.

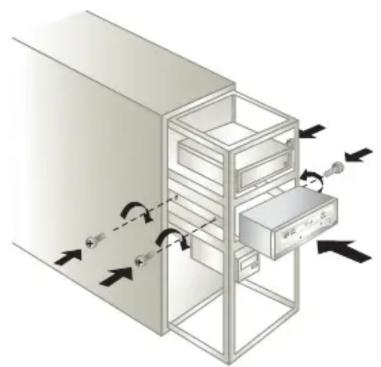

- Remove a vacant 5.25" drive bay panel from the computer. Slide the drive into the drive bay.

Set the jumper on the rear of the drive as necessary.

A. When using a Primary IDE port

If you need to connect your drive to the same primary IDE channel as the hard drive, the drive should be set to SLAVE position.

B. When using a Secondary IDE port

① If there is no device connected to the secondary IDE channel, connect the drive to this channel and set the jumper to MASTER.
② When two drives are connected, set one drive to MASTER and the other drive to SLAVE. If your operating system encounters interface problems after installing the new drive, try swapping the jumpers or move one drive to another IDE channel.

Method A

Method B

Connect the audio cable/IDE data cable/DC power cable to the drive.

Connect the audio cable (if applicable) to the drive and then to the computer's audio connection, located on the sound card or the mother board. This connection is normally not required.
② Connect the IDE data cable to the back of the drive.
③ Connect a 4-pin power supply cable from the computer to the drive.

Replace the cover, connect the power cord and restart your computer.

- Your computer configuration may different from the illustrations.

LG Quick Set-up Guide

CD Rewriter/DVD-ROM Drive GCC-H21N

To install of your product, please read this guide manual carefully and completely. For the detailed owner's manual of the drive, please refer to the CD manual.

Features

• Enhanced-IDE (ATAPI) interface.
- Power tray loading and ejection of disc. (The disc can also be ejected manually.)
- Combination CD-R/RW and DVD-ROM Drive functions into one drive.
• Supports Region playback control Phase II.
• Supports Windows 98, 2000, ME & XP/NT4.0.
• Supports Mt. Rainier.
• Supports DVD-RAM disc read.
• Automatic buffer underrun error prevention technology-SuperLink
- 52X max Writing (CD-R), 32X max ReWriting (CD-RW), 16X max Reading (DVD-ROM), and 52X max Reading (CD-ROM)*.
* Writing speed depends on capabilities of discs. As a result, for ultra speed write/rewrite, you should use media labelled Ultra Speed Write/ReWritable discs

Package Items

Item	Quantity
- Internal CD Rewriter/DVD-ROM Drive	1
- CD Recording Software (with Power DVD)	1
- E-IDE (ATAPI) cable	1
- Mounting Screws	4
- Quick Set-up Guide for CD Rewriter/DVD-ROM Drive	1

System Environment

Computer
This unit can be operated in the system environment explained here.

System requirements	CPU	350MHz (or faster) Pentium (for high speed, 500MHz or faster recommended)
	Memory	64MB or greater(128MB or over recommended)
Hard disk		75MB or more free space. (The free space needed for writing depends on the quantity of data.)
Interface		Enhanced-IDE interface (as Primary Slave, Secondary Master or Slave)
Drive bay		5.25-inch half-height bay required
Power		+5V/+12V power socket required
Software Required OS		Windows 98/2000/ME/XP or later*
CD-R, CD-RW discs		CD-R: LG, Ricoh, Mitsubishi Kagaku Media, Verbatim, Taiyo Yuden, Ritek, MBI, SKC discs are recommended.CD-RW: Ricoh, Mitsubishi Kagaku Media, Verbatim, Imation, Sony discs are recommended.

Specifications

Items CD/DVD/CD-RW

General

Host Interface E-IDE/ATAPI

Supported Discs Read Function: CD-ROM, CD-ROM XA,

Audio CD, Mixed Mode (Audio and Data

Combined), CD-I FMV, Video CD, Photo CD (Single

and Multi -Session), CD-Plus/CD-Extra, CD-Text

DVD-Single/Dual, DVD-R/RW, DVD+R/RW,

DVD±R DL, DVD-RAM

Write Function: CD-ROM, CD-ROM XA, Audio CD.

CD-I FMV, Video CD, CD-Plus/CD-Extra

Disc Diameter 12cm/8cm, standard size CD's

(8cm disc can be used only with drive placed horizontally.)

Mounting direction Horizontal/Vertical

Read/Write Speed

Write : (CD-R, max 52X): 8X, 16X, 24X, 32X, 40X, 48X, 52X

Write : (CD-RW, max 32X): 4X, 10X, 16X, 24X, 32X

* The drive's appearance and specifications may change without prior notice.

Software

Install the appropriate CD Recording Authoring Software before using this unit.

* Please uninstall any previous CD burning software you may have loaded on your PC in order to prevent possible compatibility issues.

Once you have installed the application software, you may (if you wish) begin to reinstall previous software, taking note for errors.

P/NO. 3828HN1010H Ver. A

Items CD/DVD/CD-RW

Performance

Data transfer rate

*Sustained

CD: R: 3000 to 7200 KB/s (20X-48X CAV)

RW: 2700 to 6000 KB/s (18X-40X CAV)

ROM: 3300 to 7800 KB/s (22X-52X CAV)

DVD: Dual: 7290 to 16200 KB/s (5.4X-12X CAV)

Single: Data : 8700 to 21600 KB/s (6.5X-16X CAV)

Movie: 3370 to 8100 KB/s (2.5X-6X CAV)

-R/RW, +R/RW, +R/-R DL: 4450 to 10800KB/s

(3.3X-8X CAV)

DVD-RAM: 2700 to 6700KB/s (2.0X-5.0X)

*Burst(ATAPI) 16.67 MB/s (PIO Mode 4),

16.67 MB/s (Multi DMA Mode 2)

33.34 MB/s (Ultra DMA Mode 2)

Average Access CD-RW/CD-ROM: 100ms(Typical)

time(Random) DVD(Single Layer) : 120ms(Typical)

Buffer capacity 2 Mbytes (included 512KB programmed area)

MTBF 125000 Power On Hours (Duty Cycle 10%)

Audio Output level 0.72 Vrms +/- 10%

Environmental Level

When operating Temperature: 5 °C to 45 °C

Humidity: 10% to 80% R.H.

When not operating Temperature: -40 °C to 60 °C

Humidity: 5% to 90% R.H.

Electrical

Power

DC 5V, DC 12V

Please visit www.lgservice.com and install the program, "LG ODD Online F/W update." By using the program, you can automatically check the latest information about FirmWares and update the FirmWare.

Worldwide support ; http://www.LGservice.com

Worldwide corporate site : http://www.LGE.com

Safety Instructions

CAUTION: The laser used in the CD Rewriter/DVD-ROM drive can damage your eyes. Do not attempt to open the cover. To reduce the risk of electric shock, do not remove the cover (or back). There are no user-serviceable parts inside. Refer servicing to qualified service personnel. Use of controls or performance of procedures other than those specified herein may result in hazardous radiation exposure.
WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

This product is manufactured to comply with the radio interference requirements of EEC DIRECTIVE 89/336/EEC, 93/68/EEC and 73/23/EEC.

The appliance is not intended for use by young children or infirm persons without supervision.

Industry Canada requirement

Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an Authorized Service Center for help.

• FCC WARNING
  Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

• This CD Rewriter/DVD-ROM Drive is for use only with UL listed personal computers that have installation instructions detailing user-installation of card cage accessory.
