Product Type	Video Projector
Model	K720P
Brand	EKO
Native Resolution	1280 x 720 pixels
Max. Supported Resolution	1920 x 1080 (1080p)
Brightness	100 ANSI Lumens
Contrast Ratio	2000:1
Projection Size	50 to 120 inches
Projection Distance	1 to 3.9 meters
Aspect Ratio	16:9, 4:3
Focus Type	Manual via Focus Dial
Connectivity	HDMI, USB, Micro SD, Audio Jack (3.5mm)
Power Supply	12V DC, 4A
Power Consumption	48W
Dimensions (W x D x H)	158 x 122 x 55 mm
Net Weight	0.47 kg
Gross Weight	0.9 kg
Remote Control	Requires 2 AAA batteries (not included)
Multimedia Playback (USB/Micro SD)	Video: VOB, MKV, MPG, MP4, MOV, AVI; Audio: MP3, WAV, WMA; Photo: JPG, GIF, BMP, PNG
OSD Language	English
Projection Direction	Front Table (adjustable in settings)
Cleaning Method	Wipe with a dry cloth; disconnect power before cleaning
Safety Warning	Avoid direct eye exposure to lens; keep away from children

Frequently Asked Questions - K720P EKO

How do I turn on the EKO K720P projector?

Plug the power cable into the DC port and a wall socket, then press the Power button on the top of the projector.

How do I adjust the focus on my projector?

Turn the focus dial on the lens. Turning left increases the image size (best for larger screens), turning right decreases size for smaller screens.

Why is my remote control not working?

Ensure batteries are inserted correctly (matching +/- polarities) and are fresh. The remote works up to 5-6 meters. Avoid bright light on the sensor.

Can I connect my smartphone to the projector?

Yes, use an HDMI adapter (not included) for smartphones that support HDMI output, or use USB/Micro SD to play media files directly.

What is the maximum screen size I can project?

The projector can project an image from 50 to 120 inches diagonally, depending on distance (1 to 3.9 meters).

How do I clean the projector lens?

Use a dry, soft cloth to gently wipe the lens. Do not use any chemicals or wet cloths. Always unplug the projector before cleaning.

What video formats are supported via USB?

Supported formats include VOB, MKV, MPG, MP4, MOV, and AVI. For audio: MP3, WAV, WMA. For photos: JPG, GIF, BMP, PNG.

The projector is overheating. What should I do?

Check that the ventilation vents are not blocked. Ensure at least 20 cm clearance around the unit. Do not cover the projector. If problem persists, contact support.

How do I change the input source?

Press the Source button on the remote, then use arrow keys to select the desired input (HDMI, USB, etc.) and press OK.

Is the projector safe for children?

The projector should be kept out of reach of children. Never look directly into the lens while the projector is on, as it can cause eye damage.

USER MANUAL K720P EKO

Exterior view of a modern EKO projector with a circular lens and control panel (no visible text or symbols on the device body)

INSTRUCTION MANUAL

Please read this manual carefully before using, and keep it for future reference.

CONTENTS

General	Safety
Product	Overview
Remote	Control
First	Time	Setup
Projector	Lens	Focus
Main	Menu	Dashboard
Settings
	Sound
	Time		16
	Option		17
Specifications			18
Customer	Helpline		Last

4

10

1.

15

GENERAL SAFETY

Read this manual thoroughly before you start using the Projector.

Store this manual, the completed warranty card, your receipt and the product packaging.

The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

IMPORTANT INFORMATION

• Only using furniture that can safely support the Products.
• Ensure the Product is not overhanging the edge of the supporting furniture.
• Do not place the product on a high furniture without securing both the furniture and the product to a stable support.
• Do not place the product on cloth or other conductive materials.
• Warn children of the dangers of climbing on furniture to reach the projector or its controls and to call for an adult to assist.

IMPORTANT INFORMATION

• Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard
• Do not tamper or change or modify the product in any way.
• Only use Accessories outlined and recommended by the manufacturer.
• Please do not expose the product to splashing or water contact
• Please do not place any object on top of the product including objects filled with liquids such as vases.
• Replace with same or equivalent type.

GENERAL SAFETY (CONT.)

Installation

Please follow instruction when installing this product in accordance with the instruction manual. This product must be positioned in a sufficiently stable location, it can be potentially hazardous due to falling and can cause injury, particularly to children if it positioned incorrectly.

• Before installing this Projector set, make sure your outlet voltage corresponds to the voltage stated on the product rating label
• Do not use a damaged power cord, plug or loose outlet. Doing so may cause an electric shock.
• Do not plug several devices into the same outlet. Doing so may cause the outlet to overheat and start a fire. Make sure the outlet is readily accessible during operation of the equipment.
• Do not bend, twist or kink the power cord excessively.
• Do not allow anything to rest on or roll over the power cord. Doing so may cause a fire or an electric shock.
• Do not run the power cord near heat-producing appliances such as radiators, stoves or irons. The excessive heat could melt the insulation and expose live wires, resulting in fire or electric shock.
• Unplug this Projector during lightning storms or when unused for long periods of time. Not doing so may result in fire or electric shock.
• Do not cover the ventilation openings of the product with items such as newspapers, tablecloths, curtains etc or insert objects into the slots available on the products. As this could result in the product temperature rising and could cause a fire.
• If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center. Failure to do so may result in fire or electric shock.
• When not using the unit for long periods of time or when you are moving the unit please ensure to disconnect the power cord from the wall socket.

GENERAL SAFETY (CONT.)

• Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire.
• The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or young children of any age, They must be supervised product by a person responsible for their safety.
• Batteries from the remote control must be only removed by an adult, the adult must ensure to keep them out of reach of infants and children. Seek medical attention immediately if a child has swallowed a battery.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.
• To maintain the product do not use any chemical or cleaning agent or wet cloth, please only ensure to utilize a dry cloth to wipe it down from marks or dust and only after unplugging the product from the power socket.
• Please ensure to contact our call center for any repair or service required for the products.

! CAUTION !

DO NOT look directly into Project LENS. This can cause damage to a persons or childrens eyes. Take all nessecary precautions to make sure that no one looks into the LENS while turned on.

MAKE SURE this project is out of reach of children or baby so that they do not stand and look into the project LENS.

DO NOT cover the vents, the vents are needed to let out hot air. Placing objects near or covering the vents can cause the product to overheat and permanently damage the projector.

GENERAL SAFETY (CONT.)

Please make sure upon positioning this product, the place is:

• Not wet or damp and Well ventilated
• Away from direct sunlight or heaters.
• Away from splashes or food.
• Protected from excessive dust or grease.
• Do not install this equipment in a confined space such as a bookcase or similar unit.
• Do not install the Projector set near heat sources such as radiators, stoves or other audio visual equipment that produce heat.
• Do not place containers with liquids, if liquid falls inside the products it may result in short-circuit, fire or electric shock.
• Do not place small metallic objects on top of the unit. Metal object falls inside the product it may result in short-circuit, fire or electric shock.
• Do not use or store flammable or combustible materials near the unit. Doing so may result in fire or explosion. Do not place any naked flame sources, such as lit candles, cigarettes or incense sticks on top of the Projector set.
  • Install the unit at a reasonable distance from the wall to ensure sufficient ventilation.

HIGH-DEFINITION MULTIMEDIA INTERFACE

"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

PRODUCT OVERVIEW

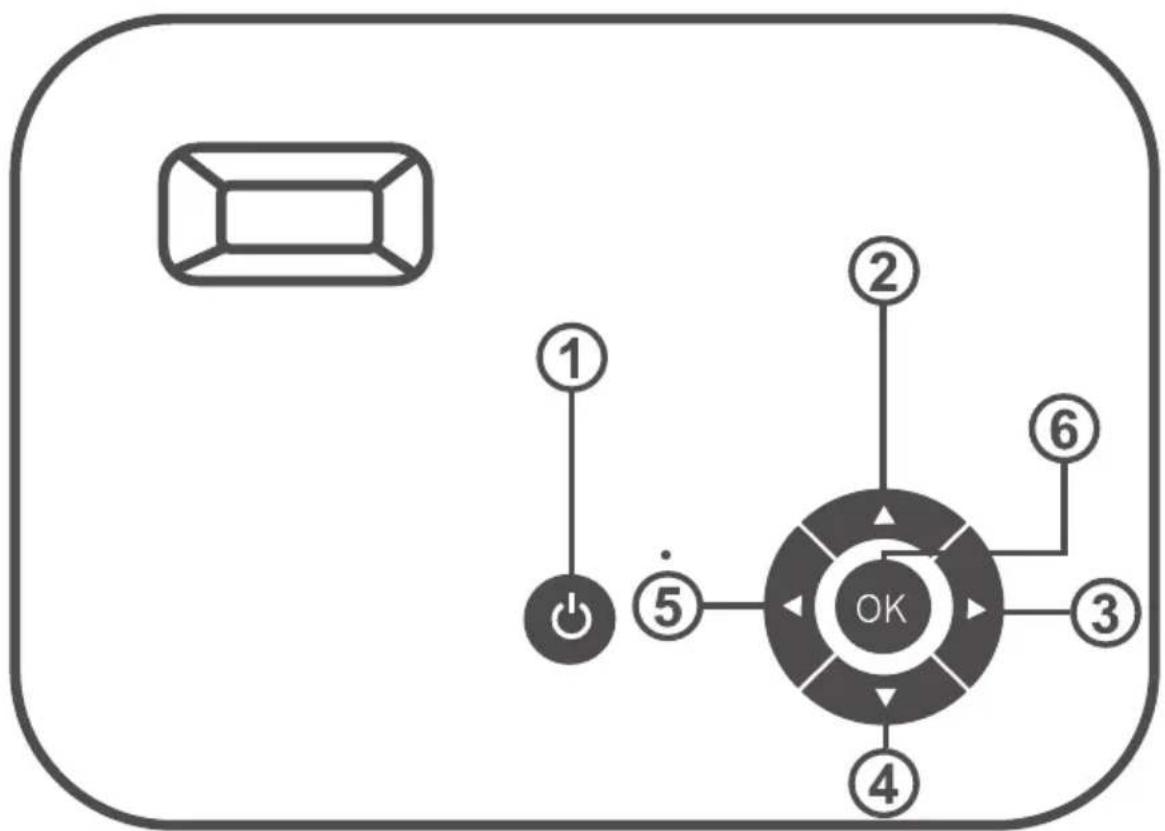

TOP VIEW

① POWER

④ DOWN

② UP

⑤ LEFT

③ RIGHT

⑥ OK

PRODUCT OVERVIEW (Cont.)

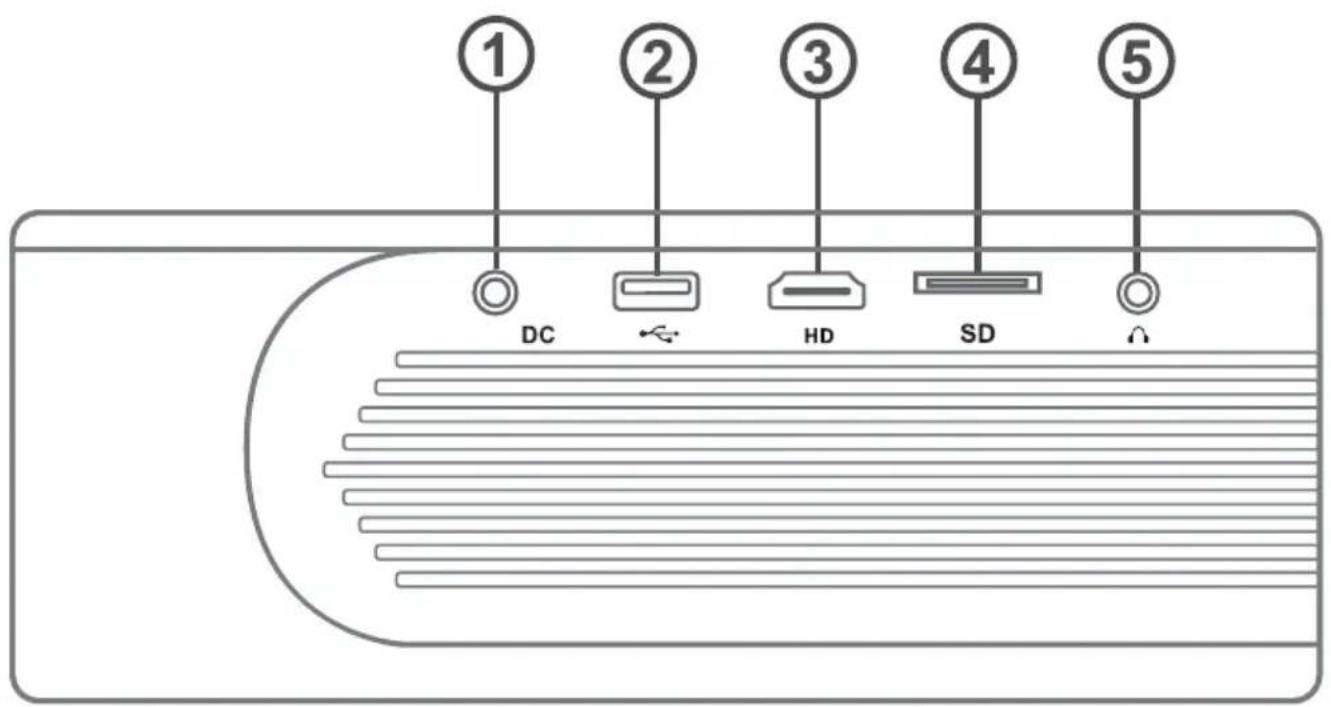

SIDE VIEW

① DC POWER INPUT
② USB PORT
③ HD PORT

④ MICRO SD
⑤ AUDIO JACK

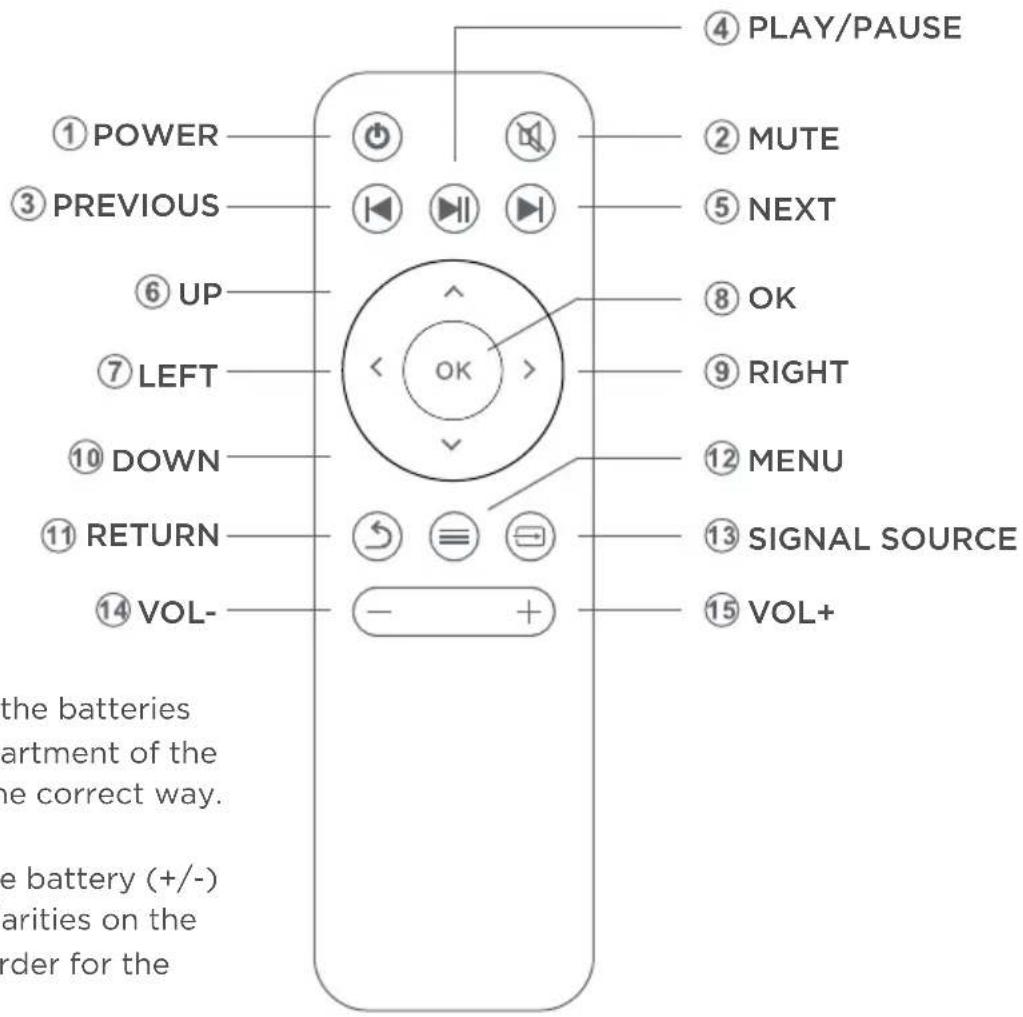

REMOTE CONTROL

Your projector comes with a Remote Control to access and control your projector from a distance. (Batteries not included).

Make sure to place the batteries into the back compartment of the remote control in the correct way.

The polarities on the battery (+/-) must match the polarities on the remote control in order for the remote to work.

Using the Remote Control

• Do not mix old and new batteries in the remote
• Do not use different types of battery
• If you do not intend to use the unit for a long time, please remove batteries from the remote to avoid accident.
• Keep batteries away from children and pets.
• Never throw batteries into a fire.
• Do not drop, or impact the remote control as it void warranty immediately.
  • The remote control operate at a range of 5 to 6M effectively
• Do not expose the remote control sensor to a bright light.

FIRST TIME SETUP

Make sure to place the projector on a flat and stable surface that is level. So that the projector projects the video/image onto the wall nice and straight.

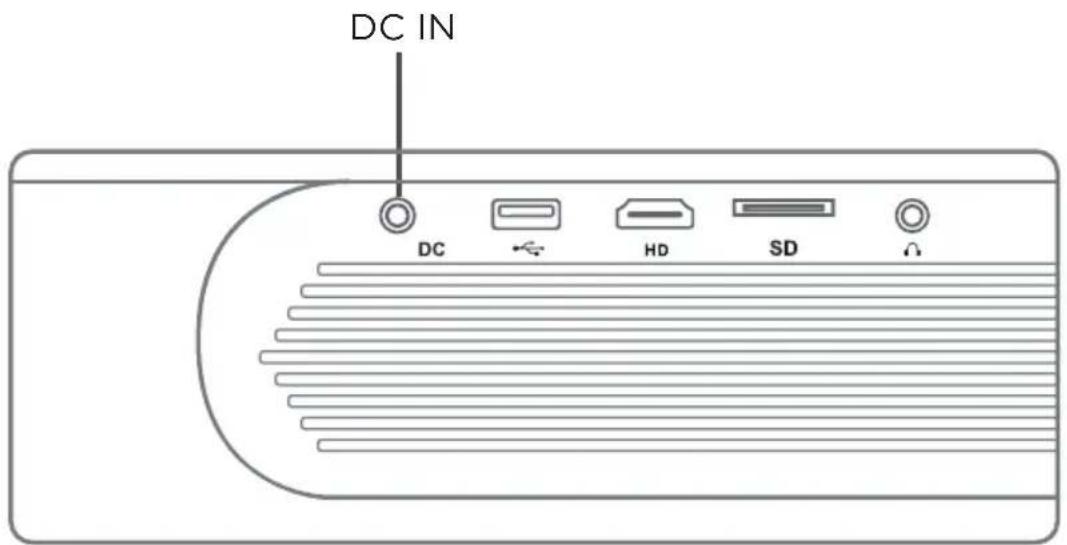

1. Plug in the Power cable into the DC Port of the Projector. Then plug in the other end into a wall power socket.

1. Once the power is plugged in, Press the to turn on the projector.

kutton located at the top

1. You can now need to connect a source of media to play from to project onto the wall. This can be through:

1. When you plug in a media source, you must select the INPUT source you want to view. By doing this, press the button for the INPUT menu to appear, then navigate with the arrow buttons, and press the Circle button to select the INPUT.

2. Once you have selected the INPUT, you can now adjust the VOLUME and manually adjust the focus of the projector lens to suite your needs depending on the distance from the wall your projector is.

PLEASE FOLLOW THE NEXT STEPS ON HOW TO MANUALLY ADJUST THE FOCUS.

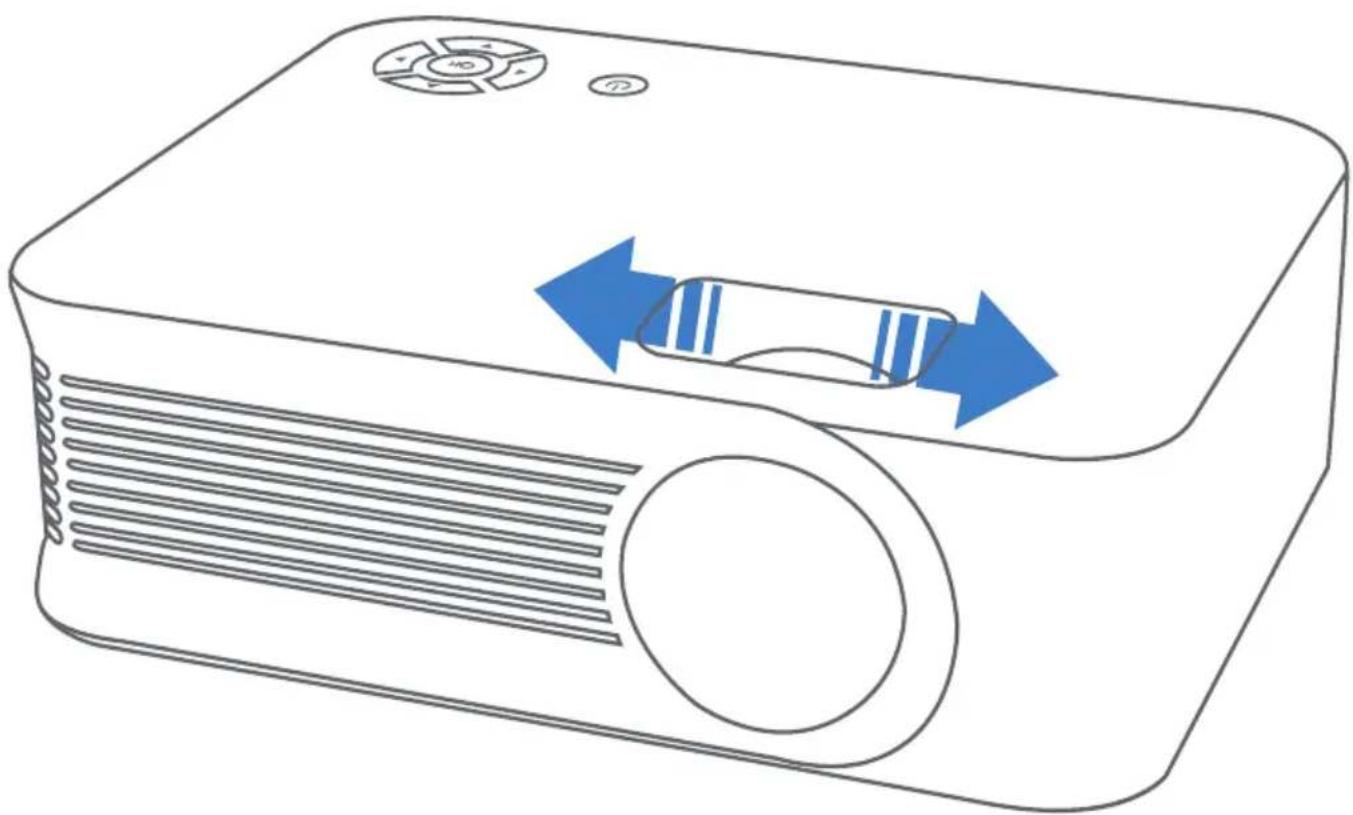

PROJECTOR LENS FOCUS

Once you have your Projector all setup, input mode selected, power turned on. You can now adjust the focus depending on the distance from your projector to the wall.

1. Turn the FOCUS dial to adjust the LENS focus.

LEFT DIRECTION - Is toward larger screen sizes best focus point. RIGHT DIRECTION - Is towards smaller screen sizes best focus point.

Line drawing of a projector with bidirectional blue arrows indicating motion (no text or symbols)

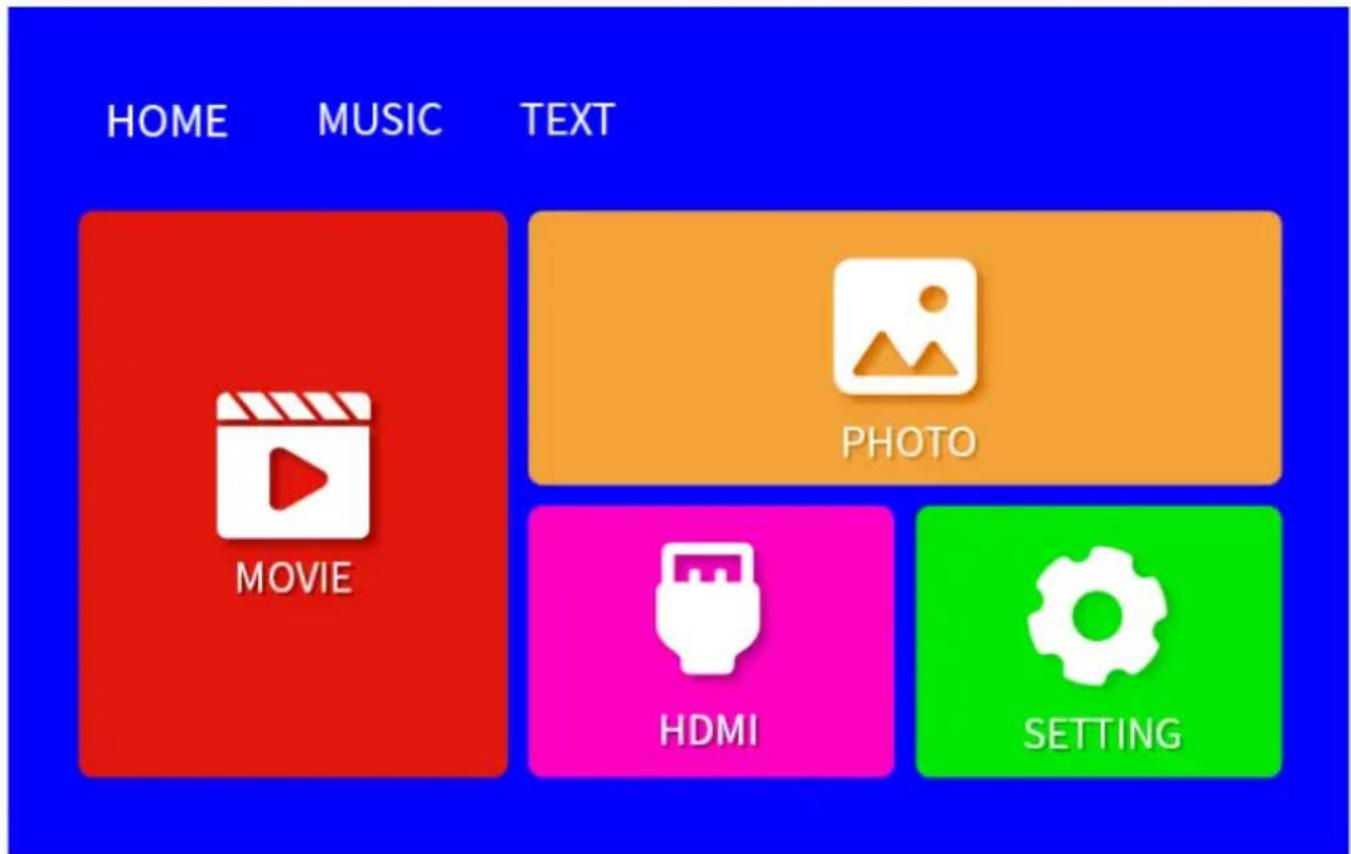

MAIN MENU DASHBOARD

This is the main menu dashboard that appears when you turn on your projector. Below you have options to choose from:

• Home
• Music
• Text
• Movie
• Photo
• HDMI
• Settings

SETTING - PICTURE

To Access the setting PICTURE menu:

1. Press the MENU ≡ button located on the on the Remote Control.

2. With the directional keys, go to SETTINGS located on bottom right corner.

3. Press the RIGHT >> arrow button until you get to PICTURE.


Blue icon depicting a landscape with mountains and sun (no text or symbols)

Picture Mode	Standard
Contrast	50
Brightness	50
Color	50
Sharpness	50
Color Temperature	Medium
ProjectionDirection	Front Table

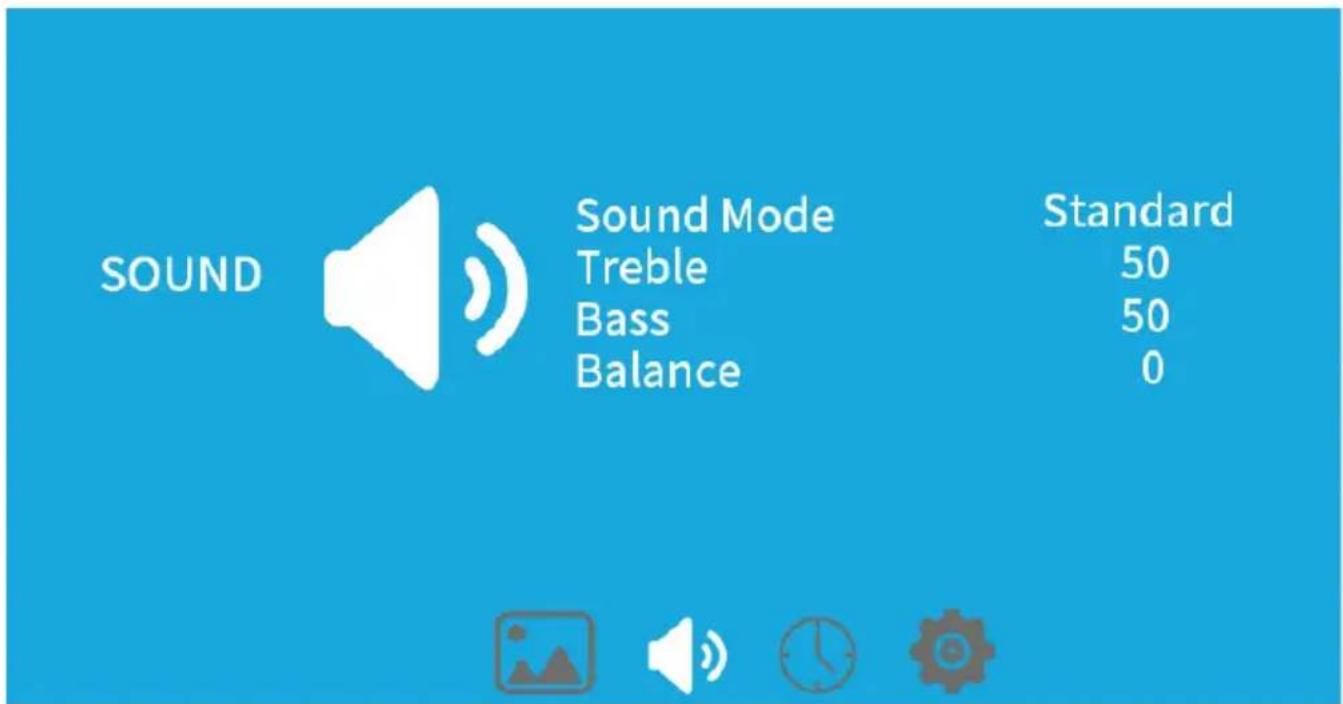

SETTING - SOUND

To Access the setting SOUND menu:

1. Press the MENU ≡ button located on the on the Remote Control.

2. With the directional keys, go to SETTINGS located on bottom right corner.

3. Press the RIGHT >> arrow button until you get to SOUND.

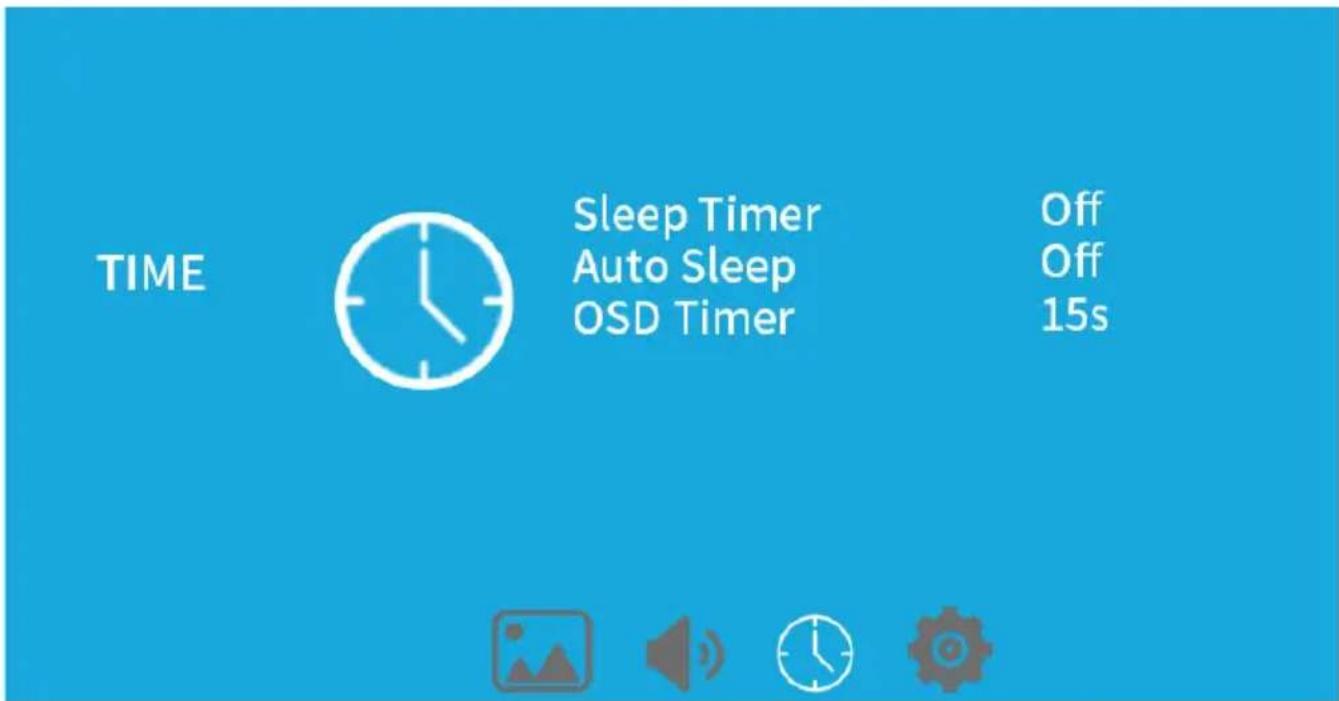

SETTING - TIME

To Access the setting TIME menu:

1. Press the MENU button located on the on the Remote Control.

2. With the directional keys, go to SETTINGS located on bottom right corner.

3. Press the RIGHT arrow button until you get to TIME.

SETTING - OPTION

To Access the setting OPTION menu:

1. Press the MENU button located on the on the Remote Control.

2. With the directional keys, go to SETTINGS located on bottom right corner.

3. Press the RIGHT >> arrow button until you get to OPTION.

OPTION

Blue gear icon with concentric circles, no text or symbols present

OSD Language English

Aspect Ratio 16:9

Blue Screen off

Reset

Software Update(USB)

SPECIFICATIONS

DISPLAY Supports up to 1080p (1920x1080)
Resolution 1280 x 720 Native Resolution
Contrast ratio: 2000 : 1
Projection Distance 1 - 3.9 Metres
Projection Size 50" to 120" (inches)
Lumens 100 ANSI
Aspect Ratio 16:9, 4:3
Multimedia Playback Format under USB Mode	Movie: VOB/MKV/MPG/MP4/MOV/AVI
	Music: MP3/WAV/WMA
	Photo: JPG/GIF/BMP/PNG
Power Source 12VDC 4A
Power Consumption 48W
USB 5V	--- max. 500mA
Dimensions 158 (w) × 122 (d) × 55 (h) mm
Weight	Net: 0.47 kg
	Gross: 0.9 kg
Accessories	1 x Instruction Manual 1 x Remote Control
	1 x Lens Cover 1 x HDMI Cable
	1 x Warranty Card

NOTE: This document is for reference only, the operation interface is subject to software.
