Carbon Gen III - Scooter ALPHA - Free user manual and instructions
Find the device manual for free Carbon Gen III ALPHA in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Electric Scooter |
| Dimensions | 1200 x 600 x 1100 mm (folded: 1200 x 600 x 500 mm) |
| Weight | 25 kg |
| Motor Power | 500W brushless |
| Battery | 48V 12Ah lithium-ion |
| Max Speed | 25 km/h |
| Range | 35 km |
| Charging Time | 4-6 hours |
| Brakes | Disc brakes (front and rear) |
| Tires | 10-inch pneumatic |
| Suspension | Front and rear spring |
| Lighting | LED headlight and taillight |

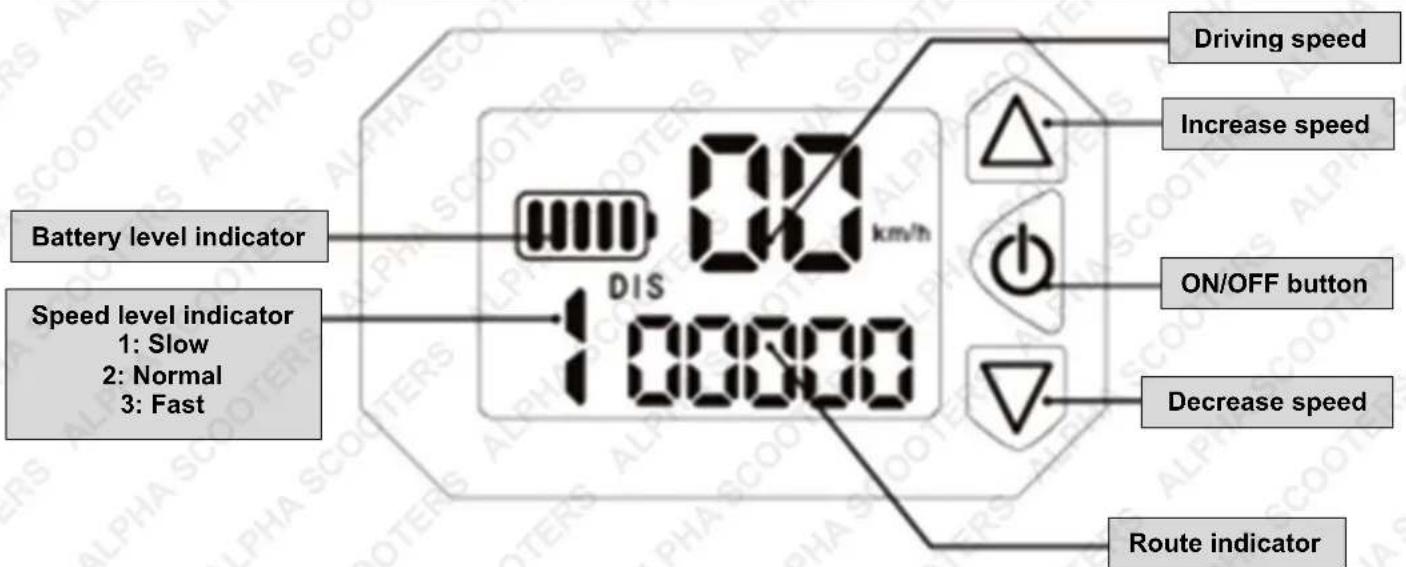

| Display | LCD with speed, battery level, odometer |
| Foldable | Yes |
| Max Load | 120 kg |
| Water Resistance | IP54 |
| Frame Material | Aluminum alloy |
| Maintenance | Regular tire pressure check, brake adjustment, battery care |
| Safety Features | Electronic brake, bell, reflectors, front/rear lights |
| Spare Parts Availability | Battery, charger, brakes, tires available through authorized dealers |
| Warranty | 1 year on motor and battery |
Frequently Asked Questions - Carbon Gen III ALPHA
How long does it take to fully charge the battery?
Charging takes approximately 4 to 6 hours. Use only the provided charger to avoid damage.
What is the maximum speed of the Carbon Gen III?
The scooter is limited to 25 km/h for safety and legal compliance in many regions.
How often should I check the tire pressure?
Check tire pressure at least once a week. Recommended pressure is 40-50 psi for 10-inch tires.
Can I ride the scooter in the rain?
The scooter has IP54 water resistance, meaning it can handle splashes but should not be submerged. Avoid heavy rain.

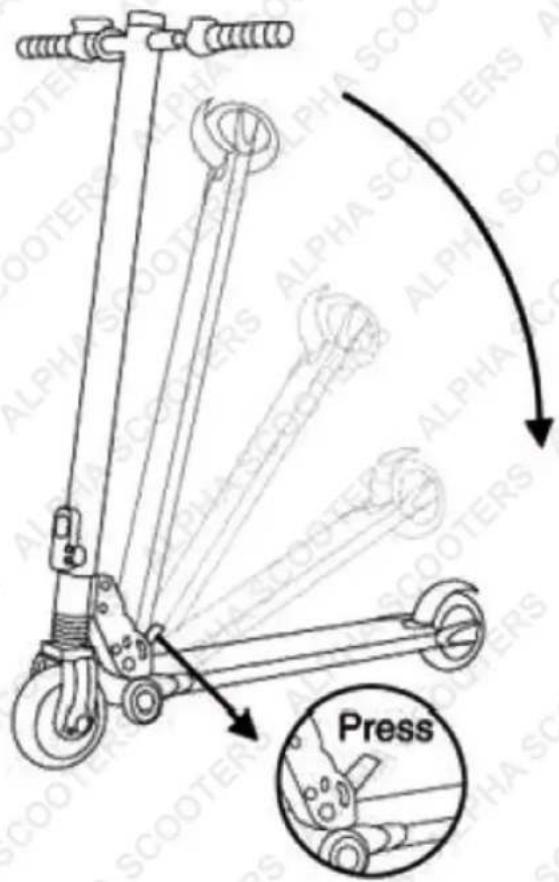

How do I fold the scooter?
Locate the folding latch near the stem, pull it, and fold the handlebars down until they lock. Unfold by reversing the steps.
What is the weight limit for riders?
The maximum load is 120 kg (including rider and any cargo). Exceeding may affect performance and safety.
How far can I go on a single charge?
The range is approximately 35 km under ideal conditions (flat terrain, moderate speed, rider weight within limit).
Does the battery have a memory effect?
No, the lithium-ion battery has no memory effect. You can charge it partially without affecting capacity.
What should I do if the brakes feel loose?
Adjust the brake cable tension using the barrel adjuster near the brake lever. If still loose, consult the manual or a professional.
Where can I buy replacement parts like tires or battery?
Replacement parts are available through authorized Alpha dealers or the official website. Use only genuine parts for safety.
