Brand	iPort
Model	72329
Product Type	Protective Case
Compatible Devices	iPad 10.2-inch (8th & 9th gen), iPad Mini (4th & 5th gen)
Material	High-impact polycarbonate and soft-touch coating
Color Options	Black (72300), White (72301)
Locking Mechanism	1.5mm hex key security tool with setscrew
Charging Compatibility	iPort Connect BaseStation or WallStation
Hand Strap	Sold separately, attachable with metal loops
Case Top	Removable for device insertion and locking
Security Set Screw	Clockwise rotation for added lock security
Package Contents	1x CONNECT Case, 1x Security Tool, 1x Info Card
Installation	Slide iPad into case, secure with top and lock
Maintenance	Clean with soft, dry cloth
Safety Features	Locking mechanism prevents unauthorized access
Spare Parts	Hand strap (sold separately), security tool included
Repairability	Contact iPort Tech Support for assistance
Accessories	Additional hand straps, BaseStation, WallStation
Technology	iPort CONNECT Platform
Technical Support	Online chat or help desk at iportproducts.com

Frequently Asked Questions - 72329 iPort

Which iPad models are compatible with the iPort 72329 case?

The case is compatible with iPad 10.2-inch (8th & 9th gen) and iPad Mini (4th & 5th gen).

How do I install my iPad into the case?

Remove the Case Top, slide the iPad into the case ensuring the lighting cable is snugly inserted, then reattach the Case Top.

How do I lock the case?

Use the provided IPORT Security Tool (1.5mm hex key). Insert it into the top of the case and slide towards the lock icon. For extra security, rotate the tool clockwise to tighten the setscrew.

Can I charge my iPad while it is in the case?

Yes, place the case onto an iPort Connect BaseStation or WallStation for charging.

How do I attach the hand strap?

Insert the metal strap loops with the flat end toward the side, rotate the strap clip downward until it snaps into place. Repeat for the second clip, then thread the hand strap through the loops and secure with Velcro.

How do I clean the iPort case?

Use a soft, dry cloth to wipe the case. Do not use harsh chemicals or abrasive materials.

What is included in the box?

The package includes: 1x IPORT CONNECT Case, 1x IPORT Security Tool (1.5mm hex key), and 1x Info Card.

How do I remove the hand strap?

Unlock and remove the Case Top, locate the oval hole inside, insert the security tool, pivot toward the top to free the strap loop, then rotate the loop 90 degrees to remove.

The lock seems loose. What should I do?

Tighten the setscrew by rotating the security tool clockwise after locking. Ensure the tool is fully inserted and the lock icon is aligned.

Who do I contact for technical support?

Contact iPort Tech Support via online chat or through the help desk at iportproducts.com.

USER MANUAL 72329 iPort

72300 - 10.2 - Inch (8th & 9th gen) - Black

72301 - 10.2 - Inch (8th & 9th gen) - White

72310 - Mini (4 & 5th gen) - Black

IPORT CONNECT PRO Case Install Manu-

Thank you for purchasing the all new IPORT CONNECT Platform. We hope you enjoy this revolutionary new system and if at any time you need more assistance please contact IPORT Tech Support via Online chart or through our help desk.

- IPORT Team

Whats in box:

1 - IPORT CONNECT Case

1 - IPORT Security tool - 1.5mm hex key

1 - Info Card

Product Info Page - www.iportproducts.com/cpcase

Glossary of Terms:

- Case - The fully assembled CONNECT PRO Case.

- Case Top - The short removable portion of the chase including the locking portion of the Case.

- IPORT Security Tool - The orange handled 1.5mm hex tool used for locking and unlocking IPORT Products.

- Station Interface Module - The main electronics portion of the new IPORT CONNECT Platform consisting of the round electronic components.

- Dock Interface Module - The secondary linear electronics found on the IPORT CONNECT Case.

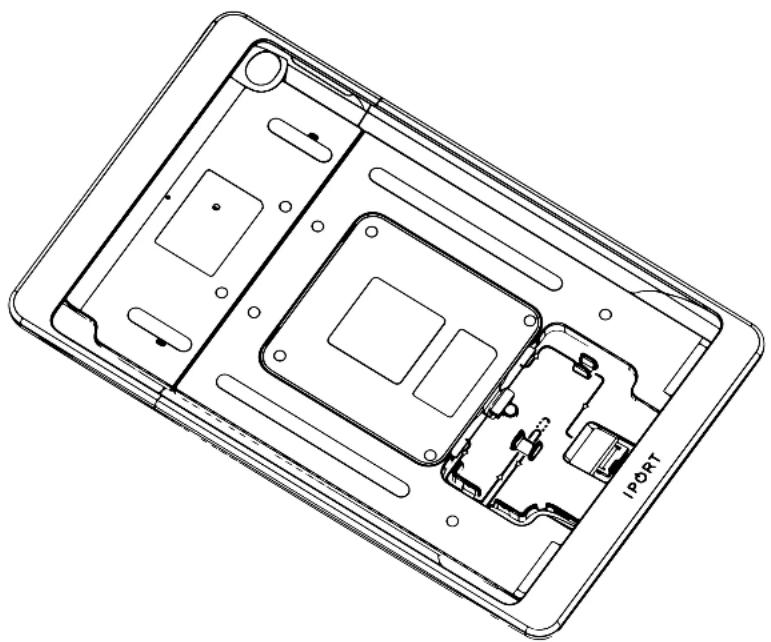

1. Remove Case from the box and place on a table.

Technical line drawing of a tablet device showing internal components and casing (no text or symbols)

1. Remove the short Case Top.

Technical line drawing of a smartphone internal casing showing internal components and mounting holes (no text or symbols)

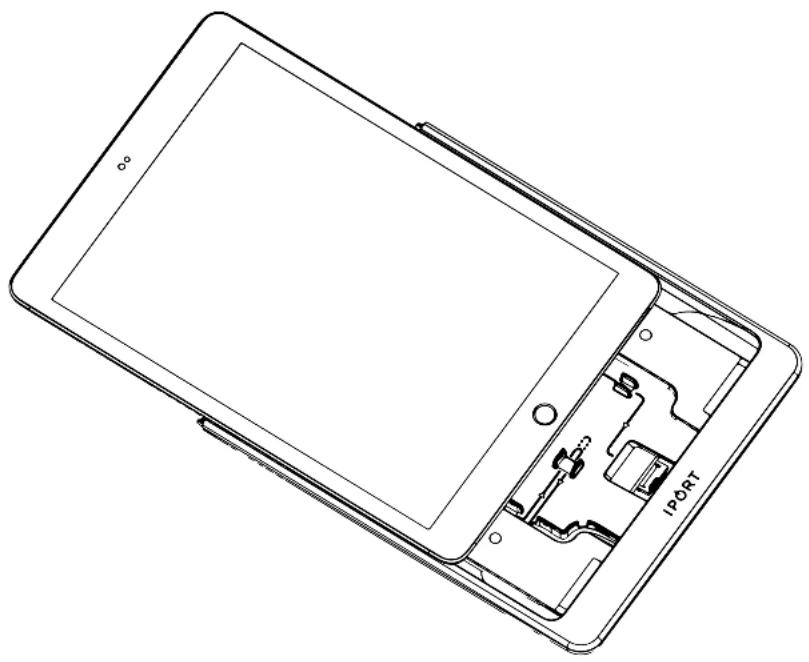

3. Slide iPad into the Case making sure the lighting cable is snugly inserted into the iPad.

Line drawing of a tablet device showing internal components and casing (no text or symbols)

Line drawing of a tablet device with IPORT branding, showing front and side views (no text or symbols on the device itself)

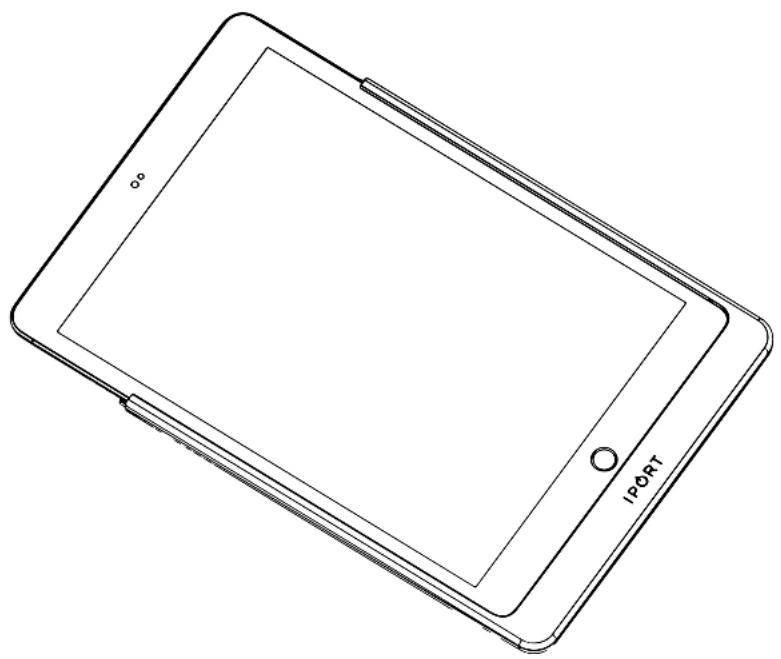

4. Reinstall the Case top onto the lower half if the Case and iPad.

Line drawing of a smartphone showing the open and closed sides of its screen (no text or symbols)

Line drawing of a tablet device with IPORT branding and no visible text or symbols on the screen itself

CASE

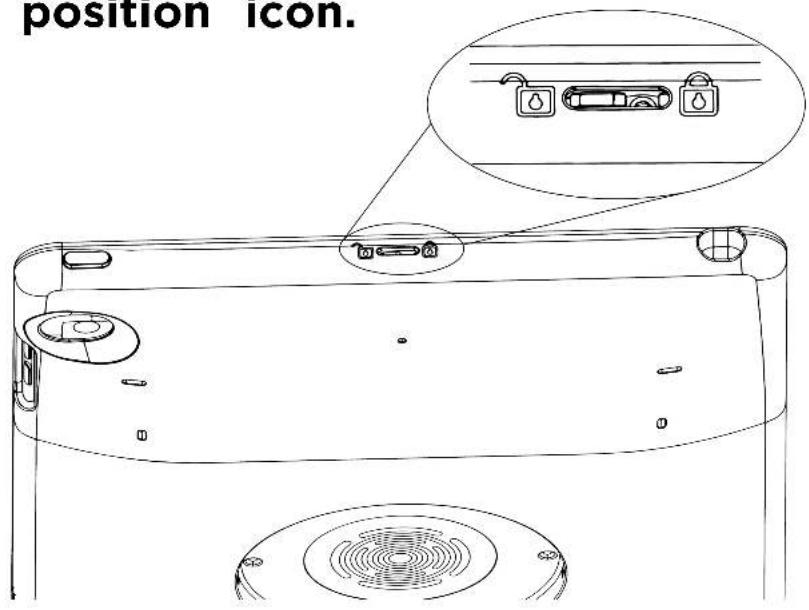

1. Use the provided IPORT tool, insert the tool into the top of the case and slide the tool towards the lock position icon.

Line drawing of a device with a cable being inserted into a container, showing no text or symbols

CASE

- For added security rotate the IPORT tool clockwise to tighten the setscrew in place holding the lock secure.

6. Place the IPORT CONNECT Pro Case onto a BaseStation or WallStation for charing.

Line drawing of a tablet device with a circular display stand and a labeled 'IPORT' on the screen (no text or symbols beyond branding)

Hand Strap Install - (sold separate)

1. Insert the metal strap loops with the flat end pointing towards the left or right side of the case.

CASE

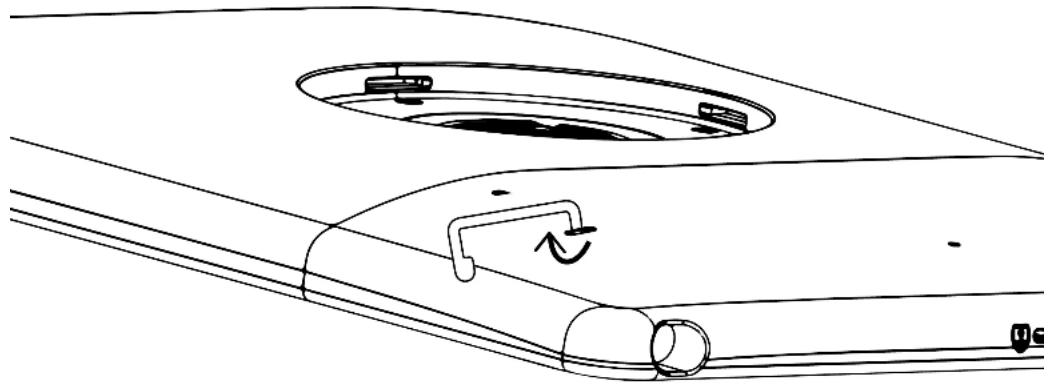

1. Rotate the strap clip towards the bottom of the Case and insert into the hole until the strap clip snaps into place.

Diagram of a car interior showing airflow path and valve (no text or symbols)

Technical line drawing of a mechanical component with circular features and a downward arrow indicating a feature (no text or symbols present)

3. Repeat for the second clip.

1. Insert the IPORT CONNECT Hand Strap under both strap loops with the Velcro facing out from the case, fold over the Hand Strap and attach to the Velcro. Adjust hand strap to a snug but comfortable fit around the top of your hand.

NOTE Case Top and Bottom MUST be locked together to properly secure the iPad and CONNECT PRO Case together.

Hand Strap Removal

1. Unlock the CONNECT PRO Case Top from the Case Bottom. See step 5 of installing the Case.

2. Remove the Case Top from the Case Bottom.

Line drawing of a smartphone showing the open and closed views of the screen (no text or symbols)

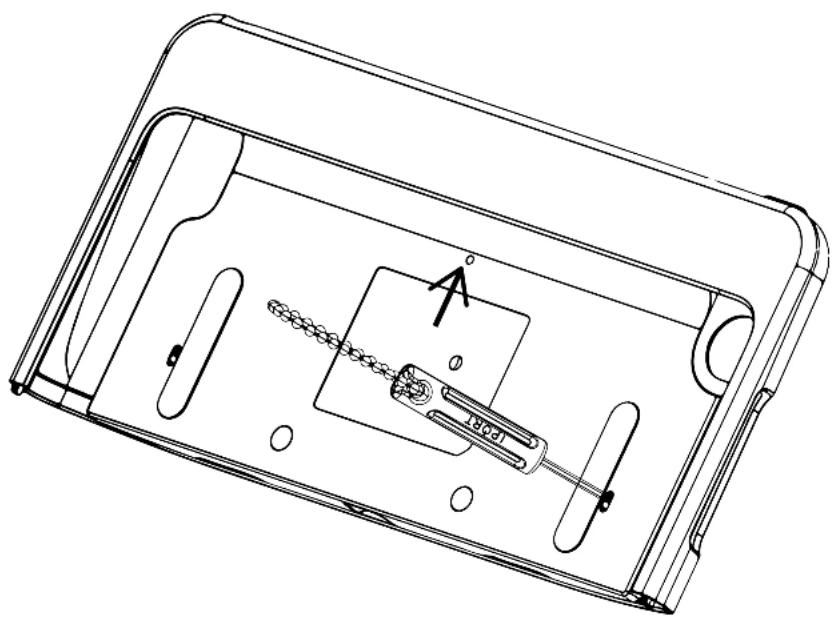

1. On the inside of the Case Top, locate the small oval hole and insert the IPORT CONNECT Security tool. Pivot the IPORT Security tool toward the top of the Case Top freeing the Strap loop. Rotate the Strap loop 90 degrees left or right to remove the Strap Loop from the Case Top.

Technical line drawing of a device casing with internal components and a labeled component (no text or symbols)

1. Repeat for the second strap loop.
