Spark - Home Theater Pure Acoustics - Free user manual and instructions

Product Type	Home Theater System
Brand	Pure Acoustics
Model	Spark
Dimensions (approx.)	30 cm x 20 cm x 10 cm (main unit)
Weight (approx.)	2 kg (main unit)
Power Consumption	50 W
Power Supply	AC 110-240 V, 50/60 Hz
Speaker Configuration	2.1 channel (2 satellites + subwoofer)
Connectivity	Bluetooth, AUX input, USB port
Remote Control	Included (IR)
Audio Formats Supported	MP3, WMA, WAV
Maximum Power Output	40 W RMS
Frequency Response	40 Hz - 20 kHz
Subwoofer Type	Passive, 4 inch driver
Control Interface	Buttons on unit and remote
Display	LED indicator
Standby Mode	Yes, low power
Maintenance	Clean with soft dry cloth; avoid liquids
Safety	Keep away from water and heat sources
Spare Parts	Contact Pure Acoustics support
Reparability	Service by qualified technician
Documentation	User manual available online at notice-facile.com

Frequently Asked Questions - Spark Pure Acoustics

How do I set up the Pure Acoustics Spark home theater system?

Unpack all components: main unit, two satellite speakers, subwoofer, remote control, and cables. Place the main unit near your TV, connect the speakers using the provided wires (color-coded), and plug the subwoofer. Connect to power and turn on. Follow the on-screen setup or use the remote to select input source.

Why is there no sound from the speakers?

Check that all speaker wires are securely connected to the correct terminals. Ensure the volume is turned up and not muted. Verify the input source is selected correctly (e.g., Bluetooth, AUX). If using Bluetooth, confirm your device is paired. Also check that the subwoofer power is on.

How do I connect my smartphone via Bluetooth?

Press the Bluetooth button on the remote or main unit until the LED flashes. On your phone, enable Bluetooth and search for 'Pure Acoustics Spark'. Select it to pair. Once connected, the LED will stay solid. You can now play music wirelessly.

What is the maximum volume level?

The Spark home theater system has a maximum volume level of 30. You can adjust volume using the remote or the volume knob on the main unit. For optimal sound quality, avoid setting volume above 25 to prevent distortion.

How do I clean and maintain the system?

Unplug the system before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use any liquids or abrasive cleaners. Keep the speakers away from dust and moisture. Check speaker wires periodically for damage.

Can I use the system with a TV?

Yes, you can connect the Spark to your TV using the AUX input (3.5mm cable) or via Bluetooth if your TV supports it. For best audio, connect the TV’s audio output to the system’s AUX port.

What safety precautions should I follow?

Place the system on a stable, flat surface away from water, heat sources, and direct sunlight. Do not block ventilation openings. Unplug during storms or if not used for extended periods. Keep small magnets and metal objects away from the speakers.

How do I reset the system to factory settings?

To reset, turn off the system, then press and hold the 'Volume -' button on the main unit while turning it on. Keep holding for 5 seconds until the LED blinks rapidly. The system will restart with default settings.

Where can I find spare parts or accessories?

Spare parts such as remote control, power adapter, or speaker wires can be ordered from Pure Acoustics official website or authorized dealers. Contact customer support for assistance.

What is the warranty period?

The Pure Acoustics Spark home theater system comes with a 1-year limited warranty against manufacturing defects. Register your product online to activate warranty. For warranty claims, contact the retailer or Pure Acoustics support.

USER MANUAL Spark Pure Acoustics

SPARK Owner's Manual

pure acoustics® THE PURE SOUNDS OF LIFE

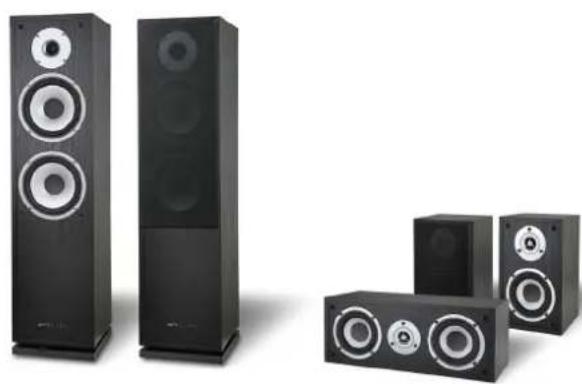

Product photo of five black audio speakers with varying sizes and sound effects (no visible text or labels)

Black wooden multi-tiered speaker tower with two speakers and a circular head (no visible text or symbols)

Black wooden audio amplifier with three speakers and a label 'pune music' on the base (no other text or symbols visible)

Pure Acoustics, Inc. 18 Fuller Place Brooklyn, NY 11215, USA, Tel [phone]

www.pure-acoustics.com

Introduction

Thank you for purchasing Pure Acoustics' products, and welcome to the Pure Acoustics family of satisfied customers!

Pure Acoustics was established to fulfill the need for high quality speakers of exceptional design at an affordable price. After years of research and development, and by manufacturing all parts ourselves -- from the voice-coil to the uniquely-designed crossover -- Pure Acoustics is able to offer you speakers of superior value.

Each speaker component has been designed and engineered with first-rate materials to produce exceptional sound. Our speakers offer the best of it all – high-quality sound, hand-made solid construction, and a remarkably stylish appearance.

We welcome you to witness the results. Our team's dedication to quality, reliability and attractive design has created some of the best-value speakers you can find today.

Reading the complete manual will help you to set up your speakers properly and reward you with a fine listening experience. Pure Acoustics distribution centers in Europe, Asia, Australia and the Americas will be happy to assist you with any questions you may have. Please look for the distributor nearest you on our web site, www.pure-acoustics.com.

Connections

Make sure all equipment is turned off. When connecting the speakers, be sure to retain the correct polarity. Most speaker cables will have (+) red sign for positive and (-) black sign for negative.

Connect the speaker cable to the positive (+) front-left speaker terminal on the amplifier and to the positive (+) terminal on the front-left speaker. Connect the speaker cable to the negative (-) front-left speaker terminal on the amplifier and to the negative (-) terminal on the front left speaker. Repeat the same step for the right – side front speaker. In the case that your speakers have two sets of terminals on the back, either set of input terminals can be used as long as the shorting straps are in place. If you want to bi-wire your speakers and if your amplifier is equipped with bi-wire output connection, remove the shorting straps and connect each terminal to the associated terminal in your amplifier. The upper input terminals on the back of the speaker are connected to the high frequencies and the lower input terminals are connected to the low frequencies.

Connect the speaker cable to the positive (+) center speaker terminal on the amplifier and to the positive (+) terminal on the center speaker. Connect the speaker cable to the negative (-) center speaker terminal on the amp and to the negative (-) terminal on the center speaker.

Connect the speaker cable to the positive (+) rear left speaker terminal on the amplifier and to the positive (+) terminal on the rear-left speaker. Connect the speaker cable to the negative (-) rear-left speaker terminal on the amplifier and to the negative (-) terminal on the rear-left speaker. Repeat the same step for the right-side rear speaker.

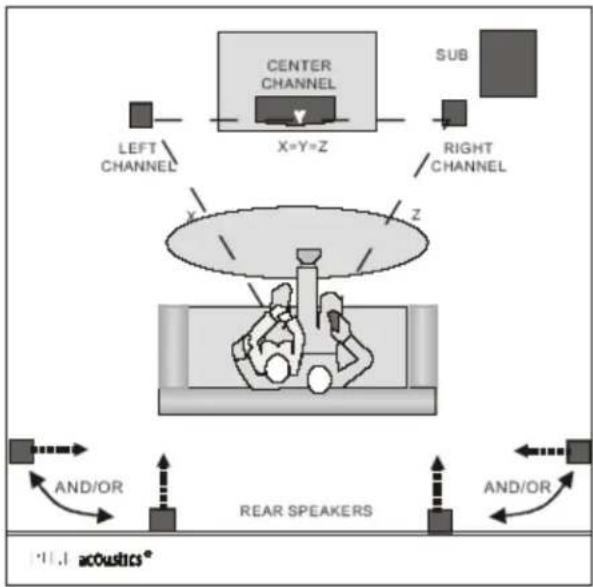

Position

THE FRONT SPEAKERS should be placed on each side of your TV or in front of your favorite listening position. As a general guideline, the space from the speakers to the listening position should be 1.5 times the distance between the speakers. For example, if your listening position is 9ft (2.7m) away from the speakers, the distance between the speakers should be 6ft (1.8m)

THE CENTER CHANNEL SPEAKER should be on top of or just above your TV.

THE REAR (SURROUND) SPEAKERS should be positioned either to the side of, or behind, your listening position. Typical placement is on the side walls, slightly above car level, about two-thirds of the way back from the front of the room. This allows the surround speakers to aim directly at the listener, placing you in the middle of a five-speaker sound field.


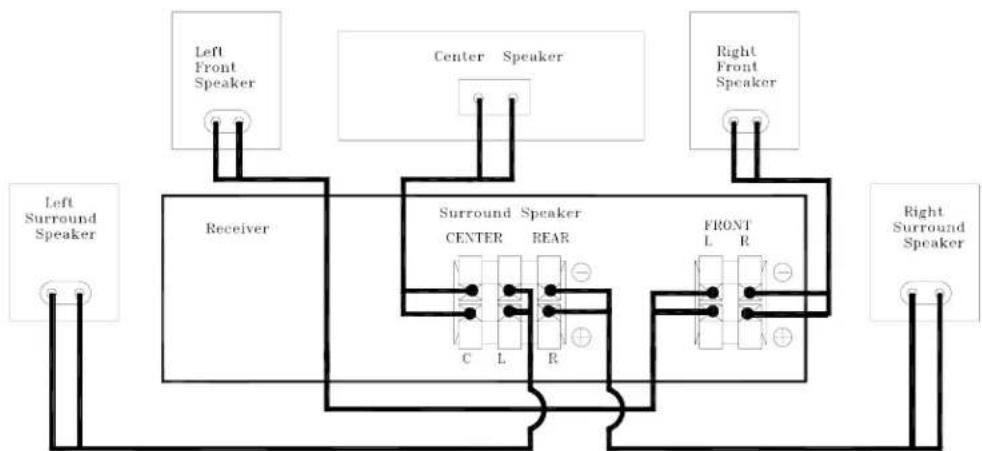

Set-Up Diagram

Running time and cleaning

The performance of the speakers may change during the initial use due to storage and mechanical limitations. Please allow 15 hours of use for the temperature effect and mechanical parts to attain their intended design characteristics.

Make sure to turn all equipment off before cleaning. The cabinet only requires occasional dusting. Please avoid touching the drive units.

Limited one-year warranty

Pure Acoustics products have been designed and manufactured to the highest quality standards. However, in the event that something malfunctions, Pure Acoustics and your local authorized distributor warrant free of charge parts and labor (some exclusions may apply) for a period of one year. This warranty is only valid for the original owner. This warranty is limited to the repair of the product. This warranty will not apply to units that were subject to misuse, neglect, abuse, alteration or improper installation. This warranty will not cover damage due to fire, water, heat, lightning or any other cause beyond the control of Pure Acoustics. Retention of your original dated receipt is required in order to obtain warranty service from your local authorized Pure Acoustics Dealer.

	Spark F Spark C Spark S
POWER HANDLING	200 Watt	140 Watt	140 Watt
FREQUENCY	45Hz - 22Khz 55Hz - 20Khz 60Hz-20Khz
SENSITIVITY (+/- 3DB) 90db 86db 85db
NOMINAL IMPEDANCE	8 Ohm	8 Ohm	8 Ohm
DRIVER COMPLEMENT	2 way 3 drivers bass reflex	2 way DRAV FIG. magnetic shielding, bass reflex	2 way DRAV FIG.
WOOFER	Two 6.5" (162mm) woofer PPC	Two 4" (100-mm) midwoofer PPC.	One 4" (100-mm) midwoofer PPC.
TWEETER	1" (25mm) silk dome tweeter	1" (25mm) silk dome tweeter	1" (25mm) silk dome tweeter
CROSSOVER FREQUENCY	2,500 Hz	3,000 Hz	3,000 Hz
DIMENSIONS (HXWXD)	87.5 x 21.5x 25 Cm	14.5 x 37 x 17 Cm	24 x 14.5 x 17Cm
WEIGHT	10.5 Kg each	3 Kg	2.1 Kg each
FINISH	Black, Silver, Cherry, Beech, Mahogany, Maple	Black, Silver, Cherry, Beech, Mahogany, Maple	Black, Silver, Cherry, Beech, Mahogany, Maple
GRILLE	Black/Gray cloth	Black/Gray cloth	Black/Gray cloth
CARTON DIMENSIONS (H X W X D)	96.3 x 70.7 x 32.2 Cm
CARTON WEIGHT	31.5 Kg
CARTON CONTAINS	5 pcs set , 2 front + 2 rear + 1 center speaker

Design and specifications are subject to change without notice.
