Product Type	Dishwasher
Brand	Corbero
Model	CLVV321X
Place Settings	10
Dimensions (H x W x D)	850 x 450 x 598 mm
Net Weight	38.8 kg
Voltage / Frequency	220-240 V, 50 Hz
Total Current	10 A
Total Power	1900 W
Water Pressure (min/max)	0.03 MPa / 1 MPa
Programmes	Prewash, Quick 30' 40°C, Eco, Super 50', Intensive 65°C, Hygiene 70°C
Eco Programme Duration	08:18 h:min
Eco Programme Energy Consumption	0.755 kWh/cycle
Eco Programme Water Consumption	11.0 L/cycle
Half Load Function	Yes
Delay Start	1-19 hours
Child Lock	Yes
Salt & Rinse Aid Indicators	Yes
Water Softener System	Yes, adjustable
Drying System	Super Drying Unit
Installation	Undercounter or freestanding
Filter System	Micro, Coarse, Metal filters
Spray Arms	Upper and lower, removable
Spare Parts Availability	At least 10 years
Warranty	36 months

Frequently Asked Questions - CLVV321X CORBERO

How do I set the water hardness level?

Turn the knob to 'off', press and hold Start/Pause, turn the knob clockwise one step, hold Start/Pause until LEDs flash and 'SL' disappears, then use '+' and '-' to set the level. Turn to 'off' to save.

What should I do if the dishes are not drying properly?

Ensure you have selected a programme with a drying option. Increase the rinse aid dosage setting (factory set at 4). Also check that the water softener level is correct.

How to clean the filters?

Turn the filter combination counter-clockwise and lift it out. Pull the coarse filter from the micro filter, then remove the metal filter. Rinse all filters thoroughly under water. Reassemble and rotate clockwise to lock.

Why does the dishwasher stop during a cycle?

Possible causes: power failure (check mains) or water inlet failure (check tap). Also inspect if the water inlet hose or filters are clogged.

How do I use the half load function?

Press the Half Load Button on the control panel. This reduces programme duration and energy/water consumption for smaller loads.

What does the F5 error code mean?

Code F5 indicates insufficient water. Check that the water inlet tap is open, water is flowing, and the inlet hose filter is clean. If the error persists, contact service.

How to activate the child lock?

Press the '+' and '-' keys on the remaining time indicator simultaneously for 3 seconds. 'CL' will display for 2 seconds. To deactivate, repeat the same process.

Can I use combined detergents?

Yes, but follow the manufacturer's instructions. Avoid using combined detergents in short programmes. If you switch back from combined to regular detergent, reset water hardness and rinse aid levels.

How to install the dishwasher under a counter?

Remove the top panel by unscrewing the rear screws and sliding the panel back. Adjust the feet for leveling. Ensure the space dimensions are at least H 820 mm, W 450 mm, D 598 mm. Do not crush hoses.

What is the maximum drain hose length?

The drain hose should be connected at a height between 50 cm and 110 cm from the floor. Do not exceed a length of 4 m for proper drainage.

USER MANUAL CLVV321X CORBERO

Simple line drawing of a rectangular container with a horizontal bar inside (no text or symbols)

CLVV321W / CLVV321X

CONTENTS

1.SAFETY INSTRUCTIONS .... 1

1.1. General Safety Warnings ...... 1

1.2. Installation Warnings .... 2

1.3. During Use....3

2.INSTALLATION....6

2.1. Machine Positioning ....6

2.2. Water Connection....6

2.3. Water Inlet Hose....6

2.4. Drain Hose....6

2.5. Electrical Connection ....7

2.6. Fitting the Machine Undercounter .....7

3.TECHNICAL SPECIFICATIONS......8

3.1. General Appearance....8

3.2. Technical Specifications ....8

4.BEFORE USING THE APPLIANCE 9

4.1.Preparing your Dishwasher for first use 9

4.2. Salt usage....9

4.3. Fill the salt 9

4.4. Test Strip 10

4.5. Water Hardness Table 10

4.6. Water Softener System 10

4.7. Setting 10

4.8. Detergent Usege 10

4.9. Filling the Detergent 11

4.10. Using Combined Detergents ...... 11

4.11. Rinse-aid Usege 11

4.12. Filling the Rinse-aid and Setting.... 11

5.LOADING YOUR DISHWASHER 12

5.1. Recommendations.... 12

5.2. Alternative Basket Loads....14

6.PROGRAMME TABLE....15

7. THE CONTROL PANEL....17

7.1. Changing a Programme ....18

7.2. Cancelling a Programme....18

7.3. Switching the Machine Off....19

8.CLEANING AND MAINTENANCE 21

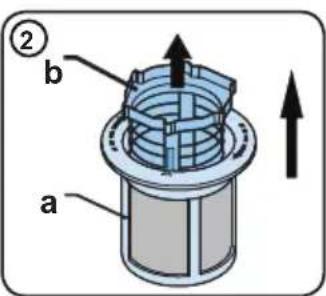

8.1. Filters 21
8.2. Spray Arms 21
8.3. Drain Pump 22
9. TROUBLESHOOTING 23

1. SAFETY INSTRUCTIONS

1. General Safety Warnings

• Read these instructions carefully before using your appliance and keep this manual for future reference.
  Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened.
• Packaging materials protect your machine from any damage that might occur during transportation. The packaging materials are environmentally friendly as they are recyclable. Use of recycled material reduces raw material consumption and decreases waste production.
  This appliance can be used by children aged from 8 years and above, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand hazards involved. Children should not be allowed to play with the appliance.
  ⚠️ Remove packaging and keep it out of reach of children.
  ⚠️ Keep children away from detergents and rinse aids.
  There may be some residue left in the machine after washing. Keep children away from the machine when it is open.

2. Installation Warnings

• Choose a suitable and safe place to install your machine.
• Only original spare parts should be used with the machine.

⚠️! Unplug the machine before installation.

⚠️ Your machine must only be installed by an authorised service agent. Installation by anyone other than an authorised agent may cause your warranty to be void.

⚠️ Check that the indoor electrical fuse system is connected in line with safety regulations.

All electrical connections must match the values on the plate.

⚠️! Ensure the machine does not stand on the electrical supply cable.

⚠️ Never use an extension cord or a multiple socket connection.

⚠️ The plug should be accessible after the machine is installed.

• After installation, run your machine unloaded for the first time.

The machine must not be plugged in during positioning.

△! Always use the coated plug supplied with your machine.

△! If the electrical cable is damaged, it should only be replaced by a qualified electrician.

- Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the

pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

3. During Usage

• This machine is for domestic use only; do not use
• it for other purposes. Commercial use will void the guarantee.

Do not stand, sit or place loads on the open door of the dishwasher.
⚠️ Only use detergents and rinse aids produced specifically for dishwashers. Our company is not responsible for any damage that may occur due to misuse.
⚠️Do not drink water from the machine.
Due to the danger of explosion, do not place any chemical dissolving agents into the machine's washing section.
- Check the heat-resistance of plastic items before washing them in the machine.
△! Only put items in the machine which are suitable for dishwashing, and take care not to overfill the baskets.
⚠️Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened.
⚠️The machine door should not be left open. It may cause accidents.
⚠️Place knives and other sharp objects in the cutlery basket in a blade-down position.
⚠️! For models with the automatic door-opening system, when the EnergySave option is active, the door will open at the end of a program. To prevent damage to your dishwasher, do not attempt to close

the door for one minute after it has opened. For effective drying, keep the door open for 30 minutes after a programme has ended. Do not stand in front of the door after the auto-open signal sounds.

⚠ In the case of a malfunction, repair should only be performed by an authorised service company, otherwise the warranty will be void.

△! Before repair work, the machine should be disconnected from the mains. Do not pull the cable to unplug the machine. Switch off the water tap.

Operation at a low voltage will cause a decline in performance levels.

⚠️ For safety, disconnect the plug once a program has finished.

To avoid an electric shock, do not unplug the machine with wet hands.

⚠️! Pull the plug to disconnect the machine from the mains, never pull on the cord.

RECYCLING

• Some machine components and packaging consist of recyclable materials.
• Plastics are marked with the international abbreviations: (>PE<, >PP<, etc.)
• The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling.
• Material unsuitable for domestic waste must be disposed of at recycling centres.
• Contact a relevant recycling centre to obtain information about disposal of different materials.

PACKAGING AND THE ENVIRONMENT

- Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

CE Declaration of Conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product,

please contact your local city office, your household waste disposal service or the shop where the product was purchased.

2. INSTALLATION

2.1. Machine positioning

When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0^ C.

Read all warnings located on the packaging before removing the packaging and positioning the machine.

Place the machine close to a water tap and drain. Take into consideration that the connections will not be altered once the machine is in position.

Do not hold the machine by its door or panel.

Leave an adequate distance around the machine to allow ease of movement when cleaning.

Ensure the water inlet and outlet hoses are not squeezed or trapped and that the machine does not stand the electrical cable while positioning.

Adjust the feet so the machine is level and balanced. The machine should be placed on flat ground otherwise it will be unstable and the door of the machine will not close properly.

2.2. Water connection

We recommend fitting a filter to your water inlet supply in order to prevent damage to your machine due to contamination (sand, rust, etc.) from indoor plumbing. This will also help prevent yellowing and deposit formation after washing.

Note printing on the water inlet hose! If models are marked with 25^ , the water temperature may be max. 25^ C (cold water).

For all other models:

Cold water preferred; hot water max.

temperature 60 °C.

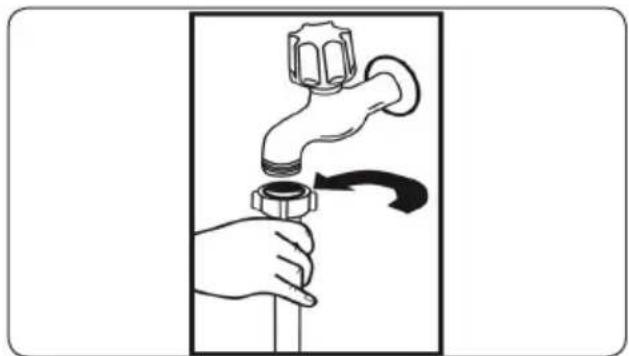

2.3. Water inlet hose

Illustration of a hand holding a faucet with a valve, showing a curved arrow indicating motion (no text or symbols)

WARNING: Use the new water inlet hose supplied with your machine, do not use an old machine's hose.

! WARNING: Run water through the new hose before connecting.

WARNING: Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. If the pressure exceeds 1 MPa, a pressure relief valve must be fitted between the connection.

WARNING: After the connections are made, turn the tap on fully and check for water leaks. Always turn off the water inlet tap after a wash program has finished.

Simple line drawing of a pipe valve with a valve and base, no text or symbols present

An Aquastop water spout is available with some models. Do not damage it or allow it to become kinked or twisted.

2.4. Drain Hose

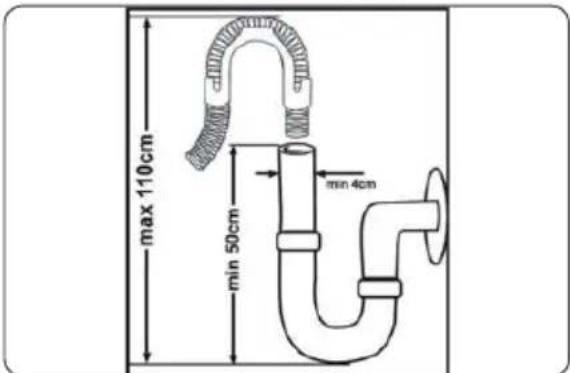

Connect the water drain hose directly to water drain hole or to the sink outlet spigot. This connection should be minimum 50 cm and maximum 110 cm from flor plane.

IMPORTANT: Items will not wash properly if a drain hose longer than 4 m is used.

Pure electrical circuit lines without any symbols

2.5 Electrical connection

WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection.

Connect the product to a grounded outlet protected by a fuse complying with the values in the "Technical Specifications" table".

The earthed plug of the machine must be connected to an earthed outlet supplied by suitable voltage and current.

In the absence of earthing installation, an authorised electrician should carry out an earthing installation. In the case of use without earthing installed, we will not be responsible for any loss of use that may occur.

The plug on this appliance may incorporate 13A fuse depending on the target country. (For Example UK, Saudi Arabia)

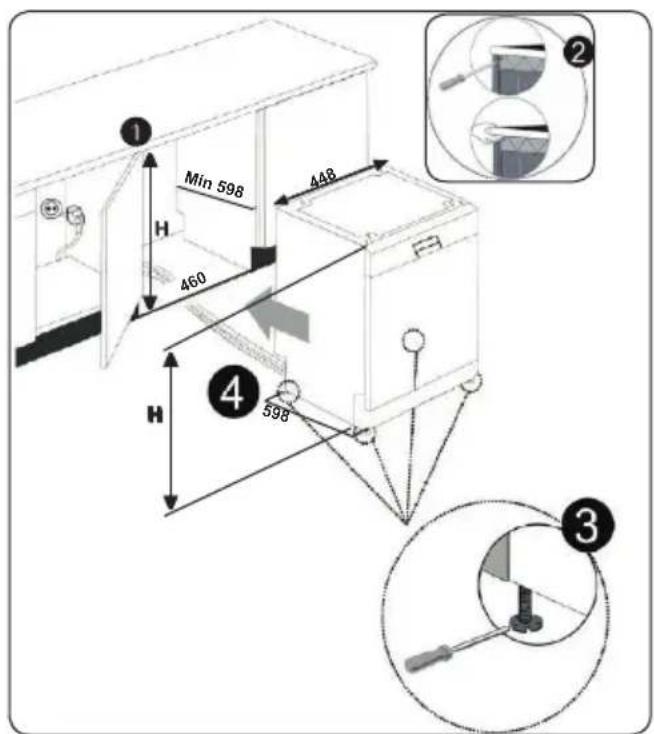

2.6. Fitting the machine undercounter

If you wish to fit your machine undercounter, there must be sufficient space to do so and the wiring-plumbing must be suitable to do so (1). If the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration (2).

WARNING: The countertop, of which the machine will be placed under, must be stable in order to prevent imbalance.

The top panel of the dishwasher must be removed to fit the machine under the countertop.

To remove the top panel, remove the screws that hold it on, located at the rear of the machine. Then, push the panel 1 cm from the front towards the rear and lift it. Adjust the machine feet according to the slope of the floor (3).

Fit your machine by pushing it under the counter taking care not to crush or bend the hoses (4).

WARNING: After removing the top panel of your dishwasher, the machine should be placed in a space of the dimensions shown in the figure below.

	A B
	All Products	B_1	B_2
Product's Height (±2 mm) 820 mm 825 mm 835 mm

A: If there is no felt on the top of the product; you should take into account this product's height.

B1: If there is felt on the top of the product with 2nd basket; you should take into account this product's height.

B2: If there is felt on the top of the product with 3rd basket; you should take into account this product's height.

3. TECHNICAL SPECIFICATIONS

Close-up of a mechanical component with a circular component and numbered arrow (12), no visible text or symbols.

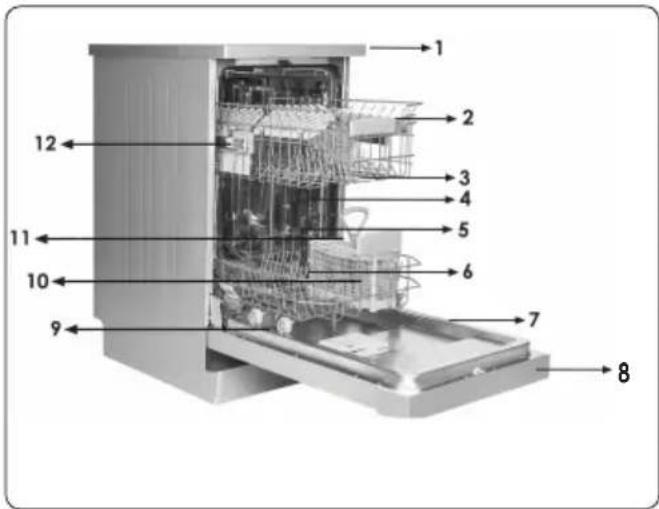

3.1. General appearance

1. Upper basket with racks
2. Upper spray arm
3. Lower basket
4. Lower spray arm
5. Filters
6. Rating plate
7. Control panel
8. Detergent and rinse-aid dispenser
9. Cutlery basket
10. Salt dispenser
11. Upper basket track latch

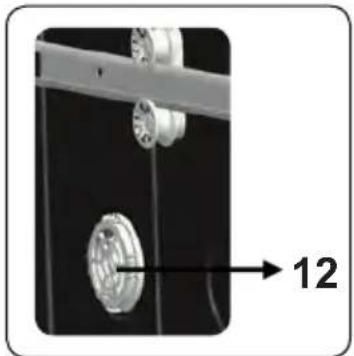

12. Super Drying Unit: This system enhances the drying performance of your dishes.

3.2. Technical specifications

Capacity	10 place settings
Dimensions (mm)
Height	850(mm)
Width	450(mm)
Depth	598(mm)
Net weight 38,	800 kg
Operating voltage / frequency	220-240V50 Hz,
Total current (A)	10(A)
Total power (W)	1900(W)
Water supply pressure	Maximum:1 (Mpa)Minimum:0.03 (Mpa)

4. BEFORE USING THE APPLIANCE

4.1. Preparing your dishwasher for first use

• Make sure the electricity and supply water specifications match the values indicated in the installation instructions for the machine.
• Remove all packaging material inside the machine.
• Set the water softener level.
• Fill the rinse aid compartment.

4.2 Salt usage (IF AVAILABLE)

For a good washing function, the dishwasher needs soft, i.e. less calcareous water. Otherwise, White lime residues will remain on the dishes and the interior equipment. This will negatively affect your machine's washing, drying and shining performance. When water flows through the softener system, the ions forming the hardness are removed from the water and the water reaches the softness required to obtain the best washing result. Depending on the level of hardness of the inflowing water, these ions that harden the water accumulate rapidly inside the softener system. Therefore, the softener system has to be refreshed so that it operates with the same performance also during the next wash. For this purpose, dishwasher salt is used.

Machine can only be used by special dishwasher salt to soften the water. Do not use any small grained or powdered type of salts which can easily soluble. Using any other type of salt can damage your machine.

4.3. Fill the salt (IF AVAILABLE)

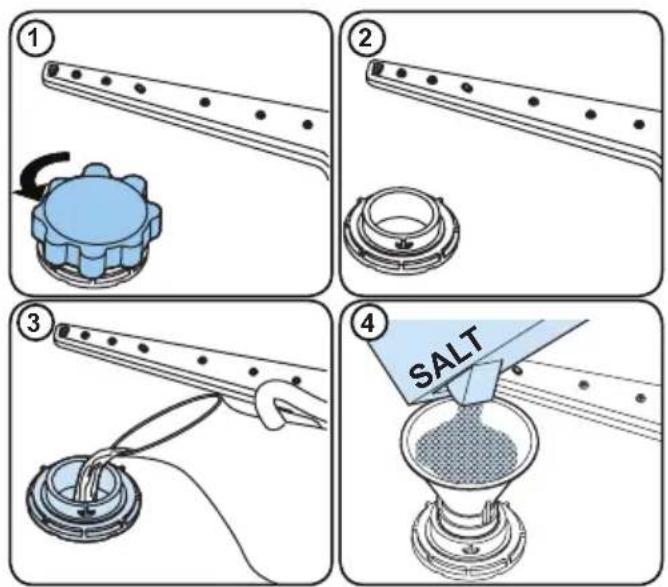

To add softener salt, open the salt compartment cap by turning it counter clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. If available, using a funnel (4) will make filling easier. Replace the cap and close it. After every 20-20-30 Cycles add salt into your mach until it fills up (approx. 1 kg).

Only add water to the salt compartment on first use.

Use softener salt specifically produced for use in dishwashers.

When you start your dishwasher, the salt compartment is filled with water, therefore put the softener salt in prior to starting your machine.

If the softener salt has overflowed and you do not start the machine immediately, run a short washing program to protect your machine against corrosion.

4.4. Test Strip

Run water through the tap (1min.)	Keep the strip in the water (1sec)	Shake the strip. Wait (1min.)		Set the hardness level of your machine.
				123456

NOTE: The factory hardness level setting is "3". If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices.

4.5. Water Hardness Table

Level	German dH	French dF	British dE	Indicator
1	0-5 0-9 0-6 L1 is shown on the display.
2	6-11 10-20 7-14 L2 is shown on the display.
3	12-17 21-30 15-21 L3 is shown on the display.
4	18-22 31-40 22-28 L4 is shown on the display.
5	23-34 41-60 29-42 L5 is shown on the display.
6	35-50 61-90 43-63 L6 is shown on the display.

4.6. Water Softener System

The dishwasher is equipped with a water softener which reduces the hardness in the mains water supply. To find out the hardness level of your tap water, contact your water company or use a test strip (if available).

4.7. Setting

In order to change the salt level, follow the below steps:

• Turn the knob to the "off" position.
• Push the "Start/Pause" button and hold it down.
• Turn the knob clockwise one step.
• Hold down the "Start/Pause" button until the LEDs flash and "SL" disappears.
  • The machine will display the last setting.
• Set the level by pushing the "+" and "-" buttons.
• Turn the knob to the "off" position to save the setting.

4.8. Detergent usage

Only use detergents specifically designed for domestic dishwashers. Keep your detergents in cool, dry places out of reach of children.

Add the proper detergent for the selected program to ensure the best performance. The amount of detergent needed depends on the cycle, load size, and soil level of dishes.

Do not fill detergent into the detergent compartment more than required; otherwise you can see whitish streaks or bluish layers on glass and dishes and may cause glass corrosion. Continued use of too much detergent may cause machine damage.

Using little detergent can result in poor cleaning and you can see whitish streaksin hard water. See the detergent manufacturer's instructions for a further information.

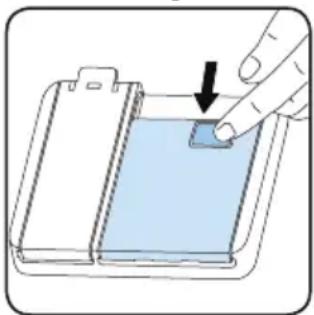

4.9. Filling the detergent

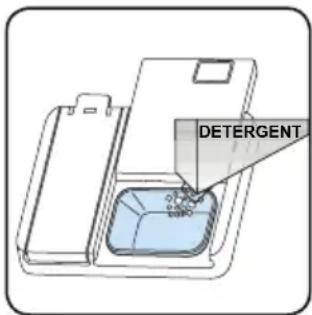

Push the latch to open the dispenser and pour in the detergent. Close the lid and press it until it locks in place. The dispenser should be refilled just before the start of each programme. If the dishes are heavily soiled, place additional detergent in the pre-wash detergent chamber.

Illustration of a hand placing a small object into a blue container with a downward arrow (no text or symbols)

4.10. Using combined detergents

These products should be used according to the manufacturer's instructions.

Never put combined detergents into the interior section or the cutlery basket.

Combined detergents contain not only the detergent but also rinse-aid, salt replacement substances and additional components depending on the combination.

We recommend you do not use combined detergents in short programmes.

Please use powder detergents in such programmes.

If you encounter problems when using combined detergents, please contact the detergent manufacturer.

When you stop using combined detergents, make sure that water hardness and rinse aid settings are set to the correct level.

4.11. Rinse-aid usage

The rinse aid helps to dry the dishes without streaks and stains. Rinse-aid is required for stain-free utensils and clear glasses. The rinse aid is automatically released during the hot rinse phase. If rinse aid dosage

setting set too low, whitish stains remains on dishes and dishes do not dry and washed clean. If rinse aid dosage setting set too height, you can see bluish layers on glass and dishes.

4.12. Filling the rinse-aid and setting

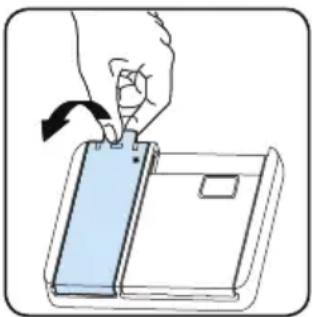

To fill the rinse aid compartment, open the rinse-aid compartment cap. Fill the compartment with rinse aid to the MAX level and then close the cap. Be careful not to overfill the rinse aid compartment and wipe up any spills.

In order to change the rinse aid level, follow the below steps:

• Turn the knob to the "off" position.
• Push the "Start/Pause" button and hold it down.
• Turn the knob counter clockwise one step.

- Hold down the "Start/Pause" button until the LEDs flash and "rA" disappears.

- The machine will display the current setting.

- Set the level by pushing the “+” and “-” buttons.

Turn the knob to the "off" position to save the setting.

The factory rinse aid level setting is "4". If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level.

Illustration of a hand inserting a card into a device (no text or symbols visible)

Line drawing of a mechanical assembly with a tool inserted into a component (no text or symbols)

Level	Brightener Dose Indicator
1	Rinse-aid not dispensed	r1 is shown on the display.
2	1 dose is dispensed	r2 is shown on the display.
3	2 doses are dispensed	r3 is shown on the display.
4	3 doses are dispensed	r4 is shown on the display.
5	4 doses are dispensed	r5 is shown on the display.

5. LOADING YOUR DISHWASHER

For best results, follow these loading guidelines.

Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings.

Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended. You can place cups, glasses, stemware, small plates, bowls, etc. in upper basket. Do not lean long glasses against one another or they cannot remain steady and may receive damage.

When placing long stem glasses and goblets, lean them against the basket edge or rack and not against other items.

Place all containers such as cups, glasses and pots into the dishwasher with the opening facing downwards otherwise water can collect on items.

If there is cutlery basket in machine, you are recommended to use the cutlery grid in order to obtain the best result. Place all large (pots, pans, lids, plates, bowls etc.) and very dirty items in the lower rack.

Dishes and cutlery should not be placed above each other.

WARNING: Take care not to obstruct the rotation of spray arms.

WARNING: Make sure after loading the dishes do not prevent opening the detergent dispenser.

5.1. Recommendations

Remove any coarse residue on dishes before placing the dishes in the machine. Start the machine with full load.

Do not overload the drawers or place dishes in the wrong basket.

WARNING: To avoid any possible ones, place long-handle and sharp-ed knives with their sharp points facing or horizontally on the baskets.

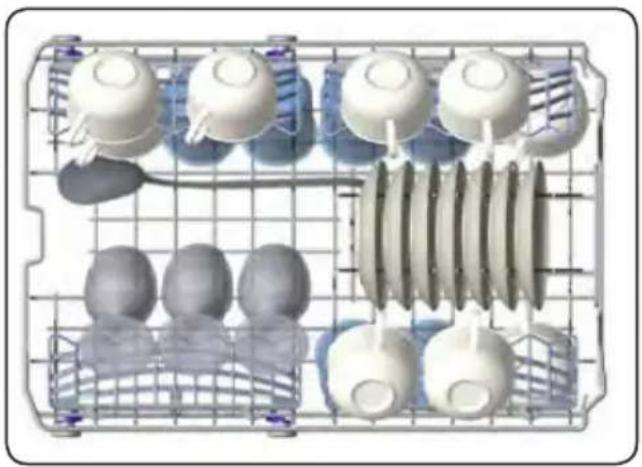

Top basket

Dish rack

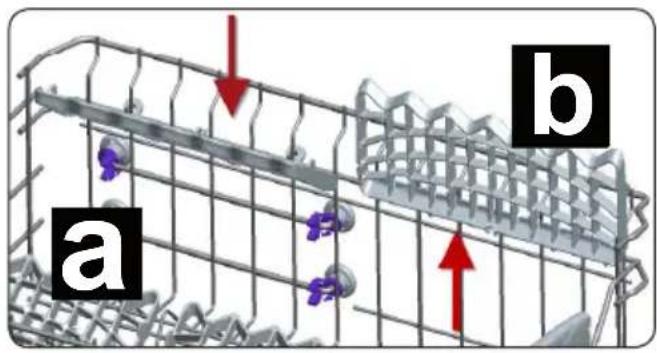

Upper basket racks have two positions: open (a) and closed (b). You can place cups on the racks to be washed. You can also place long forks, knives and spoons on the racks laterally.

Upper Basket

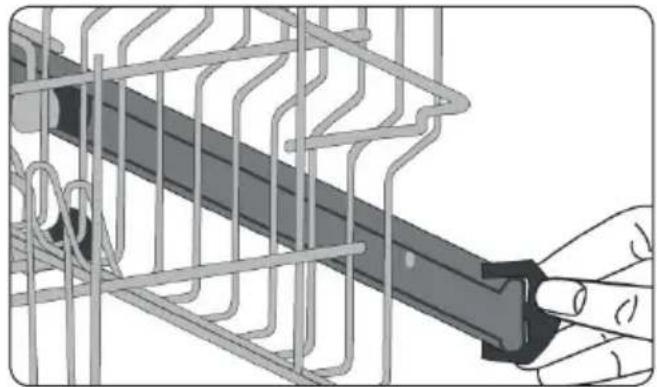

Height adjustment

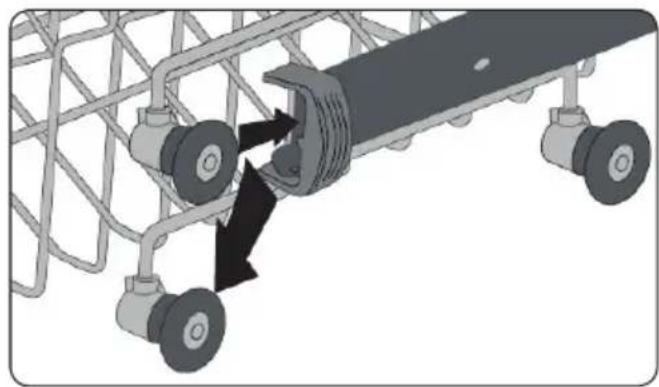

Turn the Rail Stop Clips, at the ends of the rails, to the sides to open them (as shown in the image below), then pull out and remove the basket. Change the position of the wheels, then reinstall the basket to the rail, making sure to close the Rail Stop Clips. When the upper basket is in the higher position, large items such as pans can be placed on the lower basket.

Illustration of a hand holding a tool interacting with a wire cage (no text or symbols visible)

Diagram of a mechanical assembly with two wheels and a central shaft, showing directional arrows (no text or symbols)

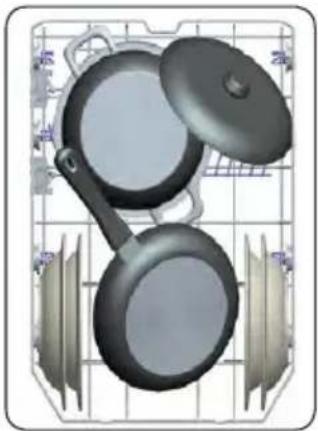

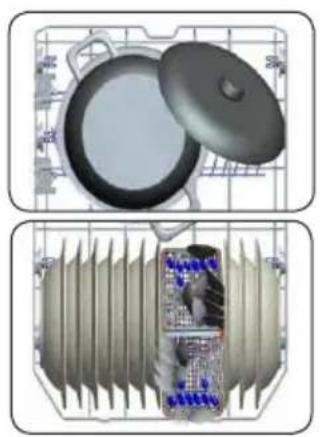

5.2. Alternative Basket Loads Lower Basket

3D rendered image of a double-lens kitchen fan with mesh grid background (no text or symbols)

Top Basket

3D rendering of a grid-based appliance or cleaning unit with multiple circular components and a central rack (no text or symbols visible)

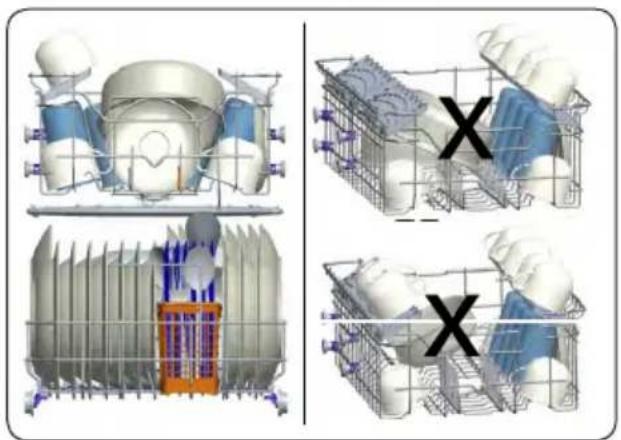

Incorrect Loads

Incorrect loading can cause poor washing and drying performance. Please follow the manufacturer's recommendations for a good performans result.

Incorrect Loads

Important Note for Test Laboratories

For detailed information required for tests according to EN normatives and a softcopy of the manual, please send the model name and serial number to the following address:

[e-mail]

	P1 P2 P3 P4 P5 P6
Program Name:	Prewash Quick	30' 40°C Eco Super	50' Intensive 65°C Hygiene	70°C
Type of Soil:	Suitable to rinse dishes that you plan to wash later.	Suitable for Highly solled dishes and quick wash.	Standard program for normally solled daily using dishes with reduced energy and water consumptions.		Suitable for heavily solled dishes requiring hygienic washing.
Level of Soil:	Light Light Medium Med.	lum Heavy Heavy
Amount of Detergent: A: 25 cm3 B: 15 cm3	- A A A A
Program Duration (h:min)	00:15 00:30 08:18 00:50 01:54 02:04
Electricity consumption (kWh/cycle)	0.020 0.670 0755 0.950 1.550 1.650
Water consumption (l/cycle)	3.5	10.0	11.0	11.2	17.8	15.1

• The program duration may change according to the amount of dishes, the water temperature, the ambient temperature and selected additional functions.
• Values given for programmes other than the eco programme are indicative only
• Eco programme is suitable to clean normally soiled tableware, that for this use, it is the most efficient programme in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU ecodesign legislation.
• Washing tableware in a household dishwasher usually consumes less energy and water in the use phase than hand dishwashing when the household dishwasher is used according to the manufacturer's instructions.
• Only use powder detergent for short programs.
• Short programs do not include drying.
• To assist drying, we recommend slightly opening the door after a cycle is complete.
• You can access the product database where the model information is stored by reading the QR code on the energy label.

NOTE: According to regulations 1016/2010 and 1059/2010, Eco program energy assumption values may differ. This table is in line with regulations 2019/2022 and 7/2022.

Programme Selection and Operating the Machine

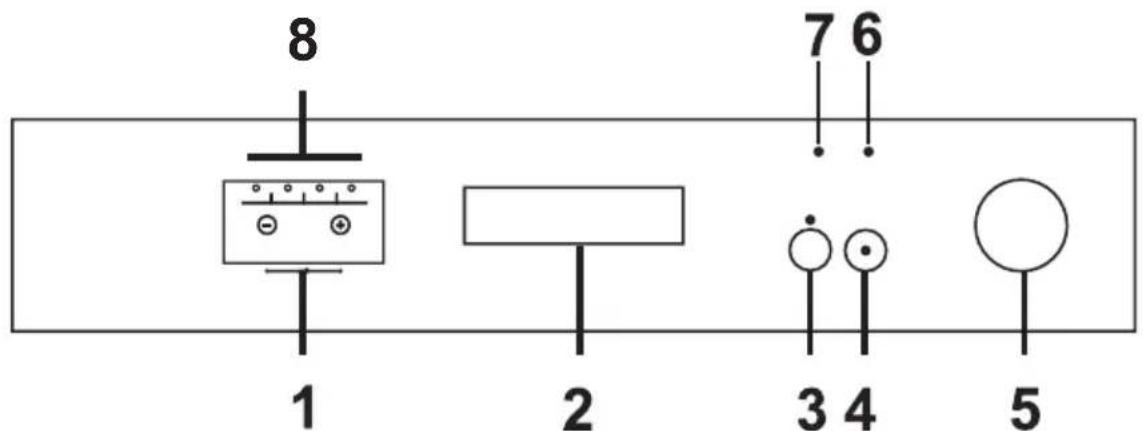

1. Remaining Time Indicator

Remaining Time Indicator shows the duration of the programmes and the remaining time during the programme flow. Besides, you can put off the programme delay time for 1-19 hours by pressing the keys on the indicator before the programme is started. If you want to make any changes in the delay time, you can adjust it by pressing the Start/Pause key and using "+" and "-" keys on the display. Press the Start/Pause key again to activate it.

If the user switches the programme selection button to off position after enabling the delay time and the programme has started, the remaining delay time is stored and the programme resumes after the remaining delay time has passed upon selecting a new programme.

To cancel the delay, you need to switch to 0 h by using the "+ and -" keys.

2. Door Handle

Use the door handle to open/close the door of your machine.

3. Half Load Button

Thanks to the half load function in your machine, you can shorten the durations of the programmes that you have selected and reduce the energy and water consumption by using half load electricity and water (see programme listing p 25)

Note: If you have used any extra function (such as the delay or half load) in the washing programme that you last used and then cut off the energy of the machine and re-energised it, that function you have selected will not be active in the next washing programme. If you would like to use this feature in the programme you have newly selected, you may select the desired functions once again.

4. Stat /Pause Key

When you press the Start/Pause key, the programme you have selected with the programme selection button will start operating and the washing light will be on. After the programme has started, the Start/Pause light will go off. In the Stop (Hold) position, the Start/Pause light blinks while the washing light is lit.

5. On/Off Programme Selection Button

It cuts off the energy of the machine when in off position In other positions, the machine is energised and programme selection can be performed. 6

Salt Missing Warning Indicator

Check the salt missing warning indica-

tor light on the display to have an idea whether the softening salt in your machine is enough. When salt missing warning indicator is lit, fill the salt compartment.

7. Rinse Aid Missing Warning Indicator

Check the rinse aid missing warning indicator light on the display to have an idea whether the amount of the rinse aid in your machine is enough. When rinse aid missing warning indicator is lit, fill the rinse aid compartment.

8. Programme Monitoring Lights You can monitor the programme flow with the programme lights on the control panel.

• Wash
• Rinse
• Dry
  • End

Using the Child Lock

Press + and - keys on the remaining time indicator at the same time for 3 seconds so as to activate the child lock. At that time, on the remaining time indicator, "CL" is displayed for 2 seconds. To deactivate the function, Press + and - keys again at the same time for 3 seconds. "CL" will blink for two seconds.

Operating the Machine

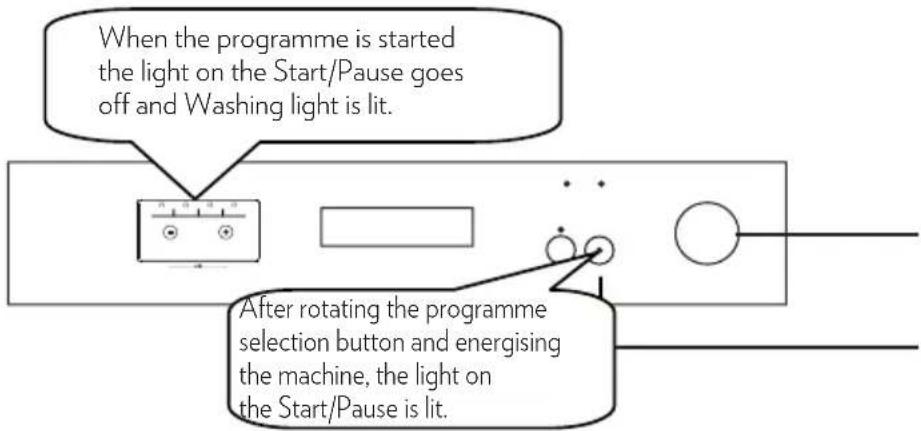

1. By rotating the programme selection button, energise the machine and select the suitable programme.
2. Start the programme by pressing the Start/Pause key.

Programme Monitoring

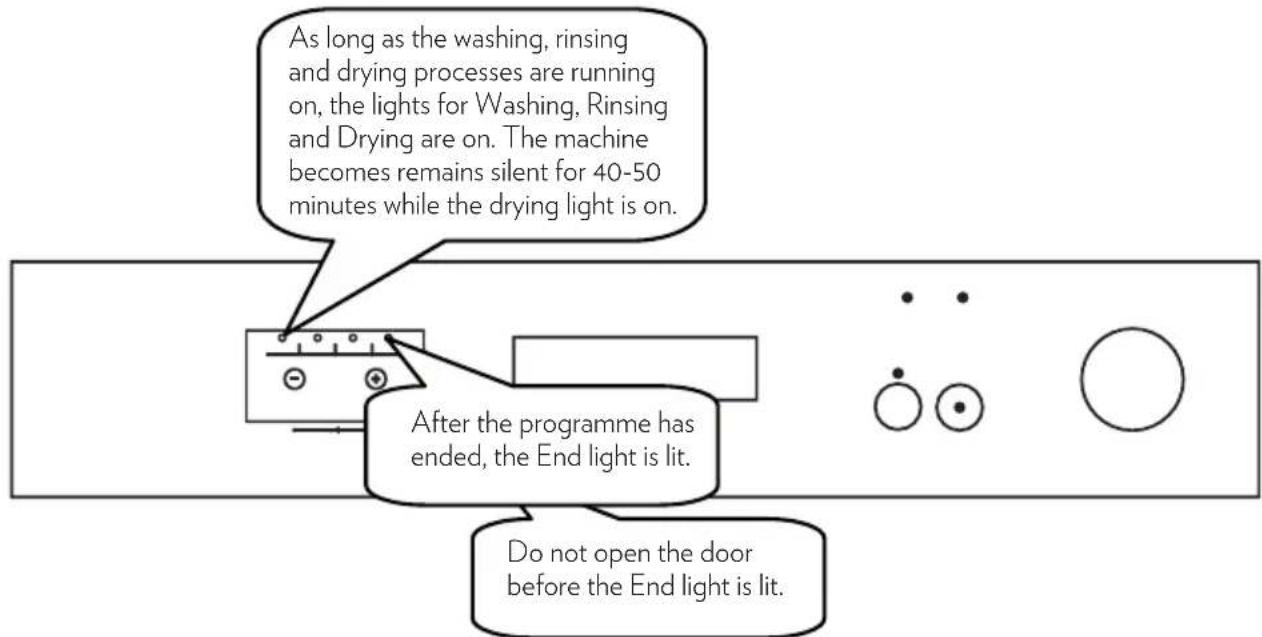

You can monitor the programme flow with the programme lights on the control panel.


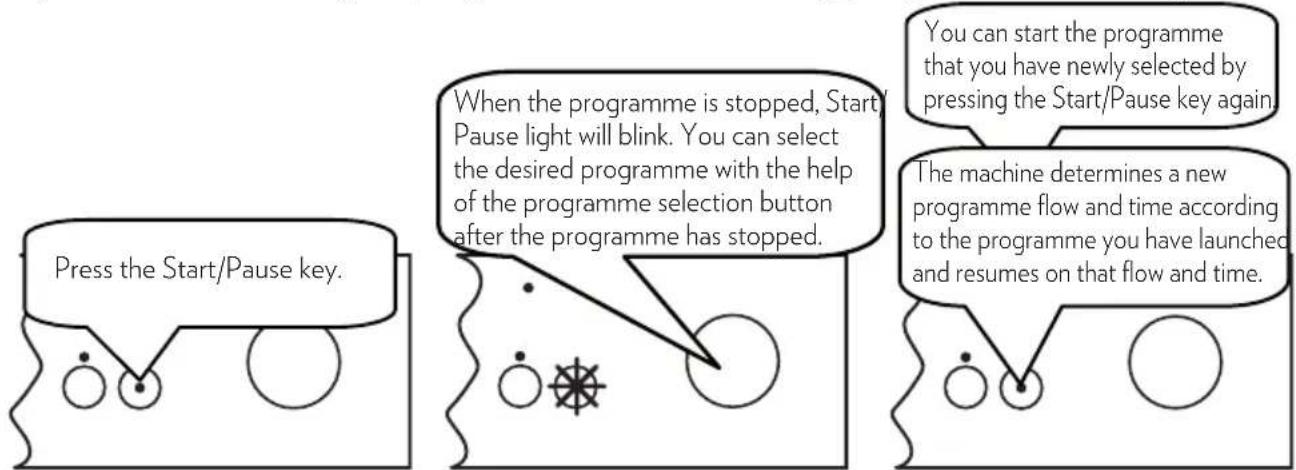

Changing the Programme

If you would like change a programme while a washing programme is running on:


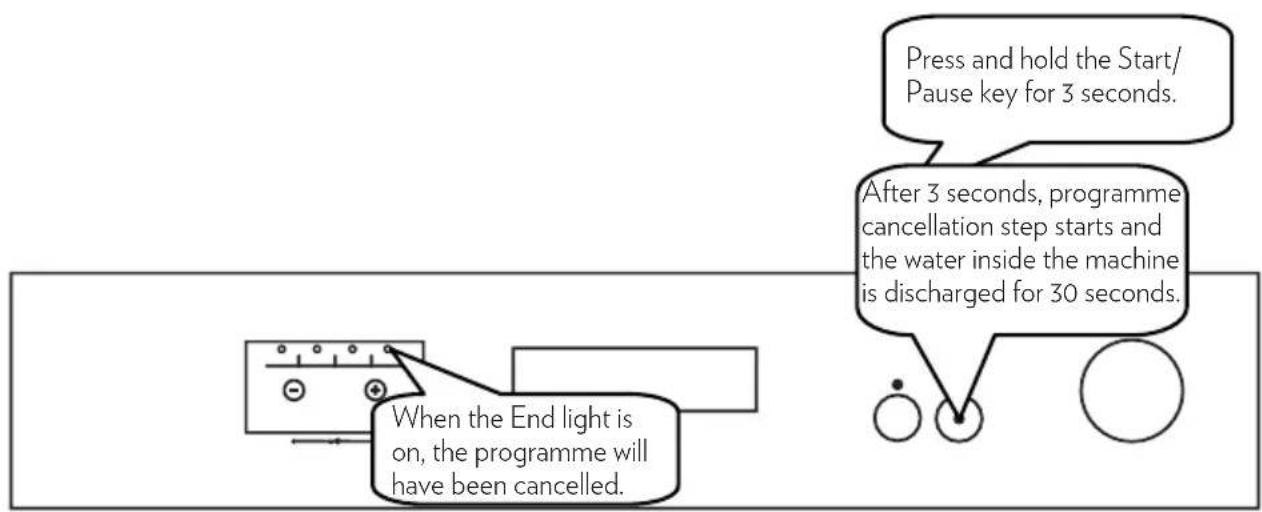

Cancelling the Programme

If you would like cancel a programme while a washing programme is running on:


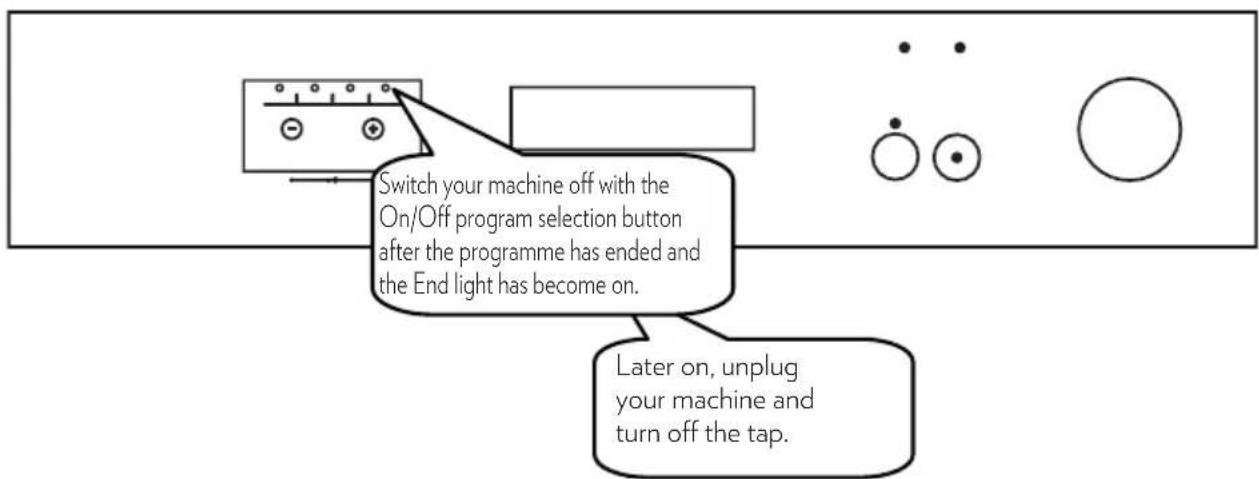

Switching the Machine Off

NOTE: In order for the drying process to be performed more quickly, you may slightly open the machine door after few minutes when the programme has ended and the End light has been lit.

NOTE: The washing programme resumes on where it has left if the machine door is opened and then closed or if the machine power is cut off and then supplied during the washing process.

NOTE: If the power is interrupted during the drying process, the programme is terminated. And your machine becomes ready for the new programme selection.

8. CLEANING AND MAINTENANCE

Cleaning your dishwasher is important to maintain the machine's service life. Make sure that the water softening setting (If available) is done correctly and correct amount of detergent is used to prevent limescale accumulation. Refill the salt compartment when the salt sensor light comes on.

Oil and limescale may build up in your Dishwasher over time. If this occurs:

- Fill the detergent compartment but do not load any dishes. Select a programme which runs at high temperature and run the Dishwasher empty. If this does not clean your Dishwasher sufficiently, use a cleaning agent designed for use with dishwashers.

• To extend the life of your dishwasher, clean the appliance regularly on each month

- Wipe the door seals regularly with a damp cloth to remove any accumulated residue or foreign objects.

8.1. Filters

Clean the filters and spray arms at least once a week. If any food waste remains or foreign objects on the coarse and fine filters, remove them and clean them thoroughly with water.

a) Micro Filter

b) Coarse Filter

c) Metal Filter

Diagram of a mechanical assembly with a central component and a circular housing (no text or symbols)

Technical line drawing of a mechanical assembly with a central component and a base (no text or symbols)

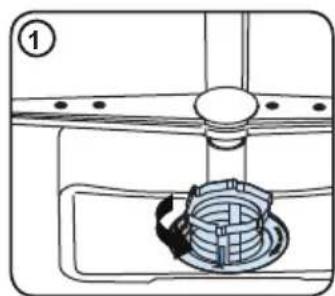

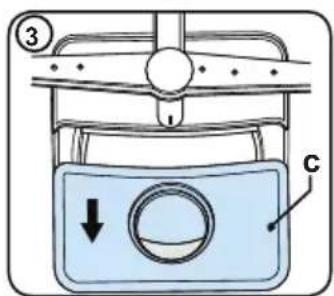

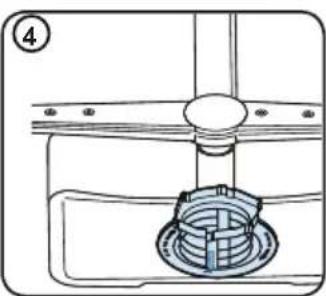

To remove and clean the filter combination, turn it counter clockwise and remove it by lifting it upwards (1). Pull the coarse filter out of the micro filter (2). Then pull and remove the metal filter (3). Rinse the filter with lots of water until it is free of residue. Reassemble the filters. Replace the filter insert, and rotate it clockwise (4).

- Never use your dishwasher without a filter.

- Incorrect fitting of the filter will reduce the washing effectiveness.

- Clean filters are necessary for proper running of the machine.

8.2. Spray arms

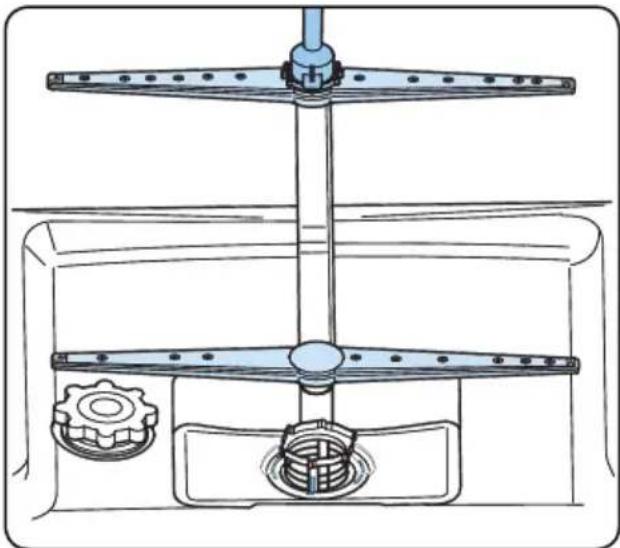

Make sure that the spray holes are not clogged and that no food waste or foreign object is stuck to the spray arms. If there is any clogging, remove the spray arms and clean them under water. To remove the upper spray arm undo the nut holding it in position by turning it clockwise and pulling it downwards. Make sure that the nut is properly tightened when refitting the upper spray arm.

Technical line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

8.3 Drain Pump

Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter.

Warning Risk of cuts!

When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed implements.

In this case:

1. First always disconnect the appliance from the power supply.
2. Take out baskets.
3. Remove the filters.
4. Scoop out water, use a sponge if required.
5. Check the area and remove any foreign objects.
6. Install filters.
7. Re-insert baskets.

9. TROUBLESHOOTING

FAULT POSSIBLE CAUSE TROUBLESHOOTING
The programme does not start.	Your Dishwasher is not plugged in. Plug your Dishwasher in.
	Your Dishwasher is not switched on.	Switch your Dishwasher on by pressing the On/Off button.
	Fuse blown. Check your indoor fuses.
	Water inlet tap is closed. Turn on the water inlet tap.
	Your Dishwasher door is open. Close the Dishwasher door.
	Water inlet hose and machine filters are clogged.	Check the water inlet hose and machine filters and make sure they are not clogged.
Water remains inside the machine.	Water drain hose is clogged or twisted.	Check the drain hose, then either clean or untwist it.
	The filters are clogged. Clean the filters.
	The programme is not finished yet. Wait until the programme is finished.
Machine stops during washing.	Power failure. Check mains power.
	Water inlet failure. Check water tap.
Shaking and hitting noises are heard during a wash operation.	The spray arm is hitting the dishes in the lower basket.	Move or remove items blocking the spray arm.
Partial food wastes remain on the dishes.	Dishes placed incorrectly, sprayed water not reaching affected dishes.	Do not overload baskets.
	Dishes leaning each another.	Place dishes as instructed in the section on loading your dishwasher.
	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Wrong wash programme selected.	Use the information in the programme table to select the most appropriate programme.
	Spray arms clogged with food waste.	Clean the holes in the spray arms with thin objects.
	Filters or water drain pump clogged or filter misplaced.	Check the drain hose and filters are correctly fitted.
Whitish stains remains on dishes.	Not enough detergent used.	Use the correct amount of detergent, as instructed in the programme table.
	Rinse aid dosage and/or water softener setting set too low.	Increase rinse aid and/or water softener level.
	High water hardness level. Increase water softerner level and add salt.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
Dishes do not dry.	Drying option is not selected. Select a programme with a drying option.
	Rinse aid dosage set too low. Increase rinse aid dosage setting.
Rust stains form on the dishes.	Stainless-steel quality of the dishes is insufficient.	Use only dishwasher-proof sets.
	High level of salt in wash water.	Adjust the water hardness level using water hardness table.
	Salt compartment cap not closed properly.	Check that the salt compartment cap is closed properly.
	Too much salt spilled in the Dishwasher while filling it with salt.	Use funnel while filling salt to the compartment to avoid spillage.
	A poor mains grounding. Consult a qualified electrician immediately.
Detergent remains in the detergent compartment.	Detergent was added when the detergent compartment was wet.	Make sure detergent compartment is dry before use.

AUTOMATIC FAULT WARNINGS AND WHAT TO DO

TROUBLE CODE	POSSIBLE FAULT WHAT TO DO
F5 Insufficient water		Make sure the water inlet tap is open and water is flowing.
		Separate the inlet hose from the tap and clean the filter of the hose.
		Contact for service if the error continues.
F3 Continuous water input Close the tap and contact for service.
F2 Inability to discharge water		Water discharge hose and filters may be clogged.
		Cancel the program.
		If the error continues, contact for service.
F8 Faulty heater Contact for service.
F1 Overflow		Unplug the machine and close the tap.
		Contact for service.
F7 Overheating failure Contact for service.
F6 Faulty temperature sensor Contact for service.
FE Faulty electronic card Contact for service.

The installation and repairing procedures should always carried out by the Authorised Service Agent in order to avoid possible risks. The manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorised persons. Repairs may be carried out by technicians only. If a component has to be replaced, ensure that only original spare parts are used.

Improper repairs or use of non-original spare parts may cause considerable damage and put the user at considerable risk.

Contact information for your customer service can be found on the back of this document.

Function-relevant genuine spare parts according to the corresponding Ecodesign order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

www.corbero.es

52253525 R35

CERTIFICADO DE GARANTÍA

The presentation of the purchase invoice accompanied by this guarantee certificate is essential.

Covered Risks.

This appliance is guaranteed against any malfunction, provided that it is intended for domestic use, proceeding to its repair within the warranty period and only by the authorized SAT network.

Our Corberó appliances have the manufacturer's legal warranty that covers any breakdown or defect for 36 months, from the invoice date of January 1, 2022. If necessary, we take care of any possible incident whenever it is due to a defective component or manufacturing fault. Warranty Exceptions

Warranty Exceptions

• That the date of the certificate does not coincide with the date of sale of the original invoice.
  • Faults produced by blow, by fall or any other cause of force majeure.
  • If the device has been manipulated by unauthorized personnel.
• Faults produced or derived as a consequence of improper use, installation defects, or modifications to the device that alter its operation.
• Start-up, maintenance, cleaning, components subject to wear, lamps, aesthetic parts, oxidation, plastics, rubbers, housings and crystals.

- Microwave ovens (with the exception of built-in ones) and tabletop ovens in the event of any incident of operation, they must be taken to the nearest technical service by the customer. They are not collected or repaired at home.

Electric thermos guarantee. 3-year warranty including travel and labor costs that correspond to the repair of the product, having to have maintenance once every 12 months. Especially if you have installed a gas appliance, keep in mind as the owner of the installation, the obligation to carry out a complete review of the equipment, (according to Royal Decree 238 / 2013, of April 5. RITE. IT3, M. Lo thermos electrical and boilers that include hot water storage tanks, for the benefit of the Guarantee to apply, it is mandatory that the magnesium anode is operational and that it performs the protection function adequately. For this, it is recommended that the anode be checked biannually by the Official Service and is renewed when necessary Periodicity that must be annual in those areas with critical waters (CaCO3 content greater than 200mg / L , that is, from 20^ of hardness) Deposits without the correct state of the protection anode are not covered by the warranty Regardless of the type of tank or product, all heating or DHW overpressure valves must be channeled to avoid damage and n the house due to water discharges. The product warranty does not cover damages caused by not channeling the water spilled by this valve.

"THESE EXCEPTIONS VOID THE WARRANTY, THE REPAIR BEING CHARGED TO THE CUSTOMER"

Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is "RD 7/2021"

Official Technical Service: 911 08 08 08
