Product Type	Canopy Range Hood
Brand	Technika
Model	TCR60BK
Width	60 cm
Depth	Approx. 50 cm
Height (min-max)	60-100 cm
Weight	Approx. 12 kg
Power Supply	220-240 V ~ 50 Hz
Motor Power	Approx. 200 W
Extraction Rate (max)	600 m³/h
Noise Level (max)	65 dB(A)
Lighting	2 x 20 W Halogen
Controls	Slider or Push Button
Number of Speeds	3
Filter Type	Aluminum Grease Filter
Ducting Diameter	150 mm
Installation Type	Wall-mounted
Output Air Direction	Vertical or Horizontal
Energy Efficiency Class	B (typical)
Maintenance	Clean metal filters monthly
Safety Features	Thermal Overload Protection
Spare Parts Availability	Filters, bulbs, motor

Frequently Asked Questions - TCR60BK Technika

How to install the Technika TCR60BK range hood?

Installation should be performed by a qualified technician. Ensure the hood is mounted at least 65 cm above the cooking surface for electric hobs or 75 cm for gas hobs. Follow the template and secure with appropriate wall anchors.

How often should I clean the grease filters?

Clean the aluminum grease filters every 2 months for normal use. Wash them in warm soapy water or in the dishwasher. Allow them to dry completely before reinstalling.

How to replace the charcoal filter (if recirculating mode)?

If using recirculation mode, replace the charcoal filter every 3-6 months. Remove the grease filter, slide out the old charcoal filter, and insert a new one. Reattach the grease filter.

What to do if the range hood is noisy?

Check if the filters are clean and securely installed. Ensure the ductwork is properly connected and not blocked. Loose parts or vibration may require tightening screws.

How to change the light bulbs?

Disconnect power, then remove the lamp cover. Replace the 20 W halogen bulbs (type G4). Handle bulbs with a cloth to avoid oil residue. Reconnect power.

What is the maximum extraction rate?

The maximum extraction rate is approximately 600 m³/h at highest speed. Actual performance depends on duct length and installation.

Can this hood be used in recirculation mode?

Yes, the hood can be used in recirculation mode with the addition of charcoal filters (sold separately). No ducting is required, but charcoal filters need periodic replacement.

What are the dimensions of the TCR60BK?

The hood is 60 cm wide, approximately 50 cm deep, and comes with a telescopic chimney that adjusts from 60 cm to 100 cm in height.

How to reset the filter alarm?

After cleaning or replacing filters, press and hold the filter reset button (if available) for about 3 seconds until the indicator light turns off. Refer to manual for exact location.

Where to find spare parts?

Spare parts such as filters, bulbs, and motors can be purchased from authorized Technika dealers or online through spare parts websites. Use the model number TCR60BK.

USER MANUAL TCR60BK Technika

Instructions for Use and Installation

60cm Canopy Rangehood TCR60BK

90cm Canopy Rangehood TCR90BK

For Your Safety

Safety Precautions....3

Before Connecting 3

Warnings 4

Use and Care

Use and Care 6

LED Lamp 6

Controls 7

Cleaning your Rangehood 8

Troubleshooting 9

Disposal 10

Installation

Electrical Connection 11

Instructions for Installation 12

Fixing to the Wall 13

Fixing the Decorative Telescopic Flue....15

Dimensions....16

For Your Safety

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for future reference.

The appliance has been designed for use in a Ducted installation, see Fig.1.

Pure mechanical diagram showing fluid flow through a channel with no text or symbols

Safety Precautions

Take care when the Range Hood is operating simultaneously with an open fireplace or burner that depend on natural ventilation as the Range Hood removes air from the room, which a burner or fireplace may need for combustion.

Provide adequate ventilation for safe operation of the Range Hood. Follow any local laws that apply to external air evacuation.

Before connecting to the electricity network:

Look at the data plate (located inside the appliance) to ascertain that the voltage and power correspond to the available power supply and the power outlet is suitable. If in doubt ask a qualified electrician.

If the appliance is used intensively for a long period of time, you may need to opening a window to improve airflow.

WARNINGS!

- Do not check the status of the filters while the Range Hood is operating.

- Do not touch bulbs or adjacent areas, during or straight after use.

- CAUTION: Accessible parts may become hot when used with cooking appliances.

- Do not flambé under the Range Hood.

- Avoid free flame, as it is damaging to the filters and can cause fire hazard.

- Constantly check food frying, overheated oil may become a fire hazard.

- Disconnect the electrical plug prior to any maintenance.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- There shall be adequate ventilation in the room when the Range Hood is used at the same time as appliances burning gas or other fuels.

- There is a fire risk if cleaning is not carried out in accordance with the instructions.

- WARNING: DO NOT penetrate any screws into the range hood as this may result in electrical hazards.

- WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

WARNINGS!

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• The minimum distance between the cooktop hob and the lowest part of the range hood shall be at least 60cm. If the instructions for installation of the gas hob specify a greater distance, this has to be taken into account.
• Regulation concerning the discharge of air has to be fulfilled.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGES CAUSED BY BREACHING THE ABOVE WARNINGS.

Use and Care

It is recommended to start the Range Hood prior to commencing to cook and leave the Range Hood in operation for 15 minutes after cooking is finished in order to completely eliminate cooking vapours and odours.

To ensure the Range Hood continues to operate effectively, regular maintenance and cleaning is required. Clean the fan and other surfaces of the Range Hood regularly using a cloth moistened with warm water or non abrasive liquid detergent.

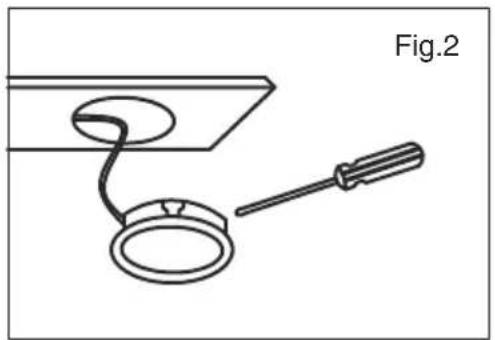

LED Lamps

LED lamps are a spare part and are not repairable, LED lamps can be easily removed and replacements installed, note the plug and socket connection. Please contact Technika Spare Parts department for replacement lamps. (Fig. 2&3)

Simple line drawing of a tool interacting with a circular component and a plate, labeled Fig.2 (no text or symbols on the diagram itself)

Diagram of a mechanical or electrical component with labeled parts and directional arrows, no readable text or symbols present.

Controls

FUNCTION KEYS: (Fig.4)

$$ \begin{array}{l} A = O N / O F F \ B = 1 5 \text { MIN STOP TIMER } \ C = S P E E D D O W N - \ D = D I G I T A L D I S P L A Y S C R E E N \ E = S P E E D U P + \ F = F A N \ G = L I G H T \ \end{array} $$

Fig. 4

• Turn the rangehood on using button 'A'. The fan will automatically start on speed 1.
• Use button 'E' to select higher speeds and button 'C' to select lower speeds.
• When you select speed 4, the fan will automatically turn down to speed 3 after 2 minutes.
• Use the light button 'G' to turn the lights on and off.
• When you use the timer button 'B' the symbol will flash and the fan and lights will turn off after 15mins.

Cleaning your rangehood

The proper function of the rangehood requires regular maintenance operations.

The anti-grease filters capture the grease particles suspended in the air, and are therefore subject to clogging according to the frequency of the use of the appliance.

In order to prevent fire hazard, it is recommendable to clean the filter at a minimum of every 2 months by carrying out the following instructions:

• Remove the filters from the cooker hood and wash them in a solution of water and neutral liquid detergent, leaving to soak.
• Rinse thoroughly with warm water and leave to dry.
• The filters may also be washed in the dishwasher.

Clean the fan and other surfaces of the cooker hood regularly using a cloth moistened with denatured alcohol or non abrasive liquid detergent.

Keep motor and other parts free from water as this will cause damage to the appliance.

Troubleshooting

Problem	Possible reason	Solution
Hood doesn’t work	No electricity supply	Check the plug is connected
		Check that the main switch/circuit breaker/safety switch is turned on
Poor airflow	Aluminum grease filters clogged	Clean the filters and replace when dry
Motor running but no air flow	Butterfly valve jammed	Contact service department
Motor turns off after a few minutes	High temperature safety device activated	The kitchen is not sufficiently ventilated
	The hood is installed too near to the cooktop	The hood must be at least 600mm from the top of the cooktop
Oil dripping onto stove	Aluminum grease filter saturated	Wash the aluminum grease filters
Whirring sound	Something in contact with fan blade	Contact service department

Disposal

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city council office.

Assembly and electrical connections must be carried out by authorised personnel.

Electrical Connection

The Range Hood is fitted with a power cord and 3 pin plug. Install the Range Hood so that the plug is easily accessible. Plug the 3-pin plug into a properly earthed, 10A general purpose power outlet.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

The appliance has been manufactured as a class I, therefore earth cable is necessary.

The connection to the mains is carried out as follows:

	IEC227 North America
L = Live Brown Black
N = Neutral Blue White
E = Earth Green/Yellow Green

If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is provided, the cooker hood must be installed so that the plug is easily accessible after installation.

An omnipolar switch with a minimum aperture of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.

Instructions for Installation

Install Range Hoods in accordance with the manufacturer's instructions.

For optimum performance, Technika recommends that all Range Hood clearances be a minimum of 650mm to a maximum of 750mm, between the top of the cooking surface to the underside of the Range Hood. The distance may be reduced to 600mm to align with AS/NZS 5601.

WARNING: DO NOT penetrate any screws into the range hood as this may result in electrical hazards.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

If a connection flue composed of two parts is used, the upper part must be placed outside the lower part.

Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. Installation must comply with any local regulations concerning the discharge of exhaust air.

Before proceeding with the assembly, remove the anti-grease filter so that the unit is easier to handle. Prepare the hole in the ceiling or wall for the evacuation of the air.

Fixing to the Wall

Ensure the fixings used for this range hood are suitable.

Check the area where the range hood is to be fitted, to ensure that it is structurally sound and will support the weight of the appliance. Do not install directly onto plaster board using 'Wall mates' or other similar anchors.

The range hood must be fixed into studs or nozzgins in the wall to ensure it is secure and minimize vibration in the wall.

Fix the range hood to the wall and align it in a horizontal position to the wall units. Once the range hood has been adjusted, fix it to the wall using the screws supplied (See A in Fig.12).

For various installation types, use screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard, etc.). If the screws and screw anchors are provided with the product, check that they are suitable for the type of wall on which the hood is to be fixed.

1. Mark a vertical centre line on the wall from the ceiling to the lower edge of the range hood.

2. Mark the contour of the attachment area.

3. Mark and drill the positions for the fixing screws.

4. Screw on the fixing bracket for the flue duct.

Installation

1. Screw on brackets for the range hood hand-tight. Do not firmly tighten the screws.

1. Position the mounting bracket and screw it into place with the four screws provided.

3D mechanical part diagram labeled Fig. 9 showing a circular component mounted on a rectangular base with mounting brackets (no text or symbols beyond label)

1. When attaching the appliance, ensure that it engages firmly with the brackets.

1. Align the appliance horizontally by turning the brackets. If required, the appliance can be moved to the right or left.

2. Firmly tighten the screws for the brackets. When doing so, hold the brackets securely in place.

Fixing the Decorative Telescopic Flue

Arrange the electrical power supply within the dimensions of the decorative flue.

Prepare the hole in the ceiling or wall for the evacuation of the air. Install butterfly flaps into the outlet on the top of the range hood (C) (Fig.13).

Connect the ductwork to the outlet with a cable tie or suitable tape. Do not use screws.

Fix the upper flue cover to the support bracket with screws (B) (Fig.12)

Slide the lower flue cover down into the top of the rangehood. Some models will require the lower flue cover to be fixed from underneath using the provided screws (Fig.13)

Dimensions

Model: TCR60BK and TCR90BK

The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance.

The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this handout. In addition, the appearance of the figures reported is also purely indicative.

The manufacturer reserves the right to make changes to its products when considered necessary and useful, without affecting the essential safety and operating characteristics.

Technika constantly seeks ways to improve the specifications and designs of their products.

Whilst every effort is made to produce up to date literature, this document should not be regarded as an infallible guide.

Actual product only should be used to derive cut out sizes.

All Technika Appliances must be installed by a qualified person/s with adherence to the relevant electrical, plumbing and gas codes, with compliance being issued as required by state or national legislation.

Additionally all Technika Upright cookers must have chains installed correctly in adherence to the relevant gas and plumbing codes by a Licensed installer.

For maximum effectiveness and efficiency all rangehoods should be installed with the use of ductwork, by a licensed installer with adherence to the relevant state and national building codes and regulations.

All Technika appliances are for Domestic use only, and must be installed by a licensed installer into Domestic Applications only, without exception and to the required Authorities guidelines. Any installation outside of this will VOID warranty.

Alfresco areas are not a Domestic application.
