L6213 - Video camera LG - Free user manual and instructions

Product Type	Color Video Camera (Surveillance)
Model Variants	L6213-BN, L6213-BP, L6213-DN
Image Sensor	6 mm Super HAD II CCD
Horizontal Resolution	620 TV Lines
Signal-to-Noise Ratio	52 dB
Lens	2.8-11 mm Vari-focal, F1.2
Digital Zoom	8x
Day & Night Function	Auto, Day, Night modes
Backlight Compensation	BLC / HSBLC (with mask and gray scale)
Privacy Masking	8 zones (adjustable size and position)
Motion Detection	4 zones with adjustable sensitivity
Image Stabilizer	Electronic Image Stabilizer (On/Off)
White Balance	ATW, AWC Push, Manual (Indoor/Outdoor)
Video Output	1 Vp-p Composite, 75 Ω BNC
Power Supply	AC 24 V or DC 12 V (L6213-BP/BN); DC 12 V (L6213-DN)
Power Consumption	2.8 W (BP/BN); 2.2 W (DN)
Dimensions (Diameter x Height)	∅140 x 91.7 mm
Weight	640 g
Weather Resistance	IP66 rated
Vandal Resistance	Vandal-proof dome cover
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Operating Humidity	0% to 80% RH
Storage Humidity	0% to 85% RH
Accessories Included	Installation sticker, mounting bracket, wrench, M4 screws
OSD Language Support	ENG, CHN, KOR, JAP, FRE, ITA, SPA, POR, DUT, GER, POL, RUS, TUR, ARA, HEB
Control Method	On-screen display with button controls (UP, DOWN, LEFT, RIGHT, SET)

Frequently Asked Questions - L6213 LG

How do I mount the LG L6213 camera on a ceiling?

Use the supplied installation template to mark holes, then drill and pass connection cables through the ceiling. Attach the camera mounting bracket using the provided screws, connect cables to the camera jacks, and finally assemble the camera to the bracket. For wall mount, use the optional wall mount kit.

What power supply is required for the L6213 camera?

Models L6213-BP and L6213-BN accept AC 24 V or DC 12 V (Class 2 power supply only). Model L6213-DN requires DC 12 V only. Always use a certified/listed power supply.

How do I adjust the pan, tilt, and zoom on this camera?

Remove the dome cover and lens cover using the supplied wrench. Connect a portable monitor to the video jack. Loosen the pan/tilt lock screw to adjust pan and tilt, then tighten. Loosen the azimuth lock screw to adjust azimuth. Unlock the zoom lever to adjust zoom, and the focus lever to adjust focus. Reattach lens cover and dome cover after adjustments.

How do I access and navigate the OSD menu?

Press the SET button on the camera to enter the setup menu. Use UP and DOWN buttons to navigate, LEFT and RIGHT to change values, and SET to confirm selections. Select EXIT to close the menu.

Can I set a custom name for the camera?

Yes. In the OSD menu, select USER TITLE and set it to ON. Then you can input up to 8 characters (0-9, A-Z, a-z) using the arrow buttons. The title will appear at the upper left of the screen.

How do I enable backlight compensation?

In the EXPOSURE menu, select BACKLIGHT and choose BLC (adjustable limit) or HSBLC (highlights suppression with area and gray scale settings). Press SET to confirm.

What is the purpose of the privacy masking feature?

Privacy masking allows you to black out up to 8 specific areas on the video feed to protect privacy. In the PRIVACY menu, enable it and set each mask (AREA1-AREA8) with adjustable height, width, position, and color (gray, white, or black).

How do I reset the camera to factory settings?

Go to the SPECIAL menu, select FACTORY RESET, and confirm. This will restore all settings to their original defaults.

How should I clean the camera lens and body?

Use a blower to remove dust from the lens surface. For the body, use a dry soft cloth. If heavily soiled, dampen the cloth with a small amount of neutral detergent and wipe dry. Avoid thinners, alcohol, benzene, or insecticides.

What is the minimum illumination required for color mode?

In color mode with Sens-up off, the minimum illumination is 0.06 lx (F1.2, 30 IRE). With Sens-up set to auto, it can go as low as 0.0001 lx. In black-and-white mode, it can reach 0.006 lx (Sens-up off) and 0.000001 lx (Sens-up x128).

USER MANUAL L6213 LG

Please read this manual carefully before operating your set and retain it for future reference.

MODEL

L6213-BN

L6213-BP

L6213-DN

MFL67259873

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

FCC WARNING: This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the instruction manual. The user could lose the authority to operate this equipment if an unauthorized change or modification is made.

REGULATORY INFORMATION: FCC Part 15

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

- A suitable conduit entries, knock-outs or glands shall be provided in the cable entries of this product in the end user.

• Caution: Danger of explosion if battery is incorrectly replaced. Replaced only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.
• Holes in metal, through which insulated wires pass, shall have smooth well rounded surfaces or shall be provided with brushings.

This Class A digital apparatus complies with Canadian ICES-003.

Warning: Do not install this equipment in a confined space such as a bookcase or similar unit.

Warning: Wiring methods shall be in accordance with the National Electric Code, ANSI/NFPA 70.

Warning: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

Warning: To reduce a risk of fire or electric shock, do not expose this product to rain or moisture.

Caution: This installation should be made by a qualified service person and should conform to all local codes.

Caution: To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only.

Caution: The apparatus shall not be exposed to water (dripping or splashing) and no objects filled with liquids, such as vases, shall be placed on the apparatus.

To disconnect power from mains, pull out the mains cord plug. When installing the product, ensure that the plug is easily accessible.

Disposal of your old appliance

1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
2. All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal service or the shop where you purchased the product.

LG Electronics hereby declares that this/these product(s) is/are in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC, 2006/95/EC, and 2009/125/EC.

European representative :

LG Electronics Service Europe B.V. Veluwezoom 15, 1327 AE Almere, The Netherlands (Tel : [phone])

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

1. Only use attachments/accessories specified by the manufacturer.
2. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Cautions for Safe Operation

Power Supply

L6213-BP/L6213-BN:

This camera must always be operated a AC 24 V or DC 12 V Certified/Listed, class 2 power supply only.

L6213-DN:

This camera must always be operated a DC 12 V Certified/Listed, class 2 power supply only.

Handling of the unit

Be careful not to spill water or other liquids on the unit. Be cautions not to get combustible or metallic material inside the body. If used with foreign matter inside, the camera is liable to fail or to get cause of fire or electric shock.

• Remove dust or dirt on the surface of the lens with a blower.
• Use a dry soft cloth to clean the body. If it is very dirty, use a cloth dampened with a small quantity of neutral detergent then wipe dry.

- Avoid the use of volatile solvents such as thinners, alcohol, benzene and insecticides. They may damage the surface finish and/or impair the operation of the camera.

Operating and storage location

Avoid viewing a very bright object (such as light fittings) during an extended period. Avoid operating or storing the unit in the following locations.

• Extremely hot or cold places (operating temperature -10 °C to 50 °C, however, we recommend that the unit be used within a temperature range of 0 °C to 45 °C)
• Damp or dust place
• Places exposed to rain
• Places subject to strong vibration
• Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.

Contents

Features......8

Accessories......8

Part Names and Functions....9

Connections 11

Basic connection....11

Installation....12

Mounting the Camera....12

Wall mount (Optional) 16

Image Adjustment ....17

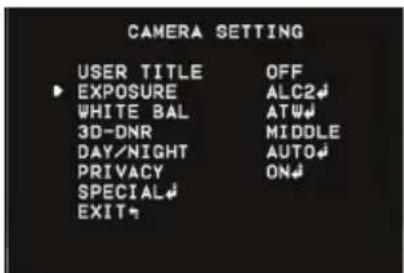

Menu Operation.... 21

OSD Menu Overview....22

General Operation....24

Setting the USER TITLE....24

Exposure Settings....25

BACKLIGHT setting 25

BRIGHTNESS setting......26

AGC (Automatic Gain Control) setting....27

SHUTTER (Shutter Speed) setting....27

SENS-UP setting 28

White Balance settings 28

3D-DNR Setting....30

Day/Night Setting 30

Privacy Setting....31

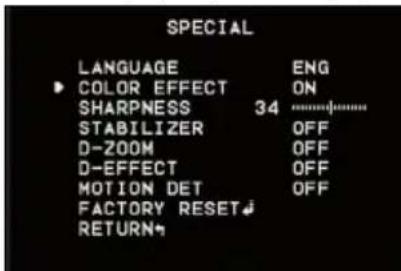

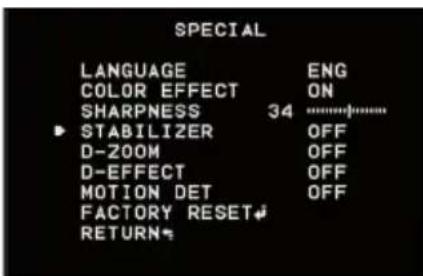

Special Menu Settings 32

LANGUAGE Setting....33

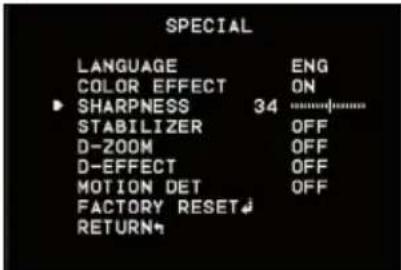

Setting the COLOR EFFECT....33

Setting the SHARPNESS effect 34

STABILIZER setting....34

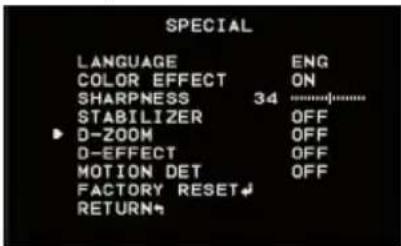

Setting the D-ZOOM (Digital Zoom ) level .....35

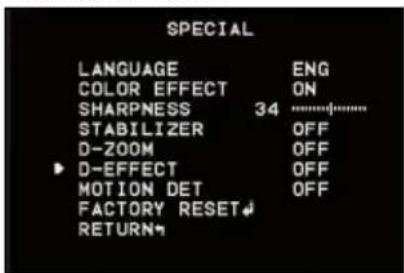

Setting the D-EFFECT (Digital effect) ....35

Motion Detection Setting....36

Factory Reset Setting....37

Specification 38

Features

This Color Video Camera is designed for installation in a video surveillance system.

This manual contains instructions on how to install and manage the Color Video Camera in your video surveillance system.

Should you require any technical assistance, please contact authorized service center.

• High resolution and high sensitivity with a 6 mm CCD.
• Day & Night function.
• BLC covers various light conditions.
• Excellent signal-to-noise ratio of 52 dB.
• Weather Proof: IP66 Rating.
• Dome Cover : Vandal -Proof.

Accessories

Installation sticker
Camera mounting bracket
Wrench
M4 Fixing screws

Part Names and Functions

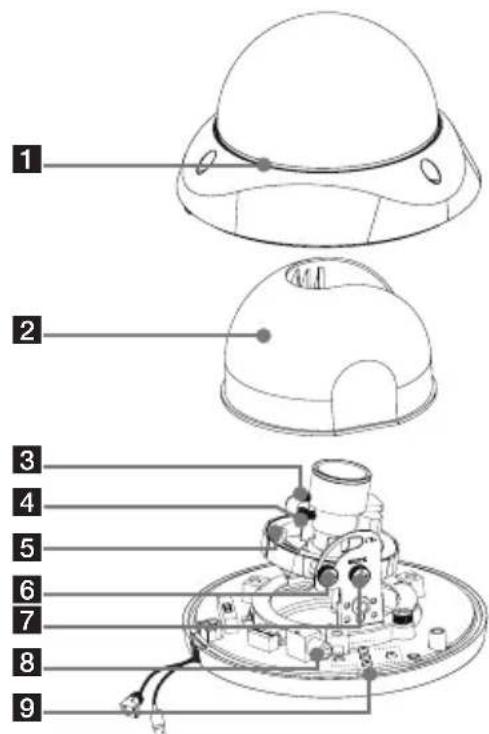

1 Dome Cover
2 Lens Cover
3 Focus lock lever
Fixes the focus position after adjusting.

4 Zoom lock lever Fixes the zoom position after adjusting.

5 Azimuth adjuster Adjusts the azimuth angle to obtain a level image.

6 Tilting lock screw Fixes the tilting position after adjusting.

7 Azimuth lock screw Fixes the azimuth angle after adjusting.

8 Video Out connector Use this jack for checking the picture with portable monitor when install the camera.

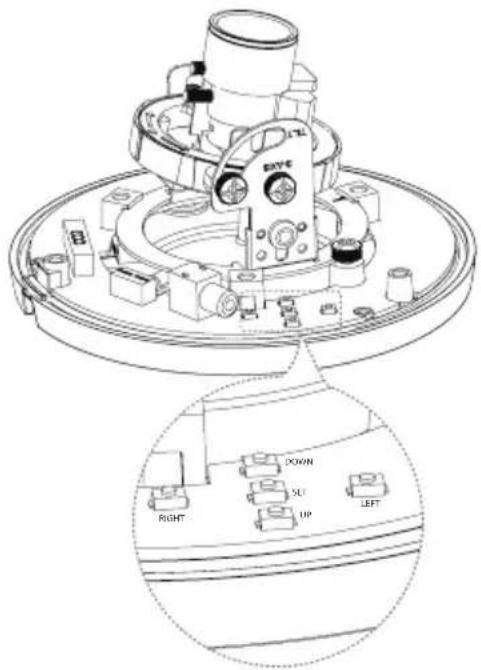

9 Setup menu control buttons

Part Names and Functions

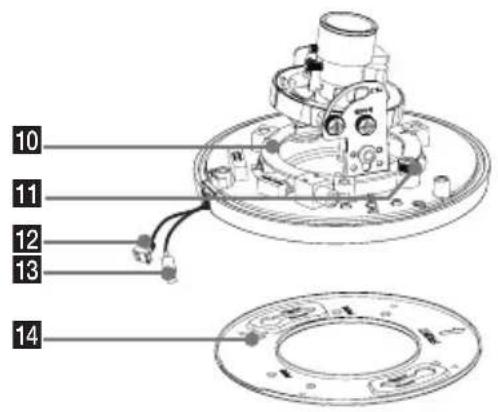

10 Pan adjuster

Adjusts the pan position.

11 Pan lock screw

Fixes the panning position after adjusting.

12 Power input connector

Supplies AC 24 V or DC 12 V from an external power source.

13 Video output connector (BNC type)

14 Camera mounting bracket

This bracket is supplied for ceiling installation.

Connections

Basic connection

The peripheral devices (DVR, monitor, etc.), AC/DC adapter and cables are not supplied.

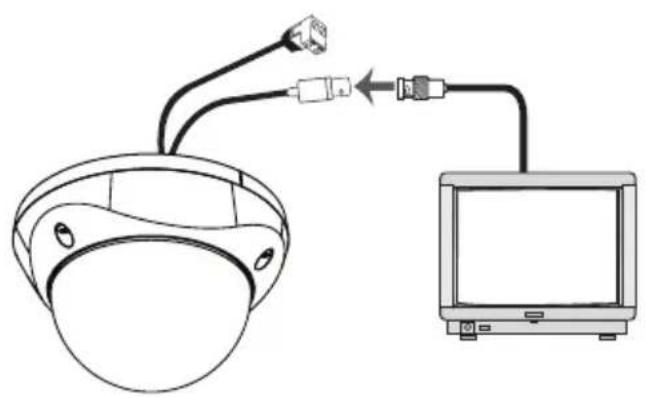

1. Make the video signal connection between the camera and the monitor or DVR.

Diagram showing a surveillance camera connected to a monitor via cable and cable connector (no text or symbols present)

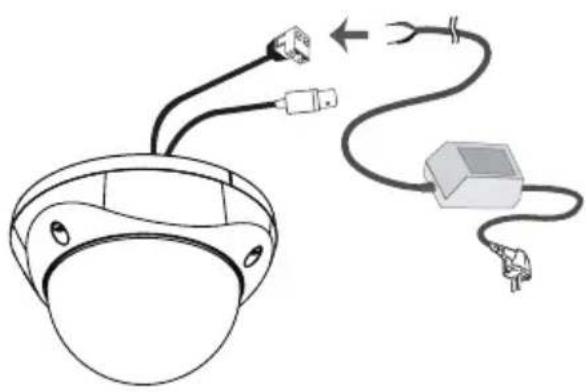

1. Connect a external power source to the power input jack of the camera.

Diagram of a surveillance camera with attached cable and connector (no text or symbols)

Installation

Mounting the Camera

You can mount the camera on a ceiling or wall.

Surface mount

Follow the instructions below to surface mount the camera with supplied camera mounting bracket.

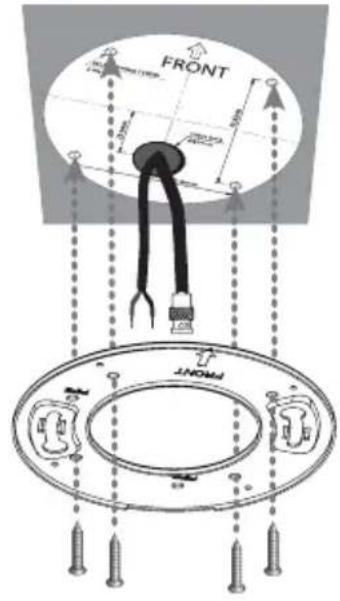

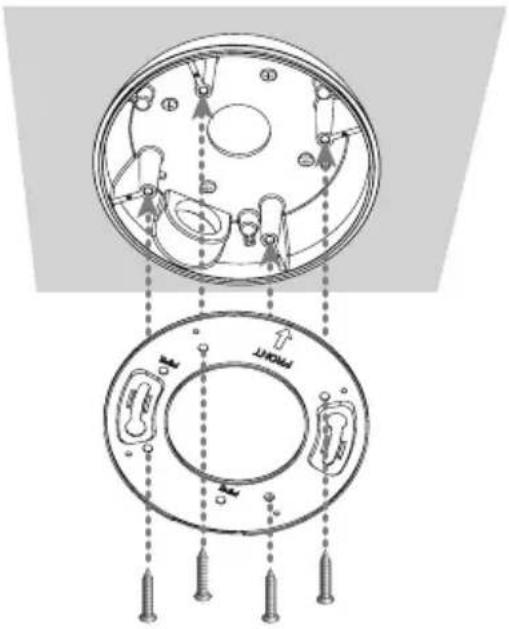

1. Use the installation guide template to check the mounting location. Face the front of the label toward the area of interest. Using the template as a guide, make a hole through the ceiling.

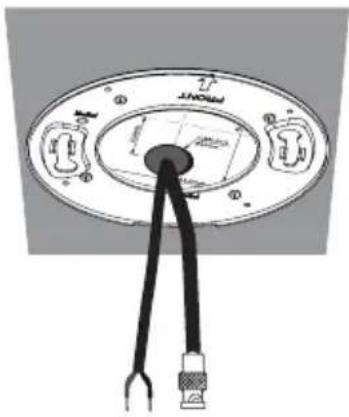

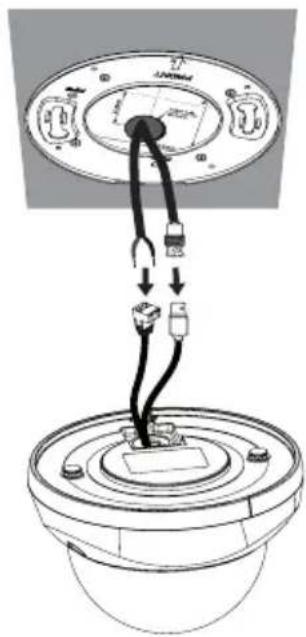

1. Pass the connection cable through the inner side of the ceiling.

Diagram of a circular device with labeled components and a black cable, no readable text or symbols present.

Installation

1. Install the camera mounting bracket to the ceiling. 4. Connect the cables to the cable jacks of the camera body.

Installation

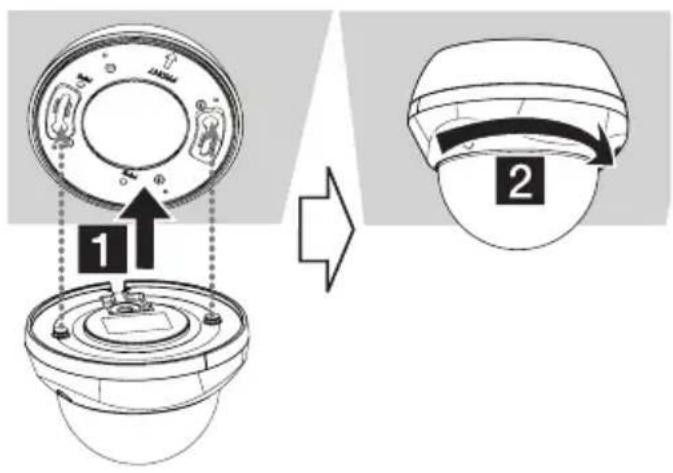

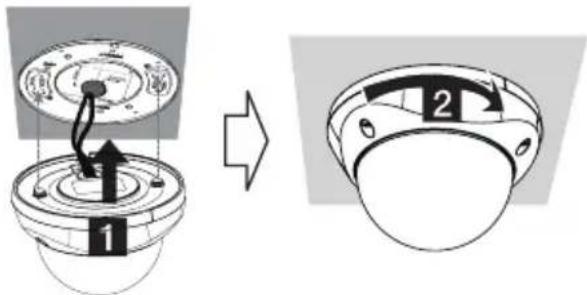

1. Assemble the camera and mounting bracket. Connect the unit by following step 1 and 2.

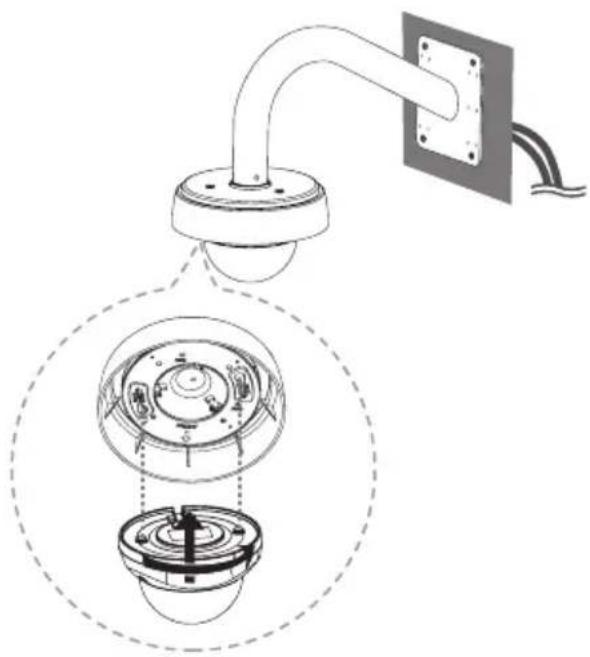

Wall mount with optional mounting bracket housing

Follow the instructions below to surface mount the camera. with optional mounting bracket housing.

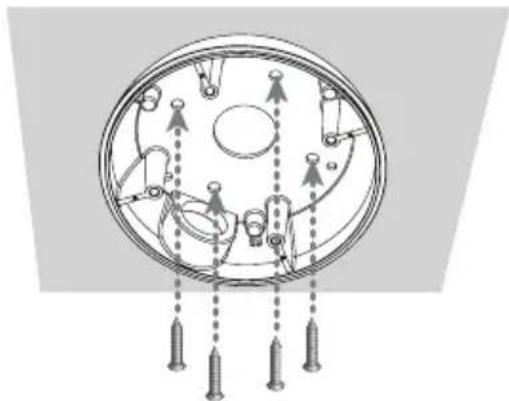

1. Install the mounting bracket housing to the ceiling.

Diagram of a circular mechanical or architectural component with hanging tassels and internal components (no text or symbols)

Installation

1. Fasten the camera mounting bracket to the mounting bracket housing.

Technical diagram of a circular mechanical component with labeled parts and screw fasteners (no text or symbols present)

1. Assemble the camera and mounting bracket. Connect the unit by following step 1 and 2.

Installation

Wall mount (Optional)

Follow the instructions below to install the camera with a wall mount.

1. Drill holes in the wall where you want to install the wall mount.

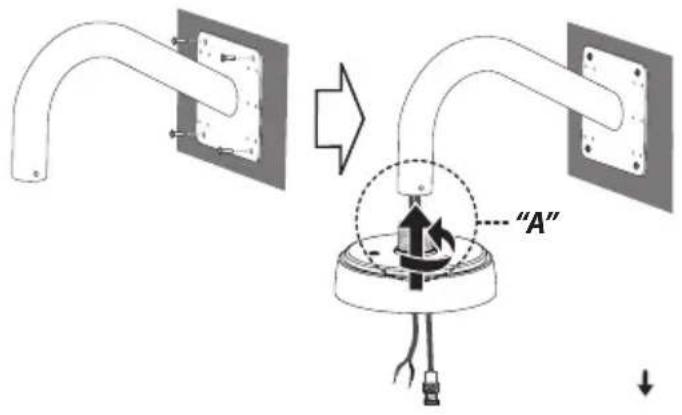

2. Install the wall mount and camera installation bracket assembly as shown below.

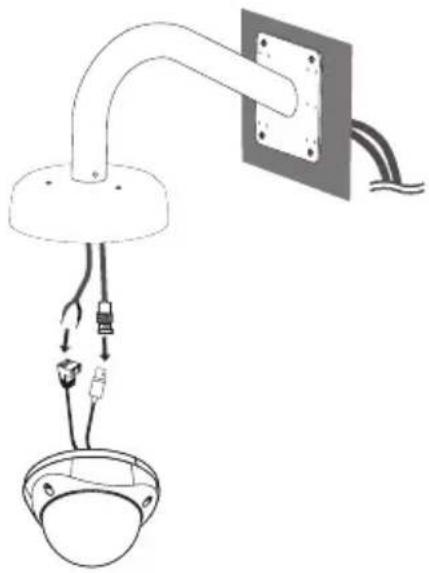

1. Connect the cables to the camera jack and attach the camera to the camera installation bracket assembly.

Diagram of a surveillance camera with attached wall-mounted panel and sensor base (no text or symbols)

Installation

1. Attach the camera to the installation bracket assembly.

Diagram of a mechanical or electrical device with a central hub and two circular components, no text or symbols present.

Image Adjustment

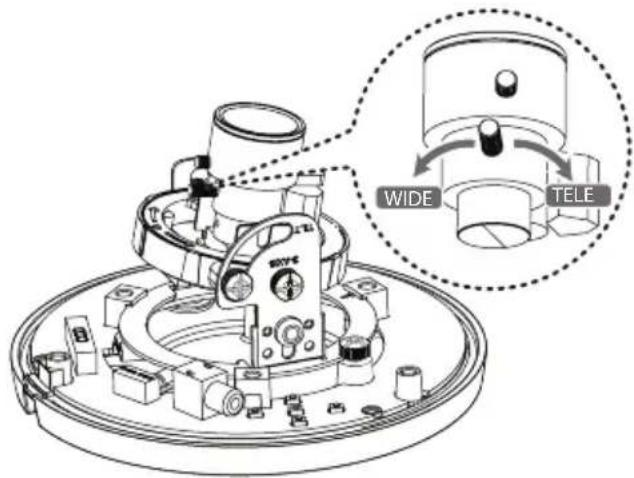

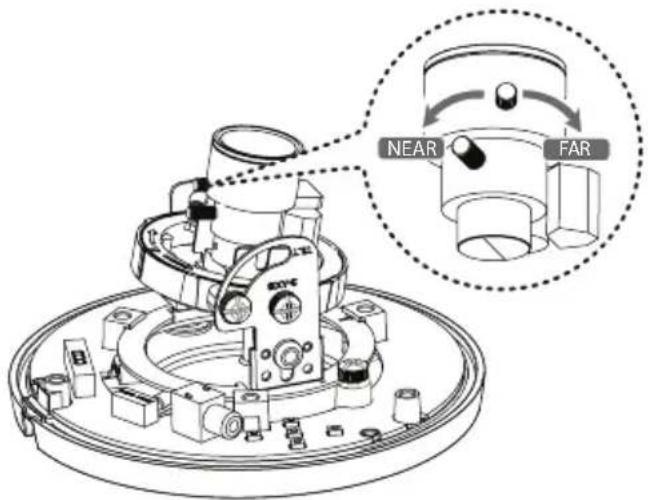

You can manually adjust the pan/tilt/azimuth angles, focus, and zoom while observing the connected monitor.

Notes:

• Do not hold the camera by lens unit to adjust panning, tilting, or azimuth.

• The video output to the BNC will be interrupted while a portable monitor is connected to the video jack.

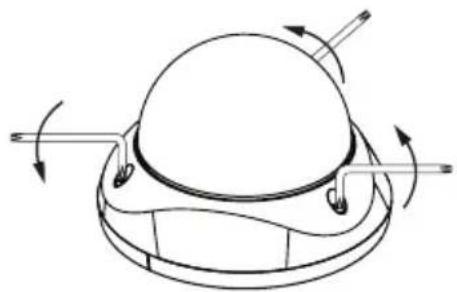

• Use the supplied wrench to loosen the screws and remove the dome cover Remove the Dome cover and lans cover.

Diagram of a mechanical component with rotating arrows indicating motion (no text or symbols)

Installation

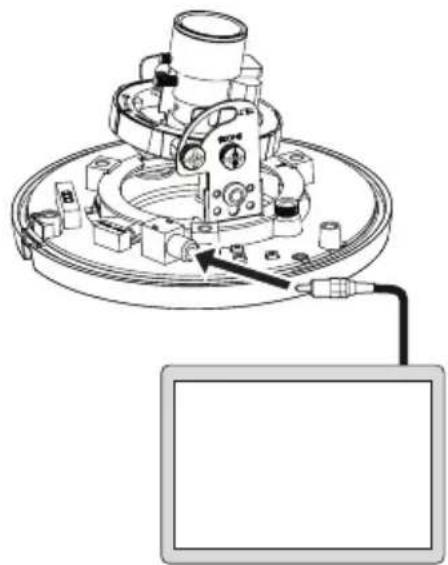

1. Connect a portable monitor to the video jack.

Technical line drawing of a mechanical assembly with a monitor and cable, no visible text or symbols

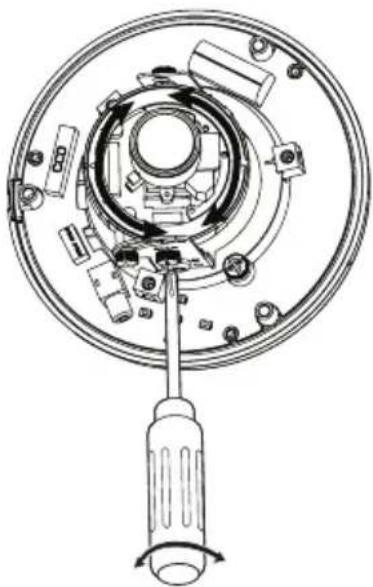

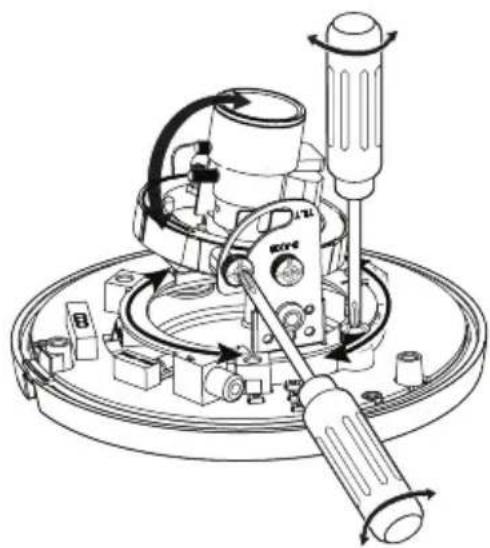

1. Adjust the pan/tilt position of the camera.

3-1. Loosen the pan/tilt lock screw.
3-2. Lock the pan/tilt lock screw after adjusting.

Technical line drawing of a mechanical assembly with no visible text or symbols

Installation

1. Adjust the azimuth angle.

4-1. Loosen the azimuth angle lock screw.
4-2. Lock the azimuth angle lock screw after adjusting.

Technical line drawing of a mechanical assembly with a screwdriver inserted, showing internal components and motion arrows (no text or symbols)

1. Adjust the zoom.

5-1. Unlock the zoom lever.
5-2. Move the lever to adjust the zoom.
5-3. Lock the lever.

Installation

1. Adjust the focus.

6-1. Unlock the focus lever.
6-2. Move the lever to adjust the focus.
6-3. Lock the lever.

1. Attach the lens cover and dome cover.

Menu Operation

This camera utilizes an on-screen user MENU. To set items on the menu, use the following buttons.

- UP button:

Used to move upper direction on the menu screen. Use this button to select an item or adjust the parameters.

- DOWN button:

Used to move lower direction on the menu screen. Use this button to select an item or adjust the parameters.

• RIGHT button:

Moves the cursor to the right. Used to increment the value selected in the menu. The parameter changes each time this button is pressed.

- LEFT button:

Moves the cursor to the left. Used to decrement the value selected in the menu. The parameter changes each time this button is pressed.

- SET button:

Executes selections and displays a submenu for an item with the 🔊 mark.

Menu Operation

OSD Menu Overview

The following table shows the list of menu items and options. You can adapt the camera to your requirements by setting up the respective items in these menus.

Main Menu Sub Menu Contents
USER TITLE	OFF -
	ON	-
EXPOSURE ALC2/ALC/ELC	BACKLIGHT OFF/BLC/HSBLC
	BRIGHTNESS 0 to 100
	AGC	OFF/LOW/MIDDLE/HIGH
	SHUTTER	x512,...,x2,AUTO,OFF,A.FLK,1/160,...,1/90 000(for ALC/ELC mode)1/100(NTSC) or1/120(PAL),...,1/90 000(for ALC2 mode)
	SENS-UP	OFF
		AUTO

Main Menu Sub	Menu Contents
WHITE BAL	ATW USER MODE		STANDARD
			VIVID
			WARM
			COOL
	AWC ➔ PUSH	-
	MANUAL	COLOR TEMP	INDOOR, OUTDOOR
		RED -100 to	100
		BLUE -100 to 100
3D-DNR	OFF -
	LOW -
	MIDDLE	-
	HIGH	-
DAY/NIGHT	AUTO	LEVEL	LOW/ MIDDLE/ HIGH
		DWELL TIME	5, 10, 15, 30, 60 SEC
	DAY	-
	NIGHT	-

Menu Operation

Main Menu Sub	Menu Contents
PRIVACY	OFF -
	ON	MASK NUMBER AREA1 to AREA8
		DISPLAY SET ON/OFF
		COLOR SET	GRAY/WHITE/BLACK
		HEIGHT 4 to 100
		WIDTH 4 to 100
		MOVE Y 2 to 98
		MOVE X 2 to 98

Main Menu Sub Menu Contents
SPECIAL	LANGUAGE	ENG/CHN/KOR/JAP/FRE/ITA/SPA/POR/DUT/GER/POL/RUS/TUR/ARA/HEB
	COLOR EFFECT OFF/ ON
	SHARPNESS 0 to 68
	STABILIZER OFF/ ON
	D-ZOOM	OFF -
		ON	ZOOM
			PAN
			TILT
	D-EFFECT	OFF/ V-FLIP/ MIRROR/ ROTATE
	MOTION DET	OFF -
		ON	ZONE NUMBER	AREA1 to AREA4
			ZONE STATE	OFF/ON
			HEIGHT	12 to 100
			WIDTH 16 to 100
			MOVE Y	6 to 94
			MOVE X 8 to 92
			SENSITIVITY	0 to 100
	FACTORY RESET	-
EXIT	-	-

Menu Operation

General Operation

1. Press [SET] button.

The setup menu screen appears on the monitor.

1. Use [UP] or [DOWN] button to select an option then press [SET] button.
   Submenu appears on the monitor.
2. Use [UP] or [DOWN] button to select a submenu option.
3. Use [LEFT] or [RIGHT] button to select a value.
4. Select [EXIT] option then press [SET] to exit the setup menu. In the submenu, use [UP] or [DOWN] button to select the [RETURN] then press [SET] to return to the previous setup menu.
   • RETURN: Return to the previous.

Setting the USER TITLE

You can use the camera identification to assign a number and character to the camera (0 to 9, A to Z, a to z). The USER TITLE is displayed on the upper left of the screen. To disappear the user title, select [OFF].

1. Select [USER TITLE] option.
2. Use [LEFT] or [RIGHT] button to select a [ON] then press [SET]. The USER TITLE menu appears.

1. Use [UP], [DOWN], [LEFT] or [RIGHT] button to select a character or number then press [SET] button.

• CLR: Clear all entered characters and numbers.
• POS: Move the USER TITLE position on the screen using the arrow buttons.

Menu Operation

• END: Confirm your selection or exit the setting
• 1 (Blank): Inserts a space at the cursor position.
• / Moves cursor to left or right.

Exposure Settings

You can set the exposure options using the EXPOSURE menu.

1. Select [EXPOSURE] option on the [CAMERA SETTING] menu.
2. Use [LEFT] or [RIGHT] button to select a mode.
   (ALC2←→ALCELC)
3. Press [SET] button and the EXPOSURE menu appears.

BACKLIGHT setting

Use BACKLIGHT option to view the object clearly in back-light conditions.

1. Select [BACKLIGHT] option.

Menu Operation

1. Use [LEFT] or [RIGHT] button to select a mode then press [SET].

- BLC: Camera's backlight compensation feature helps alleviate issues of visibility in high contrast areas. Set the BLC limit.

BLC LIMIT: LOW ↔ MIDDLE HIGH

- HSBLC: Use for masking brightness of the specific area to view the subject more clearly. The HSBLC mode is automatically activated only in low luminance scene.

AREA SETTING: Use [LEFT] or [RIGHT] button to select a area then use [UP] or [DOWN] button to select a ON or OFF. Press [SET] to exit the Area setting menu.
GRAY SCALE: Use [LEFT] or [RIGHT] button to select a gray scale. (GRAY ←→ D.GRAY BLACK).

USER SCALE: Use [LEFT] or [RIGHT] button to select a bright level.(5 level)

MASK: Use [LEFT] or [RIGHT] button to select [ON] or [OFF]. If you set the MASK to ON, the mask function

is activate only when the HSBLC is automatically activated in low luminance scene.

• OFF: Not used.

BRIGHTNESS setting

You can increase the brightness of the darkened video. If you set the brightness to lower value, the image is darkened. If you set the brightness to higher value, the image gets bright.

1. Select [BRIGHTNESS] option.
2. Use [LEFT] or [RIGHT] button to set the bright level.

Menu Operation

AGC (Automatic Gain Control) setting

If the images are too dark, change the maximum [AGC] value to make the images brighter.

1. Select [AGC] option.

2. Use [LEFT] or [RIGHT] button to select a mode. (OFF ←→ LOW ←MIDDLE HIGH)←→

SHUTTER (Shutter Speed) setting

Select the desired shutter speed for camera exposure. You can change the shutter speed to higher speed to capture fast-moving subjects, though the image becomes darker.

1. Select [SHUTTER] option.

2. Use [LEFT] or [RIGHT] button to set shutter speed.

(ALC/ELC mode: x512,...,x2←→AUTO OFF ←→A.FLK 1/160,...,1/90 000

ALC2 mode: 1/100(NTSC) or 1/120(PAL), ..., 1/90 000

Note:

If you set the shutter speed value in ALC2 mode, it is maximum value. When the camera is activated with ALC2 mode, the shutter speed is arrived maximum value and then the camera is change to iris control mode automatically for the camera exposure. ALC2 mode doesn't support anti-flicker shutter so if you want to use it, use it in ALC mode.

Menu Operation

SENS-UP setting

If pictures are not clear due to darkness, this SENS-UP operation would increase the sensitivity of picture.

1. Use [UP] or [DOWN] button to select [SENS-UP] option.
2. Use [LEFT] or [RIGHT] button to select mode.

- AUTO: Adjust the sensitivity of the picture automatically.

SENS-UP LIMIT: Use [LEFT] or [RIGHT] button to set the SENS-UP limit.

• OFF: Not used.

Note:

If you set to one of the SHUTTER options except AUTO on the [SHUTTER] menu or [AGC] to [OFF], the [SENS-UP] setting is not available and [---] mark is displayed.

White Balance settings

Select the method by which the camera shifts its output colors to compensate for the color of a light source.

1. Select [WHITE BAL] option.
2. Use [LEFT] or [RIGHT] button to select a mode then press [SET].

Menu Operation

- ATW (Auto-Tracing White Balance): Use [LEFT] or [RIGHT] button to select the ATW then press [SET] button.

You can select the USER MODE.

(STANDARD - VIVID - WARM - COOL)

- AWC→PUSH: If you select the AWC →PUSH mode, you will be able to set up the White Balance automatically using [SET] button.

- MANUAL: You can set the white balance options manually.

COLOR TEMP: Use [LEFT] or [RIGHT] button to select a function.

- INDOOR: The color temperature range for the proper white balance is approximately 3 200 K.

- OUTDOOR: The color temperature range for the proper white balance is approximately 5 100 K.

RED: Obtains the optimum amount of red gain.

BLUE: Obtains the optimum amount of blue gain.

Menu Operation

3D-DNR Setting

1. Select [3D-DNR] option. If pictures are not clear due to brightness, this option would reduce the noise of picture.

2. Use [LEFT] or [RIGHT] button to select a option. (OFF ←→ LOW MIDDLE HIGH) ←→

Notes:

• If you set the AGC to [OFF] on the [EXPOSURE] menu, the [3D-DNR] function is not available and [---] mark is displayed.
• When you use this function, the afterimage may occur.

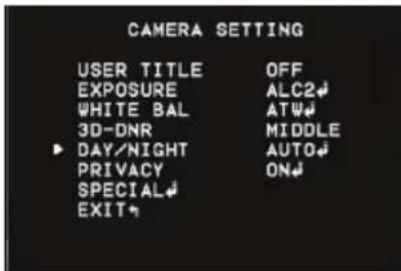

Day/Night Setting

1. Select [DAY/NIGHT] option.
2. Use [LEFT] or [RIGHT] button to select mode for day/night function.

• AUTO: You will be able to change the Day/Night mode automatically.

Note:

If you set the AGC to [OFF] or the SHUTTER is set to one of the SHUTTER options except AUTO on the [EXPOSURE] menu, the AUTO mode of the DAY/NIGHT function is not available and [---] mark is displayed.

Menu Operation

LEVEL: Use [LEFT] or [RIGHT] button to select a level. (LOW MIDDLE HIGH)
DWELL TIME: Use [LEFT] or [RIGHT] button to select a dwell time. (5, 10, 15, 30 or 60 SEC)

• DAY: Color mode enabled.

• NIGHT: Black-and-white mode enabled.

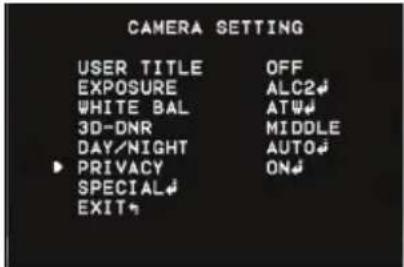

Privacy Setting

This function is aiming at the protection of personal privacy, selecting a screen part black not to be displayed in the screen. Up to 8 zones can be registered.

1. Select [PRIVACY] option.
2. Use [LEFT] or [RIGHT] button to select a [ON] and press [SET]. The PRIVACY SETUP menu appears.
3. Use [LEFT] or [RIGHT] button to select a mask (AREA1 to AREA8) on the [MASK NUMBER].
4. Use [LEFT] or [RIGHT] button to set up the ON or OFF on the DISPLAY SET option.

Menu Operation

1. Use [LEFT] or [RIGHT] button to set up the GRAY, WHITE or BLACK on the COLOR SET option.

2. Use [UP] or [DOWN] to select an option then use [LEFT] or [RIGHT] button to adjust the option.

3. HEIGHT: Enlarge or decrease the vertical size of the mask.

4. WIDTH: Enlarge or decrease the horizontal size of the mask.
   • MOVE Y: Moves vertical position of the mask.
   • MOVE X: Moves horizontal position of the mask.

Note:

The parts with the registered mask numbers from AREA1 to AREA4 have the same color. (So do the parts with the numbers from AREA5 to AREA8). If you change the mask color, the registered mask color will be changed automatically with the same color for each of group (AREA1 to AREA4, AREA5 to AREA8).

Special Menu Settings

This menu lets you adjust and set up LANGUAGE, COLOR EFFECT, SHARPNESS, STABILIZER, D-ZOOM, D-EFFECT, MOTION DET, FACTORY RESET function by yourself in the SPECIAL menu.

1. Select [SPECIAL] option.
2. Press [SET] button and the SPECIAL menu appears.

Menu Operation

LANGUAGE Setting

Select the viewer language for the camera setup menu and OSD information display.

1. Select [LANGUAGE] option on the [SPECIAL] screen.

2. Press [LEFT] or [RIGHT] button to select a language.

Setting the COLOR EFFECT

You can switch the displayed picture to gray scale or color.

1. Select [COLOR EFFECT] option on the [SPECIAL] menu.

2. Use [LEFT] or [RIGHT] button to change a color effect.

• ON: To display the picture with color.

• OFF: To display the picture with grayscale.

Menu Operation

Setting the SHARPNESS effect

The degree to which the boundary of the two portions is clearly distinguished.

1. Select [SHARPNESS] option on the [SPECIAL] menu.
2. Use [LEFT] or [RIGHT] button to change a adjust the option. If you set the sharpness value to higher, the image outline becomes sharp. If you set to lower value, the image outline becomes dim.

STABILIZER setting

The image stabilizer function minimizes the appearance of shaky images caused by low-frequency vibration.

This function is useful for outdoor surveillance.

Select [STABILIZER] option and set to ON or OFF.

Note:

If you set the [STABILIZER] to ON, the Digital zoom is set to [x1.1] automatically.

Menu Operation

Setting the D-ZOOM (Digital Zoom) level

You can select the digital zoom level.

1. Select [D-ZOOM] option on the [SPECIAL] menu.
2. Use [LEFT] or [RIGHT] button to select a [ON] then press [SET] the DIGITAL ZOOM menu appears. When you set to ON, the displayed image can be shaking.
3. Use [UP] or [DOWN] to select a option then use [LEFT] or [RIGHT] button to select a level.

• ZOOM: Use [LEFT] or [RIGHT] button to enlarge the screen.
• PAN: Use [LEFT] or [RIGHT] button to move the screen. (left or right)

- TILT: Use [LEFT] or [RIGHT] button to move the screen. (up or down)

Setting the D-EFFECT (Digital effect)

You can select the digital effect.

1. Select [D-EFFECT] option on the [SPECIAL] menu.
2. Use [LEFT] or [RIGHT] button to select a digital effect.

• V-FLIP: Flip the picture vertically.
• MIRROR: Turn on the mirror effect.
• ROTATE: Rotate the picture. (180°)
• OFF: Turn off the digital effect.

Menu Operation

Motion Detection Setting

The motion detection detects the moving objects in the scene by monitoring changes in brightness level. You can select the level of sensitivity for motion detection to 4 zone.

1. Select [MOTION DET] option.
2. Use [LEFT] or [RIGHT] button to select a [ON] and press [SET]. The MOTION DETECTION menu appears.
3. Use [LEFT] or [RIGHT] button to select a zone number (AREA1 to AREA4) on the [ZONE NUMBER].
4. Use [LEFT] or [RIGHT] button to set up the ON or OFF on the ZONE STATE.
5. Use [UP] or [DOWN] to select an option then use

[LEFT] or [RIGHT] button to adjust the option.

• HEIGHT: Enlarge or decrease the vertical size of the mask.

• WIDTH: Enlarge or decrease the horizontal size of the mask.
  • MOVE Y: Moves vertical position of the mask.
  • MOVE X: Moves horizontal position of the mask.

• Use [SENSITIVITY] option to obtain the optimum detection level.

Menu Operation

Factory Reset Setting

• FACTORY RESET: To reset the camera setting to factory setting, select [FACTORY RESET] option.

Specification

Item L6213-BP L6213-DN
Signal System PAL NTSC
Total/Effective Pixels 470 000 Pixels / 440 000 Pixels 410 000 Pixels / 380 000 Pixels
Image Device 6 mm Super HAD II CCD
DSP XDI-S2
Lens 2.8 mm to 11 mm Vari-focal lens (F1.2)
Digital Zoom X8
Sync. System Internal
Scanning Frequency (H/V) 15.625 kHz / 50 Hz 15.734 kHz / 59.94 Hz
Horizontal Resolution		620 TV Lines
S/N Ratio		52 dB
Minimum Illumination(30 IRE, F1.2)	Color mode	0.06 lx (Sens-up OFF)
		0.0001 lx (Sens-up Auto)
	B/W mode	0.006 lx (Sens-up OFF)
		0.000 001 lx (Sens-up x128)
Control Method		Inner Key Button
Video Output Signal		1 Vp-p Composite (75 Ω)
Day & Night		Day / Night / Auto
BACKLIGHT		OFF / BLC / HSBLC

Specification

Item L6213-BP L6213-BN
DNR 3D-DNR (Off/Low/Middle/High)
Auto Gain Control Off / Low / Middle / High
Electronic Shutter Speed 1/50 to 1/90 000 1/60 to 1/90 000
Electronic Sensitivity OFF/Auto
White Balance	ATW / AWC ➔ PUSH / Manual
Motion Detection 4 Zones
Privacy Zone Masking 8 Masks
Stabilizer( EIS) On / Off
User Color Mode STANDARD/COOL/WARM/VIVID
Power Source DC 12 V / AC 24 V	DC 12 V
Power Consumption	2.8 W		2.2 W
Operation Temp.	-10 °C to 50 °C
Storage Temp.	-20 °C to 60 °C
Operation Humidity	0 % RH to 80 % RH
Storage Humidity	0 % RH to 85 % RH
Weight	640 g
Dimension (∅ x H)	∅ 140 x 91.7 mm

LG

Life's Good

CE

AB28
