Blender & Beyond Plus HB2248S - Blender Emeril Lagasse - Free user manual and instructions

Product Type	Blender
Brand	Emeril Lagasse
Model	Blender & Beyond Plus HB2248S
Power	1200 watts
Voltage	120 V
Capacity	64 oz (1.9 L)
Speed Settings	Variable speed with pulse function
Blade Material	Stainless steel
Pitcher Material	BPA-free Tritan plastic
Dishwasher Safe	Yes, pitcher and lid are top-rack dishwasher safe
Safety Features	Locking lid, non-slip base, auto shut-off
Cord Length	36 inches (91 cm)
Weight	7.5 lbs (3.4 kg)
Dimensions (H x W x D)	16 x 7.5 x 7.5 inches (40.6 x 19 x 19 cm)
Wattage	1200 W
Number of Speeds	5 speeds plus pulse
Functions	Blending, pureeing, crushing ice, making smoothies
Cleaning	Hand wash recommended; pitcher and lid dishwasher safe
Warranty	2 years limited warranty
Included Accessories	Blender pitcher, lid with measuring cap, recipe book

Frequently Asked Questions - Blender & Beyond Plus HB2248S Emeril Lagasse

How do I clean the blender pitcher?

Rinse the pitcher immediately after use. Add warm water and a drop of dish soap, then blend on high for 30 seconds. Rinse thoroughly. The pitcher and lid are top-rack dishwasher safe.

Can I blend hot liquids?

It is not recommended to blend hot liquids directly. Allow liquids to cool to room temperature before blending to avoid pressure buildup and potential splashing.

What is the maximum capacity?

The maximum liquid capacity is 64 oz (1.9 L). Do not exceed the MAX fill line indicated on the pitcher to prevent overflow.

How do I crush ice with this blender?

Use the pulse function in short bursts. Add ice cubes up to the MAX line and pulse 3-5 times until desired consistency is achieved.

Why is the blender not turning on?

Ensure the pitcher is properly seated on the base and the lid is locked. Check that the power cord is plugged into a working outlet. If still not working, check the reset button on the bottom.

Can I blend frozen fruits?

Yes, but cut frozen fruits into small chunks and add some liquid to aid blending. Use a lower speed initially, then increase to high.

Is the blender BPA-free?

Yes, the pitcher is made from BPA-free Tritan plastic, ensuring safe food contact.

How do I remove the blade assembly?

The blade assembly is not removable for safety. To clean, blend warm soapy water as described. Do not disassemble the base.

What should I do if the blender leaks?

Check that the lid gasket is properly seated and the lid is locked. If the pitcher is cracked, replace it. Avoid overfilling.

Can the blender be used for grinding nuts?

It can grind soft nuts like almonds if pulsed briefly. For hard nuts, a dedicated grinder is recommended to avoid blade damage.

USER MANUAL Blender & Beyond Plus HB2248S Emeril Lagasse

Product photo of kitchen utensils including a blender, whisk, blender, and blender with no visible text or symbols

Owner's Manual

SAVE THESE INSTRUCTIONS - FOR HOUSEHOLD USE ONLY

MODEL: HB2248/HB2248S POWER: DC 7.4V

When using electrical appliances, basic safety precautions should always be followed. Do not use the Emeril Lagasse™ Blender & Beyond Plus™ until you have read this manual thoroughly.

The Emeril Lagasse Blender & Beyond Plus™ will provide you many years of delicious family meals and memories around the dinner table. But before you begin, it's very important that you read this entire manual, making certain that you are totally familiar with this appliance's operation and precautions.

Unit Specifications

Model Number	Battery Type	Battery Voltage	Speed (Min.-Max.)	Blending Jar Capacity	USB Type
HB2248S	18650 2000mAh	7.4V DC 10,000–15,000 r/min 800 mL C
HB2248	18650 2000mAh	7.4V DC 10,000–15,000 r/min 800 mL C

Unit Specifications 2

IMPORTANT SAFEGUARDS 4

Parts & Accessories 6

Instructions for Use 8

Before First Use 8

Charging the Appliance 8

General Use 9

Adjusting the Appliance's Orientation 9

Using the Blender 10

Using the Accessories 11

Using the Beaters 11

Using the Whisk 12

Using the Frother 12

Using the Chopper 13

Using the Slicer, Spiralizer, and Shredder 14

Using the S-Blade 15

Using the Masher 16

Processing Information 17

Choosing a Speed for All Functions 17

Care & Cleaning 18

Money-Back Guarantee 19

WARNING

PREVENT INJURIES! CAREFULLY READ ALL INSTRUCTIONS BEFORE USE!

When using electrical appliances, basic safety precautions should be followed, including the following:

1. Read all instructions before using.
2. To protect yourself from electric shock, never immerse the appliance or the power cord in water or other liquids.
3. Avoid contact with moving parts.
4. Do not operate any appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. Return the appliance to an authorized service facility for examination, repair, or adjustment.
5. The use of attachments not recommended or sold by the manufacturer may cause fire, injury, or electric shock.
6. Do not use outdoors.
7. Do not let the power cord hang over the edge of the table or counter or touch hot surfaces, including the stove.

8. The blades are sharp. Handle carefully.

9. The appliance will not work with a 220-volt power supply and should not be used with a converter. Using the appliance with a converter could damage the appliance, the converter, and the outlet. Using a converter will invalidate the guarantee and any protection plan policy.

10. Do not plug the appliance into the power supply until it is fully assembled.
11. This appliance is not intended for use by children or by people with reduced physical, sensory, or mental capabilities or lack of experience and knowledge. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
12. Close supervision is necessary when any appliance is used by or near children.
13. Keep hands and utensils out of the container while blending to reduce the risk of severe injury to persons or damage to the appliance. A scraper may be used but must be used only when the appliance is not running.
14. Remove the beaters from the appliance before washing.
15. Keep hands and utensils away from moving blades or discs while processing food to reduce the risk of severe injury to people or damage to the food processor.

16. A scraper may be used but must be used only when the food processor is not running.

17. To reduce the risk of injury, never place the cutting blade or discs on base without first putting the bowl properly in place. Be certain the cover is securely locked in place before operating the appliance. Never feed food by hand. Always use the food pusher.

18. Do not fill the bowl above the maximum marked capacity to avoid risk of injury due to damage to the cover or bowl.
19. Keep hands and utensils away from the cutting blade while chopping food to reduce the risk of severe injury to people or damage to the food chopper. A scraper may be used but only when the food chopper is not running.
20. Do not attempt to defeat the cover interlock mechanism.
21. Keep your hands, hair, and clothing – as well as spatulas and other utensils – away from beaters during operation to reduce the risk of injury to persons and/or damage to the appliance.

Electrical Safety

1. Do not use an extension cord. Plug the charger directly into an electrical outlet. Use only with the charger provided with the appliance. Do not attempt to use this charger with any other product. Likewise, do not attempt to charge this appliance with any other charger.
2. This appliance should be serviced only by qualified service technicians. Contact Customer Service using the information located on the back of this manual.
3. Failure to follow these instructions can result in death, fire, or electrical shock.
4. DO NOT clean with metal scouring pads. Pieces can break off the pad and touch electrical parts, creating risks of electric shock.
5. This appliance is for home use only. If the appliance is used improperly or for professional or semi-professional purposes or if it is not used according to the instructions in the user manual, the guarantee becomes invalid and HPC Brands will not be held liable for damages.
6. Do not incinerate this appliance even if it is severely damaged. The batteries can explode in a fire.
7. Use only with a Listed Class 2 Power Unit.
8. SAVE THESE INSTRUCTIONS.

SAVE THIS

INSTRUCTION MANUAL.

Set of six black-and-white product photos: a mechanical brush, a plastic cup with labeled parts (N, O, Q, R, P, S), and cable connectors (no text or symbols on items)

A. Variable Speed Controller

B. Indicator Lights

C. Unlock Button

D. Power Button

E. Motor Housing

F. Angle Adjustment Button (on the back)

G. Blending Shaft

H. Blending Guard*

I. Storage Guard

J. Whisk Holder

K. Whisk

L. Beater Gear Box

M. Beaters

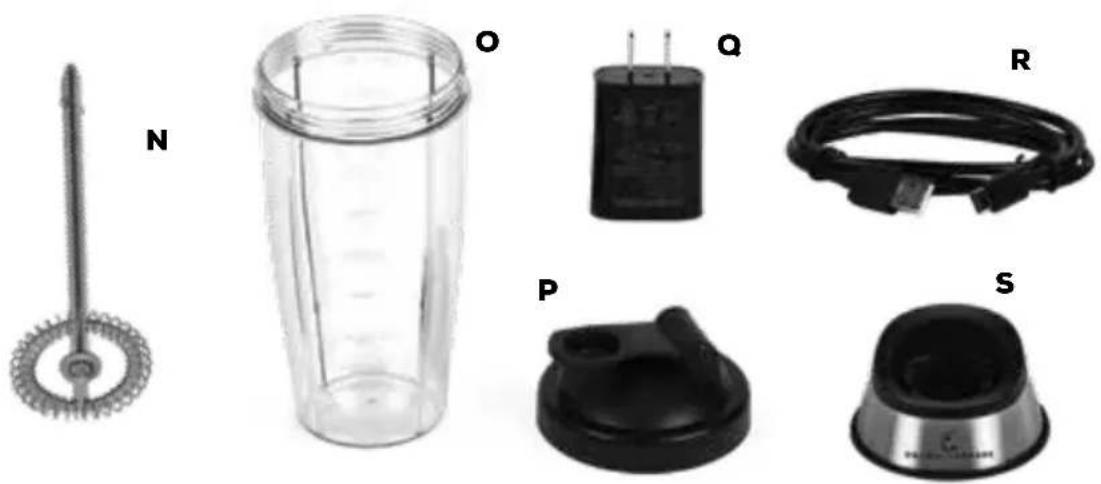

N. Frother*

o. To-Go Cup*

P. To-Go Cup Lid*

Q. USB/AC Adaptor

R. USB-C Power Cord

S. Charging Base

T. Blending Jar Lid

U. Blending Jar (800 mL)

v. Chopper Bowl Lid*

W. Chopper Bowl (500 mL)*

X. Chopper Blade*

Y. Chopper Bowl Feet*

Z. Masher Holder*

AA. Masher Shaft*

AB. S-Blade*

AC. Food Processor Bowl*

AD. Food Processor Bowl Feet*

AE. Slicer*

AF. Spiralizer*

AG. Shredder Disc*

AH. Pusher*

AI. Food Processor Bowl Lid*

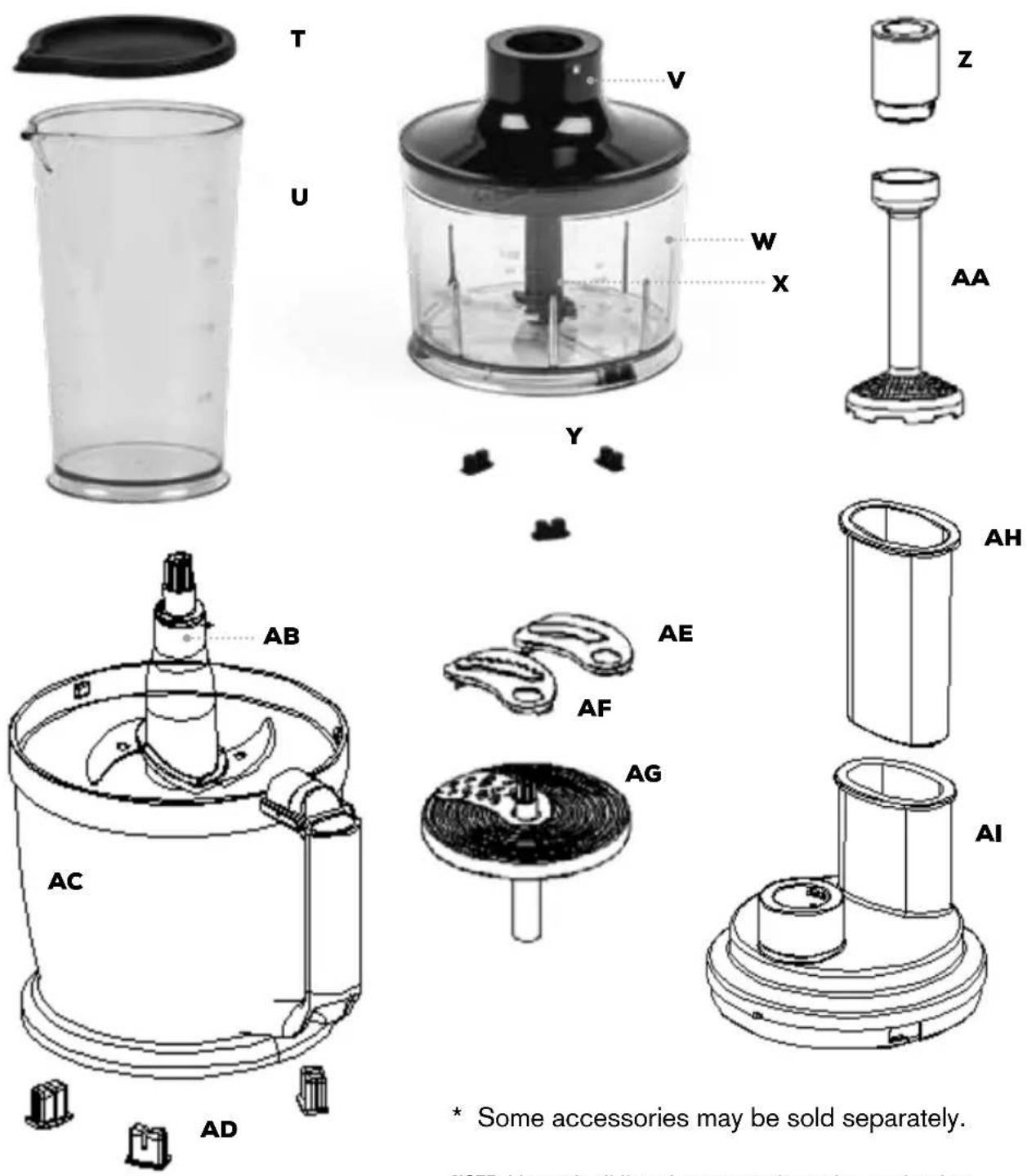

Parts & Accessories

Before First Use

1. Read all material, warning stickers, and labels.

2. Unpack all listed contents from the packaging. Please make sure that your appliance has been shipped with the components that you ordered. Some accessories listed may be sold separately. Check everything carefully before use. If any part is missing or

damaged, do not use this product. Contact HPC Brands, LLC using the customer service number located on the back of this manual.

1. Remove all packing materials, stickers, and labels from the appliance. Remove any clear or blue protective film on the components before use. Wash the components with soap and water.

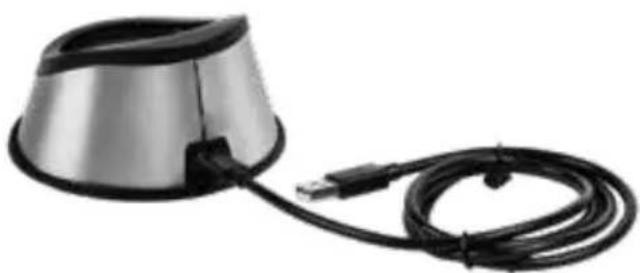

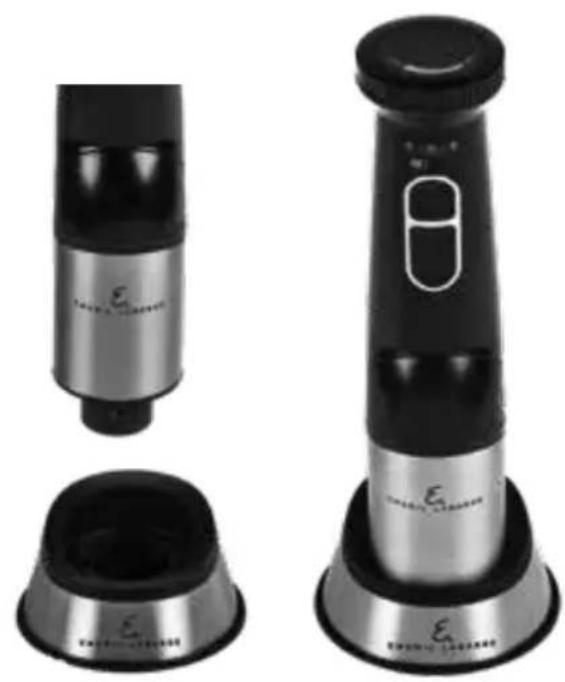

Charging the Appliance

1. The appliance can be charged either by loading it into the Charging Base or by plugging a USB-C charger into the appliance.

2. When charging the appliance, the Indicator Lights show the appliance's power level:

a) Three Indicator Lights: 100% power.
b) Two Indicator Lights: 75% power.
c) One Indicator Light: 40% power.
d) When the last Indicator Light is flashing, the battery power is less than 30% and should be recharged soon.

Three electric shaver units shown from different angles, no visible text or symbols on the devices themselves.

Close-up of a dark cylindrical object with a small rectangular feature, possibly a device or component (no visible text or symbols)

Close-up of a metallic USB cable with a black headband and USB port, isolated on white background (no text or symbols)

General Use

Make sure the appliance is fully charged prior to use.

To start the appliance, first press the Unlock Button. The Indicator Lights will turn red. Then, press and hold the Power Button. The Indicator Lights will turn blue. If you release the Power Button, the appliance will stop operating but remain ready to use for 10 seconds. While the Indicator Lights are blue, you can release and press the Power Button as needed, such as to pulse. After 10 seconds, the Indicator Lights will turn off. In this state, you will need to press the Unlock Button again before pressing the Power Button to continue using the appliance.

Use the Variable Speed Controller to set the speed of the appliance. Set the Variable Speed Controller to a low speed before starting the appliance. Once the appliance is running, adjust the speed as needed.

NOTE: During use, it is normal for suction to increase at the bottom of the container.

When blending is complete, release the Power Button before removing the appliance from the mixture.

The recommended time of use for the appliance is 1 minute of continuous use.

Indicator Lights

When you press the Unlock Button, one Indicator Light will turn red. When you press the Power Button within 10 seconds, the Indicator Lights will turn blue. The number of lights displayed indicates the appliance's battery charge (see the "Charging the Appliance" section).

Operating Tips

☐ut solid foods into 12 -inch (13 mm) pieces for easier mixing or chopping.

Use an up and down motion for blending and pureeing.

using the blender directly in a saucepan, be sure to remove the pan from the heat before using the blender.

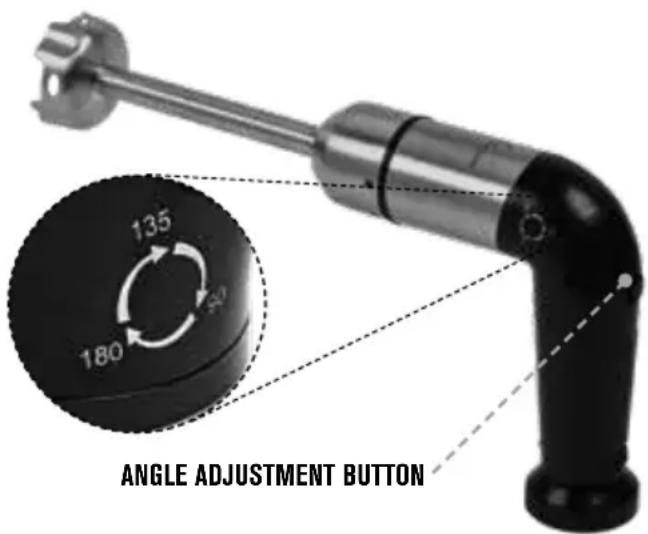

Adjusting the Appliance's Orientation

The appliance can be angled to make different activities easier. To adjust the orientation of the appliance:

1. Press the Angle Adjustment Button.
2. Rotate the bottom half of the appliance until the appliance clicks into place in the desired orientation.
3. The appliance can be rotated to three different angles:
   180°: Ideal for immersion blending.
   135°: Ideal for whisk blending.
   90°: Ideal for beating.

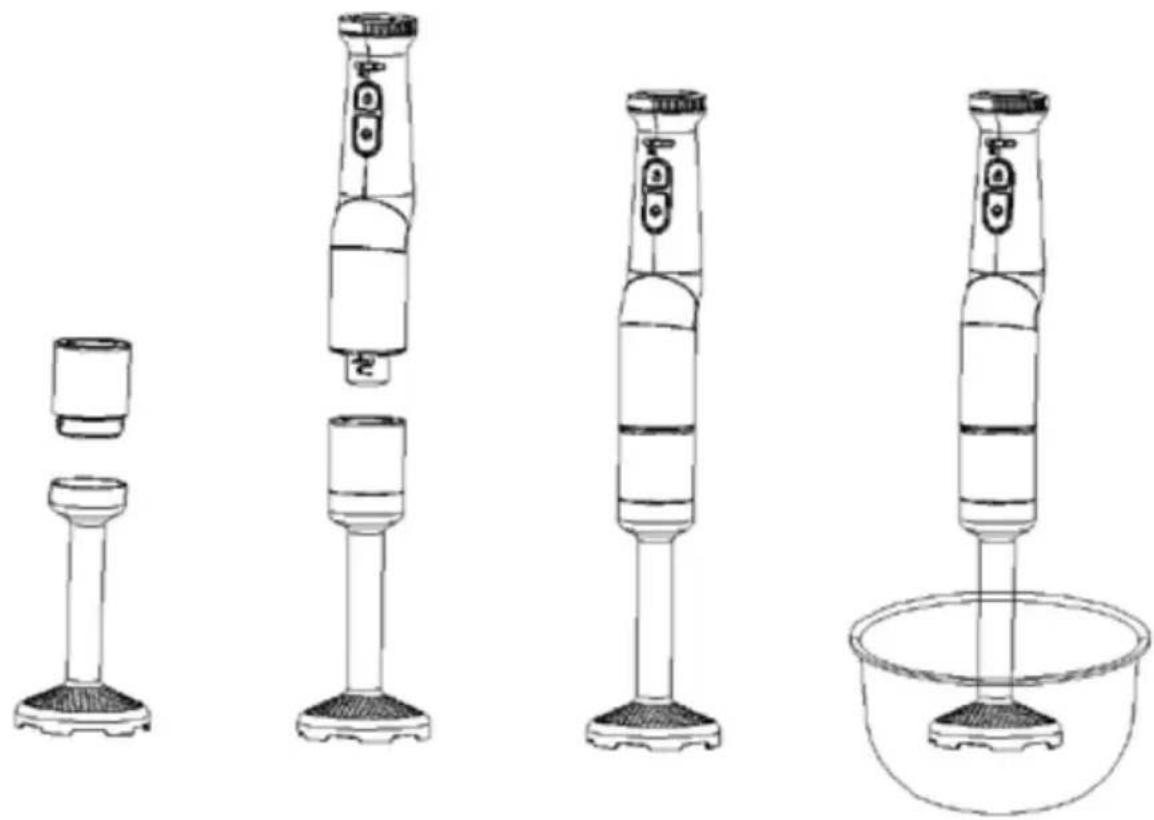

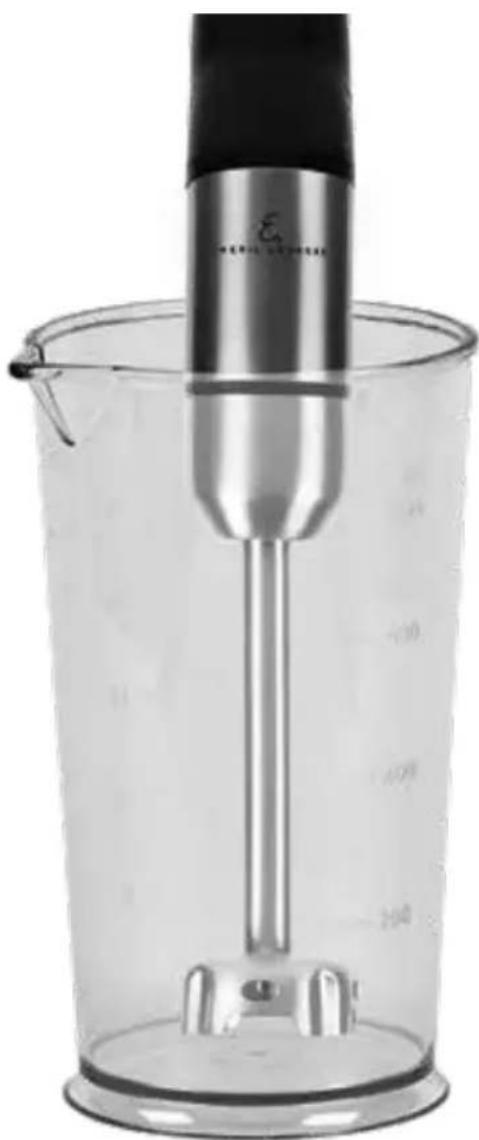

Using the Blender

Use the hand blender for preparing dips, sauces, soups, mayonnaise, and baby food; mixing milkshakes; and crushing ice. You can blend in the Pitcher or most other vessels.

1. Attach the Blending Shaft to the Motor Housing and twist until they lock into place.
2. Attach the Blending Guard to the end of the Blending Shaft. The Blending Guard helps prevent the edges of the Blending Shaft from scratching cookware.

Close-up of a stainless steel mixing bowl with a black handle, showing liquid level and scale (no text or symbols visible)

1. Lower the appliance into the vessel containing your ingredients. Adjust the Variable Speed Controller to select a low speed. Press the Unlock Button and then press and hold the Power Button to start. Adjust the Variable Speed Controller as needed.
2. When you are done, release the Power Button to stop. After 10 seconds, the Indicator Lights will turn off.

Close-up of a metallic mechanical component with a circular head and flanged side (no text or symbols visible)

Caution: Blade is sharp

Close-up of a mechanical component with internal cavities and mounting holes (no visible text or symbols)

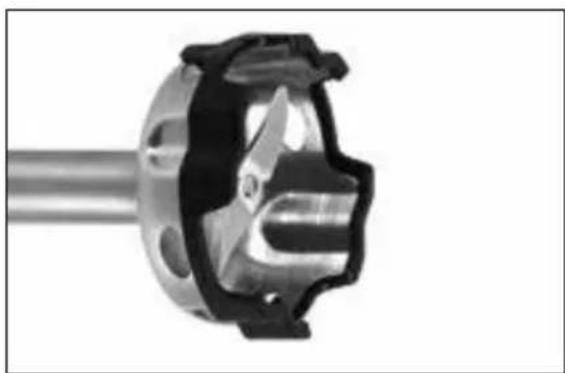

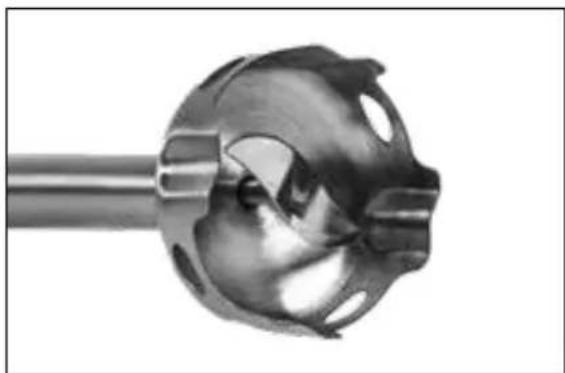

Blending Guard

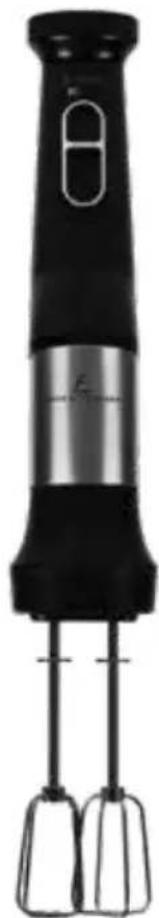

Using the Beaters

1. Attach the Beaters to the Beater Gear Box.
2. Attach the Beater Gear Box to the Motor Housing and twist until they lock into place.
3. Lower the appliance into the vessel containing your ingredients. Use the Variable Speed Controller to select a speed. Press the Unlock Button and then press and hold the Power Button to turn on the appliance.
4. When you are done, release the Power Button to stop. After 10 seconds, the Indicator Lights will turn off.

Black and silver electric shaver with two whiskers, no visible text or symbols

Using the Whisk

1. Attach the Whisk to the Whisk Holder and then the Motor Housing and twist until they lock into place.
2. Lower the appliance into the vessel containing your ingredients. Use the Variable Speed Controller to select a speed. Press the Unlock Button and then press and hold the Power Button to turn on the appliance.
3. When you are done, release the Power Button to stop. After 10 seconds, the Indicator Lights will turn off.

Black and white illustration of a hand mixer with whisk (no text or symbols)

Using the Frother

1. Attach the Frother to the Whisk Holder and then the Motor Housing and twist until they lock into place.
2. Lower the appliance into the vessel containing your ingredients. Use the Variable Speed Controller to select a speed. Press the Unlock Button and then press and hold the Power Button to turn on the appliance.
3. When you are done, release the Power Button to stop. After 10 seconds, the Indicator Lights will turn off.

Close-up of a black handheld device with a vertical line and a small circular button on top (no visible text or symbols)

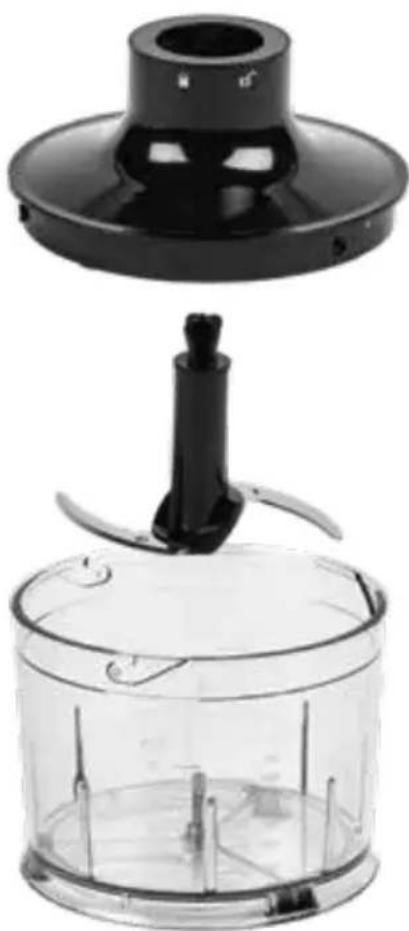

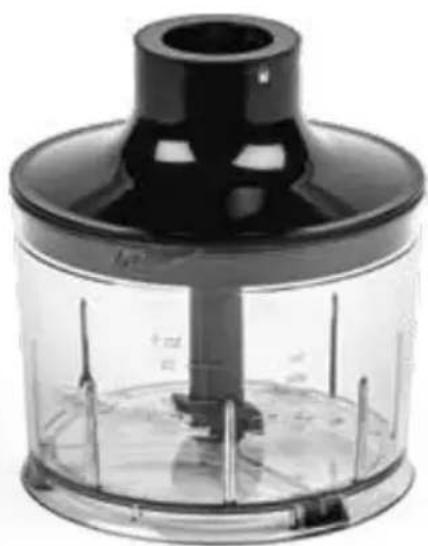

Using the Chopper

Do not use to chop ice cubes or extremely hard food, such as nutmeg, coffee beans, and grains.

1. Before chopping, carefully remove the plastic cover from the blade. The blade is very sharp, so always hold the blade by the upper plastic part.

2. Place the Chopper Blade on the center pin of the Chopper Bowl. Press down on the blade and lock the blade in place. Always place the Chopper Bowl on the anti-slip base.

3. Place your ingredients in the Chopper Bowl.

4. Place the Chopper Bowl Lid on the Chopper Bowl.

5. Attach the Motor Housing to the Chopper Bowl Lid and twist until they lock into place.

6. Use the Variable Speed Controller to select a speed. Press the Unlock Button and then press and hold the Power Button to turn on the appliance. While the appliance is running, hold the Motor Housing with one hand and hold the Chopper Bowl with the other.

7. When you are done, release the Power Button to stop. After 10 seconds, the Indicator Lights will turn off.

Top-down view of a kitchen appliance with a lid and handle, showing its top and side views (no text or symbols visible)

Close-up of a black and white kitchen blender with handle and control knob (no visible text or symbols)

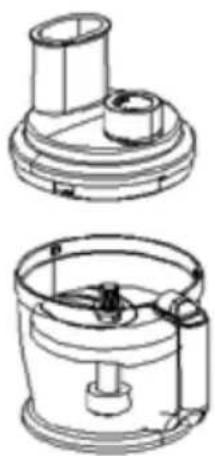

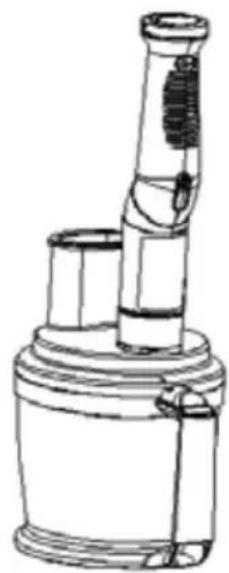

Using the Slicer, Spiralizer, and Shredder

Do not slice, spiralize, or shred more than 17 oz (500 g) of food at once. Do not use these attachments with meat.

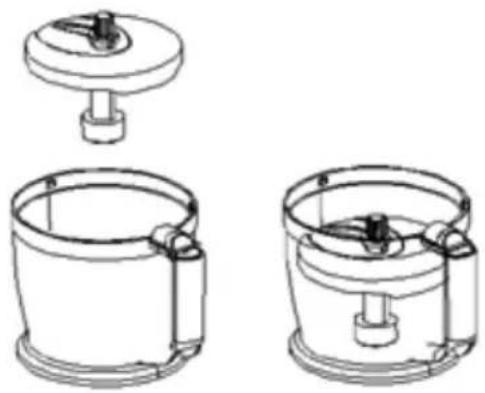

1. Place the Shredder Disc on the center pin of the Food Processor Bowl. Press down on the blade and lock the blade in place. Always place the Food Processor Bowl on the anti-slip base.
2. To spiralize, attach the Spiralizer to the top of the Shredder Disc. To slice, attach the Slicer to the top of the Shredder Disc. To shred, do not add any attachment to the Shredder Disc.

3. Place the Food Processor Bowl Lid over the Food Processor Bowl and twist to lock the lid in place.

4. Attach the Motor Housing to the Food Processor Bowl Lid and twist until they lock into place.

5. Press the Unlock Button and then press and hold the Power Button to turn on the appliance.
6. Carefully use the Pusher to guide food into the feeder tube. Never use your finger or a utensil to guide food into the feeder tube.
7. When you are done, release the Power Button to stop. After 10 seconds, the Indicator Lights will turn off.

Technical line drawings of three mechanical components with no visible text or symbols

Technical line drawings of a mechanical component (top and side views) with no visible text or symbols

Line drawing of a laboratory instrument with a cylindrical body and two upright tubes (no text or labels)

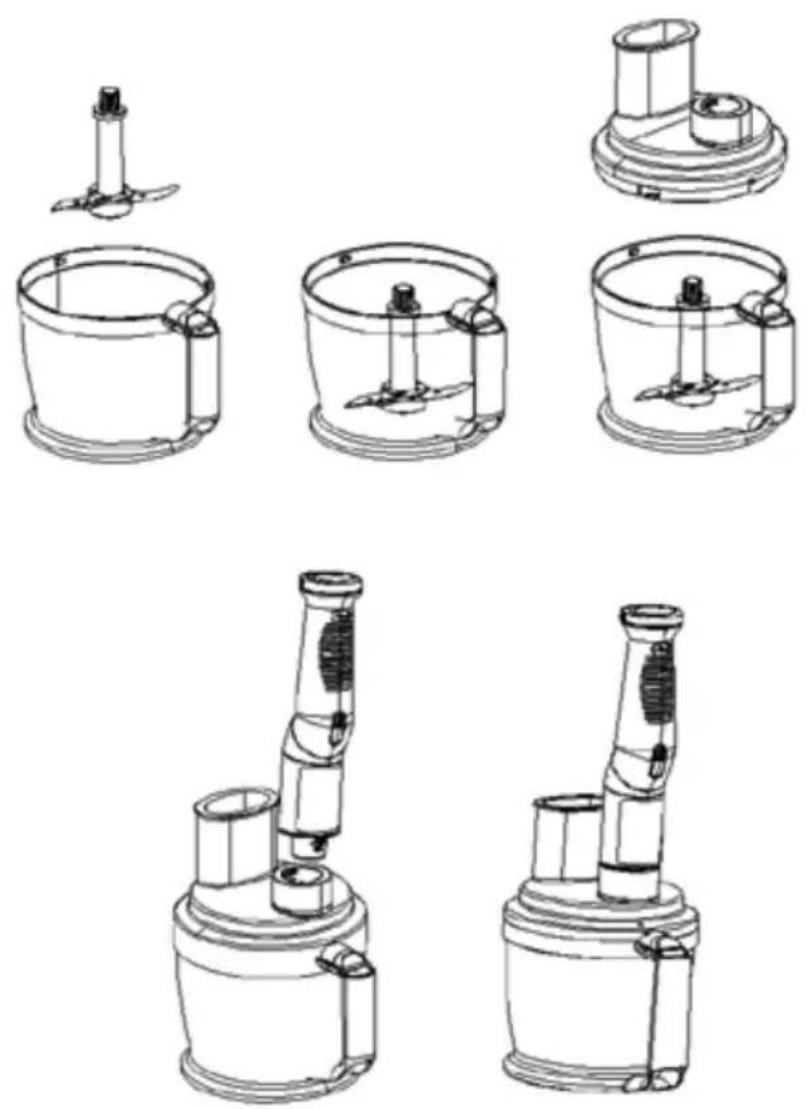

Using the S-Blade

1. Place the S-Blade on the center pin of the Food Processor Bowl. Press down on the blade and lock the blade in place. Always place the Food Processor Bowl on the anti-slip base.
2. Place the Food Processor Bowl Lid over the Food Processor Bowl and twist to lock the lid in place.

3. Attach the Motor Housing to the Food Processor Bowl Lid and twist until they lock into place.

4. Use the Variable Speed Controller to select a speed. Press the Unlock Button and then press and hold the Power Button to turn on the appliance.

5. Carefully use the Pusher to guide food into the feeder tube. Never use your finger or a utensil to guide food into the feeder tube.
6. When you are done, release the Power Button to stop. After 10 seconds, the Indicator Lights will turn off.

Using the Masher

1. Attach the Masher Shaft to the Masher Holder and twist until they lock into place.

2. Attach the Masher Holder to the Motor Housing and twist until they lock into place.

3. Lower the appliance into the vessel containing your ingredients. Use the Variable Speed Controller to select a

speed. Press the Unlock Button and then press and hold the Power Button to turn on the appliance.

1. To adjust your speed, turn the Variable Speed Controller. To pulse, press and release the button.

2. When you are done, release the Power Button to stop. After 10 seconds, the Indicator Lights will turn off.

Line drawings of four different types of laboratory apparatus, including a tripod and three vertical gauges with a beaker (no text or labels)

Choosing a Speed for All Functions

Recommendation: Start at a low speed and increase as needed after you begin.

Tool/ Attachment*	Function	Speed	Maximum Capacities	Size	Operation Time
S-Blade Food	Processor	High 300 g/10.58 oz raw beef200 g/7 oz nuts200 g/7 oz vegetables, such as carrots, potatoes200 g/7 oz Parmesan (hard) cheese200 g/7 oz baking chocolate	2–2.5 cm .78 in–.98 in N/A2–3 cm .78 in–1.18 in1–2 cm .39 in–.78 in1–2 cm .39 in–.78 in	15 seconds15 seconds15 seconds15 seconds15 seconds15 seconds
S-Blade Food	chopper	High 150 g/5.29 oz raw beef100 g/3.5 oz nuts100 g/3.5 oz vegetables, such as carrots, potatoes100 g/3.5 oz Parmesan (hard) cheese100 g/3.5 oz baking chocolate	2–2.5 cm .78 in–.98 in N/A2–3 cm .78 in–1.18 in1–2 cm .39 in–.78 in1–2 cm 39 in–.78 in	15 seconds15 seconds15 seconds15 seconds15 seconds15 seconds
Masher Masher	High To process 1000 g boiled potatoes using a large bowl		1–2 cm 39 in–.78 in	1 minute
Slicer/shredder blade	Slicing/shredding food and vegetables, such as carrots	High 500 g/17.63 oz vegetables, such as carrots, cabbage, potatoesIMPORTANT:The Slicer and Shredder Disc are not suitable for cutting hard meat and cheese.	N/A Until a	batch is shredded

* Some accessories may be sold separately.

Cleaning

Power off and unplug the appliance before cleaning.
All blades are very sharp. Handle carefully.
Use only a damp cloth to clean the Motor Housing and Chopper Bowl Lid.
Do not immerse the Motor Housing in water.
■ Remove the Blade Guard before cleaning the Blender Shaft.

After processing salty food, rinse the parts that were used immediately.

When processing colorful food, the plastic parts of the appliance can become discolored. Wipe these parts with vegetable oil before cleaning.

Storage

Always place the plastic guard on the Chopper Blade before storing. Store the appliance and its parts in a clean, dry place.

The Emeril Lagasse™ Blender & Beyond Plus™ is covered by a 90-day money-back guarantee. If you are not 100% satisfied with your product, return the product and request a replacement product or refund. Proof of purchase is required. Refunds will include the purchase price, less processing and handling. Follow the instructions in the Return Policy below to request a replacement or refund.

REPLACEMENT GUARANTEE POLICY

Our products, when purchased from an authorized retailer, include a 1-year replacement guarantee if your product or component part does not perform as expected, the guarantee extends only to the original purchaser and is not transferable. If you experience an issue with one of our products within 1 year of purchase, return the product or the component part for replacement with a functionally equivalent new product or part. The original proof of purchase is required, and you are responsible to pay to return the appliance to us. In the event a replacement appliance is issued, the guarantee coverage ends six (6) months following the receipt date of the replacement appliance or the remainder of the existing guarantee, whichever is later. Empower Brands, LLC reserves the right to replace the appliance with one of equal or greater value.

RETURN POLICY

If, for any reason, you would like to replace or return the product under the money-back guarantee, your order number can be used as the return merchandise authorization number (RMA). If the product was purchased in a retail store, return the product to the store or use "RETAIL" as the

RMA. Return your product to the address provided below for a replacement, which will incur no additional processing and handling fees, or for the refund of your purchase price, less processing and handling. You are responsible for the cost of returning the product. You can locate your order number at www.customerstatus.com. You can call customer service at 973-287-5132 for any additional questions. Pack the product carefully and include in the package a note with (1) your name, (2) mailing address, (3) phone number, (4) email address, (5) reason for return, and (6) proof of purchase or order number, and (7) specify on the note whether you are requesting a refund or replacement. Write the RMA on the outside of the package.

Send the product to the following return address:

Emeril Lagasse Blender & Beyond Plus Empower Brands, LLC 500 Returns Road Wallingford, CT 06495

If the replacement or refund request has not been acknowledged after two weeks, please contact Customer Service at 973-287-5132.

REFUND

Refunds requested within the money-back guarantee timeframe will be issued to the payment method used at purchase if the item was purchased directly from Empower Brands, LLC. If the item was purchased from an authorized retailer, proof of purchase is required, and a check will be issued for the item and sales tax amount. Processing and handling fees are non-refundable.

We are very proud of the design and quality of our Emeril Lagasse Blender & Beyond Plus ^TM .

This product has been manufactured to the highest standards. Should you have any questions, our friendly customer service staff is here to help you.

To contact us, call us at 973-287-5132.

Distributed by: Empower Brands, LLC Middleton, WI 53562 © 2022 Empower Brands, LLC All rights reserved.

EMERIL-BBP_IB_WM_ENG_V2_220627
