Product Type	Cordless Drill Driver
Brand	Ozito
Model	PXBHS-180
Power Source	18V Li-ion Battery (not included)
Chuck Type	Keyless, 10mm (3/8")
No-Load Speed	0-400 / 0-1500 RPM (two-speed gearbox)
Max Drilling Capacity (Wood)	30 mm
Max Drilling Capacity (Metal)	10 mm
Max Drilling Capacity (Masonry)	10 mm (with appropriate bit)
Max Torque	30 Nm
Torque Settings	18+1 (drill mode)
Weight (with battery)	1.2 kg
Dimensions (LxWxH)	200 x 70 x 200 mm
Battery Voltage	18 V
Battery Compatibility	Ozito Power X Change range
Charger Included	No (sold separately)
LED Work Light	Yes, with pre-glow function
Variable Speed Trigger	Yes
Forward/Reverse Switch	Yes
Belt Clip Included	Yes
Safety Features	Lock-on button, overload protection
Maintenance	Keep vents clean, store in dry place
Spare Parts Availability	Contact Ozito service center
Warranty	5 years (when registered)

Frequently Asked Questions - PXBHS-180 Ozito

What battery does the Ozito PXBHS-180 use?

The PXBHS-180 uses an 18V Li-ion battery from the Ozito Power X Change range. Battery and charger are sold separately.

How do I change the drill bit?

Rotate the keyless chuck counterclockwise to open, insert the bit, then tighten clockwise by hand. Ensure the bit is centered and secure.

What is the maximum drilling capacity in wood?

The maximum drilling capacity in wood is 30 mm with a suitable wood drill bit.

How do I adjust the torque?

Rotate the torque adjustment ring to the desired setting (1-18 for screwdriving, or drill icon for drilling). Higher numbers provide higher torque.

The drill doesn't start; what could be wrong?

Check if the battery is charged and properly inserted. Ensure the forward/reverse switch is not in the middle lock position. Also check for overload protection activation.

Can I use this drill for masonry?

Yes, with a masonry drill bit in drill mode (torque ring set to drill icon). Maximum capacity is 10 mm.

How do I clean and maintain the drill?

Wipe the exterior with a damp cloth. Keep the ventilation slots free of dust. Do not use solvents. Store in a dry place.

What is the warranty period?

The PXBHS-180 comes with a 5-year warranty when registered online within 30 days of purchase. Proof of purchase required.

Are spare parts available?

Yes, spare parts such as chuck, brushes, and switch are available through Ozito service centers. Contact Ozito for details.

Can I use the drill while the battery is charging?

No, the drill cannot be used while the battery is charging. The battery must be removed and charged separately using the compatible charger.

USER MANUAL PXBHS-180 Ozito

Chuck Size: ∅2-13mm Keyless

Chuck Material: Metal

No Load Speed: 0-500 / 0-1,800/min

Impact Rate: 0-8,000 / 0-28,000/min

Torque Settings: 20

Max. Torque: 50Nm

Drilling Capacities: ∅32mm (Timber)

∅13mm (Metal)

Ø10mm (Masonry)

Weight: 1.6kg

ozito.com.au

5YEAR REPLACEMENT WARRANTY

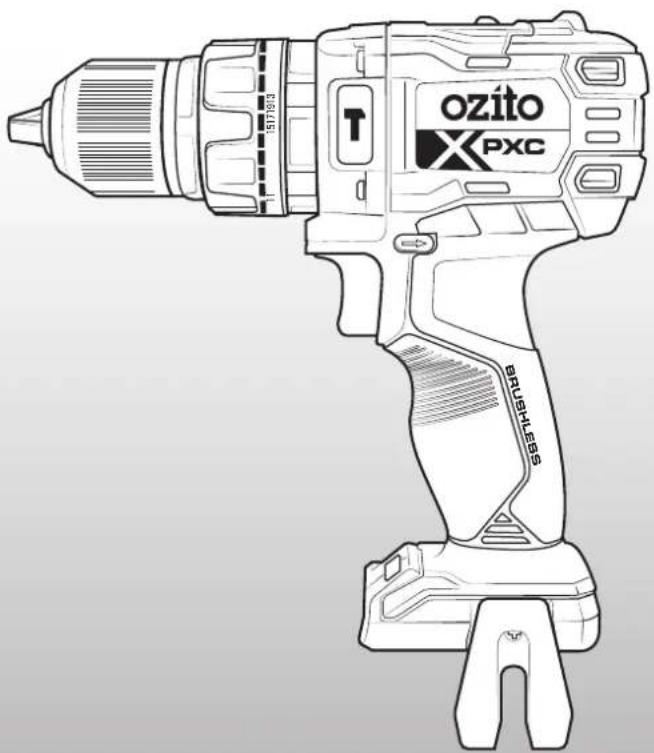

Line drawing of a PXC-branded electric drill with no visible text or symbols on the device itself

STANDARD EQUIPMENT

Brushless 13mm Hammer Drill & Belt Clip

PXBHS-180

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486

New Zealand 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
  • If the tool is disassembled or tampered with in any way.

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting our customer service helpline above.

5 YEAR REPLACEMENT WARRANTY

Your Product is guaranteed for a period of 60 months from the original date of purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty. Lithium Ion batteries and chargers are covered by a 36 month warranty and are excluded from the warranty extension. Warranty excludes consumable parts.

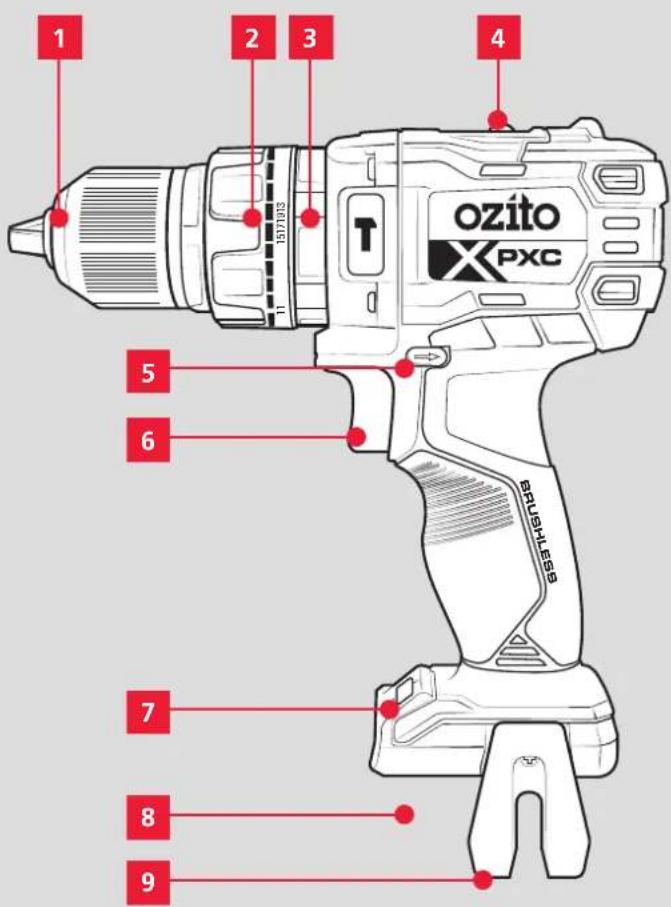

KNOW YOUR PRODUCT

BRUSHLESS 13MM DRILL DRIVER

1. Keyless Chuck

2. Variable Speed Trigger

3. Torque Adjustment Collar

4. LED Light

5. Function Collar

6. Battery Seating

7. Gear Selector

8. Belt Clip

9. Forward/Reverse Button

BATTERY & CHARGER

This tool is compatible with all batteries & chargers from the Ozito Power X Change range.

ONLINE MANUAL

Scan this QR Code with your mobile device to take you to the online manual.

SETUP & PREPARATION

1. FITTING THE BATTERY

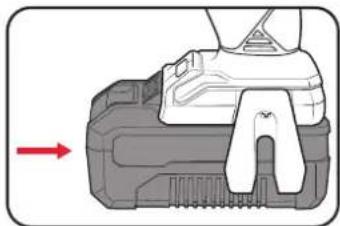

Installing The Battery Pack

1. Slide the battery into the tool base until it clicks into place.

Mechanical component diagram showing a foot pressing down on a base, with a red arrow indicating direction (no text or symbols present)

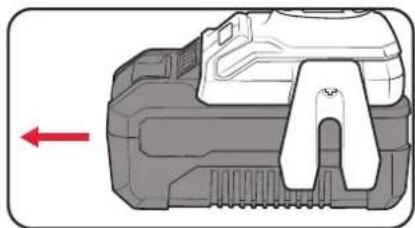

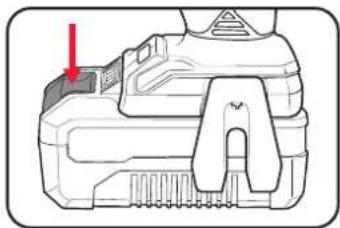

Removing The Battery Pack

1. Hold down the battery release button.

Technical line drawing of a mechanical component with no visible text or symbols

1. Slide the battery out.

Diagram of a mechanical component with a red arrow indicating direction (no text or symbols present)

OPERATION

2. FITTING ACCESSORIES 3. CONTROLS

ENSURE THE TOOL IS SWITCHED

OFF AND THE BATTERY IS REMOVED BEFORE

PERFORMING ANY OF THE FOLLOWING TASKS.

Installing A Drill Bit

1. Rotate the chuck collar anti-clockwise to open the chuck.

Technical illustration of a screw with a red circular motion indicator (no text or symbols)

1. Insert the drill bit, making sure it is centred in the chuck.

Illustration of a drill bit with a red arrow indicating direction (no text or symbols)

1. Tighten the chuck by turning the chuck collar clockwise.

Illustration of a drill bit with red circular motion arrows indicating rotational direction (no text or symbols)

1. Pull on the bit to ensure it is firmly secured.

Illustration of a drill bit with a red arrow indicating direction (no text or symbols)

Removing A Drill Bit

1. Open the chuck by rotating the chuck collar and remove the drill bit.

WARNING! DO NOT HANDLE ACCESSORIES WITHOUT GLOVES AS THEY ARE SHARP & CAN BECOME HOT AFTER USE, POTENTIALLY CAUSING INJURY.

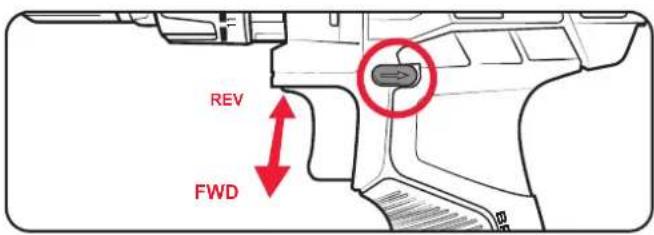

Forward/Reverse Lever

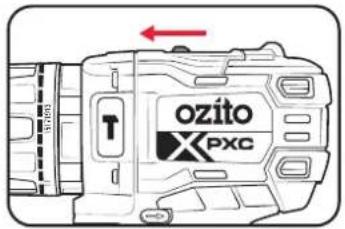

1. To drill or drive screws, push the forward/reverse button towards the left of the drill.

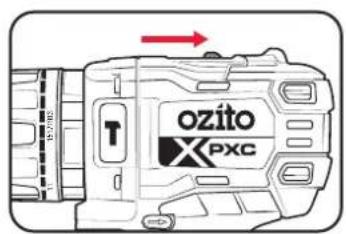

2. Push the button towards the right of the tool to reverse the rotation.

Variable Speed Trigger

1. Squeeze the variable speed trigger to start the tool.

Note: The more the variable speed trigger is depressed, the faster the drill bit will rotate.

1. Release the trigger to stop drilling.

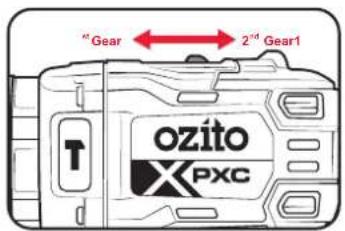

Speed Control

The gear selector controls the speed of the drill. First gear allows slower drilling with more torque, while second gear is suitable when less torque but higher speed is required.

1. Slide the switch forward to select first gear.
2. Slide the switch backward to select second gear.

Screwdriving

1. To screw into wood, metal or plastic, turn the function collar to align the arrow on the housing with the screw icon. The clutch is then enabled to adjust torque.

Note: 1st gear (low speed) is recommended for screwdriving.

1. Adjust the torque by rotating the torque collar to the desired setting.

Note: Selecting a higher torque setting will allow the drill to use more torque to drive the screw in or out. To prevent damaging the screw head, it is recommended to start at a low torque setting and increase when necessary.

Drilling

1. To drill into wood, metal or plastic, turn the function collar and align the arrow on the housing with the drill icon.

Hammer Drilling

1. To drill into concrete, brick or other masonry, turn the function collar to align the arrow on the housing with the hammer icon.

Note: 2nd gear (high speed) is recommended for hammer drilling.

4. USAGE

Drilling

Before starting to drill, perform a few simple checks.

1. Depress and release the variable speed trigger to ensure it is not locked on.

1. Check the forward/reverse lever is on the desired setting.

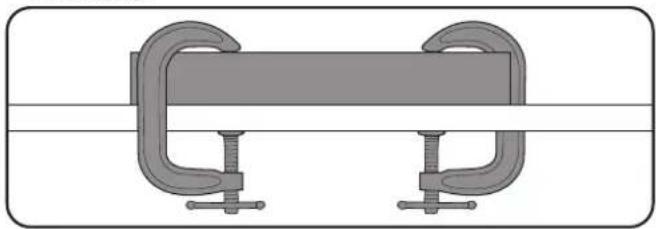

1. Secure the material to be drilled in a vice or clamp to stop it turning whilst drilling.

Mechanical clamp assembly diagram with two curved arms and a central rectangular block (no text or symbols)

1. Hold the drill firmly and place the bit at the point to be drilled.

Illustration of a drill bit with a red arrow indicating direction (no text or symbols)

1. Depress the variable speed trigger to start the drill.

Diagram of a vehicle interior showing a highlighted component with a red arrow indicating direction (no text or symbols present)

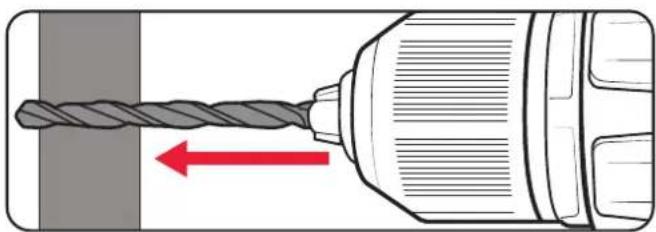

1. Move the drill bit into the workpiece.

Diagram of a drill bit with a red arrow indicating direction (no text or symbols)

Note: Do not force the drill or apply side pressure to elongate the hole. Let the drill do all the work.

Drilling To A Preset Depth

A simple way of achieving a hole at a desired depth is to use masking tape.

1. Measure along the drill bit to the desired depth.

Illustration of a twist drill bit placed above a ruler, showing measurement markings (no text or symbols)

1. Wrap a small piece of masking tape tightly around the drill bit.

Diagram of a twist drill bit with directional arrows indicating compression (no text or labels)

1. Drill into the material until the surface reaches the start of the tape.

Diagram of a drill bit with a red arrow indicating direction (no text or symbols)

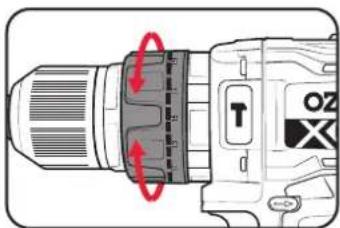

Torque Settings

Torque settings can alter the depth to which you can drill or drive into a surface. To determine the torque setting required to drive a screw perfectly flush to the work surface, follow the below steps.

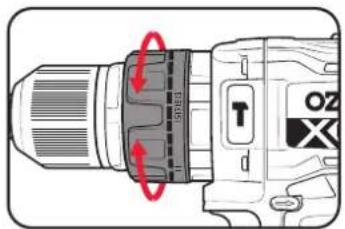

1. Set the torque collar to the lowest setting and tighten the first screw.

Diagram of a drill bit with red circular arrows indicating rotational direction (no text or symbols)

1. If the clutch ratchets and makes a clicking sound before screw is flush, increase the collar setting and continue tightening.

Diagram of a screwdriver with a red arrow indicating direction (no text or symbols)

1. Repeat until you reach the correct setting/screw depth. Use this setting for the remaining screws.

Diagram of a screw being inserted into a drill bit, with a red arrow indicating direction (no text or symbols)

Note: When drilling hard, smooth surfaces, use a centre punch to mark the desired hole location. This measure will prevent the drill bit from slipping off centre as you start the hole.

Note: When drilling metals, use light oil on the drill bit to keep it from overheating. The oil will prolong the life of the bit and increase drilling action.

TROUBLESHOOTING MAINTENANCE

Variable speed trigger is locked

Ensure that the forward/reverse button is in the correct position; pressed left for forwards direction, pressed right for backwards direction. If it is in between the two settings the variable speed trigger will be locked.

The drill is stripping the screw head

Ensure you are starting with a low torque setting and holding the drill securely onto the screw head. Increase the torque setting as required.

Drill has cut out during use

The battery charge could be completely depleted. Place the battery on the charging cradle for 3-5 hours.

Battery protection system

The tool is equipped with the battery protection system, which helps to ensure a long service life. The output power automatically cuts off during operation when the tool and/or battery are placed under the following situations:

- When the tool is overloaded:

If this occurs, release the trigger switch and remove causes of overload, then pull the switch trigger again to restart.

- When the remaining battery capacity becomes low: Recharge the battery pack.

Note: The battery protection system does not in any way damage the tool.

Note: The indicated capacity may be lower than the actual level during use or immediately after using the tool.

WARNING! BEFORE CLEANING OR CARRYING OUT ANY MAINTENANCE PROCEDURE, ENSURE THAT THE BATTERIES HAVE BEEN REMOVED.

Cleaning

• Keep the ventilation slots of the tool clean at all times to ensure efficient operation.
• After each use, blow air through the tool housing to ensure it is free from all dust, dirt, etc. Build up of dust or dirt particles may cause the tool to overheat and shorten the life of the tool.
• If the housing of the tool requires cleaning, do not use solvents. Use of a cloth only is recommended.
• Never allow any liquid to get inside the tool, never immerse any part of the tool into liquid.

Storage

When not in use, the tool should be stored in a dry, frost free location, keep out of children's reach.

Note: Ozito Industries will not be responsible for any damage or injuries caused by repair of the tool by an unauthorised person or by mishandling.

DESCRIPTION OF SYMBOLS

V	Volts		Hz	Hertz
~	Alternating current millimeters		mm
/min			n_b	No load speedRevolutions per minute
---	Direct current		∅	Diameter
Nm	Newton metres Ampere hours		Ah
	Regulatory Compliance Mark (RCM)		bpm	Beats per minute
[006c]	[4WW7]	Read Instruction Manual	[050k]	Warning

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.

SPARE PARTS

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit www.ozito.com.au or contact Ozito Customer

Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [e-mail]

ELECTRICAL SAFETY

WARNING! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage.

Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.

Save these instructions and other documents supplied with this tool for future reference.

The charger has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate.

Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

This tools charger is double insulated; therefore no earth wire is required. Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool.

If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard.

The power supply for this products charger should be protected by a residual current device (rated at 30mA or less). A residual current device reduces the risk of electric shock.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Battery tool use and care

a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.
9. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service provider.

HAMMER DRILL SAFETY WARNINGS

WARNING! This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Wear ear protectors when drilling. Exposure to noise can cause hearing loss.
  • Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
• Hold power tool by insulated gripping surfaces, when performing an operation where the drilling/screwing accessory may contact hidden wiring or its own cord. Accessories contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• Before drilling into walls, ceilings etc, ensure that there are no concealed power cables or pipes in the cavity.
• Accessories and tools get hot during operation, it's recommended to wear gloves when handling them.
• Do not use this tool for prolonged periods of time. Take regular breaks. Use gloves to provide extra cushioning in order to avoid any injury from the vibrations of the tool.
  • Always use safety glasses. Everyday glasses are not Safety Glasses.

WARNING! Some dust created by power sanding, sawing, grinding, drilling and other construction activities contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints
  • Crystalline silica from bricks and cement and other masonry products
• Arsenic and chromium from chemically treated timber

Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area and work with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.
