| Product Type | Window Air Conditioner |
| Model | W-10CR |
| Brand | Magnavox |
| Cooling Capacity (BTU) | 10,000 BTU |
| Room Coverage (sq. ft.) | Up to 450 sq. ft. |
| Energy Efficiency Ratio (EER) | 12.0 |
| Power Supply | 115V / 60Hz |
| Amperage | 8.5 A |
| Dimensions (W x H x D) | 24.1 x 15.6 x 20.9 inches |
| Net Weight | 68 lbs |
| Installation Type | Window mounting kit included |
| Cooling Fan Speeds | 3 (Low, Medium, High) |
| Thermostat | Mechanical rotary control |

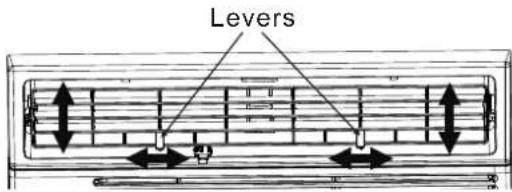

| Air Direction Control | Adjustable horizontal louvers |
| Filter Type | Washable foam filter |
| Filter Access | Front grille removal |
| Noise Level (dB) | 52 dB (high speed) |
| Refrigerant | R-32 |
| Safety Features | Overload protection, anti-tip brackets |
| Maintenance | Clean filter every 2 weeks, annual coil cleaning |
| Warranty | 1 year parts and labor |
Frequently Asked Questions - W-10CR MAGNAVOX

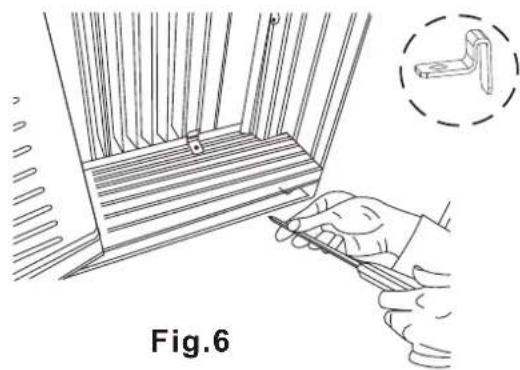

How do I install the Magnavox W-10CR air conditioner?
The W-10CR is designed for window installation. Use the included mounting kit to secure the unit in a double-hung window. Adjust the side curtains to seal gaps and install the support bracket for stability.
How often should I clean the filter?
Clean the washable foam filter every two weeks under normal use. Remove the front grille, take out the filter, rinse with warm water, and let it dry completely before reinstalling.
What is the cooling capacity of this unit?
The W-10CR has a cooling capacity of 10,000 BTU, suitable for rooms up to 450 square feet.
Can I use an extension cord with this air conditioner?
No, it is not recommended to use an extension cord due to fire risk. Plug the unit directly into a grounded 115V outlet.
Why is my air conditioner not cooling properly?
Check if the filter is dirty, if the thermostat is set correctly, and if there are any obstructions blocking the airflow. Also ensure the window is properly sealed.
How do I remove the front grille for filter access?
Grasp the grille at the sides and pull it forward. It snaps off easily. After cleaning the filter, align the grille tabs and push until it clicks back into place.
Does the W-10CR have a remote control?

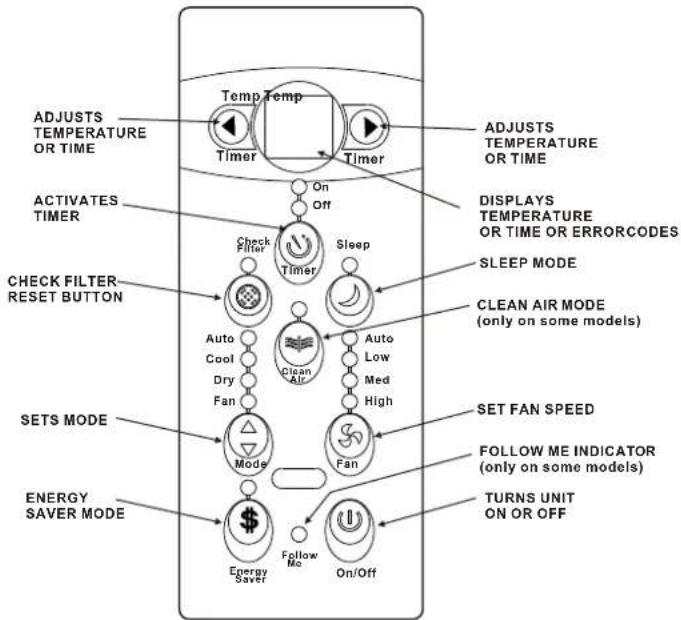

No, this model does not come with a remote control. All functions are operated via the front control panel.
What is the noise level of this air conditioner?
The noise level is approximately 52 dB on high fan speed, which is similar to a normal conversation.
Can I install this air conditioner in a sliding window?
The W-10CR is designed for double-hung windows. For sliding windows, you may need additional mounting hardware. Consult a professional installer.
How do I dispose of the W-10CR at the end of its life?
Contact your local waste management facility for proper disposal of refrigerant-containing appliances. Many retailers offer recycling programs.
