SC-800AU8FL - Washing machine Seiki - Free user manual and instructions

Product Type	Front Load Washing Machine
Brand	Seiki
Model	SC-800AU8FL
Washing Capacity	8 kg
Dimensions (W x D x H)	595 x 600 x 850 mm
Net Weight	58 kg
Power Supply	220-240 V ~ 50 Hz
Rated Power	2200 W
Washing Power	320 W
Spinning Power	520 W
Heating Power	2000 W
Water Pressure Range	0.03 - 1 MPa
Spin Speed Options	0, 400, 800, 1000, 1200 rpm
Programs	Cotton, ECO, Sports, Underwear, Wool, Duvet, Mix, Synthetic, Baby Care, Quick 15', Rinse+Spin, Spin
Child Lock	Yes (Press and hold *Pre Delay for 3 sec)
Tub Clean Function	Yes (Press and hold TEMP and SPEED for 3 sec)
Delay Start	Up to 24 hours
Energy Efficiency Program	Cotton 40°C at 1200 rpm
Transport Bolts	Removable (keep for future transport)
Water Inlet Hose	New hose set required; connect to tap with elbow
Drain Hose Placement	Max 100 cm above ground, min 60 cm
Filter Cleaning	Drain pump filter and inlet filter

Frequently Asked Questions - SC-800AU8FL Seiki

How do I remove the transport bolts?

Use a spanner to remove the bolts from the back of the appliance. Cover the holes with the provided caps. Keep the bolts for future transport.

What should I do if the washing machine does not start?

Check that the door is properly closed. Restart after closing. If clothes are stuck, adjust them. Ensure the appliance is plugged in and power is on.

How can I clean the drain pump filter?

Unplug the appliance and let water cool. Open the filter access, clean out lint and debris, and reinstall the cap securely. Do not remove during a cycle.

What does error code E30 mean?

E30 indicates a door lock problem. Ensure the door is closed properly. Restart the machine after closing.

How do I activate child lock?

Press and hold the *Pre Delay button for 3 seconds. Repeat the same sequence to unlock.

What is the maximum load for the wool program?

The wool program has a maximum load of 2 kg. Use cold water or 20°C, max spin 800 rpm.

Why is there detergent residue in the dispenser?

Detergent may be damp or the compartment needs cleaning. Wipe the dispenser dry and clean regularly.

How do I level the washing machine?

Adjust the four feet by twisting them. Use a spirit level on top to check. Lock the nuts with a spanner when level.

Can I use an extension cord?

No, do not use an adaptor or extension cord. Plug directly into a properly earthed 220-240V outlet that is easily accessible.

What is the energy test program?

The energy test program is Cotton 40°C with 1200 rpm spin. It is the most efficient for normally soiled cotton laundry.

USER MANUAL SC-800AU8FL Seiki

Line drawing of a SEIKI washing machine with control panel and buttons (no text or symbols on the device itself)

INSTRUCTION MANUAL

Please read this manual carefully before using, and keep it for future reference.

CONTENTS

General	Safety
Product	Overview
	Accessories				8
	Control	Panel
Getting	Started
	Unpackaging				10
Transportation and removal of Transport Bolts			10
	Levelling	the	appliance
Connecting the water inlet hose			12
	Connecting	the	Drain	Hose
Instructions
	Before	First	Use
	Wash	Care	Symbols
	Detergent	Dispenser
Wash	Programs				18
Cleaning	and	Maintenance
FAQs					23
Specifications					24
Customer	Helpline				Last

8

[Non-Text]

10

GENERAL SAFETY

IMPORTANT INFORMATION

Read this manual thoroughly before you start using the Front Load Washing Machine.

The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to.

Please follow all instructions and take notice of all warnings.

Pay close attention to messages that follow this safety alert symbol or the words DANGER, WARNING or CAUTION. These words will be used to alert you of potential hazards that and injure you and others. Following these instruction will tell you how to reduce the chance of injury and the possible dangers if instructions aren't followed.

WARNING

This symbol indicates when there is a serious risk of injury if you do not pay attention to the warnings.

CAUTION

This symbol indicates when to be careful to avoid a serious risk of injury to oneself or damage to property.

GENERAL SAFETY INSTRUCTIONS (Cont.)

ELECTRICAL SAFETY

• Voltage: Plug the appliance to a 220-240V, 50Hz, properly earthed power outlet, it must be in good working order.
• Power connection: Do not use an adaptor or an extension cord.

Plug the power plug directly into a separate power point that cannot be accidentally turned off, and that is easily accessible so you can switch it off if needed.

• Power cord: Do not kink or damage the power supply cord. Make sure it is behind the appliance so no one can step on or place anything on the power supply cord or against it. A damaged power plug may overheat and cause a fire.
• Damaged cord: Do not use a cord that shows cracks or damage. Any damage to the cord may cause a short circuit, fire and/or electric shock.

Contact our support centre on [e-mail] for advice

• Disconnection: Never pull the power cord to unplug appliance. Grip the plug and pull straight out from the power point.
• Electrical work: If the installation of this appliance requires any electrical work, make sure it is carried out by an electrician.

To reduce risk of fire, electric shock or injury, always follow these basic precautions and accident prevention measures when using this appliance, including the below:

NOTE: This appliance should be installed by an authorised technician else warranty will be void.

INSTALLATION

• The product is heavy, be careful when moving it. To avoid back or other injury, have 2 people lift or mechanical aid when installing.
• When unboxing, thoroughly inspect the appliance carefully for any damage. If there is any damage, do not install the appliance. Contact our support centre on [e-mail] for advice.
• While installing the appliance make sure that the power cord is not bent or flattened.
• Make sure to remove all packaging materials such as foams and tapes before installing the appliance.
• Make sure if the machine is to be placed on carpet that the ventilation openings in the base are not obstructed
  • Install the washing machine on a flat level and stable ground.

GENERAL SAFETY INSTRUCTIONS (Cont.)

USAGE CONDITIONS AND RESTRICTIONS

• Supervision over children is to ensure that they do not play with the appliance. Never allow them to use, play with or crawl inside the appliance. Cleaning and maintenance must not be done by children.
• This appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are being supervised or been given instructions on how to use of the appliance in a safe way and understand the hazards with using this appliance incorrectly.
• Only for indoor domestic use only. It is not to be used for industrial or commercial use.
• Do not use this product for anything other than its intended purpose, and only use it as described in this manual. Do not attempt to alter or modify this appliance.
• In the process of a hot wash, the door window can become hot. Make sure not to touch it or that no children or pets come into contact with the door window.
• Ensure that emptying all pockets of every item to make sure that there is no hard, sharp objects such as coins, safety pins, bra wires, nails or screws can cause damage to the appliance and has a chance to block the pump.
• Damage or malfunction caused from foreign objects is not covered by your warranty to the appliance.
• Do not operate this appliance outdoors.
• Incorrect use can result in property damage, injury or death. We assume no liability for misuse of the appliance or noncompliance with these instructions.
  • Maximum load of dry clothes is 8kg
• This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- areas for communal use in blocks of flats or in launderettes.

GENERAL SAFETY INSTRUCTIONS (Cont.)

CLEANING AND MAINTENANCE

• Before cleaning or maintenance, always unplug the appliance from the power socket. Make sure you pull by the plug, not the cord as this can damage the power cord and cause a hazard.
• Only the filter requires regular cleaning, everything else is non user-serviceable parts. Do not try to repair, disassemble or modify the appliance.
• Check and clean the lint filter on a regular basis
• Service: Never try to repair, modify or replace any part of the appliance, unless this manual says you can do so. All other servicing is to be done by a qualified technician, or contact our support centre on [e-mail] for advice.

PRODUCT OVERVIEW

ACCESSORIES

instruction	water supply hose	wrench	transportation bolt caps

PRODUCT OVERVIEW (Cont.)

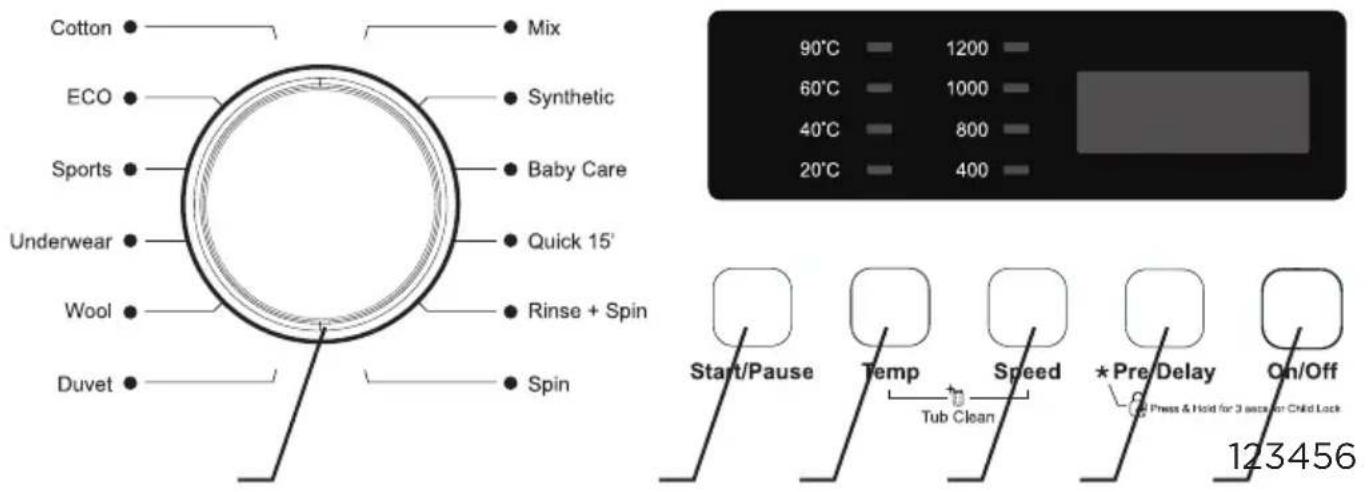

CONTROL PANEL

1. ON / OFF
2. PRE DELAY

When using Pre-Delay, you can delay washing of up to 24 hours.

1. SPEED SETTINGS
2. TEMPERATURE SETTINGS
3. START/PAUSE
4. WASH PROGRAM DIAL

CHILD LOCK

Press and hold *Pre Delay for 3 seconds to activate child lock, follow same sequence to unlock.

TUB CLEAN

Press and hold both TEMP and SPEED for 3 seconds to activate tub clean.

GETTING STARTED

Before installing your appliance, read all safety instructions in this manual, especially the sections on electrical safety and installation.

UNPACKING

- When unpacking the appliance, be sure to keep all the packaging materials until you have made sure your new appliance is undamaged and in good working order. Plastic can be a suffocation hazard for babies and young children, make sure the materials are out of their reach.

TRANSPORTATION

- CAUTION: VERY HEAVY! Be sure to team lift the appliance with someone or mechanical aid is required when moving the appliance. Keep the appliance upright as possible when moving the appliance.

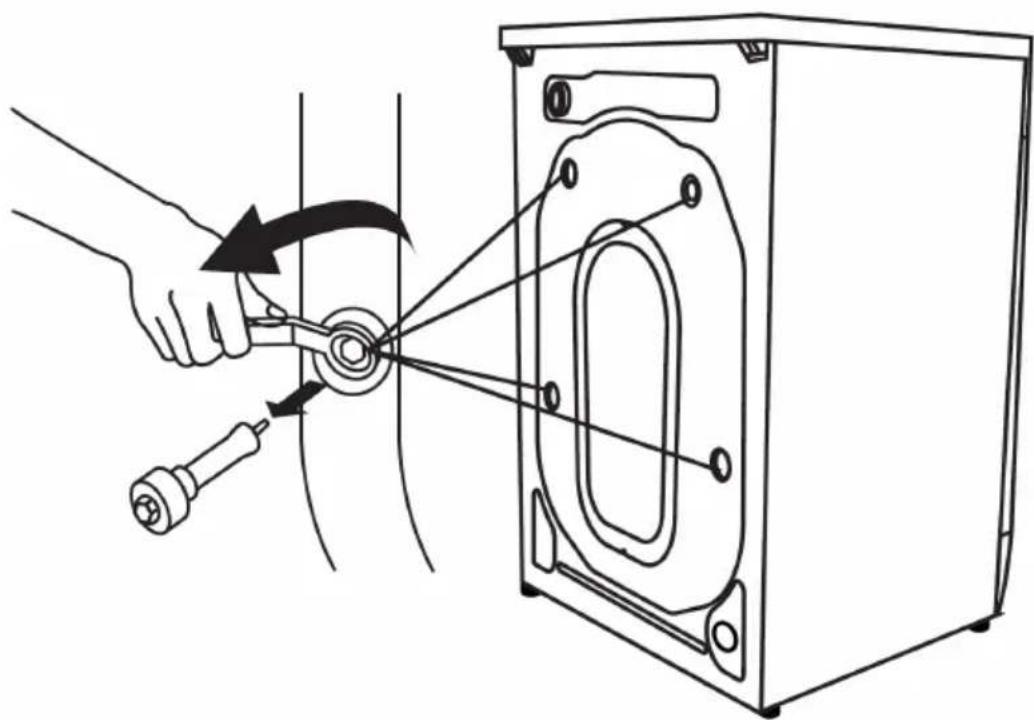

REMOVE TRANSPORT BOLTS

- IMPORTANT! Make sure before you install the appliance, you must remove the transit bolts from the back of the appliance and cover the holes with the hole covers provided. A spanner is required to remove the bolts.

NOTE: Keep the transit bolts for future needs if you are going to move the appliance again to another location. The bolts hold the drum in place during transportation but MUST be removed before use so the drum can move during a wash. Leaving the bolts in can result in strong shock, noise and malfunction.

Diagram of a hand using a tool to adjust or install a mechanical component, showing no text or symbols present.

GETTING STARTED (Cont.)

LEVELLING THE APPLIANCE

IMPORTANT! Make sure to level the appliance carefully with a spirit level to ensure the most accurate levelling of the appliance. This is a must if your floor in unbalanced to level the washing machine.

- Make sure to position the appliance on a level and stable ground. If the floor is uneven you can adjust the feet by twisting foot then with a spanner you twist the lock nut to the top to lock it in place.

- By placing a spirit level on top of the appliance you can check correctly to aid you in adjusting the feet levelling nuts to adjust the appliance to be completely level.

INSTALLATION AREA

IMPORTANT! When installing the appliance the spacing on the side and behind the appliance must not be less the 20mm to allow proper ventilation.

Note: Make sure to avoid direct sunlight onto the appliance.

GETTING STARTED (Cont.)

CONNECTING THE WATER INLET HOSE

IMPORTANT! To prevent leakage or water damage please follow the below instructions. Do not kink, crush, modify or sever the water inlet hose.

Minimum Inlet Water Pressure: 0.03MPa/Maximum Inlet Water Pressure: 1MPa

Be sure to only use new hose sets when connecting the washing machine. Do not re-use old hoses.

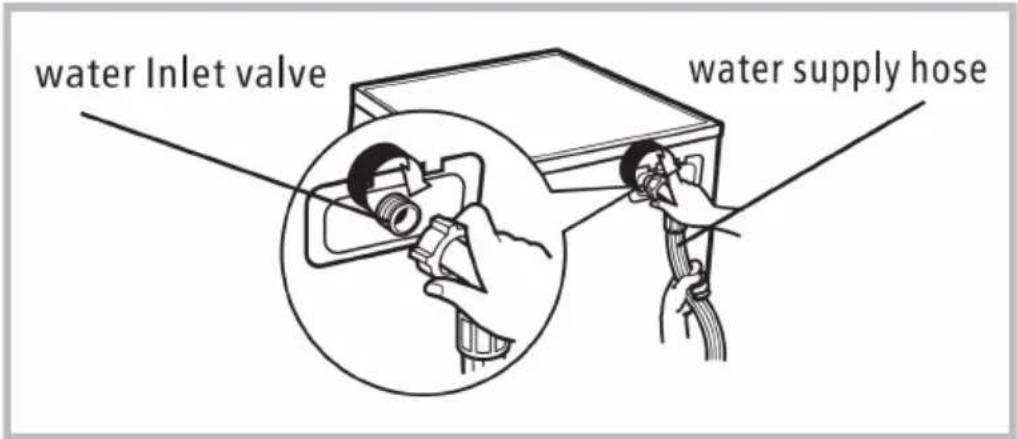

INSTALL INLET PIPE

1. Connect the elbow to tap and fasten it clockwise.
2. Connect the other end of inlet pipe to the inlet valve at the backside of washing machine and fasten the pipe tightly clockwise.

Notes: If there is any leakage with hose after connecting, then repeat the steps to connect inlet pipe. The most common type of tap shall be used to supply water. If the tap is square or too big, then the tap should be changed to a standard one.

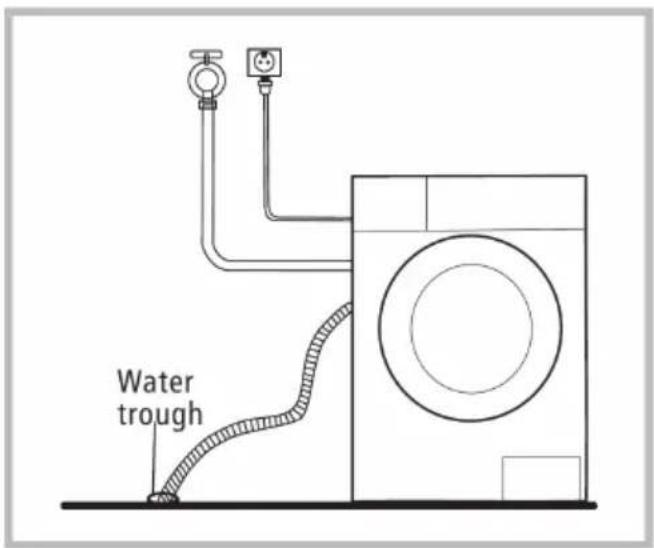

PLACE OUTLET HOSE

There is 1 way to place the end of outlet hose:

- Put it beside the water trough.

Connect the other end of the inlet pipe to the inlet valve on the back of the

appliance and fasten the pipe tightly clockwise.

Line drawing of a bathtub with a tube inserted into the sink (no text or symbols)

GETTING STARTED (Cont.)

CONNECTING THE DRAIN HOSE

Do not kink or protract the drain hose. Position the drain hose correctly otherwise damage will result in water leakage.

There are two ways to place the end of drain hose:

1. Put it through the water trough.
2. Connect it to the branch drain pipe.

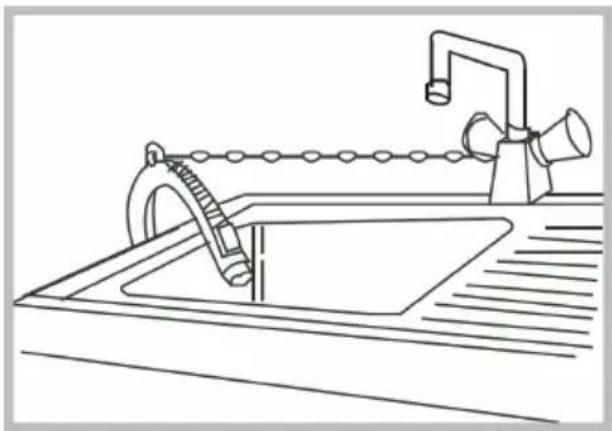

When installing the drain hose into the laundry sink, make sure it is properly fitted with rope to hold it in place. If the hose is too long, do not try to push the end were it comes from the appliance in to shorten length, this can damage it.

Line drawing of a kitchen sink with faucet and chain, no text or symbols present

WARNING

• Make sure that the hose is not higher then 120cm above the ground, otherwise appliance will not drain the water well.
• Never lay down the drain hose otherwise water will pour out.
  • Make sure the hose has no kinks so it can drain properly.

INSTRUCTIONS

BEFORE FIRST USE

- Before any first wash make sure everything is installed correctly. Make sure to do one wash with no items inside to clean out the tube before your first loaded wash.

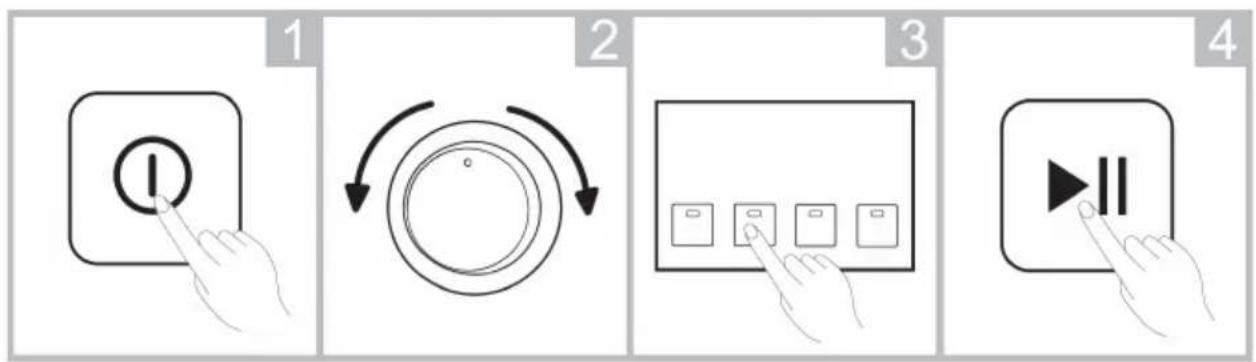

After the above steps have been completed, In a few simple steps shown below you can select the type of wash you want and get started.

Power On
Select Programme
Select function or default
Start up

INSTRUCTIONS (Cont.)

• Make sure that the appliance is in a correct working temperature (0-40°C). If the appliance is used under 0°C the inlet valve and draining system may be damaged.
  • Make sure that all labels are checked on items if they can be washed.
• Use non-foaming or less-foaming detergents which are more suitable for washing machines to wash correctly.

Line drawing of a sweater with a tag and tie, no text or symbols present

Check the label

Take out the items out of the pockets

Line drawing of two bags with circular patterns, no text or symbols present

Knot the long strips,zip or button

Simple line drawing of a bag with internal objects, no text or symbols present

Put small clothes into the pillow slip

Line drawing of a knitted sweater with pleated collar (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

Simple line drawing of a bag being folded into a basket (no text or symbols)

Separate clothes with different textures

WARNING

• Never use the washing machine to wash a single item at any given time, if you need to urgently wash an item, we suggest placing a few clothing items in there.
  • Make sure that all labels are checked on items if they can be washed.
• Use non-foaming or less-foaming detergents which are more suitable for washing machines to wash correctly.

INSTRUCTIONS (Cont.)

WASH CARE SYMBOLS

When choosing a wash program, check for any labels on your clothes and follow the instructions. below are some commonly used symbols.

INSTRUCTIONS (Cont.)

DETERGENT DISPENSER

Only use low-subsiding detergents and clothing care preparations that are for use in a front load washing machine.

Cross-sectional diagram of a white plastic washing machine with internal components and labeled parts (no text or symbols)

SYNTHETIC DETERGENT POWDER

Please make sure it is powdered detergent that can dissolve and not soap pieces places into this dispenser. (LEFT compartment indicated above)

LIQUID BLEACH

Bleach can be placed into this dispenser compartment when washing whites.

PREWASHING DETERGENT

If you want additional cleaning of your clothes, add pre-wash detergent to this compartment. (RIGHT compartment indicated above)

SOFTENER

Place fabric softener into this compartment, make sure not to exceed MAX marking. (MIDDLE compartment indicated above)

INSTRUCTIONS (Cont.)

WASHING PROGRAMS TABLE

Program	Temperature (°C)	Rinse (times)	Revolution (rpm)	Time (min)	Maximum load	Cloth type
Cotton	cold water(20°C, 40°C,60°C,90°C)	2	1000(0,400,800,1200)	94	rated	general cotton fabrics
Wool	cold water(20°C,40°C)	2	800(0,400,1000)	57	≤2kg	used for delicate textile notrd with"hand-wash" and wool fabrics
Sports	20°C(cold water,40°C)	2	1000(0,400,800)	83	≤4kg	used for sport suit noted with "hand-wash"
Mix	cold water(20°C,40°C)	2	1000(0,400,800)	73	≤4kg	cotton fabrics/ cellulose compound
Eco	20°C(cold water, 40°C,60°C)	2	1200(0,400,800,1000)	69	≤2kg	general cotton fabrics
Baby Care	60°C(40°C,90°C)	3	1000(0,400,800)	130	≤3kg	infant clothes needing degerming and mites
Quick 15'	cold water(20°C,40°C)	2	800(0,400,1000)	15	≤2kg	not too dirty and frequently used clothes
Rinse+spin		2	1000(0,400,800,1200)	38	rated	cotton fabrics/ cellulose compound
Spin			1000(0,400,800,1200)	14	rated	cotton fabrics/cellulose compound
Underwear	40°C(cold water,20°C)	2	1000(0,400,800)	76	≤3kg	cotton fabrics/cellulose compound
Duvet	60°C(cold water, 20°C,40°C,90°C)	2	1200(0,400,800,1000)	125	one piece	bed sheet/curtain
Synthetic	40°C(cold water, 20°C,60°C)	2	1000(0,400,800)	67	≤3kg	cellulose compound

• Energy test program: Cotton 40°C, Speed: 1200 RPM; Other as the default.
• “Cotton 40°C” is the standard washing programs to which the information in the label relates, and they are suitable to clean normal soiled cotton laundry and they are the most efficient programs in terms of energy and water consumption for washing that type of cotton laundry, the actual water temperature may differ from the declared cycle temperature.

CLEANING AND MAINTENANCE

WARNING:

- Before starting maintenance, ensure that the appliance is unplugged and close the tap.

CLEANING THE CABINET

Proper maintenance on the washing machine can extend its working life.

The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a wet cloth to wipe it off immediately. Make sure no sharp items are used to clean the appliance.

Line drawing of a hand cleaning a washing machine with a cloth (no text or symbols)

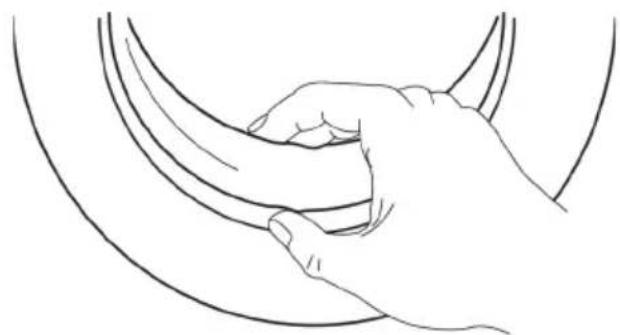

CLEANING THE DOOR SEAL AND GLASS

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can eventually cause leaks. Remove any coins, buttons or other objects from the seal (if any) after each wash.

Line drawing of a hand gripping a curved object, possibly a tool or device (no text or symbols present)

CLEANING AND MAINTENANCE (Cont.)

CLEANING THE INLET FILTER

Washing the filter in the tap

1 Close the tap
2 Remove the water supply hose from the tap
3 Clean the filter
4 Reconnect the water supply hose

Diagram of a faucet with rotating arrows indicating clockwise motion (no text or symbols)

Line drawing of a hand holding a connector with a cable, no text or symbols present

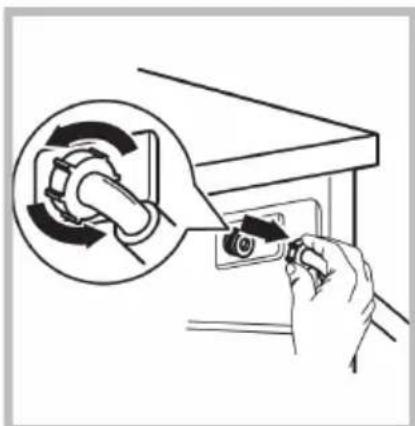

Washing the filter in the washing machine

1 Screw off the inlet pipe from the back of appliance
2 Pull out the filter with long nose pliers and reinstall after being washed
3 Use the brush to clean the filter
4 Reconnect the inlet pipe and turn on the tap

Hand inserting a device into a box, showing the internal mechanism with a magnified inset (no text or symbols)

Line drawing of a hand using a tool to clean or inspect a component, with no visible text or symbols.

CLEANING AND MAINTENANCE (Cont.)

CLEANING THE DETERGENT DISPENSER

1 Press down the arrow location on the softener cover inside the washing machine dispenser.
2 Lift the clip up and take out the softener cover and wash all the grooves with water.
3 Restore the softener cover and push the drawer into position.

Technical line drawing of a mechanical component with internal channels and a labeled arrow (no text or symbols)

Pull out the dispenser drawer with press the A

Line drawing of a mechanical device with a lever and internal components (no text or symbols)

Clean the dispenser drawer under water

Line drawing of a hand using a tool to insert or remove a dark object into a rectangular frame (no text or symbols)

Clean inside the recess with an old toothbrush

Line drawing of a mechanical device with internal compartments and a handle (no text or symbols)

Insert the dispenser drawer

NOTE

Do not use alcohol, solvents or chemical products to clean the machine.

CLEANING AND MAINTENANCE (Cont.)

CLEANING THE DRAIN PUMP FILTER

1 Be careful of the hot water.
2. Allow the detergent solution to cool down.
3 Drain pump filter can filter the yarns and small foreign matters from the washing.
4 Clean the filter periodically to ensure the washing machine operates normally.

CAUTION

• Make sure that the valve cap is reinstalled properly.
  Cap plates should be inserted aligning to hole plates otherwise water may leak.
• When the appliance is in use and depending on the program selected there can be hot water in the pump.

Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle and is empty. When replacing the cover ensure it is tightly secured.

FAQs

Problem Possible Cause Solution
Washing machine is not starting	Door is not closed properly	Restart after the door is closed, check if the clothes are stuck
Door can’t be opened	Washer’s safety protection is active	Disconnect the power and restart the appliance
Water Leakage	The connection between inlet pipe or outlet hose is not tight	check and fasten water pipes.Clean up outlet hose.
Detergent residues are in the dispenser	detergent might be dampened	Clean and wipe the detergent dispenser
Indicator or display isnt working	Disconnect the power, PC board or harness may have a connection problem.	Check if the power is on and the power plug is connected correctly.
Abnormal Noise		Check if the Transport bolts at the back of the appliance have been removed.Check it’s installed on a level and solid floor.

ERROR CODES

Problem Possible Cause Reason Solution
E30	Door Lock Problem	Door is not closed properly. restart after door is closed.
E10	Water injecting problem while washing	1. Tap is not opened or water flows too slowly.2. Inlet valve filter is blocked.3. inlet pipe is twisted4. if water is not supplied.	1. Open the Tap or wait till water supply is back to normal.2. Check inlet valve filter3. Straighten water pipe,4. check other taps in the room.
E21	Drain problem while washing	1. Outlet hose is blocked or twisted2. drain pump is blocked.	1. Wash and straighten the hose.2. Wash drain pump filter.

PLEASE CALL CUSTOMER SERVICE ON 1300 296 699 IF THERE ARE ANY OTHER ISSUES.

SPECIFICATIONS

Power Supply 220-240V~50Hz
Rated Washing Power 320W
Rated Spinning Power 520W
Rated Heating Power 2000W
Standard Water Pressure 0.03MPa~1MPa
Washing Capacity 8KG
Rated Power 2200W
Dimensions 595 (w) x 600 (d) x 850 (h) mm
Weight Net: 58 kg / Gross: 63 kg

SEIKI | SHOME

CUSTOMER HELPLINE:

[e-mail]

DISTRIBUTED BY:

Ayonz Pty Ltd
