Product Type	Amplifier Stand
Model	AS125
Brand	McIntosh
Material	Solid Ash Wood
Finish	Black with Acrylic Faceplate
Width	17.813 inches (45.2 cm)
Height	4.051 inches (10.3 cm)
Depth	18.013 inches (45.7 cm)
Net Weight	27.1 pounds (12.3 kg)
Shipping Weight	35.1 pounds (15.9 kg)
Shipping Carton Dimensions	Width 23.812 in (60.5 cm) x Depth 28.188 in (71.6 cm) x Height 9.5 in (24.1 cm)
Backlit Logo	Yes, McIntosh Logo with Power Control Trigger (12V)
Power Control Connection	3.5mm stereo mini phone plug for trigger input
Compatibility	Designed for McIntosh Power Amplifiers such as MC1.25KW
Additional Features	Premium construction, elegant design, complements McIntosh audio equipment
Cleaning Instructions	Wipe with a soft, dry cloth. Avoid abrasive cleaners.
Warranty	Refer to official McIntosh warranty terms
Country of Origin	USA
Manual Included	Yes

Frequently Asked Questions - AS125 MCINTOSH

What is the McIntosh AS125 Amplifier Stand?

The McIntosh AS125 is a premium amplifier stand made from solid ash wood, designed to house high-end McIntosh power amplifiers such as the MC1.25KW. It features a sleek black finish with an acrylic faceplate and a backlit McIntosh logo.

What are the dimensions of the AS125?

The AS125 has a width of 17.813 inches (45.2 cm), a height of 4.051 inches (10.3 cm), and a depth of 18.013 inches (45.7 cm).

How much does the AS125 weigh?

The net weight is 27.1 pounds (12.3 kg), and the shipping weight is 35.1 pounds (15.9 kg).

Does the AS125 have a backlit logo?

Yes, the AS125 features a backlit McIntosh logo on its acrylic faceplate. The illumination can be triggered by a 12V power control signal from your amplifier via a 3.5mm mini plug connection.

How do I connect the logo backlight?

Connect a 3.5mm stereo mini phone plug from the Power Control Trigger Output of your McIntosh amplifier to the Power Control port on the rear of the stand. This allows the logo to illuminate when the amplifier powers on.

Which amplifiers are compatible with the AS125?

The AS125 is designed for McIntosh power amplifiers, particularly the MC1.25KW. It can also accommodate other McIntosh amplifiers with similar dimensions.

What materials is the AS125 made of?

The stand is constructed from solid ash wood with a black finish. The front panel is acrylic with a backlit McIntosh logo.

How should I clean the AS125?

Use a soft, dry cloth to dust the stand. Avoid using abrasive cleaners or solvents that may damage the finish.

Does the AS125 require assembly?

The AS125 comes fully assembled. Simply unpack the stand and place it in your desired location.

What is the warranty on the AS125?

Warranty details are provided by McIntosh. For specific terms, refer to the warranty card included with your stand or contact McIntosh customer service.

USER MANUAL AS125 MCINTOSH

McIntosh Laboratory, Inc. 2 Chambers Street Binghamton, New York 13903-2699 Phone: [phone] www.mcintoshlabs.com

AS901/AS125

Amplifier Stands

Owner's Manual

Two black rectangular electronic devices labeled 'D Intash', displayed side by side (no additional text or symbols visible)

Thank you from all of us at McIntosh

With the AS901/AS125 Amplifier Stand, you have invested in a premium accessory that will provide you with many years of enjoyment. Please take a few moments to familiarize yourself with the features and instructions to get the most from your equipment.

If you need further technical assistance, please contact your dealer who may be more familiar with your particular setup including other brands. You can also contact McIntosh with additional questions or in the unlikely event of needing service.

McIntosh Laboratory, Inc.

2 Chambers Street

Binghamton, New York 13903

Technical Assistance: [phone]

Customer Service: [phone]

Fax: (607)

Email: [e-mail]

Website: mcintoshlabs.com

Make a Note

For future reference, you can jot down your serial number and purchase information here. We can identify your purchase from this information if the occasion should arise.

Serial Number:
Purchase Date:
Dealer Name

Table of Contents

Introduction....3

AS901 Dimensions....4

ASI25 Dimensions.... 5

Power Control 6

AS901 Specifications....6

AS125 Specifications....6

Packing Your Amplifier Stands....7

Introduction

The AS901 and AS125 Premium Amplifier Stands were designed from the ground up to be worthy of housing your high-end, premier McIntosh Power Amplifiers. These Amplifier Stands -- with their beautiful grain structures, sleek black finishes, and acrylic face plates with backlit McIntosh logos -- will not only visually complement your audio equipment, but paired with McIntosh Power Amplifiers such as the MC901 or MC1.25KW, they will provide you with a viewing experience that lives up to the high expectations you have for your McIntosh listening experience. The AS901 and AS125 Amplifier Stands were built from the strongest, finest Solid Ash Wood, so you can rest assured that you can enjoy this visual and audio splendor for years and years to come.

Copyright 2022 © by McIntosh Laboratory, Inc

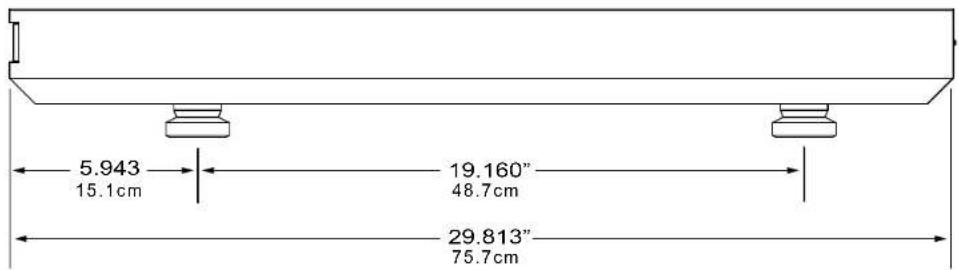

AS901 Dimensions

Front View

Side View

Rear View

AS125 Dimensions

Side View

Rear View

Power Control (Logo Backlight)

Note: Your Amplifier Stand logo backlight can illuminate when your audio equipment powers on. To do this, connect a cable to the Power Control port in the rear of the stand using the cable and connector described here.

Power Control and Trigger Connectors

The Power Control Trigger Output Jacks sends and receives Power On/Off Signals Main, Trig 1& (+12 volt/0 volt) when connected to other McIntosh Components. An additional connection is for controlling the illumination of the Power Output Meters on McIntosh Power Amplifiers. A 3.5mm stereo mini phone plug is used for connection to the Power Control, Trigger and Passthru Outputs.

AS901 Specifications

Stand Material

Ash Wood

Overall Dimensions

Width is 17.813 inches (45.2cm)

Height is 4.051 inches (10.3cm)

Depth is 29.813 inches (75.7cm)

Weight

41.6 pounds (18.9Kg) net, 51.1 pounds (23.2Kg) in shipping carton

Shipping Carton Dimensions

Width is 23.812 inches (60.5cm)

Depth is 38.312 inches (97.3cm)

Height is 9.5 inches (24.1cm)

AS125 Specifications

Stand Material

Ash Wood

Overall Dimensions

Width is 17.813 inches (45.2cm)

Height is 4.051 inches (10.3cm)

Depth is 18.013 inches (45.7cm)

Weight

27.1 pounds (12.3Kg) net, 35.1 pounds (15.9Kg) in shipping carton

Shipping Carton Dimensions

Width is 23.812 inches (60.5cm)

Depth is 28.188 inches (71.6cm)

Height is 9.5 inches (24.1cm)

Packing Your Amplifier Stands

In the event it is necessary to repack the equipment for shipment, the equipment must be packed exactly as shown. Failure to do so will result in shipping damage. Use the original shipping carton and interior parts only if they are all in good, serviceable condition. If a shipping carton or any of the interior part(s) are needed, please call or write to the Customer Service Department of McIntosh Laboratories. Please see the Part List for the correct part numbers.

Part List

Quantity Part Number Description

1 033739 Poly Bag
20" W X 10" D X 36" L
2 034673 Foam End Cap
1 752682 Manual/Assembly Pack
1 034674 Shipping Carton (AS901)*
1 034672 Shipping Carton (AS125)*

*Note: Your amplifier stand contents will include only one shipping carton for your corresponding model number (AS901 or AS125).

AS901 AS125

McIntosh Laboratory, Inc.

2 Chambers Street

Binghamton, NY 13903

www.mcintoshlabs.com

The continuous improvement of its products is the policy of McIntosh Laboratory Incorporated who reserve the right to improve design without notice. Printed in the U.S.A.

McIntosh Part No. 24115500
