Product Type	Radar/Laser Detector
Detection Bands	X, K, Superwide Ka, Laser
Display Type	Multi-color OLED
GPS Location-Based Intelligence	Patented AutoLearn, TrueLock, Marked Locations
Bluetooth®	Built-in for ESCORT Live app
Wi-Fi Connect	2.4 GHz (802.11 b/g/n) for updates and live data
ESCORT Live App Compatible	Yes (iOS and Android)
Defender Database	Pre-loaded with speed traps, red light cameras, speed cameras
Mounting System	EZ Mag Mount™ with StickyCup and magnetic bracket
Power Source	12V DC via SmartCord USB (lighter/accessory socket)
Audio Alerts	Voice announcements, adjustable tones, AutoMute
Display Brightness	Min, Med, Max, Auto, Dark
Sensitivity Modes	Auto, Auto NoX, AutoLoK, Highway
OverSpeed Alert	Adjustable from 20-160 mph or based on speed limit data
AutoLearn	Automatically stores and locks out false alerts
GPS Filter	On/Off for GPS-powered features
Software Updates	Via Wi-Fi or USB A/Mini B cable to computer
Warranty	One Year Limited Warranty
Dimensions	Approximately 4.75" x 3.25" x 1.25" (estimated)
Weight	Approximately 6 oz (estimated)

Frequently Asked Questions - iXc Escort

How do I pair my Escort iXc with my smartphone via Bluetooth?

Ensure the detector is powered on. For iPhone: Open the App Store, download ESCORT Live Radar, register/login, go to Settings > Devices, select iXc and pair. For Android: Enable Bluetooth in settings, download Escort Live Radar from Google Play, login, press the red Bluetooth button in the app and select iXc.

How do I update the software on my Escort iXc?

Updates are automatic when connected to Wi-Fi. Alternatively, you can update via USB using a mini USB cable (not included) connected to a computer. Visit www.EscortRadar.com to download the update tool.

What is AutoLearn and how does it work?

AutoLearn is a patented GPS-based feature that automatically locks out false alerts after you pass the same location multiple times (typically 3 times). It stores the location and frequency so the detector will not alert there again. You can turn it off in Preferences.

How do I mount the Escort iXc in my vehicle?

Use the included EZ Mag Mount. Remove paper from StickyCup, press firmly onto windshield, close clamp. Adjust the bracket angle with the thumbwheel. Tilt the detector display end upward and slide onto the bracket until it clicks magnetically. To remove, lift the display end.

How can I lock out a false alert manually?

While receiving a false alert, press the Mute button on the detector or SmartCord three times. The detector will store that location and frequency. To unlock a locked-out alert, press Mute twice while receiving that alert.

How do I restore the Escort iXc to factory settings?

Press and hold SEN and BRT buttons while turning the power on. The display will show 'Restored' to confirm. This resets all preferences and clears stored data.

What radar bands does the Escort iXc detect?

It detects X, K, Superwide Ka (33.4-36.0 GHz), and Laser. You can enable/disable individual bands and sub-bands in Preferences. Ka band has 10 segments (KaN1-KaN10) that can be toggled separately.

Does the Escort iXc require a subscription for ESCORT Live?

The ESCORT Live app is free to download. Basic features are free, but some advanced features (e.g., live alerts from other users) require a paid subscription. The Defender database update may also require a subscription.

How do I adjust the volume on the Escort iXc?

Press and hold the Volume + or – button on the detector to increase or decrease the audio level. The setting is saved automatically.

What does the display show when connected to Wi-Fi or Bluetooth?

When connected via Bluetooth, a Bluetooth icon and speed limit data appear on the display. When connected via Wi-Fi, the speed limit indicator turns white and data such as speed limits and live alerts are received from the cloud.

USER MANUAL iXc Escort

Intelligent, Precise

Driver Alert System

iXc

Don't be confined by the range of an average radar detector.

Patented AutoLearn

Rejects False Alerts

Live Detection &

Limitless Range with

ESCORT Live app

Connected Car

Compatible

Owner's Manual

Congratulations

You've just purchased the ESCORT iXc with long-range radar-laser performance, GPS-based intelligence plus Bluetooth® and Wi-Fi connectivity.

ESCORT iXc features a new multi-color OLED display. Brilliant graphics illuminate intuitive icons that identify the type of threat at a glance.

ESCORT iXc Features

• The ESCORT iXc delivers long-range warning on all radar bands including X, K, Superwide Ka.
• ESCORT iXc's GPS location-based intelligence automatically locks out false alerts and allows you to mark locations for future reference.
• ESCORT iXc gives you access to ESCORT's

DEFENDER Database, which warns you of verified speed traps, speed cameras, and red light cameras.

- ESCORT iXc, with built in Bluetooth® and Wi-Fi technology, gives you access to ESCORT's award winning app, ESCORT Live. Our exclusive real-time ticket-protection, the network which warns you of upcoming alerts received and reported by other users in the area, and gives you access to local speed limit data for over-speed alerts.

INTELLIGENT LONG-RANGE RADAR-LASER DETECTOR

Registration, ESCORT Live, Wi-Fi Connect

Before downloading ESCORT Live, you must first register your ESCORT iXc device. Be sure to have your ESCORT iXc unit nearby, as you will need its serial number.

1 Visit www.EscortRadar.com and click Product Registration.
2 Click the "Registration for all devices" link.
3 Follow the onscreen instructions to register your device.

Be sure to write down the username and password you create, as you will need this information to access and download ESCORT Live. (You will also receive an e-mail with this information, once you have registered your device.)

For iPhone:

1 Ensure ESCORT iXc power is ON
2 Open the App Store on your iPhone and search for ESCORT Live Radar.
3 Follow the onscreen instructions to download ESCORT Live Radar and then open the app.
4 When prompted, enter the username and password you created when registering your product at EscortRadar.com.
5 Press the Settings button 🙏 then select Devices.
6 You should see iXc listed with Not Connected underneath. Press the iXc device entry and when prompted select Pair.
7 The Bluetooth icon on the ESCORT iXc display will appear to confirm that it is paired to your iPhone.

For Android based smartphones:

1 Ensure ESCORT iXc power is ON.
2 On your smartphone go to Bluetooth® Settings and make sure that Bluetooth® is ON.
3 Open Google Play on your smartphone and search for Escort Live Radar.

4 Follow the onscreen instructions to download Escort Live Radar and then open the app.

5 When prompted, enter the username and password you created when registering your product at EscortRadar.com.

6 In the Escort Live app, press the red Bluetooth® button and select iXc from the popup menu.

Using Wi-Fi Connect:

Connecting ESCORT iXc to a Wi-Fi network is as easy as 1, 2, 3:

1 Register your ESCORT iXc. Remember the email and password that you used.
2 Install the ESCORT Live app on your smartphone and pair ESCORT iXc to your smartphone's Bluetooth (see previous section for directions). Login to ESCORT Live using the email and password used when you registered your ESCORT iXc.
3 Connect your smartphone to the Wi-Fi network and go to ESCORT Live's Wi-Fi Settings menu to enter the network's password.

After successfully connecting to a Wi-Fi network, the speed limit indicator on your ESCORT iXc will change to white indicating that is receiving data from Wi-Fi (see page 6). Software updates, speed limit data, and ESCORT Live alerts are provided when connected to a Wi-Fi network.

Note: ESCORT iXc only supports 2.4 GHz Wi-Fi (802.11 b/g/n).

Installation

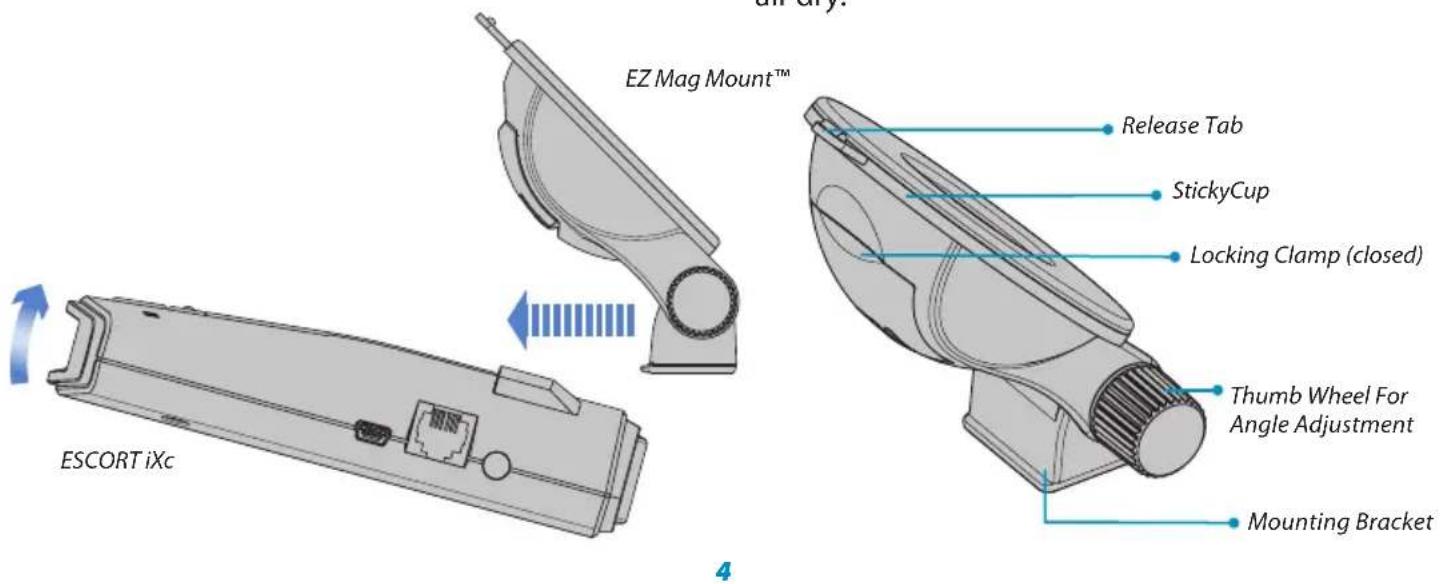

Your new detector comes with our latest EZ Mag Mount™. Simply tilt the display end of the detector up and slide it onto the mounting bracket. The magnetic mount holds the detector in place. To remove the detector from the mount, simply lift the display end of the detector and the detector releases from the mount.

Mounting Tips:

• Center of windshield between driver and passenger.
• Ensure clear view of road ahead and sky above.
• Avoid windshield wipers and heavily tinted areas.

To mount the detector in your vehicle:

1 Remove paper backing from EZ Mag Mount™ StickyCup.
2 Ensure the locking clamp is open.

3 Firmly press EZ Mag Mount™ StickyCup onto windshield and close the locking clamp to secure.
4 To adjust view, loosen thumb wheel and adjust angle of mounting bracket. Tighten thumb wheel to secure.
5 Tilt the display end of the detector slightly upward and engage with the flanged edge of the mounting bracket. The EZ Mag Mount™ magnet holds the detector in place.
6 To remove the detector, simply lift the display end of the detector upward. The ESCORT iXc will release from the mount.
7 To remove mount from windshield, release locking clamp and pull tab on top of StickyCup.

EZ Mag Mount™ Care Instructions:

Should the EZ Mag Mount™ StickyCup accumulate debris and lose its stickiness, simply rinse under warm water, gently wipe off debris and allow to air dry.

Controls & Features

Using ESCORT iXc

1 Plug small end of SmartCord USB into modular jack on ESCORT iXc and large end of SmartCord USB into your car's lighter/accessory socket.
2 ESCORT iXc should power on automatically. If not, press the device's power button.

Earphone Jack
Connects to optional 3.5 mm stereo earphone

Mini USB Jack

Connects to your computer via USB A / Mini B cable for downloading software updates

Modular Jack

Connects to SmartCord USB for powering your device

Using SmartCord USB

- Mute Button:

• Press to mute the audio for a specific alert.
• Press three times to lock out a false alert.
• Press twice while receiving a locked-out alert to unlock.

• When connected to ESCORT Live press and hold mute button on unit or cord to manually report to other users a verified X or K-band alert, or a police officer observing traffic.

• Alert Light: Blinks red when receiving a radar or laser alert.
  • Power Light: Lights green when receiving power.
  • USB Charging Port: Charge smartphones, tablets and other USB-charged Devices.

SmartCord USB Adapter
Connects to lighter/accessory socket

Controls & Features

Continued →

Settings & Preferences

Press and hold the MRK and SEN buttons to access Preferences. To exit Preferences, simply wait a few seconds without pressing a button. The unit will display Completed to confirm your selections.

Press MRK to go
from one category Press VOLUME + or - to change to the next your setting within a category

User Mode	Advanced*NoviceSettings are set to factory defaults)	Access and customize all Settings and PreferencesAccess and customize units and display color, (all other
		NOTE: Switch back to advanced mode to view all Preferences.
Pilot	Scan Bar*Full Word	Scanning Bar with Full Word.Full Word: Auto, Auto NoX, AutoLoK or Highway
Display Color	Blue*/Green/Red/Amber	Set color to match your vehicle's dash display
Speed Display	On*Off	Displays current speedDisplays battery voltage
Cruise Alert	20 mph*Off / 20-160 mph	Offers double beep alert tones below specified speed
Over Speed	70 mph*Off / 20-160 mph	Reminds you when you exceed a specified speed
Over Speed Limit	Speed Limit*Off /Speed Limit/5 Over/7	Over/10 Over/15 Over/20 Over/25 Over
Meter Mode	Standard*SpecExpertSimpleCautionSlow Down	Single band with signal strength bar graphSingle band with numeric frequencyMultiple bands with signal strength bar graphsSimple messages replace bands:(if traveling below cruise alert limit)(if traveling above cruise alert limit)
Tones	Standard*Mild	Standard ESCORT alert tonesMild doorbell chime alert tones
AutoMute	AutoMute Low /Med* / High / Off	Automatically reduces audio to preferred volumeduring alert
AutoLearn	On* / Off	Automatically stores and locks out false alarms
Units	English* / Metric	Units for distance and speed
Language	English* / Espanol	Language for voice and text
Voice	On* / Off	Voice announcements
GPS Filter	On* / Off	Enables GPS-powered features

AutoPower Off type (constant power or switched)		Power turns on or off depending on your vehicle's ignition
1 Hour Powers off automatically after 1 hour2 Hours Powers off automatically after 2 hours4 Hours* Powers off automatically after 4 hours8 Hours Powers off automatically after 8 hours		NOTE: AutoPower only works with constant power ignition.
Band Enables	Default* Modified	Default Settings Band Enables have been modified from their default settings
Press SEN to go from one band category to the next		Press VOLUME + or – to change your setting within a category
X Band	On* / Off
K Band	On* / Off	Freq: 24.050 – 24.250 GHz
		NOTE: When K Band is off, you can select separate segments of the band to turn on or off.
KN1	On* / Off	Freq: 24.050 - 24.110 GHz
KN2	On* / Off	Freq: 24.110 - 24.175 GHz
KN3	On* / Off	Freq: 24.175 - 24.250 GHz
KN4	On / Off*	Freq: 23.950 - 24.050 GHz
Ka Band	On/ Off*	Freq: 33.400-36.000 Ghz
		NOTE: When Ka Band is off, you can select separate segments of the band to turn on and off.
KaN1	On / Off*	Freq: 33.400 - 33.700 GHz	KaN6 On / Off* Freq: 34.800 - 35.160 GHz
KaN2	On* /Off	Freq: 33.700 - 33.900 GHz	KaN7 On / Off* Freq: 35.160 - 35.400 GHz
KaN3	On / Off*	Freq: 33.900 - 34.200 GHz	KaN8 On* / Off Freq: 35.400 - 35.600 GHz
KaN4	On / Off*	Freq: 34.200 - 34.600 GHz	KaN9 On / Off* Freq: 35.600 - 35.840 GHz
KaN5	On* / Off	Freq: 34.600 - 34.800 GHz	KaN10 On / Off* Freq: 35.840 - 36.000 GHz
Ka-POP	On / Off*
Laser	On* / Off
TSR	On* / Off	Automatically rejects traffic flow sensors-monitoring false alarms
RDR	On / Off*	Radar Detector Rejection
Marker Enables	Default* Modified	Default Settings Marker Enables have been modified from their default settings
Wi-Fi	On* /Off	Turns Wi-Fi Connect on or off
Bluetooth	On* / Off	Turns Bluetooth on or off
Auto Update	Off/Defender/ Software/All*	Automatically checks for selected updates when detector is powered on
Perform Update	Defender Software	Defender update. Press SEN to confirm Perform Software update. Press SEN to confirm

Press SEN to go from one Press VOLUME + or - to change marker category to the next your setting within a category

Other Redlight	On* / Off	Other location
		On* / Off Red light camera
Red & Speed	On* / Off	Red light & speed camera
Speed Cam	On* / Off	Speed camera
Speed Trp	On* / Off	Speed trap
Air Patrol	On / Off*	Known aircraft patrolled areas
		NOTE: User cannot mark an air patrol location.
Clear Locations	Marked	Clear all user Marked locations. Press SEN button to confirm
	Lockouts	Clear all lockouts. Press SEN button to confirm
	Defender	Clear all DEFENDER data. Press SEN button to confirm
	Format	Clear DEFENDER database, all markers, and all lockouts
	Press SEN button to confirm

\*Default Setting

Notes for Settings & Preferences

To view serial number and software revision press MRK and MUTE while powering on detector. To restore ESCORT iXc to its original factory Settings, press and hold SEN and BRT while turning the power on. A "Restored" message will display, acknowledging the reset.

Software Updates

In its factory default settings ESCORT iXc automatically receives software updates from your connected vehicle's Wi-Fi network. See Using Wi-Fi Connect on page 5 for connection instructions.

The ESCORT iXc operating firmware and red light and speed camera database can also be updated using a USB A/Mini B cable (not included) connected to a computer using our detector software tools found on our web site. In order to have access to these updates, please register your ESCORT iXc at www.EscortRadar.com

Warranty

ESCORT One Year Limited Warranty

What this warranty covers: Escort, Inc. ("Escort") warrants your Product against all defects in materials and workmanship.

For how long: One (1) year from the date of original purchase from an authorized Escort dealer.

What we will do: If a breach of warranty occurs, Escort, at its discretion, will either repair or replace your Product free of charge.

What we will not do: Escort will not pay shipping charges that you incur for sending your Product to us.

What you must do to maintain this warranty: Show original proof of purchase or receipt from an authorized Escort dealer.

Warranty exclusions: This warranty does not apply to your product under any of the following conditions: 1. The serial number has been removed or modified. 2. Your product has been subjected to misuse or damage (including water damage, physical abuse, and/or improper installation). 3. Your product has been modified in any way. 4. Your receipt or proof-of-purchase is from a nonauthorized dealer or internet auction site, including E-bay, U-bid, or other non-authorized resellers. 5. You are not the original purchaser of the Product from an authorized dealer or did not receive it as a gift from the original purchaser of the Product from an authorized dealer.

To obtain service: 1. Contact ESCORT (1-800-543-1608) to obtain a Return Authorization Number. 2. Properly pack your Product and include: your name, complete return address, written description of the problem with your Product, daytime telephone number, and a copy of the original proof of purchase or receipt. 3. Label the outside of the package clearly with your Return Authorization Number. Ship the Product prepaid (insured, for your protection) to: ESCORT, Inc., 5440 West Chester Rd., West Chester, OH 45069.

LIMITATION OF WARRANTY: The obligations set forth above are ESCORT's sole obligations and your exclusive remedy. ESCORT makes no other express warranty. Any implied warranty of merchantability or fitness for a particular purpose that may be applicable to the Product is limited in duration to the duration of this warranty. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. ESCORT SHALL NOT BE LIABLE FOR CONSEQUENTIAL, SPECIAL OR INCIDENTAL DAMAGES INCLUDING, WITHOUT LIMITATION, DAMAGES ARISING OUT OF THE USE, MISUSE OR MOUNTING OF THE PRODUCT.

Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. ESCORT is not responsible for products lost in shipment between the owner and our service center.

Other legal rights: This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

©2018 ESCORT Inc. ESCORT® is a registered trademark of ESCORT Inc.

Contact Us

Accessories

800.433.3487

EscortRadar.com

Designed in the USA by Escort, Inc. Manufactured in the Philippines

ESCORT Inc.

5440 West Chester Road

West Chester OH 45069

Sales / Service 800.433.3487

www.EscortRadar.com

©2018 ESCORT Inc. ESCORT ^® , ESCORT iXc ^® , Defender ^® , AutoLearn ^® , TrueLock ^™ , AutoSensitivity ^™ , SpecDisplay ^™ , ExpertMeter ^™ , ESCORT Live ^™ , IVT Filter ^™ , SmartMute ^™ and EZ Mag Mount ^™ are trademarks of ESCORT, Inc.

FCC NOTE: Modifications not expressly approved by the manufacturer could void the user's FCC granted authority to operate the equipment.

FCC ID:QKLIXC.CONTAINS FCC ID:TFB-1003

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation.

ESCORT Live Compatible

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by ESCORT is under license.
