Product Type	TV Antenna
Brand	Uniden
Model	ATX500
Antenna Type	Outdoor directional
Frequency Range	VHF 174-230 MHz, UHF 470-862 MHz
Gain	6 dBi (typical)
Impedance	75 Ohm
Polarization	Horizontal
Mounting Type	Pole or wall mount
Cable Length	4.5 m low-loss coax
Connector Type	F-type female
Material	Aluminum, UV-resistant plastic
Color	Black
Dimensions	Approx. 500 x 200 x 100 mm
Weight	Approx. 0.5 kg
Operating Temperature	-20°C to 60°C
Weather Resistance	IP44 rated
Suitable For	Digital TV reception in urban and suburban areas
Mounting Hardware Included	Yes, stainless steel bracket and bolts
Installation	Simple DIY installation, includes instructions
Maintenance	Periodic cleaning with soft cloth; check connections
Spare Parts	Available through Uniden dealers
Repairability	Limited; replace antenna if damaged

Frequently Asked Questions - ATX500 UNIDEN

What is the Uniden ATX500 antenna used for?

The Uniden ATX500 is a TV antenna designed for receiving digital terrestrial television signals in VHF and UHF bands.

Is the ATX500 suitable for indoor or outdoor use?

It is primarily an outdoor antenna for better signal reception, but can be installed in attics if needed.

What is the gain of the ATX500?

The typical gain is 6 dBi, providing good performance in most areas.

What connector does the ATX500 use?

It uses a standard F-type female connector for easy connection to coaxial cable.

How do I mount the ATX500?

Mount it on a pole or wall using the included stainless steel bracket and bolts. Ensure it is securely fastened and pointed toward the TV transmitter.

Does the ATX500 require power?

No, it is a passive antenna and does not need an external power source.

What is the cable length?

The antenna comes with a 4.5 meter low-loss coax cable terminated with an F-type female connector.

How do I clean the ATX500?

Use a soft, damp cloth to wipe the antenna. Avoid harsh chemicals. Check connections periodically.

Is the ATX500 weather resistant?

Yes, it has an IP44 rating, meaning it is protected against splashing water and dust.

Where can I find spare parts or service?

Contact your local Uniden dealer or visit uniden.com.au for support and spare parts.

USER MANUAL ATX500 UNIDEN

Uniden offers a wide range of accessories suited for your vehicle that are compatible with all Uniden products and other branded UHF radios.

AS SEEN ON LEADING 4WD & ADVENTURE TV SHOWS

Man wearing a straw hat and purple jacket standing outdoors near a parked car (no visible text or symbols)

PAT CALLINAN

4 X 4 Adventures TV Show

Pat Callinan is one of the most respected identities in the industry, with 4WD knowledge and outdoor adventure experience second to none. He is broadcasted nationally on TV and has a magazine that covers everything to do with 4WD and Outdoor Adventure. Pat's fleet of vehicles are continually put through their paces in the most rugged terrain that Australia has to offer. There is barely a track that Pat and his team have not driven and explored in Australia. Uniden UHF Radios and Accessories are fitted on all Pat's 4X4 vehicles and are used by his team to keep in touch – no matter how remote they go.

Man in military-style hat and uniform holding a walkie-talkie, smiling outdoors near a waterfall (no visible text or symbols)

RICK OBRIEN

Offroad Adventure TV Show

Rick OBrien is one of Australia's favourite offroad adventurers, featuring in the Offroad Adventure TV show. Rick and the team at Offroad Adventure TV Show use Uniden UHF Handheld and Mobile Radios and Accessories to keep constantly in touch. They are fitted to all the team's vehicles, ensuring they never miss a thing, whether it be on the road, water, or in the middle of the desert. No matter how remote the location, the team can always stay connected.

Two men in blue vests and caps posing for a photo, with military vehicles in the background (no visible text or symbols)

JASE ANDREWS

All 4 Adventure TV Show

Jase Andrews is the host of Australia's leading four-wheel-drive and adventure show, All 4 Adventure. Driven by an unquenchable love for the undiscovered regions of Australia this modern day explorer is persistent and fearless when heading out into the wild. When it comes to making All 4 Adventure he pushes himself, his crew and his gear to the limit in order to achieve the best 4X4, fishing and adventure show on Australian television. Uniden UHF Radios and Accessories are fitted on all of the Vehicles from 2017 onwards ensuring they remain connected.

Close-up of a black Uniden brand electronic device with ventilation grille and control buttons (no readable text beyond branding)

Metal bracket component with mounting holes and a curved cutout (no text or symbols visible)

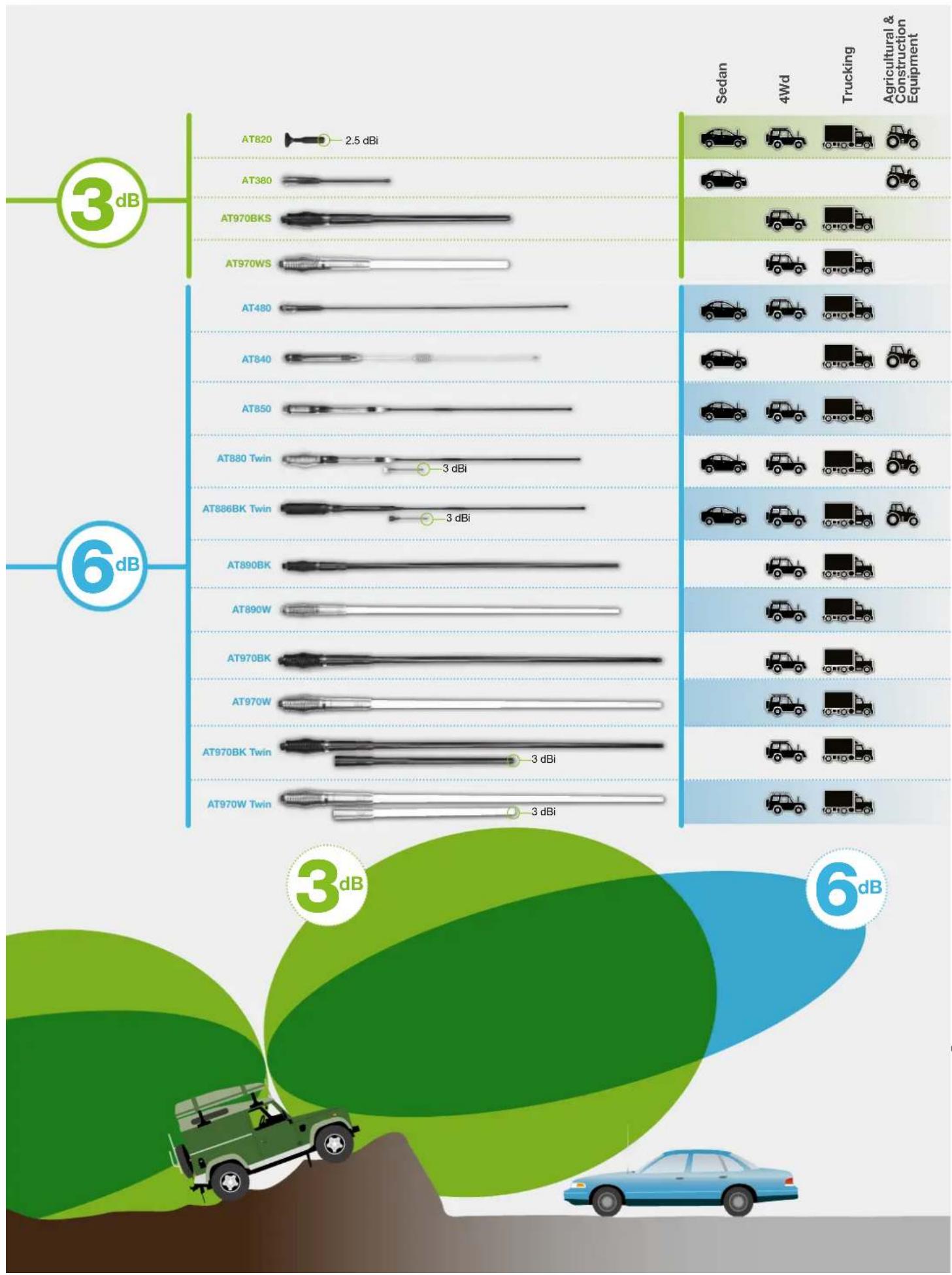

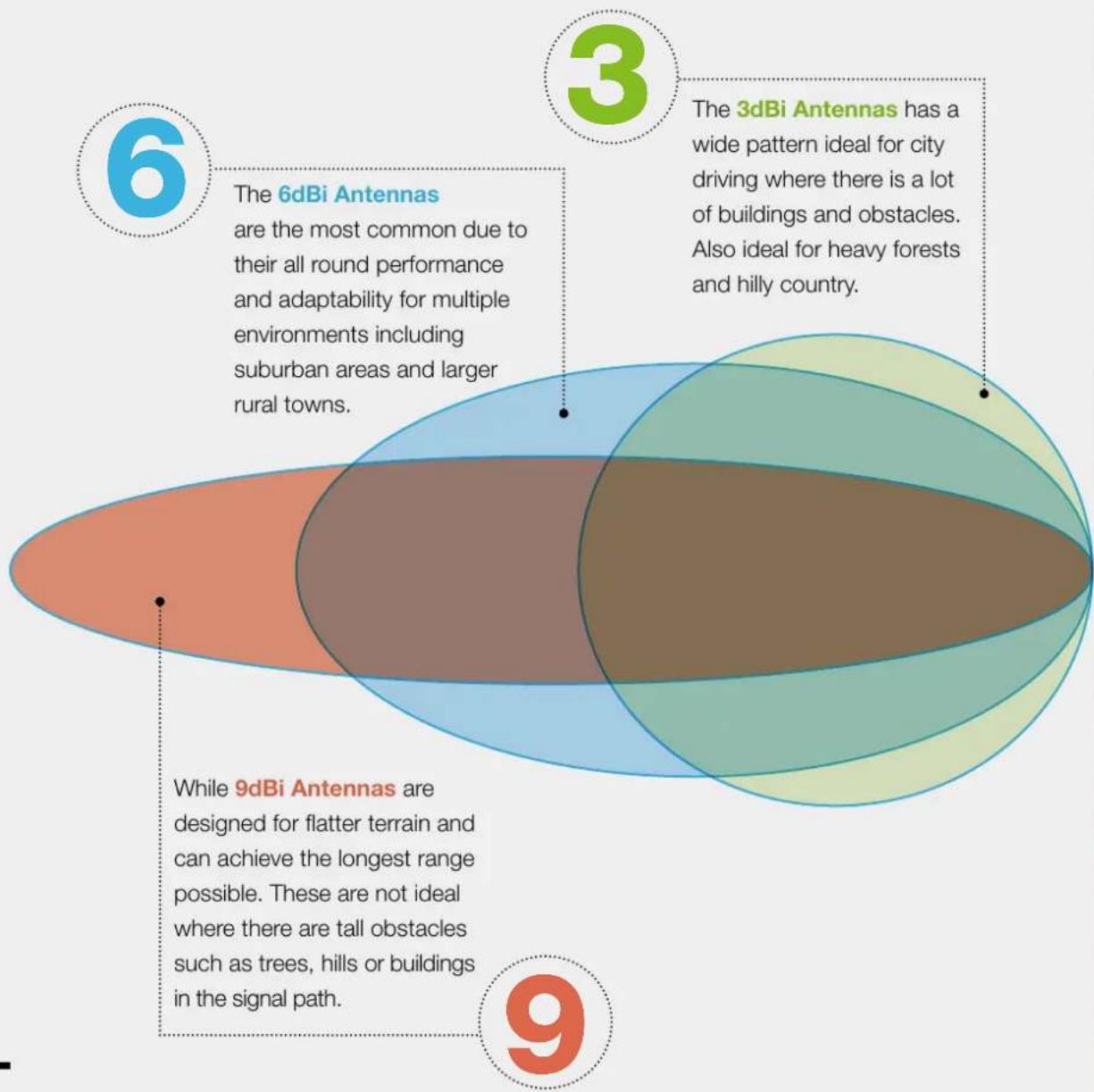

What Antenna is Right For You?

Where you mount your antenna and the terrain where you are traveling in your vehicle are the two main factors when selecting the correct Uniden Antenna for your vehicle.

Uniden®

UHF 2-Way CB Mobile Radio Accessories

Uniden® BUILT RUGGED

FOR AUSTRALIAN & NZ CONDITIONS

White off-road vehicle with 'Uniden' branding parked in a desert environment, kicking up dust (no readable text beyond branding)

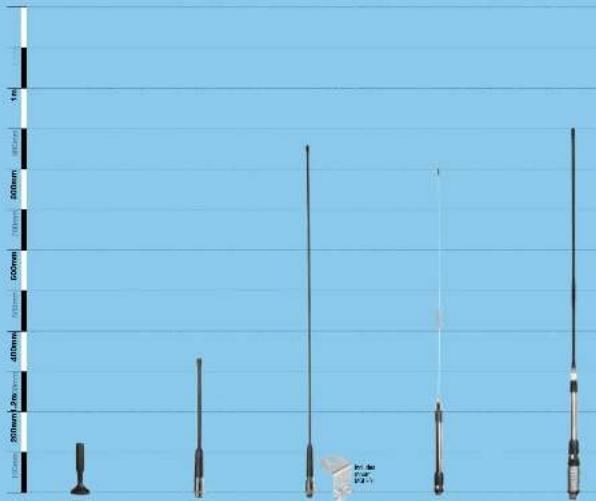

antenna range

Uniden Range of antennas suit UHF CB Radios for Australia's and New Zealand Rugged Conditions. They are engineered and tested to withstand most harsh conditions and suited for a variety of vehicle.

AT820

Portable Antenna Kit with Strong Magnetic Base 3.0m Low Loss-Cool Cable Terminated FWE Female Connector including SMA and PL259 Adaptor

AT380

High Flexible Rubber Whip with Black Heat Strink Ground Independent 4.5m Low Loss Case Cable Terminated FME Female Connector and PL250 Adapter

AT480

Flexible Wrap with Slack Head Shrink Including "2" Type Mounting Bracket (M20-01) Ground Independent 4.5m Low Loss Case Cable Terminated FME Female Connector and PL299 Adaptor

AT840

Elevated Feed and Stainless Steel Whip 6.6 dbl Gain Ground Independent 4.5m Low Loss Cable Cable Terminated FME Female Connector and PL250 Adapter

AT850

Elevated Food and Fiberglass Whip with Black Heat Shrink 6.6-500 Gunm Highly Flexible Whip Parallel Style Stainless Steel Spring Ground Independent 4.5m Low Loss Coax Cable Terminated FME Female Connector and PL250 Adaptor

2.5 dB	3.0 dB	6.0 dB	8.5 dB	6.5 dB
123.5mm	335mm	844mm	1005mm	396mm
Sedan, Trucking, 4WD; Agricultural & Construction Equipment	Sedan, Agricultural & Construction Equipment	Sedan, Trucking and 4WD	Sedan, Trucking	Sedan, Trucking and 4WD
Portable, Durable	Flexible, Durable	Flexible, Durable	Lightweight	Lightweight
Great for Temporary Installations	High Terrain, City	Good all Purpose, Town & Country	Good all Purpose	Good all Purpose

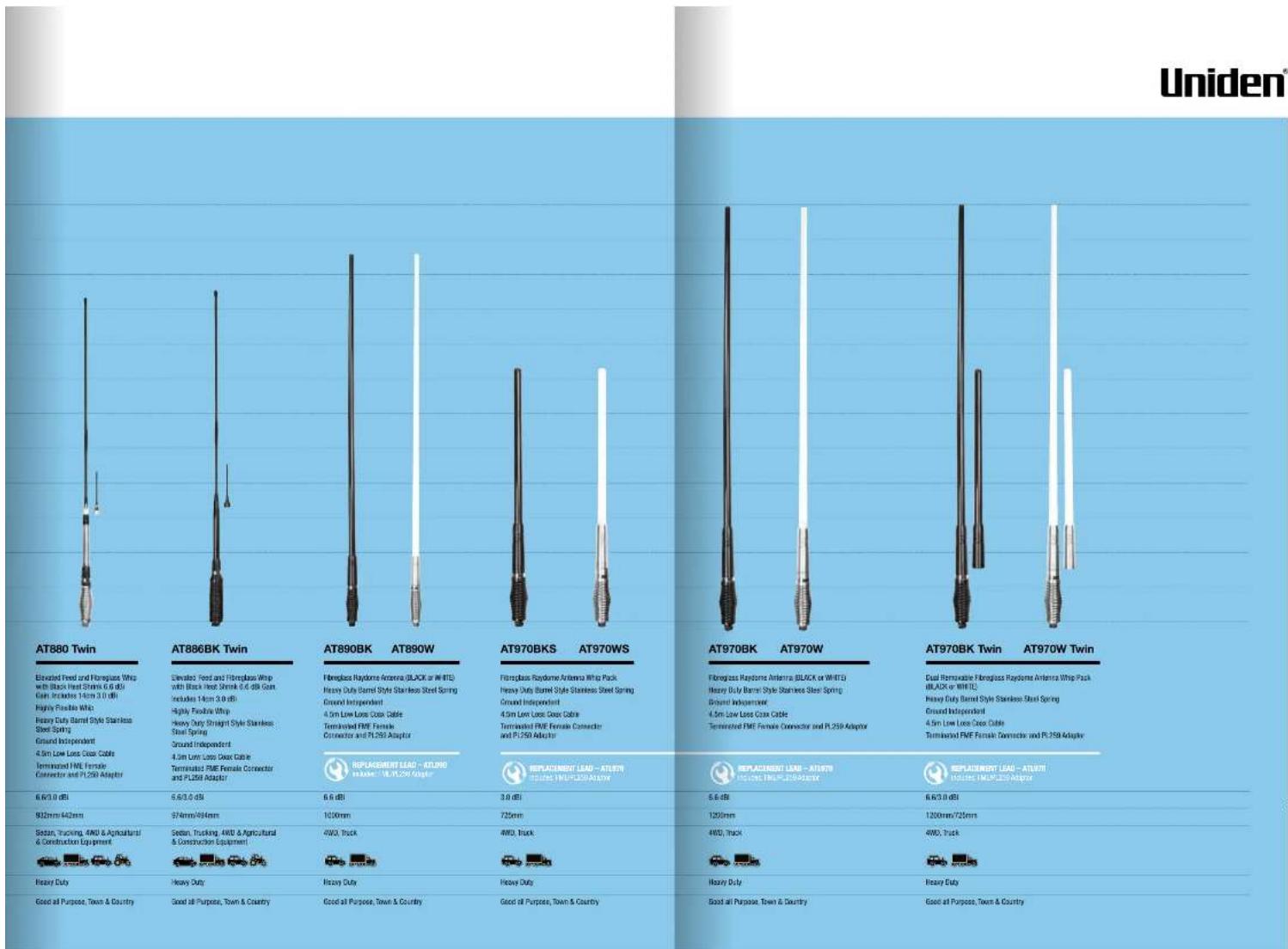

AT880 Twin

Elevated Feed and Foreglass Whip with Black Heat Shinks 6.6 dCi Gain, Iranges 14cm 3.0 dBi

Highly Flexible Whip Heavy Duty Barrel Style Stainless

Steel Spring

Unreal Transportation

4.5th Low Loss Loss Cable

Terminalized FME Female Connector and PL250 Adapter

6.63.0 dE

932nm/442nm

Sedan, Trucking, 4WD & Agricultural & Construction Equipment

Heavy Duty

Good all Purpose, Town & Country

AT886BK Twin

Elevated Food and Fiberglass Wrap with Black Heat Shrink 0.6-dB Gas

12005 14th 30 to

Heavy Duty Straight Style Stainless Steel Spring

Ground Independent

4.5m Low Loss Deox Cable Terminated FME Female Connector and PL258 Adaptor

6.6/3.0 d5

274mm/1034mm

Sedan, Trucking, 4WU & Agricultural & Construction Equipment

Heavy Duty

Good will Purpose, Town & Country

AT890BK AT890W

Fibreglass Raydome Antenna (BLACK or WHITE) Heavy Duty Barrel Style Stainless Steel Spring

Ground Independent 4.5m Low Loss Color Cable Terminated FME Female Connector and PL250 Anaptor

五在眼

100mm

4WD Truck

Heavy Duty

Good all Purpose, Town & Country

AT970BKS AT970WS

Fiberglass Raydome Antenna Whip Pack Heavy Duty Barrel Style Stainless Steel Spring

Ground Independent 4.5m Low Loss Coax Cable Terminated PME Female Connector and PL250 Adapter

3.0(图)

725mm

和快

Good will Purpose, Town & Country

AT970BK AT970W

Fiberglass Haydome Antenna (BLACK or WHITE) Heavy Duty Barrel Style Stainless Steel Spring

Board inspection

4.5m Low Loss Coil Cable Terminated FME Female Connector and PL250 Adaptor

(1) 2017年1月1日

5.648

120mm

AWU, Truck

Good all Purpose, Town & Country

AT970BK Twin AT970W Twin

Dual Removable Fibreglass Raydome Antenna Whip Pack (BLACK or WHITE)

Merry Bay, Dmit, O'ini, Barnard, Saiti, O'eng

A fine and low-cost items

Terminated FVE Female Connectors and PL250 Adapter

15.1.20 15.1.21

6.63.0 del

1200nm/725nm

4W0, 7pt k

Good all Purpose, Town & Country

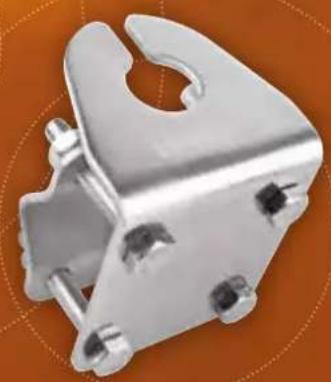

antenna mounting

brackets

MGU-01MGU-02MBU-01MMI-01

Metal mechanical bracket component with mounting holes and a U-shaped groove (no text or symbols visible)

Metal bracket component with mounting holes and a curved top (no text or symbols visible)

Metal bracket with four holes and a curved cutout (no text or symbols visible)

Metallic industrial clamp device with coiled tubing and a square top (no text or symbols visible)

MIRROR MOUNT

• Cable Slot
• Polished Stainless Steel
• Thickness: 2.5mm
  • Includes Bolts, Nuts and Washers

"Z" TYPE MOUNT

• Cable Slot
  • Polished Stainless Steel
• Thickness: 2.0mm

"L" TYPE MOUNT

• Cable Slot
• Polished Stainless Steel
• Thickness: 2.5mm

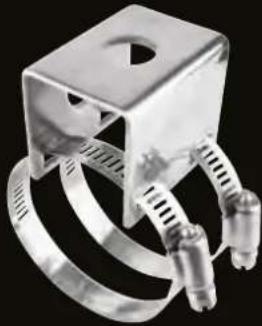

UNIVERSAL BULL BAR MOUNT

• Includes Stainless Steel Clamps
• Fits a bull bar of diameter (min: 35mm/max: 55mm)
- Polished Stainless Steel
- Thickness: 2.3mm

MBU-02MBU-03MBU-04

Close-up of a metallic mechanical clamp or bracket component (no text or symbols visible)

Close-up of a white plastic clamp or clip device with circular features and a small inset showing a magnified view (no visible text or symbols)

Close-up of a metallic electronic component with circular features and mounting holes (no visible text or symbols)

Available in black MBU-03BK

Close-up of a white plastic mechanical bracket with two circular cutouts and a small hole, against a black background (no text or symbols visible)

Close-up of a metallic mechanical component with circular outline (no visible text or symbols)

Available in black MBU-04BK

"U" BOLT BULL BAR MOUNT

• Includes Stainless Steel U Bolts & Nuts
  • Fits a bull bar of diameter (min: 40mm/max: 50mm)
• Polished Stainless Steel
• Thickness: 3mm

50MM WRAP AROUND BULL BAR MOUNT

• Cable Slot
• Includes Stainless Steel Bolts & Nuts
• Polished Stainless Steel
• Thickness: 3mm

76MM WRAP AROUND BULL BAR MOUNT

• Cable Slot
• Includes Stainless Steel Bolts & Nuts
  • Polished Stainless Steel
• Thickness: 3mm

All mounting brackets will fit any Uniden antenna.

accessories

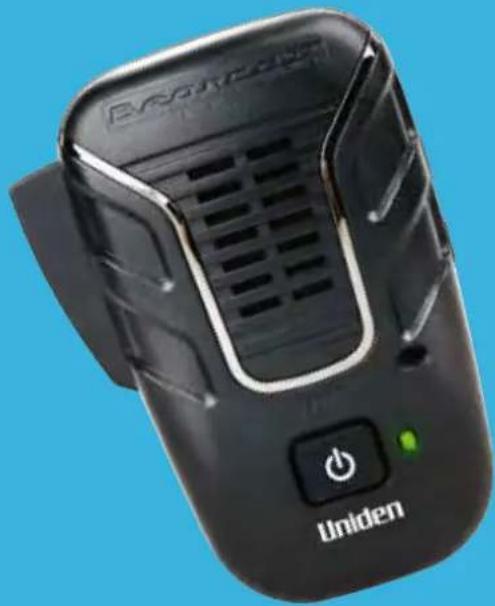

Black EnPro device with visible power button and green indicator light (no readable text or symbols)

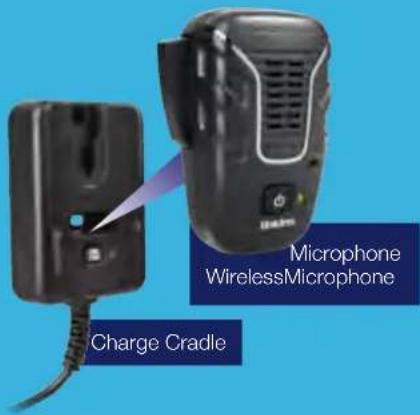

MK800W

• Secure Sync For Easy Connection
• Push-To-Talk Control Button
  • Volume Up / Down Controls
• Battery Saving with Auto Power Off
• Long Range – Up to 100 Metres
• Belt Clip For Added Mobility
• Up to 8 Hours Battery Life

SPEAKER

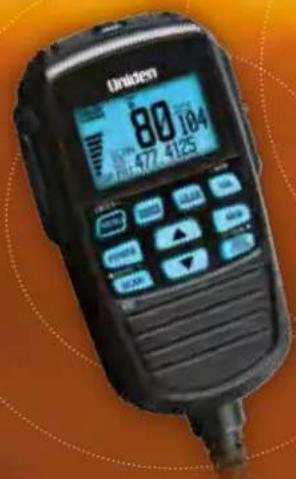

MICS
REMOTE LCD
SPEAKER MIC

STANDARD
COMPACT MICS

MK500

Two black handheld devices with ventilation grilles, no visible text or symbols

MK800/MK770

MK900

MK870

RM980

RM880

RM800/RM770

Man in blue uniform and white hat holding a portable radio inside a vehicle (no visible text or symbols)

WIRELESS DECT

SPEAKER MIC

MOUNT KITS

3D rendering of a rectangular metal enclosure with recessed brackets and central opening (no text or symbols)

Mechanical device with a circular component mounted on a base (no visible text or symbols)

K7740 DMK7700 PNP-KIT

UH9080

UH9060

UH9000

UH8080

UH8070

UH8060S

UH8055S

UH8020S / UH8010S+ANT

UH5060

UH5050

UH5045

UH5000 / UH5000PNP

UH5040 / UH089NB

SPEAKER

7W EXTERNAL SLIMLINE Suitable for all models

EXTENSION

CABLE

Suitable for all models, excluding: UH5040 & UH089NB

Uniden®

DEALER DETAILS

For full range & details call 1300 366 895

or visit uniden.com.au
