Produit	Carillon de porte sans fil
Marque	EKO
Modèle	K90DBW1080
Dimensions du carillon (L x H x P)	12,5 x 8,5 x 3,5 cm
Poids du carillon	150 g (sans piles)
Alimentation du carillon	3 piles AA (non incluses)
Alimentation du bouton	1 pile bouton CR2032 (incluse)
Portée maximale	100 mètres en champ libre
Nombre de sonneries	36 mélodies intégrées
Volume réglable	Oui, 5 niveaux
Fonction principale	Sonnerie de porte d’entrée
Indicateur LED	Oui, clignote lors de la sonnerie
Résistance aux intempéries	Bouton IP44 (résistant à l’eau)
Installation	Simple, sans fil, fixation murale par vis ou adhésif
Entretien et nettoyage	Essuyer avec un chiffon doux et sec
Sécurité	Utilisation en intérieur uniquement pour le récepteur
Pièces détachées	Bouton supplémentaire disponible en option
Réparabilité	Remplacement des piles uniquement
Informations générales	Garantie 2 ans, fabriqué en Chine

Frequently Asked Questions - K90DBW1080 EKO

Comment installer le carillon EKO K90DBW1080 ?

Fixez le bouton à l'extérieur à l'aide de vis ou de l'adhésif double-face. Placez le récepteur à l'intérieur à portée du bouton. Insérez les piles dans chaque unité. Testez le fonctionnement.

Quelles piles sont nécessaires ?

Le récepteur nécessite 3 piles AA (non incluses). Le bouton nécessite une pile bouton CR2032 (incluse).

Comment changer la mélodie ?

Appuyez sur le bouton de sélection de mélodie situé à l'arrière du récepteur pour parcourir les 36 sonneries. Chaque pression change de mélodie.

Comment régler le volume ?

Utilisez le bouton de volume situé sur le côté du récepteur. Vous pouvez choisir parmi 5 niveaux de volume, y compris un mode silencieux.

À quelle distance le carillon fonctionne-t-il ?

La portée est de 100 mètres en champ libre. Les murs et obstructions peuvent réduire cette portée.

Le bouton est-il résistant à l'eau ?

Oui, le bouton est classé IP44, ce qui le protège contre les éclaboussures et la pluie légère.

Que faire si le carillon ne sonne pas ?

Vérifiez les piles : insérez des piles neuves. Assurez-vous que le récepteur et le bouton sont à portée. Réinitialisez en retirant les piles pendant 30 secondes.

Puis-je ajouter un deuxième bouton ?

Oui, le carillon supporte jusqu'à 2 boutons. Achetez un bouton supplémentaire compatible EKO et appairez-le selon les instructions.

Comment nettoyer le carillon ?

Utilisez un chiffon doux et sec pour essuyer les surfaces. N'utilisez pas de produits chimiques ni d'eau.

Le récepteur peut-il être fixé au mur ?

Oui, le récepteur dispose de fixations murales. Vous pouvez le visser au mur ou le poser sur une surface plane.

USER MANUAL K90DBW1080 EKO

Close-up of a black rectangular device with a circular dial and a bell icon, no visible text or symbols.

INSTRUCTION MANUAL

Please read this manual carefully before using, and keep it for future reference.

CONTENTS PAGE

General Safety Instructions 4

Product Overview

Batteries

Setup 9

App / Wi-Fi Control 10

Download EKO Home app 11

Start Setup Process 12

Login/Create account 13

Adding Device

EKO App - Dashboard 20

Main Menu 21

Product Control Panel 22

Messages / Notifications (motion detect) 23

Settings

Home Management

Creating a Home 26

Adding Other Users to your Home 27

Add app to Google Home 30

Add app to Amazon Alexa Account 31

Installation (Concrete or Brick Wall) 32

Cleaning

Specifications 35

Customer Helpline Last Page

GENERAL SAFETY INSTRUCTIONS

Read this manual thoroughly before you start using this product Store this manual, the completed warranty card, your receipt and the product packaging.

To reduce the risk of injury:

- Avoid rain, high temperature products or direct exposure to sun.

IMPORTANT INFORMATION

• Do not expose this appliance to rain or moisture as it may result in fire or an electric shock hazard
• Do not tamper or change or modify the product in any way.
• Only use Accessories outlined and recommended by the manufacturer.
• Please do not expose the product to splashing or water contact
• Please do not place any object on top of the product including objects filled with liquids such as vases.

ENERAL SAFETY INSTRUCTIONS

PLEASE READ BEFORE USE:

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• Please do not use any other accessories which not supplied with this product.
• Do not attempt to open up and fix or modify circuits inside the unit.
• If the product or cord is damaged, contact us at [e-mail] for advice.

Do not attempt to open the board or replace the cord.

- If the product requires repair, contact us at [e-mail]; never disassemble or modify the product or attempt to service it yourself.

- While Charging Run the USB Charging line in such a way that there will be no risk of anyone pulling it inadvertently or tripping over it.

GENERAL SAFETY INSTRUCTIONS

- Before installing the product, make sure to place it away from: heatsources, radiators or other products that produce heat; areas with high temperatures, high humidity or direct sunlight; excess dirt and dust; open windows and any place where water may get to the unit.

- Do not immerse the cord, plug or the product in water or other liquid, or expose the electrical connections to water or other liquid.

- Unpack the product and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the product when it is not in use.

- The product should always be repacked in its original packaging whenever transporting to prevent any possible damage to the product.

- When not in use: Disconnect from the power source and store in a cool, dry and well ventilated location out of direct sunlight, and not subject to humidity.

PRODUCT OVERVIEW

Packing list

Close-up of a black remote control device with a circular button and a small square dial (no visible text or symbols)

Doorbell

Close-up of white plastic screw fasteners arranged in a row, with one screw being inserted (no text or symbols visible)

Mount bracket & Screws

Two cylindrical batteries with red battery symbols and plus/minus signs, no text or numbers present

Batteries

USB CableRechargeak

Product Outlook

Indicator light flashing BLUE The device is waiting to begin pairing.

Indicator light always RED The Wi-Fi connection has failed.

Indicator light both BLUE and RED The Wi-Fi is disconnected.

BATTERIES

Charging Time: 7 hours using 1A USB charger (not included) (via the doorbell micro USB port)

Please fully charge the 18650 batteries before use. With normal use, batteries will last between 2 to 3 months.

Note:

If the doorbell captures an excessive number of events every day, this consumes battery power a lot, and you need to recharge the batteries earlier than normal. Plus, the batteries are also drained each time you use the Live View to check or speak through your doorbell. To prevent excessive events, you can adjust your motion settings to a lower sensitivity.

WARNING

Be sure to put 18650 batteries in the correct direction. Inserting batteries incorrectly causes damage.

Rechargeable 18650 Battery

SETUP

MAKE SURE TO FULL CHARGE

Before installing the product into the location you want to monitor for security purposes. Make sure that your product is 100% CHARGED.

You can do this by taking off the back battery compartment lid by pushing it down and out. (A and B)

A B C

Three-panel image showing a hand holding a remote control device, a green internal component being inserted, and an open USB flash drive (no text or symbols visible)

C - Using the Micro USB Cable (included), plug in and charge your doorbell (up to 7 hours). Leave this product charging until you complete and finish connect to EKO Home app.

Battery status is available once connected (start from page 10)

WALL INSTALLATION RECOMMENDED AFTER APP SETUP. INSTRUCTIONS ON PAGE 32

APP/Wi-Fi Control

Working with your mobile device, using your home Wi-Fi network router to communicate with your product and control it.

CONTROLLING THE SECURITY CAMERA REMOTELY IS VERY SIMPLE. YOU WILL NEED:

• Android smartphone or tablet, or an Apple iPhone or iPad
• Internet connection at your home
• Wi-Fi network router set up at home.

You must also have the EKO Home App installed or updated on your smartphone or mobile device. This app is available from Google Play Store or Apple App Store.

PLEASE READ THROUGHLY THE FOLLOWING PAGES FOR INSTRUCTIONS OF SETTING UP YOUR SECURITY CAMERA.

(Cont.)

Three horizontal white lines on a black background, resembling a menu icon (no text or symbols)

Download and install: EKO Home app.

Make sure the product is powered and start the setup process to connect your Security Camera to your EKO Home app.

APP/Wi-Fi Control (Cont.)

In order to do this, make sure you have the EKO Home App installed or updated on your mobile device, your Wi-Fi router is switched on and your mobile device connected to your home Wi-Fi network.

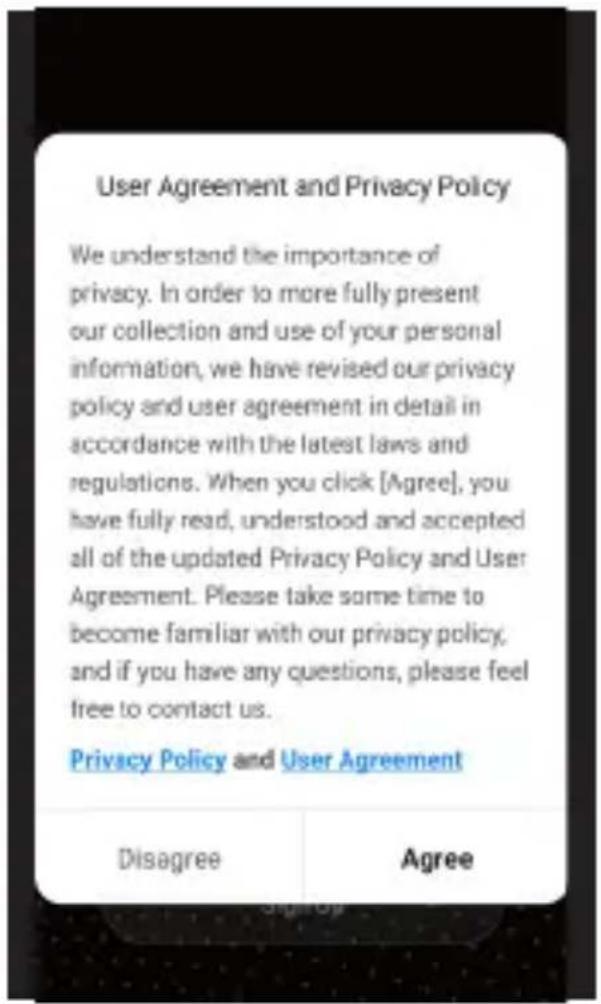

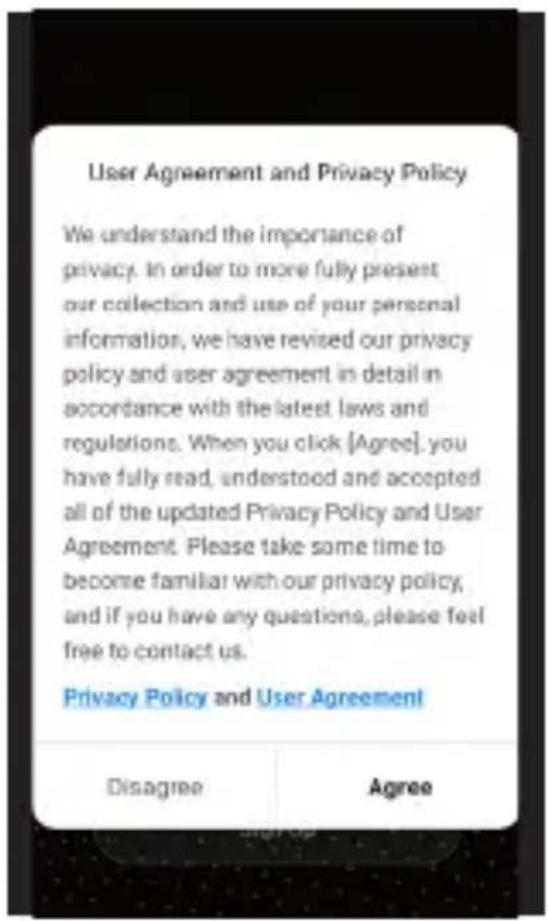

On your mobile device, tap on the EKO Home app (1). It will open and take you to the Login Page (2).

1

2

Control (Cont.)

Before you log in, please press SIGN UP and register your account using an email address. (3 and 4).

3

4

APP/Wi-Fi Control (Cont.)

Once entered email address, tap GET VERIFICATION CODE and an email will be sent your email address with a verification code. Enter this code.

Now you can enter a password for your account. Please remember this password or write it down. (5)

3

4

Control (Cont.)

1. Tap the plus (+) or ADD DEVICE to add your device. (7).

2. Select the product which in this case is:

Smart Doorbell. (8)

7

8

APP/Wi-Fi Control (Cont.)

IMPORTANT

Before you can control your product remotely, you must reset the Wi-Fi module on the unit.

To do so please follow on screen or below instructions:

1. Using the Micro USB Cable, plug USB side into a USB powered adaptor, and the Micro USB side into the back of the product.
2. Once the product is powered, the blue light will turn on at the front, please leave as it is for up to 30 seconds. Now that the product is on, On the EKO Home app “Reset the device first” page, tick the box indicated (9) and press next.
3. Select Wi-Fi network then enter in the password to connect. (10)

Note: Make sure to select 2.4GHz

5GHz Wi-Fi Network will not work with this app.

1. Once Wi-Fi is entered, follow the on screen animation (11) to scan the QR code generated within your app. If you hear a Sound prompt, select the button "I Heard a Prompt".

REFER TO NEXT PAGE --->

Control (Cont.)

9 10 11

Please scan the QR code from 15 to 20 cm away

Diagram showing a projector emitting a yellow light beam through a mirror, with a green checkmark icon nearby (no text or symbols)

APP/Wi-Fi Control (Cont.)

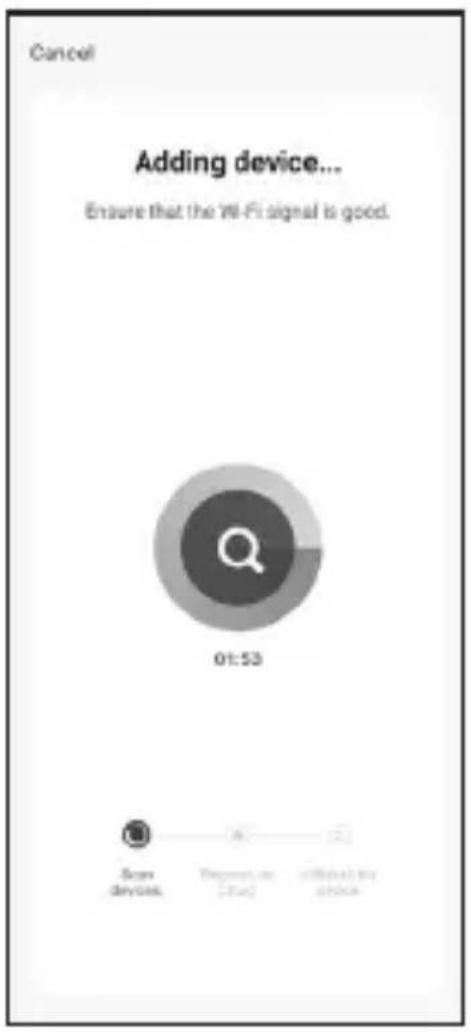

Now that the device is being added, progress screen will now appear as to below: (12, 13, 14).

12 13 14

APP/Wi-Fi Control (Cont.)

Once completed, it will show your product is now added. click

DONE. Click on the device name and you can now start navigating the controls of the app. (15)

15

APP/Wi-Fi Control (Cont.)

EKO HOME DASHBOARD

Control (Cont.)

MAIN MENU

APP/Wi-Fi Control (Cont.)

DASHBOARD FOR PRODUCT CONTROL

APP/Wi-Fi Control (Cont.)

MESSAGES TAB / NOTIFICATIONS

VIEW ALL

Press here to view all motion detections and alarms depending on the date.

MOTION CAPTURE PREVIEW

NOTIFICATION MESSAGE

This will display the notification message, the time it was detected.

SELECT DATE

TYPE OF NOTIFICATION

NOTIFICATION MESSAGE

This will display the notification message, the time it was detected.

PREVIOUS

NOTIFICATION MESSAGE

APP/Wi-Fi Control (Cont.)

SETTINGS

Select the 3 dots on top right hand corner of screen once you enter product dashboard, indicated on page 22.

Basic Function Settings

Other options like:

• Status Indicator
• Flip Screen
• Talk Mode (adjust to two-way talk)

POWER MANAGEMENT

Check power settings and set low battery notification threshold.

PIR (Alarm Sensitivity level) - Adjust the detection strength.

Low (less detection notifications),

Medium (for normal detection notifications),

High (for notifications for any movement)

- This makes the camera very sensitive for notifications.

Control (Cont.)

HOME MANAGEMENT

Home management allows you to setup and create sharable access to family members. If you have already setup all your home cameras, and want a family member to access the cameras. Follow the below steps to create and share your home.

CREATING A HOME

1. When on the dashboard, press the ME icon located on bottom right corner of the screen.

1. Select Home Management

1. As its the first time setting up your home, select the top option “HOME”.

- You will be asked to name your home.

1. Once you have named your home, you can setup your rooms and also your location (weather purposes).

APP/Wi-Fi Control (Cont.)

1. HOME MEMBER - you will see a “Home Member” section, if you want to add a family member or friend to your home. Select “Add Member”.

2. When you select “Add Member”, this will provide options to share through the EKO Account “within the app” (recommended) OR with an INVITE CODE to your family member.

EKO ACCOUNT

Name - provide a name

Region - Australia

Account - Enter family members EKO Home Account email.

Select "Save" to send the invite.

NOTE: Family member has to download EKO HOME app and sign up to create a new account.

Cancel	Add Member	Save
Name	Please enter a home member name
Region	Australia	>
Account	Please enter your account
Only after accepting the invitation will the account owner become a family member and be able to use relevant functions.

FAMILY MEMBER INVITE ACCEPT

When you are sent an invite, a notification will appear within your family members EKO HOME app. Click “Accept”.

APP/Wi-Fi Control (Cont.)

EMAIL, SMS OR OTHER VIA INVITE CODE

When selecting other form of inviting family member.

An INVITE CODE will be sent through the form of communication you choose.

JOINING A HOME WITH INVITE CODE

Copy and Paste the INVITE

CODE sent to you through the chosen communication.

1. Go to HOME MANAGEMENT

2. Select JOIN A HOME

3. Enter INVITE CODE

4. Once code is entered, Select the arrow button to proceed.

1. Now that you have either accepted invite within EKO HOME app or with an INVITE CODE.

Please go to your HOME DASHBOARD.

APP/Wi-Fi Control (Cont.)

1. Once on home dashboard, press on a blank part of the screen and drag your finger down to refresh the page.

1. A arrow for a drop down will appear at the top of the screen. Select it.

1. Select the name of home you have been invited to.

Example: EKO Residents

Once selected, The Home Setup you wish to join will automatically load.

APP/Wi-Fi Control (Cont.)

1. Now as a family member will have access to the home security camera setup you have been invited to.

APP/Wi-Fi Control (Cont.)

Add EKO HOME app to your Google Home app.

1. Open your Google home app. (Before you link your app to your Google Home app, you will have to have a Google Home account already set up.
2. From the home screen of the Google Home App, press ADD. Press SET UP DEVICE, then select HAVE SOMETHING ALREADY SET UP? under the WORKS WITH GOOGLE banner.
3. Search for EKO Home.
4. Press the EKO Home app and enter your EKO Home app account details and password. Then press SIGN IN.

NEXT PAGE FOR:

Add the EKO HOME app to your Amazon Alexa Account.

Control (Cont.)

Add the EKO HOME app to your Amazon Alexa Account.

You must have to already have an Amazon Alexa account set up.

1. Home screen of Amazon Alexa app, press the 3 bars in the top left hand corner. Select SKILLS & GAMES, then search for EKO HOME.

2. Select the EKO HOME app, Ensure you have followed the steps listed, then select CONFIRMED and then select NEXT.

3. Enter your EKO HOME account details and password then press SIGN IN.

* Instructions for adding EKO Home app are general instructions only. Detailed steps or specific message from your Google Home or Amazon Alexa account may vary depending on the version.

Smartphone and Wi-Fi specification requirements Minimum smartphone specifications

Android 5.0 version or later IOS 9.0 version or later

INSTALLING DOORBELL

Now that you have completely (100%) charged your Wi-Fi Doorbell, you can install it into the desired location.

1. Remove the bracket and use the 2 mounting screws to fix the bracket onto the wall or door. You can also use double sided tape to fix the bracket.

If you are installing doorbell/bracket into a concrete or brick wall, use the plugs provided:

• Measure the distance between each bracket hole and make sure to mark on the wall first. (make sure its straight, you dont want a slanted camera view).
• Drilling a hole slightly thinner than the plug thickness and long enough in length. Then hammer in the plugs.
• Place your bracket over the holes, using the screws. Screw your bracket into place.

WALL MOUNTING BRACKET

Bracket Holes

DOORBELL (Cont.)

1. Place your Wi-Fi Doorbell into the mounting bracket that you have now securely installed into the wall.

Simple line drawing of a vertical panel with a pink arrow pointing to the right side (no text or symbols)

1. Now that the doorbell is in place. To secure it with a screw so it does not fall out, located at the bottom use the small allen key screw, and allen key (included) tighten the screw into place. Once doing so your Wi-Fi Doorbell will be held securely in place.

Three-panel image showing a 3D wireframe cube, a black device with a lid, and a simple line drawing of a curved path (no text or symbols)

Cleaning and Maintenance

Only use a soft, dry cloth for cleaning the product; do not use a damp cloth. Never clean with industrial chemical polish, wax, benzene, paint thinner, air freshener, lubricant, detergent or other chemicals.

Specifications

Rating DC5V, 1A by power adaptor
Resolution 1920 x 1080 (Full HD)
Wi-Fi 2.4G Hz / 802.11 b/g/n
Wireless Range	Up to 20 Metres (walls included) Up to 50 Metres (open space)
Charge Time Up to 7 Hours
Use on a single charge Up to 2 months
Compatible App EKO Home
Dimensions 45.3 (w) x 23 (d) x 141.5 (h) mm
Weight	Net: 0.24 kg
	Gross: 0.36 kg

EKO

SUPPORT: [e-mail] DISTRIBUTED BY: Ayonz Pty Ltd
