Product Type	Pressure Sensor Module
Model	Fluke 700P00
Measurement Range	0 to 30 psi (0 to 2.07 bar)
Accuracy	±0.05% full scale
Overpressure Protection	2x full scale
Operating Temperature	-10°C to 50°C (14°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Pressure Connection	1/4 inch NPT female
Communication	Proprietary connector to Fluke calibrators
Power Supply	Powered by host calibrator (no internal battery)
Dimensions (H x W x D)	60 mm x 30 mm x 25 mm (2.4 in x 1.2 in x 1.0 in)
Weight	Approximately 150 g (0.33 lb)
Media Compatibility	Non-corrosive gases and liquids
Wetted Materials	316 stainless steel, Viton
Cleaning	Wipe with a damp cloth and mild detergent; do not immerse
Maintenance	Annual recalibration recommended; no user-serviceable parts
Safety	Do not exceed maximum pressure; use only with compatible fluid
Warranty	One year against defects
Included Accessories	User manual, calibration certificate
Spare Parts	Seal kits available (contact Fluke service)
Repairability	Repair by authorized service center only

Frequently Asked Questions - 700P00 FLUKE

What is the Fluke 700P00 used for?

The Fluke 700P00 is a pressure sensor module designed for use with Fluke calibrators to measure and calibrate pressure in industrial applications.

What is the pressure range of the 700P00?

The 700P00 has a pressure range of 0 to 30 psi (0 to 2.07 bar).

How accurate is the Fluke 700P00?

The accuracy is ±0.05% of full scale, ensuring precise measurements.

Can the 700P00 measure both gauge and absolute pressure?

No, the 700P00 is a gauge pressure sensor. For absolute pressure, use the appropriate Fluke module.

How do I connect the 700P00 to a Fluke calibrator?

Connect the module using the proprietary cable and connector provided with the calibrator. Ensure the connection is secure before use.

What fluids can I use with the 700P00?

It is compatible with non-corrosive gases and liquids that do not damage the 316 stainless steel and Viton wetted materials.

How should I clean the 700P00?

Clean the exterior with a soft cloth dampened with mild detergent and water. Do not immerse or use harsh chemicals.

Does the 700P00 require recalibration?

Yes, annual recalibration is recommended to maintain accuracy. Contact Fluke or an authorized service center.

What is the maximum overpressure the 700P00 can withstand?

The module can withstand up to 2 times the full scale (60 psi) without damage, but repeated overpressure may affect accuracy.

Where can I find spare parts or repair service for the 700P00?

Spare parts such as seal kits are available from Fluke. Repairs must be performed by an authorized Fluke service center.

USER MANUAL 700P00 FLUKE

700 Series Pressure Modules

Instruction Sheet

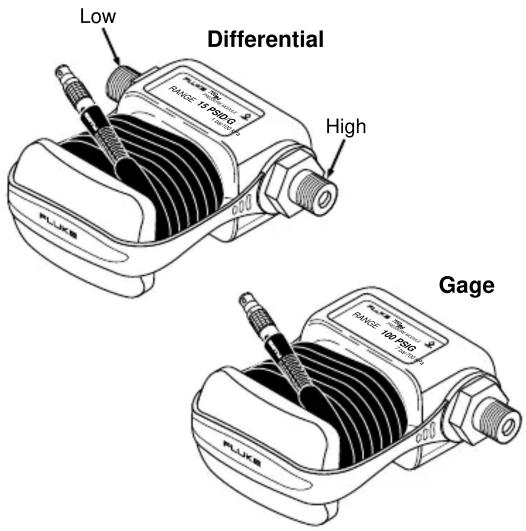

yz1f.eps

Figure 1.

Introduction

The Fluke 700 Series Pressure Modules allow you to measure pressure with the Fluke 700 Series Process Calibrators. Read this sheet before you use the pressure module. This sheet contains specifications and information about how to avoid damaging the pressure module. See the Calibrator Users Manual for operating instructions.

The pressure module measures pressure using an internal microprocessor. It receives operating power from and sends digital information to the 700 Series calibrator.

Gage pressure modules have one pressure fitting and measure pressure with respect to atmospheric pressure. Differential pressure modules have two pressure fittings and measure the difference between the applied pressure on the high fitting versus the low fitting. Figure 1 shows the two types. A differential pressure module functions like a gage module when the low fitting is open.

Compatibility of Pressure Modules with Fluke Process Calibrators

Fluke-701, 702, 741, 743, and 744 Documenting Process Calibrators: The Fluke-700P00 and P27 Pressure Modules are completely compatible with these calibrators.

Fluke-716, 717, and 718 Pressure Calibrators: The Fluke-700P00 and P27 Pressure Modules will display pressure readings correctly on 716 Pressure Calibrators with firmware V1.2 or higher, or 717 and 718 Pressure Calibrators with firmware V1.3 or higher. To view the software revision, power-on the calibrator while holding down the MAX key. Read the REV number in the display. Contact your Fluke Service Center for a free update of calibrators with lower revision numbers. Reference PCN 4647.

Fluke-725 Multifunction Process Calibrators: The Fluke-700P00 and P27 Pressure Modules will display correct pressure readings when used with Fluke-725 Multifunction Process Calibrators at internal software revision 1.9 and later. To view the software revision, power-on the calibrator while holding down the 0% key. Read the REV number in the display. Contact your Fluke Service Center for a free update of calibrators with lower revision numbers. Reference PCN 4578.

Box Contents

Pressure module, strap, 1/4 NPT to 1/4 ISO metric adapters, instruction sheet.

Protecting Yourself from Pressure Releases

To avoid a violent release of pressure in a pressurized system, shut off the isolation valve and slowly bleed off the pressure before you attach or remove the pressure module from the pressure line.

Avoiding Overpressure Damage

Applying pressure in excess of the BURST PRESSURE specified on the pressure module can destroy the pressure module. Burst pressure is 3X full scale (2X for 700P09, 30X for 700P00).

Table 1. Pressure Module Specifications ^1

MODEL	RANGE2	GAGE OR DIFFERENTIAL	ISOLATED OR NONISOLATED	REFERENCE UNCERTAINTY (23° ± 3°C)	STABILITY (1 YEAR)	TEMP (0° to 50°C)	TOTAL UNCERTAINTY (% of Full Scale)31 YEAR
FLUKE-700P00 0 td	1.000 in H _2 O0 to 0.249 kPa0 to 0.002 bar	Differential Nonisolated 0.300% 0.025% 0.025% 0.350%
FLUKE-700P01 0 td	10.00 in H _2 O0 to 2.49 kPa0 to 0.02 bar	Differential Nonisolated 0.200% 0.050% 0.050% 0.300%
FLUKE-700P02 0 td	1.0000 psi0 to 6.8900 kPa0 to 6.89 E-2 bar	Differential Nonisolated 0.150% 0.070% 0.080% 0.300%
FLUKE-700P03 0 td	5.0000 psi0 to 34.000 kPa0 to 0.3400 bar	Differential Nonisolated 0.050% 0.020% 0.030% 0.100%
FLUKE-700P04 0 td	15.000 psi0 to 100.00 kPa0 to 1.0000 bar	Differential Nonisolated 0.025% 0.010% 0.015% 0.050%
FLUKE-700P05 0 td	30.000 psi0 to 200.00 kPa0 to 2.0000 bar	Gage Isolated 0.025% 0.010% 0.015% 0.050%
FLUKE-700P06 0 td	100.00 psi0 to 700.00 kPa0 to 7.0000 bar	Gage Isolated 0.025% 0.010% 0.015% 0.050%
FLUKE-700P27 0 td	300.00 psi0 to 2000.0 kPa0 to 20.000 bar	Gage Isolated 0.025% 0.010% 0.015% 0.050%
FLUKE-700P07 0 td	500.00 psi0 to 3400.0 kPa0 to 34.000 bar	Gage Isolated 0.025% 0.010% 0.015% 0.050%
FLUKE-700P08 0 td	1000.0 psi0 to 7000.0 kPa0 to 70.000 bar	Gage Isolated 0.025% 0.010% 0.015% 0.050%
FLUKE-700P09 0 td	1500.0 psi0 to 10000.0 kPa0 to 100.000 bar	Gage Isolated 0.025% 0.010% 0.015% 0.050%
1. Use of pressure zero function is required to achieve these specifications. Contact your Fluke Service Center for upgrade of your Fluke 701 or Fluke 702 V1.0, V1.1, or V1.2 calibrator.2. Available pressure units (psi, kPa, bar, inHg, mmHg, inH _2 , ftH _2 O., kg/cm ^2 , mmH _2 O, cmH _2 O) are determined by the calibrator being used.3. Accuracy specifications apply for 0 to 100% of full scale, 0 to 50°C. 1% FS typical, -10 to 0°C. On 700P00 only, specification applies from 15 to 35°C.4. Maximum Non-Destructive Pressure: 3X maximum rated pressure, including common mode pressure. (700P09: 2X, 700P00: 30X)5. Maximum Common Mode Pressure: 3X maximum rated pressure. (700P09: 2X, 700P00: 30X)6. Specifications reflect a confidence interval of 95%.

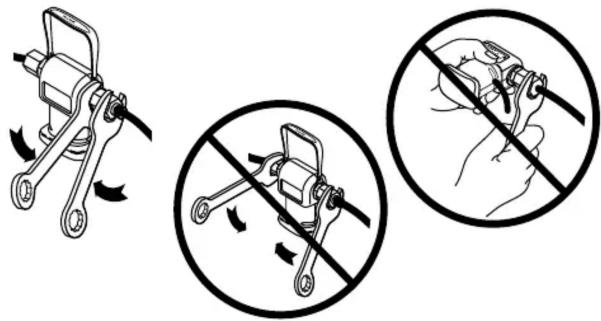

Avoiding Mechanical Damage

To avoid mechanically damaging the pressure module, never apply more than 10 ft.-lbs. of torque between the pressure module fittings or between the fittings and the body of the module. Always apply appropriate torque between the pressure module fitting and connecting fittings or adapters. Figure 2 shows the correct way and incorrect ways to use a wrench when applying torque to the pressure module fitting.

Figure 2.

yz2f.eps

Avoiding Corrosion Damage

To avoid damaging the pressure module from corrosion, use it only with specified media as shown below:

• Isolated modules: any medium that is compatible with type 316 stainless steel.
• Nonisolated modules: dry, noncorrosive gasses only.

Recommended Measurement Technique

For best results, it is recommended that the module be pressurized to full scale and then vented to zero pressure (atmosphere) prior to zeroing and making measurements with the calibrator.

Note

Low range pressure modules may be sensitive to gravity. For best results, pressure modules 30 psi and below should be held at the same physical orientation from the time they are zeroed until the measurement is complete.

Performance Test

If you need to check that the pressure module meets its accuracy specification, use a dead weight tester or suitable pressure calibrator. The accuracy of the dead weight tester or pressure calibrator should be at least 4X better than the 700 Series pressure specification. Proceed as follows to verify that a pressure module is operating within specification:

1. Read the pressure value with no externally applied pressure to make sure the 0% of scale is correct. When reading the pressure with a 700 Series, press the ZERO key to remove any zero offset.
2. Connect the pressure module to a dead weight tester.
3. Set the dead weight tester to 20% of the pressure module's full scale value.
4. Make sure the reading agrees with the dead weight tester value within the Total Uncertainty specification in Table 1.
5. Set the dead weight tester to 40, 60, 80, and 100% of full scale and compare the respective readings.
6. If temperature sensitivity is of concern, repeat steps 1 through 5 at various controlled temperatures.

Pressure Calibration Kit

The Fluke-700PCK Pressure Calibration Kit makes it possible to calibrate pressure modules at ambient temperature with a precision pressure calibrator or dead weight tester at least 4x better than the module specification. A 386 or better PC and Windows ^® 3.1 or better are required. The kit is an optional accessory available from your distributor or Fluke.

Certifications

CE Conforms to European Standard EN61010-1, EN61326.

LIMITED WARRANTY & LIMITATION OF LIABILITY

Each Fluke product is warranted to be free from defects in material and workmanship under normal use and service. The warranty period is one year and begins on the date of shipment. Parts, product repairs and services are warranted for 90 days. This warranty extends only to the original buyer or end-user customer of a Fluke authorized reseller, and does not apply to fuses, disposable batteries or to any product which, in Fluke's opinion, has been misused, altered, neglected or damaged by accident or abnormal conditions of operation or handling. Fluke warrants that software will operate substantially in accordance with its functional specifications for 90 days and that it has been properly recorded on non-defective media. Fluke does not warrant that software will be error free or operate without interruption.

Fluke authorized resellers shall extend this warranty on new and unused products to end-user customers only but have no authority to extend a greater or different warranty on behalf of Fluke. Warranty support is available if product is purchased through a Fluke authorized sales outlet or Buyer has paid the applicable international price. Fluke reserves the right to invoice Buyer for importation costs of repair/replacement parts when product purchased in one country is submitted for repair in another country.

Fluke's warranty obligation is limited, at Fluke's option, to refund of the purchase price, free of charge repair, or replacement of a defective product which is returned to a Fluke authorized service center within the warranty period.

To obtain warranty service, contact your nearest Fluke authorized service center or send the product, with a description of the difficulty, postage and insurance prepaid (FOB Destination), to the nearest Fluke authorized service center. Fluke assumes no risk for damage in transit. Following warranty repair, the product will be returned to Buyer, transportation prepaid (FOB Destination). If Fluke determines that the failure was caused by misuse, alteration, accident or abnormal condition of operation or handling, Fluke will provide an estimate of repair costs and obtain authorization before commencing the work. Following repair, the product will be returned to the Buyer transportation prepaid and the Buyer will be billed for the repair and return transportation charges (FOB Shipping Point).

THIS WARRANTY IS BUYER'S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. FLUKE SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LOSSES, INCLUDING LOSS OF DATA, WHETHER ARISING FROM BREACH OF WARRANTY OR BASED ON CONTRACT, TORT, RELIANCE OR ANY OTHER THEORY.

Since some countries or states do not allow limitation of the term of an implied warranty, or exclusion or limitation of incidental or consequential damages, the limitations and exclusions of this warranty may not apply to every buyer. If any provision of this Warranty is held invalid or unenforceable by a court of competent jurisdiction, such holding will not affect the validity or enforceability of any other provision.
