FHEE26A9S-5 - Range hood Technika - Free user manual and instructions

Product Type	Canopy Range Hood
Brand	Technika
Model	FHEE26A9S-5
Colour	Stainless Steel
Width	900 mm
Depth	500 mm
Height (with flue)	Adjustable, min 600 mm above cooktop
Weight	Approximately 18 kg
Power Supply	220-240 V, 50 Hz, 10 A
Motor Power	250 W
Extraction Capacity	700 m³/h
Number of Speeds	4
Control Type	Touch Control
Lighting	LED, replaceable (plug & socket)
Filter Type	Aluminium grease filters, washable
Ducting Diameter	150 mm
Noise Level	55-65 dB
Installation Type	Ducted (recirculation kit optional)
Warranty	3 years domestic use
Safety Features	Thermal cut-off, auto shut-off timer, child lock (by supervision)
Timer	15-minute automatic shut-off
Speed Auto-Reduction	At speed 4, reduces to speed 3 after 2 minutes

Frequently Asked Questions - FHEE26A9S-5 Technika

How often should I clean the grease filters?

Clean the aluminium grease filters at least every 2 months to prevent fire hazard. Wash them by hand in warm water with mild detergent or in the dishwasher on a hot cycle without detergent. Allow to dry completely before reinstalling.

Can the range hood be used in recirculation mode?

Yes, the range hood can be used in recirculation mode with an optional carbon filter kit (not included). The manual primarily describes ducted installation, but recirculation is possible with appropriate accessories.

What is the minimum distance between the cooktop and the range hood?

The minimum distance is 600 mm for electric cooktops and 650 mm for gas cooktops, as per the manual. Always check local regulations and the hob manufacturer's instructions.

How do I replace the LED lamps?

LED lamps are replaceable and can be removed by unplugging the connector. Contact Glen Dimplex Spare Parts for replacement lamps. Do not touch the lamps during or immediately after use as they may be hot.

Why does the motor turn off after a few minutes?

This may be due to the high-temperature safety device activating. Ensure the kitchen is well-ventilated and the hood is installed at the correct distance from the cooktop (minimum 600 mm). If the problem persists, contact customer service.

Can I install the range hood myself?

Installation should be carried out by a qualified person to ensure electrical safety and proper mounting. The manual includes detailed instructions for wall fixing and flue assembly. Incorrect installation may void the warranty.

What is the warranty period for this Technika range hood?

For domestic use, the warranty is 3 years from the date of purchase. For commercial use, only 90 days. The warranty covers electrical and mechanical breakdowns but excludes consumables like bulbs and filters.

How do I use the timer function?

Press the timer button (D); the symbol will flash. The fan and lights will automatically turn off after 15 minutes. You can adjust fan speed during the timer countdown.

What should I do if the hood is not extracting air properly?

Check that the aluminium grease filters are clean and not clogged. Ensure the ductwork is not blocked and the butterfly valve is open. If the motor runs but no air flows, contact service as the valve may be jammed.

Is it safe to use the range hood with a gas stove?

Yes, but ensure adequate ventilation in the room. The range hood must not be used simultaneously with open fireplaces or gas appliances that rely on natural ventilation, as it can cause backflow of combustion gases. If in doubt, have a competent person test the flue gas appliances after installation.

USER MANUAL FHEE26A9S-5 Technika

COOKING WITH PASSION

USER GUIDE

CANOPY RANGEHOODS

FHEE22A9S-5

FHEE22A6S-5

FHEE229SC9S-5

FHEE26A9S-5

FHEE91A9S-5

BG96A6S-5

CHEM52C6S-5

CHEM52C9S-5

CHEM52C9CL-5

CHEM52TLX

TB10900SS-5

For Your Safety

Safety Precautions....3

Before Connecting 3

Warnings 4

Use and Care

Use and Care 6

LED Lamp 6

Controls 7

Command Patterns. 7

Cleaning your Rangehood 8

Troubleshooting 9

Disposal 10

Installation

Electrical Connection 11

Instructions for Installation 12

Fixing to the Wall 13

Fixing the Decorative Telescopic Flue....15

Dimensions....16

For Your Safety

Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for future reference.

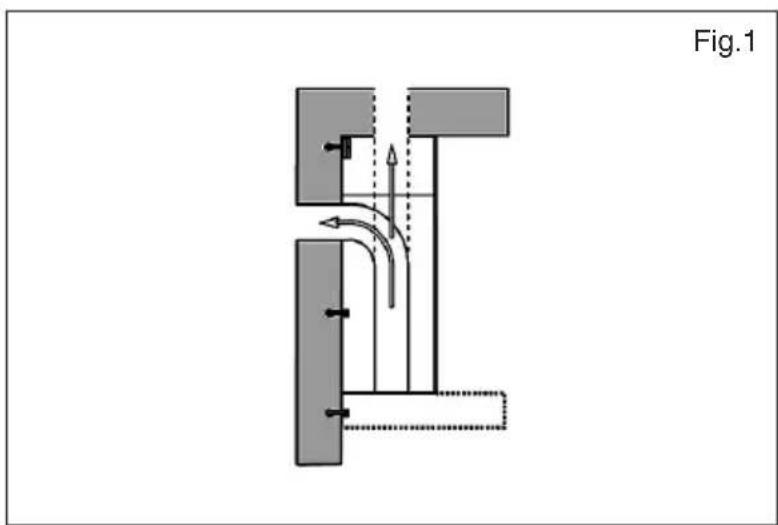

The appliance has been designed for use in a Ducted installation, see Fig.1.

Pure mechanical diagram showing fluid flow through a channel with no text or symbols

Safety Precautions

Take care when the Range Hood is operating simultaneously with an open fireplace or burner that depend on natural ventilation as the Range Hood removes air from the room, which a burner or fireplace may need for combustion.

Provide adequate ventilation for safe operation of the Range Hood. Follow any local laws that apply to external air evacuation.

Before connecting to the electricity network:

Look at the data plate (located inside the appliance) to ascertain that the voltage and power correspond to the available power supply and the power outlet is suitable. If in doubt ask a qualified electrician.

If the appliance is used intensively for a long period of time, you may need to opening a window to improve airflow.

WARNINGS!

- Do not check the status of the filters while the Range Hood is operating.

- Do not touch bulbs or adjacent areas, during or straight after use.

- CAUTION: Accessible parts may become hot when used with cooking appliances.

- Do not flambé under the Range Hood.

- Avoid free flame, as it is damaging to the filters and can cause fire hazard.

- Constantly check food frying, overheated oil may become a fire hazard.

- Disconnect the electrical plug prior to any maintenance.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- There shall be adequate ventilation in the room when the Range Hood is used at the same time as appliances burning gas or other fuels.

- There is a fire risk if cleaning is not carried out in accordance with the instructions.

- WARNING: DO NOT penetrate any screws into the range hood as this may result in electrical hazards.

- WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

WARNINGS!

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

- The minimum distance between the cooktop hob and the lowest part of the range hood shall be at least 60cm. If the instructions for installation of the gas hob specify a greater distance, this has to be taken into account.

- Regulation concerning the discharge of air has to be fulfilled.

- Rangehoods and other cooking fume extractors may adversely affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of combustion gases. These gases can potentially result in carbon monoxide poisoning.

After installation of a range hood or other cooking fume extractor, the operation of flued gas appliances should be tested by a competent person to ensure that back flow of combustion gases does not occur.

- 60cm rangehoods can only be installed above hobs with 4 or less burners / elements.

- 90cm rangehoods can only be installed above hobs with 6 or less burners / elements.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGES CAUSED BY BREACHINGTHE ABOVE WARNINGS.

Use and Care

It is recommended to start the Range Hood prior to commencing to cook and leave the Range Hood in operation for 15 minutes after cooking is finished in order to completely eliminate cooking vapours and odours.

To ensure the Range Hood continues to operate effectively, regular maintenance and cleaning is required. Clean the fan and other surfaces of the Range Hood regularly using a cloth moistened with warm water or non abrasive liquid detergent.

LED Lamps

LED lamps are a spare part and are not repairable, LED lampscan be easily removed and replacements installed, note the plug and socket connection. Please contact the Glen Dimplex Spare Parts department for replacement lamps. (Fig. 2&3)

Simple line drawing of a tool interacting with a circular component and a plate, labeled Fig.2 (no text or symbols on the diagram itself)

Diagram of a mechanical or electrical component with labeled parts and directional arrows, no readable text or symbols present.

Controls

Touch Control Switch

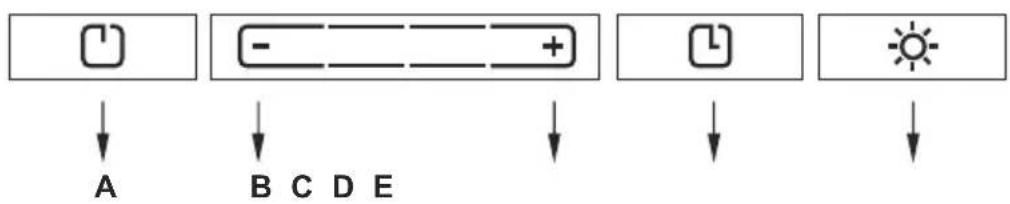

Commands Pattern: (Fig.4)

A= ON/OFF

B= SPEED DOWN -

C= SPEED UP +

D= 15MIN STOP TIMER

E= LIGHT

Fig.4

• Turn the rangehood on using button 'A'. The fan will automatically start on speed 1.
• Use button 'C' to select higher speeds and button 'B' to select lower speeds.
• When you select speed 4, the fan will automatically turn down to speed 3 after 2mins.
• Use the light button 'E' to turn the lights on and off.
• When you use the timer button 'D' the symbol will flash and the fan and lights will turn off after 15mins.

Use and Care

Cleaning your rangehood

The proper function of the rangehood requires regular maintenance operations.

The anti-grease filters capture the grease particles suspended in the air, and are therefore subject to clogging according to the frequency of the use of the appliance.

In order to prevent fire hazard, it is recommendable to clean the filter at a minimum of every 2 months by carrying out the following instructions:

- Remove the filters from the cooker hood and wash them in a solution of water and neutral liquid detergent, leaving to soak.

- Rinse thoroughly with warm water and leave to dry.

- The filters may also be washed in the dishwasher on a hot wash with no detergent.

The aluminum panels may alter in color after several washes. This is not cause for customer complaint nor replacement of panels.

Clean the fan and other surfaces of the cooker hood regularly using a cloth moistened with denatured alcohol or non abrasive liquid detergent.

Keep motor and other parts free from water as this will cause damage to the appliance.

Troubleshooting

Problem	Possible reason	Solution
Hood doesn’t work	No electricity supply	Check the plug is connected
		Check that the main switch/circuit breaker/safety switch is turned on
Poor airflow	Aluminum grease filters clogged	Clean the filters and replace when dry
Motor running but no air flow	Butterfly valve jammed	Contact service department
Motor turns off after a few minutes	High temperature safety device activated	The kitchen is not sufficiently ventilated
	The hood is installed too near to the cooktop	The hood must be at least 600mm from the top of the cooktop
Oil dripping onto stove	Aluminum grease filter saturated	Wash the aluminum grease filters
Whirring sound	Something in contact with fan blade	Contact service department

Use and Care

Disposal

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol on the product indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city council office.

Assembly and electrical connections must be carried out by authorised personnel.

Electrical Connection

The Range Hood is fitted with a power cord and 3 pin plug. Install the Range Hood so that the plug is easily accessible. Plug the 3-pin plug into a properly earthed, 10A general purpose power outlet.

If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

The appliance has been manufactured as a class I, therefore earth cable is necessary.

The connection to the mains is carried out as follow:

	IEC227	North America
L = Live	Brown	Black
N = Neutral	Blue	White
E = Earth	Green/Yellow	Green

If not provided, connect a plug for the electrical load indicated on the description label. Where a plug is provided, the cooker hood must be installed so that the plug is easily accessible after installation.

An omnipolar switch with a minimum aperture of 3mm between contacts, in line with the electrical load and local standards, must be placed between the appliance and the network in the case of direct connection to the electrical network.

Instructions for Installation

Install Range Hoods in accordance with the manufacturer's instructions. Technika recommends that all Range Hood clearances be a minimum of 650mm to a maximum of 750mm between the top of the cooking surface to the underside of the Range Hood. The distance may be reduced to 600mm to align with AS/NZS 5601.

WARNING: DO NOT penetrate any screws into the range hood as this may result in electrical hazards.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

If a connection flue composed of two parts is used, the upper part must be placed outside the lower part.

Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels. Installation must comply with any local regulations concerning the discharge of exhaust air.

Before proceeding with the assembly, remove the anti-grease filter so that the unit is easier to handle. Prepare the hole in the ceiling or wall for the evacuation of the air.

Fixing to the Wall

Ensure the fixings used for this range hood are suitable.

Check the area where the range hood is to be fitted, to ensure that it is structurally sound and will support the weight of the appliance. Do not install direct onto plaster board using 'Wall mates' or other similar anchors.

Range hood must be fixed into studs or nozzgins in the wall to ensure it is secure and minimize vibration in the wall.

Fix the appliance to the wall and align it in horizontal position to the wall units. When the appliance has been adjusted, fix the decorative hood using the screws supplied (See A in Fig 12).

For various installation types, use screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard, etc.). If the screws and screw anchors are provided with the product, check that they are suitable for the type of wall on which the hood is to be fixed.

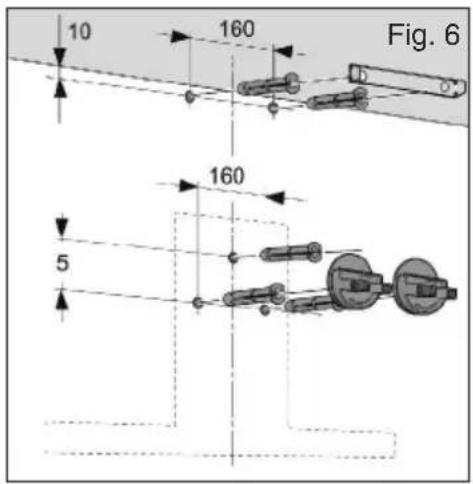

1. Mark a vertical centre line on the wall from the ceiling to the lower edge of the extractor hood.

2. Mark the contour of the attachment area.

3. Mark and drill the positions for the fixing screws.

4. Screw on the fixing bracket for the flue duct.

Diagram of a mechanical assembly with labeled parts and reference line (no readable text or symbols)

Installation

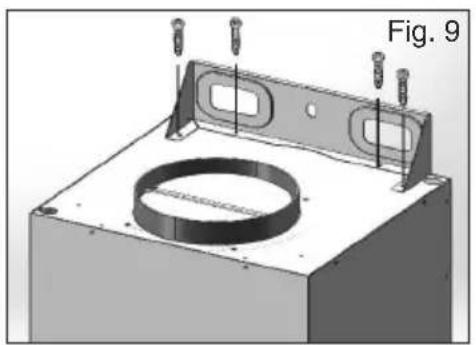

1. Screw on brackets for the extractor hood hand-tight. Do not firmly tighten the screws.

1. Position the mounting bracket and screw it into place with the four screws provided.

3D mechanical part diagram labeled Fig. 9 showing a circular component mounted on a rectangular base with mounting holes (no text or symbols beyond label)

1. When attaching the appliance, ensure that it engages firmly with the brackets.

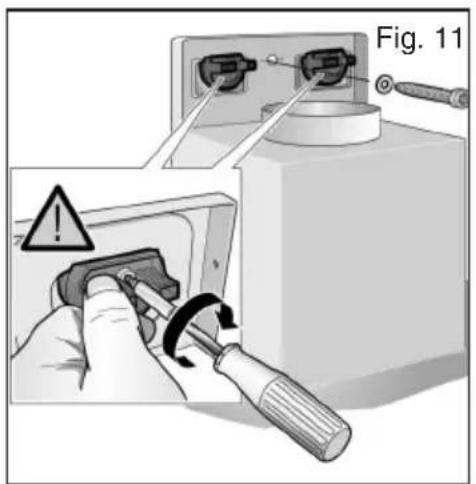

1. Align the appliance horizontally by turning the brackets. If required, the appliance can be moved to the right or left.

2. Firmly tighten the screws for the brackets. When doing so, hold the brackets securely in place.

Fixing the Decorative Telescopic Flue

Arrange the electrical power supply within the dimensions of the decorative flue.

Prepare the hole in the ceiling or wall for the evacuation of the air. Install butterfly flaps into the outlet on the top of the range hood (C) (Fig.13).

Connect the ductwork to the outlet with a cable tie or suitable tape. Do not use screws.

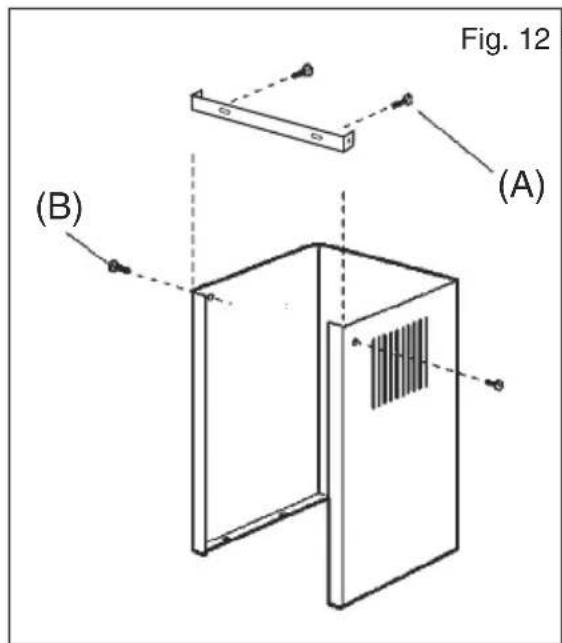

Fix the upper flue cover to the support bracket with screws (B) (Fig.12)

Slide the lower flue cover down into the top of the rangehood. Some models will require the lower flue cover to be fixed from underneath using the provided screws (Fig.13)

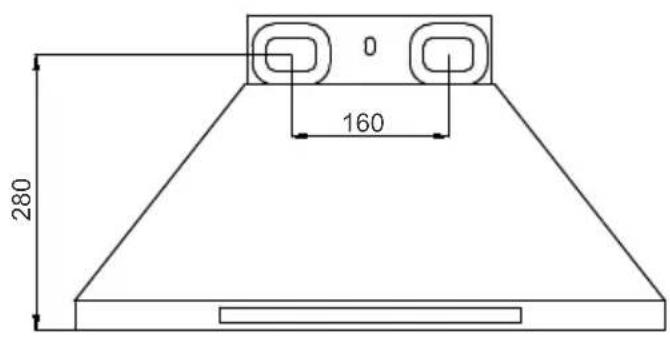

Model FHEE22A6S-5

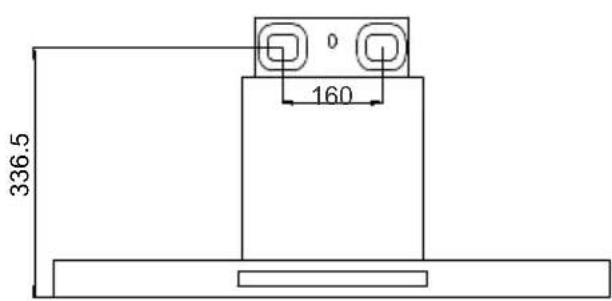

Model FHEE22A9S-5

Model FHEE229SC9S-5

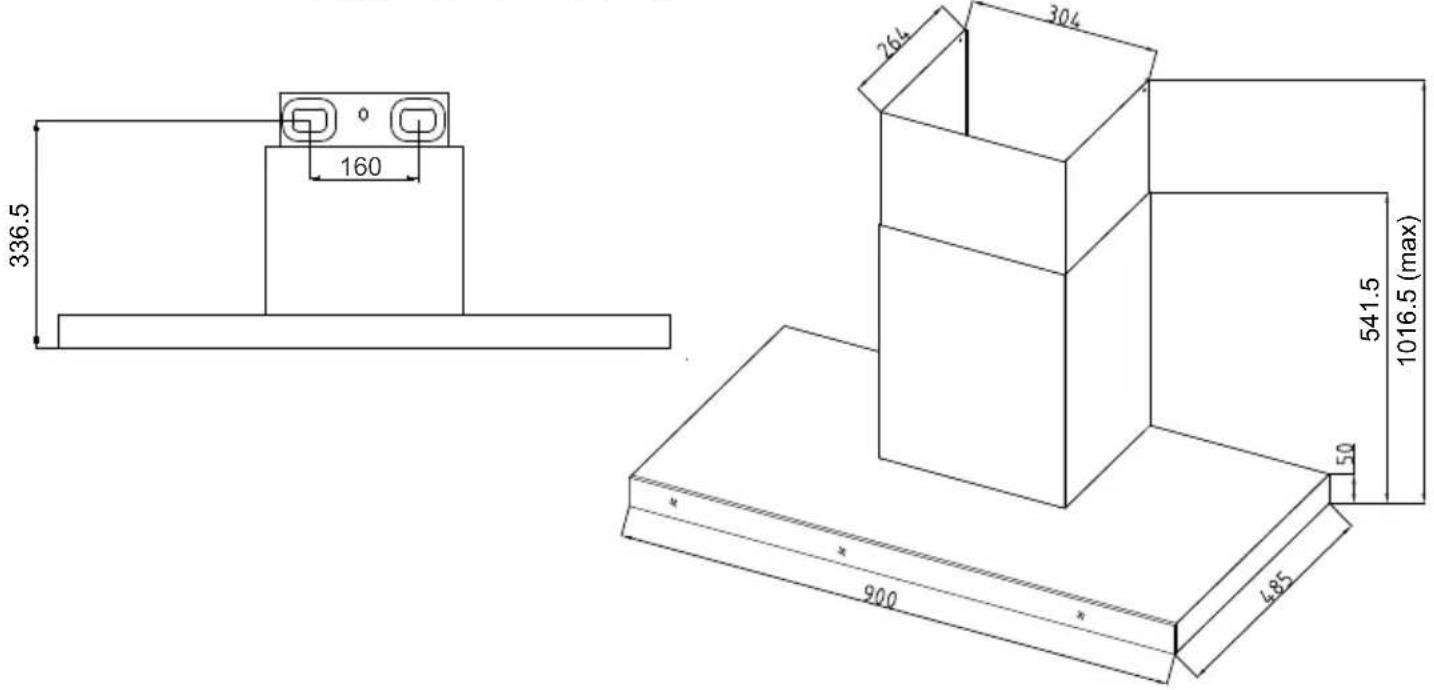

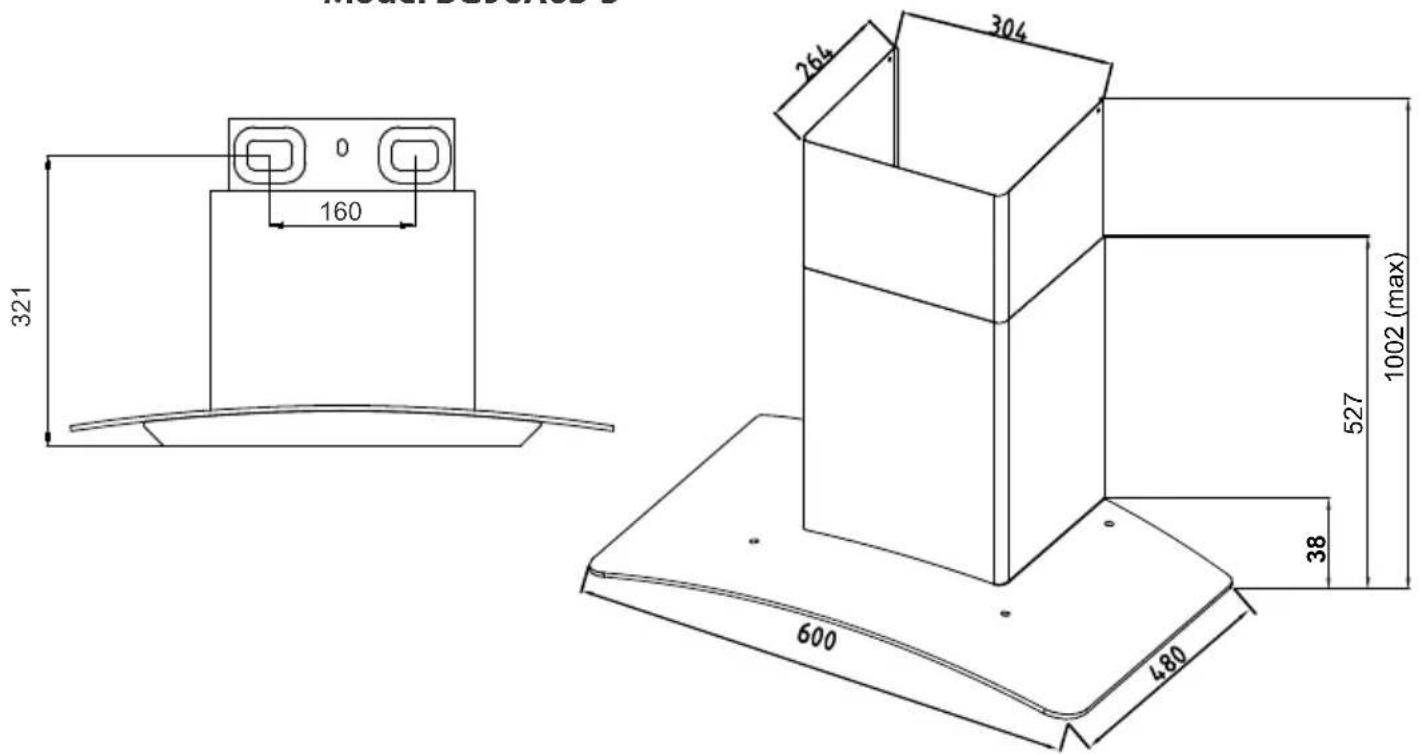

Model FHEE26A9S-5

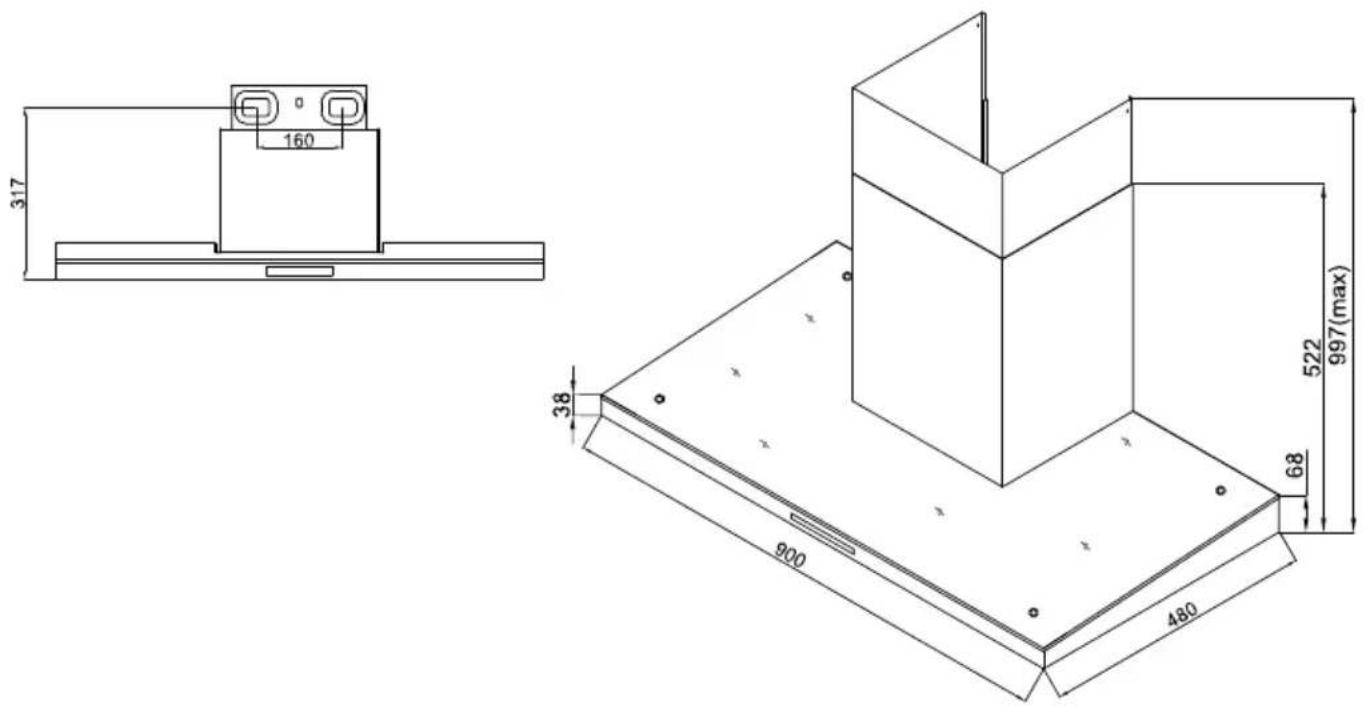

Model TB10900SS-5

Model BG96A6S-5

Dimensions

Model FHEE 91A9S-5

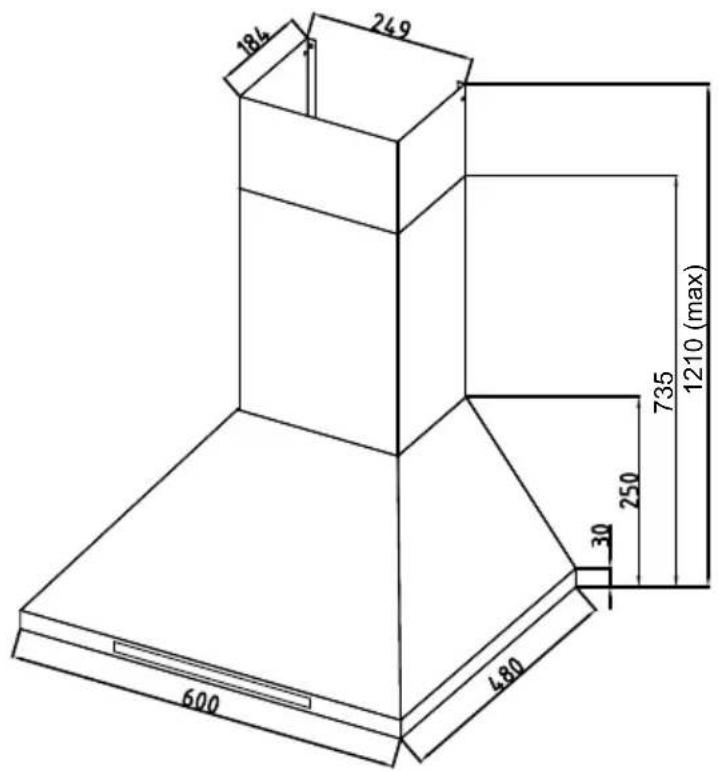

Model CHEM52C6S-5

Dimensions

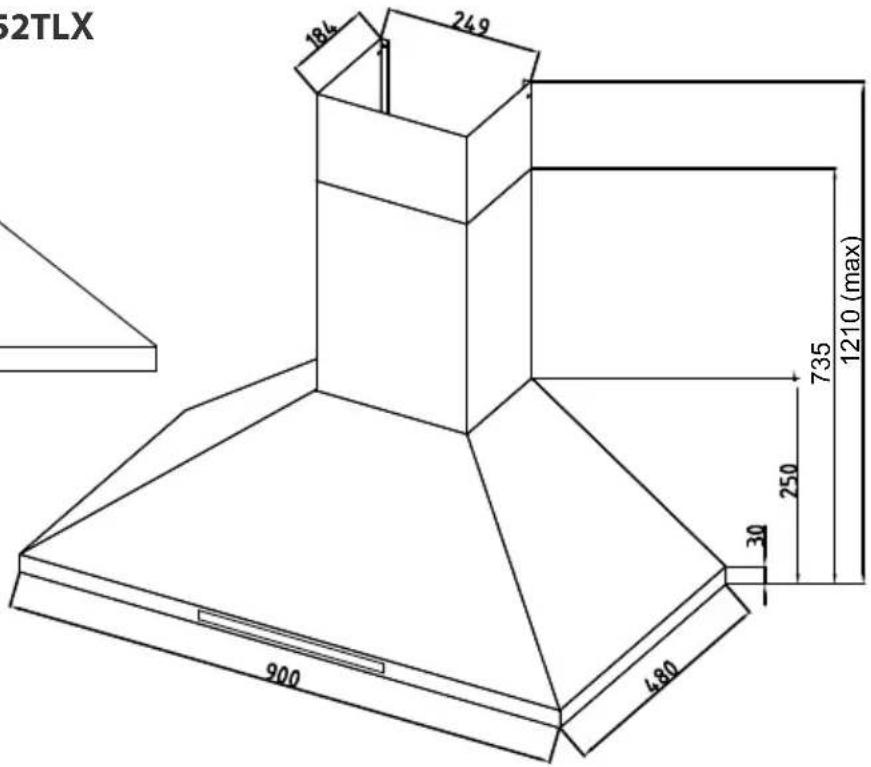

Model CHEM52C9S-5 CHEM52TLX

Model CHEM52C9CL-5

MANUFACTURER GUARANTEE

This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118 275 460 (Phone number 1300 556 816) and in New Zealand by Glen Dimplex New Zealand Limited NZBN 9429000069823 (Phone number 09 274 8265) in respect of the Technika product.

1. Technika Express Warranty

Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within:

a) In the case of Technika products used for personal, domestic or household purposes, a period of 3 years from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand.
b) In the case of Technika products used for purposes other than personal, domestic or household purposes (including business or commercial use), a period of 90 days from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand. Technika products are designed and intended for domestic use only; and
c) All warranty repairs must be carried out by Glen Dimplex or their nominated service agent

Note: warranty periods detailed above may vary in line with agreements with select retail and builder partners and may differ between Australia and New Zealand.

The benefits conferred by this express warranty are in addition to the Consumer Guarantees referred to in section 3 and any other statutory rights you may have under the Australian / New Zealand Consumer Law and/or other applicable laws.

2. Warranty exclusions

This express warranty does not apply where:

a) The product has been installed, used or operated otherwise than in accordance with the product manual or other similar documentation provided to you with the product;
b) The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories or exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex;

c) The repair relates to the replacement of consumable parts such as fuses and bulbs or any other parts of the product which require routine replacement;
d) You are unable to provide us with reasonable proof of purchase for the product;
e) the breakdown occurs after the expiry of the express warranty period set out in section 1 or
f) the product was not purchased in Australia / New Zealand as a brand-new product.

3. Consumer guarantees

Our goods come with guarantees that cannot be excluded under the Australian / New Zealand Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

4. How to make a claim

You may make a claim under this warranty through our website, contacting our customer care line or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at the end of this document

To make a valid claim under this warranty, you must:

a) Lodge the claim with us as soon as possible and no later than 14 days after you first become aware of the breakdown;
b) Provide us with the product serial number;
c) Provide us with reasonable proof of purchase for the product. This can take the form of a store receipt, new home handover form or other payment receipt documentation; and
d) If required by us, provide us (or any person nominated by us) with access to the premises at which the product is located at times nominated by us (so that we can inspect the product).

5. Warranty claims

If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible).

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods.

Products are designed and supplied for normal domestic use. We will not be liable to you under this warranty for business loss or damage of any kind whatsoever.

Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd

www.glendimplex.com.au

www.glendimplex.co.nz

Australia

New Zealand

Ph: 1300 556 816

Ph: 09 274 8265

[e-mail]

[e-mail]

The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance.

The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual. In addition, the appearance of the figures reported is also purely indicative.

The manufacturer reserves the right to make changes to its products when considered necessary and useful, without affecting the essential safety and operating characteristics.

Glen Dimplex constantly seeks ways to improve the specifications and designs of their products. Whilst every effort is made to produce up to date literature, this document should not be regarded as an infallible guide. Actual product only should be used to derive cut out sizes.

All appliances must be installed by a qualified person/s with adherence to the relevant electrical, plumbing and building codes, with compliance being issued as required by state or national legislation.

Additionally, all upright cookers must have the anti-tilt device installed correctly in adherence to the relevant standards by a licenced installer.

For maximum effectiveness and efficiency all rangehoods should be installed with the use of ductwork, by a licenced installer with adherence to the relevant state and national building codes and regulations.

All Glen Dimplex appliances are for Domestic use only, and must be installed by a licence installer into Domestic Applications only, without exception and to the required Authorities guidelines. Any installation outside of this will VOID warranty. Alfresco areas are not a Domestic application.

TECHNIKA®

COOKING WITH PASSION

Distributed by:

Glen Dimplex New Zealand Ltd Glen Dimplex Australia F

For full terms and conditions, or to register your product warranty, please visit our website: www.glendimplex.com.au www.glendimplex.co.nz

For service advice, please contact the Customer Care Centre by phone or email below.

Australia

New Zealand

[e-mail]

Ph: 09 274 8265Ph: 1300 556 816

[e-mail]
