ALP580 - Multimedia projector AIWA - Free user manual and instructions

Product Type	WiFi Multimedia Projector
Brand	Aiwa
Model	ALP580
Dimensions (LxWxH)	306.7 x 226.1 x 114.8 mm
Weight	2.4 kg
Power Supply	DC 19V, 7.0A (adapter input AC 100-240V, 50/60 Hz)
Power Consumption	133W (operating), 0.8W (standby)
Light Source	LED
Brightness	250 ANSI Lumens (9000 Lumens LED)
Native Resolution	1280 x 720 pixels
Supported Video Resolutions	1080p, 1080i, 720p, 576i, 480p, 480i
Projection Size	30 - 165 inches
Signal Input Ports	AV (RCA), VGA, HDMI (x3)
USB Ports	2 (1 for data up to 1TB, 1 for charging only)
MicroSD Card Slot	Up to 32GB
Bluetooth	v4.1/v4.2 (for audio output to external speakers)
WiFi	Yes (supports iOS Cast and Miracast)
Audio Output	3.5mm earphone jack, built-in speaker, Bluetooth
Keystone Correction	Manual (trapezoidal adjustment knob)
Focus Adjustment	Manual focus knob
Remote Control	Yes (2x AAA batteries included)
Included Accessories	AC adapter, lens cover, 3.5mm to RCA AV cable, remote, user manual
Cleaning	Air filter every 3 months; lens with vacuum; exterior with soft cloth

Frequently Asked Questions - ALP580 AIWA

How do I connect the projector to Wi-Fi?

Go to Setup > Network > WiFi and select Scan. Choose your network and enter the password. Then press Exit to confirm.

How do I mirror my iPhone screen?

Select iOS Cast on the projector home page. Ensure your iPhone is on the same network (or connect to the projector's AP). Open Control Center, tap Screen Mirroring, and select the projector device (e.g., ZYCast-fd3d).

How do I adjust the keystone (trapezoid) distortion?

Use the Trapezoidal Adjustment Knob on the projector. Turn it to correct the image shape until it becomes rectangular.

What should I do if no image is projected?

Check that the power light is on, the lens cover is removed, cables are secure, and the correct input source is selected. Press Source button to cycle through AV, VGA, HDMI, etc.

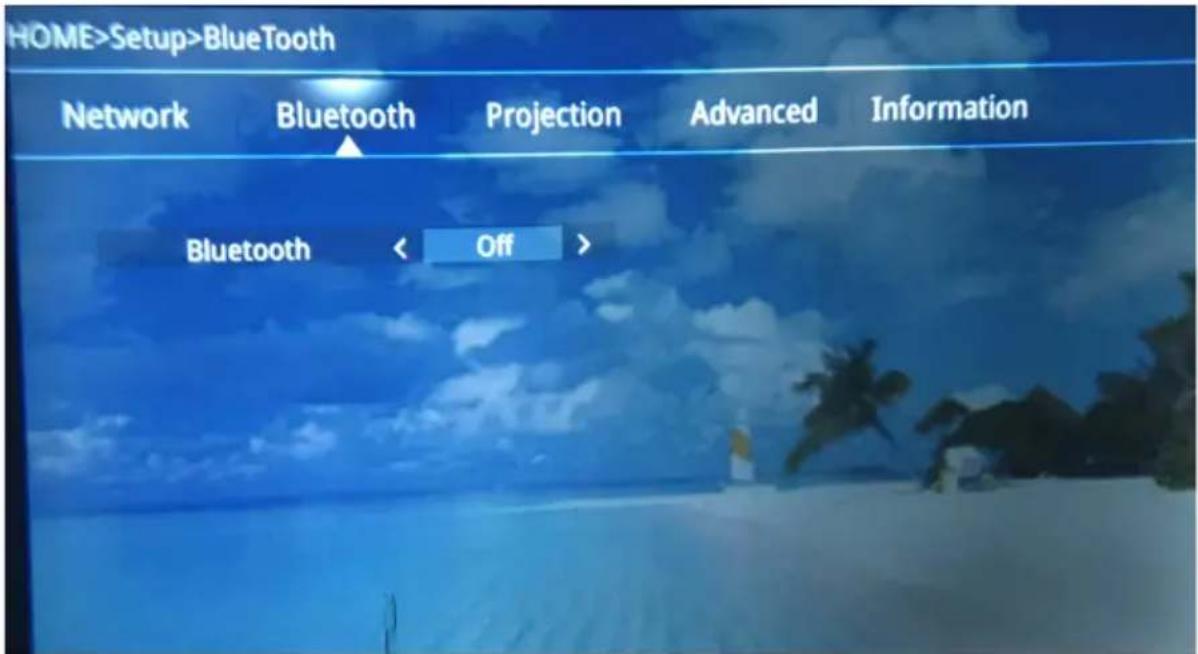

How do I connect Bluetooth speakers?

Enable Bluetooth on your speaker. On the projector, go to Setup > Bluetooth and turn it ON. The projector will search and pair automatically. The speaker name appears on the main menu when connected.

How do I play media from a USB drive?

Insert the USB drive, then select Media from the home page. Choose Movie, Music, Photo, or Text. Use the arrow keys to navigate and press OK to play.

What is the native resolution of the projector?

The native resolution is 1280 x 720 pixels. It supports higher resolutions like 1080p via HDMI input.

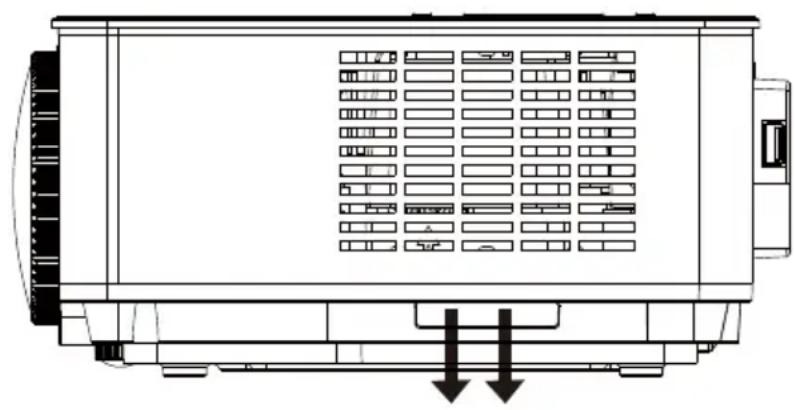

How do I clean the projector?

Turn off and unplug. Clean the exterior with a soft dry cloth. For the lens, use a vacuum cleaner to remove dust. Clean the air filter every 3 months by tapping gently and using a vacuum.

Can I mount the projector on the ceiling?

Yes, you can use a ceiling mount (not included). Install according to the mount's instructions. The projector supports Front Ceiling and Rear Ceiling projection modes, selectable in Setup > Projection.

How do I update the firmware?

Go to Setup > Advanced > Online Update if connected to Wi-Fi, or use Local Update with a USB drive containing the firmware file.

USER MANUAL ALP580 AIWA

Exterior view of a black projector with a circular lens and screen (no visible text or symbols)

Instruction Manual

CAUTION:

Usage of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This unit should not be adjusted or repaired by anyone except qualified service personnel.

KEEP THESE INSTRUCTIONS IN MIND:

1. Do not use this device near water.
2. Clean only with a slightly damp cloth.
3. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2") free space around the whole device.
4. Install in accordance with the supplied user manual.
5. Don't step on or pinch the power adaptor. Be very careful, particularly near the plugs and the cable's exit point. Do not place heavy items on the power adapt or, which may damage it. Keep the entire device out of children's reach! When playing with the power cable, they can seriously injure themselves.
6. Unplug this device during lightning storms or when unused for a long period.
7. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame.
8. Avoid using the device near strong magnetic fields.
9. Electrostatic discharge can disturb normal usage of this device. If so, simply reset and restart the device following the instruction manual. During file transmission, please handle with care and operate in a static-free environment.
10. Warning! Never insert an object into the product through the vents or openings. High voltage flows through the product and inserting an object can cause electric shock and/or short circuit internal parts. For the same reason, do not spill water or liquid on the product.
11. Do not use in wet or moist areas such as bathrooms, steamy kitchens or near swimming pools.
12. Do not use this device when condensation may occur.
13. Although this device is manufactured with the utmost care and checked several times before leaving the factory, it is still possible that problems may occur, as with all electrical appliances. If you notice smoke, an excessive build-up of heat or any other unexpected phenomena, you should disconnect the plug from the main power socket immediately.
14. This device must operate on a power source as specified on the specification label. If you are not sure of the type of power supply used in

your home, consult your dealer or local power company.

1. The socket outlet must be installed near the equipment and must be easily accessible.

2. Do not overload ac outlets or extension cords. Overloading can cause fire or electric shock.

3. Devices with class 1 construction should be connected to a main socket outlet with a protective earthed connection.

4. Devices with class 2 construction do not require a earthed connection.

5. Keep away from rodents. Rodents enjoy biting on power cords.

6. Always hold the plug when pulling it out of the main supply socket. Do not pull the power cord. This can cause a short circuit.

7. Avoid placing the device on any surfaces that may be subject to vibrations or shocks.

8. To clean the device, use a soft dry cloth. Do not use solvents or petrol based fluids. To remove severe stains, you may use a damp cloth with dilute detergent.

9. Damage or lost data caused by malfunction, misuse, modification of the device or battery replacement will not be covered under warranty.

10. Do not interrupt the connection when the device is formatting or transferring files. Otherwise, data may be corrupted or lost.

11. If the unit has USB playback function, the USB memory stick should be plugged into the unit directly. Don't use a USB extension cable because it can cause interference resulting in failing of data.

12. The apparatus shall not be exposed to dripping or splashing and make sure that no objects filled with liquids, such as vases, are placed on or near the apparatus.

13. To completely disconnect the power input, the mains plug of the apparatus shall be disconnected from the mains, as the disconnect device is the mains plug of apparatus.

14. Battery shall not be exposed to excessive heat such as sunshine, fire or the like.

15. Attention should be drawn to the environmental aspects of battery disposal.

16. The unit should only be used in moderate climates. Avoid using in extremely cold or extremely warm environments.

17. The rating label has been marked on the bottom or back panel of the apparatus.

18. This device is not intended for use by people (including children) with physical, sensory or mental disabilities, or a lack of experience and knowledge, unless they're under supervision or have received instructions about the correct use of the device by the person who is responsible for their

safety.

1. This product is intended for indoor, household use only and not for commercial or industrial use.

2. Make sure the unit is adjusted to a stable position. Damage caused by using this product in an unstable position or by failure to follow any other warning or precaution contained within this user manual will not be covered by warranty.

3. Never remove the casing of this apparatus.

4. Never place this apparatus on other electrical equipment.

5. Do not use or store this product in a place where it is subject to direct sunlight, heat, excessive dust or vibration.

6. Do not allow children access to plastic bags.

7. Only use attachments/accessories specified by the manufacturer.

8. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the apparatus, when the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

9. Do not use a damaged power cord or plug or a loose outlet. Doing so may result in fire or electric shock.

10. Prolonged exposure to loud sounds from personal music players may lead to temporary or permanent hearing loss.

INSTALLATION

- Unpack all parts and remove protective material.

- Do not connect the unit to the mains before checking the mains voltage and before all other connections have been made.

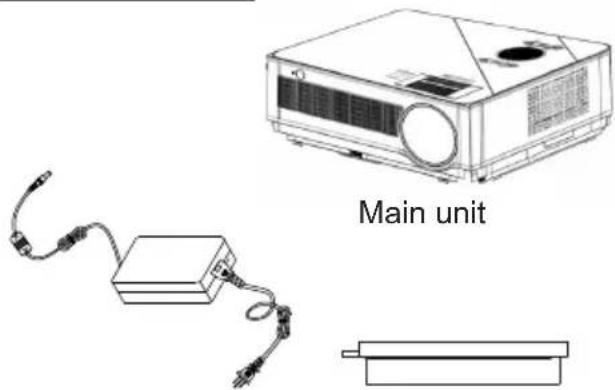

Packing Included :

AC Power Adapter Lens Cover

3.5 mm to RCA AV cable

User Manual

Remove & Close The Lens Cover

Remove the lens cover before using

Close the lens cover when unit not in use

Placing Your Projector

Your projector can be installed in four different configurations (see picture below):

Front Table:

Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

Illustration of a group of people seated at a table facing a presentation screen (no text or symbols visible)

FRONT TABLE

Front Ceiling:

Select this location with the projector suspended upside-down from the ceiling in front of the screen.

NOTE: A projector mount is required to install the projector in a ceiling.

Illustration of a meeting with a projection screen above a group of people seated at a table (no text or symbols present)

FRONT CEILING

Rear Table:

Select this location with the projector placed near the floor behind the screen.

NOTE: A special rear projection screen is required.

Illustration of a group of people seated at a table facing a large triangular flag, with no visible text or symbols.

REAR TABLE

Rear Ceiling:

Select this location with the projector suspended upside-down from the ceiling behind the screen.

Illustration of a meeting room with a speaker at the front and a projection screen on the right (no text or symbols)

REAR CEILING

NOTE:

A projector mount is required to install the projector in a ceiling.

A special rear projection screen is required.

To Reduce Image Distortion

Square /Rectangle

It is recommended to move the projector as close to center of screen.

Distance Between The Projector And Screen

Measure the distance between the projector and where you want to position the screen. This is the projection distance.

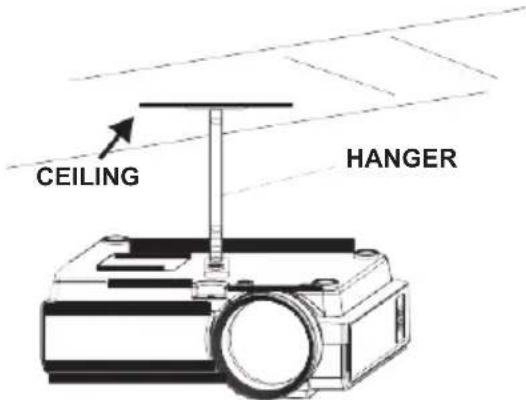

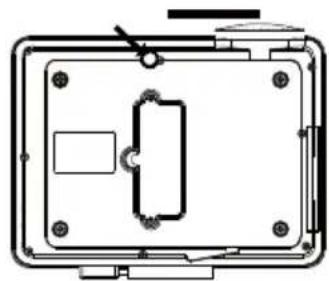

Placing Your Projector On Ceiling

When installing the projector in the ceiling, please purchase a projector mount recommended by an installation professional and follow the instructions that come with the mount.

Before installing the projector in the ceiling, please check to make sure the ceiling structure can support the weight of the projector and the mount. If in doubt, please ask the advice from an installation professorial.

NOTE: Projector mount and screw(s) not included

FIXED HANGER HOLE

Technical line drawing of a rectangular electronic device with mounting holes and internal components (no text or symbols)

Adjust The Vertical Angle

Note: This does not apply for ceiling mounted projectors. To adjust the vertical angle of the image, adjust the Height Adjustment Peg on the bottom of the projector as shown. Turn this Peg clockwise or anticlockwise to adjust the vertical angle.

Height Adjustment Peg

Adjust The Focus And Keystone

Follow below picture to adjust the focus and trapezoidal screen.

Adjust the focus by turning the knob while observing the image pixels near the center of the screen. Optimal focus is obtained when the pixels are clearly visible. Depending on the projected screen size, the focus near the screen edges may be less sharp than the screen center.

Keystone image is created when the projector beam is projected to the screen in an angle. Keystone correction will restore the distorted image to a rectangular or square shape.

FOCUS ADJ. KNOB

Then sharpen the image by rotating focus knob.

Diagram of a device layout with labeled components (no text or symbols)

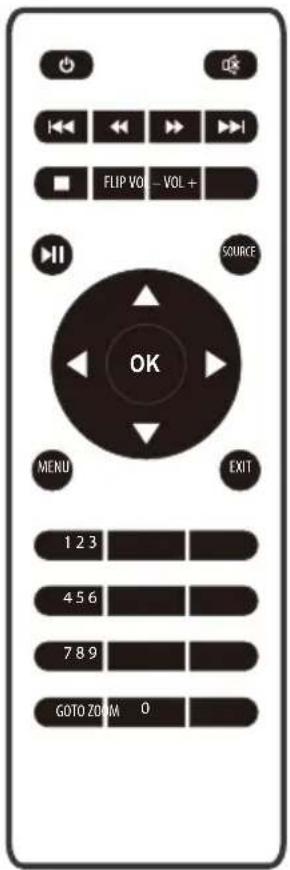

Controls Of Remote

Power

Press to power ON.

Press and hold to power OFF.

Previous / Next

Press to skip between chapters or tracks.

Stop

Press to stop playback.

Flip

Press t display image 180°.

Play/Pause

Press to play or pause an individual

chapter or track.

Arrows/OK

Press to navigate and c rm selections in

Settings and other menus.

Menu

Press to access projector Settings.

Go To/Number Keypad

Press to enter spec ter ontrack

numbers. Use Play button to begin

playing.

Mute

Press to mute volume.

Back / Fwd

Press to search through an individual chapter or track.

VOL+/VOL-

Press to adjust audio level.

Source

Press to select media source

(AV, PC, HDMI, MEDIA).

Exit

Press to exit menus.

Zoom

Press to zoom display image in or out.

Install / Remove Battery Of Remote

Remove the battery compartment cover on the back of your remote by carefully sliding to open. The battery cover can then be lifted away. Fit the correct batteries (2 X AAA batteries included), referring to the polarity markings. Finally, replace the cover.

NOTES:

• Batteries shall not be exposed to excessive heat such as sunshine, fire
• Be sure that the batteries are installed with correct polarity.
  • Only same or equivalent type batteries as recommended are to be used.
• Do not dispose of batteries in fire, battery may explode or leak. Do not try to recharge a battery
  • Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (Nickel-cadmium, Nickel-metal hydride etc) batteries.

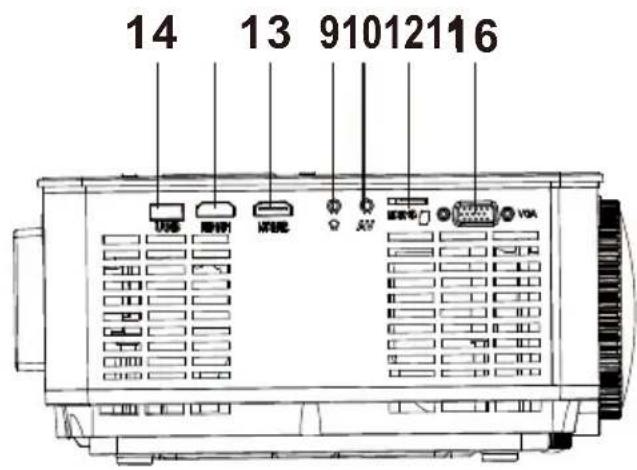

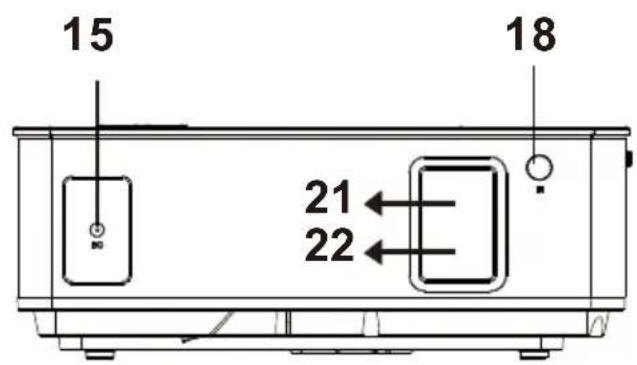

Controls Of Projector

1. POWER Button2. RETURN Button3. NAVIGATION Buttons4. MENU Button5. SOURCE Button6. TRAPEZOIDAL ADJ. Knob (Keystone Adj.)7. FOCUS ADJ. Knob8. LENS9. EAR PHONE Jack10. AV IN jack11. MicroSD Card Slot

12. HDMI Port 113. HDMI Port 214. USB Port 115. DC IN jack16. VGA Port17. POWER on Indicator18. IR Window ( Rear Side)19. IR Window ( Front Side)20. Height (Angle) Adjustment Peg21. USB port 2 (only for charging).22. HDMI port 3

Controls

Install Power Adapter

Follow below picture to connect power adapter

Connect small end of adapter FIRST. Plug the adapter body to power outlet.

Step1: Choose "Setup" on the right of the interface, then find "Network".

Step2: Find "WiFi".

Step3: Choose "Scan". Select your wireless network from list and type in the password.

Step4: Press the "Exit" key on the remote control and then confirm the connection.

iOS Cast

Step1: Select "iOS Cast" on the home page.

Step2: iOS devices and projectors must be connected to the same network, or connect the iOS device to the wireless network issued by the projector.

Step3: Open the control center of iOS device, Choose "Screen Mirroring".

Step4: Choose the name of the projector device.

Attention: After the first use or upgrade of the software, the projector needs to be connected first.

Mirror your iPhone, iPad or iPod touch

Make sure that your iOS device is connected to the same network as your Projector, or connect iOS device with AP by Projector: Projector AP

1. On your iOS device, open Control Center and tap Screen Mirroring.

1. Looking for devices that can be mirrored on.

1. Select ZYCast-fd3d from the list.

Step1: Select the Miracast of the home page.

Step2: Open the "wireless display" function of Android device.

Step3: Select the corresponding projector device name.

Attention: Note that different Android devices have different ways to open the "wireless display". For details, please refer to the instructions for Android devices.

Connect HDMI Show The Image On Projector Screen

Follow below picture to connect HDMI cable and device.

1. Turn off the unit before connecting HDMI cable.
2. After connecting, press the ⏻ button to turn on unit and power indicator will light GREEN
3. Press the SOURCE of the home page and direction button to select the corresponding HDMI signal interface. In the HDMI mode the video from the connected device will be displayed on the screen. There are 3 HDMI inputs (HDMI 1, HDMI 2 and HDMI3), select the correct source accordingly.
4. Press the button to turn off unit power.

Note: For HD signal input through HDMI

Video Player In rare cases, if the projector's speaker has no sound when playing a DVD movie in a player through the HDMI input, please check the player's digital audio settings and make sure it is set to "Auto" mode or "PCM" mode.

● Using the HDMI Interface

Please select the HDMI, the projector could be connected with DVD player, Game box, HDD player etc.

Connecting to PC

Step1: Connect projector and device with HDMI cable.

Step2: Select the HDMI source of the home page.

Tips: Adjust the PC display resolution to about "1024×768".

Connect AV Show The Image On Projector Screen

Follow below picture to connect AV cable and device.

1. Turn off the unit before connecting AV cable.
2. Use AV cable to connect as per the below figure
3. After connecting, press the button to turn on unit and power indicator will light GREEN
4. Press the / SOURCE button to switch to AV mode, the video from the connected device will be displayed on the screen.
5. Press the button to turn off unit power.

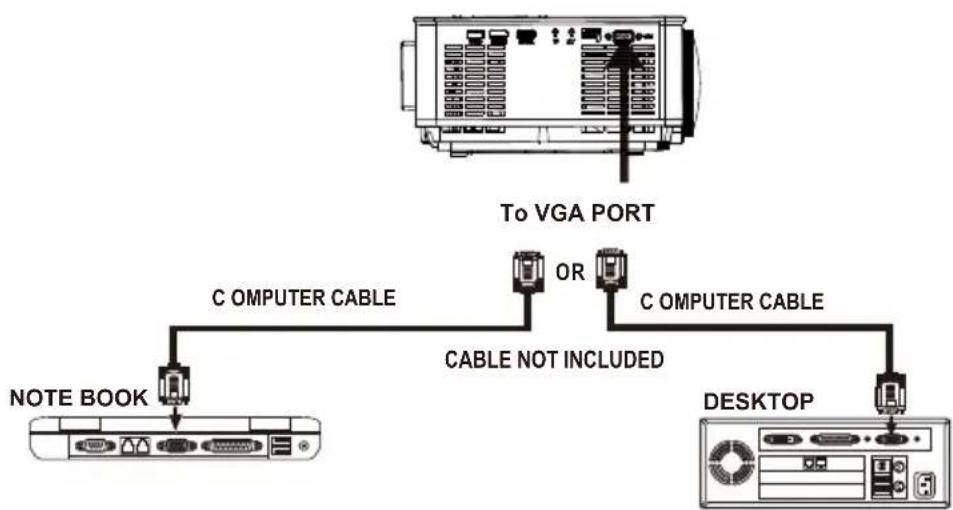

Connect VGAShow The Image On Projector Screen

Follow below picture to connect VGA cable and device.

1. Turn off the unit before connecting VGA cable.
2. Press the button to turn off power of your projector before connection.
3. After connecting, press the ⏻ button to turn on unit and power indicator will light GREEN
4. Press the ☑ / SOURCE button to switch to VGA mode, the video from the connected device will be displayed on the screen.
5. Press the button to turn off unit power.

Please refer to the following table to adjust the output signal from computer

Type	Resolution		Frequency	Field Frequency
PC	VGA	640x480	31.5 60
			34.7 70
			37.9 72
			37.5 75
	SVGA	800x600	31.4 50
			35.1 56
			37.9 60
			46.6 70
			48.1 72
			46.9 75
	XGA	1024x768	40.3 50
			48.4 60
			56.5 70

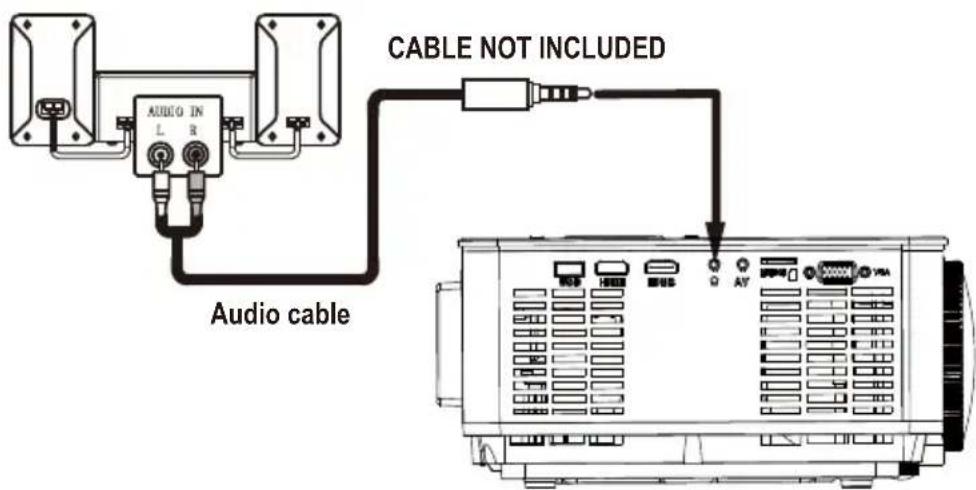

Connect Audio Output (Aux Out / Line Out / Earphones)

Follow below picture to connect audio cable and device.

1. Press the button to turn off projector power before connecting.
2. Use an audio cable as shown below to connect the external device to the projector.
3. Turn on the projector and the external device. Now the projector sound will be played on the external device speakers.
4. Turn off both the projector and the external device after use.

Station Amplifier

Install USB Device And microSD Card

Connect your USB device or microSD card to the respective slots.

Turn off the projector when inserting.

MicroSD Card And USB Playback (Media Player)

Install USB / microSD device:

1. Turn off the unit before inserting USB/ microSD card.
2. Install the USB device into USB port.
3. After connecting, press the ⏻ button to turn on unit and the power indicator lights up GREEN.
4. Press the E /SOURCE button to enter and use 🔊 buttons to search for MEDIA mode.
5. After selection, use 🔒 buttons to search the MUSIC / PHOTO / MOVIE icon and press the OK button to enter. If necessary, use the ◀/▶ button to select microSD card or USB and press the OK button to enter.
6. Use 🔒 buttons to search the correct file and press the OK button to preview playback file and press the ⏻ button of unit or ▶ button of remote to start playback.
7. Press ◀◀/▶ button to fast search forward and rewind.
8. Press 🏠 button to search next or previous file.
9. During playback, press the ▶ button to pause and press again to resume.

NOTE: Remove USB / microSD device, press the ⏻ button to turn off power FIRST.

Step1: USB disk is connected to the projector, then select "Media".

Step2: You can choose "Movie", "Music", "Photo", and "Text" from the list.

Sub-Menu on Photo screen
1. During photo playback, press the OK button and more function screens show up (figure 1).2. Use the button to select icon and press the OK button to play special function.	Figure 1.Pause Prev. Next Stop Re... background music PL... InfoRotate Rotate Zo... Zo... M...
Sub-Menu on Music screen
3. During music playback, press the OK button and more function screens show up (figure 2).4. Use the button to select icon and press the OK button to play special function.	Figure 2Pause FB FF Prev. Next Stop Re... Set AMUTE PL... Info Go...
Sub-Menu on Movie screen
5. press the movie playback, OK button and more function screens show up (figure 3).6. Use the button to select icon and press the OK button to play special function.	Figure 3Pause FB FF Prev. Next Stop Re...Set A PL... Info SI... St... Go...AS...

Using Bluetooth Playback

Pairing to Bluetooth Wireless Speakers or Sound Bar

NOTE: Bluetooth is OFF by default when the projector first powers ON. Bluetooth can be turned ON or OFF from the OPTIONS Menu.

1. Enable Bluetooth on the receiver (external speakers, sound bar, etc.) to which you wish to connect. Devices such as smartphones, tablets, or computers are not Bluetooth receivers and will not connect to the projector. To eliminate confusion, you should disable Bluetooth on all receivers to which you do not wish to connect.
2. Power on the projector and make sure the projector's Bluetooth is ON (see note above). The projector will begin searching for nearby Bluetooth devices to connect to, and will automatically initiate pairing.
3. When successfully paired, the Bluetooth receiver should indicate it is connected, usually with a chime or other audible noise. Check the user manual on your Bluetooth receiver for more information.
4. When successfully connected, the projector will display the Bluetooth receiver's name on the top right portion of the Main Menu screen, and sound played from the projector will be heard through the Bluetooth receiver.

After initial pairing, the projector and the Bluetooth speakers will stay paired unless unpaired manually by the user, or erased due to a reset of either device. If this occurs, or you find either unit is unable to connect, repeat the above steps.

Bluetooth : Turn Bluetooth ON or OFF

Using Projector Menu 1.0

Press source of the home page to enter projector image setup.

Use buttons to select manual page.

1. Image Mode
2. Aspect Ratio
3. Brightness
4. Contrast
5. Color
6. Sharpness

Aspect Ratio
4:3 The signal in a	4:3 aspect ratio projection image
16:9 The signal in	a 16:9 aspect ratio projection image

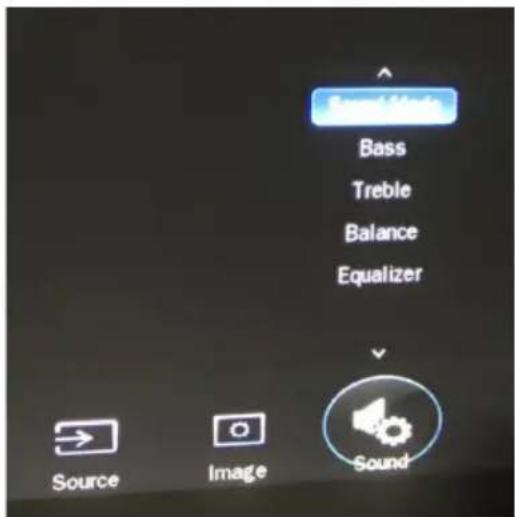

Using Projector Menu 2.0

Press source of the home page to enter projector sound setup.

Use buttons to select manual page.

1. Sound Mode
2. Bass
3. Treble
4. Balance
5. Equalizer

Sound Mode - User Parameter
Treble 0-100
Bass	0-100

Using Projector Menu 3.0

Setup

Set submenu function

Network:

Scan / Auto IP / Static IP

Projection:

Projection Mode: Front Desktop / Front Ceiling

Advanced:

Language/Boot Source/Sleep Timer/Local update/Online update/Restore Factory Default

INFO

Display the unit information as below.

Model: ALP580

SN:EV0386/1

LOGO: AIWA

BT V4.1/V4.2

English Hrvatski Nederlands Chinese
Franais Deutech Slovenina Slovak
Espanol Italiano Norsk
Portugues Magyar Srpski
Esky Polski Svenska
Dansk Romnete Suomi

Specifications

Light Source Type	LED
Brightness Output	LED bulb 9000 LumensWhite light output 250 Ansi Lumens
Display Native Resolution	1280 x 720
HDMI Input SupportedVideo Resolution.	1080p, 1080i, 720p, 576i, 480p, and 480i
Power Consumption	Operating 133W; Standby 0.8W
Power InputConnect Included Adapter	DC 19V, 7.0A
Included AdapterConnect DC input of unit	Input AC100-240V,50/60HzOutput DC19V, 7.0 A
Display Color	7000-8000K
Projection Size 30-165 inch
Signal Port	AV / VGA / HDMI
USB Port Support USB device up to 1TBSupport format mpeg1, Mpeg2 ,mpeg4, mp3 , Jpeg
SD Card Support SD card up to 32GBSupport format mpeg1, Mpeg2 ,mpeg4, mp3 , Jpeg
Weight 2.4 KG
Dimensions	306.7 x 226.1 x 114.8 mm

TROUBLESHOOTING

This section summarises a few common problems you might encounter when using this product. If the answer to your problem is not found within this table, or you need further assistance, please contact Customer Service.

No Image is Projected or a "No Signal" message is displayed	1. Is the Power light on? If it is not on, check that the projector is plugged into the mains, that the socket is switched on, and then press the power button on the projector.2. Check the lens cover has been removed.3. Check the cables are securely attached and installed as per the User Manual.4. The image source may not be set correctly. Press the Source button on the Control Panel or the Remote, to select the correct setting.5. Check in the Menu section under Video input signal to make sure that has been set correctly.
The Lamp (Bulb) switches off after a period of time	1. Leave the projector to cool for a few moments.2. Once cooled, check if anything is blocking the ventilation vents.3. Check the air filter is clean and clean if necessary4. Turn on the projector.
The Image is wider at the top/bottom of the screen	This is called keystone and is due to the projection angle not being perpendicular to the screen. To correct, use the projector's inbuilt keystone function to adjust the image.
Spots on the screen	Use a vacuum cleaner to clean the lens.
The image brightness has faded	This might be caused by the ambient light in the room. If not ,you may need to replace the lamp (bulb).

Cleaning and Maintenance

Clean the projector regularly to keep it working properly. The external surface can be wiped clean with a soft cloth as required.

The air filter must be cleaned every three months (more frequently depending on use or environment). If the projector gets very hot, clean or replace the air filter immediately to avoid damage.

. Turn off the projector and unplug from the supply before cleaning.
. Do not use any harsh detergents or solvents for cleaning.
. If the projector is still overheated after cleaning, or if there is any damage to the filter, it must be replaced before further use.
. Make sure the air filter is not obstructed and that it is fitted properly after cleaning.

To clean:

1. Open the filter cover and remove the filter.
2. Remove the dust by tapping it gently on both sides.
3. Use a vacuum cleaner to clean any remaining dust.
4. Replace the filter and close the cover.

Technical line drawing of a rectangular electronic device with ventilation grilles and mounting feet (no text or symbols)
