Product Type	Induction Cooktop
Brand	Euromaid
Model	I4B64
Number of Cooking Zones	4
Supply Voltage	220-240V~ 50/60Hz
Total Installed Power	7200W
Product Dimensions (W×D×H)	520 × 590 × 58 mm
Building-in Dimensions (W×D)	495 × 565 mm
Control Type	Touch controls
Boost Function	Yes (single boost 5 min, double boost 10 min on zone 1)
Timer	Yes (up to 99 min, minute minder or auto shut-off)
Child Lock	Yes
Auto Shutdown	Yes (timers vary by power level, up to 8 hours)
Residual Heat Indicator	Yes (displays “H”)
Cookware Requirement	Induction-compatible (ferromagnetic base, min diameter per zone)
Cleaning	Ceramic glass cleaner, avoid abrasive scourers
Safety Features	Overheat protection, pan detection, automatic shut-off, child lock
Installation Type	Built-in, requires minimum 50mm clearance around cutout
Warranty	2 years domestic (Australia/New Zealand)

Frequently Asked Questions - I4B64 Euromaid

What type of cookware can I use on the Euromaid I4B64 induction cooktop?

Only cookware with a ferromagnetic base is suitable. Look for the induction symbol or perform a magnet test: if a magnet sticks to the bottom, the pan is compatible. Minimum pan diameters: 160mm zone requires 120mm, 180mm zone requires 140mm, 210mm zone requires 160mm. Avoid glass, aluminium, copper without magnetic base, and pans with jagged edges.

How do I activate the boost function?

Select the desired cooking zone and touch the Boost key. The display shows 'P' for single boost (lasts 5 minutes, then returns to level 9). Touch again for 'd' (double boost, only on zone 1, lasts 10 minutes). To cancel, touch the Boost key again or use the '-' key.

How do I lock the controls to prevent accidental use?

Touch the Lock key (). The timer display shows 'Lo'. All controls except ON/OFF are disabled. To unlock, touch and hold the Lock key for 5 seconds. The hob must be on to unlock.

What does the 'H' indicator mean?

The 'H' stands for residual heat. It warns that the cooking zone is still hot even after being turned off. Do not touch the zone until the 'H' disappears. This also helps save energy by using remaining heat.

Can I use a steam cleaner to clean the hob?

No. Using a steam cleaner is strictly prohibited. It can damage the electronics and void the warranty. For cleaning, use a ceramic cooktop cleaner and a soft cloth or paper towel. For stubborn spills, use a razor blade scraper at a 30° angle.

What should I do if an error code appears (e.g., E2, E4)?

Error codes indicate a fault. E2/E3 = abnormal supply voltage (check power supply). E4/E5 = temperature sensor failure. E7/E8 = IGBT sensor failure. E6/E9 = poor heat radiation (let hob cool and restart). If the problem persists, note the code and contact Glen Dimplex service.

How do I set the timer to automatically switch off a cooking zone?

Select the desired zone. Touch the Timer key (displays '00'), then use '+' or '-' to set minutes (up to 99). Touch Timer again to set the tens digit, then '+' or '-' for the unit digit. The timer starts immediately. When time expires, that zone switches off. A red dot on the zone indicator shows it is timed.

Why does the hob make a humming noise on high heat?

A low humming or clicking noise is normal for induction cooktops. It is caused by electromagnetic vibrations in the cookware. The noise typically reduces or disappears when you lower the heat setting. Fan noise from the cooling fan is also normal.

What are the minimum clearance requirements for installation?

The work surface must be at least 30mm thick. A minimum of 50mm clearance must be maintained around the cutout. Above the hob, a rangehood should be at least 600mm away, and an exhaust fan at least 750mm. Ensure the air inlet and outlet are not blocked.

How do I connect the hob to the mains power supply?

Connection must be done by a qualified electrician in accordance with AS/NZS3000. Use a suitable isolating switch with a minimum 3mm contact opening. The appliance requires 220-240V~ 50/60Hz and a 7200W circuit. The earth wire must not be interrupted. Do not use an extension cord.

USER MANUAL I4B64 Euromaid

Product overview....8

The control panel.... 9

A word on induction cooking 10

Using the touch controls.... 10

Choosing the right cookware 11

Using your hob.... 12

Using the boost function.... 13

Locking the controls.... 14

Using the timer 14

Cooking guidelines.... 18

Heat settings.... 19

Care and cleaning 20

Troubleshooting.... 20

Technical Specification 22

Installation 23

Electrical connection.... 26

Disposal 27

Warranty 29

SAFETY WARNINGS

PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE.

Installation

Electrical Shock Hazard

• Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it.
• Connection to a properly earthed wiring system is essential and mandatory.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• Alterations to the domestic wiring system must only be made by a qualified electrician.
• Failure to follow this advice may result in electrical shock or death.

Cut Hazard

• Take care - panel edges are sharp.
- Failure to use caution could result in injury or cuts.

Important safety instructions

- Read these instructions carefully before installing or using this appliance.

- No combustible material or products should be placed on this appliance at any time.

- Please make this information available to the person responsible for installing the appliance as it could reduce your installation costs.

- In order to avoid a hazard, this appliance must be installed according to these instructions for installation.

• This appliance is to be properly installed and earthed only by a suitably qualified person.
• This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply.
• WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.
• Failure to install the appliance correctly could invalidate any warranty or liability claims.
• Regarding the details of installation, please refer to the section .

Operation and maintenance

Electrical Shock Hazard

• Do not cook on a broken or cracked cooktop. If the cooktop surface is broken or cracked switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified technician.
• Switch the cooktop off at the wall before cleaning or maintenance.
• Failure to follow this advice may result in electrical shock or death.

Health Hazard

- This appliance complies with electromagnetic safety standards.

Hot Surface Hazard

• WARNING: Accessible parts may become hot during use. Young children should be kept away
• Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot
  • Children shall be kept away unless continuously supervised.
• Handles of saucepans may be hot to touch. Check saucepan handles do not overhang other cooking zones that are on. Keep handles out of reach of children.
• Failure to follow this advice could result in burns and scalds.

Cut Hazard

• The razor-sharp blade of a cooktop scraper is exposed when the safety cover is retracted. Use with extreme care and always store safely and out of reach of children.
• Failure to use caution could result in injury or cuts.

Important safety instructions

• Never leave the appliance unattended when in use. Boil overs cause smoking and greasy spillovers that may ignite.
• Never use your appliance as a work or storage surface.
• Never leave any objects or utensils on the appliance.
• Never use your appliance for warming or heating the room.
  • After use, always turn off the cooking zones and the cooktop as described in this manual (i.e. by using the touch controls).

- Do not allow children to play with the appliance or sit, stand, or climb on it.

• Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured.
• Do not leave children alone or unattended in the area where the appliance is in use.
• Do not repair or replace any part of the appliance unless specifically recommended in the manual. All other servicing should be done by a qualified technician.
• Do not use a steam cleaner to clean your cooktop.
• Do not place or drop heavy objects on your cooktop.
• Do not stand on your cooktop.
• Do not use pans with jagged edges or drag pans across the glass surface as this can scratch the glass.
• Do not use scourers or any other harsh abrasive cleaning agents to clean your cooktop, as these can scratch the ceramic glass which may result in shattering of the glass.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance is intended to be used in a domestic household environment only! Commercial use of any kind is not covered under the manufacturer's warranty!

• WARNING: The appliance and its accessible parts become hot during use.

• Care should be taken to avoid touching heating elements.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on the cooking surfaces.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock, for hob surfaces of glass-ceramic or similar material which protect live parts.
  • A steam cleaner is not to be used.
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.
• CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.
• The power cord must not be accessible after installation.

Congratulations on the purchase of your new induction cooktop. We recommend that you spend some time to read this Instruction / Installation manual in order to fully understand how to correctly install and operate this appliance. Read all the safety instructions carefully before use and keep this Instruction / Installation Manual for future reference.

Product Overview

Top View

IMZ64

1. 210mm, max. 2300 / 3000W zone

2. 160mm, max. 1200 / 1500 W zone

3. 180mm, max. 1800 / 2100 W zone

4. 160mm, max. 1200 / 1500 W zone

5. Control panel

The Control Panel

I4B64

1. ON/OFF key
2. Power level selection keys

3. Child lock key

4. Timer key

5. Heating zone selection key
6. Boost control key

A Word on Induction Cooking

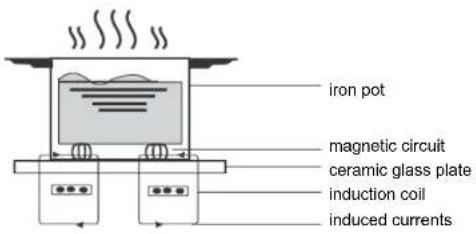

Induction cooking is a safe, advanced, efficient, and economical cooking technology. It works by electromagnetic vibrations generating heat directly in the pan, rather than indirectly through heating the glass surface. The glass becomes hot only because the pan eventually warms it up.

Before using your new cooktop

• Read this guide, taking special note of the 'Safety Warnings' section.
• Remove any protective film that may still be on your Induction hob.

Using the Touch Controls

• The controls respond to touch, so you don't need to apply any pressure.
  • Use the ball of your finger, not its tip.
  • You will hear a beep each time a touch is registered.
  • Make sure the controls are always clean, dry, and that there are no objects (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

10

Choosing the right Cookware

• Only use cookware with a base suitable for induction cooking. Look for the induction symbol on the packaging or on the bottom of the pan.
• You can check whether your cookware is suitable by carrying out a magnet test. Move a magnet towards the base of the pan. If it is attracted, the pan is suitable for induction.
• If you do not have a magnet:
• Put some water in the pan you want to check.
• Follow the steps under 'To start cooking' on page 12
• If does not flash in the display and the water is heating, the pan is suitable.
• Cookware made by the following materials is not suitable: pure stainless steel, aluminum or copper without a magnetic base, glass, wood, porcelain, ceramic, and earthenware.

Size of element (mm)	Mihimum cookware diameter (mm)
160 120
180 140
210 160

Do not use cookware with jagged edges or a curved base.

Make sure that the base of your pan is smooth, sits flat against the glass, and is the same size as the cooking zone. Always centre your pan on the cooking zone.

Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.

11

Using your Hob

To start cooking

- After powering on, the hob beeps once, all the indicators light up for 1 second then go out, indicating that the hob has entered standby mode.

1. Touch the ON/OFF key all the indicators show “-”
2. Place a suitable pan on the cooking zone that you wish to use. Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.
3. Select the heating zone you wish to use. The indicator next to the key will flash "5" (this is the default setting)

4. Adjust the heat setting as required by touching the "+" or "-" keys.

5. If you don't choose a heat setting within 1 minute, the Induction hob will automatically switch off. You will need to start again at step 1.

6. You can modify the heat setting at any time during cooking by selecting the heating zone, then touching the "Slider" control

When you have finished cooking

1. Select the heating zone selection that you wish to switch off.
2. Turn the heating zone off by touching "-"key to"0". Make sure the display shows"0".
3. Turn the whole cooktop off by touching the ON/OFF key.

Beware of hot surfaces

When "H" is displayed: H the cooking zone is too hot to touch. It will disappear when the surface has cooled down to a safe temperature. It can also be used as an energy saving function if you want to heat further pans, use the hotplate that is still hot.

Using Boost function

Activating the boost function

1. Select the heating zone you wish to use.(e.g. front left zone)

1. Touch the "Boost" key and the power level indication will show "P". Touch the "boost" key again and the display will show "d" indicating the double boost function.

Canceling the Boost function

1. Select the heating zone with the boost function activated.

1. Touch the "boost" key P or "-" key to cancel the Boost function, and select the level you want to set.

• The Boost function will remain on for 5 minutes, after that the zone will set to level 9 automatically.
• This boost function can work in any cooking zone, but the double boost function can only work on zone 1.
• Double boost will remain on for 10 minutes, after that the zone will set to level 9 automatically.

Locking the Controls (Child lock)

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF key are disabled.

To lock the controls

Touch the lock 🔒 key. The timer indicator will show "Lo" (Lock).

To unlock the controls

1. Make sure the hob is turned on.
2. Touch and hold the lock key for 5 seconds.
3. You can now start using your hob.

When the hob is in lock mode, all the controls are disabled except the ON/OFF key. You can always turn the hob off with the ON/OFF key in an emergency, but you will need to unlock the hob first before further operation.

Residual Heat Warning

Although the hob itself does not heat, when a heating zone has been operating for some time, there will be some residual heat. The letter "H" appears to warn you to keep away from the particular zone until it has returned to a safe temperature.

Auto Shutdown

A safety feature of the hob is auto shut down. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

Power level	1	2	3	4	5	6	7	8	9
Default working timer (hour)	8	8	8	4	4	4	2	2	2

Using the Timer

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time has expired.
• You can use it as cut-off timer to turn one or more cooking zones off after the set time has expired. *You can set the timer for up to 99 minutes.

Using the Timer as a Minute Minder

1. Make sure the hob is turned on, and d the heating zone selection key is not activated (Timer and power level indicators display "-"

Note: You can set the minute minder whilst the heating zone is on as long as the power level indicator is not blinking.

1. Touch the timer key, "00" will show in the timer display and "0" will blink.

1. Set the time by touching the "+" or "-" keys of the timer (e.g. 5)

1. Touch timer key again, then "0" will blink.

1. Set the time by touching the "+" or "-" keys (e.g. 9), now the timer you set is 95 minutes.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time.

2. When the set time has expired, the timer will sound for 30 seconds and the timer indicator will show “_ _”

Using the timer to switch off one or more cooking zones

1. Select the heating zone that you wish to set the timer for.
2. Touch timer key, "00" will show in the timer display. And the "0" will blink.
3. Set the time by touching the "+" or "-" keys of the timer (e.g. 5)

1. Touch timer key again, then "0" will blink.
2. Set the time by touching the "+" or "-" keys (e.g.9), now the timer you set is 95 minutes.

1. When the time is set, it will begin to count down immediately. The display will show the remaining time.

NOTE: There will be a red dot in the right bottom corner of power level indication which indicates that zone is selected.

1. When the set time expires, the corresponding cooking zone will switch off automatically.

Note: Other cooking zones will keep operating if they are turned on previously.

If the timer is set on more than one zone:

1. When you set timer for several cooking zones, red dots of the relevant cooking zones are indicated. The timer display shows the min. timer. The dot of the corresponding zone blinks.

1. Once the countdown timer expires, the corresponding zone will switch off. Then it will show the new min. timer and the dot of corresponding zone will flash.

Note: Touch the heating zone selection control, the corresponding timer will be shown in the timer indicator.

Canceling the timer

1. Touch the heating zone selection key that you wish to cancel the timer.
2. Touch the timer key, the indicator will flash.
3. Touch the "-" key to set the timer to "00", the timer is cancelled. Note: Turning off the heating zone or cooktop will also cancel the timer.

Cooking Guidelines

Take care when frying as oil and fat heat up very quickly, particularly if you're using the Boost setting. At extremely high temperatures oil and fat may ignite spontaneously which could present a serious fire risk.

Cooking Tips

• When food comes to the boil, reduce the power setting.
  • Using a lid will reduce cooking times and save energy by retaining heat.
• Minimise the amount of liquid or fat to reduce cooking times.
• Start cooking on a high setting and reduce the setting when the food has heated through.

Simmering, cooking rice

• Simmering occurs below boiling point, at around 85°C, when bubbles are just rising occasionally to the surface of the water or sauce. It is the key to delicious soups and tender stews because the flavours develop without overcooking the food. You should also cook egg-based and flour thickened sauces below boiling point.
• Some tasks, including cooking rice by the absorption method, may require a setting higher than the lowest setting to ensure the food is cooked properly in the time recommended.

Searing steak

To cook juicy flavoursome steaks:

1. Stand the meat at room temperature for about 20 minutes before cooking.
2. Heat up a heavy-based frying pan.
3. Brush both sides of the steak with oil. Drizzle a small amount of oil into the hot pan and then lower the meat onto the hot pan.
4. Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how "well done" you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is – the firmer it feels the more 'well done' it will be.
5. Leave the steak to rest on a warm plate for a few minutes to allow it to relax and become tender before serving.

For stir-frying

1. Choose an Induction compatible flat-based wok or a large frying pan.
2. Have all the ingredients and equipment ready. Stir-frying should be quick. If cooking large quantities, cook the food in several smaller batches.
3. Preheat the pan briefly and add two tablespoons of oil.
4. Cook any meat first, and then put it aside and keep warm.
5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce.
6. Stir the ingredients gently to make sure they are heated through.
7. Serve immediately.

Heat Settings

Heat setting	Suitability
1 - 2	•delicate warming for small amounts of food•melting chocolate, butter, and foods that burn quickly•gentle simmering•slow warming
3 - 4	•reheating•rapid simmering•cooking rice
5 - 6	•pancakes
7 - 8	•sauteing•cooking pasta
9	•stir-frying•searing•bringing soup to the boil•boiling water

Care and Cleaning

What? How?		Important!
Everyday soiling on glass (fingerprints, marks, stains left by food or non-sugary spillovers on the glass)	1. Switch the power to the cooktop off.2. Apply a cooktop cleaner while the glass is still warm (but not hot!)3. Rinse and wipe dry with a clean cloth or paper towel.4. Switch the power to the cooktop back on.	•When the power to the cooktop is switched off, there will be no 'hot surface' indication but the cooking zone may still be hot! Take extreme care.•Heavy-duty scourers, some nylon scourers and harsh/abrasive cleaning agents may scratch the glass. Always read the label to check if your cleaner or scourer is suitable.•Never leave cleaning residue on the cooktop: the glass may become stained.
Boll overs, melts, and hot sugary spills on the glass	Remove these immediately with a fish slice, palette knife or razor blade scraper suitable for ceramic glass cooktops, but beware of hot cooking zone surfaces:1. Switch the power to the cooktop off at the wall.2. Hold the blade or utensil at a 30" angle and scrape the soiling or spill to a cool area of the cooktop.3. Clean the soiling or spill up with a dish cloth or paper towel.4. Follow steps 2 to 4 for 'Everyday soiling' on glass above.	•Remove stains left by melted and sugary food or spillovers as soon as possible. If left to cool on the glass, they may be difficult to remove or even permanently damage the glass surface.•Cut hazard: when the safety cover is retracted, the blade in a scraper is razor-sharp. Use with extreme care and always store safely and out of reach of children.
Spillovers on the touch controls	1. Switch the power to the cooktop off.2. Soak up the spill3. Wipe the touch control area with a clean damp sponge or cloth.4. Wipe the area completely dry with a paper towel.5. Switch the power to the cooktop back on.	•The cooktop may beep and turn itself off, and the touch controls may not function while there is liquid on them. Make sure you wipe the touch control area dry before turning the cooktop back on.

Troubleshooting

Problem Possible causes	What to do
Condensation forming on rangehood or surrounding surfaces.	Induction cooking does not directly heat the air around the vessel which can cause condensation to form on colder surfaces surrounding the appliance. This is not a fault	Use rangehoods with larger filter areas. Check rangehood installation height. Turn rangehood on 10mins prior to cooking and use lower speeds when boiling.

Problem	Possible causes	What to do
The cooktop cannot Be turned on.	No power.	Make sure the cooktop is connected to the power supply and that it is switched on.Check whether there is a power outage in your home or area. If you've checked everything and the problem persists, contact Glen Dimplex.
The touch controls are unresponsive.	The controls are locked. Unlock the controls. See section 'Locking the controls' for instructions.
The touch controls are difficult to operate.	There may be a slight film of water over the controls or you may be using the tip of your finger when touching the controls.	Make sure the touch control area is dry and use the ball of your finger when touching the controls.
The glass is being scratched.	Rough-edged cookware.Unsuitable, abrasive scourer or cleaning products being used.	Use cookware with flat and smooth bases. See 'Choosing the right cookware'. Do not slide any cookware on the hub.See 'Care and cleaning'.
Some pans make cracking or clicking noises.	This may be caused by the construction of your cookware (layers of different metals vibrating differently).	This is normal for cookware and does not indicate a fault.
The induction hob makes a low humming noise when used on a high heat setting.	This is caused by the technology of induction cooking.	This is normal, but the noise should quieten down or disappear completely when you decrease the heat setting.
Fan noise coming from the induction hob.	A cooling fan built into your induction hob has come on to prevent the electronics from overheating. It may continue to run even after you've turned the induction hob off.	This is normal and needs no action.Do not switch the power to the induction hob off at the wall while the fan is running.
Pans do not become hot and appears in the display.	The induction hob cannot detect the pan because it is not suitable for induction cooking.The induction hob cannot detect the pan because it is too small for the cooking zone or not properly centered on it.	Use cookware suitable for induction cooking. See section 'Choosing the right cookware'.Centre the pan and make sure that its base matches the size of the cooking zone.
The induction hob or a cooking zone has turned itself off unexpectedly, a tone sounds and an error code is displayed (typically alternating with one or two digits in the cooking timer display).	Technical fault.	Please note down the error letters and numbers, switch the power to the induction hob off at the wall, and contact Glen Dimplex.

Failure Display and Inspection

If an abnormality occurs, the induction hob will enter a protective state automatically and display corresponding protective codes:

Problem Possible causes What to do
E4/E5 Temperature sensor failure Please contact Glen Dimplex
E7/E8	Temperature sensor of the IGBT failure.	Please contact Glen Dimplex
E2/E3	Abnormal supply voltage	Please inspect whether power supply is normal. Power the hob on after the power supply is back to normal.
E6/E9 Bad induction hob heat radiation		Please restart after the induction hob cools down.

WARNING: For you own safety, please do not disassemble the unit by yourself. Any repairs must be carried out by a suitably qualified technician.

Technical Specification

Induction Hob	14B64
Cooking Zones	4 Zones
Supply Voltage	220-240V~ 50/60Hz
Installed Electric Power	7200W
Product Size D×W×H(mm)	590×520×58
Building-in Dimensions A×B (mm)	565×495

Weight and Dimensions are approximate. Because we continually strive to improve our products we may change specifications and designs without prior notice.

Installation

Preparation of the work surface

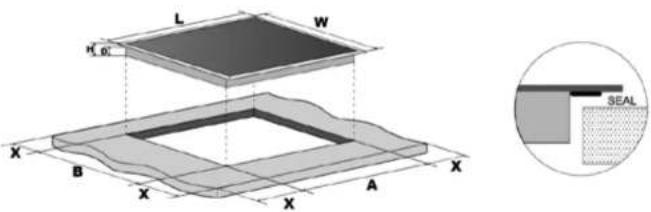

• Cut out the work surface according to the sizes shown in the drawing.
- For the purpose of installation and use, a minimum of 50mm space shall be preserved around the hole.
- Be sure the thickness of the work surface is at least 30mm. and suitable for the application.

	L(mm) W	(mm) H(mm) D(mm)		A(mm) B(mm) X(mm)
I4B64	590 520	58 54 565	495 50 mini

Ensure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the hob is in good working order.

Install Rangehoods and Exhaust Fans in accordance to the manufacturer's instructions. No closer than 600mm above the hob for Rangehoods and 750mm for Exhaust Fans.

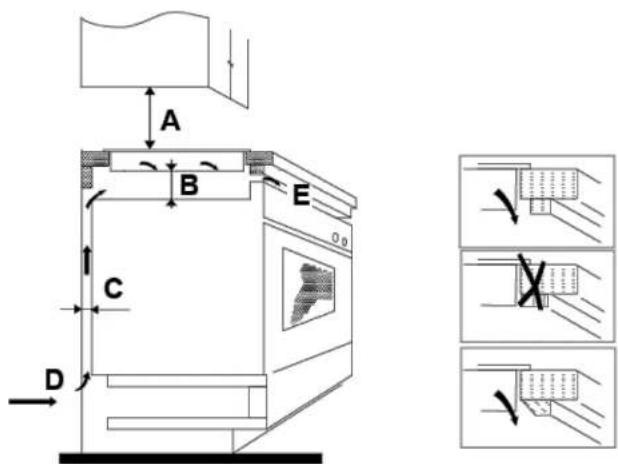

A(mm) B(mm) C(mm) D E
600min 50 min 20 min Air intake Air exit	5mm

Before you install the hob, make sure that

• The work surface is square and level, and no structural members interfere with space requirements.
  • The work surface is made of a suitable material.
  • If the hob is installed above an oven, the oven has a built-in cooling fan.
  • Installation is completed by a suitably qualified person.
• The installation will comply with all clearance requirements and applicable local standards and regulations.
• A suitable isolating switch providing full disconnection from the mains power supply is incorporated in the permanent wiring and is mounted and positioned to comply with the local wiring rules and regulations.
  • The isolating switch will be easily accessible to the customer with the hob installed.
• You consult local building authorities and by-laws if in doubt regarding installation.
• You use heat-resistant and easy-to-clean finishes (such as ceramic tiles) for the wall surfaces surrounding the hob.

When you have installed the hob, make sure that

• The power supply cable is not accessible through cupboard doors or drawers.
• There is adequate flow of air from outside the cabinetry to the base of the hob.
- If the hob is installed above a drawer or cupboard space, a thermal protection barrier is installed below the base of the hob.
• The isolating switch is easily accessible by the customer.

Fitting the foam seal

Turn the unit over and carefully attach the foam seal to the underside edge of the glass.

Locating the fixing brackets

• Fix the hob on the work surface by screwing the four brackets on the bottom of hob after installation.
• Adjust the bracket position to suit for different work surface's thickness.
• Ensure the hob sits flat and square to the work surface and doesn't slide around.

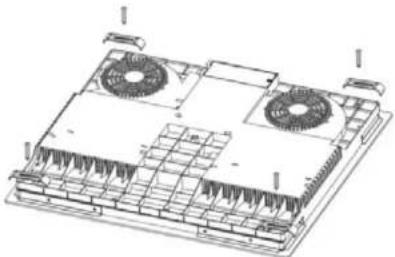

Technical line drawing of a computer motherboard with cooling fans and heatsink (no text or symbols)

Cautions

• The hob must be installed by a suitably qualified person. Please never conduct the operation by yourself.
• The hob shall not be mounted to cooling equipment, dishwashers and rotary dryers.
• The hob shall be installed in a way that ensures correct ventilation and clearances.
• Any surrounding surfaces will meet requirements in regards to temperature resistance.
  • A steam cleaner is not to be used.

Connecting the hob to the mains power supply

If connecting the cable directly to the mains, install a suitable isolating switch with a minimum contact opening of 3mm between the appliance and the mains. The isolating switch should be sized according to the load on the appliance rating label and should comply with current regulations (the earth wire should not be interrupted by the circuit breaker)

Connection to the electricity supply must be made by an authorized person in accordance with the wiring rules AS/NZS3000. Ensure the supply cable cannot contact any hot surfaces.

Immediately after installation, carry out a thorough inspection and test of the appliance. If the appliance fails to operate correctly, after checking that you have followed the user instructions correctly, disconnect the appliance and contact the

Technika Service department. Never attempt to repair the appliance.

• If the cable is damaged or needs replacing, this must be done by the manufacturer or suitably qualified person.
• The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.
  • The cable must not be bent or compressed
  • The cable must not be accessible after installation

Disposal

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labeled in compliance with European directive 2002/96/EC for Waste Electrical and Electronic Equipment (WEEE). By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

NOTES

MANUFACTURER GUARANTEE

This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118 275 460 (Phone number 1300 556 816) and In New Zealand by Glen Dimplex New Zealand Limited NZBN 9429000069823 (Phone number 09 274 8265) in respect of the Euromaid product.

1. Euromaid Express Warranty

Subject to the exclusions below, we warrant that the product will not have any electrical or mechanical breakdowns within:

a) In the case of Euromaid products used for personal, domestic or household purposes, a period of 2 years from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand.
b) In the case of Euromaid products used for purposes other than personal, domestic or household purposes (including business or commercial use), a period of 90 days from the date the product is purchased as a brand-new product from a retailer located in Australia / New Zealand. Euromaid products are designed and intended for domestic use only; and
c) All warranty repairs must be carried out by Glen Dimplex or their nominated service agent

Note: warranty periods detailed above may vary in line with agreements with select retail and builder partners and may differ between Australia and New Zealand.

The benefits conferred by this express warranty are in addition to the Consumer Guarantees referred to in section 3 and any other statutory rights you may have under the Australian / New Zealand Consumer Law and/or other applicable laws.

2. Warranty exclusions

This express warranty does not apply where:

a) The product has been installed, used or operated otherwise than in accordance with the product manual or other similar documentation provided to you with the product;
b) The product requires repairs due to damage resulting from accident, misuse, incorrect installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance, unauthorised modification, use on an Incorrect voltage, power surges and dips, voltage supply problems, tampering or unauthorised repairs by any persons, use of defective or incompatible accessories or

exposure to abnormally corrosive conditions, events independent of human control which occurred after the goods left the control of Glen Dimplex;

c) The repair relates to the replacement of consumable parts such as fuses and bulbs or any other parts of the product which require routine replacement;
d) You are unable to provide us with reasonable proof of purchase for the product;
e) the breakdown occurs after the expiry of the express warranty period set out in section 1 or
f) the product was not purchased in Australia / New Zealand as a brand-new product.

3. Consumer guarantees

Our goods come with guarantees that cannot be excluded under the Australian / New Zealand Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

4. How to make a claim

You may make a claim under this warranty through our website, contacting our customer care line or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at the end of this document

To make a valid claim under this warranty, you must:

a) Lodge the claim with us as soon as possible and no later than 14 days after you first become aware of the breakdown;
b) Provide us with the product serial number;
c) Provide us with reasonable proof of purchase for the product. This can take the form of a store receipt, new home handover form or other payment receipt documentation; and
d) If required by us, provide us (or any person nominated by us) with access to the premises at which the product is located at times nominated by us (so that we can inspect the product).

5. Warranty claims

If you make a valid claim under this warranty and none of the exclusions set out in section 2 apply, we will, at our election, either repair the product or replace the product with a product of identical specification (or where the product is superseded or no longer in stock, with a product of as close a specification as possible)

Goods presented for repair may be replaced by refurbished goods of the same type rather than being repaired. Refurbished parts may be used to repair the goods.

Products are designed and supplied for normal domestic use. We will not be liable to you under this warranty for business loss or damage of any kind whatsoever.

Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd

www.glendimplex.com.au

www.glendimplex.co.nz

Australia New Zealand

Ph: 1300 556 816

Ph: 09 274 8265

[e-mail]

[e-mail]

The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance.

The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors, contained in this manual. In addition, the appearance of the figures reported is also purely indicative.

The manufacturer reserves the right to make changes to its products when considered necessary and useful, without affecting the essential safety and operating characteristics.

Glen Dimplex constantly seeks ways to improve the specifications and designs of their products.

Whilst every effort is made to produce up to date literature, this document should not be regarded as an infallible guide. Actual product only should be used to derive cut out sizes.

All appliances must be installed by a qualified person/s with adherence to the relevant electrical, plumbing and building codes, with compliance being issued as required by state or national legislation.

Additionally, all upright cookers must have the anti-tilt device installed correctly in adherence to the relevant standards by a licenced installer.

For maximum effectiveness and efficiency all rangehoods should be installed with the use of ductwork, by a licenced installer with adherence to the relevant state and national building codes and regulations.

All Glen Dimplex appliances are for Domestic use only, and must be installed by a licence installer into Domestic Applications only, without exception and to the required Authorities guidelines. Any installation outside of this will VOID warranty. Alfresco areas are not a Domestic application.

Euromaid

Distributed by:

Glen Dimplex Australia Pty Ltd

www.glendimplex.com.au

Glen Dimplex New Zealand Ltd

www.glendimplex.co.nz

For service advice, please contact the Customer Care Centre by phone or email below.

Australia New Zealand

Ph: 1300 556 816

[e-mail]

Ph: 09 274 8265

[e-mail]
