USER MANUAL BPT350EC Bellini

Exterior view of a modern stainless steel oven with control knobs and a glass door (no visible text or symbols)

60cm Built In Oven

Model No.

BOT605BX-F FINELINE: 5103641 NZ Only

BOT605BX

INCLUDED IN BUILDERS PACKS

Thank you

Thank you for choosing Bellini Appliances.

Bellini prides itself on ‘affordable living’ making sure there is no compromise in your favourite room ... The Kitchen

All Bellini appliances carry a 3 year In Home warranty,

be sure to retain your installation and user manual and

receipt.

For all warranty and technical queries please contact

1300 373 199

Content

Safety instructions---- 1

Product description---- 3

Installation----5

Oven Setting----7

Maintenance and cleaning ----10

Warranty---- 13

This manual explains the proper installation and use of your oven, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

General Warnings

If the supply cord is damaged, the cord must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
◆ This product has not been designed for any uses other than those specified in this booklet
◆ This appliance must not be used as a space heater.
◆ In order to avoid fire, the appliance must be kept clean and vents kept unobstructed.
Do not spray aerosols within the vicinity of the appliance during operation.
◆ Do not store flammable materials in or under the appliance, e.g. aerosols.
◆ Do not line the bottom of the oven with foil or cookware.
◆ Always use gloves when handling hot items inside the oven.
◆ Always turn the grill off immediately after use as fat left behind may catch fire.
Do not leave the appliance unattended when cooking. Oils and fats may catch fire due to overheating or boiling over.
Do not put pans weighing over 15Kgs on the opened door of the oven.
Do not use the appliance in the event of a technical fault. Any faults must be fixed by an appropriately qualified and authorised person.
◆ In the event of any incident caused by a technical fault, disconnect the power and report the fault to the service centre to be repaired.
◆ The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to operate the appliance.

Child Safety

◆ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they've been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

◆ Children should be supervised to ensure that they do not play with the appliance.
During use this appliance becomes hot. Care should be taken to avoid touching hot surfaces, e.g. oven door, heating elements.
◆ Accessible parts will also become hot when in use. To avoid burns and scalds children should be kept away.

Installation, Cleaning & Servicing

The appliance must be installed only by an authorised person in compliance with the instructions provided. Incorrect installation may cause harm to persons, animals or may damage property.
◆ Before using the appliance, ensure that all packing materials are removed from the appliance.
◆ In order to avoid any potential hazard, the enclosed installation instructions must be followed.
◆ Ensure that all specified vents, openings and air spaces are not blocked.
◆ The panels adjacent to the oven must be made of heat-resistant material.
◆ Cabinets with a veneer exterior must be assembled with glues which can withstand temperature of up to 120°C.

◆ To reduce the risk of fire, do not place or install this unit in areas where the ventilation or circulation ducts may become blocked. Make sure there are at least 70mm of space between the back of your oven and the wall. Keep some distance on each side of your oven that you can use that distance

flowing installing instructions.

The unit's power cord must be connected to a properly grounded and protected, 220-240V electrical outlet. Always use ground fault protection where required by the electrical code.
When transporting or storing the unit, keep it in a dry location, free from dust, excessive vibration or other factors, which may damage the unit.
Do not operate oven with a damaged cord, plug or if the oven has malfunctioned or has been dropped or damaged in any manner. Return oven to authorised service facility for repair.
Only authorised personnel should carry out servicing. (Certificate of Compliance to be retained)
◆ Always ensure the appliance is switched off before cleaning or replacing parts.
◆ Do not use steam cleaners, as this may cause moisture build-up.
◆ Always clean the appliance immediately after any food spills.
◆ THIS APPLIANCE MUST BE EARTHED.
◆ To maintain safe operation, it is recommended that the product be inspected every five years by an authorised service person.

Oven

During use the appliance becomes hot. Care should be taken to avoid touching the hot surfaces inside the oven.
◆ Switch the appliance off before removing the oven light glass for globe replacement.
◆ To avoid an accident, ensure that oven shelves and fittings are always inserted into the appliance in accordance with the instructions.
◆ Do not use the door as a shelf.
◆ Do not push down when the oven door is open.

Grill

Do not cover the grill insert with foil, as fat built up may catch on fire.
◆ Always keep the grill dish clean as any build up may catch on fire.
◆ Do not leave the grill on unattended.
◆ To avoid fire, ensure that grill trays and fittings are always inserted into the appliance in accordance with the instructions.
◆ Do not place thick portions of food under the grill. Foods may curl, catch and ignite.
◆ Accessible parts may become hot when grill is in use. Children should be kept away.

Environmental Hints

◆ Use the oven efficiently, by cooking many trays of food at the same time.
◆ Cook 2 trays of scones, small cakes or sausage rolls at the same time.
◆ Select the correct shelf location for food being cooked.
◆ Do not open the oven door more than necessary.

◆ After the oven is turned off it retains heat for some time.

This product must not be disposed together with domestic waste. This product has to be disposed at an authorised place for recycling of electrical and electronic appliances.

By collecting and recycling waste, you help save natural resources, and make sure the product is disposed in an environmental friendly and healthy way.

A. Minute Timer Knob
B. Function Select Knob
C. Temperature Select Knob

D. Heating Indicator Light
E. Handle
F. 3 Layer Glass Door

Accessories

Accessory Name Picture Quantity
Mounting Screws(ST4x20) 2 pcs
Baking Pan & Rack 1 Pair
Rack		1 pcs
Tray handle 1 pc

Technical data

model	product dimensions (L x W x D) mm		electrical connection	min. fuse rating		max. power rating	max. current rating
All 2 models	595x596x575		220-240V/50Hz	15A		2.7 – 3.22Kw	13.4A
Heating elements Motor
Oven light:	15 Watt	Oven inside heating el. 1900 Watt
		Total grill heating el. 1000+1900 Watt			Shaded motor (bak) 25 Watt
		Circle heating el. 2100Watt			Shaded motor(top) 15Watt

WARNING!

Please follow the points below when installing the appliance

Use an Authorised Person

◆ Installation should be carried out according to the instructions by a professionally qualified person. The manufacturer declines all responsibility for any damage to persons, animals or things due to a wrong installation.
◆ Wiring connections must be in accordance with AS/NZS 3000 Wiring Rules and any particular conditions of the local authority.
◆ Refer to data plate for rating information. The data plate is positioned behind the bottom of the oven door. The circuit diagram is positioned on the top panel of the appliance.
◆ A functional switch should be provided near the appliance in an accessible position. Refer to AS/NZS 3000 clause 4.7.1
◆ Wiring should be protected against mechanical failure. Refer to AS/NZS 3000 clause 1.5
A means of disconnection with a contact separation of at least 3mm must be supplied in the fixed wiring. Always turn the grill off immediately after use as fat left behind may catch fire.
◆ Unplug the power plug of appliance from socket before installation or any adjustment or maintenance.

This Appliance Must Be Properly Earthed

◆ Do not lift the appliance by the door handles.
◆ Prepare the cupboard opening to match your appliance measurements. (See diagrams)
◆ Slide appliance into the cupboard, ensuring that the supply cable (where fitted) does not kink.
◆ To prevent tipping, secure your oven into the cupboard by fastening with 2 screws supplied.
- Where the appliance is built into a cabinet, the cabinet must be capable of withstanding 70°C. Installation into low temperature tolerant cabinetry (e.g. Vinyl coated) may result in deterioration of the low temperature coating by discoloring or bubbling.

The unit panels next to the appliance must be heat resistant. In the case of veneered wood units, glue must be resistant to a temperature of 120^ C.
◆ If the appliance is to be installed adjacent to vinyl wrapped surfaces, use an installation kit available from the vinyl-wrap supplier.
◆ GSM cannot accept responsibility for damage caused by installation into low temperature tolerant cabinets.
◆ After installation, test and ensure that the appliance operates correctly before handing it over to the customer.
Once the appliance is installed, there must be no possible contact with electrical parts. Any protective parts must can only be removed with the use of tools
If a power point is fitted, it must be accessible with the appliance installed, as the plug must be accessible after installation

To avoid any potential hazard, you must follow our instructions when you install your appliance. Failure to install the appliance correctly could invalidate any warranty or liability claims and lead to prosecution.

Install the shelf

Line drawing of an oven with a close-up inset showing internal structure (no text or symbols)

1. Pay attention to high temperature, you may need to wear gloves if it is hot inside.
2. Always slide shelves into the layer with stopper.

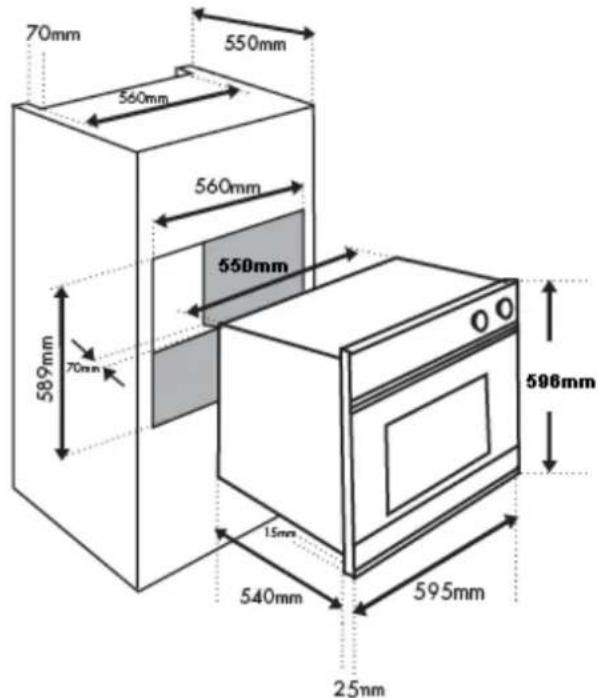

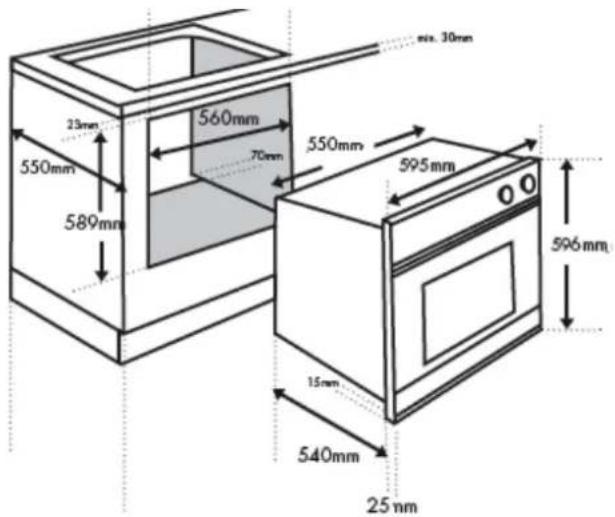

Cabinet Construction For Your Appliance The sizes of the unit for installing the appliance under a worktop or in a column unit are shown in figure.

To provide adequate ventilation, there must be appropriate ventilation opening, the panel to which the oven is fitted should have a gap of at least 70 mm at the rear.

The unit panels next to the appliance must be heat resistant. In the case of veneered wood units, glues must be resistant to a temperature of 120^ C.

Fitting Your Appliance

Fit the appliance into its surround (beneath a work-top or above another appliance) by inserting screws into the 2 holes that can be seen in the frame of the oven when the door is open.

Note:

Your appliance must be mounted on a flat surface for the full width and depth of the product

Connect Power Supply Cord

◆ Pull open terminal board cover at rear panel of appliance.
◆ Fit wires through on terminal board and make connections to terminals.
◆ Engage wires into plastic clip. Secure plastic clip with supplied screws.
◆ Close the terminal board cover.

Preparing Your Oven

1. Please remove all stickers, leaflets and boxes from the door and from the floor of the oven before operation.
2. Please wipe out the oven interior prior to operation with warm soapy water and polish dry with a soft clean cloth.

Do not close the oven door until the oven is completely dry.

Select the Functions

Turn the function selector in any direction to the desired function. The oven cavity light will turn on.

Diagram of concentric rings with icons and symbols, no readable text or labels

Function Selector

function description

Oven Light

When the selector knob is in any position other than the "0" position, the oven light comes on.

Defrost

Select this function, the air at ambient temperature is distributed inside the oven for defrosting food more quickly and without proteins adulteration.

Fan Forced

Both the fan and the circular heating element operate together. The hot air adjustable between 50^ C and MAX ^ C is evenly distributed inside the oven. This is ideal for cooking several types of food (meat, fish) at the same time without affecting taste and smell. It is ideal for delicate pastries.

Full Grill

This feature activated all upper heating elements and give rapid cooking to food.

Full Grill + Fan Force

The air which is heated by the grill heating element is circulated by the fan and so helps to distribute the heat between 50^ C and 200^ C. This function can be used for sterilizing glass jars.

Select the Temperature

◆ To set the temperature, turn the temperature selector in a clockwise direction to the desired setting. An indicator light above the temperature selector will come on.
A thermostat controls the temperature in your appliance. When the temperature is reached, the heating source switches itself off and the indicator light goes out. When the oven temperature falls below the desired setting, the heating source switches on and the indicator light comes on again.
Once the food is cooked, turn the temperature selector back in an anti-clockwise direction. Do not force it right round in a clockwise direction as this will result in damage to the thermostat.

Important

The desired cooking function must be selected before the oven will operate.

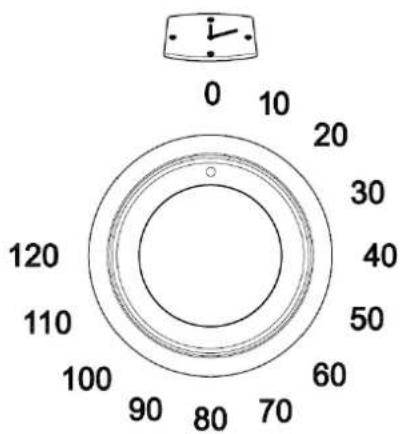

Minute Timer

Turn the knob clockwise to set the desired duration. The minute minder can be adjusted from 1 to 120 minutes. An audible signal will sound at the expiry of the set time, this will NOT switch the oven OFF. Switching the oven OFF has to be manually conducted by turning Function Selection Knob to O

WARNING!

◆ Before cleaning your oven, or performing maintenance, disconnect it from the power supply.
◆ Do not use steam cleaners.
Do not line the oven bottom with aluminium foil, as the consequent accumulation of heat could compromise the cooking and damage the enamel.
◆ To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid or sprinkle water to clean the appliance!
Do not clean the appliance when it is still hot! The inside and external surface of the oven should preferably be cleaned by damp cloth when it is cooled down.
◆ Wash all accessories in hot soapy water or in a dishwasher and wipe dry with a paper or cloth towel.
◆ If you use your oven for an extended period of time, condensation may form. Dry it using a soft cloth.

Stainless Steel

All grades of stainless steel can stain, discolour or become greasy. You must clean these areas regularly by following the procedures below, if you want your appliance to look its best, perform well and have a long life.
◆ Care must be taken when wiping exposed stainless steel edges, they can be sharp!
◆ The front frame around the oven can be cleaned with stainless steel cleaners if it becomes soiled or discoloured.
◆ The stainless steel should only be cleaned with warm water and a mild detergent.
◆ Do not use stainless steel cleaners, abrasive cleaners or harsh solvents.
◆ Make sure you follow the polish or brushing lines in the steel.

Glass

◆ Glass surfaces on doors and control panels are best cleaned immediately after soiling.
◆ A damp cloth may help remove baked on food deposits.
◆ Oven cleaners can be used to remove stubborn marks and stains.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door since they can scratch the surface, which may result in shattering of the glass
◆ Treat glass door gently.

Oven

◆ Always keep your appliance clean. Ensure fats and oils do not accumulate around elements, burners or fans.
◆ Always keep the oven dish, baking trays and grill dish inserts clean, as any fat deposits may catch fire.
◆ Always wrap your meats in foil or an oven roasting bag to minimise cleaning. Any polyunsaturated fats can leave a varnish-like residue which is very difficult to remove.
◆ Always keep the grill dish and grill insert clean, as any fat deposits may catch fire.

Replacement of the Oven Light Bulb

WARNING!

In order to avoid the possibility of an electric shock ensure that the appliance is disconnected from the power supply before replacing the bulb.

◆ Set all control knobs to the position"•"/"0" and disconnect the mains plug
◆ Unscrew and wash the lamp cover and then wipe it dry
◆ Unscrew the light bulb from the socket, replace the bulb with a new one-a high temperature bulb (300°C) with the following parameters:
-voltage230 V
-power 15 W
-thread E14.
◆ Screw the bulb in, making sure it is properly inserted into the ceramic socket.
◆ Screw in the lamp cover.

Diagram showing three mechanical components with an upward arrow indicating rotation (no text or symbols)

Oven light bulb

Door Removal

In order to obtain easier access to the oven chamber for cleaning, it is possible to remove the door. To do this, tilt the safety catch part of the hinge upwards.

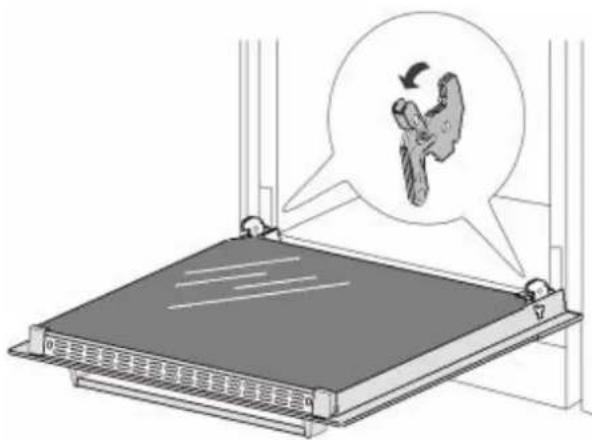

Close the door lightly, lift and pull it out towards you. In order to fit the door back on to the a, do the reverse.

When fitting, ensure that the notch of the hinge is correctly placed on the protrusion of the hinge holder.

After the door is fitted to the oven, the safety catch should be carefully lowered down again. If the safety catch is not set it may cause damage to the hinge when closing the door.

Middle Layer Glass Removal

The oven door is made up of 3 panes of glass and has vents at the top and bottom. When the oven is operating, air is circulated through the door to keep the outer pane cool. If condensation has worked its way in between the glass panes, the door can be dismantled in order to clean in between the panes.

Remove the door as per above instruction and place it on a protective surface (e.g. on a table cloth) to prevent it getting scratched. The door handle should line up with the edge of the table. Make sure the glass lies flat to avoid breakage of glass during cleaning.

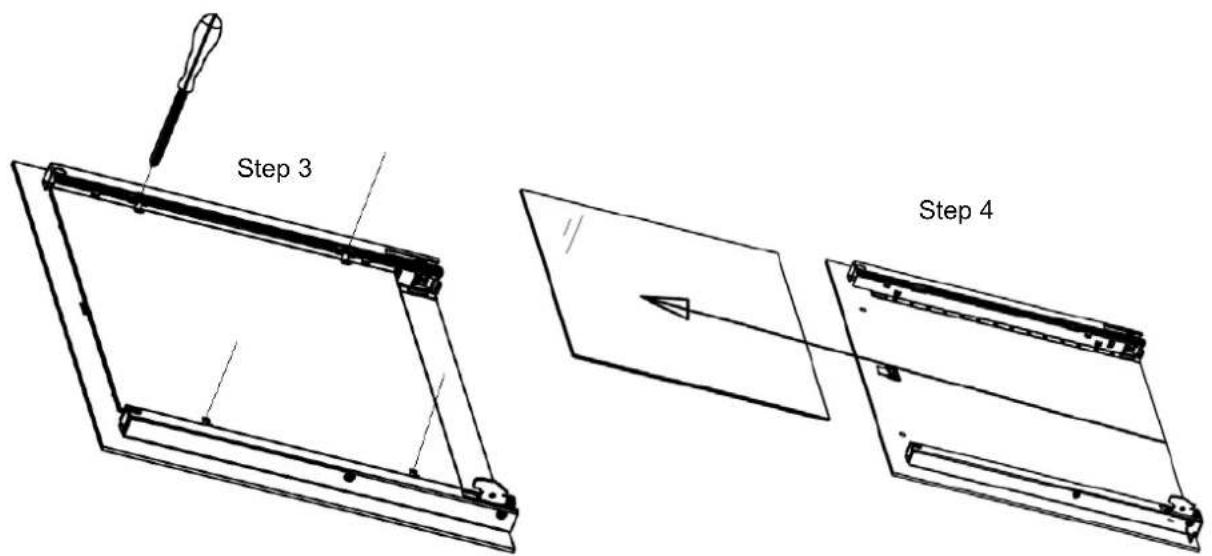

1. Undo the 2 screws on upper bracket.
2. Take out upper bracket and first pane of glass.
3. Loosen the 4 clips.
4. Slide out middle pane of glass carefully. Clean the glass panes and other parts with a damp microfiber cloth or a clean sponge and a solution of hot water with a little washing-up liquid. Wipe dry using a soft cloth.

Troubleshooting

Faults Causes Remedies
The upper crust is dark and the lower part too pale	Not enough heat from the bottom	- Use the natural convection position.- Use deeper cake tins.- Lower the temperature.- Put the cake on a lower shelf.
The lower part is dark and the upper crust too pale	Excessive heat from the bottom	- Use the natural convection position.- Use lower side tins.- Lower the temperature.- Put the cake on a higher shelf.
The outside is too cooked and the inside not cooked enough	Too high temperature	- Lower the temperature and increase the cooking time.
The outside is too dry even though of the right color	Too low temperature	- Increase the temperature and reduce the cooking time.
The appliance does not work	Break in power supply	- Check the household fuse box, if there is a blown fuse replace it with a new one.
The oven lighting does not work	Bulb is loose or damaged - Tighten up or replace the blown bulb. (See chapter Cleaning & Maintenance).

* New appliances could have a smell during first use. It is recommended to 'run in' the oven before you cook for the first time. Operate the oven, empty, at a temperature of 180°C for approximately 2-4 hours. Please ensure the room is well ventilated during this process.

1.1 In this warranty:

1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and Consumer Act 2010;
1.1.2 Company means GSM Sales Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose Park SA 5067. Email [e-mail] Australia 1300 373 199 or New Zealand 0508 123 108.
1.1.3 Consumer means a “consumer” as that term is defined in Section 3 of the Australian Consumer Law as the original purchaser of a Bellini product;
1.1.4 Consumer Guarantees means the guarantees under the Australian Consumer Law;
1.1.5 You means the Consumer.

1.2 Nothing in this warranty affects any person's rights under the Australian Consumer Law. The benefits to any Consumer under this warranty are in addition to the rights and remedies available under any Consumer Guarantees.

1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini product will be free of manufacturing defects and will perform to the Company's specifications.

1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which is installed in a residential property.

1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and continues for the benefit only of the Consumer until the expiry of three (3) years (Warranty Period).

1.6 If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company's specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. A replacement Bellini product may differ from the original product purchased by the Consumer.

1.7 This warranty will not apply to any Bellini product:

1.7.1 Installed by any person other than a qualified tradesperson; or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage; or
1.7.3 Operated in any way contrary to any operating or maintenance instructions; or
1.7.4 Improperly handled, installed or maintained; or
1.7.5 Altered or modified prior to or after installation; or

1.7.6 Damaged directly or indirectly by power surges, electrical storm damage or connection to incorrect power supply

The Australian Consumer Law requires the inclusion of the following statement

with this warranty:

Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE CONSUMER MUST CALL 1300 373 199 (AUSTRALIA) OR 0508 123 108 (NEW ZEALAND) TO CONNECT TO THE NEAREST AUTHORISED CENTRE

1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order to obtain the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not cover the cost of transport of the Bellini product for service nor the service agent's traveling costs to and from your home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini product) and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace the Bellini product in accordance with this warranty.

DO NOT SEND IN THIS WARRANTY

Fill out the following details and file with your purchase invoice.

RETAIN & FILE WITH YOUR RECEIPT

Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase, or if the fault is not covered by this warranty, or if the product is found to be in working order, you will be required to bear all service call charges.

GSM Sales Pty Ltd reserves the right to discontinue items, modify designs and change specifications without incurring obligation.

Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.

Purchased from:

Co. Name:

Address:

Date of Purchase:

Serial number:

NOTE: Consistent with our continuing product development policy, improvements may have been made which render the contents of this packaging slightly different to that shown.

FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA) OR 0508 123 108 (NEW ZEALAND) TO CONNECT YOU TO THE NEAREST AUTHORISED SERVICE CENTRE

Gerard Sourcing & Manufacturing

GSM Sales Pty Ltd.

The GSM Sales Pty Ltd. Group of Companies has a policy of continual improvement throughout the product range. As such the unit contained within may differ slightly from the unit illustrated on the pack.

MADE IN CHINA for the GSM Sales Pty Ltd. Group of Companies

Warning symbol with a triangle and checkmark inside (no text)

Bellini

INSTALLATION & OPERATION INSTRUCTIONS

Four circular kitchen ovens arranged in a 2x2 grid on a black background, with no text or symbols visible.

60cm Ceramic Cooktop

Model No.

BCT604TG-F FINELINE: 5104068 Aus Only

BCT604TG

Also in Builder Pack BPT350EC Fineline: 5104067 Aus Only

V.3 AUG18

Thank you

Thank you for choosing Bellini Appliances.

Bellini prides itself on ‘affordable living’ making sure there is no compromise in your favourite room ... The Kitchen

All Bellini appliances carry a 3 year In Home warranty,

be sure to retain your installation and user manual and

receipt.

For all warranty and technical queries please contact

1300 373 199

Content

Safety instructions---- 2

Product description---- 4

Installation----5

Start using your appliance----8

Maintenance 11

Warranty---- 12

Important Safeguards

When using electrical appliances, in order to reduce the risk of fire, electric shock and/or injury, these basic safety precautions should always be followed:

For Your Safety

Read all instructions carefully, even if you are quite familiar with the appliance.

• Do not position this cooktop immediately below or in front of a socket outlet.
• NEVER INSERT A KNIFE OR ANY OTHER UTENSIL INTO THE HOB. This may damage the mechanism and cause a safety hazard. Contact with elements could result in electrical shock.
  • Take care not to burn hands on upper elements when removing items from the Hob.
• To protect against the risk of electric shock DO NOT IMMERSE of this appliance in water or any other liquid.
• CAUTION: The temperature of cooktop or the outer surface may be high when the appliance is in operation.
• Switch off and remove the plug from the power outlet before cleaning or when not in use.
• Do not operate any appliance with a damaged cord or plug; after the appliance malfunctions, or is dropped or damaged in any manner.
• Allow the appliance to cool before cleaning.
• Do not use the appliance for anything other than its intended use. This product is intended for household use only.
• Ensure the power cord does not touch the cooker housing when in use.
• Dispose of packaging properly keeping plastic bags away from babies and young children.
• Do not use outdoors.
• Do not attempt to repair or disassemble the appliance. There are no user serviceable parts.

The appliance should not be covered or operated near or underneath flammable material such as curtains or drapes or other combustible materials when in operation.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Young children should be supervised to ensure that they do not play with the appliance.
• Do not operate in the presence of flammable or explosive materials.
• Store the appliance indoors in a dry location.
• Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.
• The plug should be accessible after installation
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• This appliance is designed for domestic household use and for the cooking and frying of domestic foodstuffs.
• IMPORTANT: The adjacent furniture and all materials used in the installation must be able to withstand a minimum temperature of 100^ above the ambient temperature of the room it is located in, whilst in use.
• Certain types of vinyl or laminate kitchen furniture are particularly prone to heat damage or discolouration at temperatures below the guidelines given above.
• Any damage caused by the appliance being installed in contravention of this temperature limit, will be the liability of the owner.
• You should not use this appliance to store items on or as a work surface.
• You should not store or place flammable or highly flammable liquids/materials on top or near the appliance. Items made from aluminum, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface.

- You should not allow the electrical connection cables to come into contact with the hob surface when it is hot or any hot cookware.

- Make sure that all of the cooking zones are switched off after use.

• Always keep children away from the cooktop.

- While in operation direct contact with the cooktop may cause burns!

- Ensure that small items of household equipment, including connection leads, do not touch the hob as the insulation material of this equipment is usually not resistant to high temperatures.

- Do not allow the hob to get soiled and prevent liquids from boiling over onto the surface of the hob, any spillages should be cleaned up as they happen.

- Do not place pans with a wet bottom on the warmed up heating zones as this can cause irreversible changes to the hob(irremovable stains).

- Do not switch on the hob until a pan has been placed on it.

- Do not put pans weighing over 25kg on the hob.

- Do not use the cooker in the event of a technical fault. Any faults must be fixed by an appropriately qualified and authorized person.

- The cooker should not be cleaned using steam equipment or steam cleaner.

- WARNING - Accessible parts may become hot during use. To avoid burn, young children should be kept away.

- This cooking range must be connected to the supply by a supply cord fitted with an appropriately rated plug that is compatible with the socket-outlet fitted to the final sub-circuit in the fixed wiring that is intended to supply this cooking range.

- CAUTION: The surface temperature exceeds 95^ . To avoid a hazard, underbench access must be restricted. Refer to the installation instructions.

- DO NOT USE THE HOB IF THE SURFACE BECOMES BROKEN OR CRACKED.

Compulsory Warning

If the supply cord is damaged, the cord must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This product has not been designed for any uses other than those specified in this booklet.

Save These Instructions

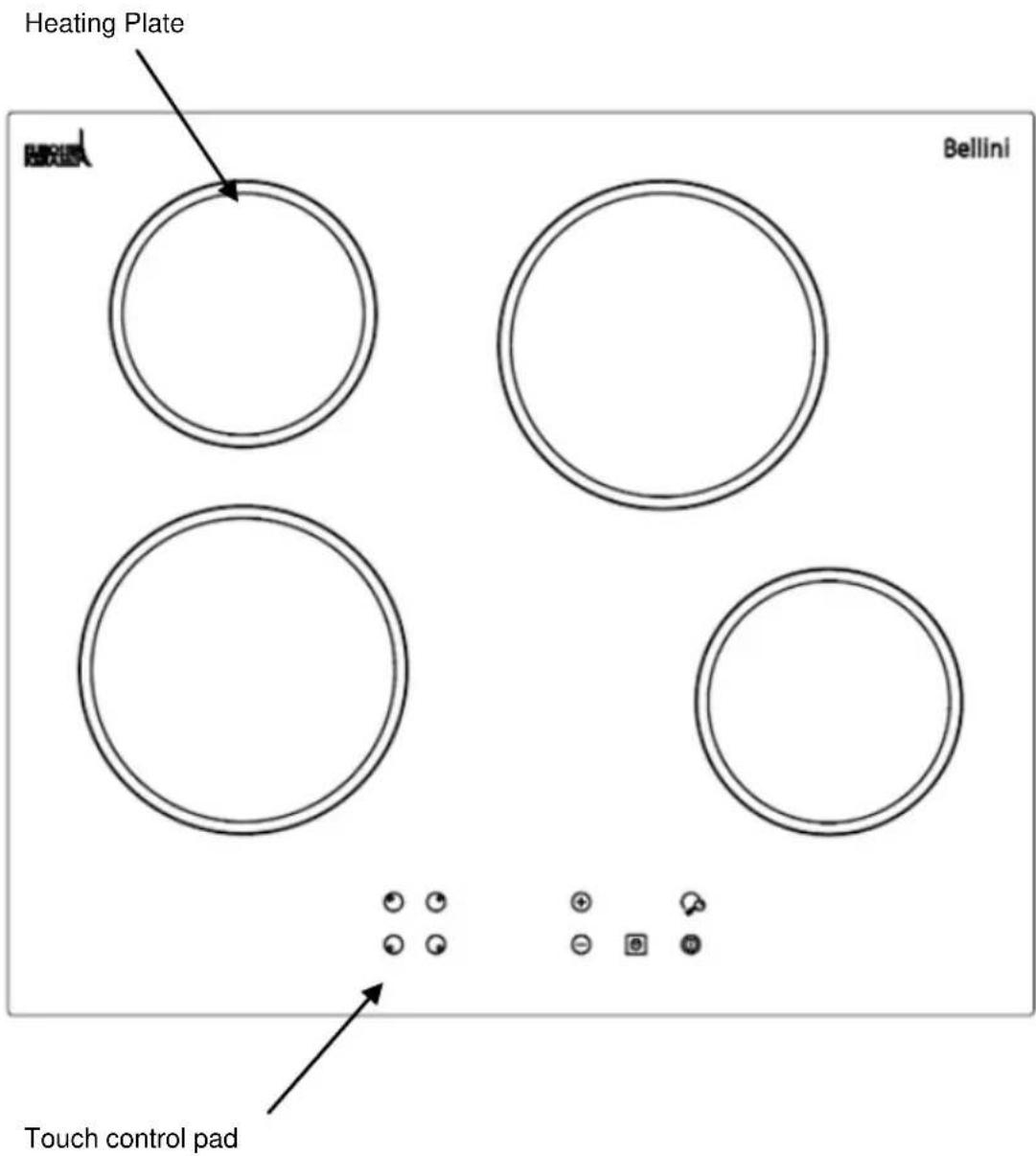

Features of Your Hob

Getting to Know Your Hob

Congratulations on the purchase of your new Bellini Hob.

Before using your new Cooker, it is most important that you read and follow the instructions in this use and care booklet, even if you feel you are familiar with this type of appliance.

Your attention is drawn particularly to the section dealing with IMPORTANT SAFEGUARDS.

Find a safe and convenient place to keep this booklet handy for future reference.

This appliance has been designed to operate from a standard domestic power outlet. It is not intended for industrial or commercial use.

How to Save Energy

Using energy in a responsible way not only saves money but also helps the environment. So let's save energy! And this is how you can do it:

• Use proper pans for cooking. Pans with thick, flat bases can save up to 1/3 on electric energy. Remember to cover pans if possible otherwise you will use four times as much energy!
• Match the size of the saucepan to the surface of the heating plates. A saucepan should never be smaller than a heating plate.
• Ensure heating plates and pan bases are clean. Soils can prevent heat transfer-and repeatedly burnt -on spillages can often only be removed by products which cause damage to the environment.
• Do not uncover the pan too often (a watched pot never boils!).
• Do not install the cooker in the direct vicinity of refrigerators/freezers. Otherwise energy consumption increases unnecessarily.

Installation

Positioning

This appliance must be correctly installed by a suitably qualified person,

To avoid damaging your appliance.

• Cast iron and cast aluminium cookware with damaged bases may scratch the hob surface if they are dragged across it.
• Pans should be lifted on and off the hob surface and not dragged.
• Cooking zones should not be switched on without cookware placed on it. Also the cookware should not be empty.

The adjacent furniture must be able to withstand a minimum temperature rise of 100^ C above the ambient temperature of the room it is located in, during periods of use.

This appliance is to be built into a kitchen unit (depending on size) or 600 mm worktop, providing the following minimum distances are allowed:

• 700 mm between the hob surface and the underside of any horizontal surface above it.
• 50 mm clearance around the appliance and between the hob surface and any combustible materials.

Unpacking the appliance

When unpacking the appliance please check that the following items are contained within the packaging:

1 Ceramic hob
1 Installation and instruction manual
4 Fixing screws & clips
4 Clamps
1 Sealing strip
1 Cleaning kit

Installing the appliance

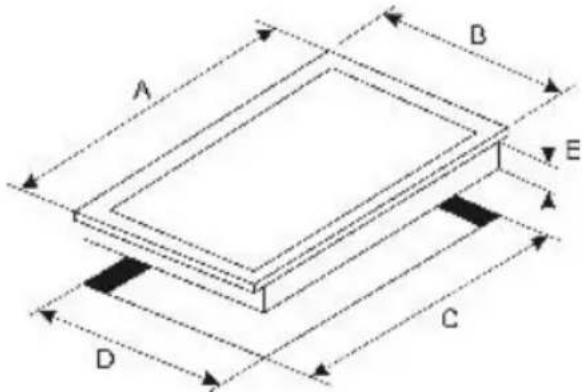

Hob and Aperture Dimensions

MODEL A B C	D E
BCT604TG-F 5	80 510 56	0 490 53

• Cut a hole in the worktop that corresponds with the drawings shown above.
• IMPORTANT: You must have a gap of at least 25 mm between the underneath of the appliance and any surface that is below it.

Line drawing of two hands holding a ruler or rod, no text or symbols present

• Carefully turn the hob upside down and place it on a cushioned mat.
• Apply the sealing strip provided around the edge of the appliance.
• The protective covering must be removed from both sides.

GSM Retail Australia Pty Ltd ABN: 53 007 582 475

• Do not leave a gap in the sealing agent or overlap the thickness.
• IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the hob from the aperture in future, particularly if it needs to be serviced.

Installation Step

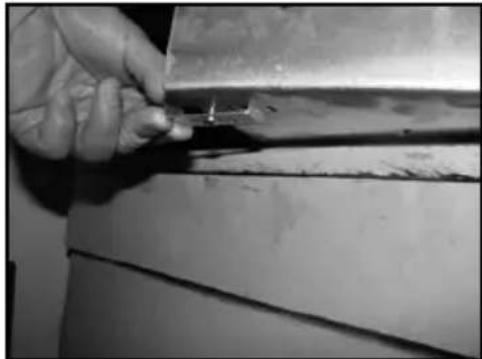

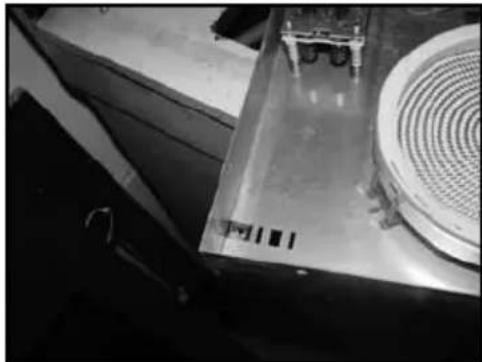

Firstly, insert the clip into the slot from side as fig a,b &c.

Secondly, place the clamp (B) over the holes that match the size of the screws. There are one set of screw holes in each corner of the hob. Slightly tighten a screw (C) through the clamp (B) to which the clamp is attached to the hob by the clips so that you can still adjust the position of it as fig.D & E finish other clamp & clip as same method.

Then, Carefully turn the hob back over and then gently lower it into the aperture hole that you have cut out.

Finally, on the underneath of the hob, adjust the clamps into a position that is suitable for your worktop. Then fully tighten the screws (C) to secure the hob into position as fig e.

Fig. A

Close-up of a metallic mechanical component with circular components mounted on a base, no visible text or symbols.

Fig. B

Close-up of hands operating a mechanical device with a circular component and wiring (no visible text or symbols)

Fig. C (rear view)

Close-up of a mechanical component with a circular filter and textured surface (no visible text or symbols)

Fig. D

Close-up of a hand holding a small object near a metal panel (no visible text or symbols)

Fig. E

(A) Sealing strip
(B) Clamp
(C) Screw

Electrical connection

This appliance must be installed by a qualified person.

Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage.

WARNING: THIS APPLIANCE MUST BE EARTHED.

• This appliance must be wired into a double pole switched fused spur outlet, having 3 mm contact separation and placed in an easily accessible position adjacent to the appliance. It should not be located above the appliance and no more than 1.25m away from it.
• The spur outlet must still be accessible even when your cooker is located in its operating position.

Connecting the mains supply cable

- The mains terminal block is located on the underside of the hob and the terminals are accessible by removing the terminal block cover by removing the cover screw.

- The cable connections must be in accordance with the diagram located on the bottom of the hob.

Replacing the mains supply cable

If the mains supply cable is damaged, then it must be replaced by an appropriate replacement. The mains supply cable should be replaced in accordance with the following instructions:

- Switch the appliance off at the control switch.

- Open the terminal block on the underside of the hob.

• Unscrew the terminal screws fixing the cable.

- Replace the cable with one of the same length and in accordance with the specification given above.

Hard Wired Appliances :

When making the mains supply conductor connections to the terminal block within the terminal box, please ensure that minimum clearances are being maintained between individual conductors and conductors/connectors to the adjacent metal surfaces of the terminal box itself, where possible add heat shrink sleeves to any bare conductor end/connectors prior to securing.

- The “green-yellow” earth wire must be connected to the terminal marked. It must be about 10 mm longer than the live and neutral wires.

- The "blue" neutral wire must be connected to the terminal marked with letter (N) - the live wire must be connected to the terminal marked with letter (L).

Troubleshooting Guide

Problems	Possible Cause and solve
The cooking zones are not functioning or will not switch on.	Check that the mains electrical supply to the appliance is correct and working. Check the mains fuse.
A humming sound is heard when a cooking zone is selected.	This is normal; the sound will disappear when the zone heats up
The cooking zones have become discoloured	This maybe caused by burnt on remnants of food. This will not affect the working of the appliance. However you should make sure that the cleaning instructions are being followed regularly.
Only two of the zones on my hob are working	You should recheck that the terminal screws are all fully tightened between the links.

IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact the Service Department. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.

How to Use Your Hob

Product specification

Product dimensions: L: x W: x H( mm)	580X510X55
Aperture dimensions: L: x W: x H( mm)	560X490
Product specifications:	4 Ceramic elements2 x 1.8kw,2 x 1.2kw
Electrical details	220-240 Vac 50 Hz30 A (double pole switched fused outlet with 3mm contact gap)Max Rated Inputs: see the content on rating label.Mains Supply Lead:H05RR-F 3 core x 2.5MM ^2 (not supplied)

Plate layout

Before first use

IMPORTANT: You should clean the hob surface and solid plates (see "Cleaning and maintenance" section).

- You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit.

- When doing this burn off process, an appropriately sized saucepan containing cold water should be placed on the zone in question.

- Do not burn off more than one zone at once.

Using the Hob

- Icons on the control pad as below:

1. Power Sw itch

2. Burner Switch

3. Burner Display

4. Minus

5. Plus

6. Timer

7. Timer Display

8. Children Safety Lock

9. Double Zone Indicator

10. Children Safety Lock Indicator

11. Burner Power Setting Indicator. If it is flash, can set power. It no flash, can't set power.

12. Single power indicator

• Operation of the touch pad:

1. Touc h Power Switch, all power setting show "0", and Burner power setting indicator will keep flashing. Need to make further operation in 10S, otherwise it will turn off automatically.

2. Set power through "Plus" and "Minus". First touch plus, power will show "5". First touch minus, power will show "9".

Remark:

a) Can operate one burner in one time.
b) If the burner is working, will show indicator closed to burner.
c) Set power to "0", burner will stop working.

• Children S safety Lock

For safety reason, you can lock the control by pressing children safety lock. If power was off before turn off the lock. The lock will keep working when you restart power. Must turn off the lock for further operation.

Power setting	Max working hour
1-2	6
3-4	5
5	4
6-9	1.5

- Stop Working

For safety reason, control panel will stop working if it worked too long because of customer forget to turn off the control.

After the control stop working, will show "H" residential heating for 20 minutes.

• Auto Hea ting Mode

1. Set power to "9", and then press plus, then burner display will show "A" and "9" in turn. Now it is auto heating mode. Then set the power you need, for example, "6", display will show "A" and "6", for 2.5 minutes (as below chart)

2. Auto heating mode will start when display show "A" and "9" the first time. If you set power "6" for 10S, then display will show "A" and "6" for 2 minutes and 20S, and finally show "6" only.

3. Aut o heating time

Power	Auto Heating time(minutes)
1	1
2	3
3	4.8
4	6.5
5	8.5
6	2.5
7	3.5
8	4.5
9	---

1. Auto heating setting. In this mode, when the heating is working not exceed for 30S, press minus, can reduce power. If more than 30S, press minus, will stop auto heating mode, and turn to regular heat mode. If more than 30S, and display keep flashing "A" and power, can press plus to have more power and still under auto heating mode.

2. When you change power, the pasting time will be calculated into time of auto heating mode of new power. For example, you choose power "1", work for 30S, then change to power "4", then auto heating mode time will be 6 minutes only.

- Heat Time for Each Power

1 minutes for 1 cycle

Power: 1, Time: Work for 1S, Stop for 59 S

Power: 2, Time: Work for 3S, Stop for 57 S

Power: 3, Time: Work for 6S, Stop for 54S

Power: 4, Time: Work for 10S, Stop for 50 S

Power: 5, Time: Work for 14S, Stop for 46S

Power: 6 Time: Work for 19S, Stop for 41S

Power: 7, Time: Work for 26S, Stop for 34S

Power: 8, Time: Work for 38S, Stop for 22S

Power: 9, Time: Keep working...

• Ti mer

1. C hoose timer, display show "00", press "Plus" to set working time (01 to 99 minutes), press "Minus" to set working time (30 to 0 minutes), will confirm automatically in 10S.

2. Set timer for each burner. Press burner switch to choose the burner, and the burner indicator will flash, set power range, then press "Timer", will show "00", then press "Plus" to set working time (01 to 99 minutes), press "Minus" to set working time (30 to 0 minutes), will confirm automatically in 10S. Burner will stop working if time was up. Remark: can set new time by pressing "Plus" or "Minus".

3. T turn off timer. When time is up, timer will sound for 2 minutes, and you can turn off sound by touching any button. If you wanted to turn off burner in advance, can set timer to "00".

Hob guidelines

- The first few times the hob top is used, it may give off an acrid, burning smell. This smell will disappear completely with repeated use.

- The positions where the heat will radiate from are clearly marked on the hob top. The saucepans must be positioned exactly on these zones for efficient heating to occur. Pans should have the same diameter as the cooking zone that they are being used on.

- You should not use saucepans with rough bottoms, as this can scratch the solid plates.

- Before use, make sure that the bottoms of the saucepans are clean and dry.

- When cold, the bottom of the pans should be slightly concave, as they expand when hot and lie flat on the surface of the hob. This will allow the heat to transfer more easily.

- The best thickness for the bottom of the pans is 2 – 3 mm of enameled steel and 4 – 6 mm for stainless steel with sandwich type bottoms.

- If these rules are not followed, then there will be a great loss of heat and energy. Heat not absorbed by the saucepan, will spread to the hob, frame and surrounding cabinets.

- Preferably cover pans with a lid to permit cooking at a lower heat.

Cleaning Your Hob

Disconnect the hob from the power outlet. Allow to cool before cleaning.

• If a major spillage occurs inside the compartment, wipe clean as soon as possible with a damp cloth remembering to disconnect from the power source first.
• Do not immerse in water.
• DO NOT use spray-on or other cleaners as they may cause electrical damage. DO NOT use sharp utensils to clean.
• Remove heavy splatters after use with a nylon or polyester mesh pad, sponge or cloth dampened with warm water. Blot dry with paper towel or a soft, dry cloth.

Any residues that are left on the hob top surface from cleaning agents will damage it. You should remove any residues with water and a little washing up.

Abrasive cleaners or sharp objects will damage the hob surface; you should clean it using water and a little washing up liquid.

Although it is easier to clean some deposits whilst the hob surface is still warm. You should take care not to burn yourself if cleaning the hob surface when it is still warm.

After each use

• Wipe the appliance over with a damp cloth and a little washing up liquid.
• Dry the appliance by rubbing the surface with a clean cloth.

Using a specialist hob cleaner

It is possible to purchase specialist ceramic hob cleaner/conditioner.

You should follow the instructions given by the manufacturer of the specialist ceramic hob cleaner. You should ensure that it is suitable for use on your appliance.

Maintaining the solid plates

- If something is spilt onto the plate itself, then it can be removed using a soft brush, plastic or nylon scourer and warm water.

Regular inspections

Besides keeping the hob clean, you should:

- Carry out periodic inspections of the control elements and cooking units of the hob. After the guarantee has expired you should have a technical inspection of the cooker carried out at a service centre at least once every two years.

Caution!

All repairs and regulatory activities should be carried out by the appropriate service centre or by an appropriately authorized fitter.

WARRANTY

1.1 In this warranty:

1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and Consumer Act 2010;
1.1.2 Company means GSM Retail Australia Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose Park SA 5067. Telephone [phone]. Email [e-mail];
1.1.3 Consumer means a “consumer” as that term is defined in Section 3 of the Australian Consumer Law as the original purchaser of a Belliniproduct;
1.1.4 Consumer Guarantees means the guarantees under the Australian Consumer Law;
1.1.5 You means the Consumer.

1.2 Nothing in this warranty affects any person's rights under the Australian Consumer Law. The benefits to any Consumer under this warranty are in addition to the rights and remedies available under any Consumer Guarantees.
1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Bellini product will be free of manufacturing defects and will perform to the Company's specifications.
1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Bellini product which is installed in a domestic household area.

*The in Home warranty does not apply to Commercial and or industrial usage. * Please See 1.7.7 for additional information

1.5 This warranty commences on the date of purchase of the Bellini product by the Consumer and continues for the benefit only of the Consumer until the expiry of three (3) year (Warranty Period).
1.6 If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company's specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. A replacement Bellini product may differ from the original product purchased by the Consumer.
1.7 This warranty will not apply to any Bellini product:

1.7.1 Installed by any person other than a qualified tradesperson; or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage; or
1.7.3 Operated in any way contrary to any operating or maintenance instructions; or
1.7.4 Improperly handled, installed or maintained; or
1.7.5 Altered or modified prior to or after installation; or
1.7.6 Damaged directly or indirectly by power surges, electrical storm damage or connection to incorrect power supply
1.7.7 Industrial and or Commercial usage is inclusive of staff areas in office/shop environments, hotel/motel or other similar accommodation or rental type properties including Bed and Breakfast establishments.

The Australian Consumer Law requires the inclusion of the following

statement with this warranty:

Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY THE CONSUMER MUST CALL 1300 373 199 (AUSTRALIA) OR 0508 123 108

(NEW ZEALAND) TO CONNECT TO THE NEAREST AUTHORISED CENTRE

1.8 You must provide proof of your purchase of the Bellini product and the date of purchase in order to obtain the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not cover the cost of transport of the Bellini product for service nor the service agent's traveling costs to and from your home.
1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
1.11 You will be responsible for all costs of returning a Bellini product to the Company and for redelivery of the Bellini product by the Company (whether it is the original or a repaired and/or a replacement Bellini product) and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Bellini product and if the Company determines that it is defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace the Bellini product in accordance with this warranty.

DO NOT SEND IN THIS WARRANTY

Fill out the following details and file with your purchase invoice.

RETAIN & FILE WITH YOUR RECEIPT

Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase, or if the fault is not covered by this warranty, or if the product is found to be in working order, you will be required to bear all service call charges.

GSM Retail Australia Pty Ltd reserves the right to discontinue items, modify designs and change specifications without incurring obligation.

Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.

Purchased from:

Co. Name:

Address:

Date of Purchase:

Serial number:

NOTE: Consistent with our continuing product development policy, improvements may have been made which render the contents of this packaging slightly different to that shown.

FOR WARRANTY SERVICE CALL 1300 373 199 (AUSTRALIA) OR 0508 123 108 (NEW ZEALAND) TO CONNECT YOU TO THE NEAREST AUTHORISED SERVICE CENTRE

Gerard Sourcing & Manufacturing

GSM RETAIL AUSTRALIA PTY LTD

The GSM Retail Australia Pty Ltd Group Companies has a policy of continual improvement throughout the product range. As such the unit contained within may differ slightly from the unit illustrated on the pack.

MADE IN CHINA for the GSM Retail Australia Pty Ltd. Group Companies
