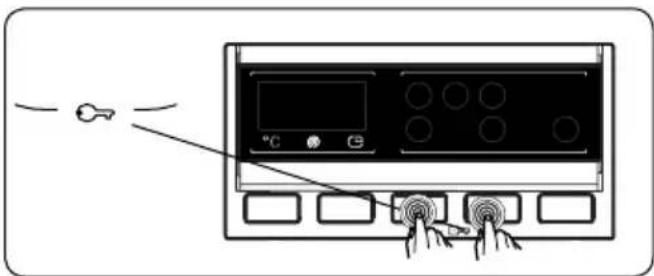

Press and hold buttons 3 and 4 simultaneously for at least 3 seconds. The display will show 'CL' for 2 seconds. To deactivate, press and hold the same buttons until 'CL' disappears.

Why does my laundry remain damp after drying?

Ensure you selected an appropriate drying programme for the fabric type. Overloading the drum can cause dampness. Refer to the programme table for recommended drying levels. If using a timed drying option, select a duration appropriate for the load size (e.g., 30 min for 1-2 kg, 60 or 120 min for larger loads).

How often should I clean the detergent drawer?

Clean the detergent drawer every 2 months to prevent residue buildup. Remove the drawer by pulling it out fully, pressing down gently, and pulling it from the housing. Wash with water and a soft brush, dry thoroughly, and slide back in. Do not wash in a dishwasher.

What should I do if the machine vibrates excessively?

Check that the transit screws have been removed. Ensure the machine is level by adjusting the feet. Avoid installing on a hard floor; leave a 2 cm gap from walls. Also, ensure the load is balanced—overloading or uneven distribution can cause vibration.

USER MANUAL EWD8045 Euromaid

8/4.5kg Front Load Washer/Dryer

EWD8045

Abstract geometric composition with a large circle and smaller circles on a gray background (no text or symbols)

Product/Installer details

For future reference we suggest that you staple a copy of your purchase receipt here and complete the below so the information is always at hand.

Product Details

Model number: ____

Description: ____

Serial number: ____

(Located on the product rating label)

Purchase Details

Date of purchase: ____

Place of purchase: ____

Store name: ____

Address: ____

Telephone: ____

Invoice/receipt number: ____

Installation Details

Electrical date of installation: ____

Electrician Installers Details: Company/Installers Name: ____

Licence Number: ____

Telephone Number: ____

Gas date of installation: ____

Gas installers details: Company/Installers Name: ____

Licence Number: ____

Telephone Number: ____

Plumbing date of installation: ____

Plumbers installers details: Company/Installers Name: ____

Licence Number: ____

Telephone Number: ____

Dear Customer,

Congratulations on the purchase of your new product from Home Appliances Pty Ltd.

We recommend you please take some time to read the instruction manual thoroughly to familiarise yourself with the functionality and operations to ensure optimum performance of your new appliance.

After reading the manual, please store it in a safe and accessible location for future reference.

Installation

The installation of your new appliance must be carried out by a qualified installer / technician in accordance to local regulations.

The packaging of your appliance has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly.

Customer Care

Our Customer Care centre is available should you wish to learn more about your appliance in relation to how to use it to its best potential, or tips on cleaning as well as available accessories.

For further details please contact our Customer Care team on

1800 444 357 or email: [e-mail]

Thank you

Regards,

Home Appliances

Thank you for choosing this product.

This User Manual contains important safety information and instructions on the operation and maintenance of your appliance.

Please take the time to read this User Manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Risk of serious injury or death
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Fire risk
	CAUTION Injury or property damage risk
	IMPORTANT / NOTE Information on operating the system correctly

CONTENTS

1.SAFETY INSTRUCTIONS .... 1

1.1. General Safety Warnings ......2
1.2. During Use ....7
1.3. Packaging and Environment....8
1.4. Savings Information......8

2.TECHNICAL SPECIFICATIONS....10

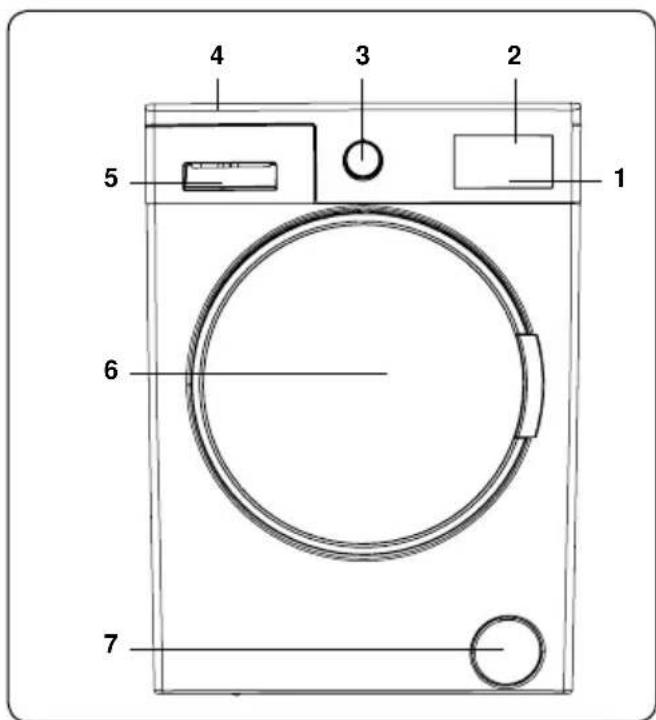

3.OVERVIEW OF YOUR MACHINE....11

3.1. General Appearance....11

4.SETTING UP YOUR MACHINE....11

4.1. Remove the Transit Screws....11

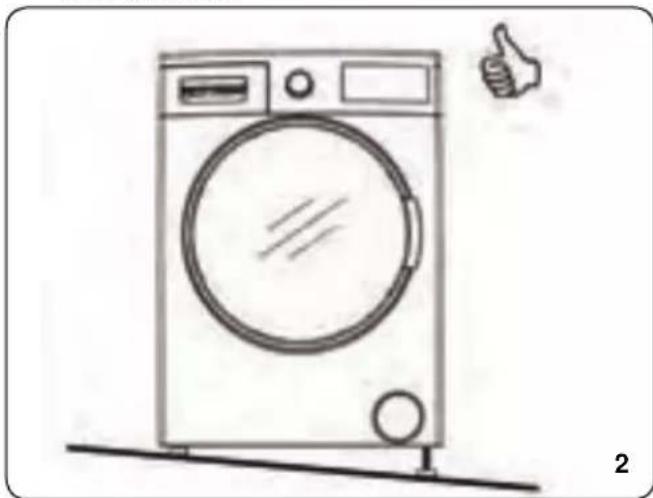

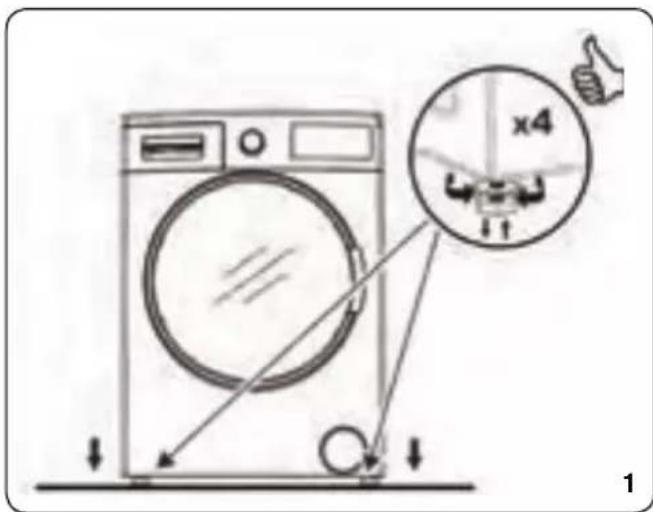

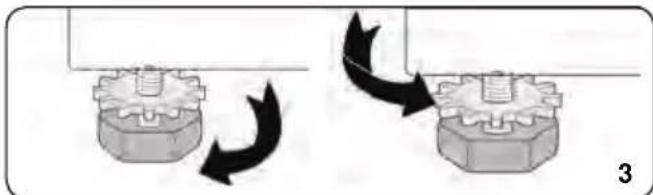

4.2. Placing the Machine and Adjusting the Feet 12
4.3. Electrical Connection....12
4.4. Water Inlet Connection....13

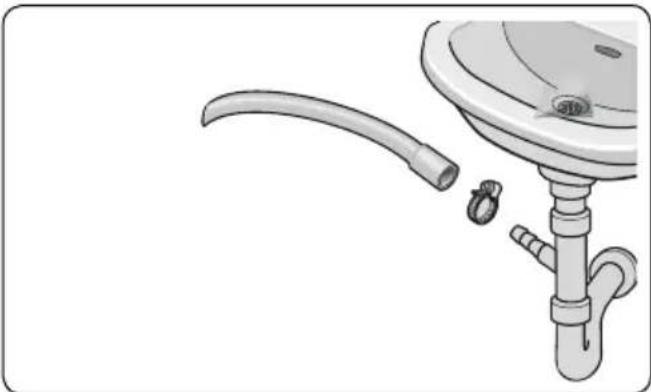

4.5. Water Draining Connection ....13

5.CONTROL PANEL OVERVIEW....14

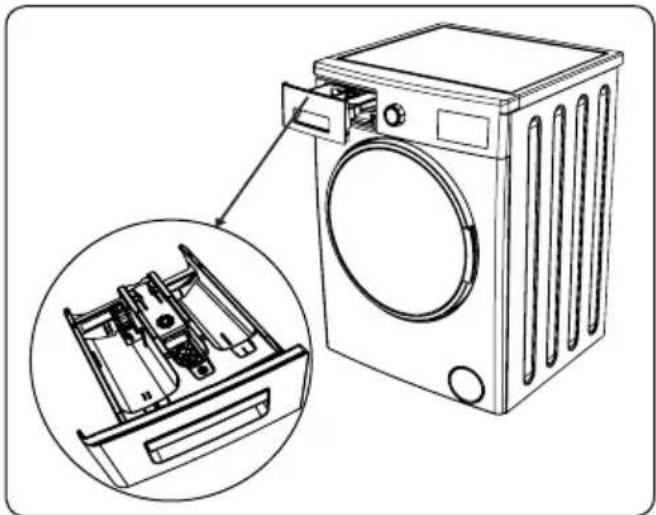

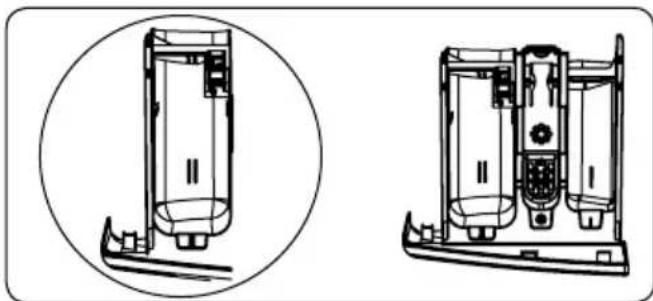

5.1. Detergent Drawer General View ...... 14
5.2. Sections 15

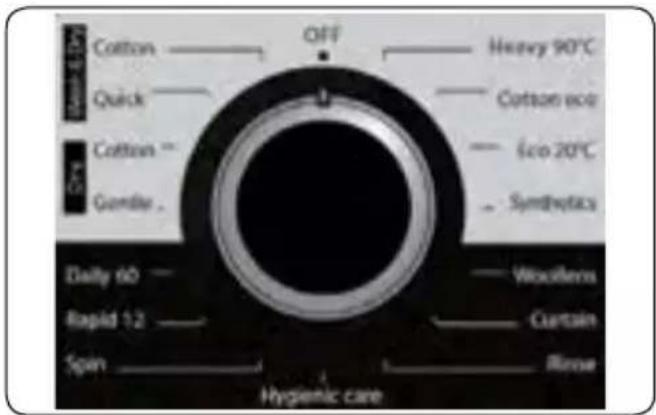

5.3. Programme Dial....15

6.1. Sorting Laundry .... 15
6.2. Explanation of Washing Symbols....16

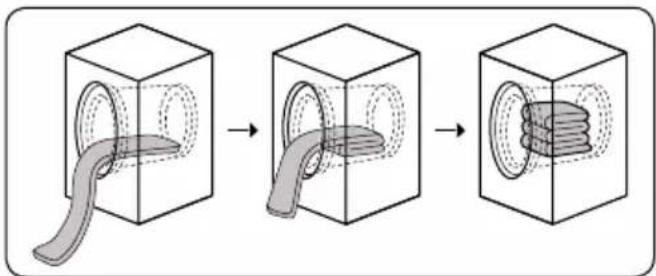

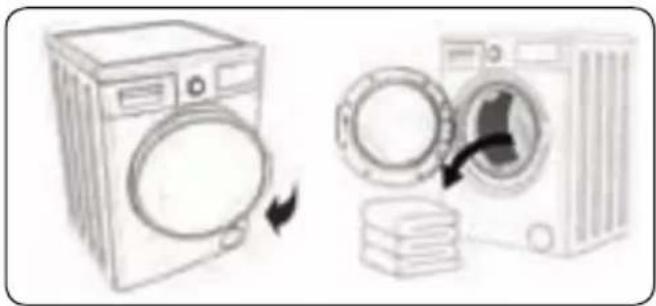

6.3. Placing Laundry Into the Machine 16
6.4. Choice of Detergent and Placing Into the Machine 16
6.5. Programme Selection....17

7. Additional Functions....17

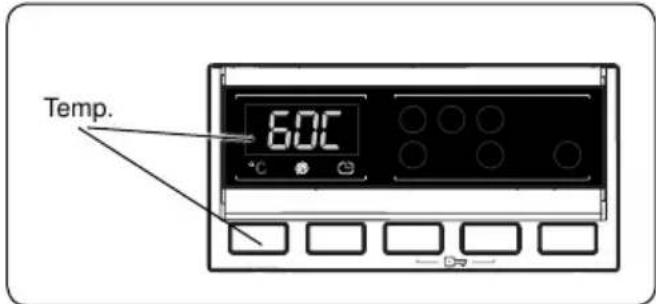

7.1. Half-Load Detection System....18
7.2. Cancelling Programme....21
7.3. Finishing Programme ......22

8.PROGRAMME TABLE....23

9. MAINTENANCE AND CLEANING OF YOUR MACHINE ....24

9.1. Warning 24
9.2. Water Inlet Filters 24
9.3. Detergent Drawer 24
9.4. Pump Filter 25

10.FLUSH STOPPER / BODY / DRUM ......26

11.TROUBLESHOOTING 27

12.AUTOMATIC FAULT WARNINGS AND WHAT NEEDS TO BE DONE .....28

1. SAFETY INSTRUCTIONS

Operating voltage / frequency (V/Hz) (220-240)V~/50Hz
Total current (A) 10
Water pressure (Mpa) Maximum	m 1 Mpa /Minimum 0.1Mpa
Total power (W) 2200
Maximum washing capacity(dry laundry) (kg)	8
Maximum drying capacity (kg)	4,5

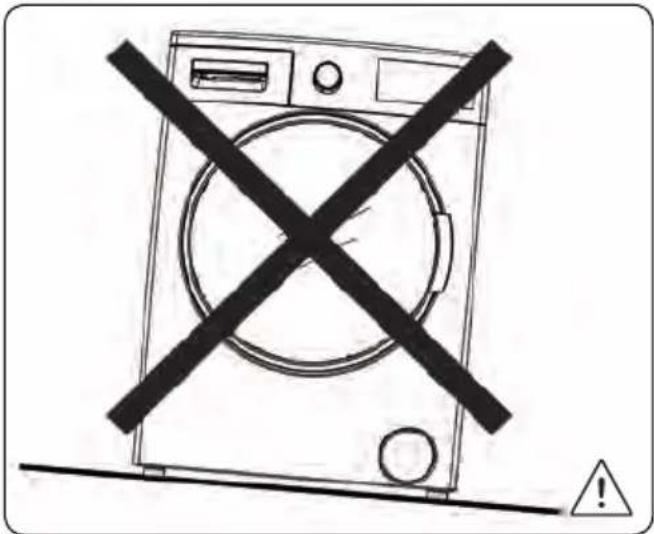

• Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children of less than 3 years should be kept away unless continuously supervised.
• Call the nearest authorized service centre for a replacement if the power cord malfunctions.
• Use only the new water inlet hose coming with your machine when making water inlet connections to your machine. Never use old, used or damaged water inlet hoses.
• Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

NOTE: For softcopy of this user manual, please contact following address: "[e-mail]". In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door.

To ensure your safety and the safety of other please read the following safety precautions before using or installing your Washer Dryer.

Your machine is for domestic use only. Using it for commercial purposes will void your warranty.

1.1. General Safety Warnings

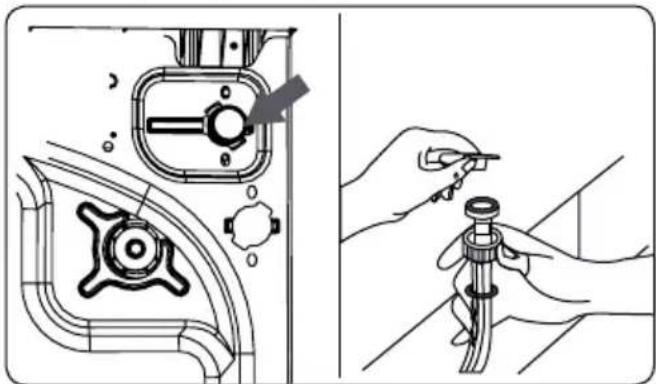

Before setting up your Washer Dryer, remove the four transit bolts and the rubber washers from the rear of the machine.

• Your warranty does not cover damage caused by external factors such as fire, flooding and other sources of damage.
• Retain this user manual for future use and pass it on to the next user.
• The necessary ambient temperature for operation of your Washer Dryer is 15-25 °C.
• Where the temperature is below 0 °C, hoses may split or the electronic card may not operate correctly.

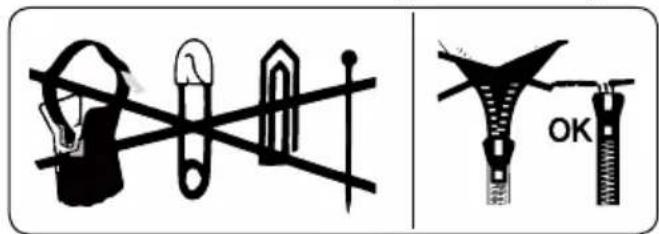

• Please ensure that garments loaded into your Washer Dryer are free from foreign objects such as nails, needles, lighters and coins.
• Lints must not to be allowed to accumulate around the washer dryer.
• Residue may build up on detergent and softeners exposed to air for a long period of time. Only put

softener or detergent in the drawer at the beginning of each wash.

• Unplug your Washer Dryer and switch off the water supply if the Washer Dryer is left unused for a long time. We also recommend that you leave the door open to prevent build up of humidity inside the Washer Dryer.
• Some water may be left in your Washer Dryer as a result of quality checks during production. This will not affect the operation of your Washer Dryer.
• Keep the document bag that was supplied inside your Washer Dryer and contained this user manual out of the reach of children and babies to prevent the risk of suffocation.
• The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small parts from the Washer Dryer.
• Only use pre-wash programmes for very soiled laundry.
• Do not exceed the maximum load for the washing or drying programme you have chosen.
• In the event of a fault, unplug your Washer Dryer and switch off the water supply. Do not attempt to repair your Washer Dryer yourself. Repairs should only be undertaken by an approved service agent.
• Never open the detergent drawer while your Washer Dryer is running.
• Never force the door open when your Washer Dryer is running.
• Please follow the manufacturers' instructions on the use of fabric conditioner or any similar products that you intend to use in your Washer Dryer.
• Do not stop your Washer Dryer before the drying phase of a programme has been completed. If you

have to do so, quickly remove all of your laundry and immediately spread the items on an appropriate surface to allow them to cool.

• The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• This appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washer dryer, in such a way that a full opening of the washer dryer door is restricted.
  • Install your Washer Dryer in a location that can be ventilated and has constant air circulation.
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a fire hazard.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should first be washed in hot water with extra detergent - this will reduce, but not eliminate, the hazar.

SAFETY WARNINGS

- You must read these warnings. Ignoring these warnings may put you or others at risk of fatal injuries.

RISK OF BURNS

- Do not touch the door, drain hose or any discharged

water while your Washer Dryer in running. The high temperatures involved pose a burn risk.

- Open the door fully after the drying process. Do not touch the door glass. It will reach high temperatures and pose a burn risk.

! ⚡ ELECTROCUTION RISK

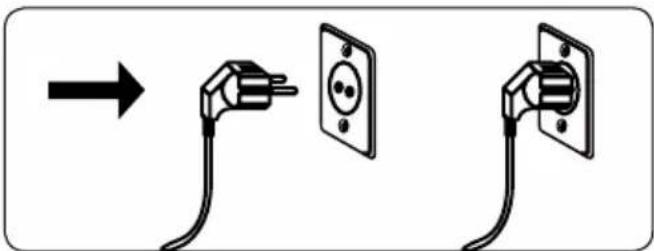

Do not connect your Washer Dryer to the mains electricity supply using an extension lead.

• A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.
• Never remove the plug from the socket by pulling the cord. Always hold the plug.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Do not touch your Washer Dryer if your hands or feet are wet.
• Call the nearest authorised service company for assistance if the power cord malfunctions.

⚠ Explosion Risk

- Thoroughly rinse off any chemicals, such as stain remover, from your garments before beginning a washing and drying programme. Failure to do so may cause a risk of explosion when the drying function is used.

! Fire Risk

• Do not keep flammable or explosive liquids near your machine.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers

should be washed in hot water with an extra amount of detergent before being dried in the tumble dryer.

• Do not use a detergent ball/device if you have selected a washing and drying programme as this may cause a fire hazard.
• Do not dry your laundry under the conditions specified below as they present a fire risk.

• If the laundry is not washed.
• If oil based stains are not pre-treated before beginning a washing or drying programme.
- Laundry which has been cleaned with industrial chemicals.
- Laundry that has a high amount of sponge, foam, rubber or rubber-like parts and accessories.
- Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles

and clothes or pillows fitted with foam rubber pads should not be dried in the drying process of the appliance.

- Stuffed or damaged items (such as pillows or jackets). The rubber sponge presents a fire risk during the drying process.

• Never use products that contain solvents in your machine.
• Please ensure that garments loaded into your Washer Dryer are free from foreign objects such as nails, needles, lighters, matches and coins.

! Fall and Injury Risk

• Do not climb on your Washer Dryer.
  • Make sure hoses and cables do not cause a trip hazard.

• Do not turn your Washer Dryer upside down or on its side.

• Do not lift your Washer Dryer using the door or detergent drawer.
  • Make sure hoses and cables do not cause a trip hazard.

⚠️To avoid risk of injury, please take care when moving your Washer Dryer. It is heavy and we recommend that a minimum of two people move your Washer Dryer.

! Child Safety

• Do not allow children to play with the machine.
• Do not leave children unattended near the machine. They might lock themselves in the machine.
• The door glass and machine surface can become extremely hot during operation. Do not allow children to touch the machine; it may damage their skin.
• The packaging of the machine could be hazardous to children. Do not allow children to play with the packaging or small parts from the Washer Dryer.
• Poisoning and irritation may occur if detergent or other washing aids are consumed or come into contact with skin or eyes. Keep cleaning materials out of reach of children.

1.2. During Use

• Do not allow pets near the machine.
• Please ensure that you have removed all of the packaging materials and protective tape from the outside of your Washer Dryer, inside the drum and inside the detergent drawer before using. Check for any external visible damage. Do not install or use your Washer Dryer if it is damaged.
• Your Washer Dryer is for domestic use only and

is only intended to wash and dry items which are specified by the manufacturer to be machine washable and dryable on the label and textiles composed of hand washable wool or wool blend fabrics as well as satin, lace, silk and other hand-washable garments. Do not use your Washer Dryer for any purpose not expressly specified in this user guide.

• This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.
• Installation of your machine must only be carried out by an authorised service agent. Installation by anyone other than an authorised agent will void your warranty.

1.3. Packaging and Environment

DISPOSE OF PACKAGING AND YOUR OLD MACHINE RESPONSIBLY

Removal of packaging materials

Packaging materials protect your machine from any damage that may occur during transportation. Please recycle the packaging materials.

Recycled material reduces raw material consumption and lowers waste production.

1.4. Savings Information

Some important information to get the most efficient use out of your machine:

• The amount of laundry you put in your Washer Dryer should not exceed the maximum amount indicated. Avoid overloading to allow your machine to run more efficiently.
• Not using the pre-wash feature for normal and lightly soiled laundry will save electricity and water consumption.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced.

Disposal of your old machine

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

2. TECHNICAL SPECIFICATIONS

Maximum washing capacity (dry laundry) (kg) 8
* Maximum drying capacity (kg) 4,5
Spin speed (rpm) 1400
Number of programmes 15
Operation voltage / Frequency (v/hz) 220-240 / 50
Water pressure (mpa)	Maximum: 1Minimum: 0.1
Dimensions (HxWxD) (mm) 845x597x582
* You should not put dry laundry in your machine for drying.
AS/NZS.2040 standard-compliant control programmes
Washing programme:
2. Programme “Cotton Eco”, temperature 40°C, maximum spinning speed 1400 rpm
Drying Programme:
13. Programme “Cotton dry”
Drying level additional function selection: Drying Level 3 (###)

3. OVERVIEW OF YOUR MACHINE

3.1. General Appearance

1. Touch buttons
2. High-resolution LCD display
3. Programme Button
4. Upper Tray

5. Detergent Drawer

6. Door

7. Pump Filter Cover

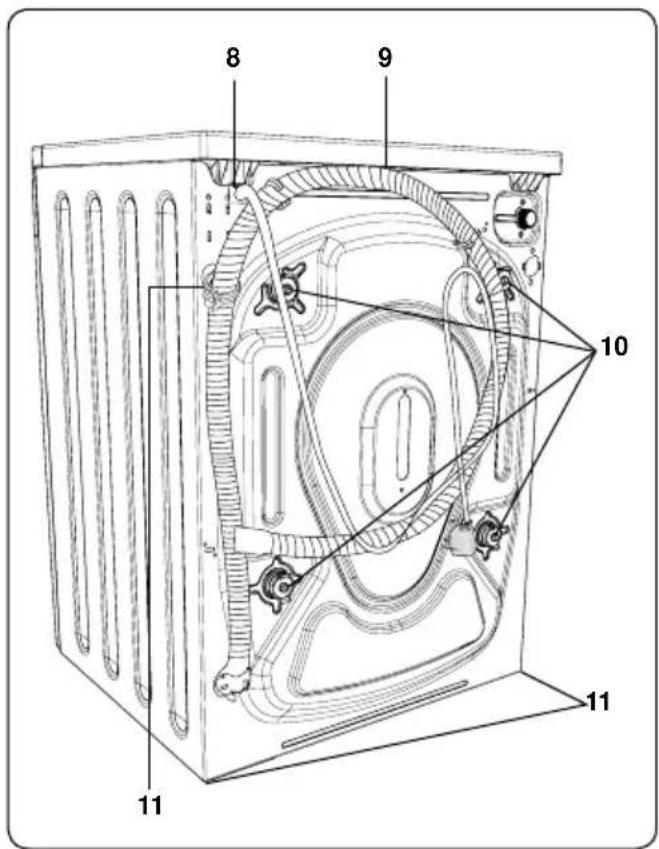

8. Power Cord
9. Drain Hose
10. Transport Screws

11. Adjustable Feet

12. Plastic Drain Hose Holder: (Do not remove the holder; the operation of the machine will be affected).

4. SETTING UP YOUR MACHINE

Your machine must only be installed by an authorised service company.

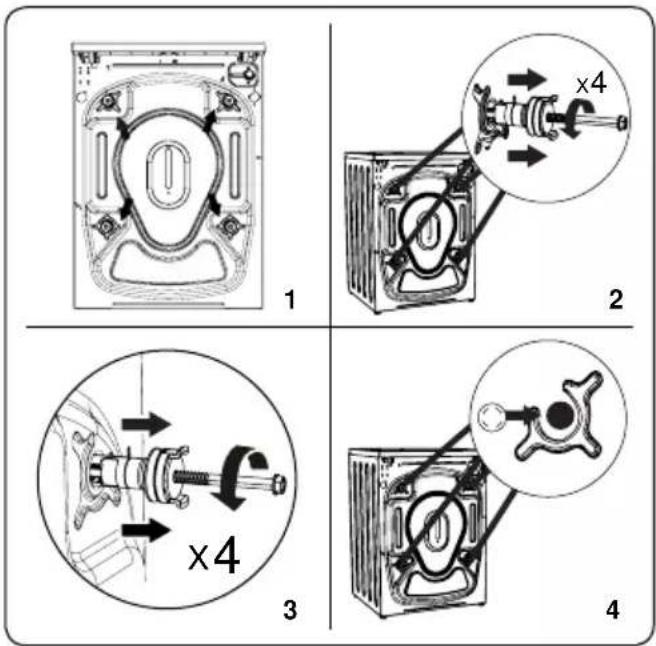

4.1. Remove the Transit Screws

1. Before operating your machine, you must remove the transit screws from the rear of the machine.
2. Loosen the transit screws by rotating anti-clockwise with an appropriate spanner.
3. The transit screws can then be removed with a straight pull. The removed transit screws should be stored in case you need to transport your Washer Dryer in the future.

NOTE: You must remove the transit ws from your machine before first use. Faults occurring in machines operated with transit screws still fitted are outside the scope of the warranty. Fit the plastic blanking caps supplied in the accessories bag into the gaps left by the removal of the transport screws. The transport screws

should be stored for future use.

1. Insert the plastic blanking caps from the accessories bag into the gaps left by the transit screws.

4.2. Placing the Machine and Adjusting the Feet

1. Do not install your machine on a carpet or surface that will block ventilation at the base.

2. To ensure silent and vibration-free operation of your machine, install it on a firm surface.

Simple line drawing of a washing machine with a thumbs-up gesture (no text or symbols)

1. You can adjust the level of your machine by using the gauge at the top.

Diagram showing two mechanical gear assembly steps with arrows indicating motion (no text or symbols)

1. You can level your Washer Dryer by using the adjustable feet:

- Loosen the plastic adjustment nut.

• Turn the feet clockwise to increase the

height of the machine. Turn the feet anticlockwise to decrease the height of the machine.

- Once the machine is level, tighten the plastic adjustment nut.

• Never insert cardboard, wood or other similar materials under the machine to level it.
• When cleaning the ground on which the machine is located, take care not to disturb the level of the machine.

4.3. Electrical Connection

• Your Washer Dryer requires a 220-240V, 50Hz mains supply.
• The mains cord of your machine is fitted with a grounded plug.
• The plug should always be inserted to a grounded socket of 10 amperes. The fuse rating of the plug should also be 10 amperes.
• If you do not have a suitable socket and fuse conforming with this, please ensure the work is carried out by a qualified electrician.
  • We do not take responsibility for damage that occurs due to the use of ungrounded equipment.

NOTE: Operating your machine with

low voltage will cause the life cycle of your machine to be reduced and its performance to be restricted.

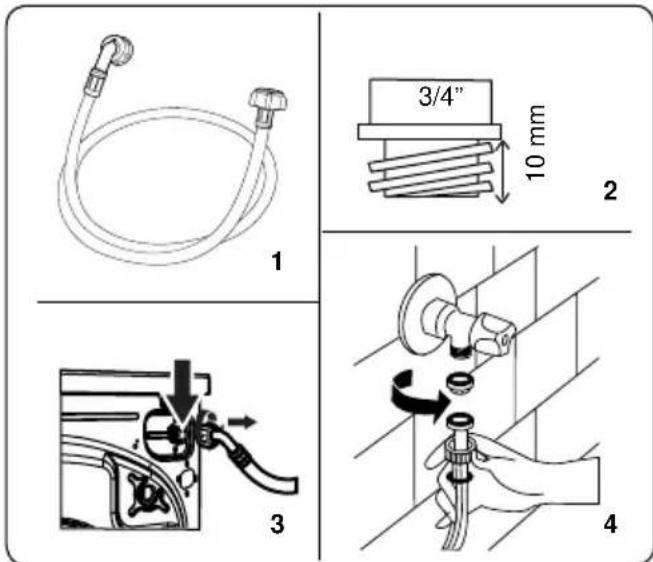

4.4. Water Inlet Connection

• Connect your Washer Dryer to your cold water supply only.
• Only use the water inlet hose supplied with your machine or one purchased through an authorised dealer.
• A gasket is included in the hose packaging to prevent water leaks from connections. Fit this gasket to the end of the water inlet hose that will be connected to the tap.
• Connect the angled end of the water inlet hose to the cold water inlet on the rear of the machine and hand-tighten.

• Screw the other end of the water inlet hose onto a 3/4" water tap and hand-tighten.
  • If in any doubt, consult a qualified plumber.

• Turn the cold water supply on and check for any leaks.

• Water flow with pressure of 0.1-1 Mpa will allow your machine to operate at optimum efficiency (pressure of 0.1 Mpa means that more than 8 litres of water per minute will flow through a fully opened tap).
• Ensure that the hose is not trapped, kinked, twisted, folded or crushed.

NOTE: Only use the water inlet hose supplied with your machine when making connections. Never use old, used or damaged water inlet hoses.

4.5. Water Draining Connection

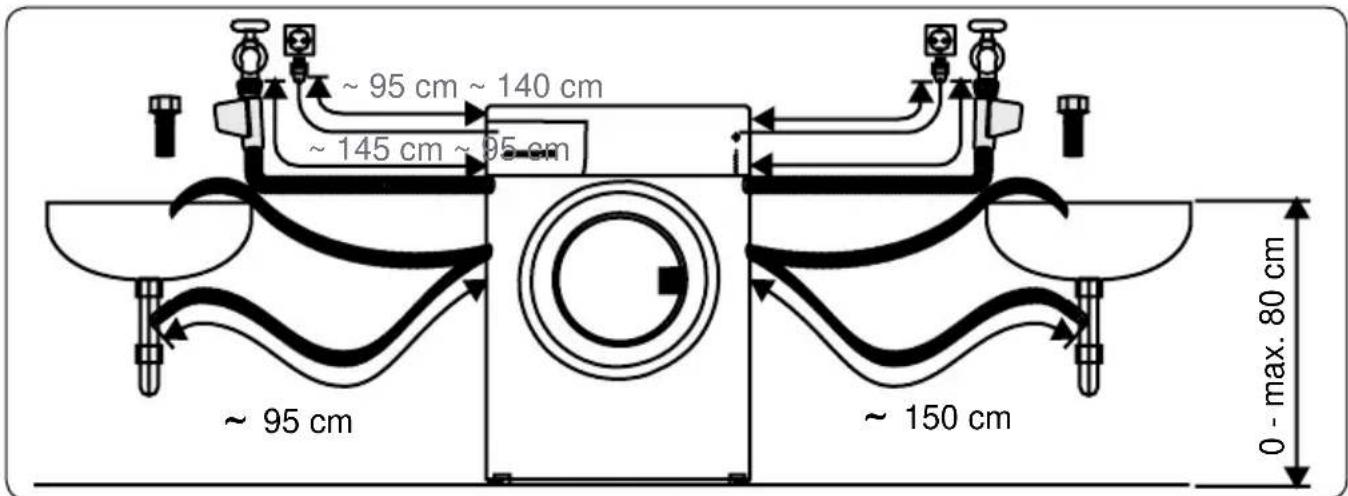

Illustration of a kitchen sink with a curved pipe and two small objects attached to the drain (no text or symbols)

• Connect the water drain hose to a standpipe or to the outlet elbow of a household sink, using additional equipment. The hose must be placed between 0 cm and 80 cm from the ground.
• Never attempt to extend the water drain hose.
• Do not put the water drain hose from your machine into a container, bucket or bathtub.

• Make sure that the water drain hose is not bent, buckled, crushed or extended.

5. CONTROL PANEL OVERVIEW

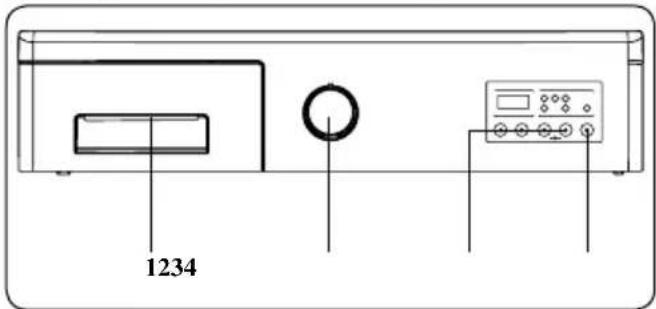

1. Detergent drawer
2. Programme Dial: Use the programme dial to select the washing / drying programme for your laundry. Turn the programme dial clockwise or anticlockwise to select the required programme. Make sure that the dial is pointing exactly at the selected programme.
3. Additional Function Buttons: Use these buttons to select additional functions for the laundry programme. See Additional Functions for more information.

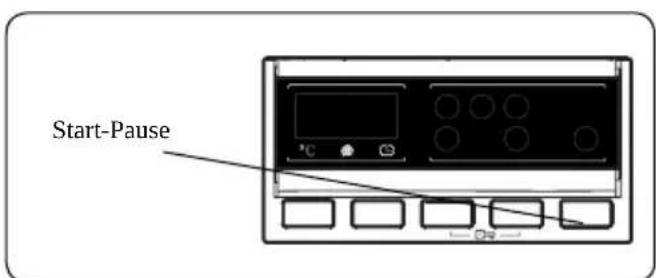

4. Start/Pause button: Start or pause the selected programme.

5.1. Detergent Drawer General View

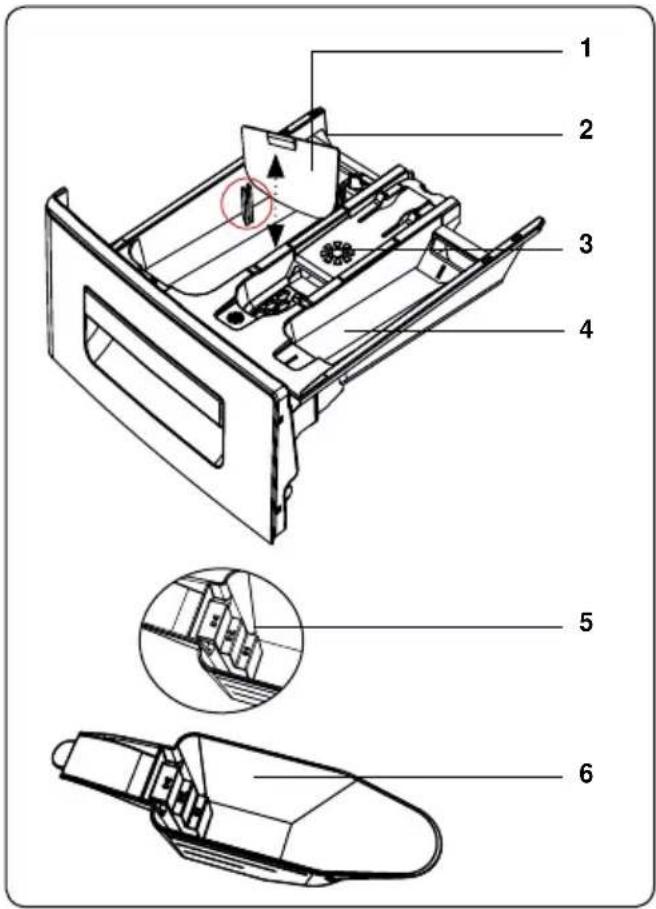

Line drawing of a washing machine with an inset showing internal components (no text or symbols)

1. Liquid Detergent Attachments (*)
2. Main Wash Detergent Compartment
3. Softener Compartment
4. Pre-Wash Detergent Compartment
5. Powder Detergent Levels
6. Powder Detergent Scoop (*)

(*) Specifications may vary depending on the machine purchased.

5.2. Sections

Main wash detergent compartment:

Technical line drawing of a battery internal structure, showing two views (top and side) with no visible text or symbols.

This compartment is for liquid or powder detergents or limescale remover. The fluid detergent level plate is supplied inside your machine. (*)

(*) Specifications may vary depending on the machine purchased.

Fabric conditioner, starch, detergent compartment:

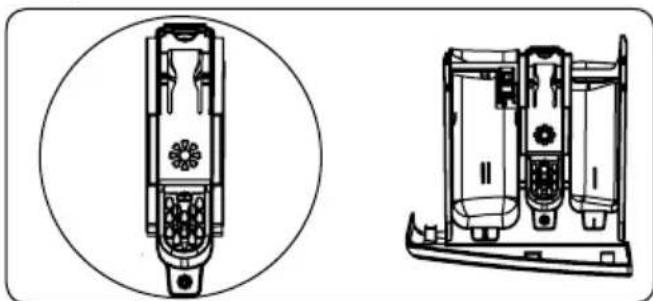

Technical line drawing of a mechanical device with internal components, shown from two views: top is circular (no text or symbols)

This compartment is for softeners, conditioners or starch. Follow the instructions on the packaging. If softeners leave residue after use, try diluting them or using a liquid softener.

Pre-wash detergent compartment:

Technical line drawing of a mechanical device with cross-sectional and top views (no text or symbols)

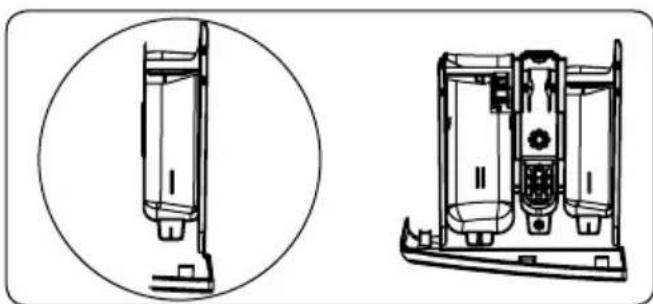

This compartment should be used only when the pre-wash feature is selected. We recommend that the pre-wash feature is used only for heavily soiled laundry.

5.3. Programme Dial

- To select the desired programme, turn the programme dial either clockwise or anti-clockwise until the marker on the programme dial points to the chosen programme.

1. Turn on the water supply.

2. Plug in your machine

6.1. Sorting Laundry

Your laundry contains product labels which specify the appropriate washing instructions. Wash or dry your laundry according to the instructions on the product labels.

- Sort your laundry according to their type (cotton, synthetic, delicates, wool, etc.), washing temperature (cold, 30°C, 40°C, 60°C, 90°C) and the level of dirtiness (lightly soiled, soiled, heavily soiled).

- Never wash coloured and white laundry together.

- Dark textiles may contain excess dye and should be washed separately several times before being included in a mixed load.

- Ensure that there are no metallic materials on your laundry or in the

pockets; if so, remove them.

WARNING: Any malfunction occurring due to foreign materials damaging your machine are not covered by the warranty.

• Close zips and fasten any hooks and eyes.
• Remove the metallic or plastic hooks of curtains or place them in a washing net or bag.
• Reverse textiles such as pants, knitwear, t-shirts and sweat shirts.
• Wash socks, handkerchiefs and other small items in a washing net.

6.2. Explanation of Washing Symbols

	Machine wash	Maximum ironing temperature 110°C
	Machine wash, permanent press	Do not iron
	Maximum washing temperature 95°C	A Can be dry cleaned with any solvents
	Maximum washing water temperature 60°C	P Can only be cleaned with perchloride, lighter gas, alcohol or R113.
	Maximum washing water temperature 40°C	F Can only be cleaned with perchloride, lighter gas, alcohol or R113.
	Maximum washing water temperature 30°C	Do not dry cleaning
	Hand wash	Dry flat
	Do not wash	Drip dry
	Can be bleached in cold water	Line dry
	Do not use bleach.	Tumble dry
	Maximum ironing temperature 200°C	Tumble dry high
	Maximum ironing temperature 150°C	Do not tumble dry

6.3. Placing Laundry Into the Machine

Illustration of a washing machine and its internal components, showing a close-up of the inner ring and a stack of books (no text or symbols present)

• Open the loading door of your machine.
• Check inside the drum. There may be laundry left inside from previous washes. If there is, empty your machine before selecting a programme.
• Load your laundry into the drum, ensuring it is loosely packed. Fold large objects like quilts and blankets into the drum as shown below.

• Place each item of laundry in separately.
• Check that no items of laundry are trapped between the rubber seal and the door.
• Make sure that the door is completely closed or the machine won't start the washing operation.

6.4. Choice of Detergent and Placing Into the Machine

The amount of detergent to use will depend on the dirtiness of your clothes and the hardness of your water supply; guidelines will be on the packaging of your detergent.

• If your clothes are only slightly soiled, do not do a pre-wash. Put a small amount of detergent (as specified by the manufacturer) into compartment II of the detergent drawer.
• If your clothes are excessively soiled, select a programme with pre-wash and put 14 of the detergent to be used into compartment I of the detergent drawer and the rest in compartment II.
• Use detergents produced for automatic washing machines in your machine.

Follow the instructions on the detergent packaging when determining the amount of detergent to use for your laundry.

• The higher the degree of hardness of the water, the more detergent you will need.
• The amount of the detergent you will use will increase as the amount of your laundry increases.
• Put the softener in the softener compartment in the detergent drawer. Do not exceed the MAX level, otherwise the softener may flow into the washing water.
• Softeners with high density must be thinned before being put in the drawer. High-density softener will clog the flush and block the flow of the softener.
• You can use liquid detergent in all programmes without pre-washing. Insert the liquid detergent apparatus in compartment II of the detergent drawer and adjust the liquid detergent amount (follow the instructions on the liquid detergent packaging). Do not exceed the MAX level..

6.5. Programme Selection

Turn the dial to select the desired washing programme.

7. Additional Functions

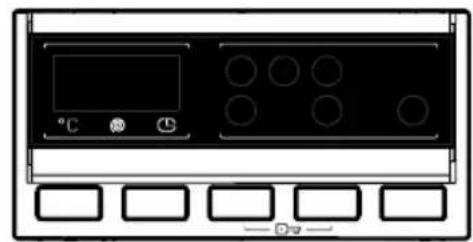

Front view of a control panel with indicator lights and buttons (no text or symbols)

To allow you to get the best washing results possible, your machine offers the following additional functions to complement the selected programme. To select an additional function before starting a programme:

• Press the button on the Control Panel below the symbol of the additional function you wish to select.
• If the symbol of the additional function flashes continuously, the function has been activated.

• If the symbol of the additional function blinks, the function has not been selected.
  • Reason for non-activation:

• The additional function is not compatible with the selected washing programme.

• Your machine has progressed too far into the selected programme for the additional function to be possible.
• The additional function you have chosen is not compatible with another additional function you have already selected.

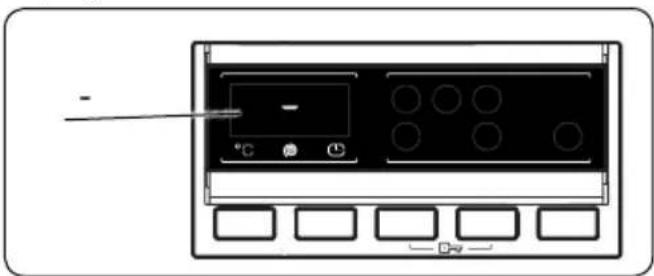

7.1. Half-Load Detection System

Your machine features a half-load detection system.

If you put less than half the maximum load of laundry into your machine it will automatically set the half-load function, regardless of the programme you selected. This means that the selected programme will take less time to complete and will use less water and energy.

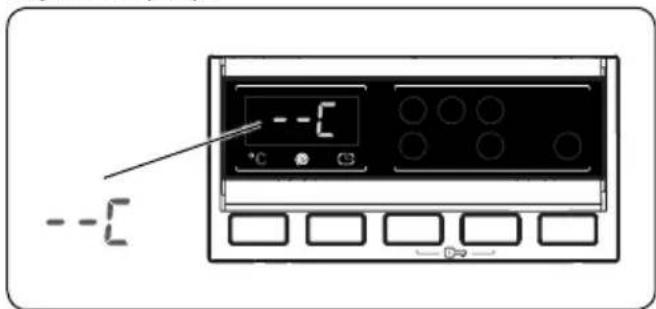

1. Temperature selection


When you select a programme the maximum temperature for that programme is automatically selected.

To adjust the temperature, press the water temperature adjustment button until the desired temperature is displayed on the digital display.

You can gradually reduce the washing water temperature between the maximum temperature and cold washing (--) by pressing the water temperature adjustment button.

If you have skipped the water temperature you want to set, keep pressing the water temperature adjustment button until the desired temperature is displayed again.

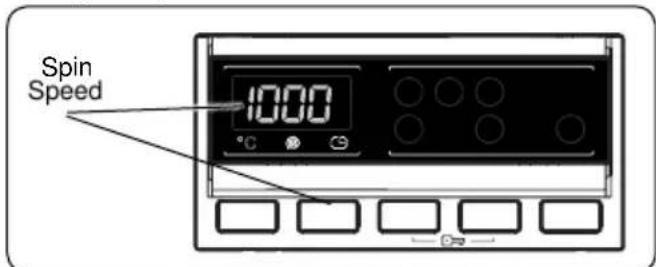

1. Spin speed selection


When you select a programme the

maximum spin speed for that programme is automatically selected.

To adjust the spin speed, press the spin speed adjustment button until the desired spin speed is displayed on the digital display.

Front view of a computer control panel with buttons and display (no text or symbols visible)

You can gradually reduce the revolution speed between the maximum spin speed and cancel spinning (-) options by pressing the spin speed adjustment button.

If you have skipped the spin speed you want to set, keep pressing the spin speed adjustment button until the desired spin speed is displayed again.

3. Drying level selection:

If you would like your laundry dried at the end of a washing programme, press the drying level button to select the desired drying setting.

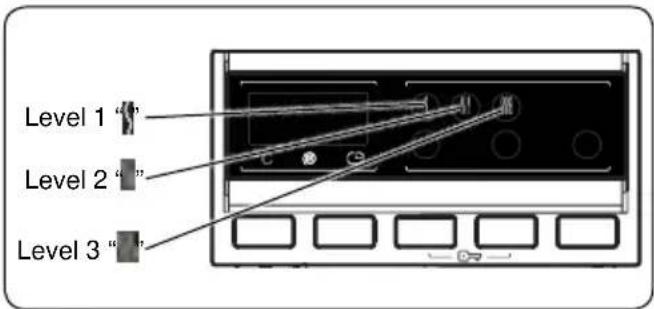

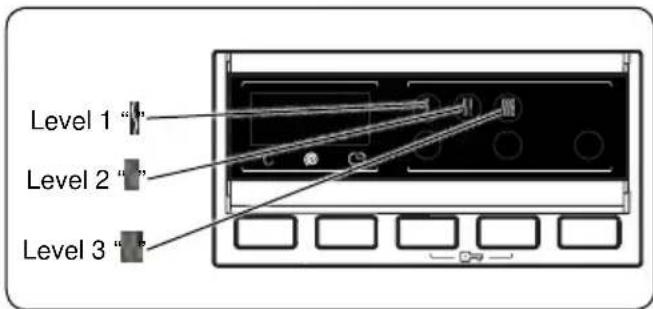

• When you press the drying level button, the level 1 “”, level 2 “” and level 3 “” symbols will be shown on the display.
• Level 1 "": Recommended for laundry that will be ironed before using. To select the "drying option, press the drying level button until the "symbol is displayed.
• Level 2 “”: Recommended for laundry that requires hanging. To select the “” drying option, press the drying level button until the “” symbol is displayed.
• Level 3 “☐”: Recommended for laundry that will be folded and put into a wardrobe at the end of the programme. To select the ☐ drying option, press the drying level button until the “☐” symbol is displayed.

NOTE: If one of the above drying level symbols is not displayed when you press the Dry Level button, that drying option is not available for the selected programme.

If you want your laundry dried for a fixed period of time at the end of the washing cycle:

• Press the drying level button to select the desired drying duration.
• When you press the drying level button, the level 1 "", level 2 " and level 3 " symbols will be shown on the display.

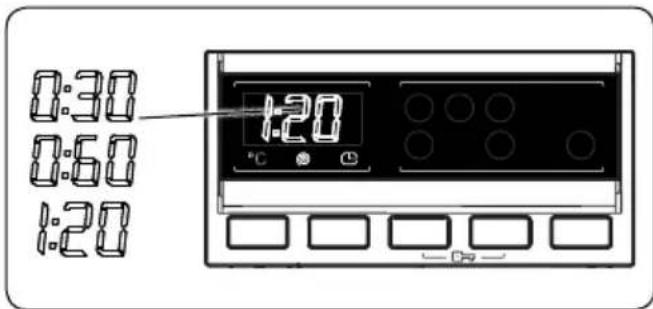

If you continue pressing, duration options (0:30, 0:60, 120 minutes) will be displayed. You can select the drying duration you want.

NOTE: If one of the above drying duration options is not displayed when you press the Dry Level button, it is not available for the selected programme.

Table: Recommended drying durations for load amounts:

	1 - 2 kg 3 -	4 kg 5 kg
Level 1	√	√	X
Level 2 X		√	√
Level 3 X		√	√

1. Drying level selection:

PROGRAMME	SELECTABLE/NOT SELECTABLE	DRYING PROFILE	FACTORY PRESET	SELECTABLE LEVELS
Cotton	S Cotton dry - Level 1 Level 2 Level 3
Cotton eco	S Cotton dry - Level 1 Level 2 Level 3
Eco 20°C	S Cotton dry - Level 1 Level 2 -
Synthetics	S Gentle dry - Level 1 Level 2 Level 3
Wool	NS - - - - -
Curtain	NS - - - - -
Rinse	S Cotton dry - Level 1 Level 2 Level 3
Allergy Safe	S Cotton dry - Level 1 Level 2 -
Spin	S Cotton dry - Level 1 Level 2 Level 3
Super Rapid 12'	S Cotton dry - Level 1 --
Daily 60'/60°	S Cotton dry - Level 1 Level 2 -
Gentle dry	S Gentle dry Level 2 Level 1 - Level 3
Cotton Dry	S Cotton dry Level 2 Level 1 - Level 3
Quick Wash & Dry	NS Cotton dry Level 1 --
Cotton Wash & Dry	S Cotton dry Level 2 Level 1 - Level 3
S: Selectable NS: No Selection

Selectable drying duration levels
Cotton	30	60	120
Cotton eco	30	60	120
Eco 20°C	30	60	120
Synthetics	30	60	120
Wool	-	-	-
Curtain	-	-	-
Rinse	30	60	120
Allergy Safe	30	60	120
Spin	30	60	120
Super Rapid 12'	30	60	120
Daily 60'/60°	30	60	120
Gentle dry	30	60	120
Cotton Dry	30	60	120
Quick Wash & Dry	-	-	-
Cotton Wash & Dry	30	60	120

5. Delayed Start

• Press the Delay button once.

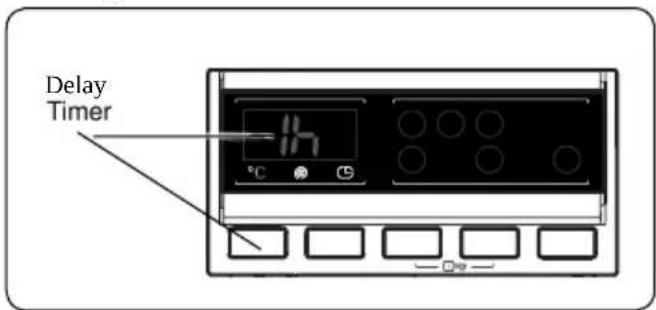

  • “1 h” will appear on the display.
• The ⏻ symbol will flash on the electronic display.
• Press the Delay button until the desired delayed time appears on the display.
• If you have skipped the delay time you wanted to set, keep pressing the Delay button until the desired delay time is displayed again.
• For the delay timer function to work, you must press Start/Pause button.
• To activate the time delay, press "Start/Pause" button.
• To cancel the time delay once it has been set, press the Delay button once. The ⏻ symbol will no longer flash on the electronic display.
• In order to add/remove laundry while delay timer function is working, you must press Start/Pause button. After adding/removing laundry, you must press Start/Pause button again to activate delay timer function.

6. Start/Pause button

To start the selected programme, press the Start button.

If you switch your machine to standby mode, the Start/Pause indicator on the electronic display will blink.

7. Child Lock

The Child Lock function allows you to lock the buttons so that the wash cycle you have chosen cannot be changed unintentionally.

To activate child lock, press and hold button 3 and 4 simultaneously for at least 3 seconds. “CL” will flash on the electronic display for 2 seconds when the child lock is activated.

If any button is pressed or selected programme is changed by the programme dial while the child lock is active, the “CL” symbol will flash on the electronic display for 2 seconds.

If the child lock function is active and a programme is running, when the programme dial is turned to the CANCEL position and another programme is selected the previously selected programme continues from where it was left.

To deactivate the child lock, press and hold button 3 and 4 simultaneously for at least 3 seconds until the “CL” symbol on the electronic display disappears.

7.2. Cancelling Programme

To cancel a running programme at any time:

1. Turn the programme dial to the "CANCEL" position.
2. Your machine will stop the washing operation and the programme will be cancelled.
3. Turn the programme dial to any other programme to drain the machine.
4. Your machine will perform the necessary draining operation and cancel the programme.

You can now select and run a new programme.

7.3. Finishing Programme

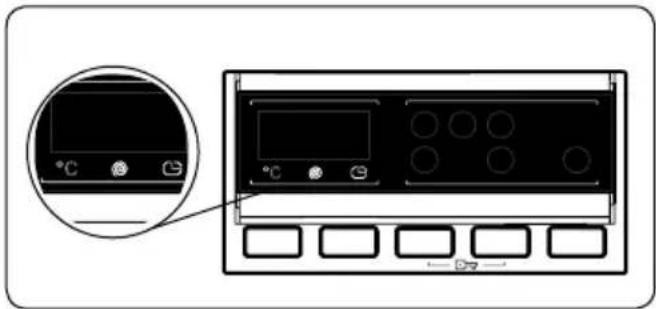

Diagram of a refrigerator control panel with indicator lights and buttons, shown in an inset view (no text or symbols on the panel itself)

Your machine will stop by itself as soon as the programme you have selected finishes.

• "END" will flash on the electronic display.
• You can open the machine's door and remove the laundry.
• Leave the door of your machine open to allow the inner part of your machine to dry.
• Switch the programme dial to STOP position.
  • Unplug your machine.

• Turn the water tap off.

• PROGRAMME TABLE

Programme	Washing temperature (°C)	Maximum washing / drying capacity (kg)	Detergent compartment	Programme duration (Min.)	Laundry type / Descriptions
HEAVY 90°C 90°8	/4,52201				Hevaily soiled cotton laundry. (Underwear, bed sheets, tablecloths (towels, max. 4 kg)
COTTON ECO 40°e	8/4,52	240			Normally soiled cotton laundry (Underwear, bed sheets, tablecloths (towels, max. 4 kg)
ECO 20°20°4/4	2112				Lightly soiled, cottons and linen textiles (underwear, bed sheets, tablecloth (towel max. 2 kg.) (Bedding, etc.)
SYNTHETICS 60°	3,5/	3,52120			Synthetics and synthetic blended textiles (synthetic blended shirts, blouses, socks etc.)
WOOLLENS	30°	2,52	54		Woollen and wool blended textiles with a machine washable label
CURTAIN	40°	2,5	2	112	Use this programme to wash curtains only.
RINSE	-8/4,5	-	52		Provides an additional rinse to any type of laundry after the washing cycle.
HYGIENIC CARE	60°	4,5/4,5	2	248	Baby clothes with a machine washable label.
SPIN	-8/4,5	-	24		Provides an additional spin cycle to any type of laundry after the washing cycle.
RAPID 12'	*Cold	2/2	2	12	Lightly soiled, cotton, colored and linen textiles. Due to the short washing time of this programme, we recommend that less detergent is used than with other programmes. The programme may last longer than 12 minutes if your Washing Machine detects an uneven load.
DAILY 60 MIN.	60°	4,5/4,5	2	60	Soiled, cotton, colored and linen textiles.
GENTLE DRY	-	3.52100			Delicate laundry bearing the suitable for machine dry label.
COTTON DRY	-	4,52174			Cotton laundry bearing the “suitable for machine dry” label.
QUICK WASH & DRY 30°		0.5 kg.33 min (3 shirts) (33 minutes)	2	29	Cotton, colored and linen laundry bearing “suitable for machine dry” labelNote:Your machine determines the programme duration based on the amount of laundry loaded.
COTTON WASH & DRY	60°6/	62270			Cotton and linen textiles (Underwear, bed sheets, tablecloth, (towel max. 3.0 kg)

NOTE: PROGRAMME DURATION MAY VARY DEPENDING ON THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

If you select more than one additional function, the functions you select may be incompatible.

Do not dry towels, cotton and linen textiles, synthetic and synthetic blended laundry together. To dry your laundry, select the most appropriate drying programme for the type of the laundry.

9. MAINTENANCE AND CLEANING OF YOUR MACHINE

9.1. Warning

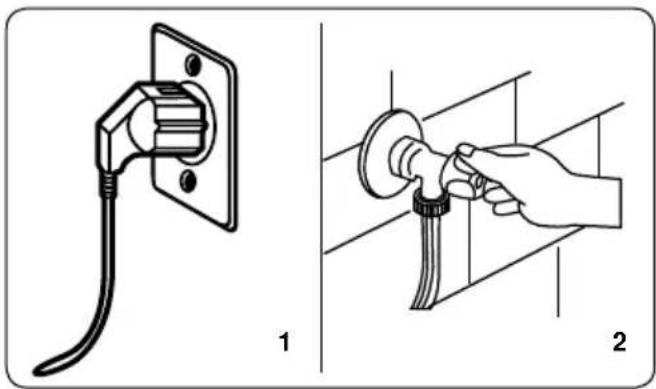

Illustration of two different electrical installation methods: one with a plug, the other with a hand holding a screwdriver (no text or symbols present)

Turn your mains power supply off and remove the plug from the socket before carrying out maintenance and cleaning your machine.

Turn off the cold water supply before starting maintenance and cleaning your machine.

⚠️CAUTION: Do not use solvents, abrasive cleaners, glass cleaners or all-purpose cleaning agents to clean your Washer Dryer. They may damage the plastic surfaces and other components with the chemicals they contain.

9.2. Water Inlet Filters

Technical illustration showing a mechanical component being inserted into a pipe fitting, with no visible text or symbols.

Water inlet filters prevent dirt and foreign materials from entering your machine. We recommend that these filters are cleaned when your machine is unable to receive sufficient water, although your water supply is on and the tap is open. We recommend that you clean your water inlet filters every 2 months.

• Unscrew the water inlet hose from the Washer Dryer.
• To remove the water inlet filter from the water inlet valve, use a pair of long-nosed pliers to gently pull on the plastic bar in the filter.
• A second water inlet filter is located in the tap end of the water inlet hose. To remove the second water inlet filter, use a pair of long-nosed pliers to gently pull on the plastic bar in the filter.
• Clean the filter thoroughly with a soft brush and wash with soapy water and rinse thoroughly. Re-insert the filter by gently pushing it back into place.

CAUTION: The water inlet filters can become clogged due to water quality or lack of required maintenance and may break down. This may cause a water leak. Any such breakdowns are out of the scope of the warranty.

9.3. Detergent Drawer

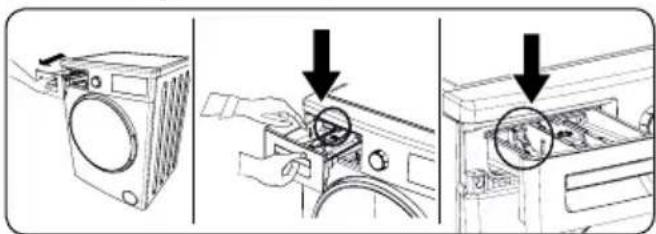

Diagram showing three steps of a washing machine operation: opening, inserting into a socket, and closing with a circular component (no text or symbols present)

The use of detergent may cause residual build up in the detergent drawer over time. We recommend that you remove the drawer every 2 months to clean the

accumulated residue.

To remove the detergent drawer:

• Pull the drawer forwards until it is fully extended.
  • Gently press down on the detergent drawer (as shown above) and pull the drawer from its housing.
• Clean the drawer with water and a soft brush.
• If there is any residue in the drawer housing, remove with a soft brush. Take care to prevent any residue from dropping into the machine.
• Dry the drawer thoroughly and slide it back into the housing.

Do not wash your detergent drawer in dishwasher.

Fluid detergent level plate (\*)

Remove the fluid detergent level plate for cleaning and maintenance purposes, as shown and wash off any detergent residue. Slide the fluid detergent level plate back into the guides. Make sure that there is no remaining detergent residue.

(*) Specifications may vary depending on the product purchased.

9.4. Pump Filter

The pump filter system in your Washer Machine prolongs the life of the pump by preventing lint from entering your machine.

We recommend that you clean the pump filter every 2 months.

The pump filter is located behind the cover on the front-lower right corner.

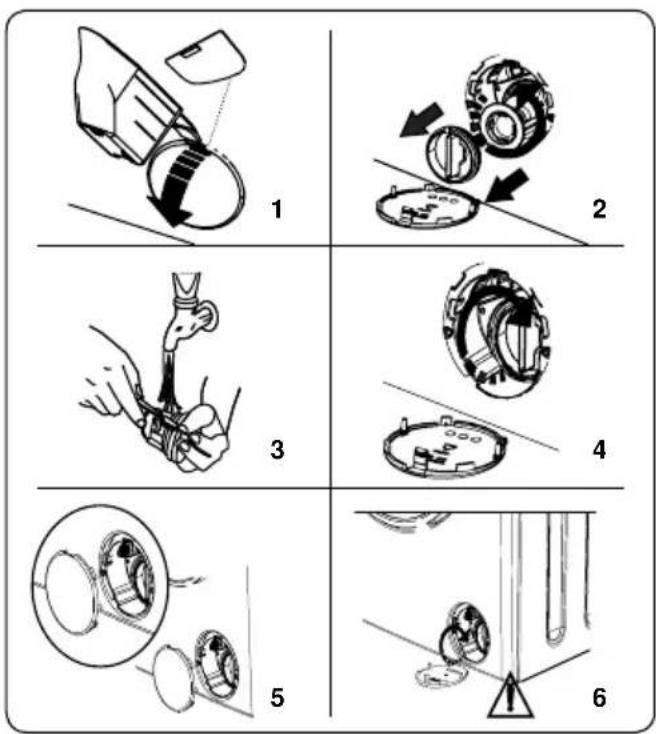

To clean the pump filter:

1. You may use the washing powder spade (*) supplied with your machine or liquid detergent level plate to open the pump cover.
2. Lodge the end of the powder spade or liquid detergent level plate in the opening of the cover and gently press backwards. The cover will open.
3. Before opening the filter cover, place a container under the filter cover to collect any water left in the machine.
4. Loosen the filter by turning anticlockwise and remove by pulling. Wait for the water to drain.

NOTE: Depending on the amount of water inside the machine, you may have to empty the water collection container a few times.

1. Remove any foreign materials from the filter with a soft brush.
2. After cleaning, re-fit the filter by inserting it and turning clockwise.
3. When closing the pump cover, ensure that the mountings inside the cover meet the holes on the front panel side.
4. Close the filter cover.

WARNING: The water in the pump be hot, wait until it has cooled down ying out any cleaning or maintenance.

(*) Specifications may vary depending on the machine purchased.

10. FLUSH STOPPER / BODY / DRUM

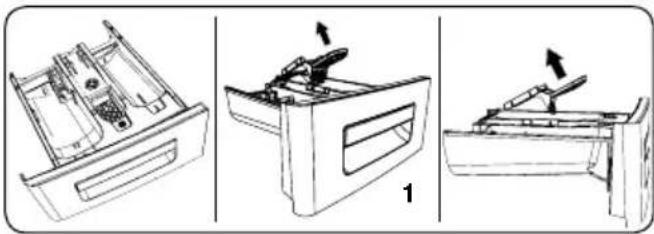

Three technical line drawings of a printer holder panel, showing front, side, and top views with no text or symbols.

1. Flush stopper

Remove the detergent drawer and disassemble the flush stopper. Clean thoroughly to completely remove any softener residue. Refit the flush stopper after cleaning and check that it is seated properly.

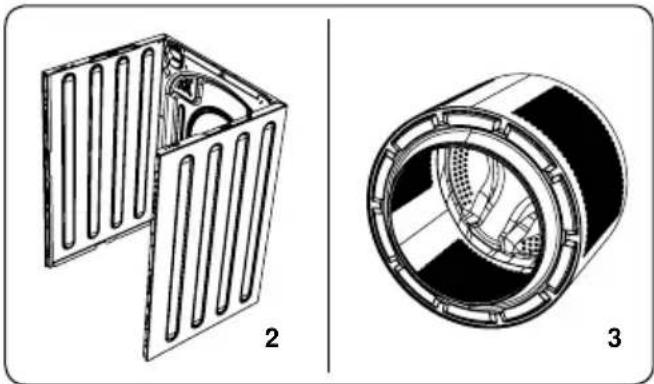

Technical diagrams of two mechanical components: a 3D panel with internal slots and a cylindrical housing (no text or symbols)

2. Body

Use a mild, non-abrasive cleaning agent, or soap and water, to clean the external casing. Wipe dry with a soft cloth.

3. Drum

Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. These objects lead to the formation of rust stains in the drum. To clean such rust stains, use a non-chlorine cleaning agent and follow the instructions of manufacturer of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust stains.

11. TROUBLESHOOTING

Repair of your machine should be carried out by an authorised service company. If your machine requires repair or if you cannot solve an issue with the information provided below, then you should:

• Unplug your machine from the mains power supply.
• Turn off the water supply.
- Contact the nearest authorised service company.

FAULT POSSIBLE CAUSE TROUBLESHOOTING
Your machine will not start.	It is not plugged in.	Insert the plug into the socket.
	The fuse is faulty. Replace the fuse.
	Mains supply is cut off. Check the mains supply.
	Start/Pause button is not pressed.	Press the Start/Pause button.
	The programme dial is in the Stop (off) position.	Turn the program dial to the desired position.
	The door of your machine is not closed properly.	Close the door of your machine.
Your machine does not discharge	Drain hose is clogged or twisted.	Check the drain hose.
	Pump filter clogged. Clean the pump filter.
Your machine vibrates.	The feet have not been adjusted.	Adjust the feet.
	Transit bolts have not been removed.	Remove the transit bolts from your machine
	Your machine only has a small amount of laundry inside.	This will not prevent the operation of your machine.
	Your machine is overloaded with laundry or the laundry is not distributed evenly.	Do not overload your machine. Make sure the laundry is spread out.
	Your machine is located on a hard surface.	Avoid installing your machine on a hard surface. When installing your machine, leave a 2 cm gap between walls or hard surfaces.
Excessive foam is formed in the detergent drawer.	Too much detergent has been used	Press the Start/Pause button. To stop the foam, dilute one tablespoon of softener into 1/2 litre of water and pour into the detergent drawer. Press the Start/Pause button after 5-10 mins
	Wrong detergent used.	Use detergents produced only for automatic washing machines in your machine.
Unsatisfactory washing result.	The laundry is too dirty for the programme you have selected.	Select programmes appropriate for your laundry's level of dirtiness. (See page 21 programme table)
	Not enough detergent used.	Use the amount of detergent as instructed on the packaging
	There is too much laundry in your machine.	Check that the maximum capacity of your Washer Dryer is not exceeded.
As soon as the machine is loaded with water, water discharges.	The end of the water drain hose is too low for the machine.	Set the water drain hose to an appropriate height.
No water appears in the drum during washing.	No fault. Water is in the unseen part of the drum.	- .
FAULT POSSIBLE	CAUSE TROUBLESHOOTING
There is detergent residue on your laundry after washing	Non-dissolving particles of some detergents may appear on your laundry as white spots.	Perform an extra rinse, or clean your laundry with a brush after it dries
There is detergent residue on your laundry after washing	There is untreated oil, cream or laundry	Use the amount of detergent as instructed on the packaging in the next wash
Spinning operation is not performed or runs late.	No fault. Unbalanced load control system has been activated.	The unbalanced load control system will try to spread your laundry evenly. The spinning operation will begin once your laundry is evenly spread.Place the laundry in the machine in a balanced fashion next time.
The load detection system on the screen does not work while loading the machine.	Laundry is placed into the machine without choosing a washing or drying programme.	Remove the laundry in your machine. Switch the programme dial to Off position, reselect the programme you want to select. Load the laundry in the machine and run.
Laundry remains damp after the drying operation.	Appropriate drying programme is not selected. The maximum load capacity for the selected programme might be exceeded.	Select a drying programme appropriate for your laundry (see page 21 for the programme table)

12. AUTOMATIC FAULT WARNINGS AND WHAT NEEDS TO BE DONE

Your machine is equipped with a built-in fault detection system, indicated by a combination of flashing wash operation lights. The failure codes are shown below.

TROUBLE CODE	POSSIBLE FAULT WHAT TO DO
E01 The door of your machine is left open.		Shut the door properly unitl you hear the click. If the fault persists, turn off your machine, unplug it and contact the nearest authorised service immediately.
E02	The water pressure or the water level inside the machine is low.	Check that the cold water tap is fully turned on and that mains water is not cut-off. If the fault persists, your machine will stop automatically. Unplug the machine, turn off the cold water tap and contact the nearest authorised service.
E03	The pump is faulty or pump filter is clogged or electrical connection of the pump is faulty.	Clean the pump filter. If the problem persists, contact the nearest authorised service. (*)
E04	Your machine has excessive amount of water.	Your machine will automatically drain the water. Turn off your machine and unplug it. Turn off the cold water tap and contact the nearest authorised service.

(*) See the chapter regarding maintenance and cleaning of your machine.

52232708

For all product enquiries (including warranty support),

please contact our Customer Care team on

1800 444 357 or via email: [e-mail]
