Product Type	8-Channel HD-TVI DVR Security System with 8 Outdoor Cameras
Model	GDVR8T80
Number of Channels	8
Video Input	8 BNC (HD-TVI/AHD/Analog)
Video Output	1 BNC, 1 HDMI, 1 VGA
Audio Input	4 RCA (line in)
Audio Output	1 RCA (line out)
USB Ports	1 front, 2 back (USB 2.0)
Hard Drive	2TB pre-installed SATA
Video Compression	H.264 Main Profile
Recording Resolution	Up to 1080P (1920x1080) per channel
Frame Rate	15 fps per channel (PAL)
PTZ Control	RS-485, supports Pelco-D/P protocol
Power Supply	DC 12V (adapter included)
Camera Resolution	1080P (1984x1105)
Camera Lens	3.6mm fixed, F2.0, 92° field of view
Night Vision	Up to 20m, 36 IR LEDs
Environmental Rating (Cameras)	IP66
Operating Temperature	-20°C to 50°C
Dimensions (DVR, approx.)	260 x 200 x 50 mm
Weight (DVR, approx.)	1.5 kg
Cleaning	Unplug, wipe with damp cloth only
Safety	Use surge protector and UPS for 24/7 operation
Warranty	1 year limited

Frequently Asked Questions - GDVR8T80 UNIDEN

How do I set up the system for the first time?

Connect cameras to the DVR using the provided BNC/power cables. Connect the DVR to a monitor via HDMI or VGA, mouse via USB, and Ethernet to your router. Power on the DVR. A setup wizard will appear; follow the on-screen steps to set date, time, and password. Refer to the manual's Setup section for details.

How can I view my cameras remotely?

Download the GuardianLive app from Apple App Store or Google Play. Create an account, then add your DVR by scanning the QR code on the DVR or on the System Information screen (Main Menu > Information > System). Ensure the DVR is connected to the internet. Once added, you can view live and recorded video on your mobile device.

How do I change the admin password?

From Main Menu, select Users > User Management. Click Change Password. Enter the old password (default is blank), then enter a new password and confirm. It is strongly recommended to set a password to prevent unauthorized access.

How does motion detection work?

Motion detection is enabled per channel via Main Menu > Setup > Alarm > Motion. You can adjust sensitivity (1-8) and mask areas to ignore (e.g., trees, fans). The DVR will start recording when motion is detected, and can trigger alarms, email alerts, or full-screen notifications.

How do I record video?

By default, the system records continuously based on schedule. To manually start/stop recording, right-click for the System Menu and select Start Record or Stop Record. You can configure recording schedules, quality, and bitrate from Main Menu > Setup > Record.

How do I search and playback recorded video?

Go to Main Menu > Search. Use the Time Search tab to select date/time and channels, then click Search to see a timeline. Click on a block to start playback from that time. Alternatively, use Event Search to find recordings triggered by motion or sensors.

What should I do if the DVR does not power on?

Check that the power adapter is securely connected to the DVR and a working outlet. Verify the power cable is not damaged. If using a power strip, ensure it is switched on. If the DVR still does not power on, try a different outlet or contact Uniden support. Ensure the input voltage matches the label (DC 12V).

How do I back up recorded files?

Insert a USB flash drive (FAT32, up to 32GB) into the USB port on the back of the DVR. Go to Main Menu > Backup. Set the search criteria (date, channels, time), click Search, select files, then click Backup. The system will save files in AVI format.

How do I update the firmware?

Check the current firmware version at Main Menu > Information > System. Visit uniden.com.au for the latest firmware. Download it to a USB drive, power off the DVR, insert the USB into the back USB port, then power on. The DVR will automatically update. Do not use the front USB port for updates.

Can I use the cameras outdoors?

Yes, the included cameras are rated IP66, meaning they are dust-tight and protected against powerful water jets. They are designed for outdoor use, but should be installed in a sheltered area (e.g., under an eave) for best longevity. Operating temperature range is -20°C to 50°C.

USER MANUAL GDVR8T80 UNIDEN

GDVR 4T/8T Series Security System

For more exciting new products please visit our website:

Australia: www.uniden.com.au

OWNER'S MANUAL

WARNING

RISK OF ELECTRICAL SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

In addition to the careful attention devoted to quality standards in the manufacturing process of your product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This section lists important information that will help to ensure your enjoyment and proper use of the product and accessory equipment. Please read them carefully before operating and using your product.

GENERAL PRECAUTIONS

1. All warnings and instructions in this manual should be followed.
2. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use a water-dampened cloth for cleaning.
3. Do not use this product in humid or wet places.
4. Keep enough space around the product for ventilation. Slots and openings in the storage cabinet should not be blocked.
5. It is highly recommended to connect the product to a surge protector to protect from damage caused by electrical surges. It is also recommended to connect the product to an uninterruptible power supply (UPS), which has an internal battery that will keep the product running in the event of a power outage.

INSTRUCTIONS

1. Read and Follow Instructions - All the safety and operating instructions should be read before the product is set up and used. Follow all operating instructions.
2. Retain Instructions - These safety and operating instructions should be retained for future reference.
3. Heed Warnings - Comply with all warnings on the product and in the operating instructions.
4. Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your location, consult your video dealer or local power company. For products intended to operate from battery power or other sources, refer to the operating instructions.
5. Overloading - Do not overload wall outlets or extension cords as this can result in the risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed power cords, damaged or cracked wire insulation, and broken plugs are dangerous. They may result in a shock or fire hazard. Periodically examine the cord, and if its appearance indicates damage or deteriorated insulation, have it replaced by your service technician.
6. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
7. Surge Protectors - It is highly recommended that the product be connected to a surge protector. Doing so will protect the product from damage caused by power surges.
8. Uninterruptible Power Supplies (UPS) - As this product is designed for continuous, 24/7 operation, it is recommended that you connect the product to an uninterruptible power supply. An uninterruptible power supply has an internal battery that will keep the product running in the event of a power outage.
9. Ventilation - Slots and openings in the case are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a

built-in installation such as a bookcase or rack unless proper ventilation is provided and the product manufacturer's instructions have been followed.

1. Water and Moisture - Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, near a swimming pool, etc.

2. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

3. Accessories - Do not place this product on an unstable cart, stand, tripod, or table. The product may fall, causing serious damage to the product. Use this product only with a cart, stand, tripod, bracket, or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and use a mounting accessory recommended by the manufacturer.

4. Camera Extension Cables - Check the rating of your extension cable(s) to verify compliance with your local authority regulations prior to installation.

5. Mounting - The cameras provided with this system should be mounted only as instructed in this guide or the instructions that came with your cameras, using the provided mounting brackets.

6. Camera Installation - Cameras are not intended for submersion in water. Not all cameras can be installed outdoors. Check your camera environmental rating to confirm if they can be installed outdoors. When installing cameras outdoors, installation in a sheltered area is required.

SERVICE

1. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

2. Conditions Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

3. When the power supply cord or plug is damaged.

4. If liquid has been spilled or objects have fallen into the product.
5. If the product has been exposed to rain or water.

6. If the product has been dropped or the cabinet has been damaged.

7. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its nor mal operation.

8. When the product exhibits a distinct change in performance. This indicates a need for service.

9. Replacement Parts - When replacement parts are required, have the service technician verify that the replacements used have the same safety characteristics as the original parts. Use of replacements specified by the product manufacturer can prevent fire, electric shock, or other hazards.

10. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks recommended by the manufacturer to determine that the product is in safe operating condition.

USE

1. Cleaning - Unplug the product from the wall outlet before cleaning. Do not use liq uid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

2. Product and Cart Combination - When product is installed on a cart, product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

3. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or "short-out" parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

4. Lightning - For added protection of this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power line surges.

CONTENTS

INTRODUCTION....9

WHAT'S IN THE BOX? 10

GETTING TO KNOW YOUR DVR 11

GETTING TO KNOW YOUR CAMERAS ....12

INSTALLATION....13

SETUP....15

SYSTEM LOGIN 15

REQUIRED SETTINGS 15

DEFAULT OPERATION SETTINGS....16

HOW DO I - 17

SEARCH FOR FILES....17

SET UP ALARMS AND ALARM NOTIFICATION?......17

PLAY BACK RECORDED FILES....17

FIND AND VIEW SHAPSHOTS 17

MASK MOTION SENSITIVE AREAS....17

SET UP EMAIL NOTIFICATION AND ALERT 18

CONFIGURE ALARMS....18

CREATE A RECORDING SCHEDULE....18

TRANSFER RECORDED FILES 18

ADD OR CHANGE A PASSWORD....18

GUARDIANLIVE APP ....19

USING THE APP....19

BASIC OPERATION....24

SYSTEM LOGIN 24

LIVE VIEW 24

SYSTEM MENU 26

MAIN MENU OVERVIEW 28

SETUP ICON 29

BASIC SCREEN 29

LIVE SCREEN....33

RECORD SCREEN....37

SCHEDULE SCREEN....41

ALARM SCREEN 43

NETWORK SCREEN....50

USERS ICON....53

PTZ ICON....56

ADVANCED ICON 61

SEARCH ICON 62

TIME SEARCH TAB....62

EVENT SEARCH TAB 63

FILE MANAGEMENT TAB 64

IMAGE TAB....65

BACKUP ICON 66

INFORMATION ICON 67

SYSTEM SCREEN....68

EVENT LIST SCREEN....68

LOG LIST SCREEN 69

NETWORK SCREEN....69

ONLINE USERS LIST SCREEN....70

EXIT SCREEN 70

DISK MANAGEMENT ICON....71

LOG OFF ICON 72

SHUT DOWN ICON 72

REMOTE ACCESS....73

FIRMWARE UPDATES....74

TROUBLESHOOTING....75

APPENDIX A: SAMPLE MIC CONNECTION....79

APPENDIX B: MENU STRUCTURE....80

APPENDIX C: HARD DISK CAPACITY CALCULATION....81

SPECIFICATIONS 82

WARRANTY 85

INTRODUCTION

OVERVIEW

The Guardian DVR TVI (GDVR TVI) system operates with an embedded LINUX operating system for increased stability. It also uses standard H. 264 video compression and G. 711 audio compression technology which provide high quality, detailed playback and analysis. TCP/IP network technology provides the GDVR TVI system with strong network data transmission and remote control operation.

The GDVR TVI works as a stand-alone surveillance system or as part of a larger surveillance network. Its professional network video surveillance software provides strong network communication and telecommunication ability.

ABOUT THIS MANUAL

This OM provides operating procedures for the GDVR TVI system. The GDVR TVI models operate identically. There are only 2 differences between the models: the number of channels and the number of cameras.

• GDVR 4T40: 4 outdoor cameras, 4 channels.
• GDVR 8T40: 4 outdoor cameras, 8 channels.
• GDVR 8T80: 8 outdoor cameras, 8 channels.

All procedures apply to all models unless specifically noted. Some screen illustrations show entries for all 8 channels and some show for only 4 channels.

What's in the Box

Model	4-Ch DVR 8-Ch DVD 8-Ch DVD Outdoor CameraWith 1TB HDDWith 1TB HDDWith 2TB HDD
GDVR 4T40 1 -	-4
GDVR 8T40 - 1	-4
GDVR 8T80 --	18

Each Kit comes with:

1. Power Splitter Cable
2. DVR & Camera Power Supply
3. HDMI Cable
4. Mouse
5. Ethernet Cable
6. 18m BNC & Power cable
7. Security Sticker
8. Mounting Kit

1

2

3

4

5

6

7

8

Getting to Know Your DVR

Front

Back

Getting to Know Your Cameras

Indoor Camera

INSTALLATION

Follow the steps below to connect the DVR and the camera(s).

1. Connect the camera to the BNC and Power connectors on the Video Power cable.
2. Plug the green BNC connector of the Video Power cable to the VIDEO IN port on the DVR.
3. Connect the red power connector of the Video Power cable to the Power Splitter cable.
4. Connect the HDMI cable (supplied) to the HDMI port on the DVR and to the external display device (TV/PC) or use the VGA cable (not supplied) for the VGA port.

5. Connect the Mouse to one of the USB ports on the DVR.

6. Connect the Ethernet cable to the RJ45 port on the DVR and to your modem/router (for remote viewing).

7. Connect the Power Splitter cable to the camera's AC adaptor, which connects to a power outlet.
8. Plug the DVR's AC Adaptor jack into the DC12V port (on the DVR) and the other end to a power outlet.

SETUP

Live video displays when you power up the system. However, until you log in, you can only view live video; you cannot access any other system operations. (For the initial set up, a series of Wizard screens pop up. Change the default parameters, if necessary, if not, click Next, till you reach the screen that displays Finish. Click Finish.)

System Login

1. Right-click on the screen. The system menu displays.
2. Select any option. The Login screen displays.
3. The default values are admin (user name) with no password. Select Login. The system displays the active screen for the selection you made in the previous step. (See page 54 to set up a password.)It is strongly recommended that you add a password to the admin account and to all other accounts you may add to the system.

Required Settings

Set the system date and time so recorded files will be correctly time stamped. Next, create a password for the "admin" user.

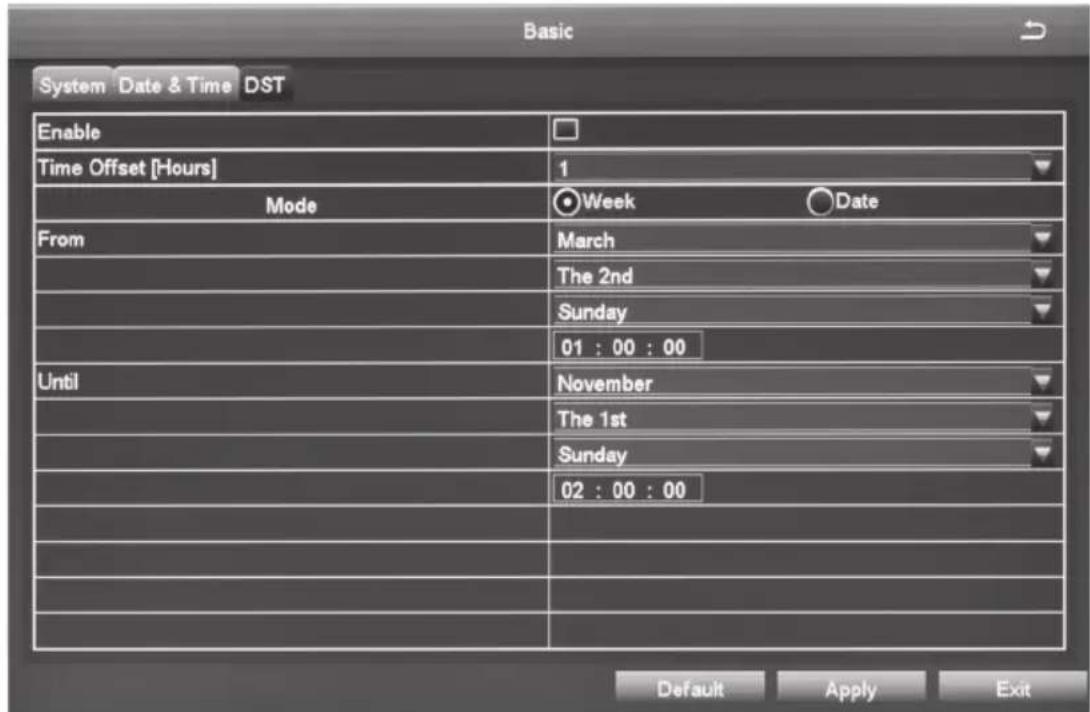

Set Date and Time

The correct date and time are critical for the timestamp on recorded files. If the timestamp is incorrect, searching for a specific recorded file will be difficult.

From Main Menu/Setup/Basic, select the Date & Time tab. See page 31 for detailed descriptions of the tab's fields.

Set Password

Passwords prevent unauthorized access to system configuration screens. The Admin user originally has no password so you can log into the system for setup.

Uniden strongly recommends that, once you have logged into the system, you create a password for the Admin user.

From Main Menu/Users/User Management, select the Password field. See page 54 for a detailed description on how to set up a password.

Default Operation Settings

Uniden's default settings allow you to begin monitoring your network immediately. After you have monitored your network for a week or two, you may find you need to slightly adjust your settings. For example, you may need to mask areas from motion detection (trees, etc).

HOW DO I -

Search for Files

There are three basic methods for searching files – i) search for files within a certain time frame, ii) search a time frame for triggered files, and iii) search for events through the Information screen.

The first two methods use the Search screen (Main Menu/Search).

1. Select Main Menu/Search. The Search screen displays.
2. Select the Time Search tab to find files within a specific time frame or the Event Search tab to find motion sensor, sensor-triggered, or all triggered files.
3. From the Main Menu/ Information/Event List, set up the time frames and cameras you want to search and whether you want to search for Motion, Sensor, or Video Loss (this screen is similar to the Search screen above). Select Search tab and records that meet those criteria, display.

Set Up Alarms and Alarm Notification

Main Menu/Setup/Alarm/OtherAlarm

Play Back Recorded Files

• Right-clickPlayback on System Menu to view the last 30 minute segment.
• Main Menu Setup/Search (Time Search or Event Search tab)

Find and View Snapshots

Main Menu/Search/Image

Mask Motion Sensitive areas

Main Menu/Setup/Alarm/Motion, Area field

Set Up Email Notification and Alert

Main Menu/Setup/Network, Email tab

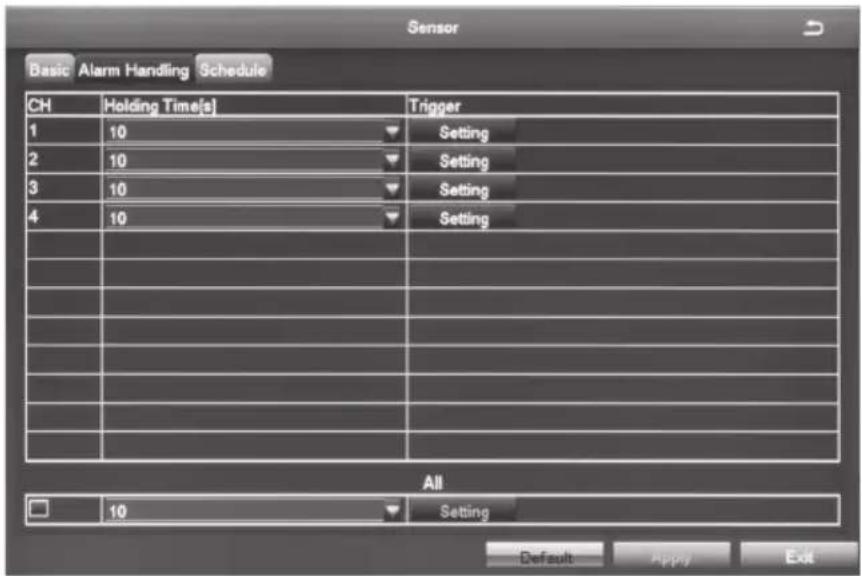

Configure Alarms

Main Menu/Setup/Alarms.

Select type of alarm (Sensor, Motion, Video Loss, or Other Alarm).

Create a Recording Schedule

Main Menu/Setup/Schedule.

You can set up recordings by a specific calendar schedule, or according to sensor type.

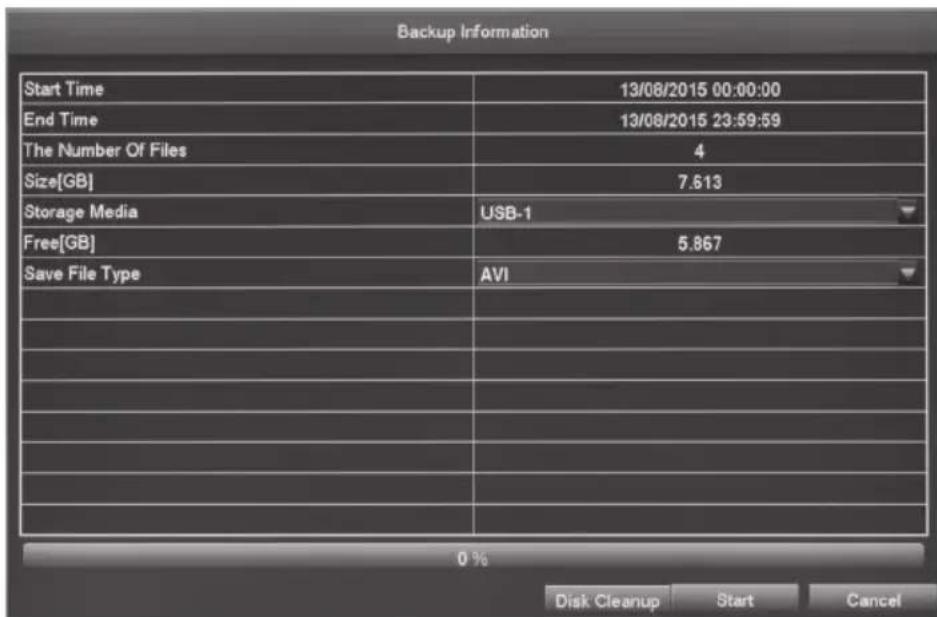

Transfer Recorded Files from the Hard Drive to a USB Device

Main Menu/Setup/Advanced/Import/Export tab

Add or Change a Password

Main Menu/Setup/Users/User Management, Change Password field

GUARDIANLIVE APP

USING THE APP

View live and recorded video remotely using an iOS or Android device and Uniden's GuardianLive App.

1. From the Apple App Store or Google Play, download the Uniden GuardianLive app.
2. Open the app. Tap Create Account. The Create Account screen displays.
3. Complete the fields and then select OK. The login screen appears again. Input your device name and password again and the Device List screen displays.
4. Select the + icon at the top right corner to add your DVR system to the app. The Add Device screen displays.
5. Name your DVR system. Select the QR code icon and scan the QR code label on top of the DVR receiver or the applicable Device ID QR code from Main Menu/Information/System screen on the monitor. This will add the DVR Device ID code to the app. Select OK.
6. The Device List displays again, with your system now listed. Select your system and live video displays on your device.

LIVE SCREEN

Live Screen is the main screen in the GuardianLive app.

	Pause Tap on a camera view and tap the Pause icon to stop live view.
	Play Tap on a camera view and tap the Play icon to start the streaming of live view.
	Audio Tap to turn on audio (not available on all models).
	Alert Tap to open the Alarm setting screen and save configuration, so that you can be alerted when motion is detected.
	Snapshot Tap the camera view that you want take a snapshot of and then tap the snapshot icon.
	Recording Tap the camera view that you want to record and then tap the Record icon.
	Mic Tap to record sound.
	HD/SD Tap to view either in ‘High Definition’ or ‘Standard Definition’.
	Refresh Tap to refresh live view.
	Playback Tap to playback recorded video.

ALERT SCREEN

On the app, in the live view, tap the Alert icon to get the Alarm screen displayed.

Tap the Alert Notification check box, then tap save, to get an alert on the app when the camera detects motion.

Please ensure that the motion dection is turned on in your system.

On the app, in the live view, tap the Playback icon to get the Remote Playback screen displayed.

Tap the date displayed on the top right corner of the screen to get the Select Date pop-up box. Tap to scroll through the dates and select the dates that you want to play the recorded video.

ABOUT SCREEN

On the Device List screen, tap on the Menu icon (top left corner) to reveal menu options, About, Recordings, Snapshots and Logout.

Tap the option, About. It displays the latest firmware version.

RECORDINGS SCREEN

On the Device List screen, tap on the Menu icon (top left corner) to reveal menu options, About, Recordings, Snapshots and Logout.

Tap the option, Recordings, to view the recordings that have been initiated on the app. Please note, these recordings are NOT stored on the hard disk.

SNAPSHOT SCREEN

On the Device List screen, tap on the Menu icon (top left corner) to reveal menu options, About, Recordings, Snapshots and Logout.

Tap the option, Snapshots, to view the images that have been taken using the app. Please note, these images are NOT stored on the hard disk.

LOGOUT

Tap to logout of the app.

BASIC OPERATION

Live video displays when you power up the system. However, until you log in, you can only view live video; you cannot access any other system operations.

SYSTEM LOGIN

1. Right-click on the screen. The system menu displays.
2. Select any option. The Login screen displays.
3. The default values are admin (user name) with no password. Select Login. The system displays the active screen for the selection you made in the previous step. (See page 54 to set up a password.)It is strongly recommended that you add a password to the admin account and to all other accounts you may add to the system.

LIVE VIEW

Live view displays video images from all 4 cameras. The date, time, and camera number display in each viewing window. The recording and alarm status icons display in the lower left-hand corner of each window.

Double-click the left mouse button on a live view image to view that image in full screen rather than in quad view. Double-click the left-mouse button again to return to quad view.

ICONS MEANING
	Recording Type - indicated by box color• Green - Manual or triggered recording• Yellow - Motion detection recording• Blue - Schedule recording• Red - Alarm recording
	Motion Detected. This icon displays when the camera for that view detects motion.
	Audio Recording On (need external microphone to record audio, not provided).
	Network Disconnected
DD/MM/YYYY HH:MM:SS	Date and Time Stamp for recorded files

SYSTEM MENU

In Live view, right-click on any screen to bring up the System menu. Right-click again to close the System menu.

The System menu manages the GDVR receiver and cameras. Use it to configure and manage your video, cameras, and recordings. Many of these menus are shortcuts to commonly-used actions from the Main Menu screen.

MENU ITEM	DESCRIPTION
Single Select a	camera to display in full screen. Double click the left mouse button to return to Multi channel mode.
Multi Select this	menu option from Single channel mode to display all 4 or 8 cameras in Multi channel mode.
Start Scan/Stop Scan	Turn Scan operation on and off. (You must first set up scanning parameters such as how long a specific camera displays before moving to the next camera).
Colour Set image	parameters for all channels. The image parameters include: brightness, hue, contrast and saturation.
E-Zoom When	the screen is in single camera mode and E-Zoom is selected, that camera zooms in for a close up view. The full view displays in the lower left corner. Right-click to return to the quad view.
Audio Choose	which channel you want to hear audio from and adjust the audio volume. You can play audio from 1 channel only at any given time. You must connect compatible mic to Audio In port of relevant channel. You can also Mute the audio, which means no audio will be played for any given channel. There is also Auto option, whereby audio will be played automatically for any channel that is brought up to full screen.
PTZ This icon	control a Pan/Tilt/Zoom (PTZ) camera, if installed (not included). It can set the PTZ camera's address, Baud rate, and Protocol, and help you set camera movement patterns.
Snap The GDVR	can take snapshots of live video. A camera icon displays.
Start Record Stop Record	Start and stop recording for all channels that have record function enabled.
Playback Play	the video files in the hard disk. You can also search the video according to time and event under Main Menu/Search to enter the playback interface.
Main Menu Pro	vides extensive system configuration and operation setup. The Main Menu and its submenus are described in detail beginning on page 28.

MAIN MENU OVERVIEW

The Main Menu screen displays icons that represent various system operations. Click on an icon to configure, operate, and maintain the GDVR system.

Appendix A: Menu Structure shows how the menu, screens, and tabs for screens are organized in the system.

From the System menu, select Main Menu (see page 26). The Main Menu screen displays.

Click on the Main Menu icons to select a particular feature. Icons, submenus, or screens display to help you manage the system. Many of these screens have tabs across the top to further refine operations. Click the icon to return to the previous screen.

MAIN MENU ICON	DESCRIPTION
Setup Click on	Setup and 9 icons display on the Setup screen. These icons lead you through configuring your system. See page 29 for icon and screen details.
Search Select	Search to display a 4-tab screen to set search parameters and search for specific recorded files. See page 62 for icon and screen details.
Backup The	Backup screen lets you set specific time ranges on specific cameras for backup. See page 66 for icon and screen details.
Information Click	on Information to view 6 types of system information. See page 67 for icon and screen details.

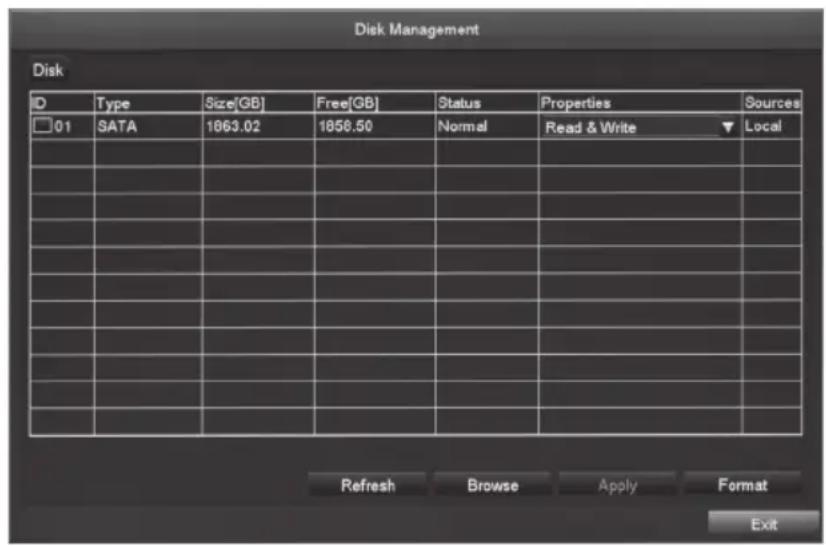

Disk Management	Select the Disk Management icon to view information about the system hard disk and any connected USB drives. See page 71 for icon and screen details.
Logoff This selection logs you off of the GDVR system. See page 72 for icon and screen details.
Shutdown This selection powers off the GDVR. See page 72 for icon and screen details.

SETUP ICON

Select the Setup icon and the Setup screen displays 9 options that help you configure and set up your system.

Basic Screen

The Basic screen contains three tabs:

• System
• Date & Time
  • Daylight Saving Time (DST)

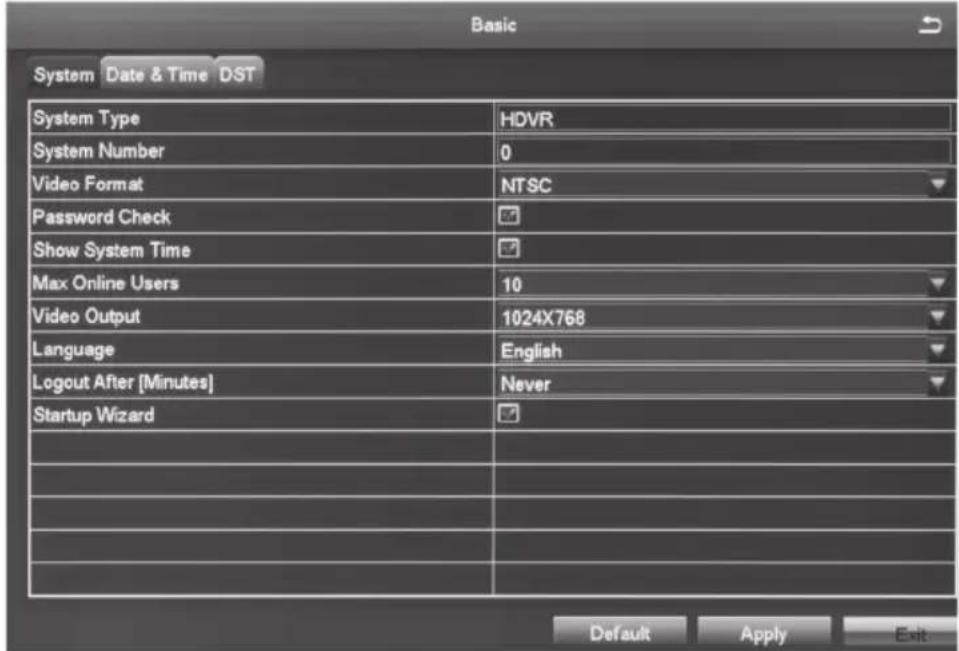

System Tab

FIELD DESCRIPTION
System Type	Client or system name. Click the field and a popup keyboard displays. Enter a name if desired.
System Number	Used when managing multiple DVR systems. Click the field and a popup number keypad displays. Enter a number, if desired.
Video Format	Support NTSC and PAL format (default = PAL).
Password Check	Keep checked to require a password to log in.
Show System Time	Choose whether to display time in the field or not.
Max Online Users	Set the number of network users visiting the device.
Video Output	User can select VGA 800x600, 1024x768, 1280x720, 1280x1024, output mode. Please do not set the resolution higher than your TV/monitor as it might not show display on your TV/monitor screen
Language	Select display language.
Logout After [Minutes]	When there is no action after this set time, the system automatically logs out.
Startup Wizard	Display Wizard (or not) when the system is turned on.

Date & Time Tab

In this interface, set the date format, time format, time zone; you can also adjust the system time manually.

Note: the default time zone of the system is GMT+10:00.

Select Sync Time with NTP Server to correct time. Network server time can be set.

FIELD DESCRIPTION
Date Format	Set date format
Time Format	12 or 24 hour format
Time Zone	Set time zone in GMT format.
Sync Time with NTP Server	Check box to select time sync; uncheck box to deselect.
NTP Server	Select Update Now to sync time.
System Date	Set date through pop-up calendar.
System Time	Set time.

DST Tab

Set the start and end time of daylight saving time by week or date.

FIELD DESCRIPTION
Enable	Turn DST on or off. This does not set DST; it turns the system's ability to keep track of DST on or off.
Time Offset [Hours]	Select 1 or 2 hour offset.
Mode	Set DST by week or by actual date.
From	Set DST beginning date. (Always the first Sunday of October, offset 1 hr)If Mode = Week, set DST by month, number of week, day of week, and hours to be offset (i.e., /the 1st/Sunday/1 hour offset)If Mode = Date, set DST by date according to popup calendar.
Until	Set DST ending date. (Always the first Sunday in April, offset 1 hour)If Mode = Week, set DST by month, number of week, day of week, and hours to be offset (i.e., April/the 1st/Sunday/1 hour offset)If Mode = Date, set DST by date according to popup calendar.
Default	Select Default to use the automatic DST default values.
Apply	Select Apply to use the values you just manually set.
Exit	Leave the screen without making changes.

Live Screen

The Live screen establishes how the screen looks when in Live view. It has 3 tabs:

Live
- Main Monitor
- Video Blind

FIELD DESCRIPTION
Camera Name	Enter a camera name for each channel using the popup keyboard.
Colour	Click to display the colour settings:• Channel number• Brightness• Hue• Saturation• Contrast

Live Tab

Name the camera and set up how the image displays (colour, contrast, etc).

1. Select a camera to rename. A keyboard displays.
2. Rename the camera and select Enter.
3. Select Setting for that camera. A selection screen displays on the live video screen.

1. Adjust the brightness, hue, saturation, and contrast of the corresponding channel and select Ok.

2. Select another channel to adjust. When you are finished, select Ok.

3. The Live screen displays again.

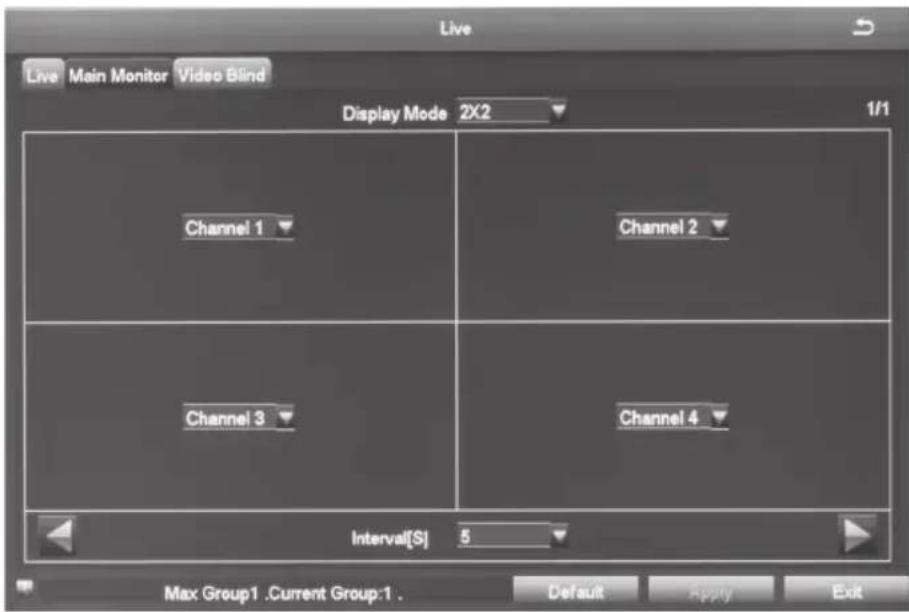

Main Monitor Tab

This screen lets you determine the order in which the camera's live view displays on the screen's sections. You can also set how long the video pauses on each image before moving to another image (5 to 60 seconds in 5 second intervals).

Video Blind (Masking) Tab

You can mask off up to 4 rectangular areas in a single screen. No video records from those masked off areas; only a blank box/rectangle displays.

1. From the Video Blind tab, select Setting for the channel you want to mask. Video for that channel displays.
2. Press and hold the left mouse button and drag it across the area you want to block. A white rectangle covers the area you indicated. Release the mouse.
3. Right-click to return to the Video Blind tab. Select Apply to save your settings.
4. Repeat Steps 2 and 3 up to 3 more times (4 areas selected per screen).
5. To remove video masks, double-click on the area you want to remove; the white rectangle changes to black.
6. Right-click to return to the Video Blind tab. Select Apply to save your settings. The masked areas are released.

Record Screen

The Record screen configures how the files will be recorded. It has 5 tabs:

• Enable
• Record Bitrate
• Stamp
• Recycle Record
• Snap

Enable Tab

Use this tab to determine if the selected camera will record video or audio, or both.

FIELD DESCRIPTION
Record	Check to set the channel to record video. Uncheck to skip recording video for this channel.
Audio	Check to set the channel to record audio. Uncheck to skip recording audio for this channel (for audio recording, use external microphone, not provided).
All	Apply selections to all channels.

Record Bitrate Tab

This tab allows you to set the characteristics of a recorded file. You can set a channel to record at a higher quality or at lower frames per second. The resolution, frames per second, and maximum bitrate determine how large a recorded file will be. If you need to record long periods of time, set your parameters lower. Otherwise, there will not be enough room on the hard drive to save the recorded file.

FIELD DESCRIPTION
Resolution	Supports 1080(TVI), 720P (AHD camera) and 960H (analog camera) resolution. (Default = 1080P)
FPS	Range: 1-15 (Default = 15 fps)
Encode	Support VBR (Variable Bit Rate) and CBR (Constant Bit Rate) (Default = Variable Bit Rate)
Quality	The higher the quality is, the clearer the video images are.
Max Bitrate	256 kbps ~ 2048 kbps (Default = 768 or 1536 kbps)

Check the box on the bottom row to set all channels to the same parameters at the same time.

Stamp Tab

Use this tab to turn on (or off) a time stamp on your recorded video and to position the time stamp on the screen.

FIELD DESCRIPTION
Camera Name	Check to display the channel name.
Time Stamp	Check to display the time on this channel.
Position	Move the date/time block to a different area of the screen

1. Select Setting on the Stamp tab. Live video displays for that channel along with the date/time block in a small text frame.

2. Left-click and hold over the date/time block. Move the block to where you want it to display. Release the mouse and right-click to return to the Stamp tab.

3. Select Apply to save your changes.

Recycle Record Tab

The Recycle Record tab allows the system to automatically overwrite the oldest recorded files and continue recording when the hard disk is full. If the box is not checked (not enabled), the system stops recording and displays an information message.

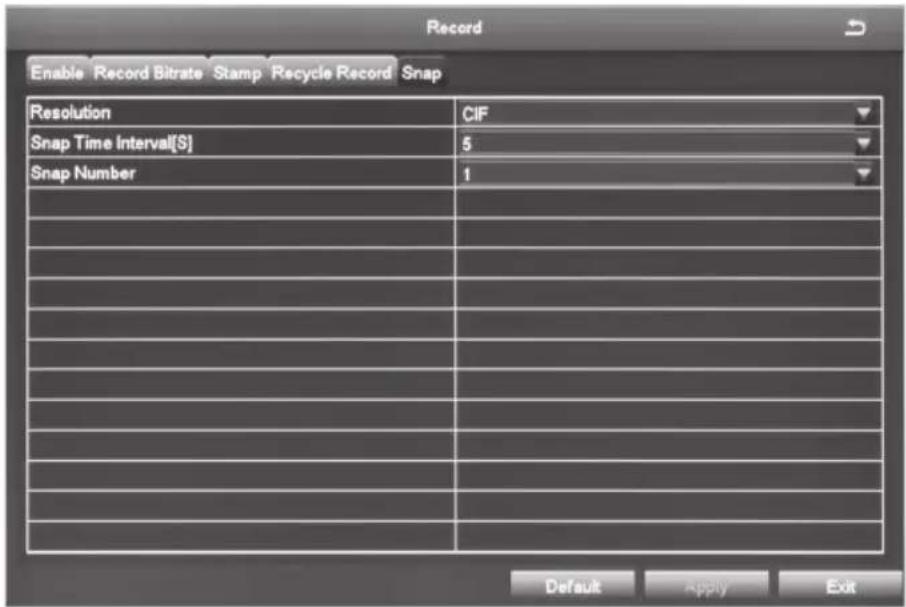

Snap Tab (Snapshot)

In this tab, the user can set the resolution/image quality level, time interval of snapshot, and the number of snapshot for one time.

FIELD DESCRIPTION
Resolution	CIF
Snap Time Interval	Time interval between snapshots.
Snap Number	Number of snapshots taken at one time.

Schedule Screen

The Schedule screen lets you set up recording schedules. It has 3 tabs:

• Schedule
• Motion
• Sensor

Schedule Tab (Schedule Recording)

This tab sets up a basic schedule for recording.

(Default = No recording blocks selected)

1. Select a channel whose recording schedule you want to set up.
2. Select the edit icon ( ) to set 1-hour blocks, depending on when you WANT that channel to record.
3. Select one-hour blocks to add to the recording setup.
4. Alternatively you can double-click at the time block area, a schedule screen will show.
5. You can set the start time and end time.
6. If you want to use that same configuration on another day, select Apply Setting to All in the dropdown box. Then click copy. Click OK to return to previous screen.
7. When you have the schedule set up as you want it, select Apply. The configuration for that channel is now saved.
8. If you want to use that same configuration on another channel, select that channel in the dropdown box for Apply Settings To. Then, select Copy. The configuration is now copied to the second desired channel.
9. If you want to apply the settings from one channel to ALL channels, select All in the dropdown box for Apply Settings To. Then, select Copy. The configuration is now copied to all channels.
10. Select Apply to save the settings.
11. Select Exit.

Motion Tab

This tab sets up a schedule for motion sensor recording. (Default = All recording blocks selected)

1. Select a channel whose motion sensor recording schedule you want to set up.

2. Select the erase icon ( ) and click on the 1-hour recording blocks that you DO NOT want that channel to record.

3. When you have the schedule set up as you want it, select Apply. The configuration for that channel is now saved.

4. If you want to use that same configuration on another channel, select that channel in the dropdown box for Apply Settings To. Then, select Copy. The configuration is now saved on the second desired channel.
5. If you want to apply the settings from one channel to ALL channels, select All in the dropdown box for Apply Settings To. Then, select Copy. The configuration is now saved on all channels.
6. Select Exit.

Sensor Tab

This tab sets up a recording schedule for other motion sensors (not included). (Default = All recording blocks selected)

1. Select a channel whose sensor recording schedule you want to set up.
2. Select the erase icon ( ) and click on the 1-hour recording blocks you DO NOT want that channel to record.
3. Select one-hour blocks to remove from the recording schedule.
4. When you have the schedule set up as you want it, select Apply. The configuration for that channel is now saved.
5. To use that same configuration on another channel, select that channel in the dropdown box for Apply Settings To. Then, select Copy. The configuration is now saved on the second desired channel.
6. To apply the settings from one channel to ALL channels, select All in the dropdown box for Apply Settings To. Then, select Copy. The configuration is now saved on all channels.
7. Select Exit.

Alarm Screen

The GDVR system allows you to set parameters for various types of system alarms. The Alarm screen is comprised of 4 icons:

• Sensor. Enable and name the type of sensor you choose for a specific channel.
• Motion. Establish parameters for motion detection as well as a motion detection operation schedule.
  • Video Loss. Set up an alarm notification plan if any cameras lose video.
• Other alarm. Establish alarm system for other types of alarms not previously covered.

Sensor Icon

The Sensor screen enables or disables sensor operation for a specific channel. This screen has three tabs:

• Basic Tab
  • Alarm Handling Tab
• Schedule Tab

Basic Tab

FIELD DESCRIPTION
Enable	Check this to allow sensor operation on a specific channel.
Type	Normally Closed or Normally Open
Name	Name the alarm.

Alarm Handling Tab

This tab lets you set what triggers alarms and how long those alarms remain active.

FIELD DESCRIPTION
Holding Time	Set an additional sensor recording time for the channel. Options are 5 sec., 10 sec., 20 sec., 30 sec., 60 sec., 120 sec. or Always. Eg. If you set 30sec., it will record additional 30sec. on top of last sensor triggered. If you set always, it will keep on recording until you manually stop it or change setting.
Trigger	Select this field to set alarm trigger configuration, trigger recording, PTZ camera linking (PTZ camera not included), etc. Selecting this field displays the Trigger screen for a specific channel.
Name	Name the alarm.

Trigger - Channel X Screen

You may reach this screen from other tabs. It lets you set up what happens when an alarm is triggered (the camera takes an automatic snapshot, the buzzer sounds, etc), and indicates which cameras to start recording when triggered. It has three tabs:

• Alarm
• To Record
• To PTZ

Alarm Tab

FIELD DESCRIPTION
Buzzer	A buzzer sounds when an alarm is triggered if this selection is enabled.
Show Full Screen	A big screen popup alarm displays when an alarm is triggered.
To Alarm Out	This tab directs alarms to optional alarms (not included) added to the system.
Email	When enabled and an alarm is triggered, the system sends information relevant to the alarm (alarm event, device name, etc.) to the user-specified mailbox. Tick to enable snapshot attachment.
Snap	When enabled and an alarm is triggered, the system automatically takes a snapshot of the selected channel and stores it on the hard disk.
To PTZ	Set PTZ movement parametersOnly applies if optional PTZ camera is added to the system.

To Record Tab

Select which cameras record when an alarm is triggered.

To PTZ

Only applies if PTZ camera is installed (not included).

• Sets what type of action to take (Preset/Cruise/Track/None).
• Sets which point the PTZ camera will rotate to, if preset selected.

Schedule Tab

Use this tab to set a time frames for the alarms to be active. This tab operates in the same way as the Sensor tab. See page 41 for details on setting up a schedule.

Motion Screen

The Motion screen has 2 tabs: Motion and Schedule.

Motion Tab

When a camera detects a motion, the system sounds a motion detection alarm and takes action according to presets from this screen. The Trigger and Area fields lead to other screens to set parameters.

FIELD DESCRIPTION
Enable	Enable this function on a channel to detect motion.
Holding Time	Set an additional trigger recording time for the channel. Options are 5 sec., 10 sec., 20 sec., 30 sec., 60 sec., 120 sec. or Always. Eg. If you set 30sec., it will record additional 30sec. on top of last motion triggered. If you set always, it will keep on recording until you manually stop it or change setting.
Trigger	The Trigger screen is the same as on page 45.
Area	Commonly called “motion masking,” a grid overlays a selected camera’s live video with task bar at the bottom. Mask off areas the motion detection ignores. You can also determine motion sensitivity (block off ceiling fans, or the floor area if you have pets.)In this interface, the user can drag the scrollbar to adjust the sensitivity value (1-8). The default value is 6; the smaller the value is, the lower the sensitivity. Since the sensitivity is affected by the color, time (day or night), etc, adjust the value according to the actual situation.

	Set all areas to be detection area		Clear the set detection areas
	Drag the mouse to test whether the sensitivity value and the detection area are appropriate or not		Save the settings
	Exit

Schedule Tab

Use this tab to set a time frames for the alarms to be active. This tab operates in the same way as the Sensor tab. See page 41 for details on setting up a schedule.

Video Loss Icon

If you lose video from a camera (someone cuts the cable), the system alerts you according to the presets from this screen.

Select Trigger for the camera you want to set. The Trigger screen for that channel displays.

See page 44 for a detailed description of the trigger screen.

Other Alarm Icon

FIELD DESCRIPTION
Alarm Type	Select one of the following from the drop-down menu:Hard Disk FullNetwork Address ConflictDisconnectionHDD Attenuation WarningDisk Loss
Buzzer	The system emits 2 long beeps when an alarm occurs (Not available on all models.)
Email	When enabled and an alarm is triggered, the system sends information relevant to the alarm (alarm event, device name, etc.) to the user-specified mailbox.
To Alarm Out	When enabled, triggers will send an alarm to the specified alarm output.
Disk Shortage Alarm	Select a minimum disk capacity to trigger a Disk Shortage Alarm.

Network Screen

Network Configuration includes five tabs:

• Network
• Sub-Stream
• Email
• WiFi Setup
• DDNS

Network Tab

Do not change these presets. This is for information purposes only.

FIELD DESCRIPTION
HTTP Port	Default = 80.
Server Port	Default = 5000.
Mobile Port	Default = 5001.
Obtain an IP Address Automatically	Default = CheckedYou must have DHCP turned on in your router.(Typical default setting.)
IP Address	IP address of the device.
Subnet Mask	Device's subnet mask
Gateway	Device's default gateway.
Preferred DNS Server	The address is provided by your network operator and must be filled in when using mobile monitoring.
Alternate DNS Server	Address provided by your network provider.
PPPOE	Enable this to automatically establish a PPPOE network connection with the DVR.
User Name	ISP (Internet Service Provider)
Password	Enter the set password.
Test	Click Test and it will check that the IP address and PPPOE information are valid.

Sub-Stream Tab

This screen sets the type of video you receive on your mobile device.

FIELD DESCRIPTION
Resolution	Supports CIF
FRS	Choice range = 1 - 6
Encode	Support VBR and CBR (Default = VBR)
Quality	Select one of the following quality levels:LowestLowMediumHigher
Max. Bitrate	Select a bitrate from the dropdown box (32kbps ~ 768 kbps). (Default = 64)
Check the box on the bottom row to set all cameras' parameters to the same thing at the same time.

Email Tab

This tab helps you set up how you receive email notifications. You may need to get this information from your internet service provider. (A G-mail account is a good option.)

FIELD DESCRIPTION
STMP Server	Mail server address can be IP address and domain name (if domain name, confirm that the DNS setting is right, then it can be correctly resolved) e.g.: smtp.gmail.com
Port	Mail server port number (Default = 465)
SSL Check	Provides secure socket layer for login.
Send Address	Mail server's email address.
Password	Password corresponding to sender's email password.
Receive Address	When an alarm is generated, the system will send email to the specified mailboxes.No more than 3 mailboxes are available.
Test	Tests whether or not the current configuration is successful.

WiFi Setup Tab

Not Supported.

DDNS Tab

Not supported.

USERS ICON

Selecting this icon brings up the User Management screen. This screen allows you to add and delete users and to change the passwords of existing users.

The admin user does not have a password. Uniden strongly recommends that you add a password to the admin user account.

Adding a User

Select the Add button, at the bottom of the screen, to display the Add User screen. This screen has 2 tabs:

• General. Initial user setup (User name, password, user type, etc.)
  • Authority. Grants new user access to specific elements of the system (Remote login, manual record, remote live view, etc.)

General Tab

FIELD DESCRIPTION
User Name	Provide a user name.
Password	Enter user's password to the system
Confirm Password	Reenter user's password
User Type	Normal or Advanced
Binding PC MAC Address	Links the PC and MAC address.
PC MAC Address	Computer's unique hardware number. Enter the MAC address to restrict access to the DVR to only that PC when connected, Enter all zeros to lift this restriction and make access available to any PCs.

NOTE: If a computer's physical address is 0, the GDVR system does not bind to a specific computer and the user can use any computer to log into the client to use the DVR. However, once a specific computer's physical address is entered, the user can only use that specific computer to log in to the client to use the DVR.

Authority Tab

This tab allows you to customize what each user can access. Click on the corresponding box to enable/disable access.

- Log Search • Two Way Audio

• Remote Login • System Setup
• File Management • Shut Down
  • Disk Management • Live View (per camera)
• Manual Record (per camera) • Playback (per camera)
• Backup (per camera) • PTZ Control (per camera)
• Remote Live View (per camera)

NOTE: If a computer's physical address is 0, the GDVR system does not bind to a specific computer and the user can use any computer to log into the client to use the DVR. However, once a specific computer's physical address is entered, the user can only use that specific computer log into the client to use the DVR.

Deleting a User

1. Select a user from the User Management screen.
2. Select Delete. The system displays a confirmation message.
3. Confirm deletion.

Changing a Password

1. Select Change Password from the User Management screen.
2. The Change Password screen displays.

1. Enter the fields and select OK. A confirmation screen displays.

PTZ Icon

The Point/Tilt/Zoom icon configures an optional PTZ camera. Tabs in this icon help you set movement patterns. These patterns are Presets (move the camera from point A to point B), Cruise (move the camera through multiple points) or Track.

Serial Port Tab

FIELD DESCRIPTION
Enable	Check this field to turn on the camera for that channel.
Address	PTZ device address
Baud Rate	PTZ device baud rate. Options are:110 300 600 12002400 4800 9600 1920034800 57600 115200 230400460800 921600
Protocol	PTZ device standard communication protocols. Options are:PELCOP PELCOD LILIN MINKINGNEON STAR VIDO DSCPVISCA SAMSUNG RM110 HYN-control
Simulative Cruise	Allows the camera to use cruise patterns whether the camera supports PTZ cruise functions or not.

Advanced Tab

This tab helps you create, name, and save PTZ movement patterns for a specific channel. These patterns are Presets (move the camera from point A to point B), Cruise (move the camera through multiple points), or Track.

You can create up to 128 PTZ movement configurations for a channel.

FIELD DESCRIPTION
Preset	Click on Setting to display the Preset - Channel x screen.
Cruise	Click on Cruise to display the Cruise - Channel x screen.
Track	Click on Setting to display the Tracking screen on the full screen for the selected channel.

In the Preset column, select Setting for the channel you want to work with. The Preset - Channel X screen displays.

Preset - Channel X Screen

This screen helps you create, name, and save a PTZ configuration for a specific channel. You can create up to 128 PTZ configurations for a channel.

1. Click Setting. A pop-up toolbar displays in the bottom of live video.

1. Adjust PTZ to the appropriate location through toolbar buttons.

2. Select a number from the drop down Number list (No.) to assign to the Preset.

3. Click Save and the preset points are setting successfully. You can set a maximum of 128 preset points.

Cruise - Channel X Screen

Select Setting under the Cruise column for a specific channel and the Cruise - Channel X screen displays.

You can create up to 8 PTZ cruise selections per channel.

1. Select Add to add up to 8 cruise lines
2. Double-click one of the entries and the Cruise - Preset screen displays.

1. Select the Add Preset Point button. A popup field displays.

	Add preset point Delete the preset point
	Modify the selected preset point	Start Recording	Controls PTZ recording tracks.
	Wiper Control	Start Track	Execute the recorded tracks.
	Control external IR devices	Hide function
	Adjust PRZ direction

Note: Each channel can record only one track, and auto-save after recording is completed. When you call the track, you can directly select the channel to start track.

(1) Playback control
(2) Channel audio switch (Not available on all models)
(3) Function Hidden key
(4) Operate playback

Playback control details as follow:

BUTTON FUNCTION
	Play/Pause Next Frame
	Fast Forward Previous		Frame
	Play previous file Playback
	Single-screen display		Play next file
	Multi-Screen Display

Select Pause to advance the recorded video frame by frame.

Advanced Icon

Select the Advanced icon; the Advanced Setup screen displays 3 icons:

• Reset. Return all settings to factory defaults.
• Import/Export. Export system parameters to other devices, eliminating the need to configure devices separately.
• Exit. Returns to Setup screen.

Export/Import Parameters

If you have to return your DVR to factory settings, all your current settings will be lost. Copy your current system configuration to a USB drive to reload after your DVR has been reset.

When you import system parameters from the USB drive, power off your device, insert the USB drive in a USB slot in the BACK of the unit, and then turn the DVR back on.

SEARCH ICON

Select the Search icon and the Search screen displays with 4 tabs:

• Time Search. Select this tab to search all channels for files recorded during a specified time period.
• Event Search. Select this tab to search specific channels for recorded events during specific start and end times.
• File Management. Once you have located files for a specific time period, you can select those files for deletion or lock them to prevent them being deleted.
  • Image. Search for snapshots.

Time Search Tab

Use this tab if you need to check video for a specific time frame.

1. On the right side of the screen, there is a calendar and a list of cameras. Select cameras to search and then select a specific day to search on calendar. Select SEARCH.
2. The left side of the screen displays a simple timeline of all files recorded that day for the specified camera(s). Click in any block of time to set that as the playback start time. Select ▶ to view that file.
3. The video plays back in full screen for that search from the time selected.

Icons on the playback bar allow you to control the video.

Event Search Tab

This tab helps you find specific types of events for predetermined dates/channels.

1. Select a date to search as well as indicate what channels you want to include in the search. Select Search.
2. A list of events for that camera displays, with the type of event listed.
3. Double-click the event to play back the video on full screen.

File Management Tab

Use this tab to play back recorded files and then keep or delete them.

FIELD DESCRIPTION
Search	Click to display recorded files according to channel number.
Lock	Check the box of a file you do not want it accidentally deleted (check mark appears in box) and then select Lock.To unlock a file, check the box of a locked file and select Lock. An unlock confirmation screen displays.
All	Select All to group all files. Then, select Lock to either lock or unlock all the files.

1. Select cameras and a date to search. Select Search.
2. A list of recorded files displays. Double click on a file to view it. Determine whether you want to keep the file or delete it, then stop the playback.
3. Select either Delete or Lock. A confirmation message displays.

Image Tab

The Image tab lets you set specific date/time parameters and then display the image from that date/time setting. Direction arrows let you move forward or backward through the saved video. Double-click the image to play back the video from the time when the image was captured.

FIELD DESCRIPTION
Search	After setting up search parameters (Start and End times, selected cameras), select Search to initiate the actual search.
Delete	Select to delete the displayed image.
Lock	Select to lock the displayed image so it cannot be deleted or overwritten. (It can, however, be deleted during disk reformat.)
Save	Save the current image to a removeable storage device.
Save All	Save all captured images to a removeable storage device. (Maximum images saved = 2000.)

BACKUP ICON

Back up recorded files to a removable USB storage device. Insert USB device into USB slot on the back of the unit.

DO NOT use the USB slot on the front of the unit; that slot is an alternative USB slot for the mouse only.

1. Select the Backup icon from the Main Menu. The Backup screen displays.

2. Set up search criteria to locate the files you want to back up.

3. Select which channels you want to search.

4. Set beginning and ending search times.

5. Select Search. Files display that meet your criteria.

1. Select files in the list and then select Backup. The Backup Information screen displays. This screen provides a review of the backup criteria and files.

1. Select Start. The files transfer to the USB device.

INFORMATION ICON

Select this icon to find information about your system. The Information screen comprises 6 icons:

• System
• Event
• Log
• Network
• Online Users
• Exit

System Screen

Select the System icon and the System screen displays. This screen displays basic system information such as system type, firmware version, etc. It also provides QR codes for iOS and Android systems as well as a Device ID. Scan these codes to download the mobile client and your device's mobile phone port number when you are setting up the Uniden GuardianLive app (see page 19).

Event List Screen

Select this icon to view event information for various types of alarms during a specified time frame.

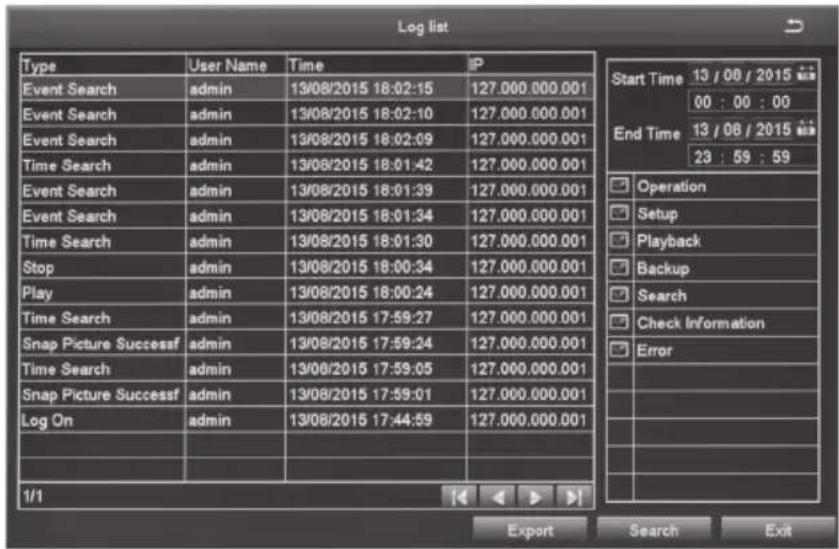

Log list Screen

1. Select the Log icon and the Log List screen displays.
2. Enter start/end times and select what types of operations to search for.
3. Select Search and the system displays all events that fit those criteria.

Network Screen

Select this icon to display the Network screen. This screen displays existing network parameters for the system.

HTTP Port	80
Server Port	5000
IP Address	192.168.001.017
Subnet Mask	255.255.255.000
Gateway	192.168.001.001
Preferred DNS Server	202.096.134.133
Alternate DNS Server	202.096.128.166
Networking Approach	DHCP
Network Status	Connected
DDNS	Unconnected
MAC	74-19-F8-D0-0E-5B
Cloud Server Status	Connected

Online Users list Screen

Select this icon to display information on any users currently connected to the DVR system.

Exit Screen

Select this icon to return to the Main Menu screen.

DISK MANAGEMENT ICON

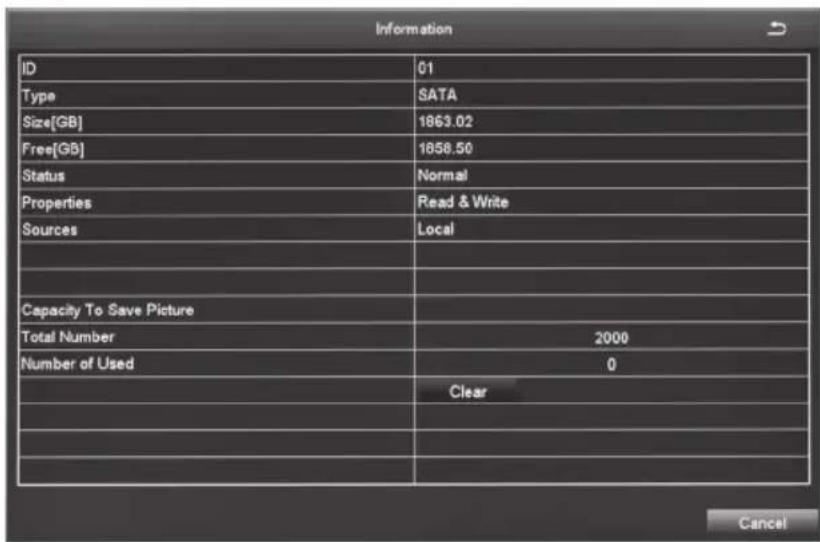

Select this icon to view files on your hard drive and on a connected USB drive (if applicable).

1. Select the Disk Management icon from the Main Menu screen. The Disk Management screen displays.

BUTTONS DESCRIPTION
Refresh	Recheck identifiable disks (hard drive, USB drive, etc.)
Browse	Displays file names and other information for the selected drive. Allows you to delete files.
Format	Deletes data on the selected hard disk (including locked fines andimages.)

1. Select a drive to review (in the screen above, select 01). Select Browse. The Information screen displays for reviewing the hard drive.

1. Select Cancel to return to the Disk Management screen.

LOG OFF ICON

The Logoff icon lets you log out of the system. This does not shut down the system but only logs you (as a user) out of the system. When you select the Logoff icon, a confirmation screen displays.

SHUT DOWN ICON

Select the Shut Down icon save your data and changes and shut off the system. When you select the Shut Down icon, a confirmation screen displays.

REMOTE ACCESS

View live and recorded video remotely using an iOS or android device and Uniden's GuardianLive App.

1. From the Apple App Store, Google Play, download the Uniden GuardianLive app.
2. Open the app. Tap Create Account. The Create Account screen displays.
3. Complete the fields and then select OK. The login screen appears again. Input your device name and password again and the Device List screen displays.
4. Select the + icon at the top right corner to add your DVR system to the app. The Add Device screen displays.
5. Name your DVR system. Select the QR code icon and scan the QR code label on top of the DVR receiver or the applicable Device ID QR code from Main Menu/Information/System screen on the monitor. This will add the DVR Device ID code to the app. Select OK.
6. The Device List displays again, with your system now listed. Select your system and live video displays on your device.

FIRMWARE UPDATES

From time to time, Uniden may update its products' firmware to improve features, fix bugs, or otherwise improve the product. Uniden recommends checking for firmware updates every 6 months.

Check for firmware updates if you have service issues; your firmware may be out of date.

1. Go to Main Menu/Information/System Information to locate the current GDVR firmware version.
2. Go to uniden.com.au and look for the GDVR. Check your DVR's firmware number against the latest firmware download available.
3. If there is a firmware version that is later than the firmware version on your system, download it to your USB drive.
4. Power down your DVR.
5. Insert the USB drive into the USB port on the BACK of the receiver.
   Do NOT insert the USB drive into the USB port on the front of the receiver.
6. Power up your DVR. The system reboots and imports the new firmware.

TROUBLESHOOTING

After turning on, the DVR cannot switch on normally.

Possible reasons:

• The power supply is not correct.
- Switch power cable is not in good connection.
- Switch power is damaged.
• The program upgrading is wrong.

- The hard disk is damaged or something is wrong with the hard disk cables.

- Something is wrong with the front panel.

• The main board of the DVR is damaged.

The DVR reboots automatically or frequently stops working after booting up for a few minutes

Possible reasons:

• The input voltage is not stable or too low.
• The hard disk is damaged or the hard disk cables are broken.
• The power rating from wall supply is not correct.
• The front-end video signal is not stable.
• Poor heat dissipation, too much dust, bad running environment for the DVR.
• Something is wrong with the hardware of the DVR.

Cannot detect hard disk after switch on.

Possible reasons:

• The hard disk power supply cable is not connected.
• The cables of the hard disk are damaged.
  • The hard disk is damaged.
• The SATA port of the main board is damaged.

No video output in single channel, multiple channels and all channels.

Possible reasons:

• Video format incorrect. Please ensure it is set corerctly, either PAL or NTSC. (Australia = PAL).
• The image brightness is all 0. Please restore the default setup.

• There is no video input signal or the signal is too weak.
• The hardware of the DVR is damaged.

Real-time image problems such as serious distortion of the image color or the brightness, etc.

Possible reasons:

• The DVR does not match with the impedance of the monitor.
• The video transmission distance is too far or the attenuation of video transmission cable is too big.
• The setting of color and brightness for the DVR is wrong.

Cannot find video files in local playback.

Possible reasons:

• Something is wrong with the data cable or the jumper of the hard disk
  • The hard disk is damaged or no video data.
• Record function has been disabled. Please click Record icon under Setup to enable it.
• The video files you want to see have been overwritten after a recent disk format.

Blurred screen when viewing the local video.

Possible reasons:

• The video quality is set too low.
- The program data reads wrongly, always become normal after rebooting up the DVR.
- Something is wrong with the data cable or the jumper of the hard disk

• The hard disk is damaged.

• The hardware of the DVR is damaged.

No audio signal in the surveillance window.

Possible reasons:

• Audio has not been set up as 'Auto'. Refer System menu - Audio.
  • The audio cable is damaged.
  • The hardware of the DVR is damaged

There is audio signal in the surveillance window but no audio signal when playback

Possible reasons:

• enabled. Click Record icon under Setup to find out.
• The corresponding channel is not connected with video (no camera attached). When the image appear blue screen the playback will be intermittent

The time display is wrong.

Possible reasons:

• The time setting is wrong. Day light saving time has not been set up properly.
• The battery is in bad connection or the voltage is too low.

DVR cannot control the PTZ.

Possible reasons:

• Something wrong with the front-end PTZ.
• The baud rate, address, protocol settings of the front-end PTZ and device PTZ are inconsistent.
  • RS485 cable is connected incorrectly.
• When multiple decoders are connected, the far end of AB cable of the PTZ decoder must add a 120 OU resistance to remove reflection and impedance matching, otherwise it will make the PTZ control unstable.

The motion detection is not working

Possible reasons:

• The time period setting is not correct.
- The motion detection area setting is not appropriate.
• The sensitivity is too low.

No image or having mosaic effect when preview network image or playback video files

Possible reasons:

• Network speed is inconsistent or too slow.
- The logged in user has no surveillance authority.
- The device has no video output. Camera disconnected.

Something wrong with the USB backup.

Possible reasons:

- The CPU is busy please stop recording and then go on backup.

- The data volume exceeds the backup storage capacity and it will cause burning errors

- The backup device is not compatible.

• The backup device is damaged.

Alarm is not working.

Possible reasons:

• The setting of the alarm is not correct.

• The connection of the alarm is not correct.

• The alarm input signal is not correct.

The remote controller cannot control.

Possible reasons:

• The remote control distance is too far.

• The battery is low.

- The remote controller or the front panel of the DVR is damaged.

APPENDIX A: SAMPLE MIC CONNECTION

Please note that only camera, 1 to 4 power splitter cable, 18m BNC and Power cable and power adapter are included in the kit. Audio out, speaker, mic, 1 to 2 power splitter cable, RCA cables are not included in the kit.

APPENDIX B: MENU STRUCTURE

Right-click on the screen to view the System menus.

Click on Main Menu to view Main Menu operations.

SETUP Operation

SEARCH Operation (page xx)

Time Search Event Search File Management Image

BACKUP Operation (page xx)

INFORMATION Operation (page xx)

DISK MANAGEMENT Operation (page xx)

LOGOFF Operation (page xx)

SHUT DOWN Operation (page xx)

APPENDIX O. HARD DISK CAPACIPLCALSIATION

Make sure the hard disk is installed and successfully formatted when install the DVR for the first time.

1. The capacity of the Hard disk itself

We recommend hard disk of 500G\~2T for better stability.

1. Total Capacity Option

The calculation formula of hard disk capacity is:

Total capacity(M) = channel numbers*time(hour)*occupied capacity for an hour(M/hour)

Similarly, the calculation formula of recording time is:

Recording time(hour)= Total capacity(M)

Occupied Capacity for an hour(M/hour)*the channel numbers

The DVR introduces the H.264 compression technology. Its dynamic range is very large so the hard disk capacity calculation is based on the stream to count the estimated values of files created by each channel in an hour.

Example:

For a 500G HDD, real-time CIF recording, it can keep recording for about 25 days. The occupied space of HDD for single channel is 200M/H, if 4channels real-time CIF recording for 24hours, the estimated recording days is: 500G/(200M/H*24H*4ch)=26 days

SPECIFICATION

System GDVR 4Txx Series GDVR 8Txx Series
Pentaplex View, Record, Playback backup, Remote Monitoring
# Channels 4 8
Video In 4 BNC 8 BNC
Video Out 1 BNC
HDMI Yes
VGA Out Yes
Audio In 4
Audio Out 1
USB Ports 1 Front, 2 Back
Alarm In Yes
Alarm Out Yes
Video Input Resolution	1920 x 1080
PTZ Control RS-485	Pelco D & P protocol ,etc
Power DC/12V
DISPLAY
Live Display 4 Channel	full, quad
Live Display 8 Channel		full, quad, 8, 9
Live Display Speed (4 ch)	PAL: 15fps each channel
Live Display Speed (8 ch)		PAL: 15fps each channel
Privacy Masking	4 rectangular zone
Sensitivity Levels	8
FW Upgrade	USBt
Security	Set by admin
Time Sync	NTP Server
Recording
Video Compression	H.264 Main Profile

System GDVR 4Txx Series GDVR 8Txx Series
Audio Compression G.711A
Recording Resolution	1080P, 720P, 960H
Frame Rate up to15 fps
Recording Quality 256 - 2048kbps
Substream Resolution	CIF
Frame Rate up to 25 fps
Recording Schedule Calendar style, by hour, day, recording mode, by channel
Watchdog Yes, Auto-recovery
Playback
Playback Speed Variable, up to 16x
Search By Time and Event
Log Search motion detection, configuration changes, connects/disconnects, video loss
STORAGE AND ARCHIVE
Storage 1/2 TB included
Backup Media up to 32GB USB Flash Drive FAT32
Backup File Format AVI
CONNECTIVITY
Connection Uniden Cloud-based P2P server
Supported OS Windows
Remote SW PC and Mac
Email Notification With Snapshot
SmartPhone, Tablet support	iPhone, iPad, Android
System Configuration	Uniden Cloud-based P2P server
Network Protocol	HTTP, TCP/IP, UPNP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, IP, P2P
Network Interface	RJ-45, 10/100 Base TX
Camera Specs

System GDVR 4Txx Series GDVR 8Txx Series
Image Sensor 1/2.7"	CMOS, 1 Megapixel
Video Format PAL
Effective Pixels H: 1984 V: 1105
Resolution 1080P
Lens/Type 3.6mm, Fixed
Max Aperture F2.0
FOV	92°92°
IR LED 850nm, 36 pieces
ICR Yes
Night Vision Range 20m total darkness
Min Illumination 0.1 Lux w/o IR ; 0 Lux w/ IR LED
Video Output BNC
Cable BNC/Power
Power 12V, 500mA
Power Consumption	Max 6W
Operating Temp	-20°C to 50°C
Operating Humidity	10% - 90% RH
Environmental Rating	IP66
Casing	Plastic

ONE-YEAR LIMITED WARRANTY

GDVR 4T/8T Series

Important:

Satisfactory evidence of the original purchase is required for warranty service. Please refer to our Uniden website for any details or warranty durations offered in addition to those contained below.

Warrantor:

The warrantor is Uniden Australia Pty Limited ABN 58 001 865 498 ("Uniden Aust").

Terms of Warranty: Uniden Aust warrants to the original retail purchaser only that the GDVR 4T40 or GDVR 8T40 or GDVR 8T40 (“the Product”), will be free from defects in materials and craftsmanship for the duration of the warranty period, subject to the limitations and exclusions set out below.

Warranty Period: This warranty to the original retail purchaser is only valid in the original country of purchase for a Product first purchased either in Australia or New Zealand and will expire, as indicated below, from the date of original retail sale.

Product 1 Year

Accessories 90 Days

If a warranty claim is made, this warranty will not apply if the Product is found by Uniden to be:

A. Damaged or not maintained in a reasonable manner or as recommended in the relevant Uniden Owner's Manual;
B. Modified, altered or used as part of any conversion kits, subassemblies or any configurations not sold by Uniden Aust;
C. Improperly installed contrary to instructions contained in the relevant Owner's Manual
D. Repaired by someone other than an authorized Uniden Repair Agent in relation to a defect or malfunction covered by this warranty; or
E. Used in conjunction with any equipment, parts or a system not manufactured by Uniden.

Parts Covered: This warranty covers the Product and included accessories.

User-generated Data: This warranty does not cover any claimed loss of or damage to user-generated data (including but without limitation phone numbers, addresses and images) that may be stored on your Product.

Statement of Remedy: If the Product is found not to conform to this warranty as stated above, the Warrantor, at its discretion, will either repair the defect or replace the Product without any charge for parts or service. This warranty does not include any reimbursement or payment of any consequential damages claimed to arise from a Product's failure to comply with the warranty.

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

This warranty is in addition to and sits alongside your rights under either the COMPETITION AND CONSUMER ACT 2010 (Australia) or the CONSUMER GUARANTEES ACT (New Zealand) as the case may be, none of which can be excluded.

Procedure for Obtaining Warranty Service: Depending on the country in which the Product was first purchased, if you believe that your Product does not conform with this warranty, you should deliver the Product, together with satisfactory evidence of your original purchase (such as a legible copy of the sales docket) to Uniden. Please refer to the Uniden website for address details. You should contact Uniden regarding any compensation that may be payable for your expenses incurred in making a warranty claim. Prior to delivery, we recommend that you make a backup copy of any phone numbers, images or other data stored on your Product, in case it is lost or damaged during warranty service.

UNIDEN AUSTRALIA PTY LTD

Phone number: 1300 366 895

Email address: [e-mail]

Uniden®

© 2016 Uniden Australia Pty Limited. Version 1.0
