Product Type	Vented Tumble Dryer
Brand	RCA
Model	BJLR473EVWW
Installation Type	Freestanding
Door Type	Side Swing
Dimensions (H x W x D)	33.5 x 23.6 x 25.6 inches
Weight	95 lbs
Power Supply	120 V, 60 Hz
Rating Power	1500 W
Capacity	6.5 cu. ft.
Drying Programs	Normal, Delicates, Heavy Duty, Quick Dry, Timed Dry, Air Fluff
Temperature Settings	High, Medium, Low, Air Only
Sensor Dry	Yes
Wrinkle Prevent	Yes
Lint Filter Indicator	Yes
Drum Material	Stainless Steel
Child Lock	Yes
Energy Star Certified	Yes
Maintenance	Clean lint filter after each use; clean exhaust duct annually
Repairability Index	7.5 / 10

Frequently Asked Questions - BJLR473EVWW RCA

How do I clean the lint filter?

Pull out the lint filter located on the dryer door or top panel, remove lint by hand or with a soft brush, and rinse under water if needed. Ensure it is completely dry before reinserting.

What should I do if the dryer does not start?

Check that the power cord is plugged in, the door is closed securely, the circuit breaker is not tripped, and the start button is pressed. Also ensure the child lock is not activated.

How can I reduce wrinkles in my clothes?

Use the Wrinkle Prevent option which periodically tumbles the load after drying without heat. Also remove clothes promptly after cycle ends.

What does the error code 'E1' mean?

Error code E1 typically indicates a thermistor failure. Try resetting the dryer by unplugging it for 5 minutes. If the error persists, contact customer service.

Can I install this dryer in a closet?

This vented dryer requires adequate airflow. Minimum clearances: 2 inches from sides, 4 inches from rear, and 1 inch from top. The closet door must have vents or be louvered.

How long does a typical drying cycle take?

Cycle times vary by fabric and load size. A normal cotton cycle takes about 45-60 minutes. Quick Dry cycles take 15-30 minutes.

Is this dryer energy efficient?

Yes, the BJLR473EVWW is Energy Star certified, consuming about 500 kWh per year, saving energy compared to standard models.

What is the maximum load capacity?

The maximum dry weight capacity is 6.5 cubic feet, equivalent to about 15 pounds of laundry. Overloading may affect drying performance.

How do I change the door swing direction?

This model is not reversible. The door opens from left to right. If you need opposite swing, consult a qualified technician for possible modifications.

Where can I find spare parts?

Genuine RCA spare parts are available through authorized dealers or online. Common parts like lint filters, belts, and heating elements can be ordered by model number.

USER MANUAL BJLR473EVWW RCA

Operating Instructions

8

The Controls on Your Dryer

Other Dryer Features

Helpful Information

11

Specialized Fabric Guide

Loading Suggestions

Care of Product

If Something Goes Wrong

15

Before You Call For Service

Venting the Dryer

RCA Service Numbers

Warranty, Back Cover

RCA

Welcome

Welcome to the RCA family. We're proud of our quality products and we believe in dependable service. You'll see it in this easy-to-use manual and you'll hear it in the friendly voices of our customer service department.

Best of all, you'll experience these values each time you do the laundry. That's important, because your new dryer will be part of your family for a long time.

Start Here!

Before using your dryer

Staple your receipt to the inside back cover of this manual.

Write down the model and serial numbers here. They are on the label on the front of the dryer behind the door.

Simple line drawing of a cabinet with an arrow pointing to the door (no text or symbols)

Model number

Serial number

Date of purchase

Need Help?

Help us help you

Before you call for service, there are a few things you can do to help us serve you better.

Read this manual. It contains instructions to help you use and maintain your dryer properly.

If you do need service, you can relax knowing help is only a phone call away. A list of toll-free customer service numbers is included on the inside back cover.

Save time and money. Check the section titled “If Something Goes Wrong” before calling. This section was designed to solve common problems you might encounter.

Important Safety Information

Read all safety information before using

WARNING: For your safety the information in this manual must be proved to minimize the risk of fire or explosion or to prevent property damage, personal injury or loss of life.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualified installer, service agency or the gas supplier.

IF YOU SMELL GAS

1 Do not try to light any appliance.
2 Do not touch any electrical switch; do not use any phone in your building.
3 Clear the room, building or area of all occupants.
4 Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
5 If you cannot reach your gas supplier, call the fire department.

California Safe Drinking Water and Toxic Enforcement Act

This act requires the governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm and requires businesses to warn customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels.

Properly adjusted dryers will minimize incomplete combustion. Exposure to these substances can be minimized further by properly venting the dryer to the outdoors.

Important Safety Information

Read all safety information before using

Warning

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following sections.

Safety Precautions

• Use this appliance only for its intended purpose as described in this Owner's Manual.
• This dryer must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet with your dryer, you can obtain one by contacting the service location nearest you.
• Properly ground to conform with all governing codes and ordinances. Follow details in Installation Instructions.
• Install or store where the temperature is above 50^ . (10°C.). Do not install the dryer where it will be exposed to the weather.
• Connect to a properly rated, protected and sized power supply circuit to avoid electrical overload.

- Gas dryers MUST be exhausted to the outside. Carefully follow the Exhausting details in the Installation Instructions.

- Exhausting electric dryers to the outside is STRONGLY RECOMMENDED to prevent large amounts of moisture and lint from being blown into the room. Carefully follow the Exhausting details in the Installation Instructions.

- Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in this Owner's Manual or in published user-repair instructions that you understand and have the skills to carry out.

- When disconnecting this appliance pull by the plug rather than the cord to avoid damage to the cord or junction of cord and plug. Make sure that the cord is located so that it will not be stepped on, tripped over or otherwise subjected to damage or stress.

• Exhaust Duct—See Installation Instructions. Use only rigid metal or flexible metal 4" diameter ductwork inside the dryer cabinet or for exhausting to the outside. USE OF PLASTIC OR OTHER COMBUSTIBLE DUCTWORK CAN CAUSE A FIRE. PUNCTURED DUCTWORK CAN CAUSE A FIRE IF IT COL-LAPSES OR BECOMES OTHERWISE RESTRICTED IN USE OR DURING INSTALLATION.
• Do not dry articles containing rubber, plastic, or similar materials (such as padded bras, tennis shoes, galoshes, bath mats, rugs, bibs, baby pants, plastic bags, pillows, etc.) as these materials may melt or burn. Also, some rubber materials, when heated, can under certain circumstances produce fire by spontaneous combustion.
• Do not store items that may burn or melt (such as clothing, paper material, plastics or plastic containers, etc.) on top of the dryer during operation.
• Garments labeled “Dry Away from Heat” or “Do not Tumble Dry” (such as life jackets containing Kapok) must not be put in your dryer.

- Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, paint, oil, gasoline, degreasers, dry-cleaning solvents, kerosene, etc.) which may ignite or explode. Do not add these substances to the wash water. Do not use these substances around your washer and/or dryer during operation.

- Any article on which you have used a cleaning solvent, or which contains flammable materials (such as cleaning cloths, mops, towels used in beauty salons, restaurants, or barber shops, etc.) must not be placed in or near the dryer until all traces of these flammable liquids or solids and their fumes have been removed. There are many highly flammable items used in homes such as acetone, denatured alcohol, gasoline, kerosene, some household cleaners, some spot removers, turpentines, waxes, wax removers and products containing petroleum distillates.

Read all safety information before using

• Clean the lint filter before each load to prevent lint accumulation inside the dryer or in the room. DO NOT OPERATE THE DRYER WITHOUT THE LINT FILTER IN PLACE.
• Keep the area around and underneath your appliances free from the accumulation of combustible materials, such as lint, paper, rags, chemicals, etc.
• The interior of the machine and the exhaust duct connection inside the dryer should be cleaned periodically by a qualified individual.
• Never reach into the dryer while the drum is moving. Before loading, unloading or adding clothes, wait until the drum has completely stopped.
• Do not dry fiberglass articles in your dryer. Skin irritation could result from the remaining glass particles that may be picked up by clothing during subsequent dryer uses.

• The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, the garment manufacturer's care instructions should be followed very carefully.

• Close supervision is necessary if this appliance is used by or near children. Do not allow children to play inside, on, or with this appliance or any discarded appliance. Dispose of discarded appliances and shipping or packing materials properly. Before discarding a dryer, or removing from service, remove the door of the dryer compartment.

• Keep all laundry aids (such as detergents, bleaches, fabric softeners, etc.) out of the reach of children, preferably in a locked cabinet. Observe all warnings on container labels to avoid personal injury.
• Keep the floor around your appliances clean and dry to reduce the possibility of slipping.
• To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the dryer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning (except the removal and cleaning of the lint filter).

• NOTE: Turning the Cycle Selector knob to an OFF position does NOT disconnect the appliance from the power supply.

• Do not tamper with the controls.

• Do not operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.
• Never climb on or stand on the dryer top.
• If yours is a gas dryer, it is equipped with an automatic electric ignition and does not have a pilot light. DO NOT ATTEMPT TO LIGHT WITH A MATCH. Burns may result from having your hand in the vicinity of the burner when the automatic ignition may turn on.

- You may wish to soften your laundered fabrics or reduce the static electricity in them by using dryer-applied fabric softeners or an anti-static conditioner. We recommend you use either a fabric softener in the wash cycle, according to the manufacturer's instructions for those products, or try a dryer-added product for which the manufacturer gives written assurance on the package that their product can be safely used in your dryer.

Service or performance problems caused by the use of these products are the responsibility of the manufacturers of those products and are not covered under the warranty of this appliance.

SAVE THESE INSTRUCTIONS

Abstract black-and-white graphic with a white circular shape and a dot, no text or symbols present.

Operating Instructions

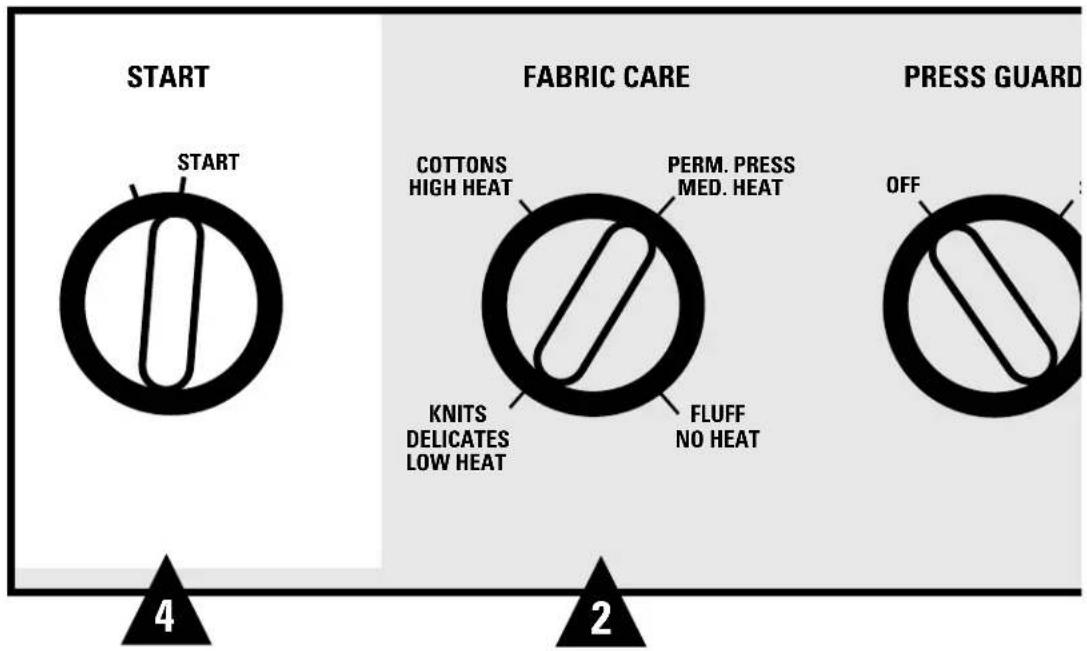

The controls on your dryer

1 Clean the Lint Filter Fabric C? Selections

Clean the lint filter each time you use the dryer.

CAUTION:

Do not operate the dryer without the lint filter in place.

Always follow Fabric Manufacturer's Care Label or instructions when laundering. Use this chart as a general guide.

Drying Selections Usage
Cottons/High Heat	For regular to heavy cottons.
Perm. Press/Med. Heat	For synthetics, blends and items labeled “permanent press.”
Knits Delicates/Low Heat	For delicates, synthetics and items labeled “tumble dry low.”
Fluff/No Heat	For “fluffing” items without heat. Use the Timed Dry cycle.

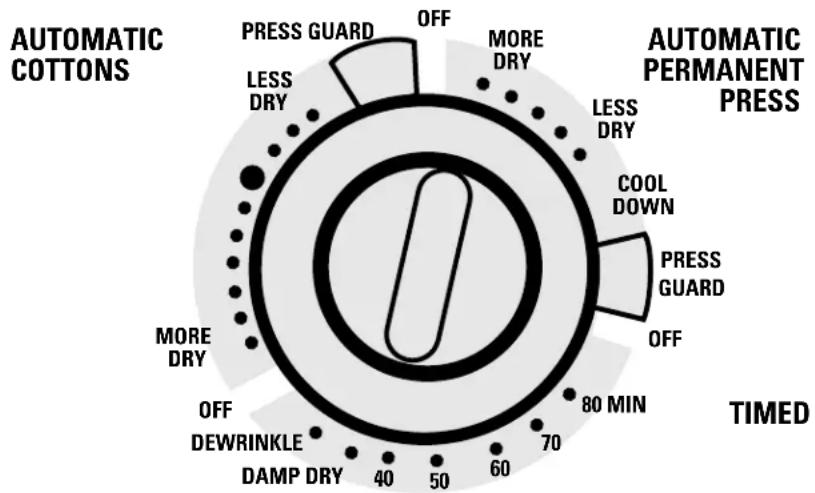

Cycle Descriptions

Automatic Drying Cycles Timed Dry Cycles

Cycles automatically sense fabric dryness Cycles run for a selected time

Automatic Permanent Press

For synthetic blends. Select More Dry for heavier loads, Less Dry for lighter loads.

Automatic Cottons

For cottons and most linens. For most loads set at the Large Dot. Set towards More Dry for heavier fabrics, Less Dry for lighter fabrics.

Timed Dry

Set the Cycle Selector at the desired drying time.

Damp Dry

To leave items partially dry set Cycle Selector on Damp Dry setting.

Dewrinkle

For removing wrinkles from items that are clean and dry or that are very lightly damp. Set the Cycle Selector on the Dewrinkle setting.

3

NOTE:

Automatic drying times will vary according to the type of heat used (Electric, Natural or LP gas), size of load, types of fabrics, wetness of clothes and condition of exhaust ducts.

Selecting Drying Cycle Starting Dryer

Select an automatic or timed cycle. See the above Cycle Descriptions.

• Close the dryer door.
• Select START.

Opening the door during the operation will stop the dryer. To restart the dryer, close the door and select START to complete the cycle.

See next page for other dryer features

Other dryer features your model has

Press Guard

Use this option to minimize the wrinkles in clothes. It provides approximately 15 minutes of no-heat tumbling after the clothes are dry.

The clothes should be removed after the timer passes EXTRA CARE (or PRESS GUARD) but before the dryer stops tumbling. This will help prevent wrinkles from setting in.

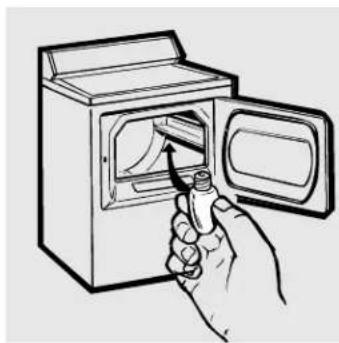

Drum Lamp

Line drawing of a hand opening a washing machine with a handle (no text or symbols)

Before replacing the light bulb, be sure to unplug the dryer power cord or disconnect the dryer at the household distribution panel by removing the fuse or switching off the circuit breaker. Reach above dryer opening from inside the drum. Remove the bulb and replace with the same size bulb.

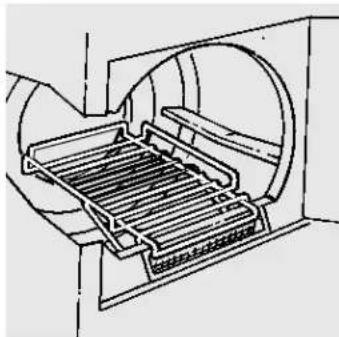

Drying Rack

Technical line drawing of a mechanical component with internal grating (no text or symbols)

A handy drying rack may be used for drying articles such as stuffed toys, pillows or washable sweaters.

Hook the rack over the lint filter so the rack extends into the dryer drum.

NOTE:

- The drying rack must be used with the Timed Cycle.

- Do not use this drying rack when there are other clothes in the dryer.

Helpful Information

Specialty Care Guide

Always follow Fabric Manufacturer's Care Label or instructions when laundering.

Otherwise use the information below as a general guide.

Item Suggested Care

Pillows Mend any holes or weak seams where feather or filling could escape. Dry only one pillow at a time. Stop dryer occasionally and shake pillow, redistributing filling for even drying. Check pillow at the end of drying time. If it is not completely dry, reset dryer for more drying time.Dry on low heat only.CAUTION: Do not dry pillows containing foam rubber.
Blankets	Add 2-4 dry towels and one blanket and set timer for 20-25 minutes. Dry only one blanket at a time. Do not set control for more than 25 minutes. At the end of drying cycle block the blanket back to its original shape. Allow blanket to dry thoroughly before storing.
Cotton Use a medium heat drying setting.Synthetic Use a low heat drying setting.Down Use a low heat drying setting.
Extra Large Items Use a low heat drying setting.(Includes comforters, blankets and mattress pads.)	Dry only one extra large item at a time. Set dryer for 20 minutes. When time is up, check and redistribute load. Reset dryer for 15 minutes. When time is up, check and redistribute load. Reset timer and check at 5 minute intervals to ensure articles do not fill dryer drum. Large, wet articles should have ample room in the dryer, but as they dry and fluff up they may not have room to tumble.CAUTION: Items without room to tumble may block air flow and could result in scorched items. Dry mattress pads separately. Use a low heat drying setting.

Helpful Information

Loading

Sorting

As a general rule, if clothes are sorted properly for the washer, they are sorted properly for the dryer.

Sort by color

(Separate colorfast from non-colorfast fabrics*)

- Whites

- Lights

- Darks

Separate by fabric type

• Cottons and linens

• Permanent press cottons and blends

• Synthetic and poly knits

- Delicates

Separate lint producers from lint collectors

- Lint producers: terry cloth and chenille

- Lint collectors: velveteen and corduroy

Sort by weight

- Heavy Items

- Light Items

* Non-colorfast fabrics may bleed or fade. Sort by individual color.

Loading Hints

- Avoid drying very small loads.

- Sort clothes by weight so you won't have to run an extra cycle for one or two heavier, slower drying items.

- Do not add fabric softener sheets once the load has become warm. This may cause fabric softener stains.

- Do not overload. This causes inefficient operation and unnecessary wrinkling. Clothes need to tumble freely.

- Do not dry the following items:

- Fiberglass items

- Woolens

- Rubber coated items

- Plastics

- Items with plastic trim

- Foam-filled items

Care & Cleaning

The Interior

The drum is rust-resistant and requires no special care.

The Exterior

Wipe off any spills or washing compounds. Wipe or dust with a damp cloth. Try not to strike the surface with sharp objects. Dryer control panel and finishes may be damaged by some laundry pretreatment soil and stain remover products if such products are sprayed on or have direct contact with the dryer.

Apply these pretreatment products away from the dryer. The fabric may then be washed and dried normally. Damage to your dryer caused by pretreatment products is not covered by your warranty.

The Lint Filter

Line drawing of a hand holding a pen on a screen, poised to write on a device (no text or symbols present)

Before every dryer use, clean the lint filter. Moisten your fingers and reach into the filter opening. Run your fingers across the filter.

To keep your dryer operating at peak performance, be sure to have a technician vacuum the lint from the machine every three years.

Storage

To store your dryer for a short period of time, disconnect the power supply and clean the lint filter.

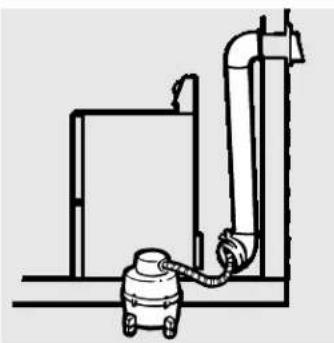

The Exhaust Duct

Simple line drawing of an industrial machine with a vacuum tube and piping (no text or symbols)

Inspect and clean the dryer exhaust ducting at least once a year to prevent clogging. A partially clogged exhaust can lengthen the drying time.

To clean the exhaust duct follow these steps:

1 Turn off electrical supply by disconnecting the plug from the wall socket.
2 Disconnect exhaust duct from the dryer.
3 Vacuum the exhaust duct with the hose attachment.
4 Reconnect the exhaust duct to the dryer.

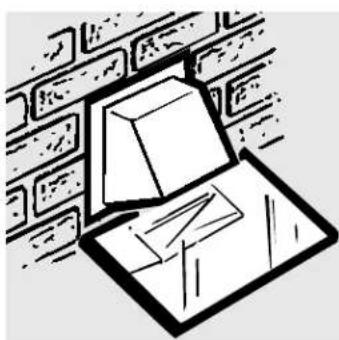

The Exhaust Hood

Simple line drawing of a brick wall with a box placed on top, no text or symbols present

Check the inside of the exhaust hood with a mirror to rid of debris

• Make sure the inside flaps of the exhaust hood move freely (you may want to check with a mirror).
• Make sure inside flaps are fully open when dryer is operating.
• Make sure there is not wild life (birds, insects, etc.) nesting inside the exhaust duct or hood.

If Something Goes Wrong

Before you call for service

?

Problem Possible Causes What to Do

Dryer doesn't Start	Dryer is unplugged • Make sure the dryer plug is pushed completely into the outlet.
	Fuse is blown/circuit • Check the house fuse/circuit breaker breaker is tripped box and replace fuse or reset breaker. NOTE: Most electric dryers use two breakers.
Dryer doesn't Heat	Fuse is blown/circuit breaker • Check the house fuse/circuit breaker box is tripped, the dryer may and replace fuse or reset breaker. tumble but not heat
	Gas service is off • Make sure gas shutoff at dryer and main shutoff are fully open.
Dryer Shakes or Makes Excessive Noise	Some shaking/noise is normal. • Move dryer to a flat place on the floor, or Dryer may be sitting unevenly adjust as necessary until even.
Greasy Spots on Clothes	Improper use of fabric softener • Follow directions on fabric softener package.
	Drying dirty items with • clean ones	Use your dryer to dry only clean items. Dirty items can stain clean items and the dryer.
	Clothes were not completely • clean	Sometimes stains which cannot be seen when the clothes are wet “appear” after drying. Use proper washing procedures before drying.
Lint on Clothes	Lint filter is full • Clean lint screen before each load.
	Improper sorting • Sort lint producers (like chenille) from lint collectors (like corduroy).
	Static electricity can attract lint	• See suggestions in this section under STATIC.
	Overloading	• Separate large loads into smaller ones.
	Paper, tissue, etc. left in pockets	• Empty all pockets before laundering clothes.

Problem Possible Causes What to Do

Static Occurs	Overdrying	Try a fabric softener.Adjust controls for less drying.
	No fabric softener was used	Try a fabric softener.
	Synthetics, permanent press and blends can cause static	Try a fabric softener.
Clothes Take too Long to Dry	Improper sortingSeparate heavy items from lightweight items (generally, a well-sorted washer load is a well-sorted dryer load).
	Large loads of heavy fabrics (like beach towels) and take longer to dry. Separate large, heavy fabrics into smaller loads to speed drying time.
	Controls improperly set	Match control settings to the load you are drying.
	Lint filter is fullClean lint filter before every load.
	Improper or obstructedCheck installation instructions for proper ducting ducting/venting.Make sure ducting is clean, free of kinks and unobstructed.Check to see if outside wall damper operates easily.See the Venting the Dryer section.
	Blown fuses or trippedcircuit breakermost dryers use 2 fuses/breakers, make sure both are operating.
	Overloading/Do not put more than one washer load in combining loadsthe dryer at a time.
	UnderloadingIf you are drying only one or two items, add a few items to ensure proper tumbling.

Problem Possible Causes What to Do

Clothes are Wrinkled

Overdrying • Select a shorter drying time.

- Remove items while they still hold a slight amount of moisture.

Letting items sit in dryer • Remove items when cycle ends and fold or after cycle ends hang immediately.

Clothes Shrink

Some fabrics will naturally • To avoid shrinkage, follow garment care shrink when washed. Others labels exactly.

can be safely washed, but will shrink in the dryer.

- Some items may be pressed back into shape after drying.

- If you are concerned about shrinkage in a particular item, do not machine wash or tumble dry it.

If Something Goes Wrong

Venting the Dryer

For the best drying performance the dryer needs to be properly vented. Carefully follow the details on Exhausting in the Installation Instructions.

• Use only rigid metal or flexible metal 4" diameter ductwork inside the dryer cabinet or for exhausting to the outside.

• Do not use plastic or other combustible ductwork.

• Use the shortest length possible.

• Do not crush or collapse.
• Avoid resting the duct on sharp objects.
• Venting must conform to local building codes.

Correct Venting

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure architectural line drawing of a building with stairs and windows (no text or symbols)

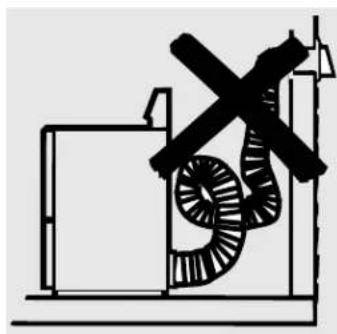

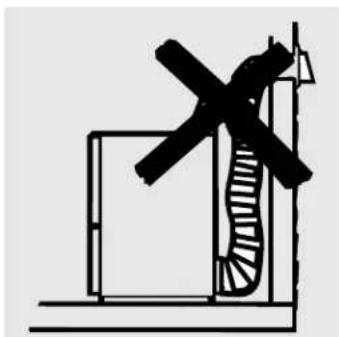

Incorrect Venting

Diagram of a windmill with a double-headed arrow indicating vertical motion (no text or symbols)

Pure mechanical diagram showing a gear and cross symbol without any text or labels

Notes

Notes

Notes

?

RCA Service Numbers

We'll be there!

In-Home Repair Service

800-GE-CARES (800-432-2737)

A GE consumer service professional will provide expert repair service, scheduled at a time that's convenient for you. Many GE Consumer Service company-operated locations offer you service today or tomorrow, or at your convenience (7:00 a.m. to 7:00 p.m. weekdays, 9:00 a.m. to 2:00 p.m. Saturdays).

Our factory-trained technicians know your appliance inside and out—so most repairs can be handled in just one visit.

For Customers With Impaired Hearing

800-833-4322

Consumers with impaired hearing or speech who have access to a TDD or a conventional teletypewriter may call 800-TDD-GEAC (800-833-4322) to request information or service.

Service Contracts

800-626-2224

You can have the secure feeling that GE Consumer Service will still be there after your warranty expires. Purchase a GE contract while your warranty is still in effect and you'll receive a substantial discount. With a multiple-year contract, you're assured of future service at today's prices.

Parts and Accessories

800-626-2002

Individuals qualified to service their own appliances can have parts or accessories sent directly to their home. The GE parts system provides access to over 47,000 parts...and all GE Genuine Renewal Parts are fully warranted. VISA, MasterCard and Discover cards are accepted.

Care and cleaning instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Further Service

We're proud of our service and want you to be pleased. If for some reason you are not happy with the service you receive, here are three steps to follow for further help.

First, contact the people who serviced your appliance. Explain why you are not pleased. In most cases, this will solve the problem.

Next, if you are still not pleased, write all the details—including your phone number—to:

Manager, Consumer Relations RCA Appliances, Appliance Park Louisville, KY 40225

Finally, if your problem is still not resolved, write:

Major Appliance Consumer Action Program

20 North Wacker Drive Chicago, IL 60606

DRYER WARRANTY

Staple sales slip or cancelled check here. Proof of original purchase date is needed to obtain service under warranty.

What is Covered

FULL ONE-YEAR WARRANTY

For one year from date of original purchase, we will provide, free of charge, parts and service labor in your home to repair or replace any part of the dryer that fails because of a manufacturing defect.

****************************************************************************************

This warranty is extended to the original purchaser and any succeeding owner for products purchased for ordinary home use in the 48 mainland states, Hawaii and Washington, D.C. In Alaska the warranty is the same except that it is LIMITED because you must pay to ship the product to the service shop or for the service technician's travel costs to your home.

FOR SERVICE

We at RCA strive to provide the highest quality products and service. Therefore we have designated GE CONSUMER SERVICE, a leader in the service industry, to fulfill your service needs.

Should your appliance need service, during warranty period or beyond, call 800-GE-CARES (800-432-2737).

What is Not Covered

• Service trips to your home to teach you how to use the product.

Read your Owner's Manual. If you then have any questions about operating the product, please contact your dealer or:

Manager, Consumer Affairs RCA Appliances

Appliance Park Louisville, KY 40225

- Improper installation.

If you have an installation problem, contact your dealer or installer. You are responsible for providing adequate electrical, exhausting and other connecting facilities.

• Replacement of house fuses or resetting of circuit breakers.
• Failure of the product if it is misused, or used for other than the intended purpose or used commercially.
• Damage to product caused by accident, fire, floods or acts of God.

WARRANTOR IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are in your state, consult your local or state consumer affairs office or your state's Attorney General.

Warrantor: RCA Appliances If further help is needed concerning this warranty, write: Manager—Consumer Affairs, RCA Appliances, Louisville, KY 40225

Part No. 113D5580P206-1 Pub. No. 79-9049

9-95 CG

Printed in Louisville, KY

BJLR473ET BJLR473GT
