| Product Type | Digital Terrestrial HD Receiver |
| Brand | STRONG |
| Model | SRT 8550 |
| Dimensions (W x D x H) | 220 x 164 x 43 mm |
| Weight | 0.63 kg |
| Power Supply | AC 100-240V ~50/60Hz, DC 12V, 1.5A |
| Power Consumption | 7 W typical, 18 W max, <1 W standby |
| Tuner | DVB-T/T2, VHF (177.5-226.5 MHz), UHF (474-786 MHz) |
| Video Outputs | HDMI, SCART (RGB, CVBS) |
| Audio Outputs | HDMI, S/PDIF coaxial, 3.5 mm analog L/R |
| Video Decoding | MPEG-4 H.264/AVC, H.265/HEVC; resolutions up to 1080p |
| Audio Decoding | Dolby Digital Plus, MPEG Layer I/II |
| Multimedia Playback | MKV, MP4, MP3, FLAC, OGG, JPG, BMP (via USB) |
| USB Port | 1x USB 2.0 (5V/800 mA max) |
| Ethernet | RJ-45 (for HbbTV and internet services) |
| Recording & Timeshift | Yes, to external USB storage (FAT32/NTFS) |
| Parental Control | PIN code lock for channels and menus |
| Accessories Included | Remote control, 2x AAA batteries, HDMI cable (1.5 m), RJ45 cable (2 m), power adapter |
| Safety & Standards | CE, WEEE, Class II double insulation |
Frequently Asked Questions - SRT 8550 STRONG
User questions about SRT 8550 STRONG
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Receiver in PDF format for free! Find your manual SRT 8550 - STRONG and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SRT 8550 by STRONG.
USER MANUAL SRT 8550 STRONG
Sl./Fig. 7
Sl./Fig. 8
EVOTV SLUŽBA ZA KORISNIKE
HR
info@evotv.hr
0800 07 07
www.evotv.hr
Supplied by STRONG Austria
Represented by STRONG Ges.m.b.H.
Franz-Josefs-Kai 1
1010 Vienna, Austria
Email: support_at@strong.tv
Licenses
THIS PRODUCT IS LICENSED UNDER THE AVC PATENT PORTFOLIO LICENSE FOR THE PERSONAL AND NONCOMMERCIAL USE OF A CONSUMER TO (i) ENCODE VIDEO IN COMPLIANCE WITH THE AVC STANDARD ("AVC VIDEO") AND/OR (ii) DECODE AVC VIDEO THAT WAS ENCODED BY A CONSUMER ENGAGED IN A PERSONAL AND NON-COMMERCIAL ACTIVITY AND/OR WAS OBTAINED FROM A VIDEO PROVIDER LICENSED TO PROVIDE AVC VIDEO. NO LICENSE IS GRANTED OR SHALL BE IMPLIED FOR ANY OTHER USE. ADDITIONAL INFORMATION MAY BE OBTAINED FROM MPEG LA, L.L.C. SEE HTTP://WWW.MPEGLA.COM
This product contains one or more programs protected under international and U.S. copyright laws as unpublished works. They are confidential and proprietary to Dolby Laboratories. Their reproduction or disclosure, in whole or in part, or the production of derivative works therefrom without the express permission of Dolby Laboratories is prohibited. Copyright 2003-2009 by Dolby Laboratories. All rights reserved.
THIS PRODUCT IS SOLD WITH A LIMITED LICENSE AND IS AUTHORIZED TO BE USED ONLY IN CONNECTION WITH HEVC CONTENT THAT MEETS EACH OF THE THREE FOLLOWING QUALIFICATIONS: (1) HEVC CONTENT ONLY FOR PERSONAL USE; (2) HEVC CONTENT THAT IS NOT OFFERED FOR SALE; AND (3) HEVC CONTENT THAT IS CREATED BY THE OWNER OF THE PRODUCT. THIS PRODUCT MAY NOT BE USED IN CONNECTION WITH HEVC ENCODED CONTENT CREATED BY A THIRD PARTY, WHICH THE USER HAS ORDERED OR PURCHASED FROM A THIRD PARTY, UNLESS THE USER IS SEPARATELY GRANTED RIGHTS TO USE THE PRODUCT WITH SUCH CONTENT BY A LICENSED SELLER OF THE CONTENT. YOUR USE OF THIS PRODUCT IN CONNECTION WITH HEVC ENCODED CONTENT IS DEEMED ACCEPTANCE OF THE LIMITED AUTHORITY TO USE AS NOTED ABOVE.
TABLE OF CONTENTS
1.0 INTRODUCTION 3
1.1 Safety Instructions 3
1.2 Storage 4
1.3 Equipment Set-up 4
1.4 Accessories 4
1.5 Usage of external USB devices 5
2.0 YOUR RECEIVER 5
2.1 DEFAULT PIN: 0000 5
2.2 Front Panel 5
2.3 Rear Panel 5
2.4 Remote control 6
2.5 Installing the batteries 6
2.6 Using the remote control 6
3.0 CONNECTION
3.1 Connecting to a terrestrial antenna 7
3.2 Connecting to TV with HDMI cable 7
3.3 Connecting to TV with SCART cable 7
3.4 Connecting a USB storage device 7
3.5 Connecting to the Internet to access HbbTV content 7
3.6 Connection to main power supply 7
3.7 Extended connections for your home entertainment 7
4.0 STARTING UP FOR THE FIRST TIME
4.1 Language selection 8
4.2 Region, Subtitles, Scan Mode and screen settings 8
4.3 Aerial Adjustment 8
5.0 QUICK GUIDE TO USING YOUR RECEIVER
6.0 HBBTV APPLICATIONS
7.0 OPERATION
7.1 Changing channels 10
7.2 Info Banner 10
7.3 Selection of audio language 10
7.4 Videotext 10
7.5 Subtitles 10
7.6 EPG (Electronic Programme Guide) 11
7.7 Record and Timeshift 11
8.0 MAIN MENU
8.1 Installation of channels 12
8.2 Channels 14
8.3 Settings 15
8.4 Multimedia 18
8.5 Network 20
A.1 TROUBLESHOOTING
A.2 TECHNICAL SPECIFICATIONS
STRONG declares that this item complies with the basic requirements and other relevant regulations of directives RED 2015/53/EU, EMC 2014/30/EU, LVD 2014/35/EU and RoHS 2011/65/EU
Subject to alterations. In consequence of continuous research and development technical specifications, design and appearance of products may change. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. Manufactured under license from Dolby Laboratories. Dolby Audio, Dolby Digital, Dolby Digital Plus and the double-D symbol are registered trademarks of Dolby Laboratories. HbbTV and the logo are trademarks of the HbbTV Association. All other product names are trademarks or registered trademarks of their respective owners.
© STRONG 2017. All rights reserved.
1.0 INTRODUCTION
1.1 Safety Instructions
Read all of the instructions before operating the device. Keep these instructions well for later use.
■ Only use attachments/accessories specified or provided by the manufacturer (such as the exclusive supply adapter, battery etc.).
■ Please refer to the information on the product enclosure for electrical and safety information before installing or operating the apparatus.
■ To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
■ The ventilation should not be impeded by covering the ventilation openings with items, such as newspaper, table-cloths, curtains, etc.
■ The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.
■ The mark indicates a risk of electric shock.
■ To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
■ Danger of explosion if the battery is incorrectly replaced. Replace only with the same or equivalent types.
■ The battery (battery or batteries or battery pack) shall not be exposed to excessive heat such as sunshine, fire or the like.
■ Excessive sound pressure from earphones and headphones can cause hearing loss. Listening to music at high volume levels and for extended durations can damage one's hearing.
In order to reduce the risk of damage to hearing, one should lower the volume to a safe, comfortable level, and reduce the amount of time listening at high levels.
■ The mains plug or appliance coupler is used as disconnect device, it shall remain readily operable. When not in use and during movement, please take care of the power cord set, e.g. tie up the power cord set with cable tie or something like that. It shall be free from sharp edges or similar which can cause abrasion of the power cord set. When put into use again, please make sure the power cord is not damaged. The absence of a light indication on the apparatus does not mean that it is fully disconnected from the mains. To disconnect the apparatus completely, the mains plug must be pulled out.
■ Attention should be drawn to environmental aspects of battery disposal.
■ No naked flame sources, such as lighted candles, should be placed on the apparatus.
To prevent the spread of fire, keep candles or other open flames away from this product at all times.
■ Equipment with this symbol is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.
Precautions
■ Never try to open the device. It is dangerous to touch the inside of the device due to high voltages and possible electrical hazards. Opening the device will void the warranty of the product. Refer all maintenance or servicing to suitably qualified personnel.
■ When you are connecting cables, be sure that the device is disconnected from the mains supply voltage. Wait a few seconds after switching off the device before you move the device or disconnect any equipment.
It is a necessity that you only use an approved extension and compatible wiring that is suitable for the electrical power consumption of the installed equipment. Please ensure that the electrical power supply corresponds with the voltage on the electrical identification plate at the back of the device.
Operating Environment
■ Do not install this equipment in a confined space such as a bookcase or similar unit.
■ Do not use the set near damp, and cold areas, protect the set from overheating.
- Keep away from direct sunlight.
■ Do not use the set near dust place.
- Do not attach candle to accessible opening area, to avoid flammable foreign material from entering the device.
WEEE Directive
Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
1.2 Storage
Your device has been carefully checked and packed before shipping. When unpacking it, make sure that all the parts are included and keep the packaging away from children. We recommend that you keep the carton during the warranty period, to keep your device perfectly protected in the event of repair or warranty.
1.3 Equipment Set-up
We recommend you to consult a professional installer to set up your equipment. Otherwise, please follow the instructions below:
■ Refer to the user manual of your TV and, if applicable, your antenna.
■ Make sure that the HDMI cable and, if applicable, outdoor components are in a good condition.
■ If you use the TV SCART connection, use a well shielded SCART cable.
This manual provides complete instructions for installing and using this receiver. The following symbols will serve as follow.
WARNING: Indicates warning information.
Tips Indicates any other additional important or helpful information.
MENU Represents a button on the remote control or the receiver.
Move to Represents a menu item within a window.
1.4 Accessories
■ Installation instructions
■ 1 remote control unit
■ 2x batteries (AAA type)
■ HDMI cable (1.5 m)
■ RJ45 cable (2 m)
■ Power adapter 12 V DC, 1.5 A
WARNING: The batteries should not be recharged, disassembled, electrically short-circuited, be mixed or used with other types of batteries. If rechargeable accumulators instead of batteries are going to be used (e.g. NiMH), we recommend using types with low self-discharge to ensure long time operation of your remote control.
NOTE: For the appropriate usage with this device, use only power adapters as listed below (in case of a necessary exchange):
■ Model: CH-AS120150E7xR; Manufacturer: Sichuan Changhong Electronic Component Co., Ltd.
■ Model: TB-AS120150E6xR; Manufacturer: Ten Pao Electronics (Huizhou) Co., Ltd.
■ Model: CY-AS120150E5xR; Manufacturer: Jiangsu Chenyang Electron Co., Ltd.
The usage of other power adapters may cause damage to the device. Such damage is not covered under warranty.
1.5 Usage of external USB devices
It is recommended to use USB 2.0 storage devices or higher. If your device is not compatible to USB 2.0 specifications, recording, playback and other multimedia functions of the receiver might not work properly.
■ STRONG cannot guarantee the playback of all multimedia files although extensions are listed, as it depends on file size, codec, bit rate and resolution.
■ It is advised not to store important information on USB storage devices used with the receiver.
■ Always make backups of data on your USB storage device before using it with this receiver.
■ STRONG will not take responsibility for any loss of information or circumstances caused by loss of information.
2.0 YOUR RECEIVER
1.6 DEFAULT PIN: 0000
1.7 Front Panel
Fig. 1
- Standby/ON button
Switches the receiver ON or into Standby
- P+/P- Switches to the previous/next programme
- IR Sensor Receives commands from the remote control
- LED Display Shows channel number and the time in standby
- Mode Indicator LED
RED indicates that the receiver is in STANDBY mode. GREEN indicates that the receiver is in operation mode.
- Card slot For service purposes only. No user function.
1.8 Rear Panel
Fig. 2
- ANT IN To connect to your antenna (room, -outdoor or roof antenna) for reception of broadcast signals.
- ETHERNET To connect your Ethernet cable (RJ-45) from the Local Area Network (LAN) coming from your home router.
- AUDIO L/R To connect your receiver to an analogue audio amplifier.
- USB To connect your USB storage device.
- HDMI To connect your receiver with your TV-set using an HDMI cable.
- S/PDIF Coaxial
To connect your receiver to a digital home cinema set or digital audio amplifier.
-
TV SCART To connect your receiver with your TV-set using a SCART cable.
-
DC POWER To connect to the original included main power adapter (100 - 240 V AC \~ 50/60 Hz/12 V, 1.5 A DC ◇●⊕)
1.9 Remote control
Fig. 3
- ⏻ Switches the receiver On/Standby.
- Ⓧ Mutes all audio outputs of the receiver
- 0\~9 Enter channel number in TV mode or value input in menu
- TV/R Toggles between TV or RADIO mode.
- 🏠 Opens EVOTV Internet portal
- FAV Opens the favourite group selection.
- ☐ One step back in menu or back to previous channel.
- AUDIO Opens the audio* language selection
- INFO Opens the current channel information; 2x opens the current event information and 3x the next event information.*
- EPG Opens the EPG* (Electronic Programme Guide) in TV mode.
- ▲▼ Change channel to next/previous.
Menu: Moves the cursor up/down. - Decreases/increases the volume level.
Menu: Change settings for specific menus. - OK Opens the current channel list in menu: for confirmation
- MENU Opens the main menu, in a menu you will get one step back.
- Exits from the menu or sub-menu.
- VOL+/VOL- Increases/decreases the volume level.
- P+/P- Page up/down in all list modes.
- LIST Call the current channel list.
- CH+/CH- Channel up/down.
- OPT Opens quick menu to adjust screen settings
- TEXT Opens the Teletext* if available
- SUB Shows a list of subtitle* languages.
- ✉ To read messages from your provider.
- II Hold play during playback/starting Timeshift mode
- Fast rewind/fast forward.
- ● Starts recording of the currently watched programme
- ▶ Opens the multimedia menu
- Jump function in multimedia playback
- ■ Stop playback.
- COLOUR BUTTONS
In different menus for specific functions
* Subtitles, Videotext, EPG (Electronic Programme Guide), and Audio languages are depending on availability in the specific broadcast
1.10 Installing the batteries
Fig. 4
Open the cover on the remote control and insert 2x AAA type batteries into the compartment. Observe correct polarity of the batteries when inserting. A terminal diagram is shown inside the compartment.
- Remove the cover.
- Insert the batteries.
- Place the cover.
1.1 Using the remote control

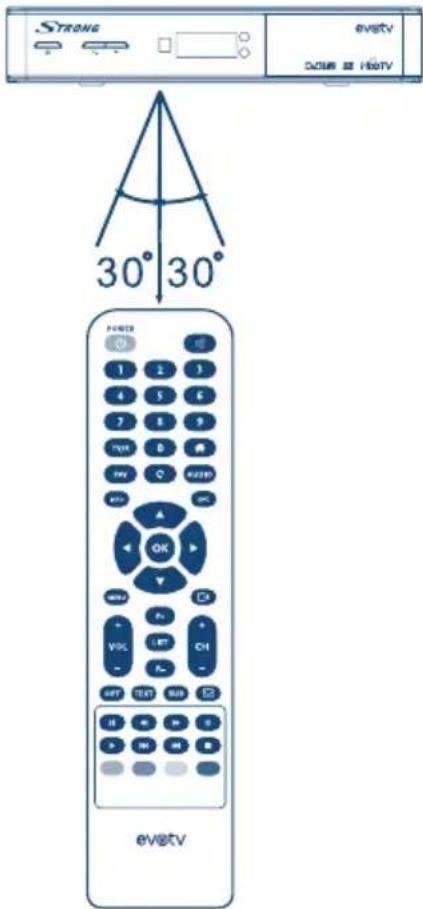

Fig. 5
To use the remote control, point it towards the front of your receiver. The remote control supports a range of up to 5 meters distance to the receiver at an angle of up to approx. 30 degrees.
NOTE: Managing the receiver will be limited or not possible if there are obstacles between the remote control sensor (at the front panel of the receiver) and the remote control. Direct sunlight or very bright light can reduce or disturb the reception of the remote control signals.
3.0 CONNECTION
1.12 Connecting to a terrestrial antenna

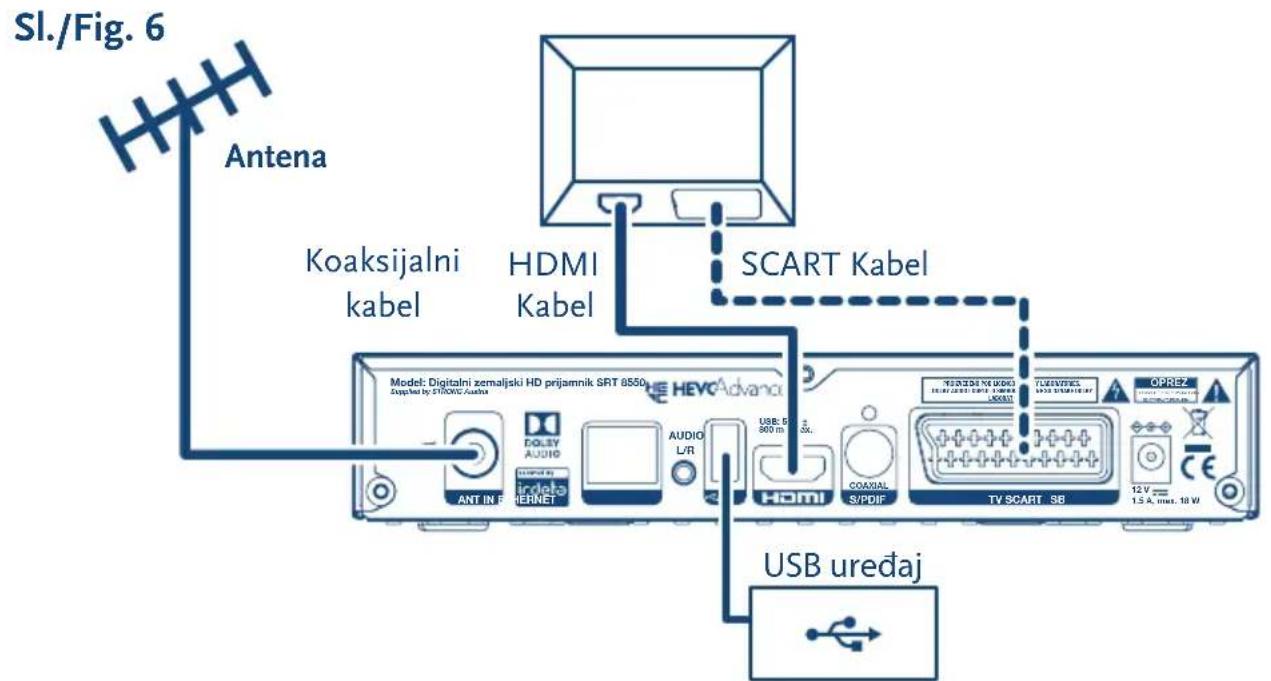

Fig. 6
To receive broadcast signals, your terrestrial indoor or outdoor antenna must be connected to the ANT IN connector on the back of the receiver. Use a proper shielded antenna cable and suitable connectors.
NOTE: If the signals at your location are too weak to receive proper signals with an indoor antenna, we recommend using an outdoor antenna which can be pointed towards the transmission tower. Ask your local dealer for more information. If you are using an active antenna with built-in antenna amplifier, switch the antenna power to ON in the menu Manual Search.
1.13 Connecting to TV with HDMI cable
Fig. 6
The TV set shall be connected to the receiver using a good quality HDMI cable. This connection gives the highest possible picture quality.
1.14 Connecting to TV with SCART cable
Fig. 6
Your receiver is also equipped with a SCART connector; alternatively, the TV set can be connected to the receiver using a good quality SCART cable.
1.15 Connecting a USB storage device
Fig. 6
Use this connector to access files from your USB storage devices for Multimedia functions or update the software of your receiver. HDD can only be supported with a maximum current of 800 mA. It is recommended to use at least USB 2.0 storage devices for playback of video files or HD movies.
1.16 Connecting to the Internet to access HbbTV content

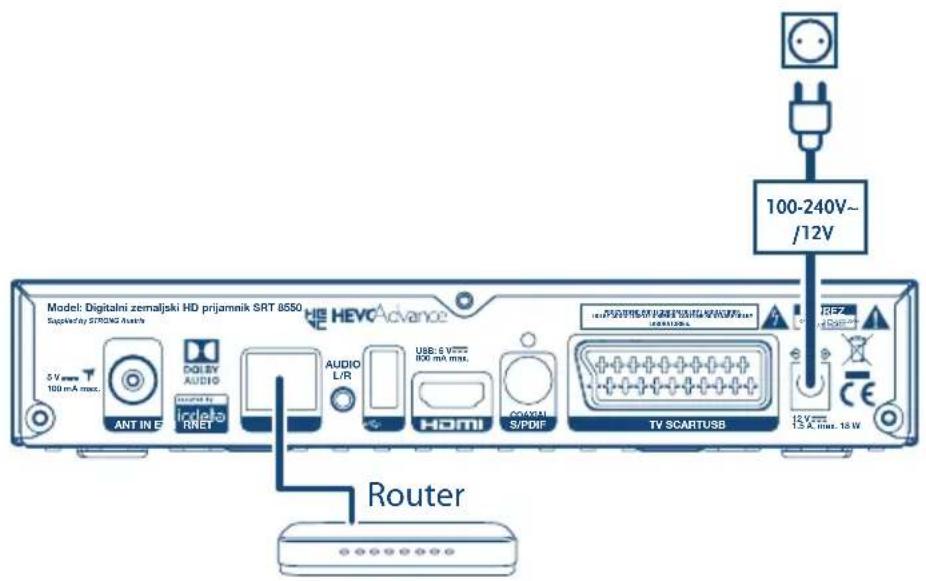

Fig. 7
To use the EVOTV portal and other interactive services, the receiver must be connected to the Internet. Connect the Ethernet (RJ-45) connector at least with a class CAT5E cable to your router/socket/Extender or similar applicable equipment, which provides access to the Internet.
1.17 Connection to main power supply
Fig. 7
After all the connections are established you can connect your new HD receiver to the main power by using the included external power adapter and connect the plug it to the wall socket.
1.18 Extended connections for your home entertainment

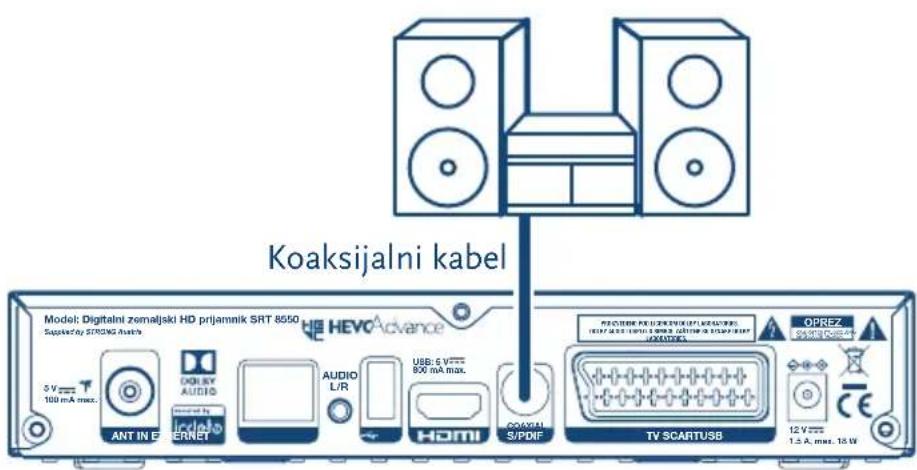

Fig. 8.
Connecting to a Digital Audio Amplifier with S/PDIF
By connecting your receiver to a digital amplifier or home theatre system, you can enjoy the best possible sound quality and multi-channel audio (depending on broadcast). Connect your Digital Audio Amplifier or home theatre system with a suitable cinch cable to the S/PDIF connector on the back of the receiver
Connecting to a digital audio amplifier and TV using HDMI
By connecting your receiver to the latest digital amplifiers or Home Cinema systems you will enjoy the best possible sound quality and multi-channel audio (depending on broadcast). Connect the HDMI output of the receiver to an input of your amplifier, and then connect the HDMI output of the amplifier to your TV set. Select the correct input on your amplifier to watch and listen to programmes.
4.0 STARTING UP FOR THE FIRST TIME
Make sure that your receiver and antenna are connected/aligned correctly. If you have any related questions accordingly, please contact your local service or retailer. The first time installation will guide you through the required steps, after that you will be able to enjoy your HD TV completely. If you already connected an Ethernet cable to your receiver, you can access the EVOTV portal. We wish you lots of fun with your new product.
1.19 Language selection
When you use your receiver for the first time, the Preferred Language menu appears. Use ▲▼ to select the desired language. Once you have selected your language, press the GREEN Next button to go to the next page.
1.20 Region, Subtitles, Scan Mode and screen settings
The receiver will now show the "First Time Installation" screen where you can adapt some of the most important settings. Use ▲▼ to move to the desired setting and use ◀▶ to change values. Press the GREEN Next button to go to the next page or press the RED Back button to go one step back. The following settings are available:
Region: The region is set to Croatia and this can't be changed as this receiver is destined for Croatia.
Subtitles Display: Select On to display subtitles whenever they are available, select Off if you don't need them to be shown.*
Aspect Ratio: Use this option to select the aspect ratio of the connected TV. The options are: 4:3 for a 4:3 TV (black bars on top and bottom of picture) and 16:9 for 16:9 TV sets.
Scan mode: Select All to store scrambled and free-to-air channels or select Free to store only free-to-air channels.
Connection: Use this option to select the established connection to your TV set. Select HDMI or SCART.
* Availability of DVB/HoH subtitles depends on the broadcast. If subtitles are not supported, they can be activated via Videotext if available. When all settings have been made, press the GREEN Next button to continue.
1.21 Aerial Adjustment
This part of the wizard will help you to setup your antenna and check signals.
Use ▲▼ to select the setting and ◀▶ to change these values. The following settings are available:
Antenna Power: Set to On if you use an active antenna (with built-in amplifier). When set to On, 5 V will be present at the ANT IN connector of the receiver. Select Off for passive antennas.
Channel No.: Select a channel which is known to carry a broadcast signal in your region. The Signal Strength and Signal Quality bars give a visual indication of the reception. Adjust your antenna to achieve the maximum signal strength and quality.
When all settings have been made, press the GREEN Next button to start the channel scan.
The receiver will search for all available channels. When the scan is finished, the receiver switches to viewing mode. Now you can enjoy watching your favourite TV channels. If you get the message "No channels found", then check again the antenna, coaxial cable, connector and in menu if you have reception. When this has been checked, reset the unit and follow the installation wizard again as shown below.
TIP:
If the receiver won't start with the Installation Wizard after switching on the receiver for the first time, reset the receiver to factory settings by pressing the MENU button and selecting Load Factory Setting in the menu Installation. (DEFAULT PIN: 0000).
5.0 QUICK GUIDE TO USING YOUR RECEIVER
We at STRONG understand that you can't wait to enjoy your new high definition digital terrestrial receiver. The following quick guide will make you familiar with the basic operation of this device. We do, however, advice you to read the full manual to get the best performance from your receiver.
To switch your receiver ON or into Standby press ⏻ on the remote control or front panel of your receiver.
Choose the desired channel with ▲▼. Alternatively, you can enter the channel number with the 0\~9 buttons on the remote control or press OK in viewing mode to display the channel list. The volume can be adjusted with ◀▶ and within the menus and in Videotext use VOL+/- additionally you can use 🔒 to mute all audio outputs. Use P+/P- buttons to scroll in list modes for your convenience.
6.0 HBBTV APPLICATIONS
Your receiver supports HbbTV – hybrid reception of content from terrestrial signals and from the Internet (HbbTV = Hybrid Broadcast and Broadband TV). In order to enjoy HbbTV services, your receiver must be connected to the Internet. Through HbbTV, you will be able to access new services from leading broadcasters, online services and application providers – including video on demand (VoD), interactive advertising, web applications, games and social networking as well as programme-related services such as digital text and EPGs.
The HbbTV services are provided and signaled to the receiver by the broadcasters. As soon as you tune to a channel, the receiver will identify the availability of the HbbTV service of the channel (if available) and will launch it through its built-in web browser. In most cases an icon is shown with a colour button that you can select on the remote control to launch the application. When the HbbTV service is launched, some buttons of the remote control will have a new functionality. Follow the instructions on the screen to navigate and operate the service accordingly. When you press EXIT on the remote control, you will leave the HbbTV service and return to you the full control of the receiver. The HbbTV services may be disabled, launched automatically or provide on-screen notification.
NOTE: HbbTV services rely on your Internet connection and therefore performance depends on the speed of your connection.
NOTE: Like any other Internet-based services and applications, HbbTV services are provided by third parties and therefore not fully under control from the receiver. Those services can be terminated at any time without any notice.
7.0 OPERATION
Your new receiver is equipped with several features to make watching TV a true pleasure. This chapter describes these features. Please do also read chapter 8.0 to get familiar with the menu of your receiver.
1.22 Changing channels
Following ways are possible for changing channels with your new receiver:
■ Via direct access using the 0\~9 buttons.
■ Via the channel list through OK.
■ Via the ▲▼ buttons and CH+/CH- buttons.
1.22.1 Direct access via 0\~9 buttons
To gain direct access to a certain channel, simply enter its number with the 0\~9 buttons on the remote control. Channel numbers can be up to four digits long. Entering a number with less than four digits is possible. Just wait a few seconds and your receiver will switch to the selected channel or press OK immediately after selecting the channel number.
1.22.2 Channel list
Press OK in viewing mode to display the TV list. Use ▲▼ in the channel list to highlight your channel of choice and press OK to switch. Inside the channel list it is possible to use the P+/P- buttons to scroll page-wise through the list.
TIP:
In case you have already created a favourite list, use ◀ inside the channel list, to select between the TV list and the favourite list(s) or press FAV in viewing mode to open this selection.
1.22.3 Using ▲▼ and CH+/CH- buttons
▲ or CH+ switches to the next channel.
▼ or CH- switches to the previous channel.
1.23 Info Banner
While watching TV, you can press INFO at any time to access information about the current channel and event*.
Press INFO twice for extended EPG details about the current channel.
Within the program information use ▲▼ or P+/P- to scroll. If you press ◀▶ you can change between Current Program Info and Next Programme Info.
* Event information is displayed when available. Availability depends on the broadcast.
1.24 Selection of audio language
Some channels support a choice of audio formats and/or languages. To select another audio stream, press AUDIO in viewing mode. A list of available audio streams will now be displayed. Use ▲▼ to select a stream and confirm with OK. The audio output as stereo, mix, left and right can be selected with ◀▶.
1.25 Videotext
To access the available Videotext, press the TEXT button in viewing mode and use the 0\~9 buttons to enter the number of the page you wish to see. In case of availability you can also use the COLOUR BUTTONS of the remote control for direct access, as indicated on the bottom of the screen.
Use ▲▼ to select one page, use ◀▶ to select subpages. By pressing OK you can change the transparency. Each time there will be another level and after the fifth time the initial transparency is achieved. Press ➕ to get back to viewing mode. After leaving Videotext, the transparency level is set to the initial level again.
7.1 Subtitles
Some channels support a choice of subtitle languages. Press SUB in viewing mode to display a list of available subtitle languages. Select your subtitle of choice with ▲▼ and press OK to confirm. Press ➕ to leave without making changes.*
* Availability of DVB/Hard of Hearing subtitles depends on the broadcast. If subtitles are not available, they can be activated via Videotext (if available).
1.26 EPG (Electronic Programme Guide)
The Electronic Programme Guide is a very useful function that allows you to view event schedules and programme information and to mark events/movies for wakeup of the receiver or schedule an event recording. To access the EPG, press EPG in viewing mode. Use ▲▼ to select a channel and ◀▶ to select an event. Press OK to display detailed information of the selected event. Use ⬆ to quit the detailed information screen. Press the RED or GREEN buttons to see and select another day. Press the YELLOW button to set a timer for a selected event. Refer to section 7.3.4 for details of the timer function.
NOTE: Availability of EPG data depends on broadcast.
1.27 Record and Timeshift
To use these functions you must connect a USB memory device to the USB port at the rear panel. For best performance, especially of HD content, we advice to use Hard Disk Drives USB 2.0 or higher. These must be formatted in FAT32 or NTFS format otherwise Recording and Timeshift function will not work. Recording of encrypted programmes may require additional authorization by broadcaster.
1.27.1 Recording
To immediately record a programme, press ● to start the recording and press ■ to quit. During a recording it is possible to press ▲▼, or OK and ▲▼ to change to another channel on the same transponder only. Also it is possible to use the 0-9 buttons.
1.27.2 Timeshift
If you want to use the Timeshift function you only need to press Ⅱ in viewing mode. To resume timeshifted content, press ▶ or Ⅱ again. During the playback you can use the ◀▶ or Ⅱ buttons. To stop the Timeshift mode, press ■ and it will jump to the actual time of the live signal. The function will still be running in the background and as long you do not switch to another channel it is possible to jump again to the beginning by pressing Ⅱ again. Also, with ◀▶ it is possible to jump in time during Timeshift modes. Default is set to 20 seconds. Press the GREEN Jump Set button to change the jump time. If the channel is changed the timeshifted content will only be accessible from the newly selected channel.
NOTE: To switch off the Timeshift function completely you need to change the Timeshift status to disable in the Record setup menu.
1.27.3 Timer recording
There are 2 ways to set a timer:
Programming a record timer via the EPG
The easiest way to record an event is via the EPG. Press the EPG button to open the EPG, then use ▲▼ to select a channel. After that, press ◀▶ and use ▲▼ to select an event. You can book a record timer by pressing ●. If you press ● again on this event, the timer will be disabled. The set time of timer is fixed and cannot be modified.
Programming a record timer via the Timer menu
If you want to programme a record timer via the timer menu, select it via the MENU button on the remote control in viewing mode, option Timer in the menu Settings. This way you are free to programme start and stop time. For further details about this menu, please refer to chapter 8.3.6 Timer in the user manual.
1.27.4 Playback
After a recording has been made you will find a new folder Records created on your external USB storage device. By pressing ▶ in viewing mode you can access this folder directly. Inside the Records menu the following functions are supported:
▲▼ To select a recorded event.
OK Starts playback in preview and again in full screen mode.
■Stops playback
RED Option
Opens the option menu to select and deselect for deleting a recorded file(s). This menu item opens only if you have selected first a file by using ▲▼. Marks a recording for deletion. When all recordings you want to delete are marked, select Deleted Selected press OK. A message will appear to confirm deleting. By pressing OK again the recordings will be permanently deleted from your external USB storage device. Select Cancel if you don't want to delete them or select once more OK to definitely delete.
8.0 MAIN MENU
The main menu gives you access to Installation, Channels, Settings, Multimedia and Network functions. To access the main menu, press MENU in viewing mode. Throughout the main menu, can be used to get back to the previous screen and to quit.
1.28 Installation of channels
Use ◀▶ to select the main menu item Installation.
Use ▲▼ to highlight the submenu of choice and press OK to select. These submenus are available: Manual Search, Auto Search, Information, Factory Settings and HPP CA Menu.
1.28.1 Manual Search
This menu allows you to search for channels at a specific Frequency or Channel number.
Use ▲▼ to select Scan mode, and select between Free which will only install Free-to-Air channels or All. This means that channels that are Free-to-Air or scrambled will be searched and stored.
Use ▲▼ to select Channel No and select the channel number of the frequency you'd like to search. Press OK to open a list to make selection faster.
The next option Modulation is to select between Only DVB-T or DVB-T/T2 modulation type.
When in doubt, use the DVB-T/T2 setting.
If you use an active antenna (with built-in amplifier), then switch the Antenna Power to On. If you use a passive antenna (without built-in amplifier), then select Off.
Highlight Search and press OK to start scanning. New found channels will be added to the channel list.
1.28.2 Auto Search
This menu allows you to search for channels from all available Frequencies or Channel numbers. Be aware that all previous installed channels and favourite list(s) will be deleted. The new found channels will be installed in the channel list and afterwards you can create a new favourite list if you like.
Select Scan mode, and select between Free which will only install Free-to-Air channels or All.
If you use an active antenna (with built-in amplifier), then switch the Antenna Power to On. If you use a passive antenna (without built-in amplifier), then select Off.
Highlight Search and press OK to start scanning.
1.28.3 Information
This submenu shows receiver specific information such as hardware and software version. It also displays technical information from the currently selected channel and signal strength and quality. Please have the Information screen on hand when you call our hotline. The person who answers your call might ask for the information given in this screen.
1.28.4 Factory Reset
This option allows you to reset the receiver back to the factory settings, which also clears all stored channels.
Use ▲▼ to select Factory Reset in the Installation menu and press OK. You are asked to enter your PIN code. Enter the correct PIN code using the 0\~9buttons. (DEFAULT PIN: 0000). A confirmation window is displayed. Select OK to load factory settings. Select Cancel to cancel. Press ➤ to leave.
WARNING: By resetting your receiver to factory default, all your settings and stored channels will be permanently deleted. Please use this option with care.
1.28.5 HPP CA Menu
This menu allows to read technical data about your subscription(s), read a message from your provider and check the rights to watch certain programmes. A Software update is signalled here too. Follow the instructions on screen. Some data given has no immediate meaning to a client, but is useful to for example a service centre or provider itself. This menu gives access to the following submenus which can be opened for detailed information about these items: Service Status, Loader Status, Product Status, Client Status, Mailbox and Software update.
1.28.5.1 Service Status
In this menu you can find information about the service descrambling status.
1.28.5.2 Loader Status
In this menu you can find information about the used software version, Irdeto loader, the CSSN (chipset serial number) and serial number of your receiver.
1.28.5.3 Product Status
The Product Status shows the current subscription status information of the product(s) you have subscribed to by your operator. You will see the activation date and duration of the subscribed product(s).
1.28.5.4 Client Status
This menu displays all details of the built-in conditional access system and its capabilities.
1.28.5.5 Mailbox
This menu allows access to provider mails. It is used for sending important information from broadcaster/content provider to you. If you receive a mail you will get this message directly displayed on screen. After the mail has been removed from the screen you can find the messages within the menu and have the possibility to delete messages individually by pressing the BLUE Delete button or to delete all of them by pressing the RED Delete ALL button.
1.28.5.6 Software update
This menu item became selectable if operator broadcast software update. The Over-The-Air (OTA) software update function will automatically check if a new software version is available. In case it is, a
message will appear on screen. Select OK to start the download and update. Press ➕ if you don't want to update now. You can refuse software update up to 2 times, after that it will be done automatically.
NOTE: If the receiver should behave in an unexpected way after a software update, please perform a factory reset. See chapter 8.1.4.
WARNING: After an update the receiver restarts automatically on the last watched channel. During the upgrade process NEVER disconnect the receiver from the mains respectively from the antenna cable or switch off the power! Doing so might damage your receiver and will void warranty!
1.29 Channels
Use ◀▶ to select Channels in the main menu.
Use ▲▼ to highlight the submenu of choice and press OK to select.
1.29.1 TV Manager
This menu allows you to create favourite lists, move channels in order, lock channels with PIN protection and delete channels from the TV list.
1.29.1.1 Adding channels to favourite lists
Channels from the TV list can be added to up to 4 different favourite groups. Select Favourite and press OK, select the wanted favourite group and press OK again. Use ▲▼ to select a channel you wish to add to a favourite group. When the highlight is on the channel of your choice, press OK. At the right side you will see your new created favourite list. If you like to remove a channel from a favourite list, simply press ▶ and select that channel and press OK to delete.
NOTE: It is recommended to start with the selection of the channel you'd like to have at position 1 in the favourite list and then add others in the desired order one by one. However, sorting of favourite channels afterwards is possible by using the GREEN Move button, but only if the Logical Channel Numbering function is switched Off. In the new software versions this function is set to OFF by default (Menu > Settings > General settings), in case of doubt please update your receiver with the latest software version.
If the Logical Channel Numbering function is switched On channels can't be moved.
Press ➔ to finalize the process. A confirmation banner will pop up. Select OK to save the changes or Cancel to discard.
1.29.1.2 Move channels in channel list
This receiver supports Logical Channel Numbering (LCN). This means that the channel numbers are operator defined and automatically sorted into the main channel list. Sorting in the main list is therefore not possible. In this case the Move function is marked grey and cannot be selected. The default setting for this function is Off and you are free to sort the channels in the main channel list. Further information about the functions Automatic channel update and Logical channel numbering, which have influence on the functions of channel management, can be found in the chapters 8.3.3.3 and 8.3.3.4.
Sort the channel order from the main channel list
Select the option Move and press OK. Use ▲▼ to select the channel you wish to sort onto first position. When the highlight is on the channel of your choice, press OK. This can be done with more channels until you are happy with the sorted order. To remove one channel from selection list, press ◀ and
select in the "Selected" list the channel. Press OK to remove it. To store the new channel order, select in "Channel list" the position press the RED button Move. If you have only sorted a few channels and want to store this between existing channels, select in "Channel list" the position where the sorted channels need to be copied to.
1.29.1.3 Lock channels
Protect channels with a PIN code to prevent an unwanted watching of specific content/channels. Select the option Lock and press OK. Use ▲▼ to select a channel you wish to protect. When the highlight is on the channel of your choice, press OK. At the right hand side you will see your protected channel list. If you like to remove a channel from this list, then simply press ▶ and select that channel and press OK to unselect.
1.29.1.4 Delete channels
Delete a channel or channels permanently from the main channel list (until you make a new search). Select the option Delete and press OK. Use ▲▼ to select the channel you wish to delete. When the highlight is on that channel, press OK. At the right hand side, you will find the selection to delete from channel list. When you are ready, press ⬆ and confirm.
NOTE:
If the function "Auto Channel Update" is set to On it is not possible to delete channels. This function can be found in the menu Settings > General Settings as described in chapter 8.3.3.3.
1.29.2 Radio Manager
Create favourite lists, move channels in order, lock channels with PIN protection and delete channels from the radio list. The functions of handling are the same as in the TV Manager as described above. The only difference is that in the Radio manager there is no video information, so it will always display the radio background on the preview screen.
1.29.3 Programme Information
This menu item opens the Electronic Programme Guide (EPG), for details please see chapter 7.6.
1.30 Settings
Use ◀▶ to select Settings in the main menu. Use ▲▼ to highlight the submenu of choice and press OK to select.
1.30.1 Language
This menu allows you to set up your language preferences.
OSD Language: Use ◀▶ to select the language for the On Screen Display.
1st Audio language:
Use ◀▶ to select the audio language you like to hear as first priority, if available.
2nd Audio language:
Use ◀▶ to select a language that will be played when the language selected at 1st Audio language isn't available.
Subtitle Type: Select the preferred subtitle type to be displayed automatically. Select Normal or Hard of Hearing*
Subtitle Display: Select On to activate displaying of subtitles.
1st Subtitle Language:
Use ◀▶ to select the first preferred subtitle language.
2nd Subtitle Language:
Use ◀▶ to select the second preferred subtitle language.
* Availability of DVB/Hard of Hearing subtitles depends on the broadcast. If subtitles are not available, they might be activated via Videotext.
1.30.2 Output Settings
Use this menu to adjust your desired output settings according to your TV and/or home cinema.
The following settings are available:
HDMI Resolution: Select the video resolution of your TV screen. The options are: Auto (automatic detection of video resolution offered to the receiver) and manual selections 480i, 576i up to 1080p Please use a setting that matches the specifications of your TV. Selection above 576i is only applicable to the HDMI output.
Aspect Ratio: Select the aspect ratio of your TV. The options are: 4:3 for 4:3 screen and 16:9 for 16:9 TV sets.
Aspect conversion: Select the preferred conversion method. The options are: PanScan: displays 16:9 widescreen broadcasts in full screen on a 4:3 TV. Letterbox: black bars on top and bottom of the picture on a 4:3 TV. Combined: shows a mix in-between. Ignore: shows as it is.
Connection: Select the connection to your TV set. Select HDMI or SCART. If the connection type HDMI is selected, then only the CVBS signal will be available on the TV SCART.
OSD Transparency:
To set the OSD transparency from Opacity \~ 50% with 10% steps.
Banner Timeout: Sets the time after which on screen banners and messages disappear. The range is 3\~10 seconds.
HDMI Audio Output:
Toggles between PCM and Bitstream output. When PCM is selected, all digital audio will be converted to stereo audio. Bitstream enables you to listen or transfer Dolby® Digital/Dolby® Digital Plus* audio to the TV via HDMI or to a home cinema set.
SPDIF Audio Output:
Toggles between PCM and Bitstream output. When PCM is selected, all digital audio will be converted to stereo audio. Bitstream enables you to listen or transfer Dolby® Digital/Dolby® audio to a home cinema set through coaxial S/PDIF. (Not Dolby® Digital Plus.)
Audio Description: AD. Set this option to On if you like to have support of an audio track that describes the content on screen. Useful for the visual impaired.
Audio Description Volume offset:
Select the volume from the AD audio track.
* Dolby Digital Plus, Dolby Digital and the double-D symbol are registered trademarks of Dolby Laboratories
1.30.3 General Settings
This menu allows you to manage the basic system settings of your receiver.
It allows you to adjust following items: Auto Standby, Auto Channel Update and Logical Channel Numbering.
1.30.3.1 Auto Standby
Auto Standby is a feature that helps you reducing power consumption.
Press ▲▼ to highlight the Auto Standby item and use ◀▶ to change between 1 Hour up to 6 Hours. The receiver will switch into standby-mode if it doesn't receive any command of the remote control during this time. Set it to Off to deactivate the automatic standby function.
1.30.3.2 HbbTV
The HbbTV function can be switched Off, if not needed or wanted. Default is On.
1.30.3.3 Auto Channel Update
If this function is switched On, the unit will check if new channels are available before your receiver is switching to standby. When switching on the next time, you will be informed if new channels are on air and prompted to start an auto scan. This function allows you to keep the channel list up-to-date always. If you select Off, the automatic channel update function is deactivated and you'll be enabled to use the Delete function in the TV Manager.
1.30.3.4 Logical Channel Numbering
This receiver supports Logical Channel Numbering (LCN). This means that the channel numbers are operator defined and automatically sorted into the main channel list. Sorting in the main list is therefore not possible. In this case the Move function is marked grey and cannot be selected. The default setting for this function is Off and you are free to sort the channels in the main channel list.
As soon as the broadcaster supports this function you can activate it by setting it from Off to On. In this case the receiver will delete all current channels and favourite lists and start a fully new scan process. Please confirm the displayed message with OK to proceed.
1.30.4 Parental Control
This menu allows you to protect the installation menu and/or channels with a PIN code. You can also create a new PIN code. Use ▲▼ to select Parental Control from the Settings menu and press OK to proceed. You will be asked to enter your PIN code. (DEFAULT PIN: 0000)
Menu Lock: Locks the installation menu. You can set the Menu Lock to On or Off.
Program Lock: Switch all programme/channels lock to On or Off. If the lock is set in the TV or Radio Manager menu. You can select the lock separately for every channel which you like to protect it with a PIN code.
Program Lock age: Choose between: Off Lock None, Lock All, 4 years old and up to 18 years old. Channels with a parental rating above the chosen age will be protected with a PIN code (if available in your local broadcast.)
PIN Code Change: Press OK to enter the menu.
Old PIN Code: Enter your current PIN code (4 digits).
New PIN Code: Enter your new PIN code (4 digits) you'd like to use. (Make a note of it.)
Confirm: Re-enter your new PIN code to confirm. Press OK to end and save the change.
1.30.5 Time Settings
Here you can set up your time zone for clock/time in your menu and system.
Use ▲▼ to move the highlight to the setting of choice. Values can be changed with ◀▶. Press ➔ to leave.
GMT Usage: Set to Auto for broadcaster defined time depending of country selection you made in the First Installation Wizard. Normally, the clock/time will be correct and also follow up the summer time changes automatically. In some regions close to neighbouring countries it can happen that the wrong time zone is followed. In this case select the option User Defined to set up time manually in the next steps below.
GMT Offset: Allows you to adjust the time zone you live in. This option is only available when GMT Usage is set to User Define. The GMT Offset range is "-11:00 \~ +12:00".
Summer Time: Select Off or On to add one hour extra for summer time.
1.30.6 Timers
This menu allows you to set up to 10 timed events for waking up the receiver.
Use ▲▼ to select Timer from the Settings menu and press OK to enter.
The receiver will display a list with 10 timers, followed by their respective status. Select the timer you wish to set or change with ▲▼ and press OK to proceed.
The timer setup menu will now be displayed.
The following settings are available:
Timer Status: Choose between Once, Monday \~ Friday, Daily and Weekly Timer or select Off, then the Timer will execute the scheduled event.
Timer Action: Select Booking to wake-up the receiver and switch to the selected channel. Select Recording to start record from the selected event to an externally connected USB device.
Channel: Press OK to open the channel list and use ▲▼ to select the channel where the timer will wake up with.
Start Date: Use the 0\~9 buttons to enter the date for the timed event.
Start Time: Use the 0\~9 buttons to enter the start time.
Duration: Use the 0\~9 buttons to enter the timer duration.
Event Name: Displays, after you have saved the timer, the event name according to the EPG. This is only possible if EPG is available.
When all settings are according to your wishes, use ▲▼ to move the highlight to Save and press OK to confirm. To quit the timer without saving your settings press Q.
1.31 Multimedia
The Multimedia menu consists of the following submenus: Records, Movies, Music, Pictures, DVR Setup and Storage Device Setup. Please, insert first a USB device and use ▲▼ to highlight the menu of choice and press OK to enter. Press ➕ to quit or ⬆ to return to the previous menu.
1.31.1 Multimedia Player
This function allows playback of different kind of files from the connected USB storage device.
In the Multimedia menu, select Records and press OK to show the recordings you've made. Select Movies and press OK to enter this menu to play all kind of video formats. Select Music to playback files as MP3, OGG and FLAC formats. Select Pictures to playback your favourite pictures in JPG or BMP format.*
When entering the Multimedia Player, the highlight is on the root folder of the USB storage device. Press OK to open the directory respectively its folders/subfolders. On screen in the right upper corner the root folders are displayed for easier navigation. Press ▲▼ to select a file or folder and press OK to open the folder/subfolder (if applicable) or start playback of the file. Press ➔ to exit or press OK to open in full screen.
Use the buttons like described below in order to choose functions during the different playback modes.
General:
▶ Start of playback of multimedia file.
II To pause the playback of multimedia file.
Fast rewind/fast forward.
Jump function in playback modes of multimedia files.
■Stopplayback.
Records:
▲▼ To select a recorded event.
OK Starts playback in preview and again in full screen mode.
■Stops playback
| RED Option | Opens the option menu to select and deselect for deleting a recorded file(s).This menu item opens only if you have selected first a file by using ▲▼. |
| Marks a recording for deletion. When all recordings you want to delete are marked, select Deleted Selected press OK. A message will appear to confirm deleting. By pressing OK again the recordings will be permanently deleted from your external USB storage device. Select Cancel if you don't want to delete them or select once more OK to definitely delete. | |
Movies:
| RED Subtitle | During the playback of a movie with external subtitles, press the RED button Subtitle to enter the subtitle menu. In this menu you can select size and colours of your preference. |
| GREEN Jump | Press the GREEN button Jump to open the Jump By Time menu. You can select a time where you'd like to jump to. |
| YELLOW Hide | Press the YELLOW button Hide to remove or call the timeline information banner. |
| BLUE Audio | Toggles between Stereo, Left, Right and Mono audio channel output. |
Music:
| ▲▼ | Enter the folder with music files. Use the ▲▼ to select a file and press ▶ or OK to start playback. To stop playback press ■. |
| RED Play Mode | Press the RED button Play Mode to toggles between All Play, All Circle, Random Play, Single Play and Single Circle. |
Pictures:
| ▲▼ | Enter the folder with picture files. Use ▲▼ to select a picture. If the format is supported it shows the picture in the small picture-in-picture screen. Press OK to watch it in full screen mode. |
| RED Options | Before the playback of a picture in full screen, you can setup a slideshow/diashow. Press the RED button Options to enter the sub option menu Slide change Time. Select time of the slide show or switch this function off. After you select a time, press OK and show starts to play. Press the ➔ button to stop. |
* Playback of files cannot be guaranteed although extensions are listed, as it depends on codec, data bit rate and resolution used (all MPEG codec formats are supported).
1.31.2 DVR Setup
This menu is only accessible if you connect a USB storage device. Here you can setup Timeshift and recording.
The following settings are available:
Timeshift Step (Minute:Second):
Select the time size step in minutes and seconds which you like to make by using ◀ during navigation in Timeshift modes. Use the 0\~9 buttons to enter the time.
Timeshift Duration (Hour:Minute):
Select the maximal time (size) which is reserved for the Timeshift function. Use the 0\~9 buttons to enter the duration.
Record Duration (Hour:Minute):
Select the default maximum time for recordings that can be started with the ● button. Use the 0\~9 buttons to enter the duration.
Start Record earlier:
If you want to start the recording, set under timer from EPG some minutes earlier than the time obtained from the programme guide.
End Record later: If you want to stop the recording, set under timer from EPG some minutes later as time obtained from the programme guide.
REC Icon: If you start a recording, an icon will be shown in the left upper corner of your TV screen with the text "REC". Default is set to On. Select 5 Seconds or 10 Seconds to let the icon disappear after the selected time.
1.31.3 Storage Device Setup
This option shows relevant information about the connected USB device. In this menu you can also format your USB storage device and safely remove.
Select Storage Device Setup in the Multimedia menu and press OK to enter.
Now you will see all details as free and used space sizes and used file system.
Press the RED Safely Remove button and press OK to safely disconnect the USB device. The receiver will display a message indicating that you can now safely remove your storage device from the receiver.
Press the BLUE Format USB Device button to format the connected USB device.
Please, enter your PIN code to access this menu and press OK to start formatting.
Press C→ to leave this menu.
NOTE:
After performing the Safely Remove function, the USB device is no longer accessible by your receiver. To gain access to you're the storage device again, re-insert it or switch the receiver to standby and on again.
WARNING: Formatting will permanently delete ALL data stored on the connected device. Always make backups of data on your USB storage device before using it with this receiver. STRONG will not take responsibility for any loss of information or circumstances caused by loss of information.
NOTE: It is possible to use USB storage devices already formatted in NTFS.
1.32 Network
This menu consists of the following submenus: RSS, Weather, EVOTV portal and IP Settings. First connect a CAT5E (or higher quality) cable to the RJ-45 (ETHERNET) port of your receiver and ensure the other end is connected to the internet accordingly. If there are questions or problems with the internet connection, we recommend you to check details via the support or helpline of your internet provider.
Before you start to use the Internet functions please check the setup of the Internet connection via IP Settings menu and confirm SET with OK. Usually the Internet connection should now been established without any problem and ready to use. A message will inform you if the connection has been setup successfully or not, use OK to confirm and press 🔒 to leave this menu.
Inside the menu use ▲▼ to highlight the submenu of choice and press OK to enter. Press ➕ to quit or 🔔 to go one step back.
1.32.1 EVOTV portal
Accessing this menu will load the EVOTV portal. Follow future instructions on screen to get access to content.
1.32.2 RSS (Really Simple Syndication)
This menu allows you to select a link to read the latest RSS news from different sources or to add your own links.
Use ▲▼ to highlight a link of your choice and press OK to enter. Select an item you want to read. Press ➔ to quit. Also you have option to delete, add or edit an RSS feed of your own choice. Press the GREEN button Add RSS Feed to open the keyboard. Use ▲▼ and ◀▶ to enter values. If you need to use special characters press P+/P-. To save the created RSS link, select Save and press OK.
1.32.3 Weather
This menu allows you to watch the weather in your region.
Use ▲▼ to highlight the menu item Weather from the Network menu. If you have correct Internet connection then the weather page will show up with details on screen.
Use the YELLOW button City List to open a selection list with main cities. Use ▲▼ to highlight a major city near you and press OK to select.
You can enter a city manually. Press the GREEN button Change City to open a keyboard. Use ▲▼ ◀▶ to enter. If you need to use special symbols, press P+/P-. To save the name, select at the end Save and press OK.
Press the RED Refresh button to refresh information on screen.
Press the BLUE Change Temp Standard button to switch between Celsius and Fahrenheit temperature format.
1.32.4 IP Settings
This menu allows you to setup or check the Internet connection. The default selection is DHCP set to On. Normally the setup is done automatically by this. To test if the Internet connection works, select the item SET and press OK. If successful, a pop-up message box will show up and you can start using it. If not successful, then check your cable or router. Alternatively set DHCP to Off. Then manually enter your IP, Gateway and DNS values by using the 0 \~ 9 buttons. Select after entering these values the item SET and press OK to store and to check.
A.1 Troubleshooting
There may be various reasons for abnormal operation of the receiver. Check the receiver according to the procedures shown below. If the receiver does not work properly after checking it, please contact your dealer or the local Service Hotline or send email to our Support via www.strong.tv. Do NOT try to open or disassemble the receiver. It may cause a dangerous situation and warranty will be void.
| Problem Possible | cause What to do | |
| LED indicator is not lit The | mains lead is unplugged Check the mains plug | |
| No signal found The antenna | na is disconnectedThe antenna is damaged/misalignedOut of digital signal areaActive antenna requires to switch ON the antenna power/external power | Check the lead of the antennaCheck the antennaCheck with your dealerSwitch the antenna power of the receiver ON/connect external power |
| No picture or sound on TV or amplifier | HDMI or SCART is not selected on your TV or amplifier or the unit is set to higher resolution as the TV supports.TV/amplifier is not switched on | Switch to correct TV/amplifier inputSelect lower resolution on receiverSwitch TV/amplifier on.Check if S/PDIF connection is used. |
| Scrambled channel message | Channel is scrambled Check if you have the rights to watch this channel | |
| No response to the remote control | The receiver is offThe remote control is not aimed correctlyThe front panel is obstructedThe batteries of the remote control are exhausted | Plug in and turn on the plugAim the remote control at the front panelAvoid obstructionsReplace the batteries of the remote control |
| Forgotten Parental Control PIN codeForgotten channel lock code | Default PIN is 0000Contact your local Service Hotline or send an email to our Support via www.strong.tv | |
| After moving the receiver to another room/area you are no longer able to receive digital reception | The antenna signals are too weakThe signal strength/quality might be less than before, if using an indoor antenna | Press INFO on the remote control to check the signal bars on screen and adjust the antenna for (maximum) reception. Alternatively, do a rescan of the channels.When using an active antenna, check if the antenna power setting is OnTry using an outdoor antenna |
| The receiver switches off automaticallyPlayback of video causes picture freeze/macro blocks or similar distortion, especially on HD content | The Auto Standby function is enabledThe read speed of your USB device could be too low | Disable {Auto Standby}. See section 8.3.3.2 for details.Make sure to use a USB storage device with sufficient speed and space. Pen drives ('USB sticks') may not support sufficient speed. |
| HbbTV not working Broadcaster may (temporarily) not provide HbbTV.Ethernet cable not connected.Network settings not set. | Tune to different channel.Connect cable to router/modem.Refresh setting in IP menu. | |
A.2 Technical Specifications
Tuner
Input connector: IEC60169-2, female, 75 Ohm nominal
Input frequency range: VHF: 177,5 \~ 226,5 MHz
UHF: 474 \~ 786 MHz
Input signal level: DVB-T2: -70 dBm \~ -25 dBm
Antenna power: 5 V DC, max. 100 mA, short cut protected
Demodulator
Demodulator: QSPK, 16/64/256 QAM
DVB-T2 (EN 302 755)
Transmission mode: normal and extended
Guard intervals: DVB-T = 1/32, 1/16, 1/8, 1/4;
DVB-T2 = 1/128, 1/32, 1/16, 19/256, 1/8, 19/128, 1/4
Video Decoder
Profile level: MP@HL, MPEG-4 H.264/AVC, MPEG-4
H.265/HEVC
Video resolutions: 576i, 576p, 720p, 1080i, 1080p
Decoding & Video out: PAL
Aspect ratio: 4:3, 16:9
Conversion: Pan & Scan, Letterbox and Combined
Audio Decoder
Audio support: Dolby Digital Plus*/AC3+/PCM
MPEG MusiCam Layer II
Sampling rate: 32, 44.1, 48 KHz
Audio mode: Stereo, Mono L/R
* Dolby Digital Plus and the Double-D symbol are registered trademarks of Dolby Laboratories
Multimedia
Video playback: MKV, MPEG-4/H264, HEVC/H265*
Audio playback: MP3, FLAC, OGG*
Picture view: BMP, JPG*
* STRONG cannot guarantee the playback of all files although extensions are listed, as it depends on codec, data bit rate and resolution used.
Connectors
ANT IN - IEC Female
RJ-45 Ethernet
HDMI
TV SCART (RGB, CVBS, Audio L/R)
S/PDIF (coax.)
3.5 mm Audio L/R
USB 2.0 port: 5 V/800 mA (peak) supported
Power adapter (DC 12 V, 1.5 A, 18 W)
General Data
Power supply: AC 100 - 240 V \~ 50/60 Hz
Input voltage: DC 12 V, 1.5 A
Power consumption: 7 W (typ.), 18 W (max)
Power consumption in standby: max. 1.0 W
Operating temperature: 0^ C \~ +40 ^ C
Storage temperature: -10^ +50^
Operating humidity range: 10\~85%, RH, Non-condensing
Size (WxDxH) in mm: 220 x 164 x 43
Weight: 0.63 kg
- EVOTV SLUŽBA ZA KORISNIKE
- HR
- Licenses
- TABLE OF CONTENTS
- INTRODUCTION 3
- YOUR RECEIVER 5
- CONNECTION
- STARTING UP FOR THE FIRST TIME
- QUICK GUIDE TO USING YOUR RECEIVER
- HBBTV APPLICATIONS
- OPERATION
- MAIN MENU
- A.1 TROUBLESHOOTING
- A.2 TECHNICAL SPECIFICATIONS
- INTRODUCTION
- Safety Instructions
- Precautions
- Operating Environment
- WEEE Directive
- Storage
- Equipment Set-up
- Accessories
- Usage of external USB devices
- YOUR RECEIVER
- DEFAULT PIN: 0000
- Front Panel
- Rear Panel
- Remote control
- Installing the batteries
- Using the remote control
- Connecting to a terrestrial antenna
- Connecting to TV with HDMI cable
- Connecting to TV with SCART cable
- Connecting a USB storage device
- Connecting to the Internet to access HbbTV content
- Connection to main power supply
- Extended connections for your home entertainment
- Connecting to a digital audio amplifier and TV using HDMI
- Language selection
- Region, Subtitles, Scan Mode and screen settings
- Aerial Adjustment
- Changing channels
- Direct access via 0\~9 buttons
- Channel list
- Using ▲▼ and CH+/CH- buttons
- Info Banner
- Selection of audio language
- Videotext
- Subtitles
- EPG (Electronic Programme Guide)
- Record and Timeshift
- Recording
- Timeshift
- Timer recording
- Programming a record timer via the EPG
- Programming a record timer via the Timer menu
- Playback
- Installation of channels
- Manual Search
- Auto Search
- Information
- Factory Reset
- HPP CA Menu
- Service Status
- Loader Status
- Product Status
- Client Status
- Mailbox
- Software update
- Channels
- TV Manager
- Adding channels to favourite lists
- Move channels in channel list
- Sort the channel order from the main channel list
- Lock channels
- Delete channels
- NOTE:
- Radio Manager
- Programme Information
- Settings
- Language
- Output Settings
- General Settings
- Auto Standby
- HbbTV
- Auto Channel Update
- Logical Channel Numbering
- Parental Control
- Time Settings
- Timers
- Multimedia
- Multimedia Player
- General:
- Records:
- DVR Setup
- Start Record earlier:
- Storage Device Setup
- Network
- EVOTV portal
- RSS (Really Simple Syndication)
- Weather
- IP Settings
- Tuner
- Demodulator
- Video Decoder
- Audio Decoder
- Multimedia
- Connectors
- General Data
Brand : STRONG
Model : SRT 8550
Category : Receiver
